Hobbywing Tunalyzer Tool of Motor Testing and Tuning - Kv/RPM/Current, 3 inch Touch Screen, Bluetooth, 6-16.8V

Overview

HOBBYWING Tunalyzer is a Tool of Motor Testing and Tuning designed to evaluate brushless DC motors and related internal components. It displays real-time data on a color touch screen, including Kv value, RPM, current, end-bell timing, and sensor-related elements. Built-in Bluetooth connectivity supports communication with compatible HOBBYWING ESCs via a mobile app for parameter setting and firmware updating (ESC must support the OTA Bluetooth module).

Key Features

• Measures motor current, Kv value, RPM, end-bell timing/deviation, rotor asymmetry, hall signal deviation, and motor temperature.
• Automatic test mode with accurate current readings within 0.01A; end-bell deviation, rotor asymmetry, and hall signal deviation accuracy within 0.1 degrees.
• Manual test mode for benchtop checks with forward/reverse and 100% linear throttle; live data output is displayed.
• Stable voltage regulator for repeated tests at the same voltage as the battery pack discharges (uses preset voltages; battery must be greater than the set voltage).
• Supports sensored and sensorless brushless motors, including multipolar motor types.
• Motor pole setting supports 2-60 pole motors for real-time RPM display.
• 3 inch color touch screen display.

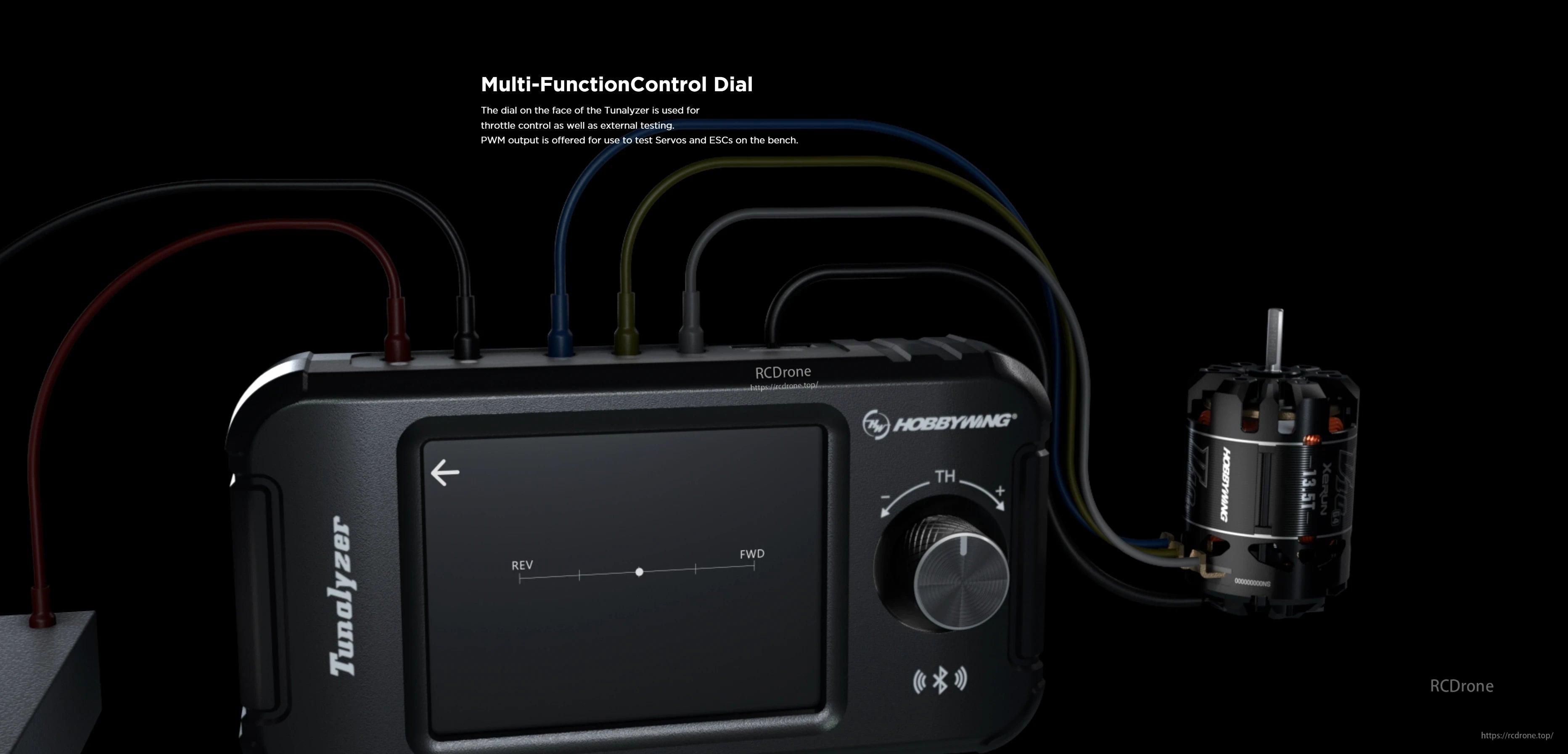

• Multi-function control dial for throttle control and external testing; PWM output supports bench testing of servos and ESCs.
• Built-in reverse power supply protection circuit to help prevent damage from incorrect battery connection.
• OTA tuning and upgrades: can double as an ESC programmer for benchtop ESC tuning via the HW Link App using Bluetooth.

Specifications

Customer service: support@rcdrone.top

Applications

• Brushless motor testing and tuning (sensored and sensorless)
• Motor comparison testing at controlled (preset) voltages
• Benchtop ESC parameter setup and firmware updates (with OTA Bluetooth module support)
• Benchtop external testing via PWM output (servos and ESCs)

Manuals

• User Guide (connection diagram)

Connection Notes

1. Do not connect the battery to the A B C motor interface by mistake, otherwise the device will be damaged.
2. When testing a sensored brushless motor, the A, B and C wiring must be connected in strict accordance with the sequence of A-A, B-B and C-C.
3. During the test, ensure that the motor A, B and C ends will not touch each other and cause a short circuit, so as to avoid damaging the device.

Details

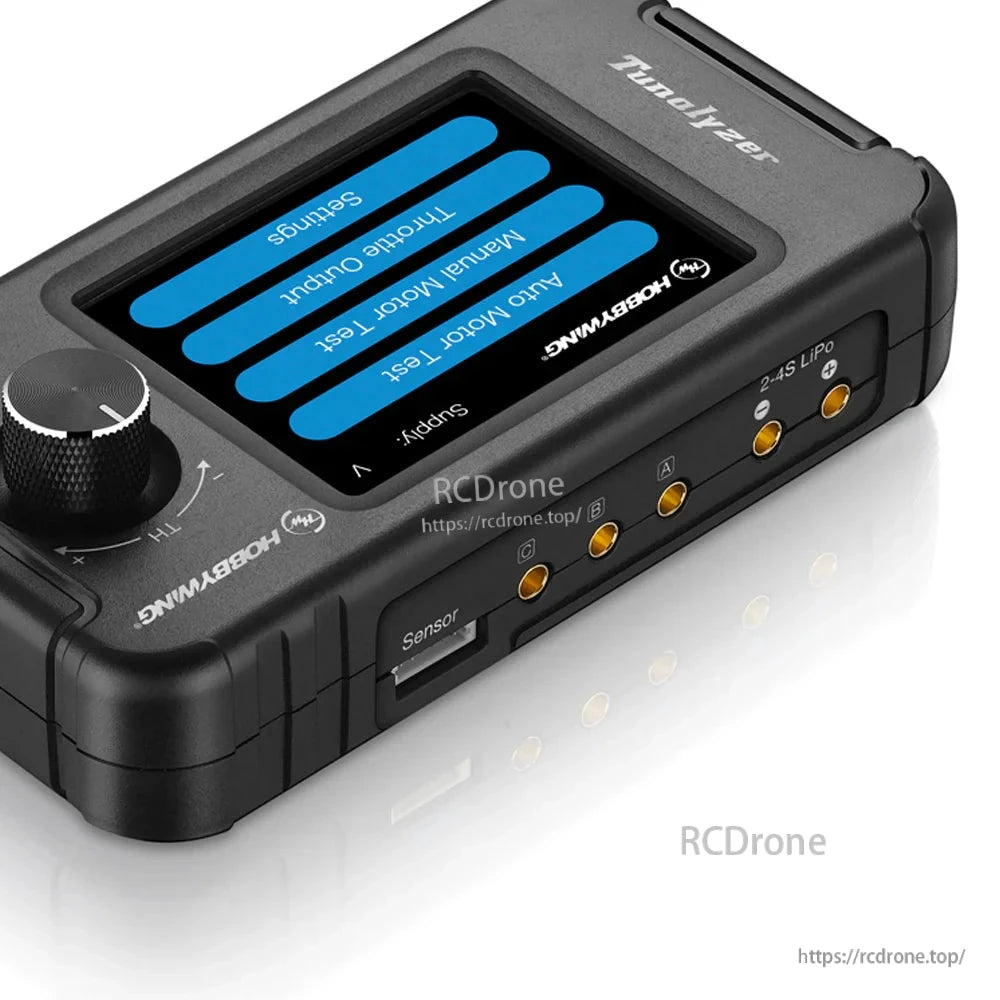

Hobbywing Tunalyzer wiring supports both sensored and sensorless brushless motors using the A/B/C motor leads, plus the sensor port for sensored setups.

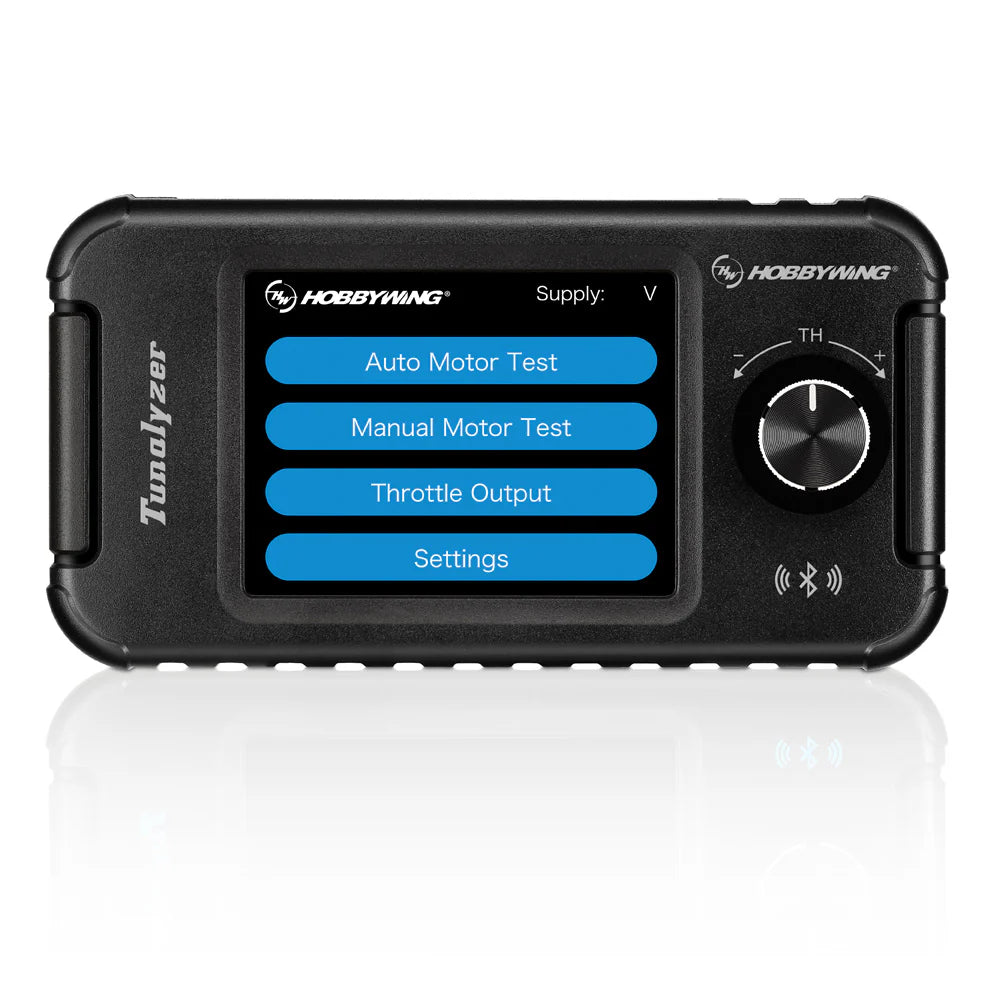

The Hobbywing Tunalyzer provides on-device Auto and Manual Motor Test options plus throttle output and settings controls from a touchscreen interface.

Hobbywing Tunalyzer supports an automatic test mode with stated accuracy of 0.01A current readings and 0.1° signal deviation.

The Hobbywing Tunalyzer lets you bench-test a motor and view live readouts like test voltage, current, KV, and RPM on the screen.

The Hobbywing Tunalyzer provides on-screen motor test readings like voltage, current, KV, and end-bell timing, with a stable voltage regulator for repeatable tests.

The Hobbywing Tunalyzer combines a clear display and multi-function throttle dial for bench testing and tuning brushless motors.

Hobbywing Tunalyzer connects to a brushless motor and displays real-time RPM with an on-screen pole count setting and simple BACK/ENTER controls.

The Hobbywing Tunalyzer connects to brushless motors through sensor and phase leads for quick testing across multiple motor types.

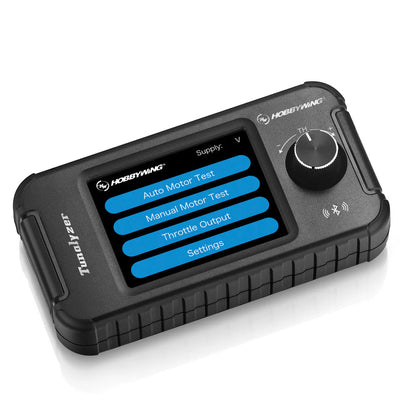

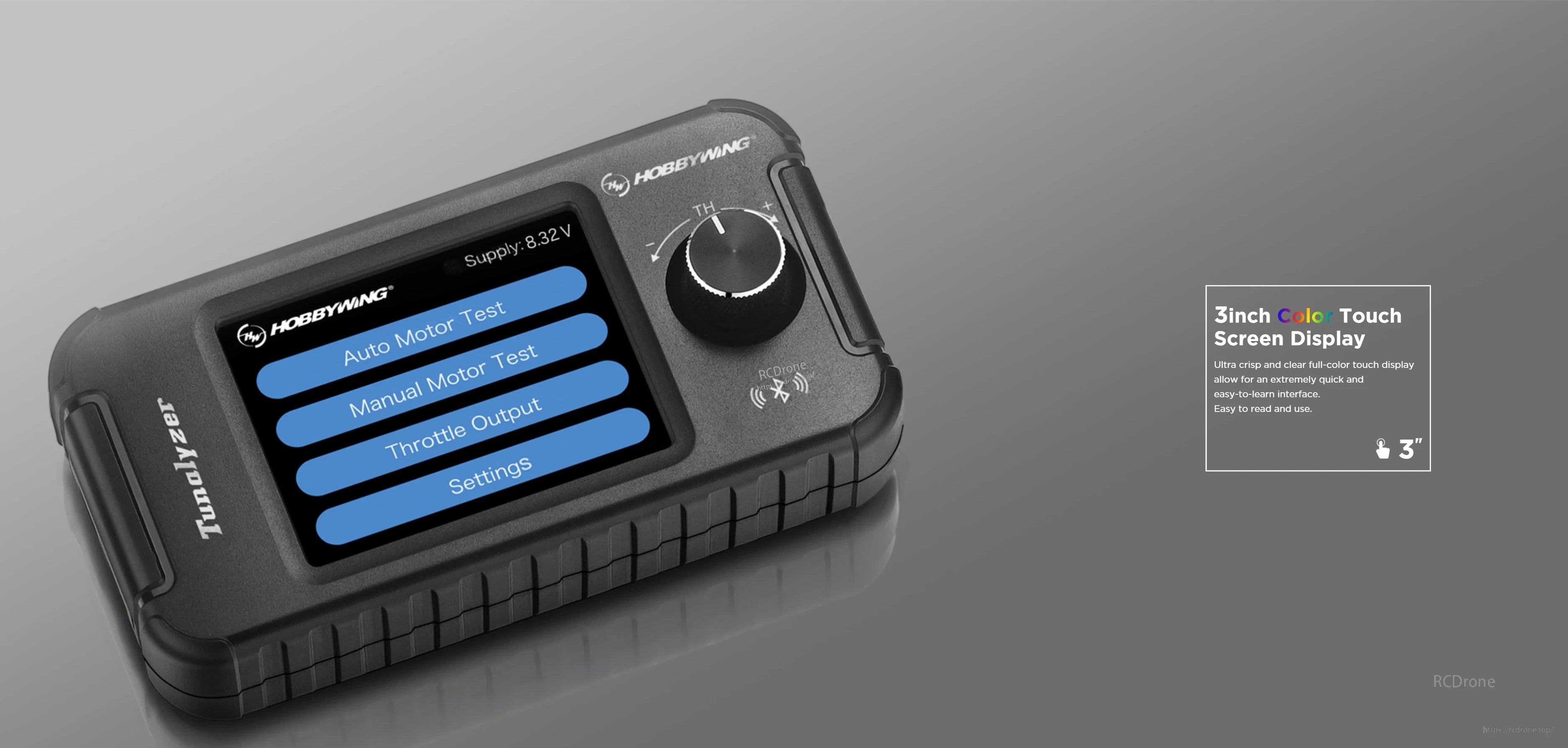

Hobbywing Tunalyzer provides a 3-inch color touch screen with Auto/Manual Motor Test, Throttle Output, and Settings menus for quick motor checks.

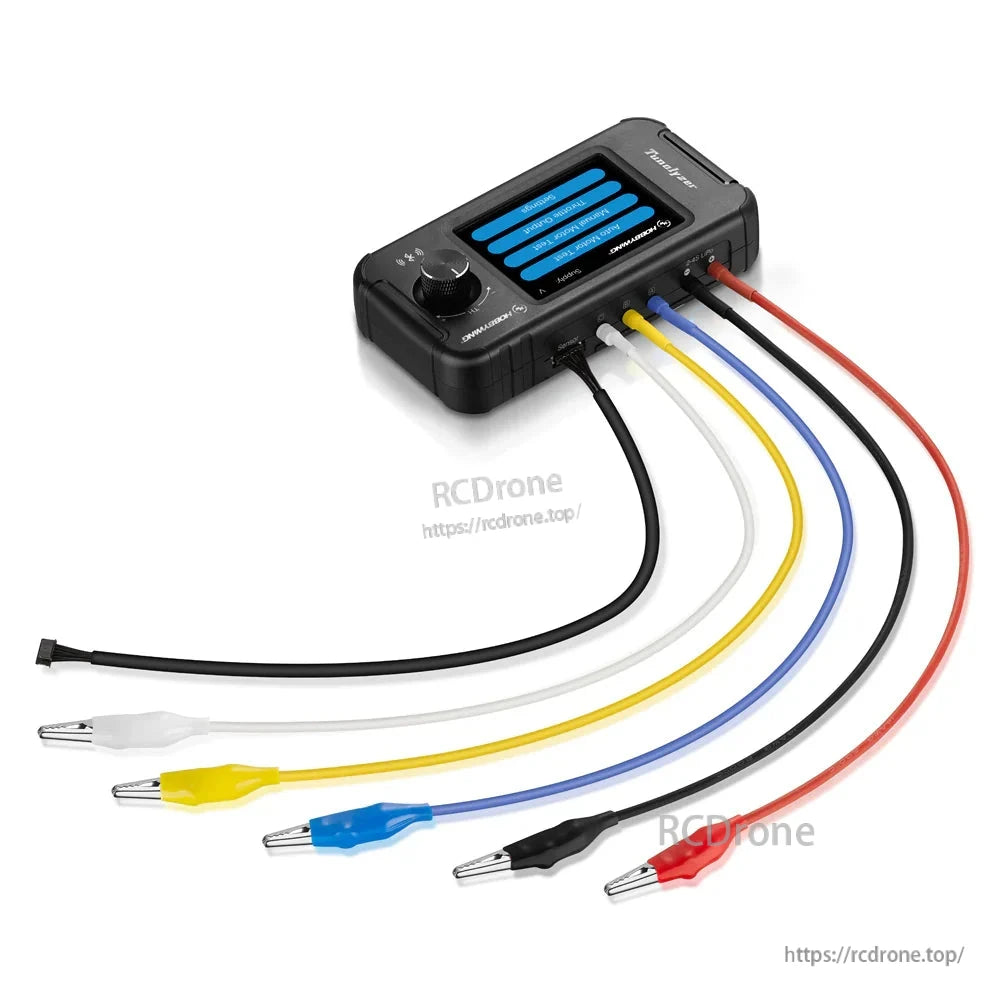

The Hobbywing Tunalyzer motor tool includes color-coded clip leads and a built-in reverse power supply protection circuit for safer connections.

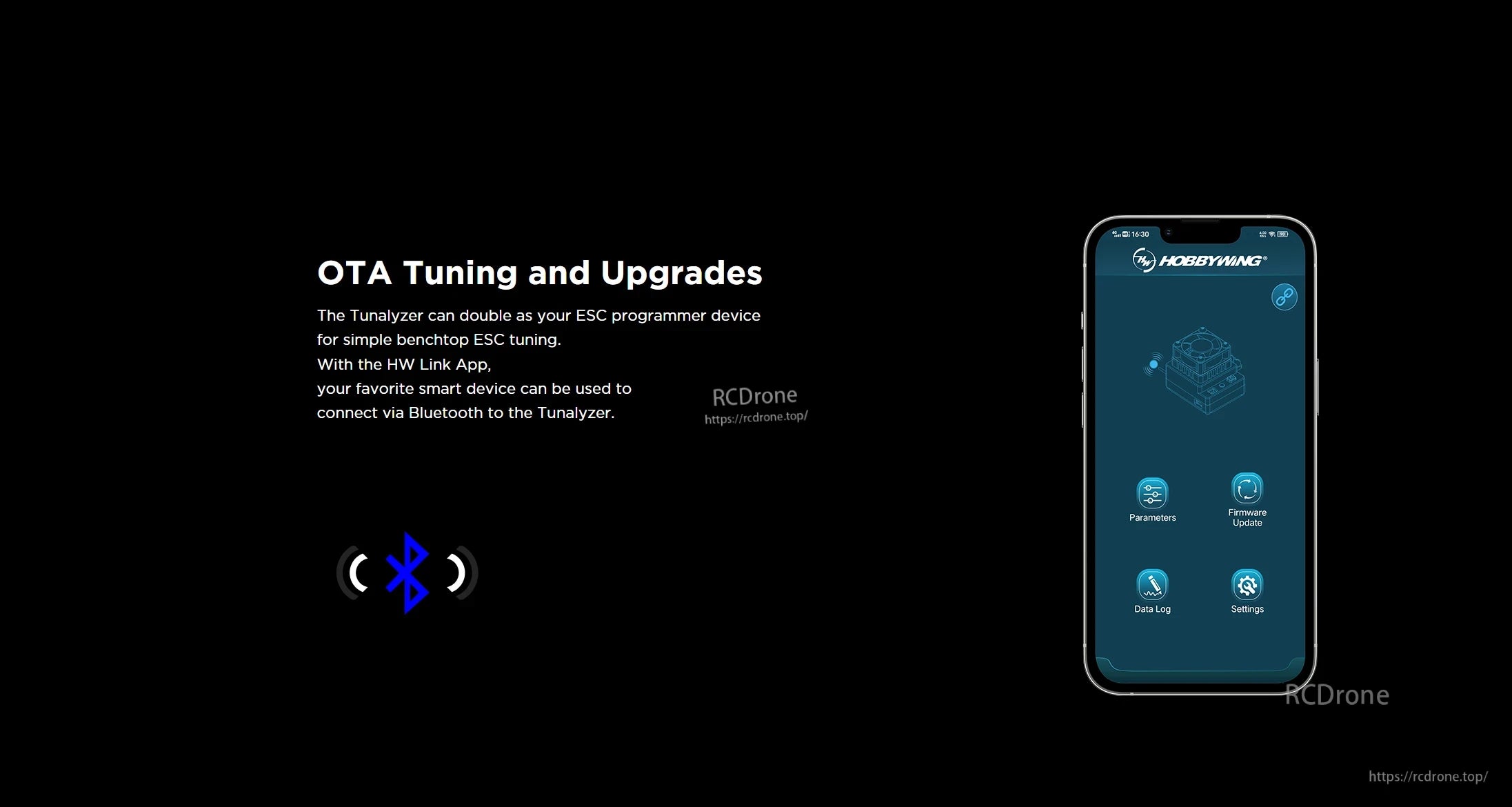

Hobbywing Tunalyzer supports OTA tuning and firmware updates over Bluetooth using the HW Link app.
