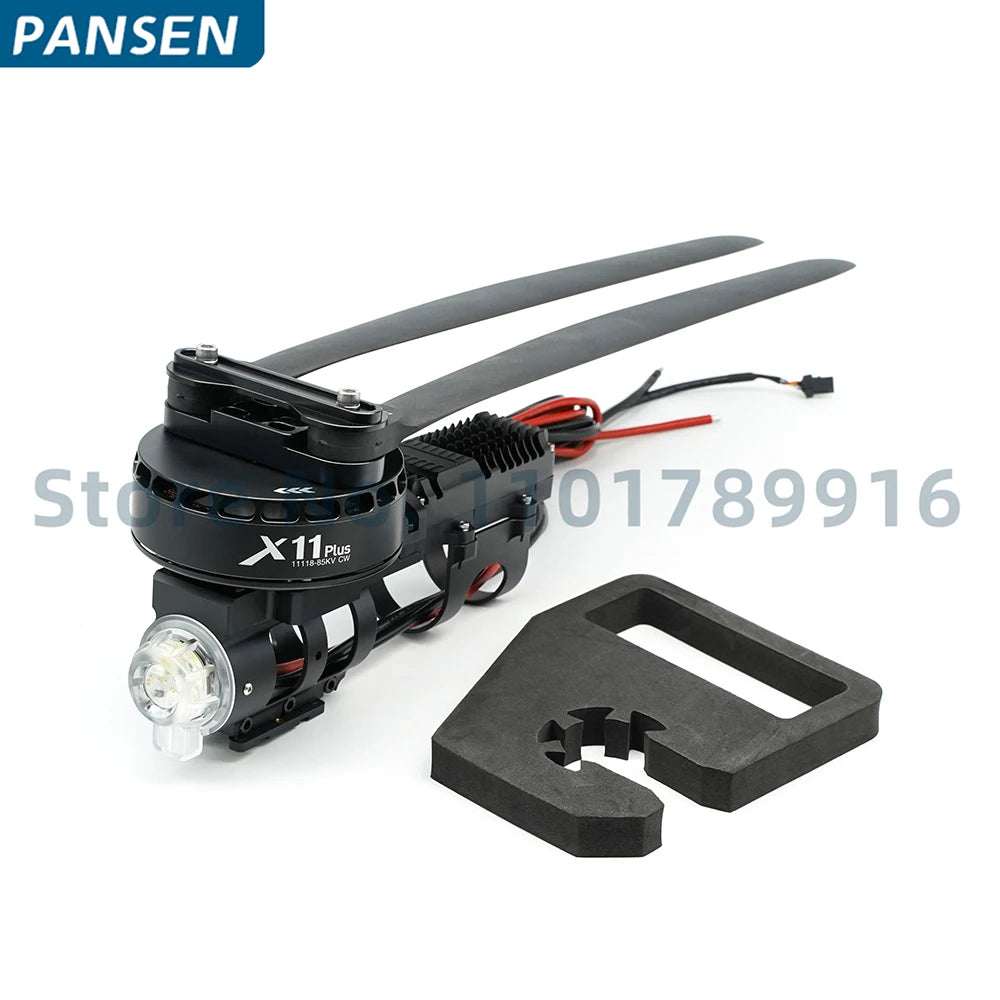

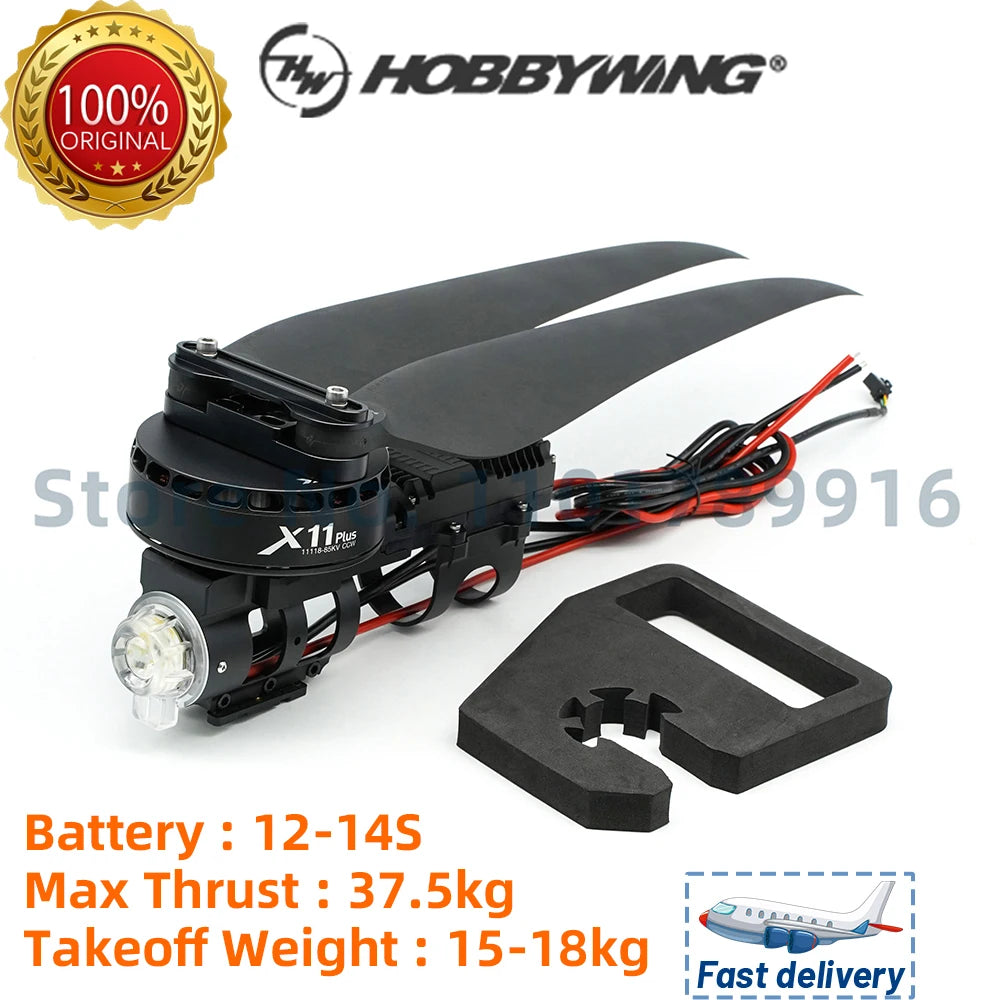

Hobbywing XRotor X11 PLUS Motor - Power 14S Plant Protection Maximum Pull 37kg with 4314 Propeller for Agriculture Spraying Drone
Hobbywing XRotor X11 PLUS Motor - Power 14S Plant Protection Maximum Pull 37kg with 4314 Propeller for Agriculture Spraying Drone
Hobbywing
41 orders in last 90 days
Couldn't load pickup availability
Warehouse: China/USA/Europe, can delivery to all countries;
Free Shipping: 9-15 days;
Express Shipping: 5-8 days;
Return&Refund: 30 Days.
Hobbywing XRotor X11 PLUS Motor SPECIFICATIONS
Brand Name: aerops
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Batteries - LiPo
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Motor
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 3
Model Number: X11 PLUS
Four-wheel Drive Attributes: Motors
Hobbywing X11-Plus: Suitable for 4-Axis 30L / 6-Axis 50L Agriculture Drone;
Hobbywing X11-Max: Suitable for 4-Axis 40L / 6-Axis 60L Agriculture Drone;
| Product Name | XRotor X11-PLUS | |
| Specifications | Max. Thrust Recommended Takeoff Weight Recommended LiPo Battery Operating Temperature Combo Weight Waterproof Rating |
37kg/Axis (44V, Sea Level) 15-18kg/Axis (44V, Sea Level) 12-14S(LiPo) 0~50℃ 2490 IPX6 |
| Motor | KV Rating Stator Size powertrain arm tube outer diameter Bearing |
85rpm/V 111*18mm 50mm Bearings imported from Japan |
| ESC | Recommended LiPo Battery PWM Input Signal Level Throttle Signal Frequency Operating Pulse Width Max. Input Voltage Max. Input Current (Short duration) BEC |
12-14S(LiPo) 3.3V/5V 50-500Hz 1050-1950us(Fixed or cannot be Programmed) 61V 150A(w/ Good Heat Dissipation) No |

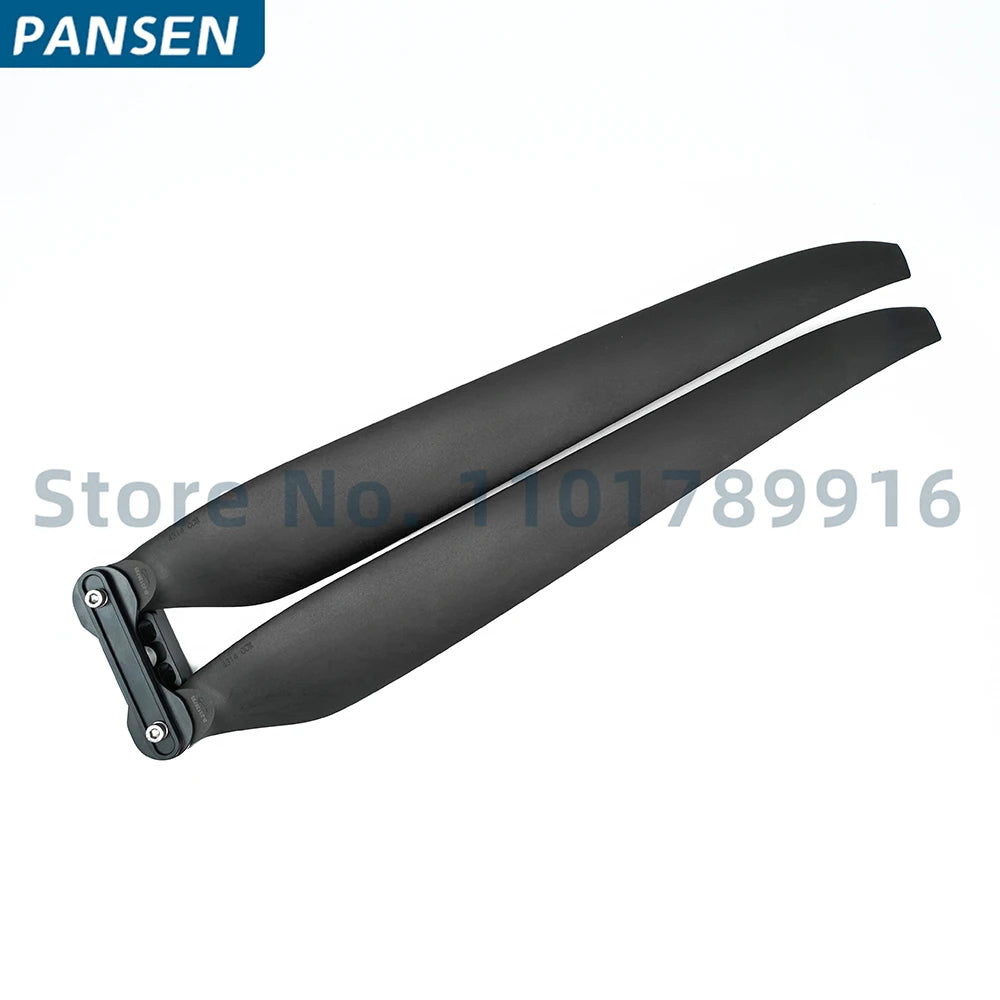

| Propeller | Diameter×Pitch | 43*14 |
xrotor x11 plus has a maximum pulling force of 36kg with 4314 carbon plastic propellers . single-axis take-off weight is 15-18kg .
The Hobbywing XRotor X11 PLUS motor offers maximum traction of 36 kg per axle at 44V and sea level. It recommends a 12-14S LiPo battery and an optimal takeoff weight of 15-18 kg per axis at 44V and sea level. The powertrain weighs 2490g, including the propeller.
Recommended for the Hobbywing XRotor X11 PLUS motor: maximum traction of approximately 36 kg per axle at sea level with a voltage of 44V. Suggested battery configuration: 12-14S Lipo. Recommended takeoff weight: 15-18 kg (with a 44V setup).
Hobbywing XRotor X11 Plus motor features an 8S KV value, suitable for use with carbon tubes up to 6mm in diameter. It accepts PWM input signals at 3.3V and supports frequencies between 50-500Hz. The motor's pulse width is adjustable between 1050-1950us. The maximum allowable voltage is 16V.
The motor's KV value is 8S per revolution (SPRm), and it can accommodate an outer diameter of 50mm carbon tube. The PWM input signal level is 3.3V, and it supports a working pulse width range of 1.05-1.95 milliseconds (no calibration or curing support). The maximum allowable voltage is 61V.
xrotor x11 plus kv value: 8srpmnv applicable outer diameter of carbon tube: somm pwm input signal level: 3.3v, sv (support) working pulse width

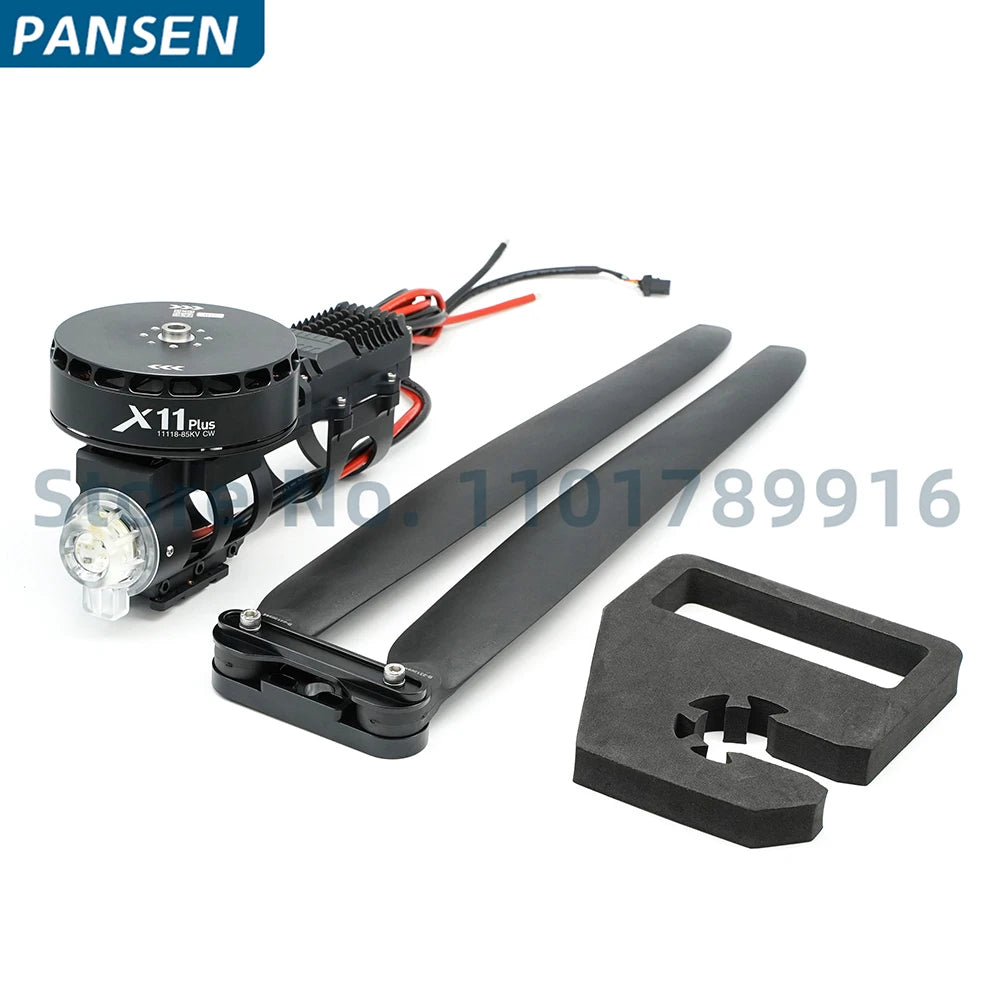

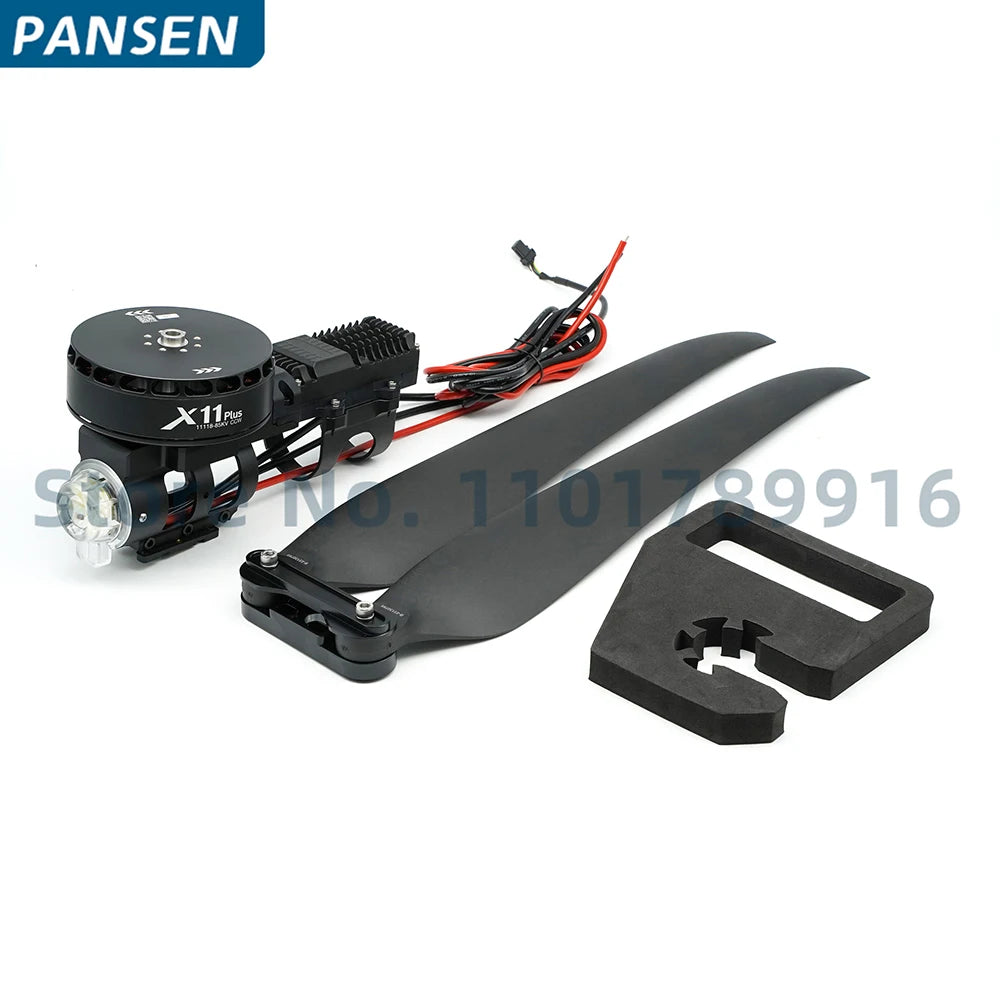

Hobbywing XRotor X11 PLUS motor with maximum pull of 37kg, suitable for agriculture spraying drones, features a 14S plant protection system and comes with a 4314 propeller.
[uvuwd propeller: 4314 420 1 omld fdot 50.] xrotor x11 plus 2m3 6h fuuuu
The Hobbywing XRotor X11 PLUS Motor features a stronger cooling engine with an upgraded structure. It boasts a maximum pull of 37kg with a 4314 propeller, making it suitable for agriculture spraying drones.
The Hobbywing XRotor X11 PLUS motor features a stronger cooling engine with an upgraded structure, capable of handling high temperatures. It has a maximum pull force of 37kg and comes with a 4314 propeller suitable for agriculture spraying drones.

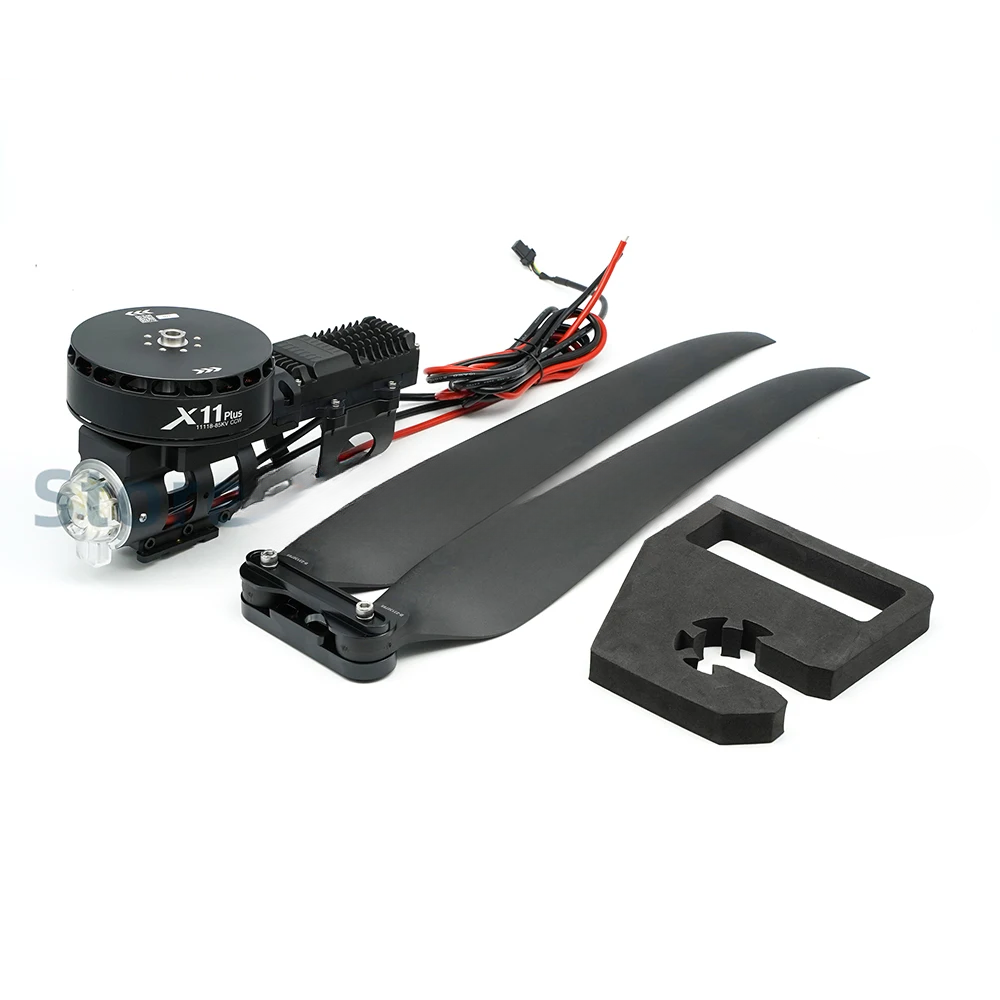

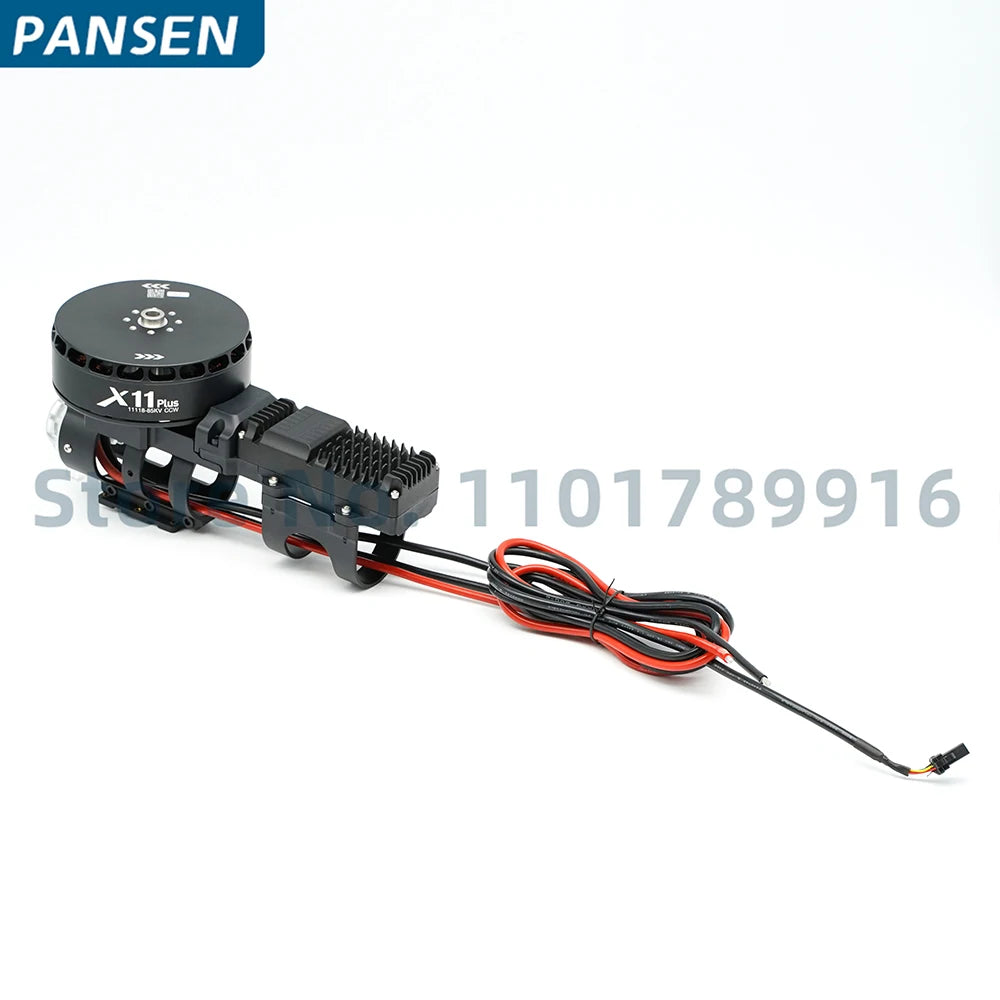

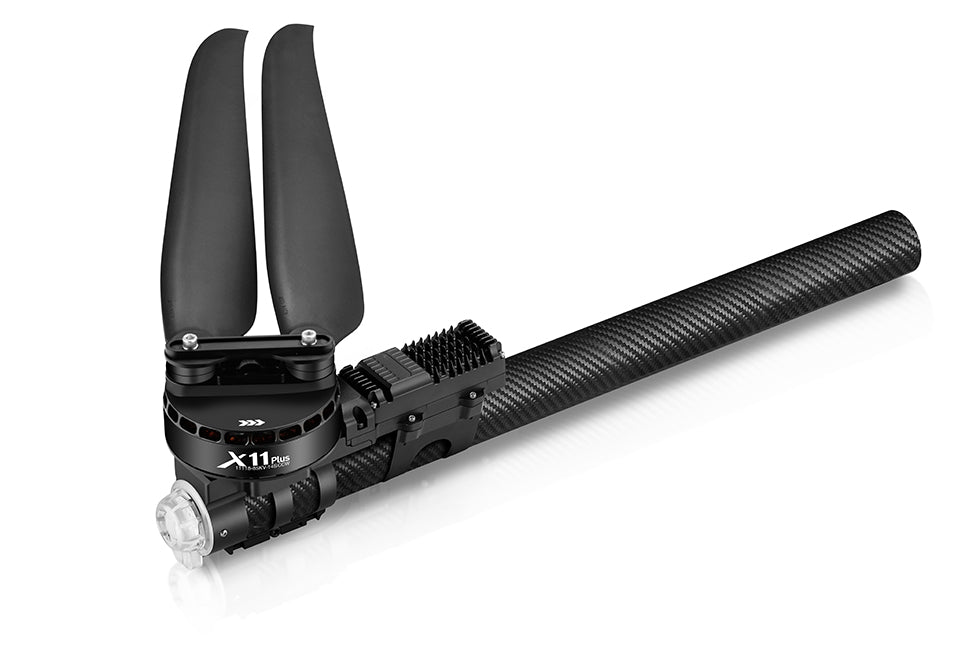

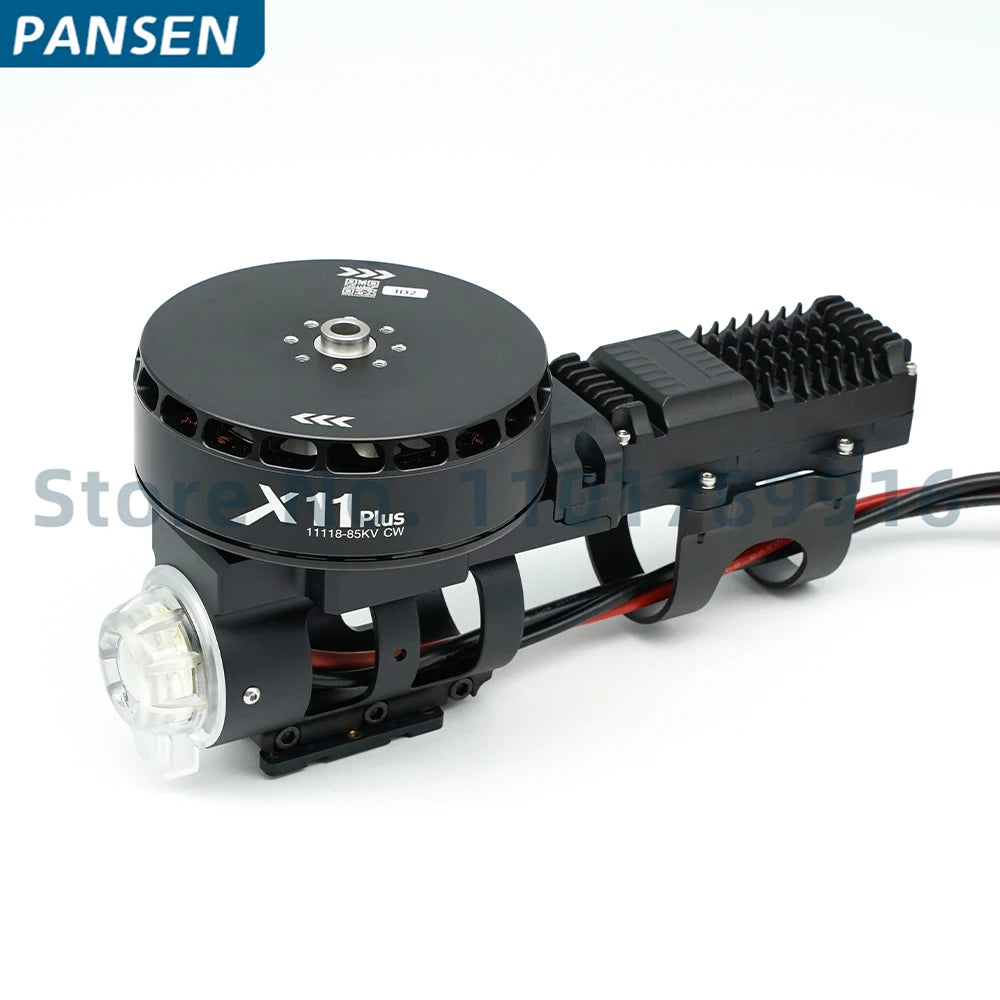

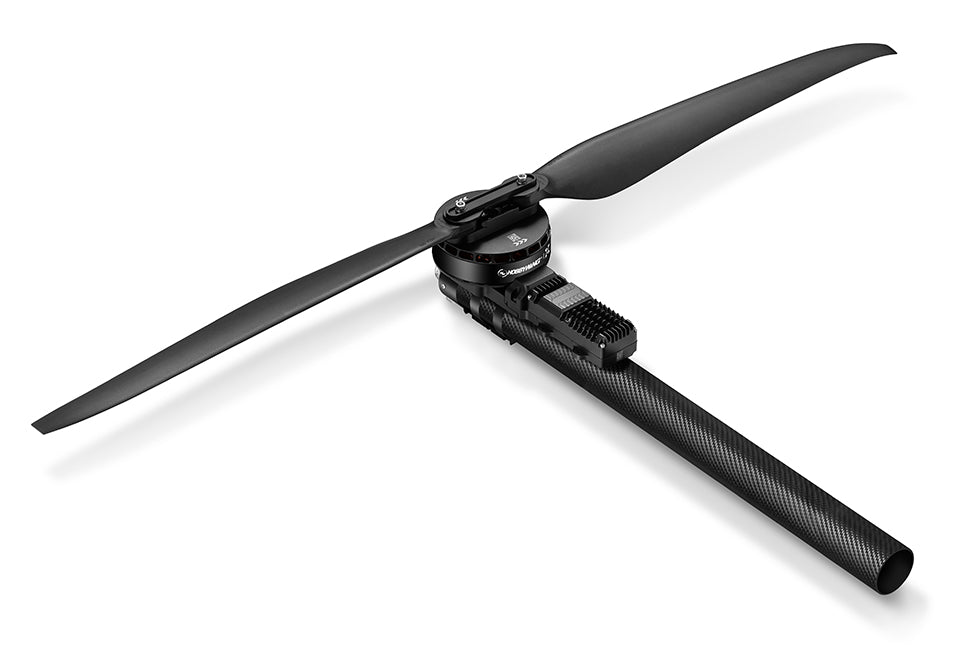

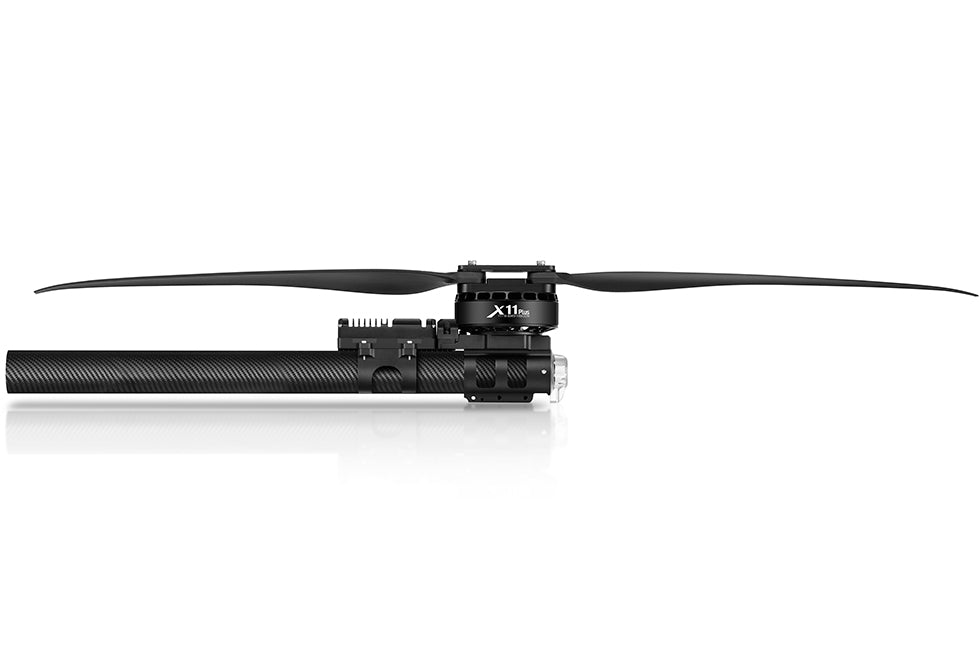

Integrated Structure Design: The XRotor X11 PLUS features a three-dimensional stage design that combines the motor, ESC, and motor base for a lightweight and compact structure. This innovative design ensures easy installation and use, compatible with 50mm diameter round carbon fiber tubes.
The X11-Plus stage design integrates the motor, ESC, and motor base into a lightweight structure, featuring easy installation and use, which can accommodate a 50mm diameter round carbon fiber tube.
x11-plus stage design integrates the motor; esc, and motor base, and follows the lightweight structure . features such as easy installation and use can match 5omm diameter round carbon fiber tube: xrotor
