Hobbywing X11 Power system SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Motor Components
Quantity: 1 pcs
Origin: Mainland China
Model Number: X11
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Propeller
ESC
Motor
Specifications
Product Name

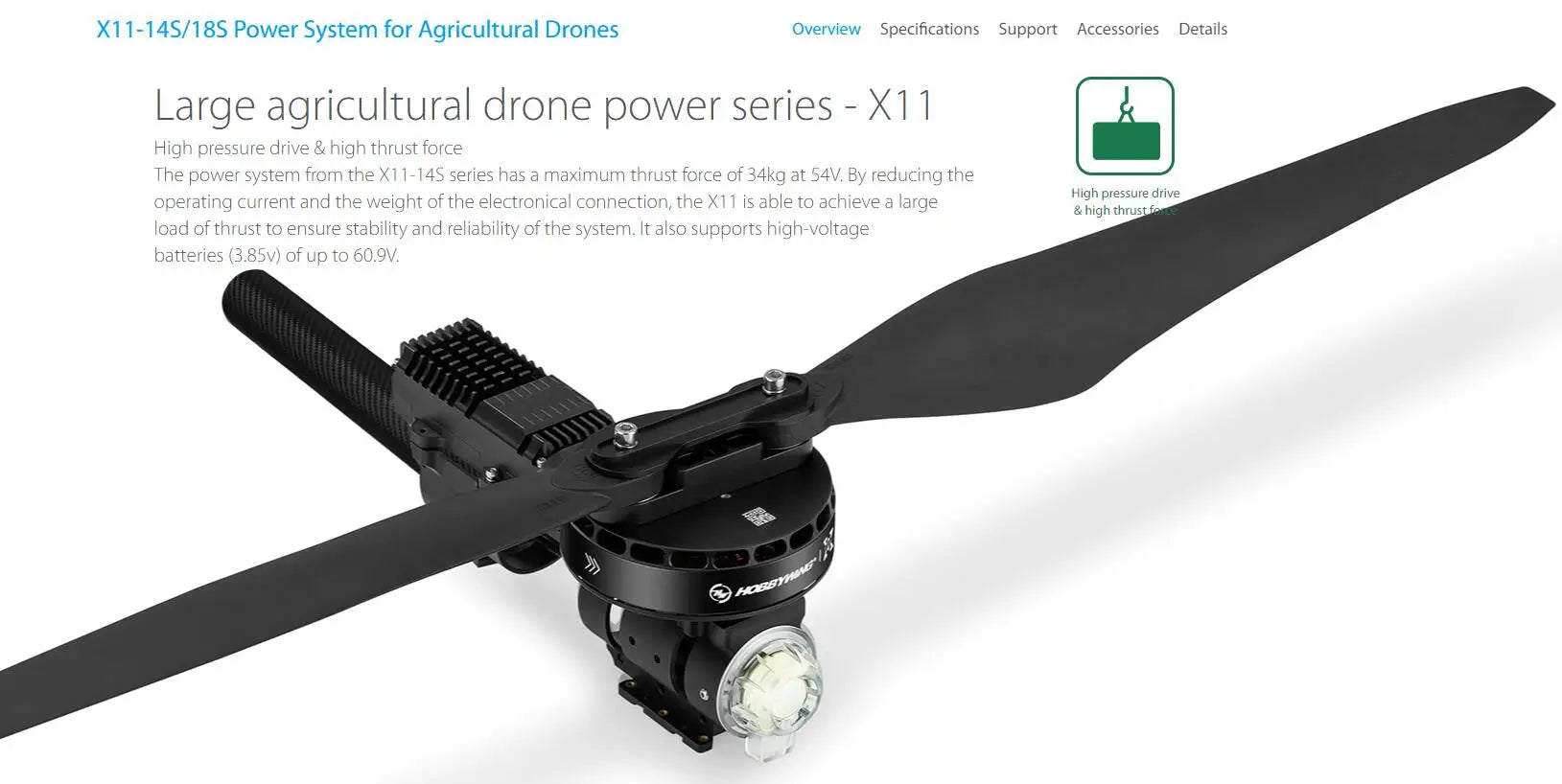

x11-145/18s power system has a maximum thrust force of 34kg at 54v . by reducing the operating current and the weight of the electronical connection, the x1 is able to achieve a

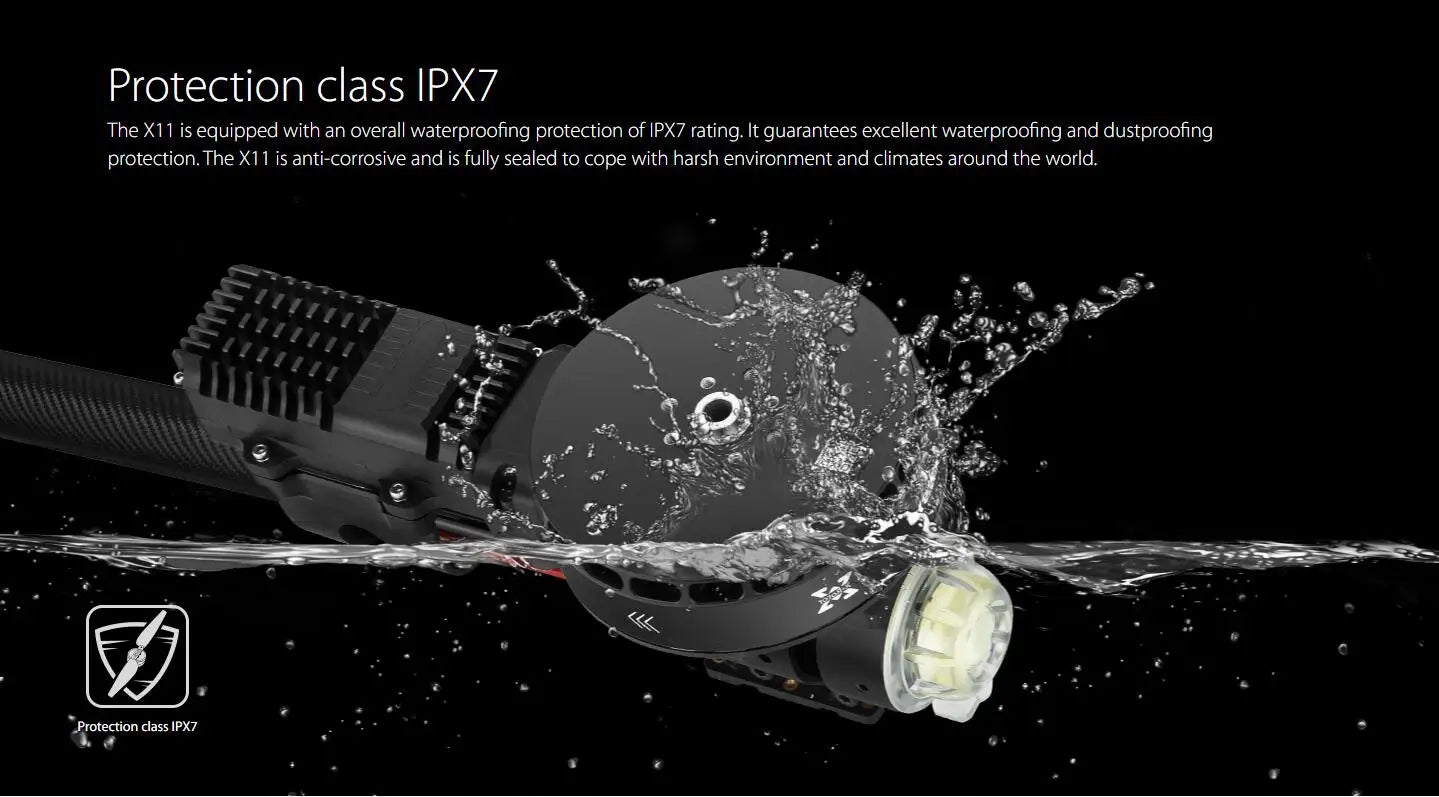

the X11 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world Protection class IPX7 .
the x11 is equipped with an overall waterproofing protection of ipxz rating it guarantees excellent waterproofing and dustproofing protection it is anti-corrosive and is fully sealed to cope with harsh environment and climates around

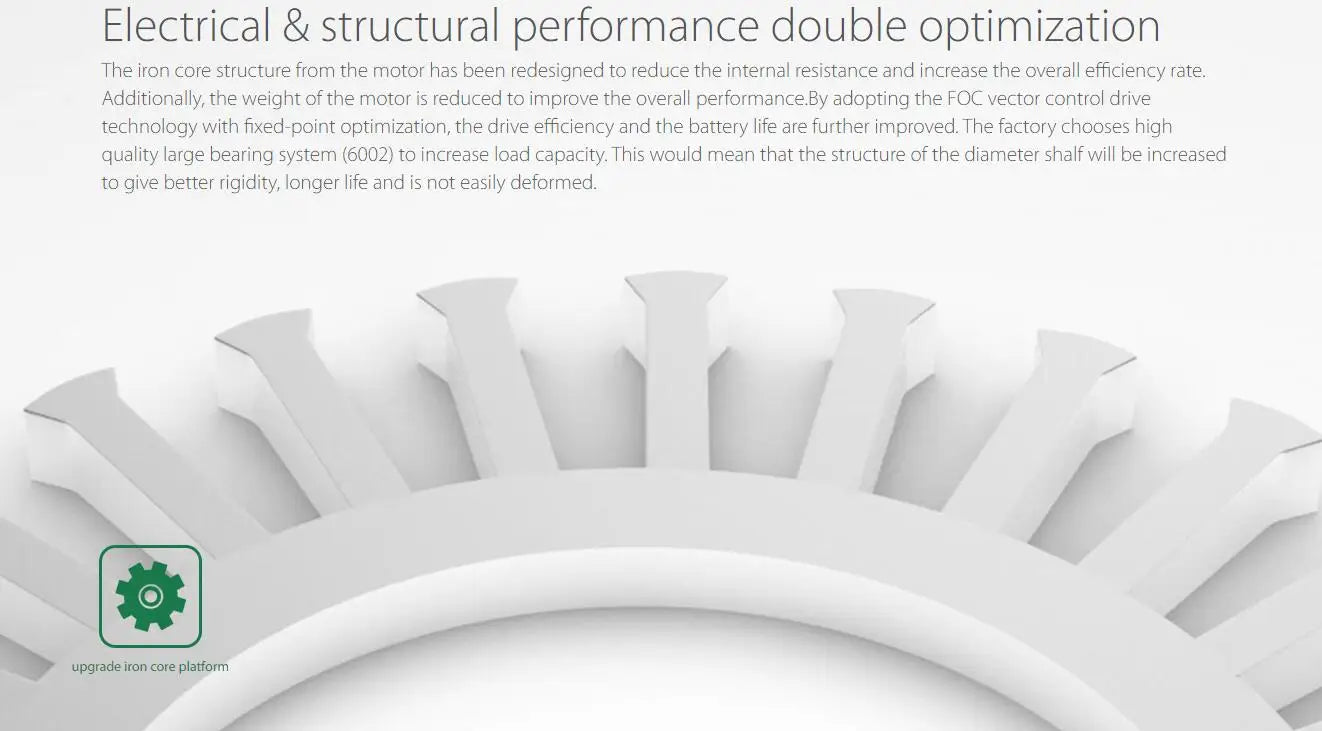

the iron core structure from the motor has been redesigned to reduce the internal resistance . the weight of the motor is reduced to improve the overall performance . adopting the FOC vector control drive technology with fixed-point optimization, the drive efficiency and the battery life are further improved.
the iron core structure from the motor has been redesigned to reduce the internal resistance and increase the overall efficiency rate . additionally, the weight of the motor is reduced to improve the overall performance by adopting the foc vector control drive technology

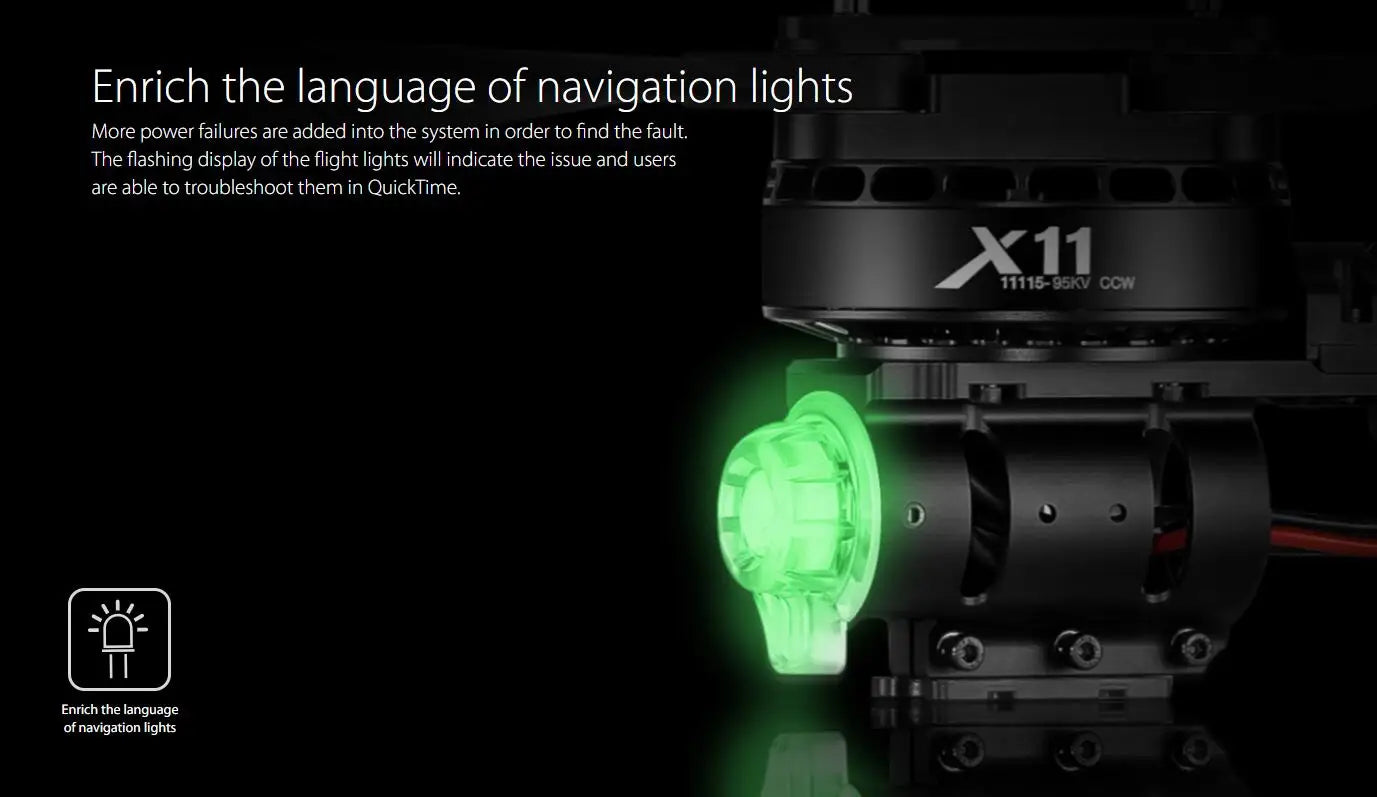

flashing display of flight lights will indicate the issue and users are able to troubleshoot them in QuickTime: XI1 7711593kV cch .
enrich the language of navigation lights more power failures are added into the system in order to find the fault . the flashing display of the flight lights will indicate the issue and users are able to troubleshoot them in quicktime

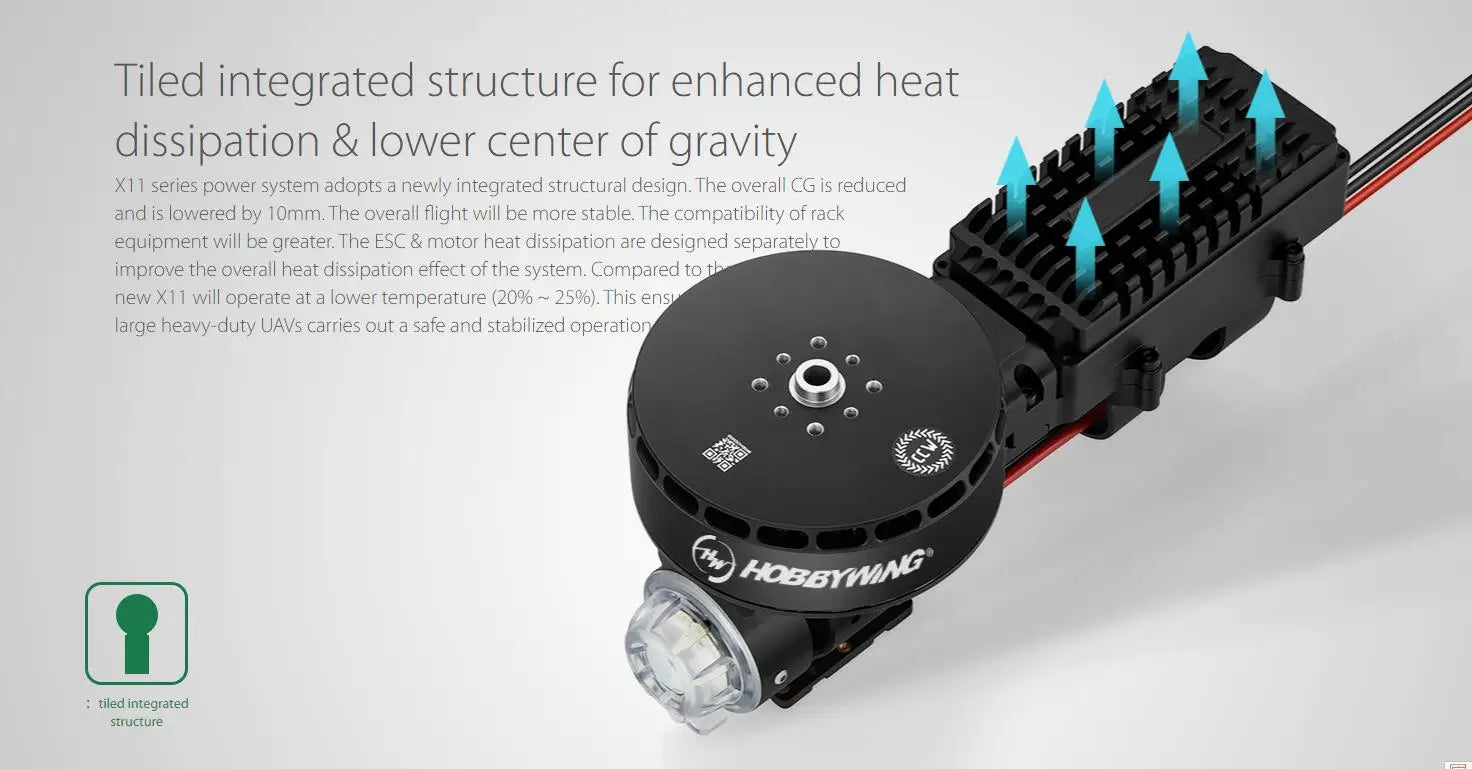

tiled integrated structure for enhanced heat dissipation & lower center of gravity . overall CG is reduced and is lowered by I Omm overall flight will be more stable . compared to new X11 will operate at a lower temperature (20% 250)
tiled integrated structure for enhanced heat dissipation . overall cg is reduced and is lowered by i omm overall flight will be more stable . compared to new x11 will operate at

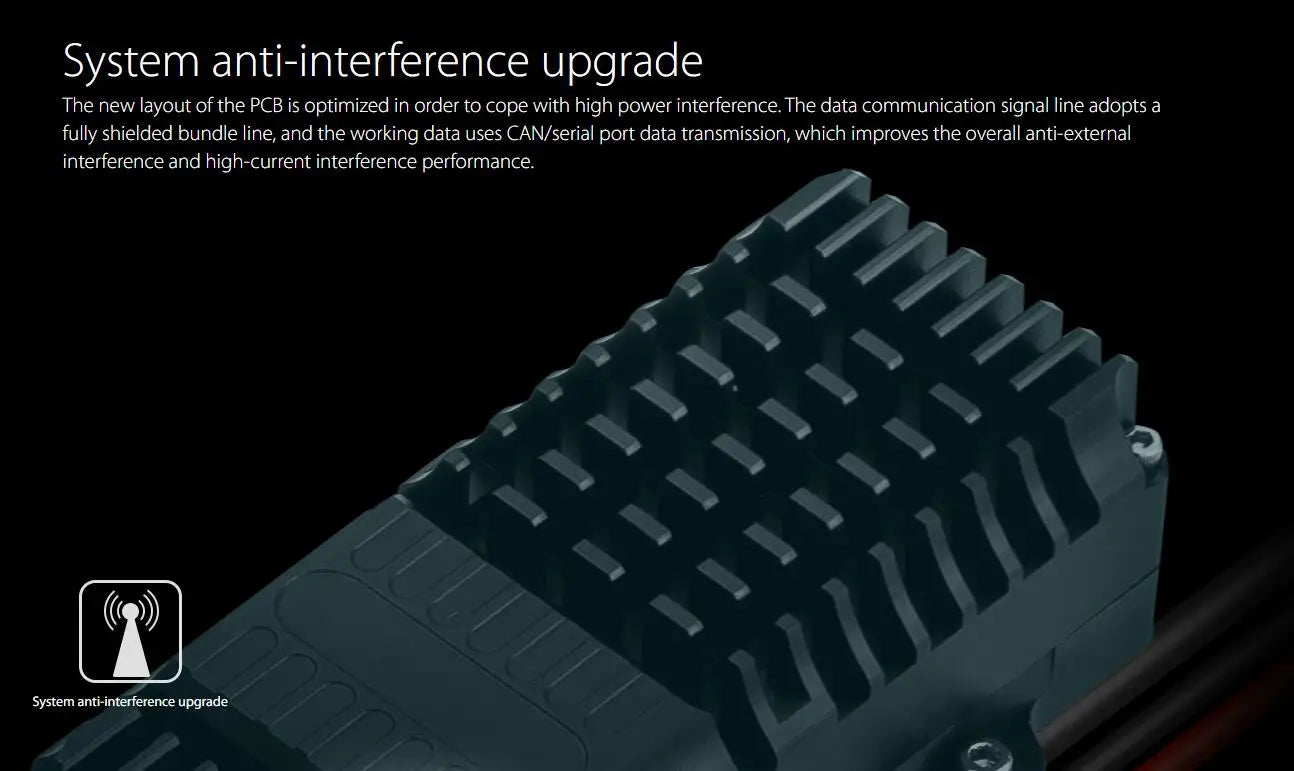

new layout of the PCB is optimized in order to cope with high power interference . the working data uses CAN/serial port data transmission, which improves the overall anti-external interference and high-current interference performance .
new layout of the pcb is optimized in order to cope with high power interference . data communication signal line adopts a fully shielded bundle line . working data uses can/serial port data transmission .

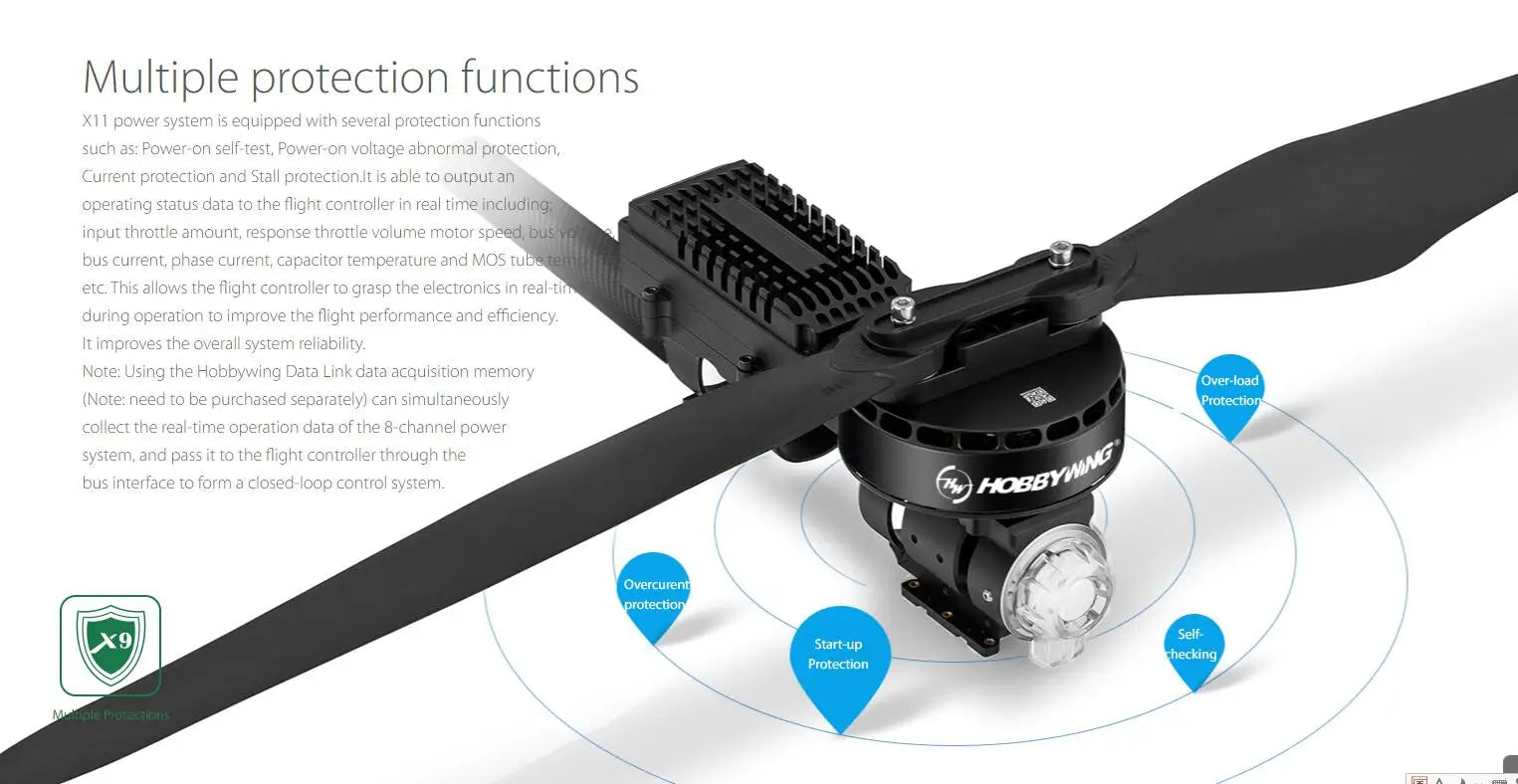

X1 power system is equipped with multiple protection functions . it is able to output an operating status data to the flignt controller in real time .
x1 power system is equipped with multiple protection functions . it is able to output an operating status data to the flignt controller in real time . this improves the overall system reliability and efficiency .
Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a computer via the Hobbywing Data Link software at all times .
support system upgrades hobbywing allows you to update your esc to the latest firmware and synchronize it using a computer via the hobbywing data link software at all times: i) support system
Feedback:
Normally,the item you ordered will be delivered within three working days.If you cannot receive the package in time and other problems, please contact us first. We will check and solve them as soon as possible.We usually reply within 24 hours, sometimes there may be a delay in the reply during weekends or holiday, please wait, we will reply as soon as we see the message.
We can also choose the appropriate mode of transportation according to the goods and the country of export, and the
transportation time will vary according to different modes of transportation
when you are satisfied with the product 5 starevaluation good product quality i5 great logistics i6 fast item as described: communication: light up little stars shipping speed
===========
Hobbywing X11 Power System - Maximum Load 34kg for Multirotor Agriculture Spraying Drone
Technical Parameters
Propeller
- Diameter×Pitch: 41135
ESC
- Recommended LiPo Battery: 14S LiPo
- PWM Input Signal Level: 3.3V/5V
- Throttle Signal Frequency: 50-500Hz
- Operating Pulse Width: 1050-1950us
- Max. Input Voltage: 60.9V
- Max. Peak Current (10s): 150A (Excellent heat dissipation required)
- BEC: No
- Mounting Holes for Nozzle: φ28.4mm-2*M3
Motor
- KV Rating: 95 KV
- Stator Size: 111*15
- Tube Diameter: φ45/50mm
- Bearing: Waterproof Bearing
Specifications
- Max. Thrust: 34kg/axis (53.6V, sea level)
- Recommended Takeoff Weight: 15-17kg/axis (sea level)
- Recommended LiPo Battery: 14S (LiPo)
- Operating Temperature: -20-55℃
- Combo Weight: 2340g
- Waterproof Rating: IPX7
Functional Selling Points
High Thrust Force
The X11 Power System is designed to deliver a maximum thrust force of 34kg per axis, ensuring stability and reliability for multirotor agriculture spraying drones.
High Voltage Compatibility
Supports high-voltage batteries up to 60.9V, providing flexibility in battery choices for optimal performance.
IPX7 Waterproof Rating
Equipped with an IPX7 waterproof rating, the X11 ensures excellent waterproofing and dustproofing protection, making it suitable for operation in harsh environments.
Structural Performance Optimization
The motor's iron core structure has been optimized to reduce internal resistance and increase overall efficiency. The FOC vector control drive technology further enhances drive efficiency and battery life.
Enhanced Heat Dissipation
The tiled integrated structure enhances heat dissipation and lowers the center of gravity by 10mm, contributing to stable flights and improved compatibility with rack equipment.
Anti-Interference Upgrade
The power system features an upgraded system layout and shielded data communication signal lines to mitigate high-power interference and improve anti-external and high-current interference performance.
Multiple Protection Functions
Equipped with various protection functions, including power-on self-test, voltage abnormal protection, current protection, and stall protection. Real-time operating status data is output to the flight controller, enhancing overall system reliability.
Setup and Maintenance
- Setup: Follow the provided instructions for a seamless setup process, ensuring proper calibration and compatibility.
- Maintenance: Regularly inspect the motor, ESC, and propeller for wear or damage. Keep the system clean and free from debris.
FAQ
Q: What is the maximum thrust force of the X11 Power System?
A: The maximum thrust force is 34kg per axis.
Q: What is the recommended operating temperature range?
A: The X11 Power System operates within the temperature range of -20-55℃.
Q: Does the system support high-voltage batteries?
A: Yes, the system supports high-voltage batteries up to 60.9V.
Q: Is the X11 system compatible with multirotor agriculture spraying drones?
A: Yes, the X11 Power System is specifically designed for multirotor agriculture spraying drones.
