Hobbywing X6 Power System - 1set Original for 10KG 10L EFT E610P Agriculture Drone motor ESC propeller and 30mm tube adapter

Hobbywing X6 Integrated Power System for Agricultural Drone motor ESC propeller and 30mm / tube adapter motor mount combo

Specifications:

Features a propeller with a diameter of 23.88mm and thread pitch, weighing 91g (with a separate adapter for each blade, each weighing 36g).

Hobbywing's X6 Power System is an original product for 10KG/10L EFT E610P Agriculture Drone motor ESC propeller and 30mm tube adapter, designed for educational and research purposes.

Hobbywing X6 Power System, an original kit for 10KG/10L EFT agricultural drones, featuring ESC, motor, propeller, and 30mm tube adapter.

Product weight: 10.6 grams, suitable for aerial photography (Foam) or other applications.

Original Hobbywing X6 Power System for 10KG/10L EFT agriculture drone, weighing approximately 70 grams, from BDUAV RC Store.

Product Name: Hobbywing X6 Power System (1 set) for 10KG/10L EFT E610P agriculture drone motor, ESC, propeller, and 30mm tube adapter.

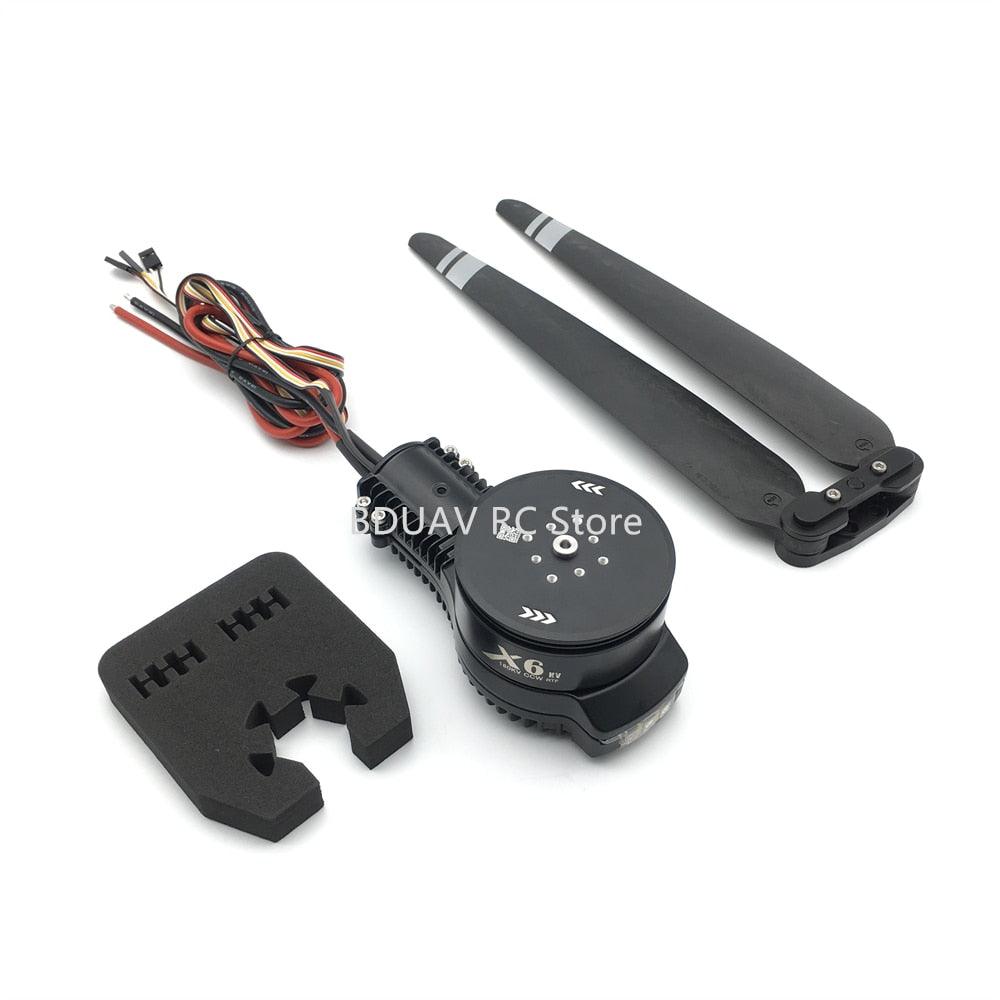

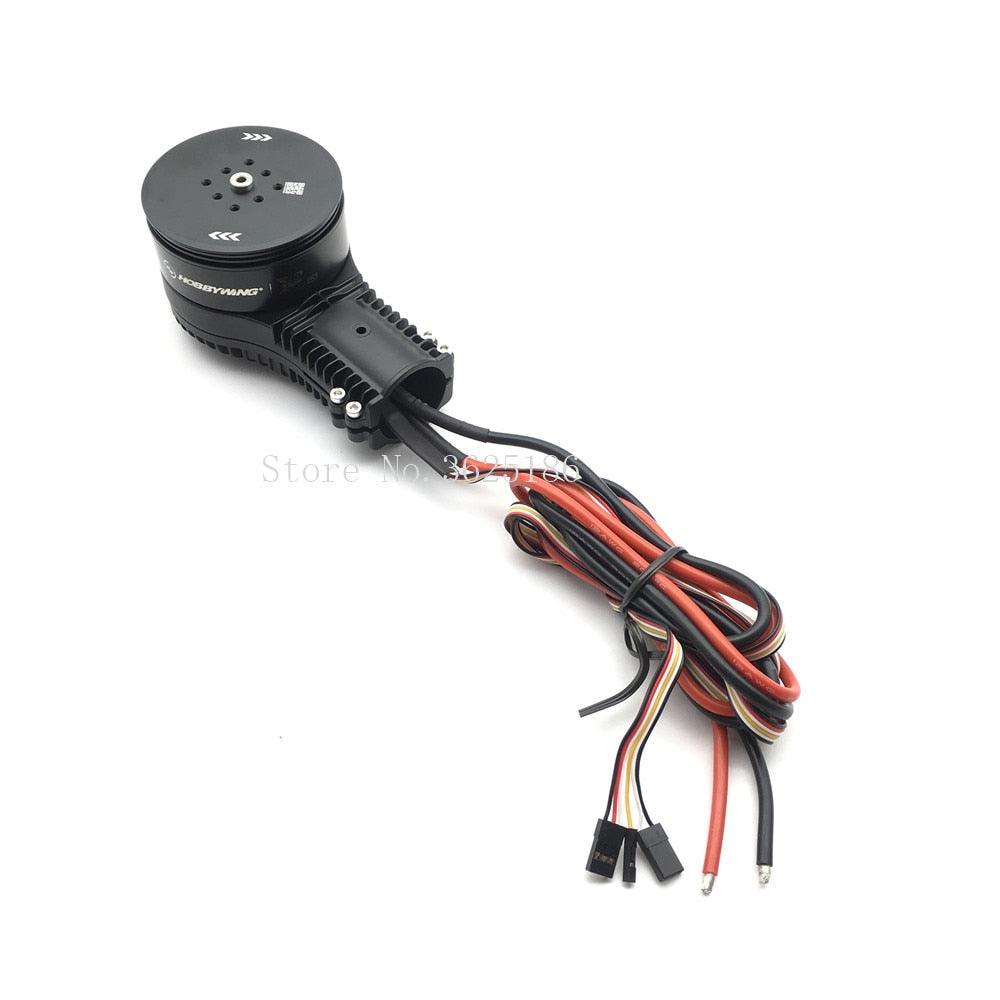

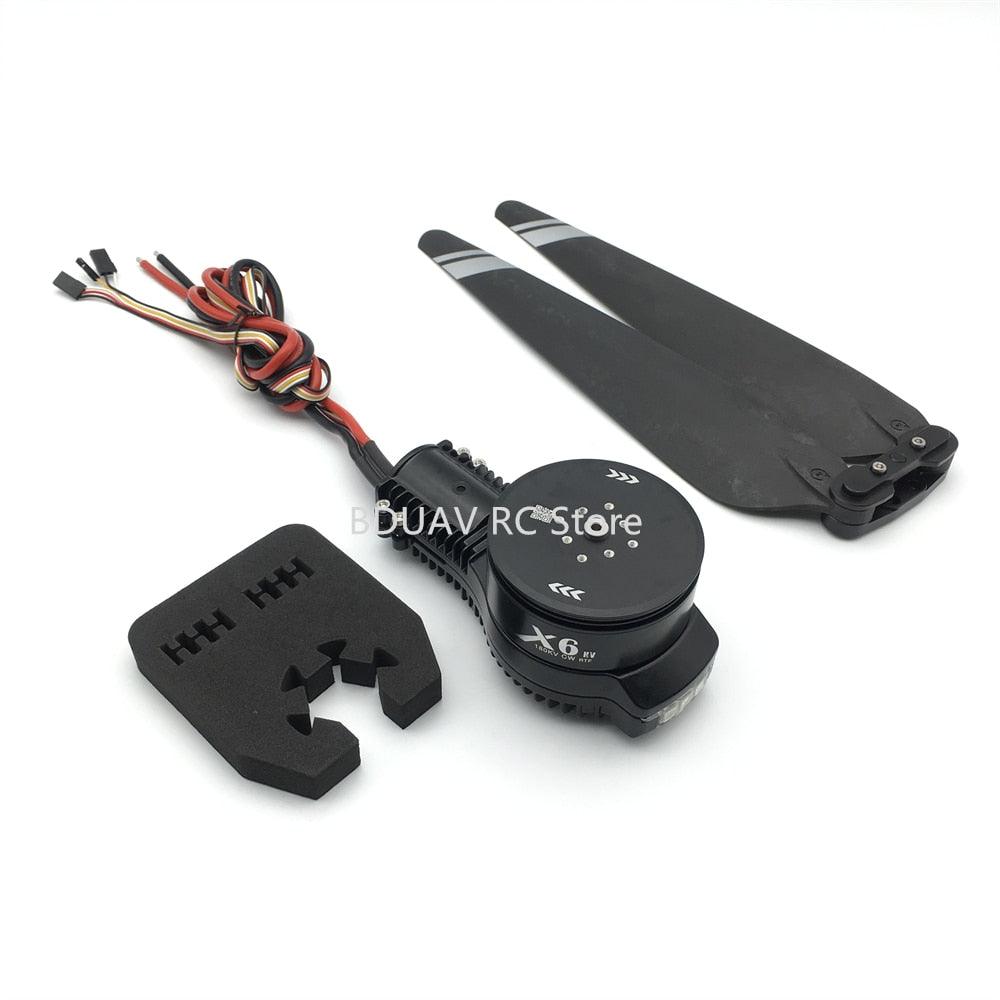

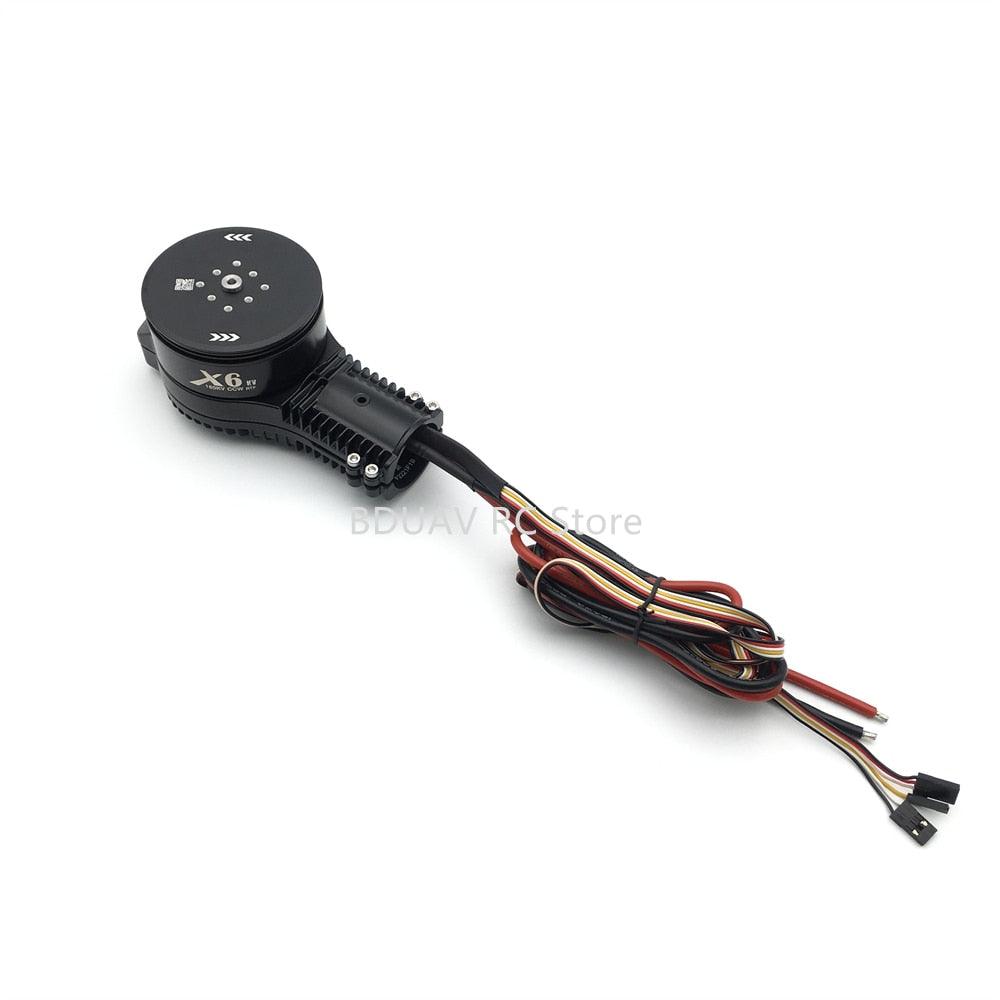

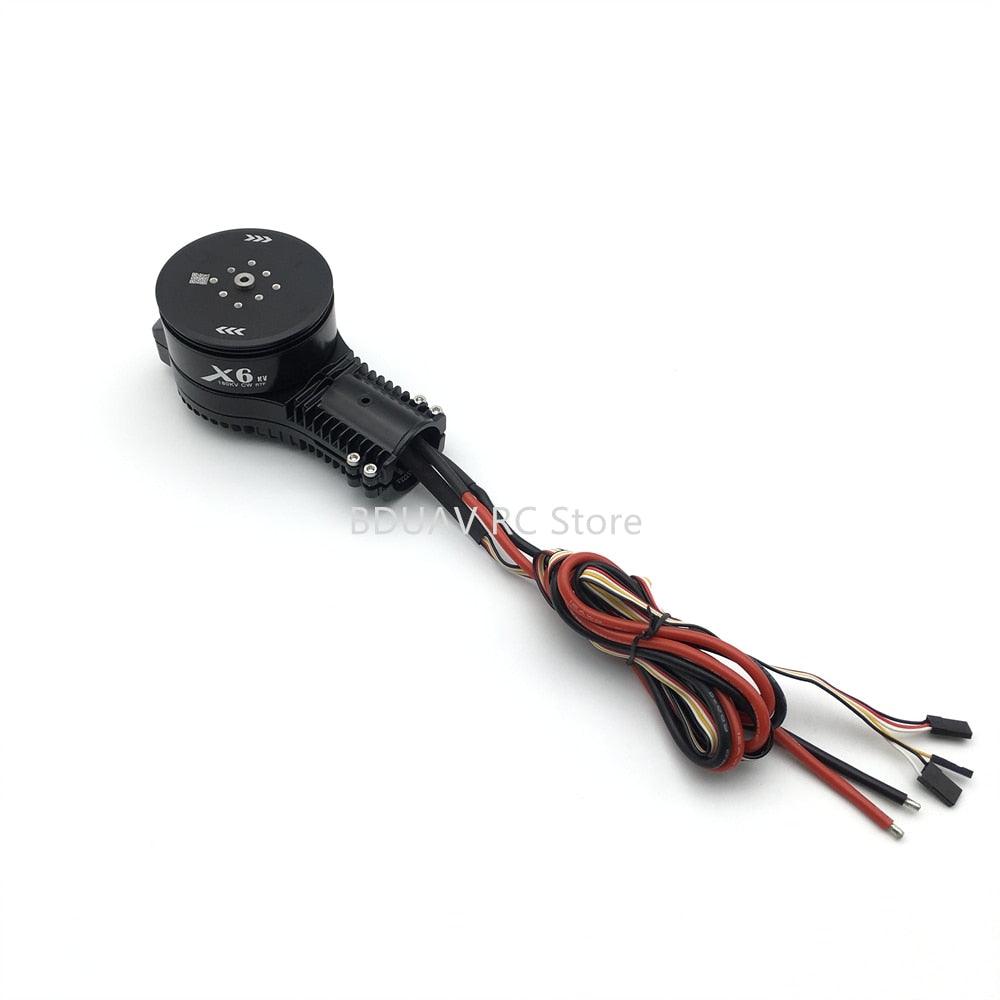

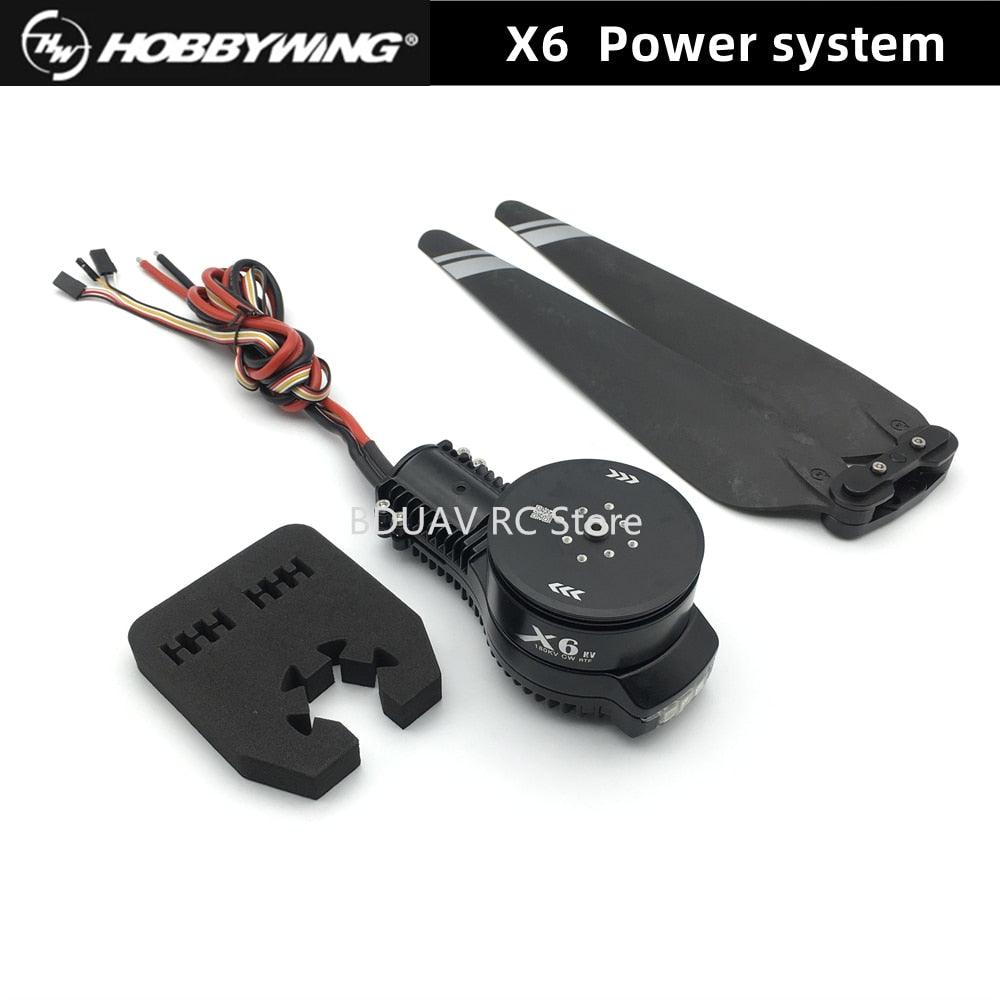

The Hobbywing X6 Power System is an integrated and ready-to-use propulsion system that combines a motor, electronic speed controller (ESC), propeller, and motor mount. It features an optional 30mm to 28mm tube adapter, making it compatible with 28mm diameter carbon fiber arm tubes. This system allows for easy mounting and use. With the foldable 2388 propeller, it can carry a load of up to 10KG (or 18KG for a hexacopter). The Hobbywing X6 Power System is perfect for agricultural drones.

The Hobbywing X6 Power System features a Perfect Propulsion System, utilizing a Field-Oriented Control (FOC) algorithm for optimized performance. This algorithm harmonizes the ESC, motor, and propeller, achieving balanced propulsion with high stability, reliability, and efficiency. Compared to BLDC motors, PMSM technology offers advantages such as reduced size, increased power density, low pulsating torque, and precise control. The X6 system is designed for agricultural drones, providing a reliable and efficient means of propulsion.

The Hobbywing X6 Power System is waterproof to IPX7 standard, making it suitable for harsh working conditions, such as rainwater, pesticides, salt spray, high temperatures, and dusty environments. Its patented design allows for easy cleaning, including direct rinsing under water.

The Hobbywing X6 Power System features multiple protection functions, including power-on self-test and abnormal voltage detection. It also includes overcurrent protection, motor lock-up prevention, and real-time data output. This ESC can transmit running data such as input throttle, output throttle, RPM, input voltage, current, output current, capacitor temperature, and MOS temperature to the DATALINK data box (sold separately) or Flight Controller in real-time. This allows the FC to monitor the status of the power combo in real-time, improving flight performance, efficiency, and reliability.

The X6 power system features a high-brightness LED indicator that allows you to select the desired light color or disable it. This feature provides real-time status updates on the system's functioning and sends alerts if any anomalies occur, enhancing overall system safety.

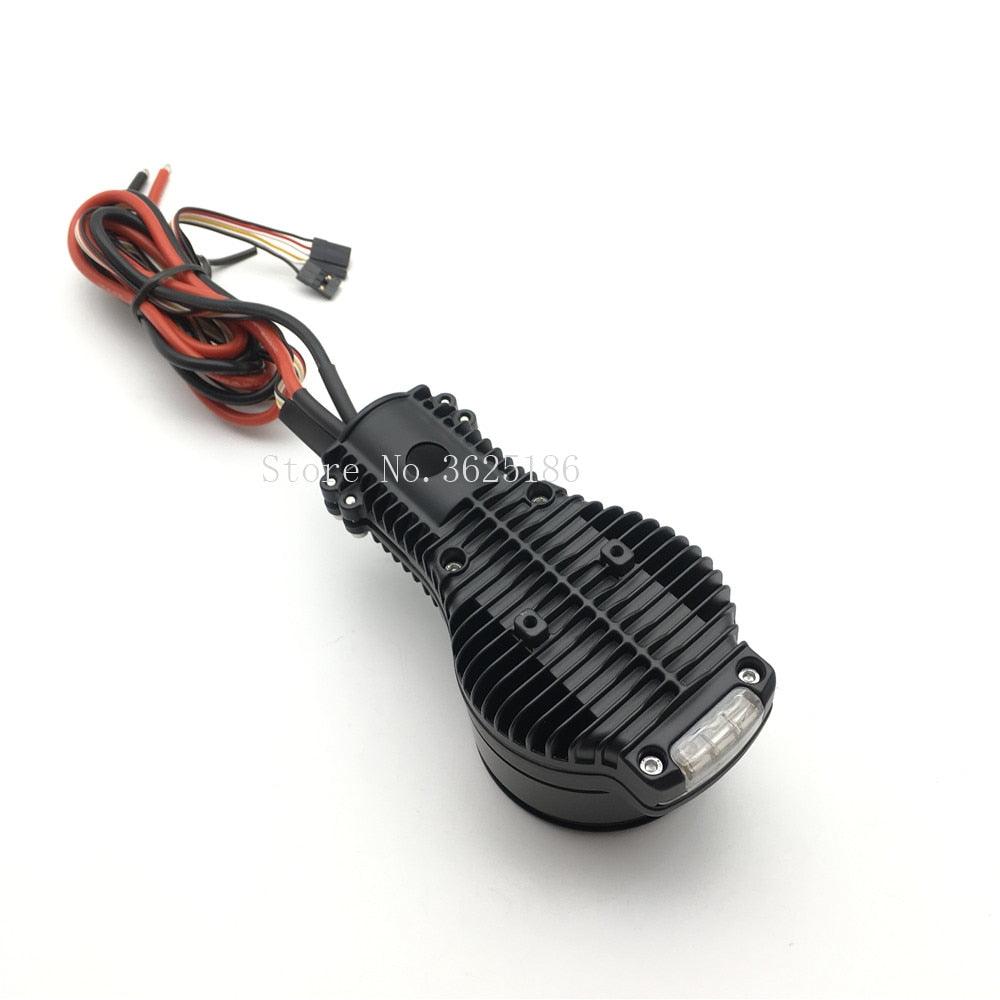

The unique keel-like structure design of our motor mount/ESC case optimizes heat dissipation, enhances overall strength, and protects the motor parts. This design provides high impact resistance, significantly reducing the likelihood of structural deformation or malfunction caused by drops or hits. The internal strengthened cross-beam structure is an innovative, patented design owned by Hobbywing, and we kindly request that you do not reproduce it.

The Hobbywing X6 Power System features a modular design that makes it easy to maintain. If any part of the system becomes damaged, you can replace individual components such as propeller blades or the power unit (ESC/motor) quickly and easily. This design allows for dedicated blade sets for agricultural drones, making it a convenient option for farmers.

Enjoy free firmware updates with regular upgrades to the Hobbywing ESC through their USB Link software (separate purchase required). This keeps your system current with new features and improvements, available for download at no additional cost.

The Hobbywing X6 Power System Combo features a maximum thrust of 12kg per axis when running at 48V at sea level. It's recommended to use a 12S LiPo battery and suitable for takeoff weights up to 3kg per axis (at 48V and sea level). The combo weighs in at 720g and has an IPX7 waterproof rating, operating between -20°C and +80°C. The motor has an outer diameter of 70mm with a KV rating of 180KV. A carbon fiber tube adapter with an OD of 30mm or 28mm is required.

The Hobbywing X6 Power System is designed for use with an agricultural drone motor, ESC, propeller, and 30mm tube adapter. The recommended LiPo battery is 6-12S capable, with a PWM input signal level of 3.3V/SV. The throttle signal frequency ranges from 50-500Hz, with a pulse width fixed at 1100-1940us (unprogrammable). The maximum input voltage is 52.2V, and the maximum input current is 80A. This system features good heat dissipation and has a max peak current of 100A (10 seconds) when used with a propeller adapter. Note that this system does not include a BEC (Battery Eliminator Circuit) or nozzle mounting holes.
