Hobbywing X6 Power System SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Tires

Tool Supplies: Tools

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

 Hobbywing X6 Plus: Suitable for 4-Axis 5L Agriculture Drone, 6-Axis 10L Agriculture Drone;

Hobbywing Certificate of Authorization: [www.hobbywing.com](http://www.hobbywing.com). This product is designed for use with the Hobbywing X6 Power System, compatible with the EFT E610P agriculture drone motor ESC propeller and 30mm tube adapter. The product information can be found on our official website or at [shop72425332.taobao.com](http://shop72425332.taobao.com).

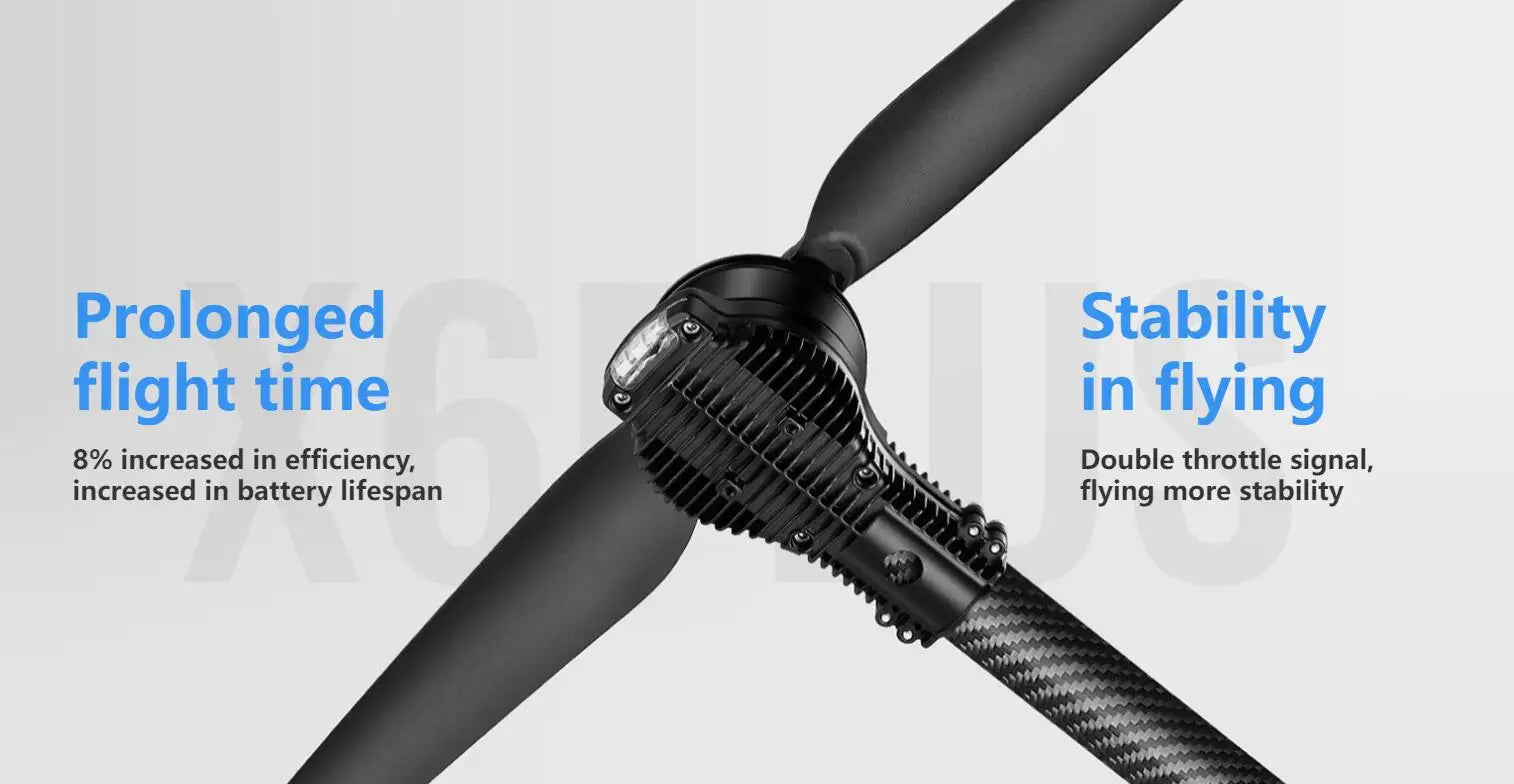

prolonged stability flight time in flying 8% increased in efficiency; double throttle signal, increased in battery lifespan .

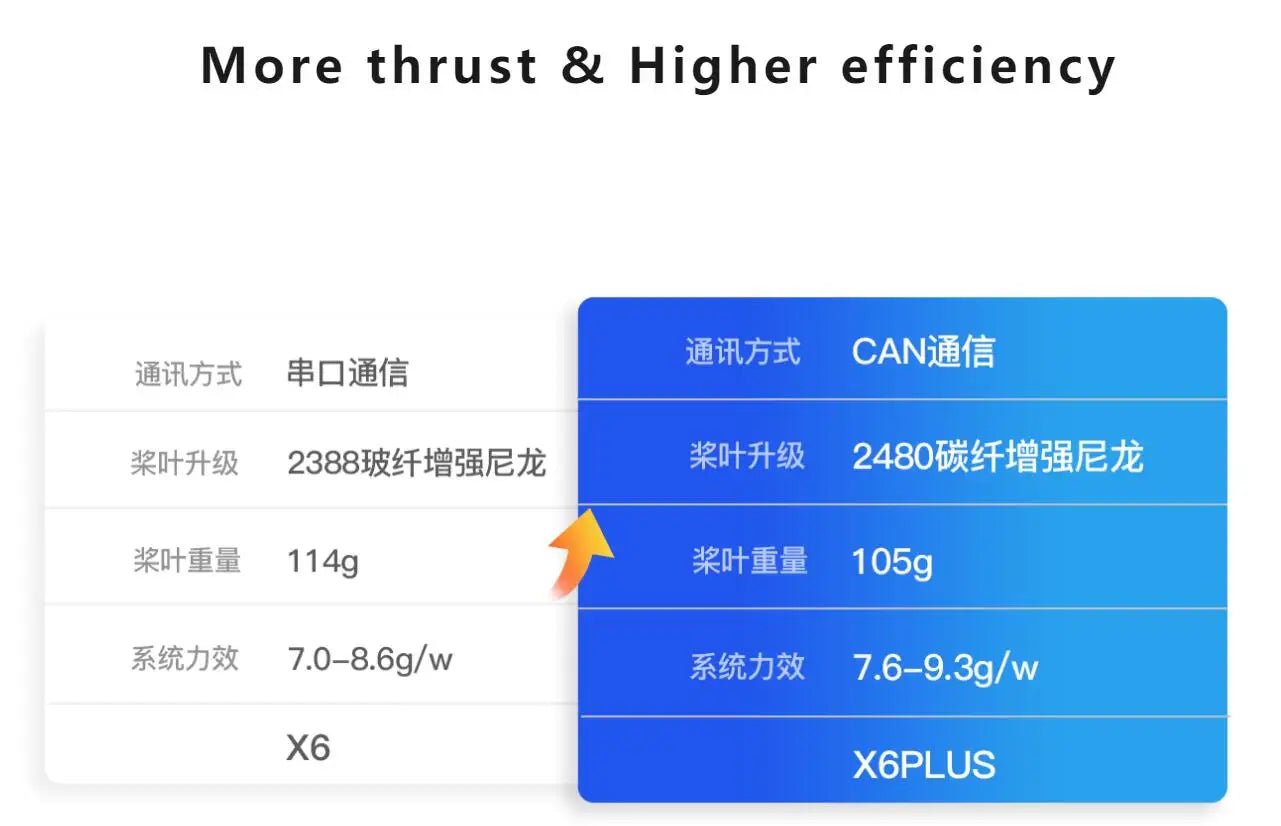

CANMIE WiAFit #DwI8 Eitfty 23881R4Fj338Etz Rlt#tex 24800 R4F+033EJz 3itez 114g R1tez 105g RHAk 7.0-8.6g/w RlJsk 7.6-9.3g/p X6 X6,PLUS 114 g Rljsk

The Hobbywing X6 Power System offers enhanced power redundancy and improved flight performance, providing an 8% increase in power efficiency for extended flight times compared to similar drone systems.

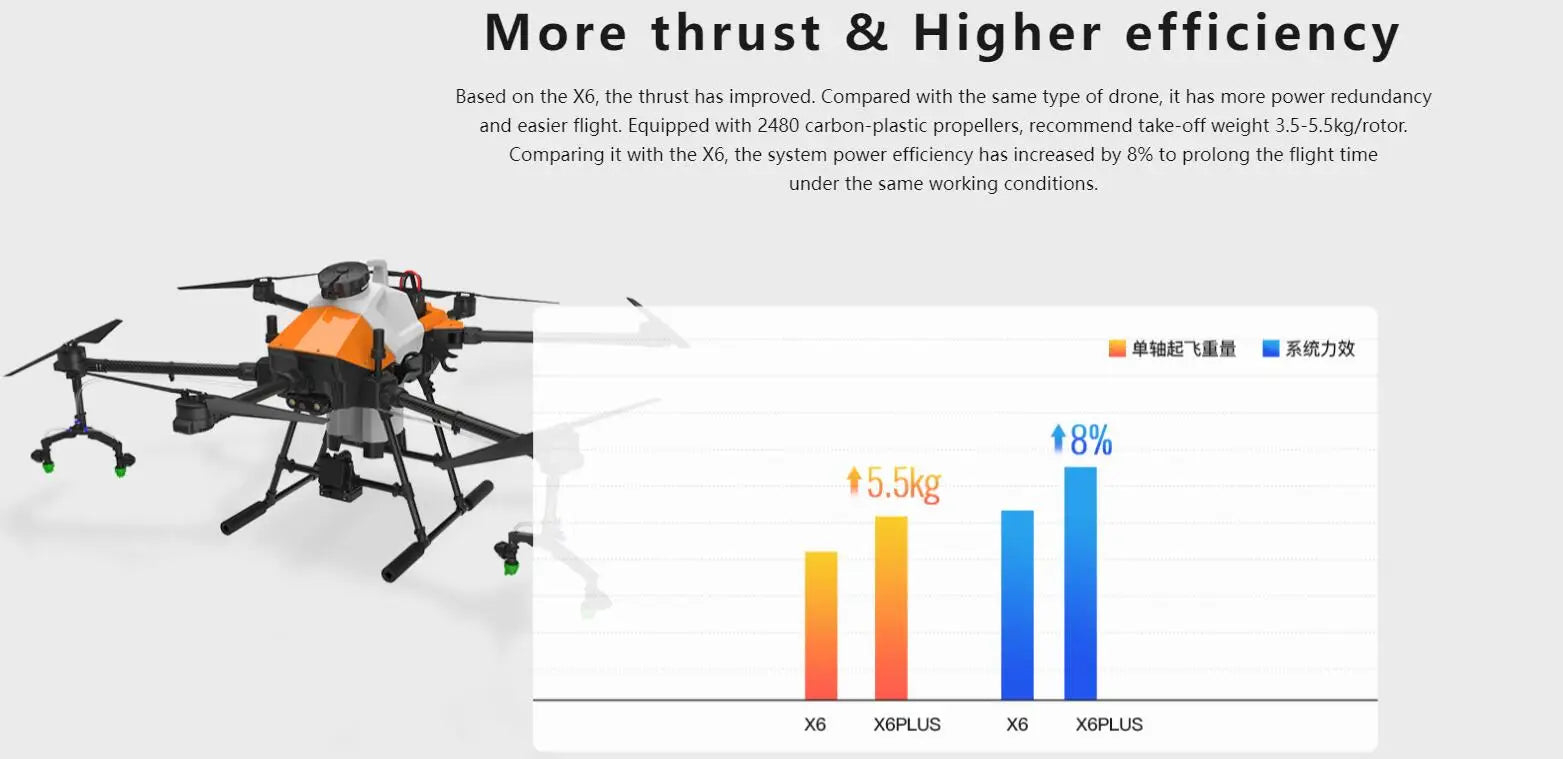

x6 xgplus has more thrust & higher efficiency based on the x6, the thrust has improved . compared with the same type of drone, the system power efficiency has increased by 8% .

The motor features an upgraded heat dissipation structure, allowing for more effective active heat dissipation even at the same operating conditions.

This power system is suitable for Hobbywing X6 motor ESC propeller and 30mm tube adapter on an agriculture drone weighing up to 10kg. It features analog flight stabilization with GPS, even in situations where only one GPS module is used without RTK (Real-Time Kinematic) correction, providing a stable and fixed flight experience.

can+pwm signal can digital signal , precise throttle control, more stable flight . even in the state of single gps without rtk, fixed" flight: 1.2.3.4,5.6.7.88.99

flight: 1.2.3.4,5.6.7.88.99.100 10% 10% CANMYF,0(] nL 10% 9.8% PWMIRIuiBI ] analog flight: "even in the state of single GPS without RTK, fixed" flight:

can+pwm signal can digital signal , precise throttle control, more stable flight . even in the state of single gps without rtk, fixed" flight: 1.2.3.4,5.6.7.88.99

Our patented technology boosts efficiency by 10% compared to traditional square wave control, while also reducing overall temperature by an impressive 10.8°C.

Utilize the Datalink data box to download and view any fault records. The Electronic Speed Controller (ESC) is fully sealed and protected, ensuring safe and reliable flight performance.

fault storage built-in fault storage function helps the uav to quickly locate problems and analyze faults . use the datalink data box to download and view; and convert the fault into data .

Upgrade your ESC firmware effortlessly with Hobbywing's DATALINK data box, which allows for online updates. Additionally, utilize Hobbywing's cutting-edge flight controller synchronization technology to streamline your flying experience.

use the hobbywing datalink data box to upgrade the esc firmware online . use the flight controller synchronization of hobbywing's latest technology .

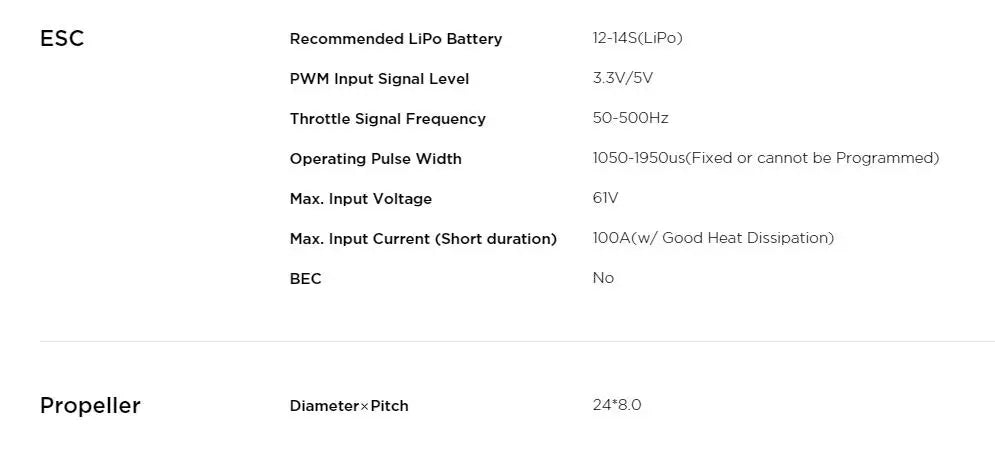

The ESC requires a LiPo battery with a capacity range of 12-14S. It accepts PWM input signals at a level of 3.3V, with a frequency of 50-500Hz. The throttle signal's pulse width is fixed between 1050-1950us and cannot be programmed. The maximum input voltage is 61V, and the maximum output current is limited by the device's thermal design (IOOA) when dissipating heat effectively.

esc recommended lipo battery 12-14s(lipo) pwm input signal level 3.3v/sv throttle signal frequency 50-50ohz operating pulse width 1050-1950us(fixed or cannot be programmed

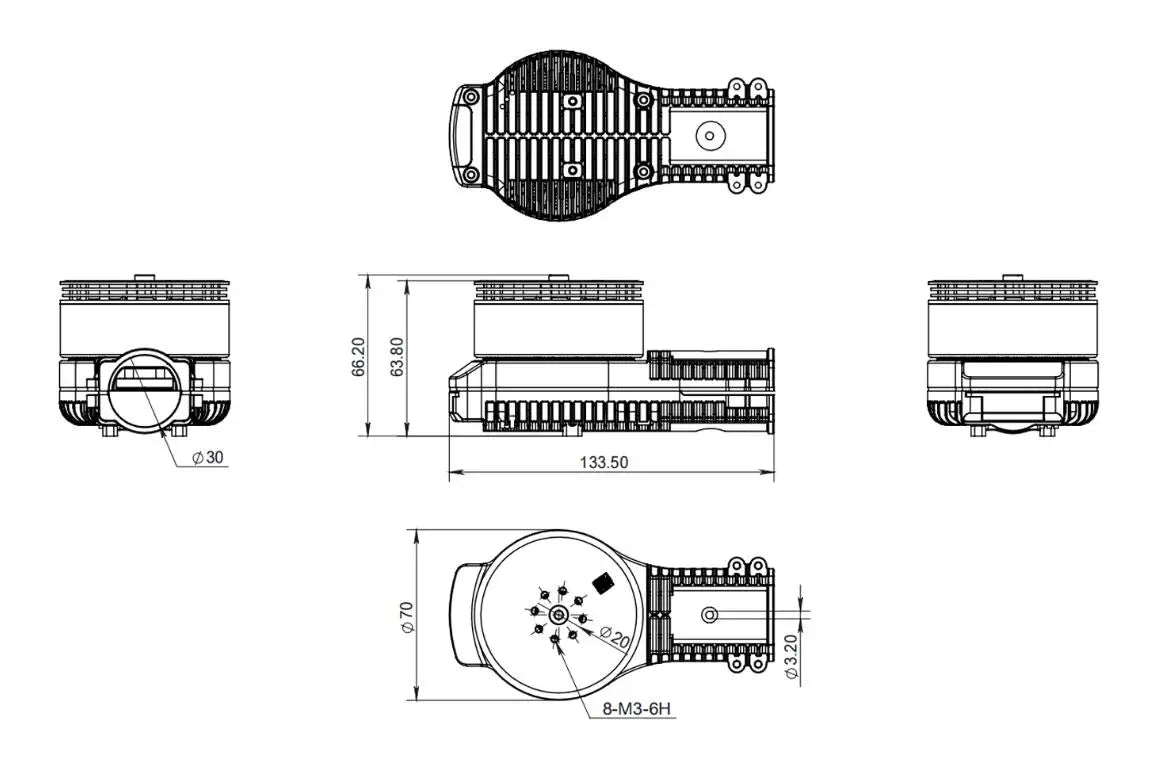

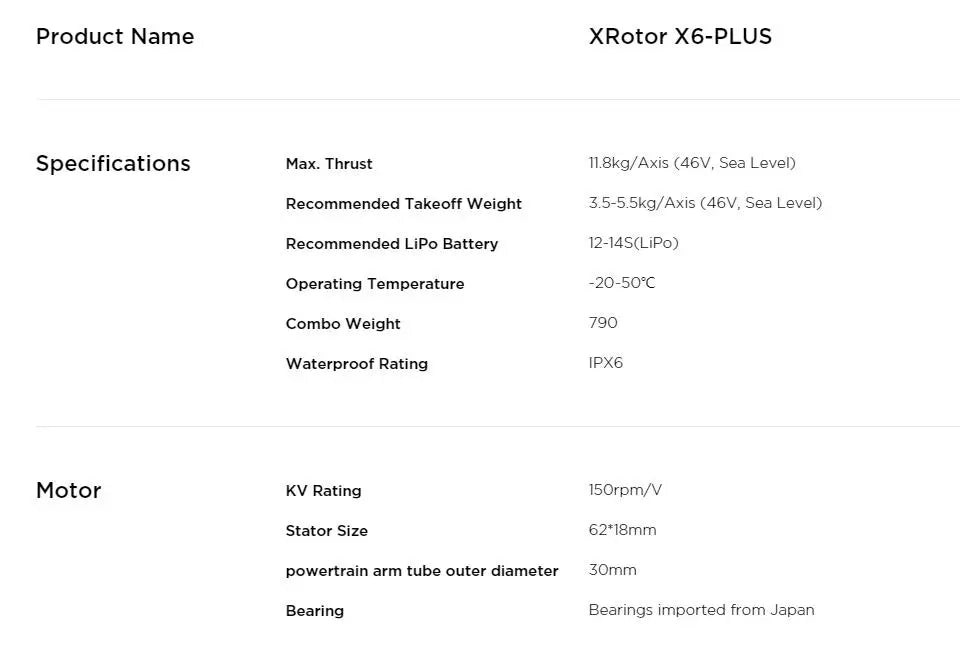

Specifications for the Hobbywing X6 Power System: Maximum Thrust: 1.8 kg per axis (at 46V, sea level) Recommended Takeoff Weight: 3.5-5.5 kg per axis Recommended LiPo Battery: 12-14S (LiPo) Operating Temperature: -20°C to 50°C Combo Weight: 790g Waterproof Rating: IPX6 Motor KV Rating: I So rpm/V Stator Size: 62mm x 18mm Powertrain Arm Tube Outer Diameter: 30mm Bearing: Bearings imported from [unknown source]

xrotor x6-plus specifications: thrust il.8kg/axis (46v, sea level) recommended lipo battery 12-14s(lipo) operating temperature -20-50'c combo weight 790

Product Information and Description

 Hobbywing X6 Power System

Specifications:

• Max Thrust: 11.8kg/axis (46V, sea level)
• Recommended Takeoff Weight: 3.5-5.5kg/axis (46V, sea level)
• Recommended LiPo Battery: 12-14S LiPo
• Operating Temperature: -20°C to 50°C
• Combo Weight: 790g
• Waterproof Rating: IPX6
• Motor KV Rating: 1500 RPM/V
• Stator Size: 62x18mm
• Arm Tube Outer Diameter: 30mm
• Bearing: Imported from Japan

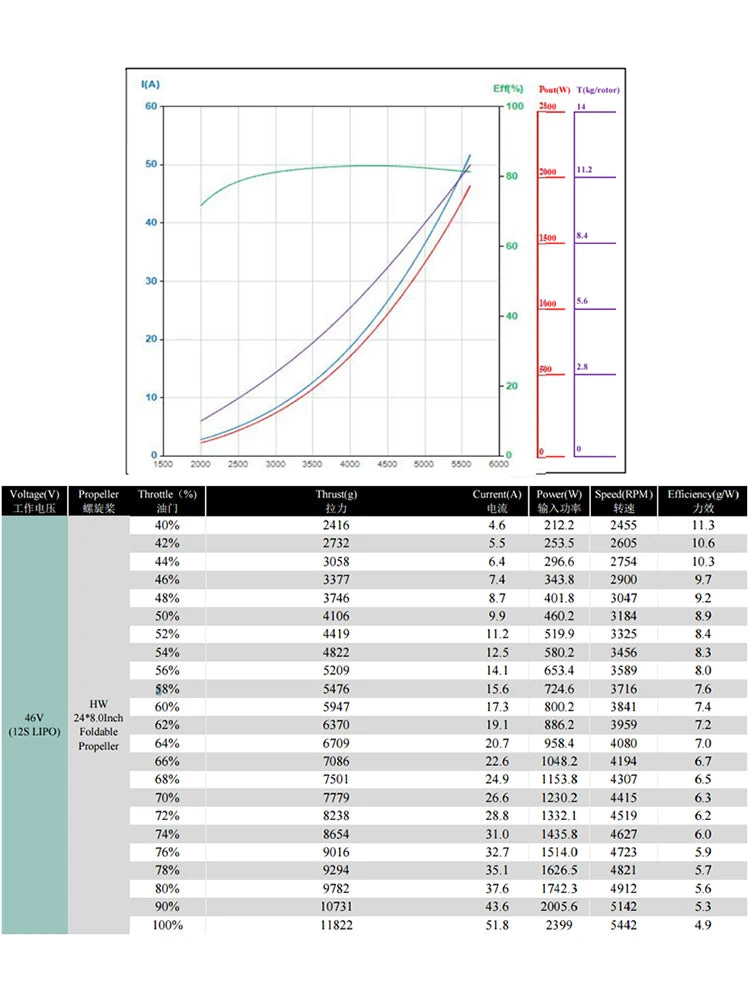

Propeller Specifications:

• Diameter x Pitch: 24x8.0
• Throttle (1 Throttle): 40%
• Current (A): 2416 (42%), 2732 (44%), 3058 (46%), 3377 (48%), 3746 (50%), 4106 (52%), 4419 (54%), 4822 (56%), 5209 (58%), 5476 (60%), 5947 (62%), 6370 (62%), 6709 (66%), 7086 (68%), 7501 (70%), 7779 (72%), 8238 (74%), 8654 (76%), 9016 (78%), 9294 (80%), 9782 (80%), 10738 (90%), 1822 (100%)

Prolonged Stability and Efficiency:

• 8% increased efficiency for prolonged flight time.
• Double throttle signal for increased battery lifespan and stability.
• More thrust and higher efficiency compared to the X6.

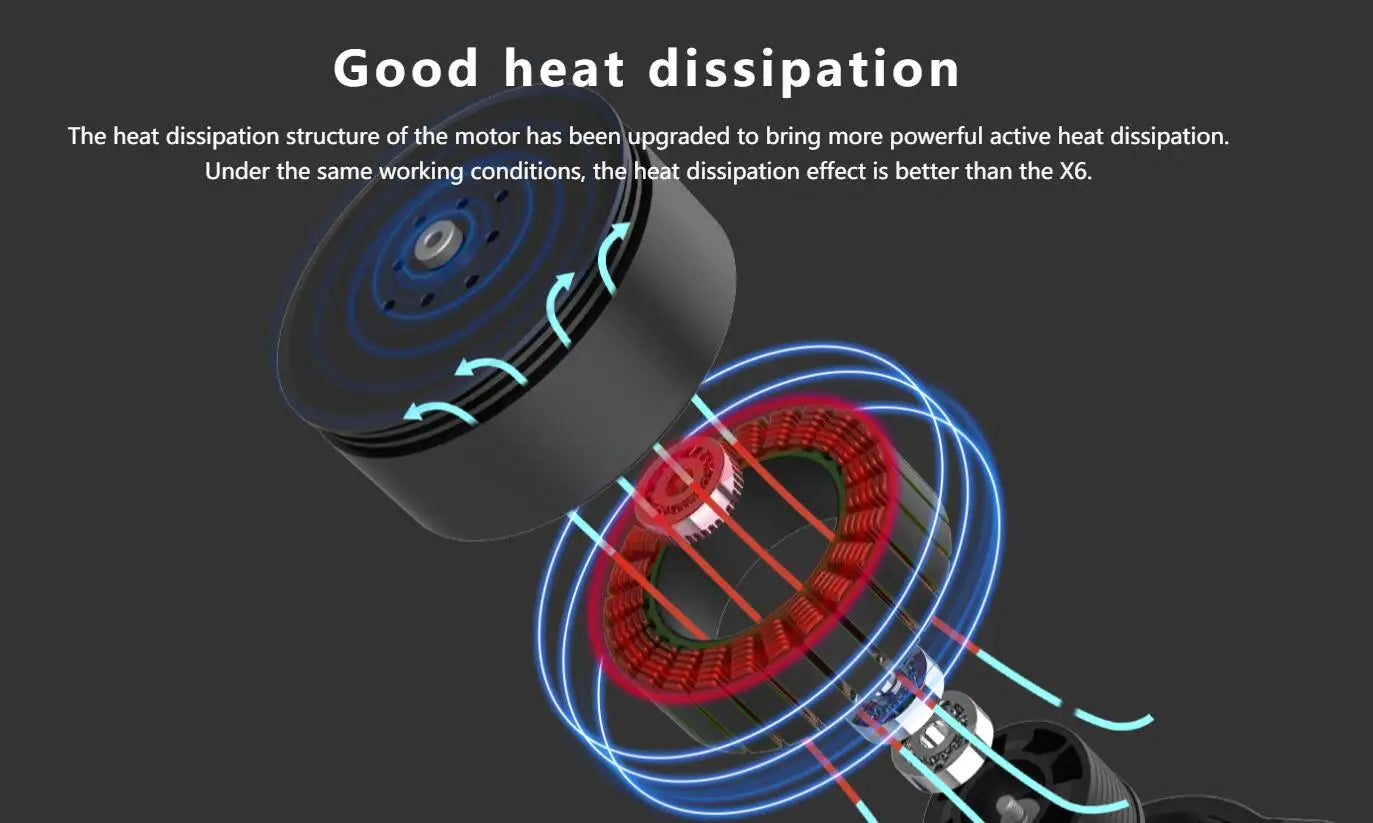

Good Heat Dissipation:

• Upgraded motor heat dissipation structure for more powerful active heat dissipation.
• Better heat dissipation effect than the X6 under the same working conditions.

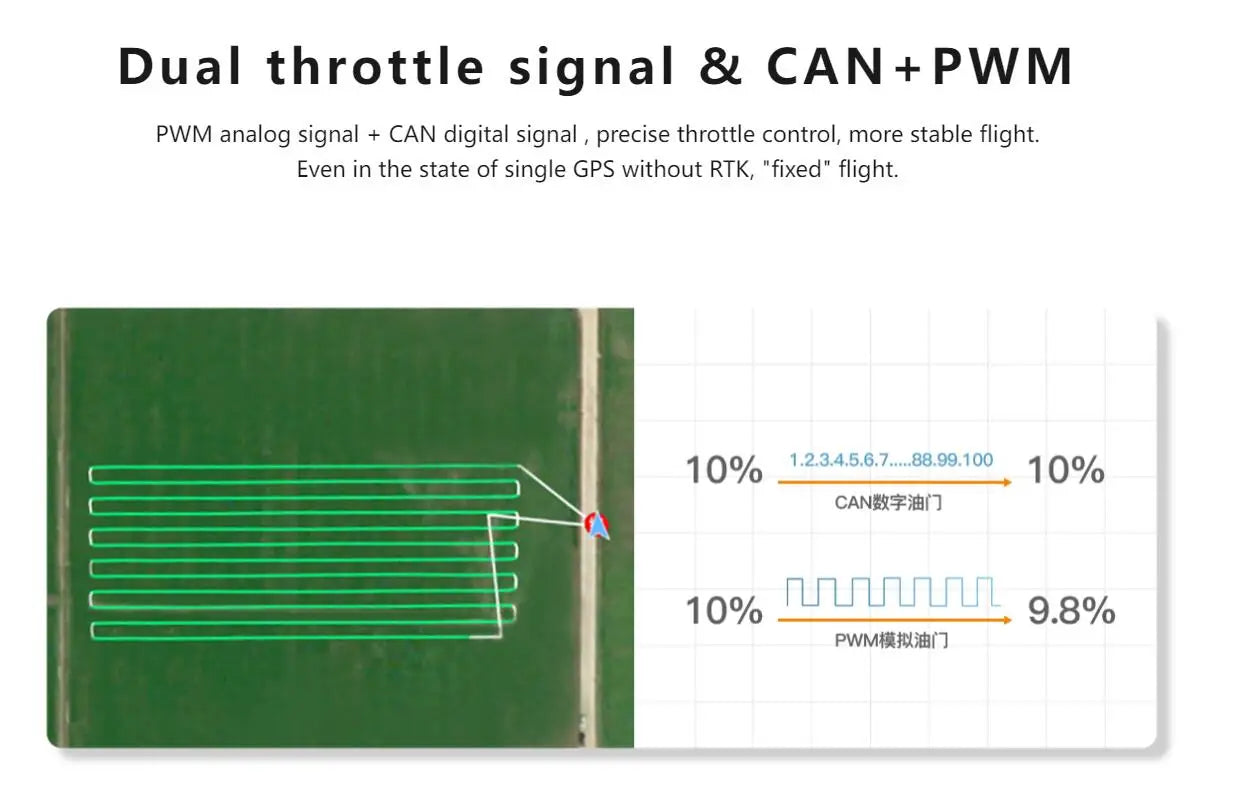

Dual Throttle Signal & CAN+PWM:

• Precise throttle control for more stable flight.
• Supports both digital (CAN) and analog (PWM) signals.
• Stable flight even without RTK in a fixed state.

FOC (Field Oriented Control):

• Precise and linear throttle control.
• 10% increased efficiency compared to square wave control with the same power.
• Reduction in overall temperature by 10.8°C.

Fault Storage and IPX6 Protection:

• Built-in fault storage function for quick problem location and analysis.
• ESC fully sealed and protected with IPX6 rating.
• Multiple protection mechanisms for flight safety.

Communication & Upgrade:

• Default CAN communication with optional serial port.
• Real-time transmission of power system working condition data.
• Support for online ESC firmware upgrade using Hobbywing datalink data box.

FAQ:

Q: What LiPo battery is recommended for the ESC? A: The recommended LiPo battery is 12-14S (LiPo).

Q: What is the operating temperature range of the X6 Power System? A: The operating temperature range is -20°C to 50°C.

Q: Is the X6 Power System compatible with different propeller sizes? A: The system is equipped with a 24x8.0 propeller, and compatibility with other sizes may require adjustments.

Q: How can I upgrade the ESC firmware? A: Use the Hobbywing datalink data box for online ESC firmware upgrades. Remote upgrades are also supported through the flight controller.

Q: What is the thrust performance of the X6 Power System at different throttle percentages? A: Refer to the performance table for thrust values at various throttle percentages.

Note: Specifications and features are subject to change with firmware updates.
