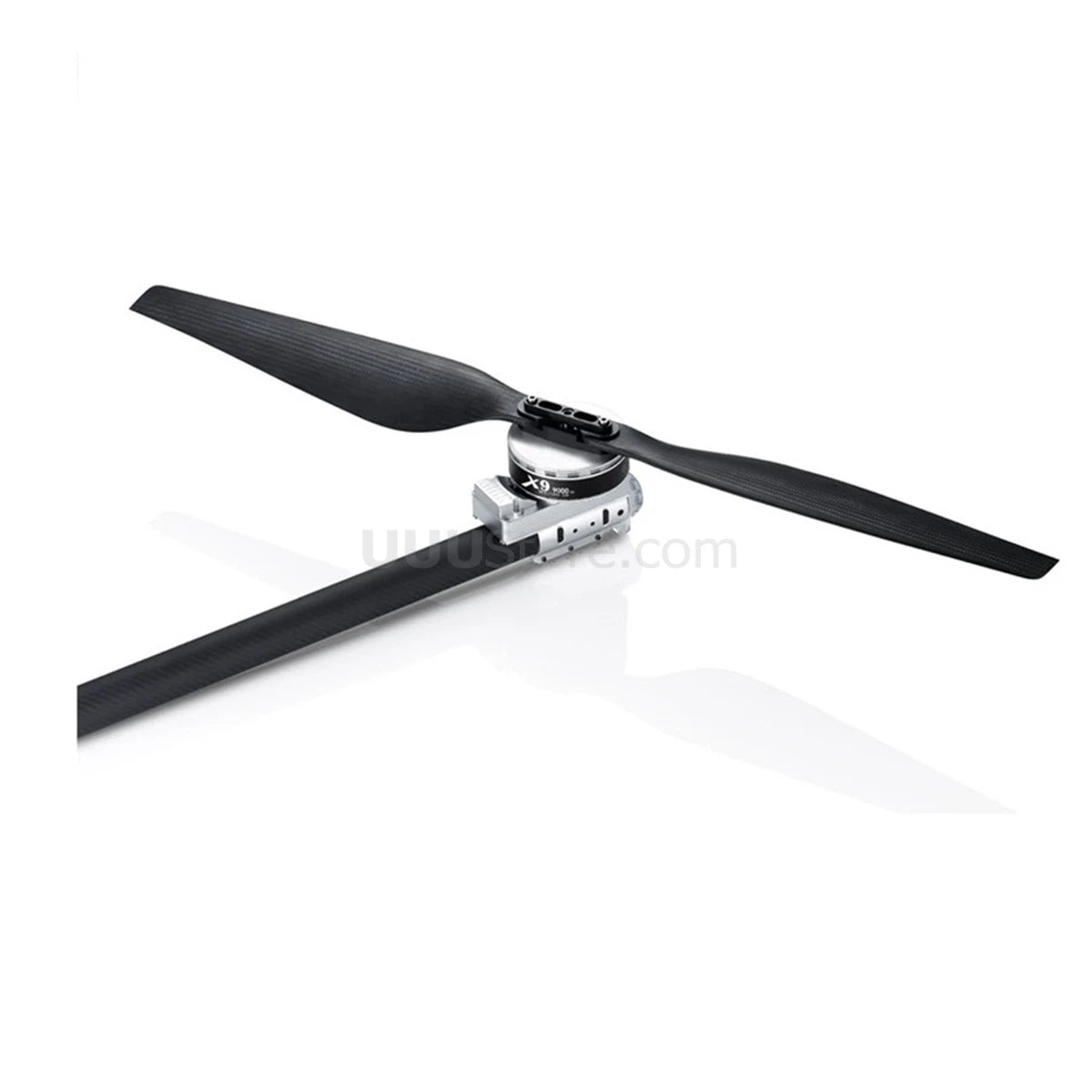

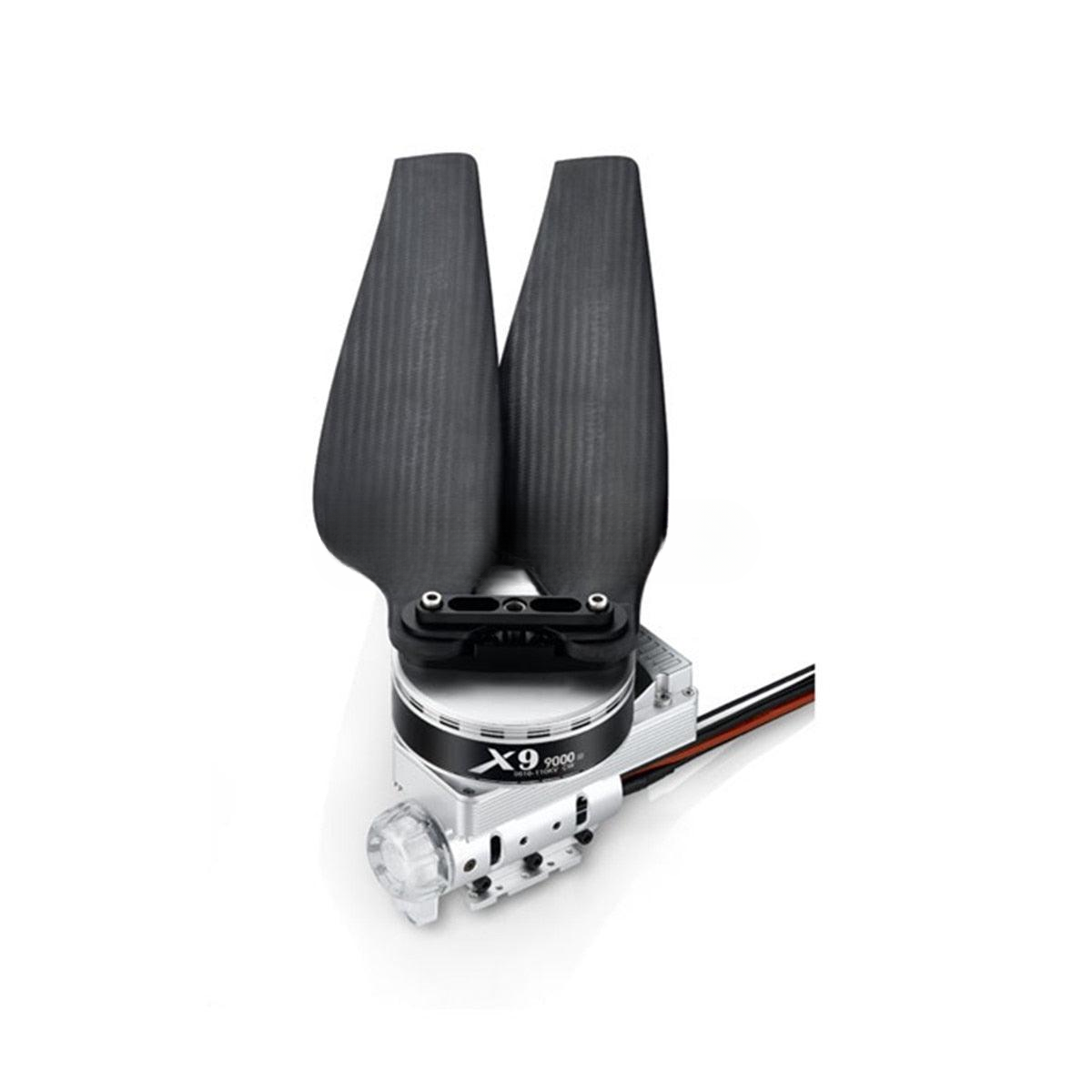

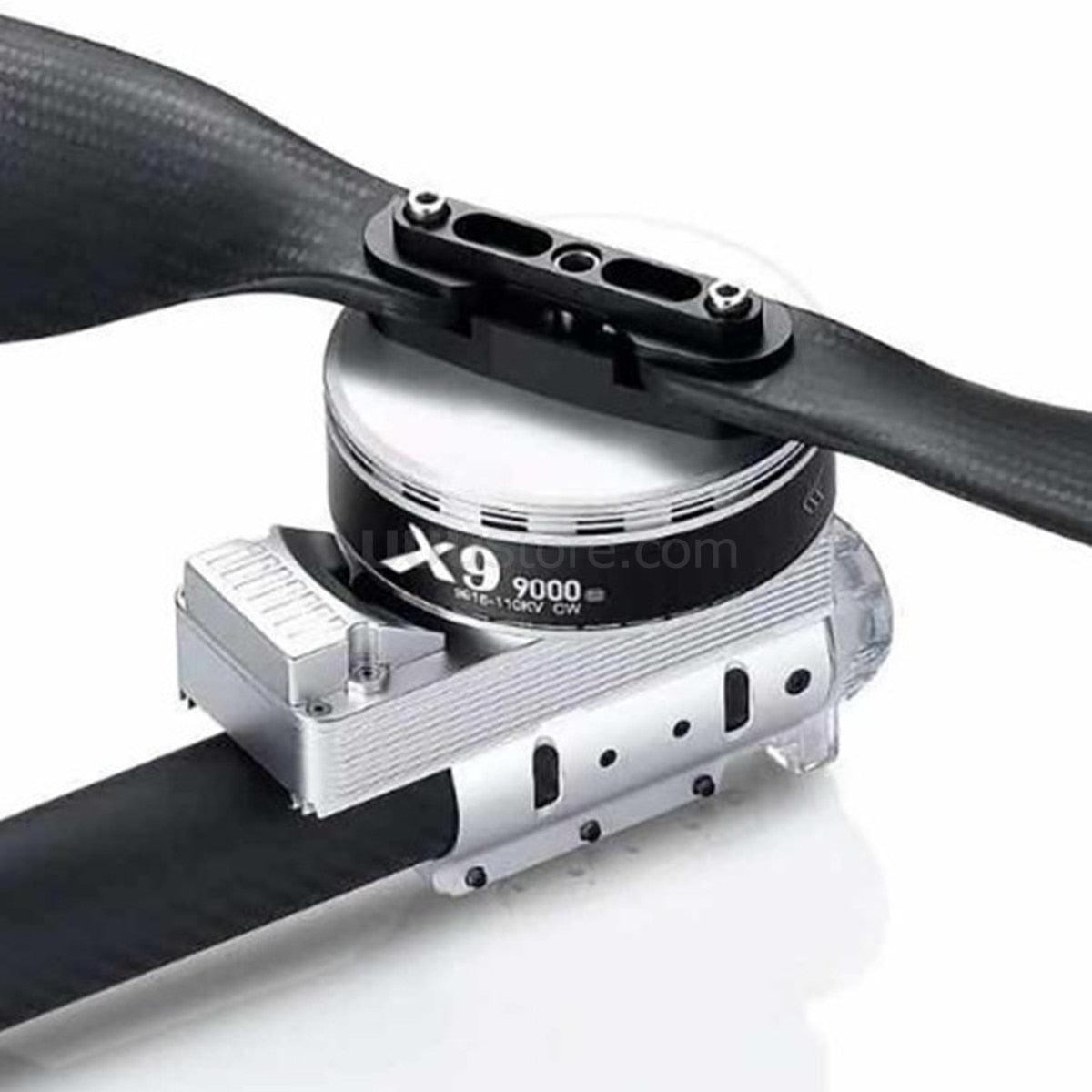

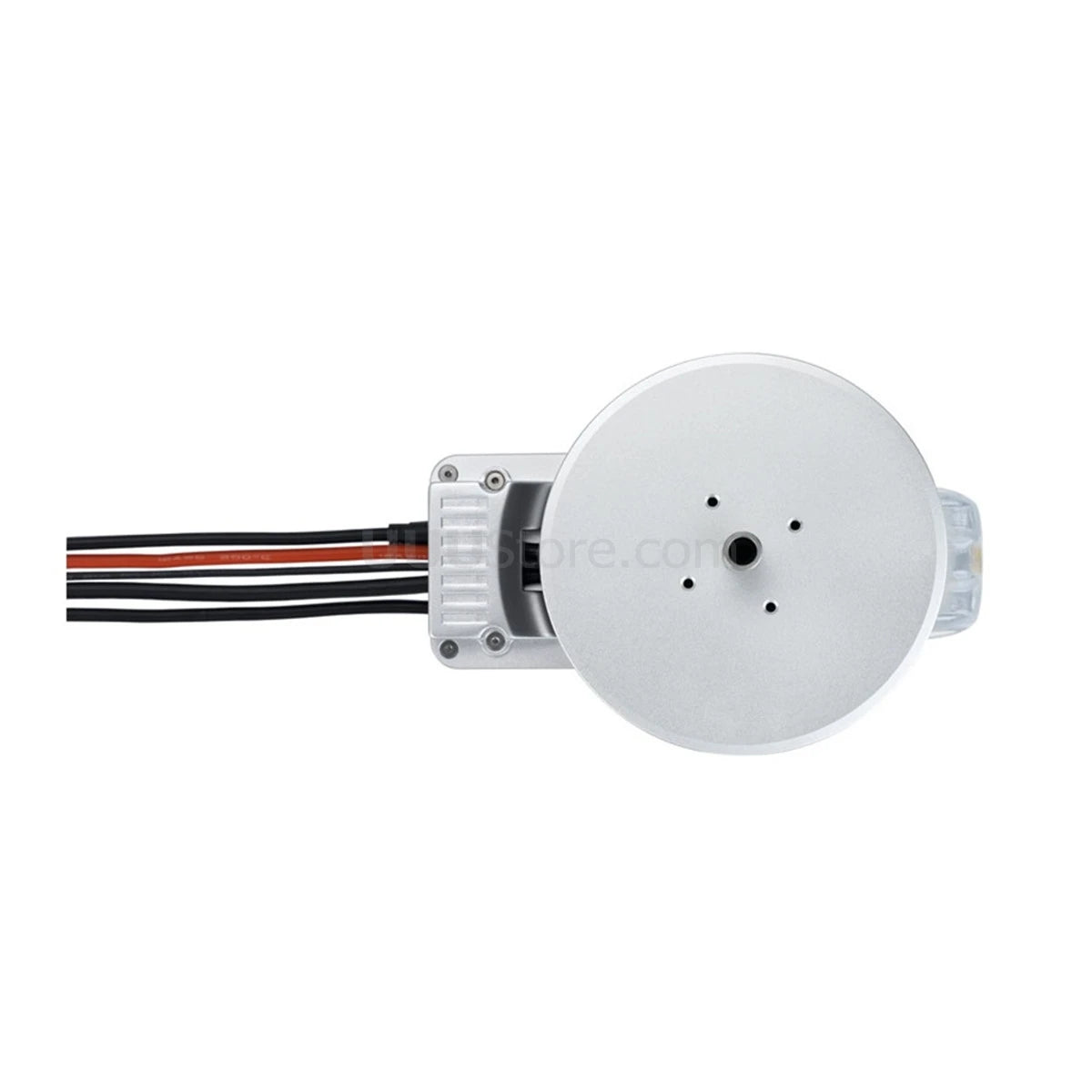

Hobbywing X9 Power System - COMBO-XRotor Pro-X9-02-CW/CCW-RTF

Technical Parameters

• Maximum Thrust: 21.5KG/axis
• Recommended Battery: 12S LiPo
• Recommended Takeoff Weight (Single Axis): 7.0-9.5KG
• Weight (Including Propeller): 1450g

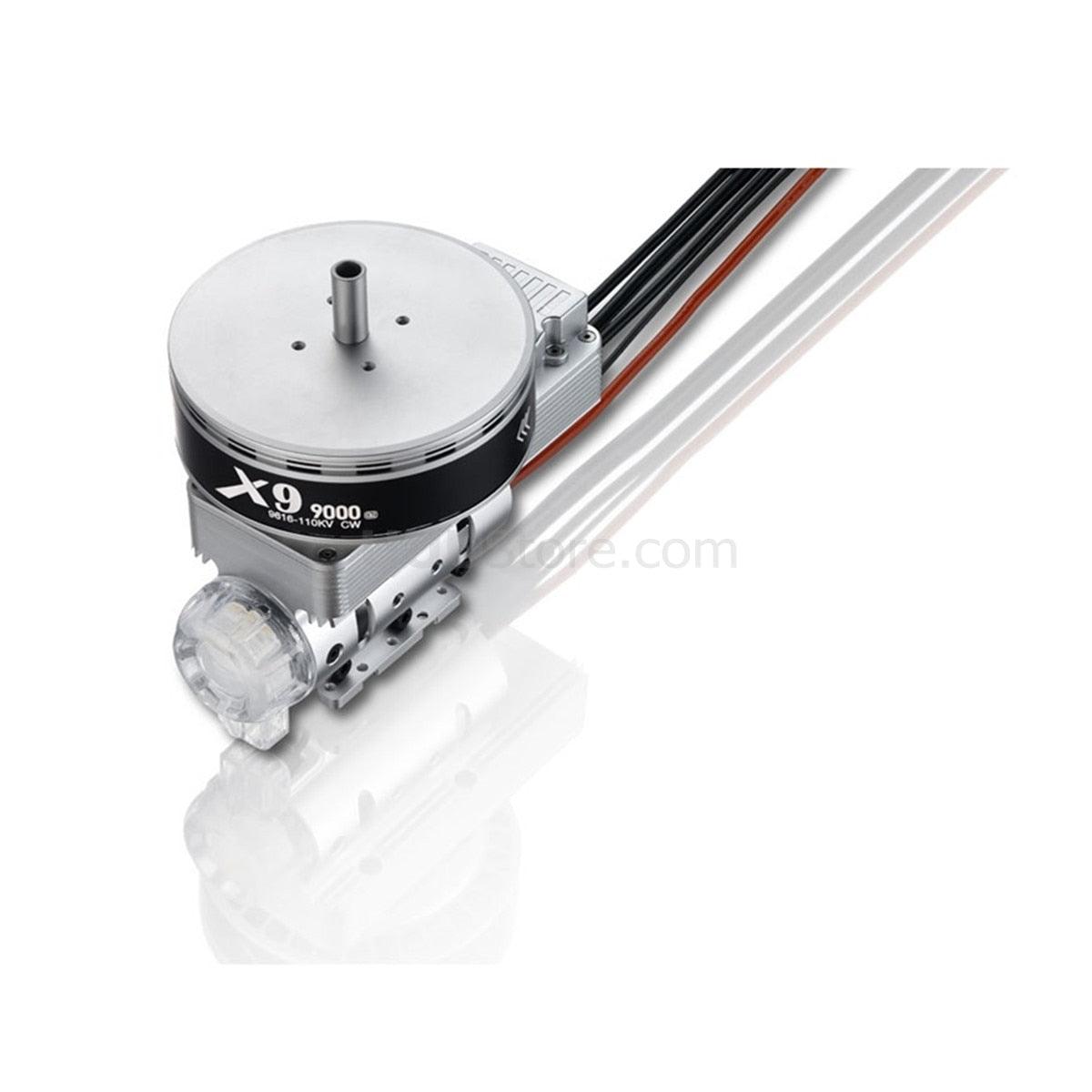

Motor

• Stator Size: 96x16mm
• KV Value: 105rpm/V
• Internal Resistance: 0.030ΩBE
• Motor Outer Diameter: Φ103.5mm

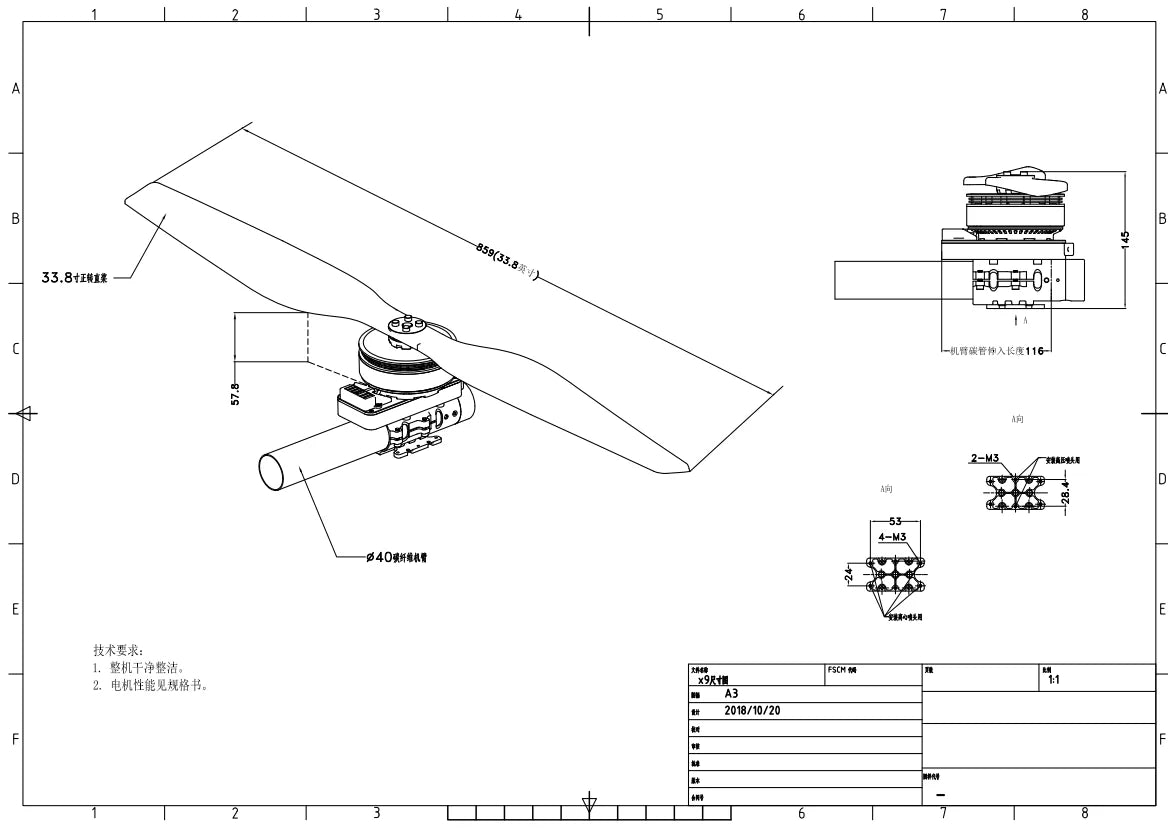

• Paddle Clamp Installation Size: Φ31mm-4xM4
• Bearing: Imported Ball Bearing (Waterproof)
• Applicable Carbon Tube Outer Diameter: 40mm

ESC

• Model: X-Rotor/120A-FOC
• Battery: 6-12S LiPo
• PWM Input Signal Level: 3.3V/5V
• Working Pulse Width: 1100μs-1940μs (Calibration Not Supported)
• Maximum Allowable Voltage: 52.2V
• Maximum Allowable Current (Continuous): 120A
• Maximum Allowable Peak Current (3 Seconds): 150A
• BEC: None

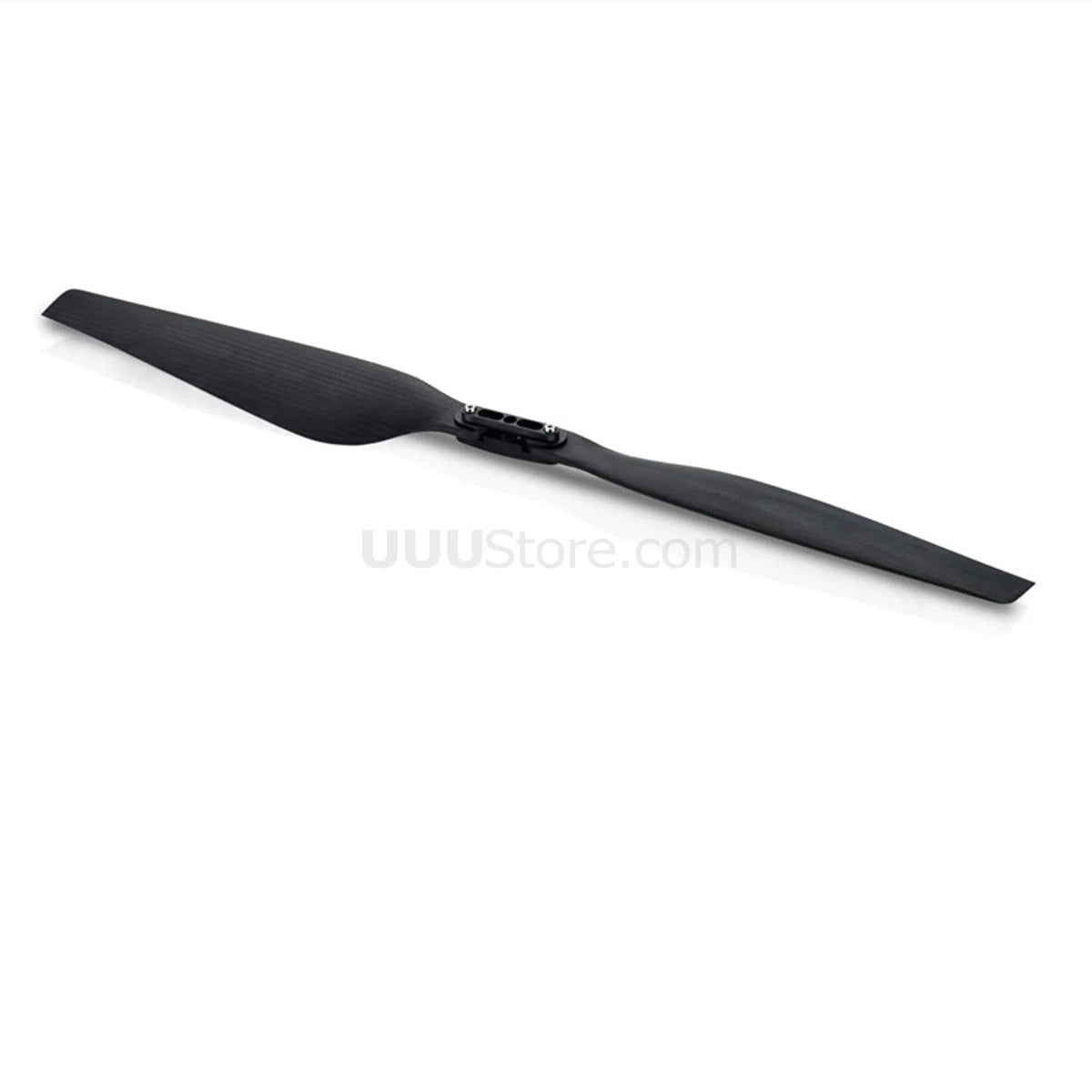

Propeller

• Diameter/Pitch: 34.7x11inch

Functional Selling Points

High Thrust

The X9 Power System provides a maximum thrust of 21.5KG per axis, ensuring robust performance for multirotor agriculture spraying drones.

Battery Compatibility

Designed for 12S LiPo batteries, the power system is optimized for efficient energy utilization.

Lightweight Design

With a weight of 1450g, including the propeller, the system maintains a lightweight profile, contributing to the overall agility of the drone.

Advanced Motor Features

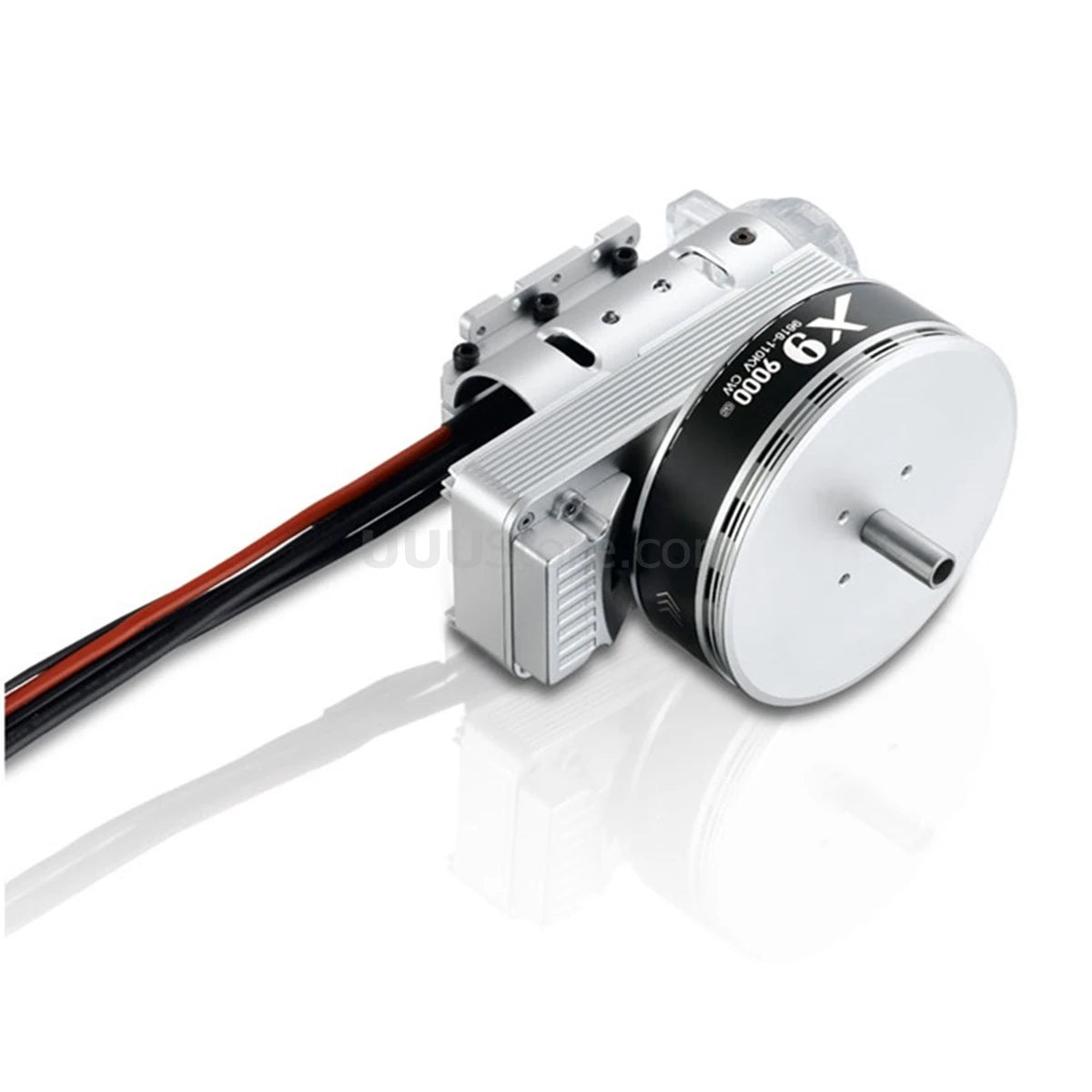

The motor boasts a large stator size (96x16mm), a KV value of 105rpm/V, and is equipped with imported ball bearings for enhanced performance. The waterproof feature ensures durability in various conditions.

FOC ESC Technology

The X-Rotor/120A-FOC ESC employs advanced FOC (Field-Oriented Control) technology, providing precise and efficient control for optimal drone performance.

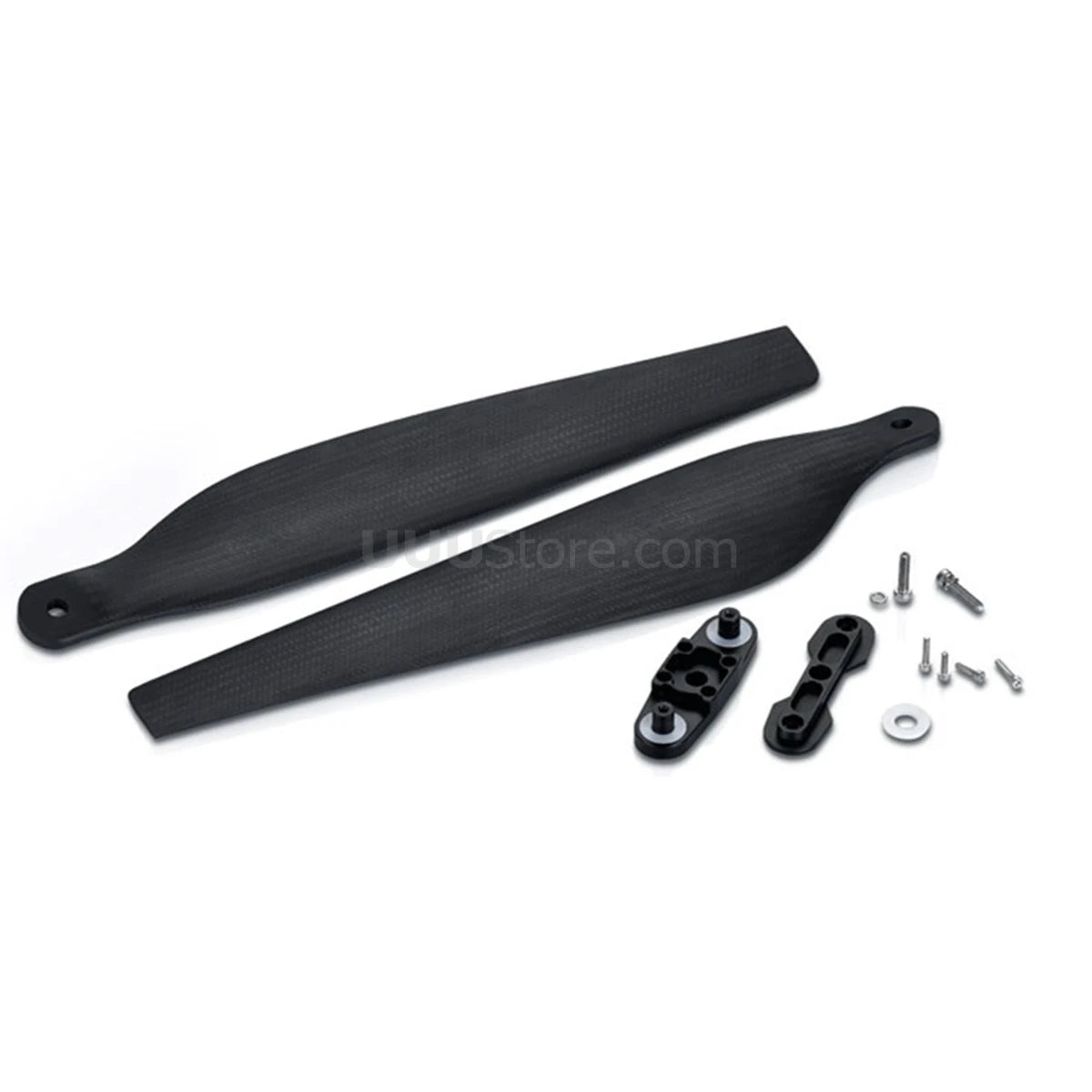

Propeller Specifications

The included propeller features a diameter/pitch of 34.7x11inch, ensuring effective thrust and lift during operations.

Setup and Maintenance

• Setup: Follow the provided instructions for a straightforward setup process, ensuring proper calibration.
• Maintenance: Regularly inspect the motor, ESC, and propeller for any signs of wear or damage. Keep the system clean and free from debris.

Additional Information:

• Drone Frame: Compatible with 40mm carbon fiber tubes.
• Flight Controller: Please refer to the product manual for compatible models.
• Electronic Speed Controller: Included in the X9 power system.

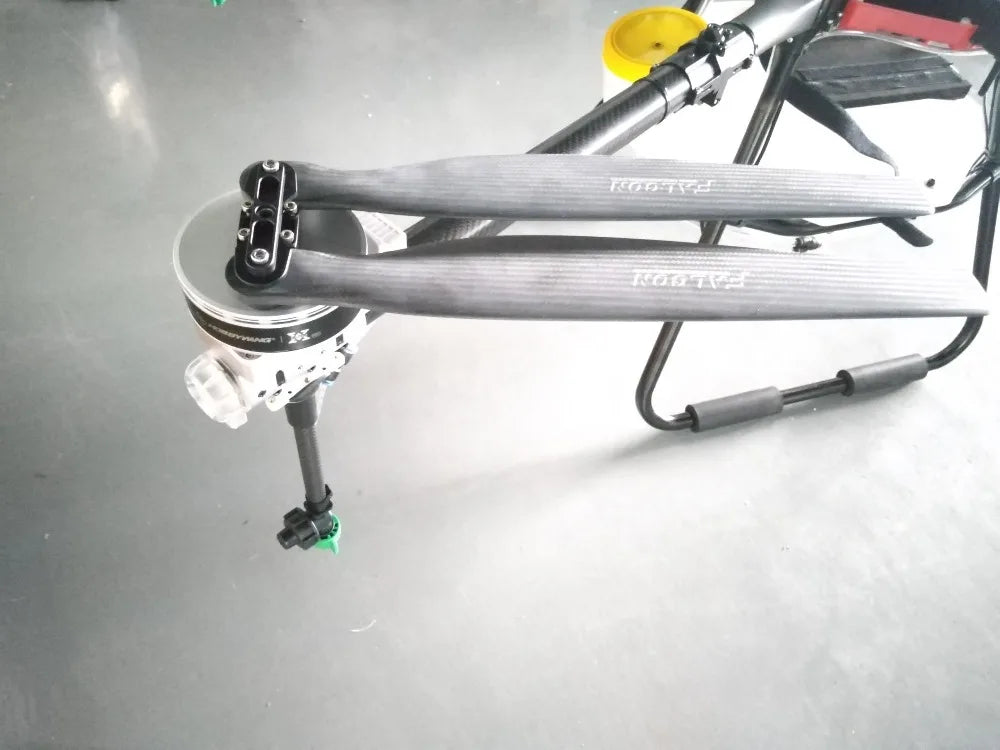

• Water Tank and Spreader System: Optional for agricultural applications.
• Setup and Maintenance: Consult the official user manual for instructions.

• Recommended takeoff weight: 7.0-9.5kg per axis at 48v sea level.
• Recommended battery: 6-12s lipo battery.

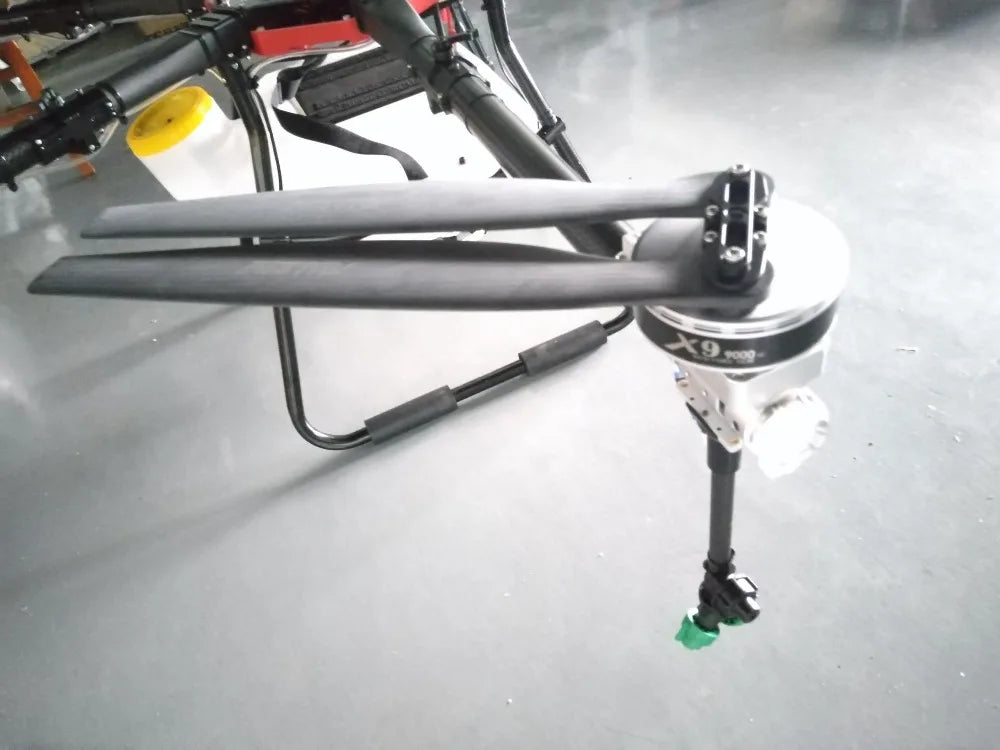

• ESC firmware upgrade: Possible with Hobbywing Datalink data box (sold separately).

FAQ

Q: What is the maximum thrust of the X9 Power System?

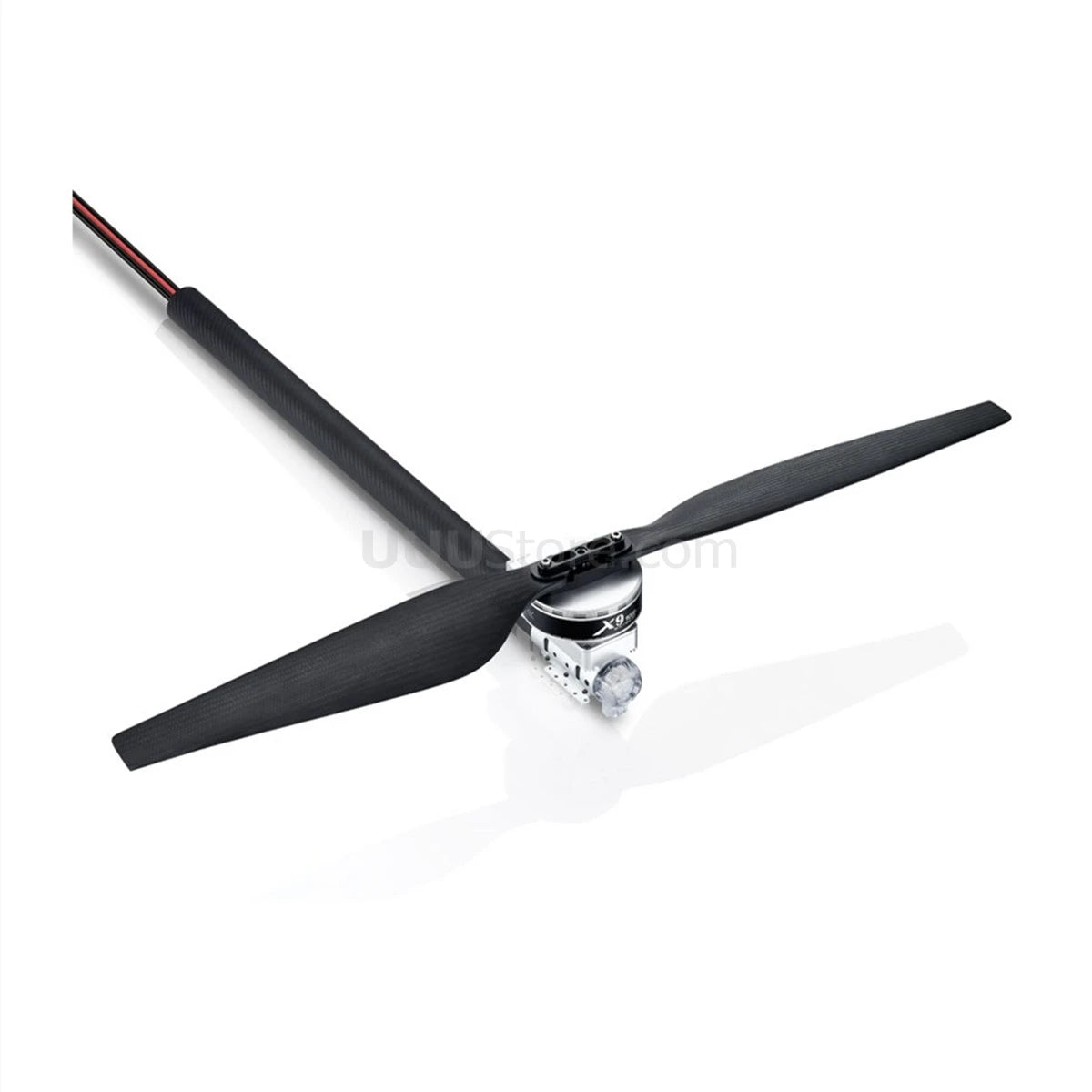

A: The maximum thrust is 21.5KG per axis.

Q: Which batteries are recommended for use with this system?
A: It is recommended to use 12S LiPo batteries.

Q: Is calibration supported for the PWM input signal?
A: Calibration is not supported for the working pulse width of 1100μs-1940μs.

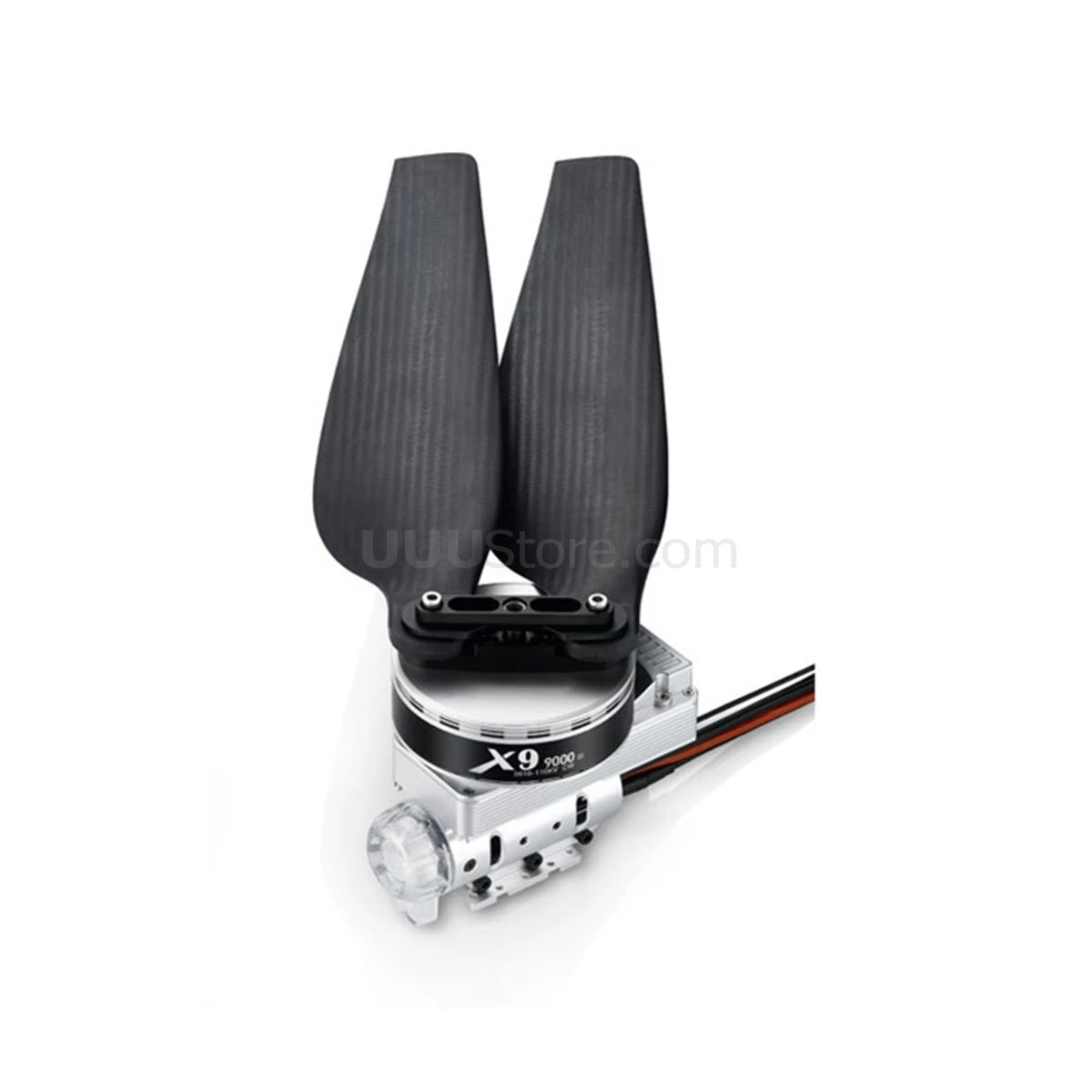

Q: What is the diameter and pitch of the included propeller?
A: The propeller has a diameter/pitch of 34.7x11inch.

Note: Ensure adherence to safety guidelines and regulations during setup and operation.
