Hobbywing XeRun DRX 3652 SD Sensored Brushless Motor 8500KV/9500KV for 1/10th Drag Racing Cars

Overview

Hobbywing XeRun DRX 3652 SD is a sensored brushless motor for 1/10th drag racing cars, built for ultra-high RPM operation and high-current applications.

Key Features

• Ultra high RPM, designed for drag racing.
• Large-opening motor case and end cover structure for heat dissipation.
• Dual sensor port design for flexible wiring/layout.
• Widened and thickened copper bar design to support large current.
• Steel sleeve reinforced rotor design for high-RPM running conditions.
• High hardness aluminum CNC shell.
• High performance iron core.
• 200°C high temperature resistance wire.
• High toughness alloy output shaft.
• Bearings.
• Custom U-shaped gold-plated curved copper bar; widened and thickened to lower internal resistance, improve current capability, and make soldering easier.
• Modular structure design for routine cleaning and maintenance, helping extend service life and maintain working efficiency.

For product selection and support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Applications

• 1/10th drag racing RC cars

Series Notes (text visible in provided materials)

• “XeRun 3652 / 3662 DRX” is shown with “8500KV & 9500KV / 6500KV”.
• For a “3662-6500KV” motor, the maximum output power is stated as increased by approximately 6% compared with similar top-of-the-line motors.
• A chart compares Output power (W) vs Torque (N.m) for “XeRun 3662SD DRX 6500KV” against “A brand of motor-6600KV” and “A brand of motor-6500KV”.
• Using a 0.8N·m load test (3662 motor): coil temperature is approximately 20°C lower; external temperature is 8°C cooler.

Details

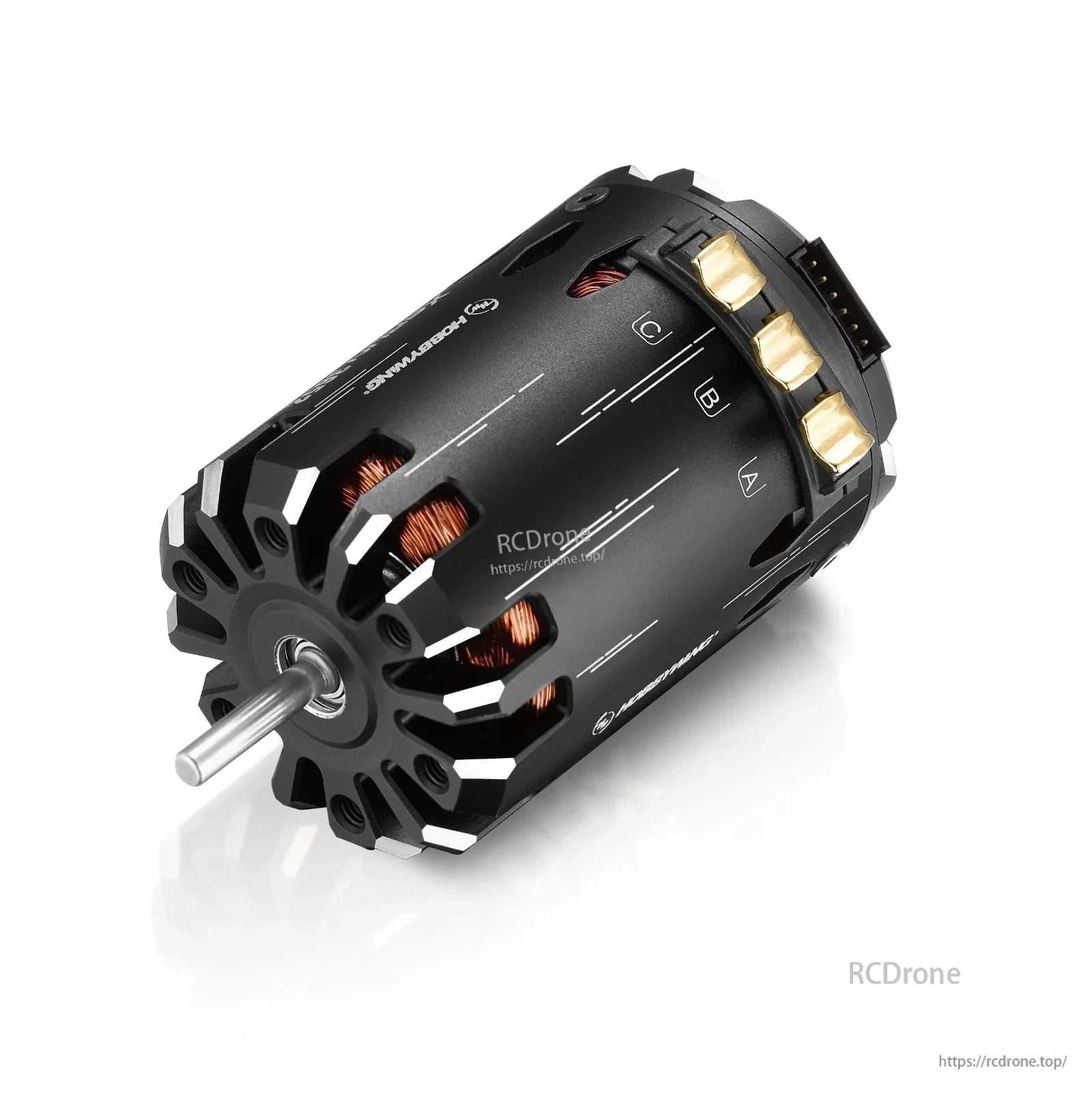

The XeRun DRX 3652 sensored brushless motor is labeled 8500KV and features a compact can with an exposed output shaft for 1/10 drag setups.

The XeRun DRX motor is positioned for consistent, reliable power delivery, with messaging noting up to an approximate 6% output increase versus similar motors.

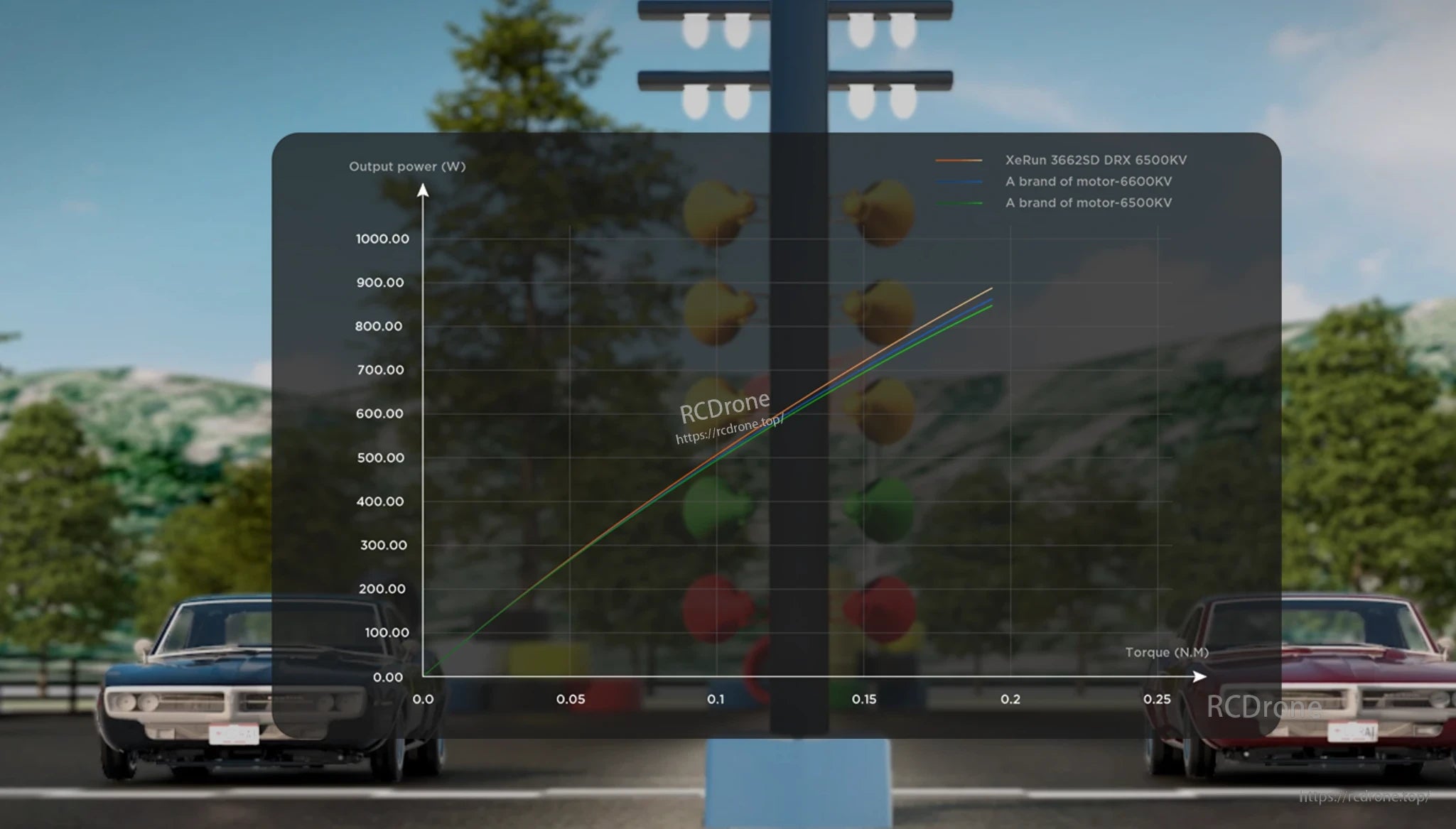

The power‑vs‑torque curves help compare the XeRun 3662SD DRX 6500KV motor’s output trend against two other motors.

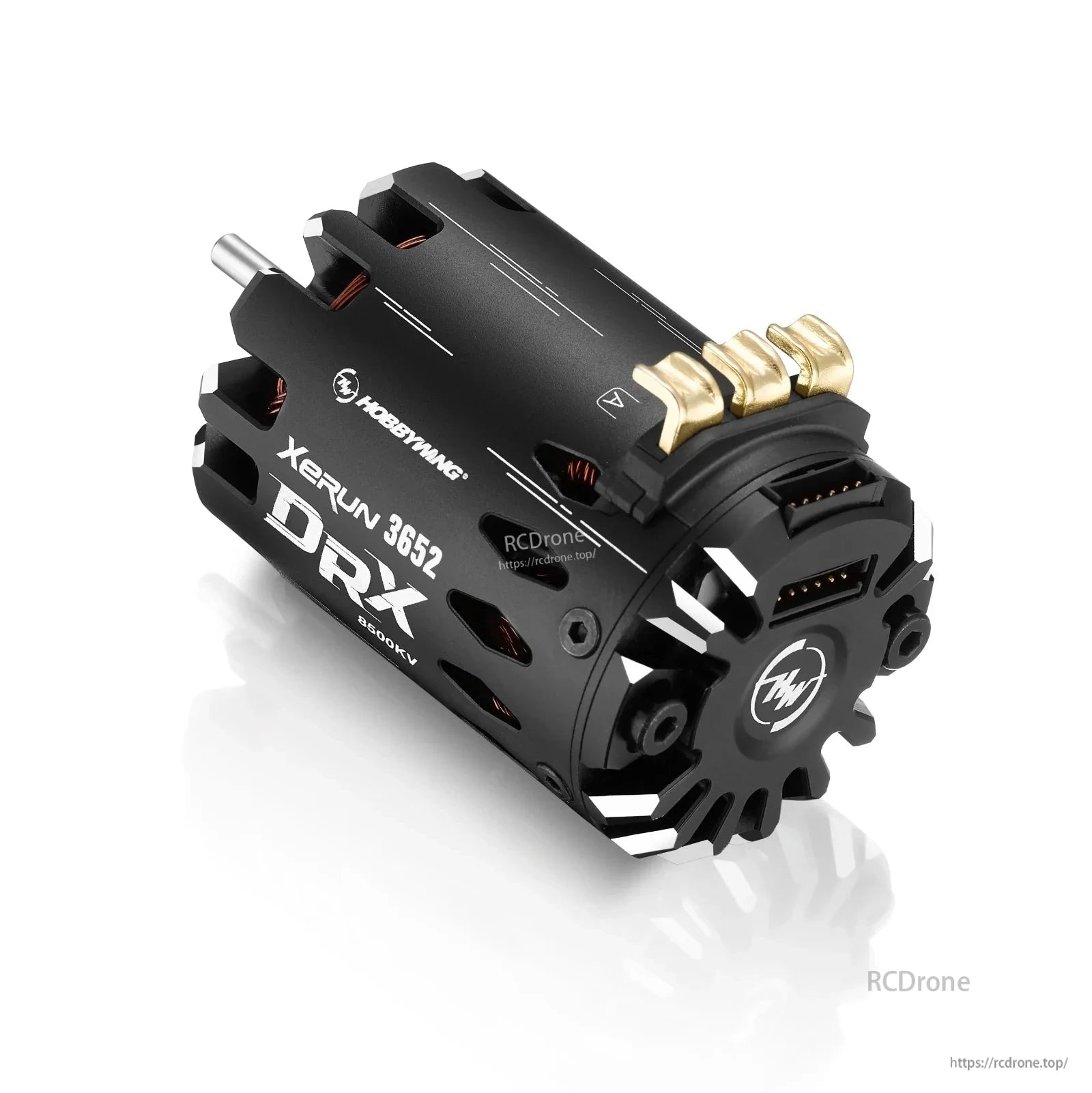

The XeRun DRX motor uses a CNC aluminum shell, high-temperature resistance wire, and gold-plated curved copper terminals for clean, durable connections.

The XeRun DRX 3662 motor uses a modular can design that makes routine cleaning and maintenance more convenient.

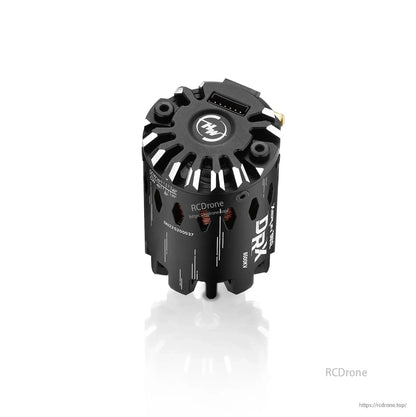

The XeRun DRX 3652 sensored motor uses a dual sensor port design to give more flexibility when routing sensor wiring.

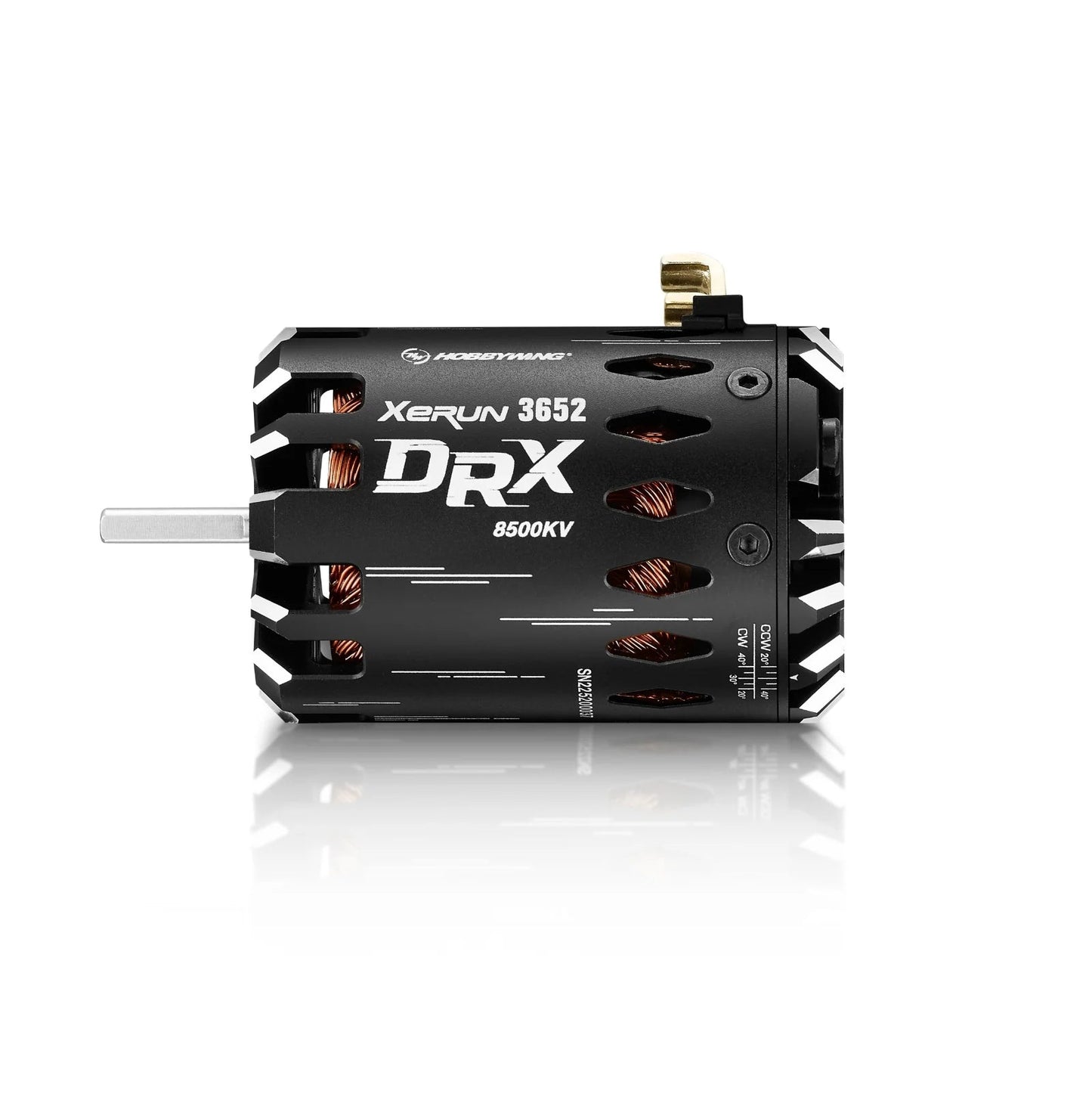

The XeRun DRX 3652 SD motor uses a steel-sleeved rotor assembly designed to handle demanding drag racing loads.

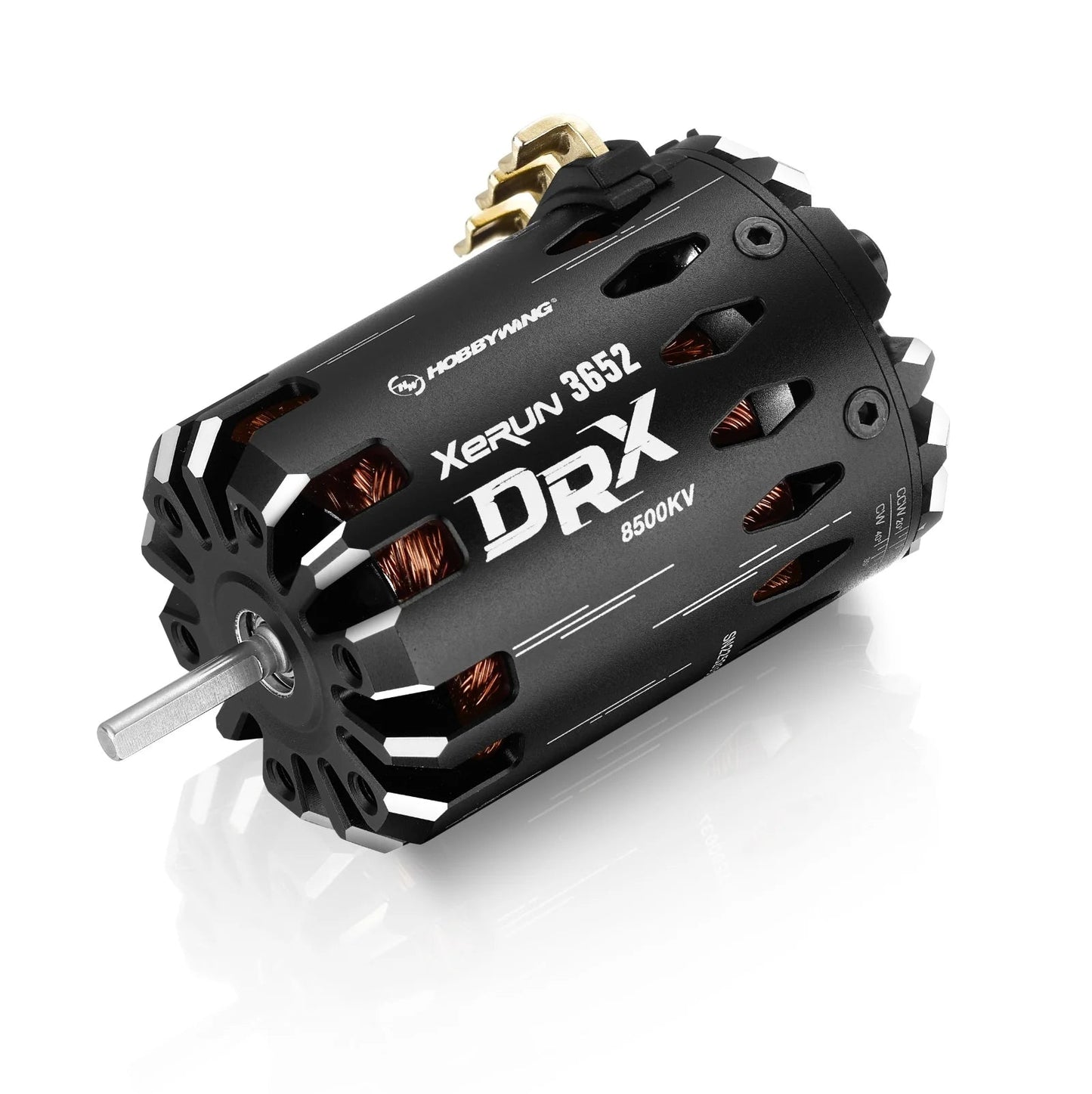

The XeRun DRX 3652 sensored motor uses a vented can and sensor-port endbell for tidy wiring in 1/10 drag racing setups.
