HOBBYWING XERUN XR10 Justock G3 SPECIFICATIONS
Brand Name: Hobbywing
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: ESC
Model Number: DL-1087
Four-wheel Drive Attributes: Motors

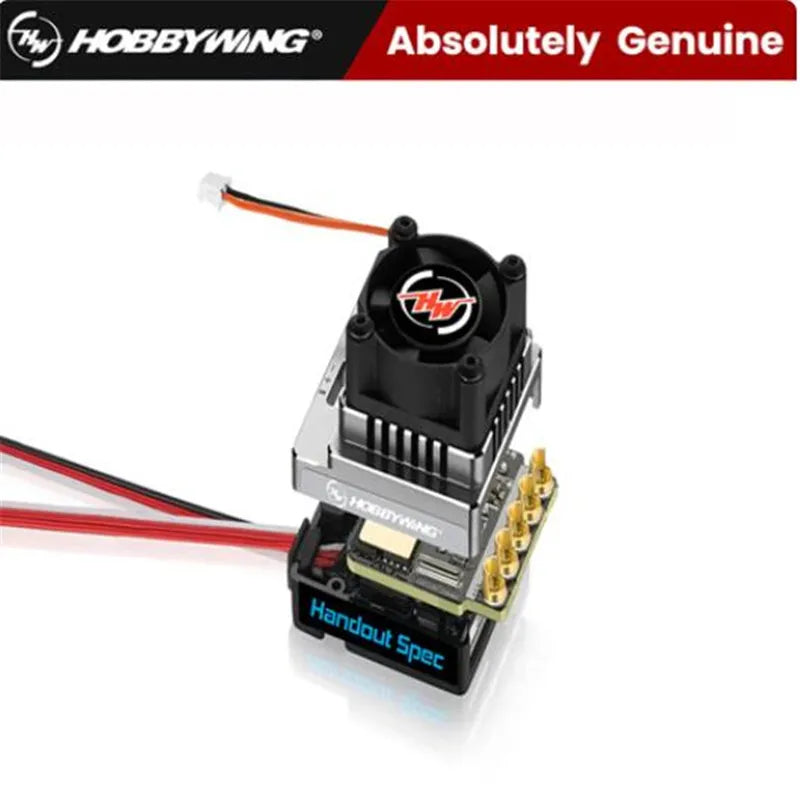

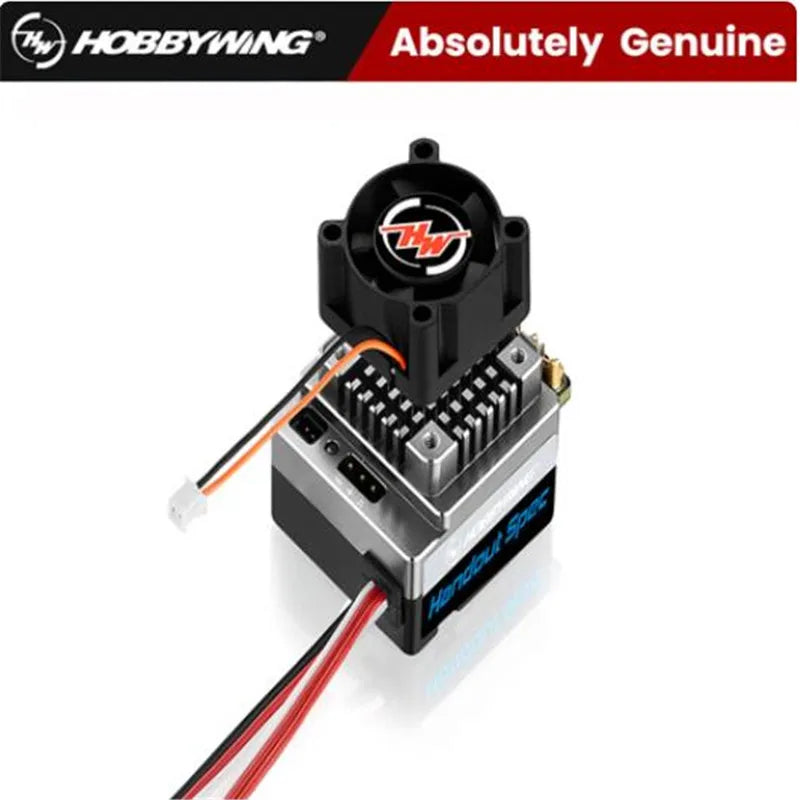

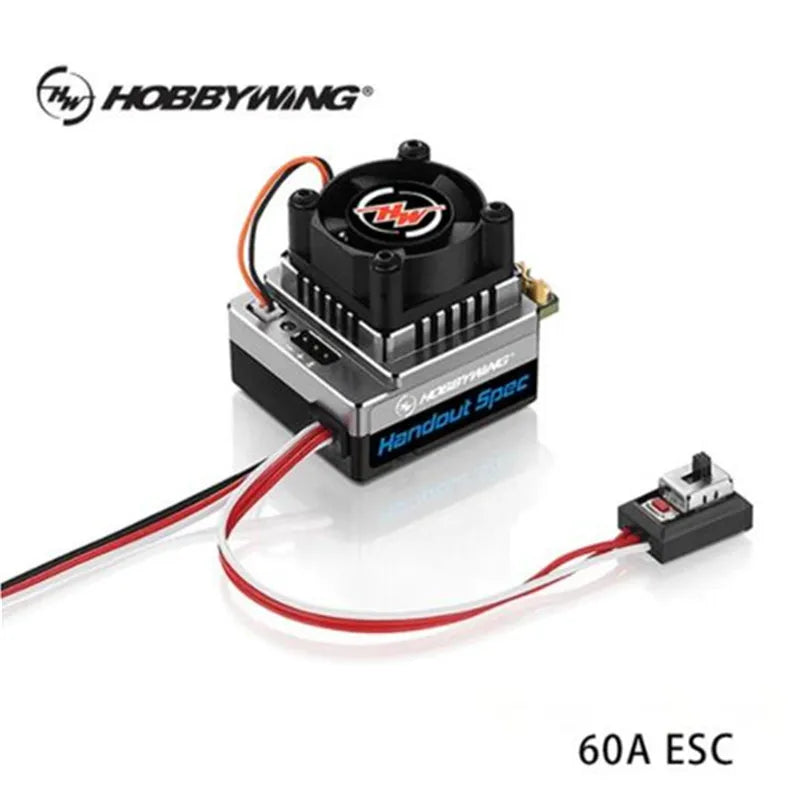

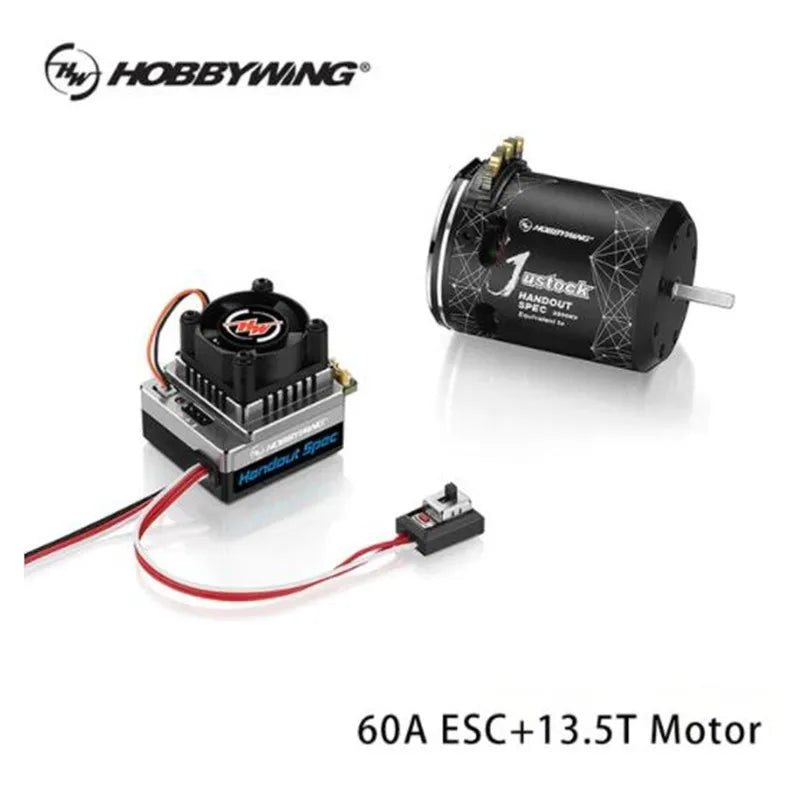

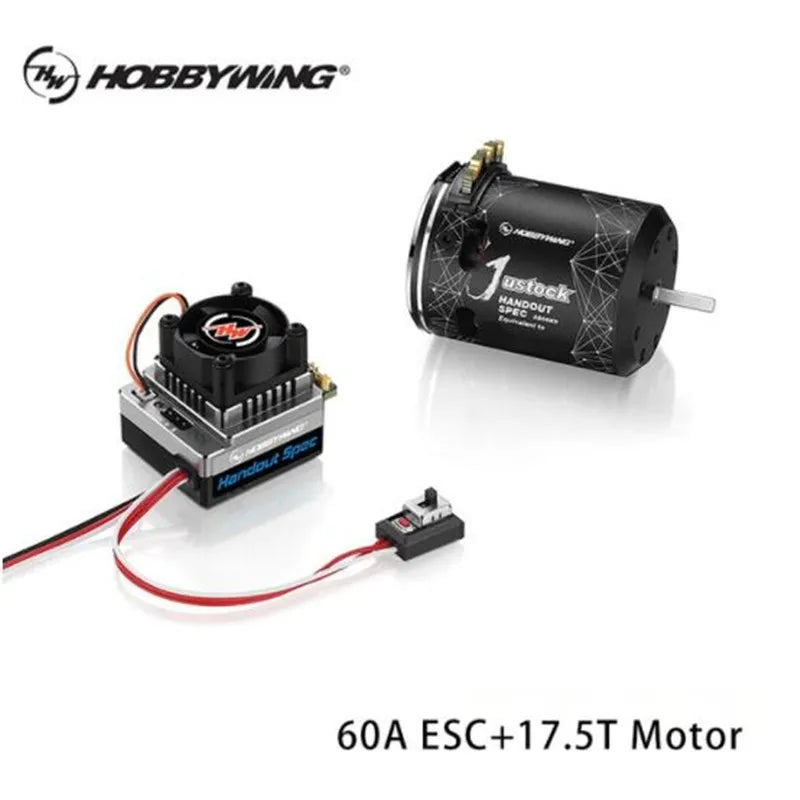

Hobbywing Athlon XERUN XR10 Justock G3 Handout 60A Sensing Brushless ESC + Motor Male Set for 1/10 1/12 Off-Road Vehicles CLUB
Product Name: Hobbywing XERUN XR10 Justock G3 Handout
Product number: 30112004
type
Scale: 1/10th
Brushed/Brushless: Brushless
Feeling/No feeling: feeling
Waterproof: not waterproof
Hardware parameters
Continuous/peak current: 60A/380A
Number of battery cells: 2S Lipo
BEC output: 6V/7. .4V @ 4A continuously
Cables and Plugs
Power cord: black-14AWG-200mm+2
Output line: black-14AWG-200mm+3
Power plug: no plug
Output plug: no plug
fan
Dimensions: 25x25x10mm
Support voltage range: 5-7.4V
How to get electricity: get electricity from BEC
parameter programming
ESC's own SET key: support
LED programming box parameter adjustment: support
LCD programming box parameter adjustment: support
WiFi Express Wireless Module: Support
OTA Programmer: Support
Programming interface: independent programming interface
firmware
Firmware online upgrade: support
Dimensions and Weight
Dimensions: 40 9x33.9x32.1mm
Weight: 75.4g (including wire weight)
application
Supported motor type: sensorless brushless motor / sensory brushless motor
Applicable models: 1/10, 1/12 RV and off-road vehicle, suitable for CLUB competition and entry-level practice for beginner players
Applicable motor KV value/T number: ≥10.5T 3650 motor

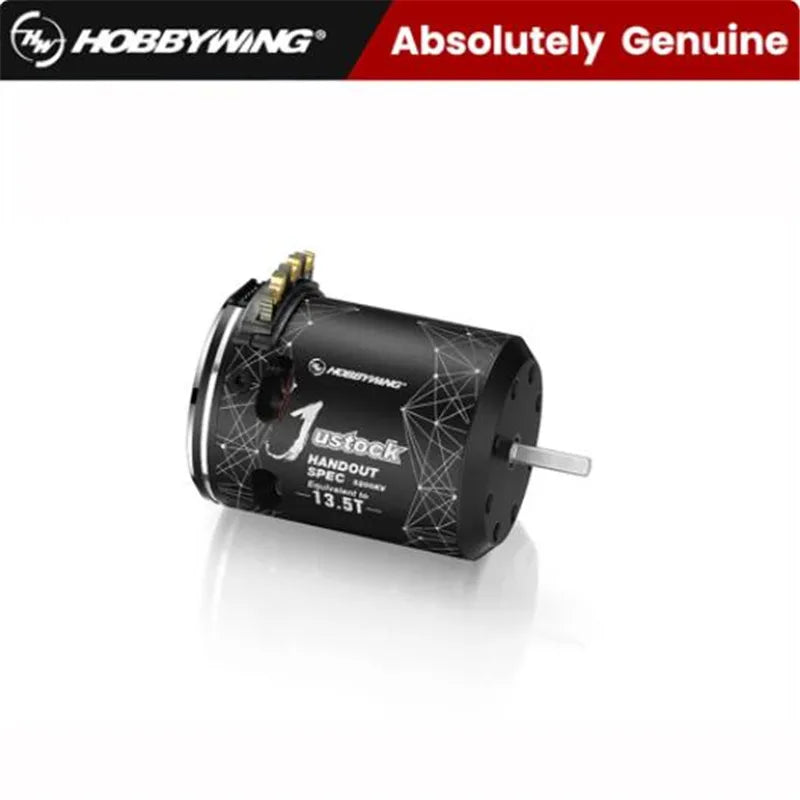

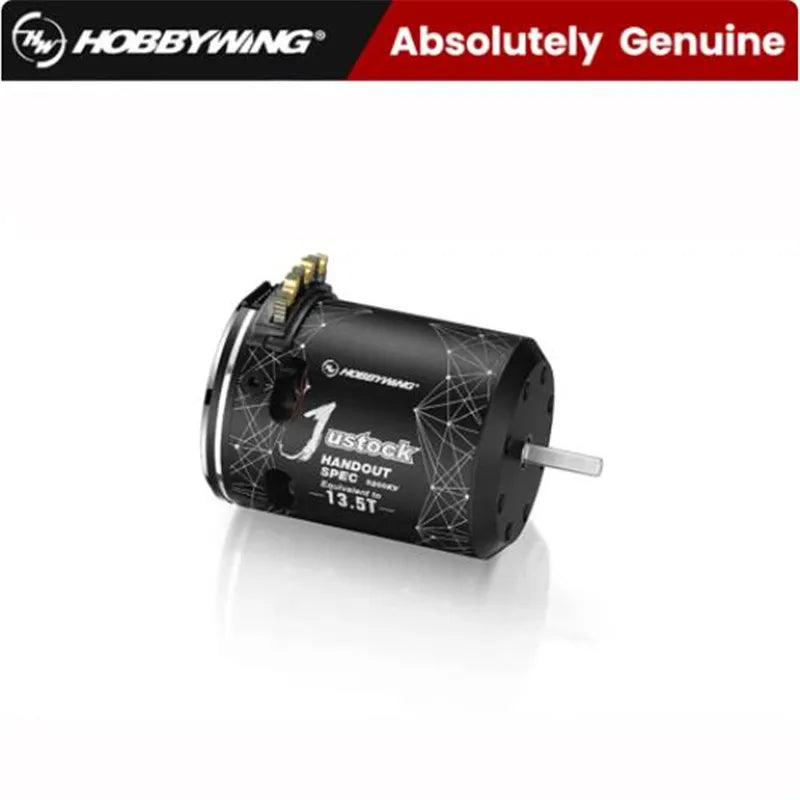

JUSTOCK Handout Spec

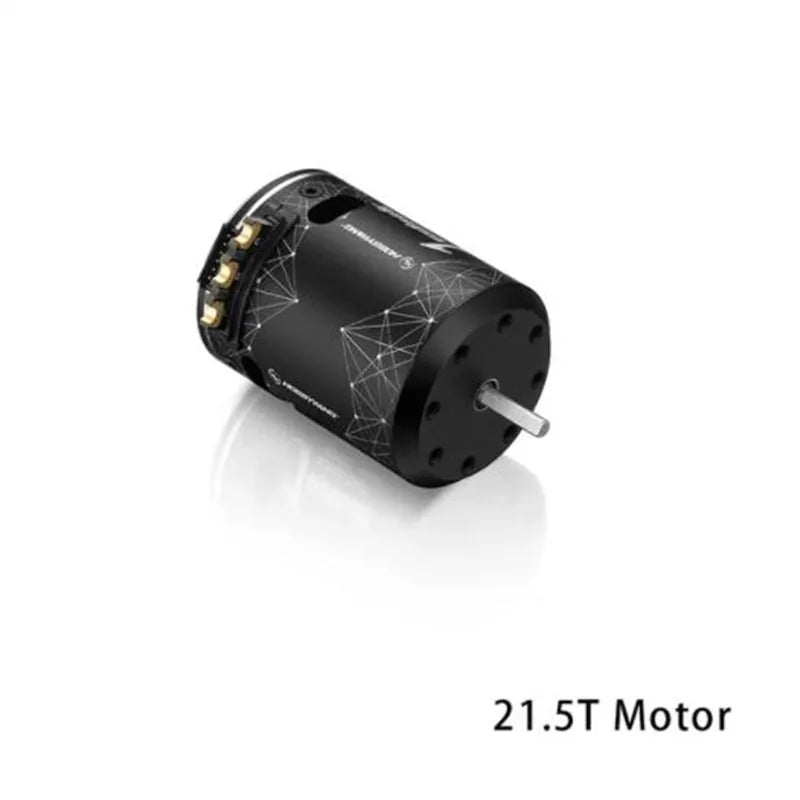

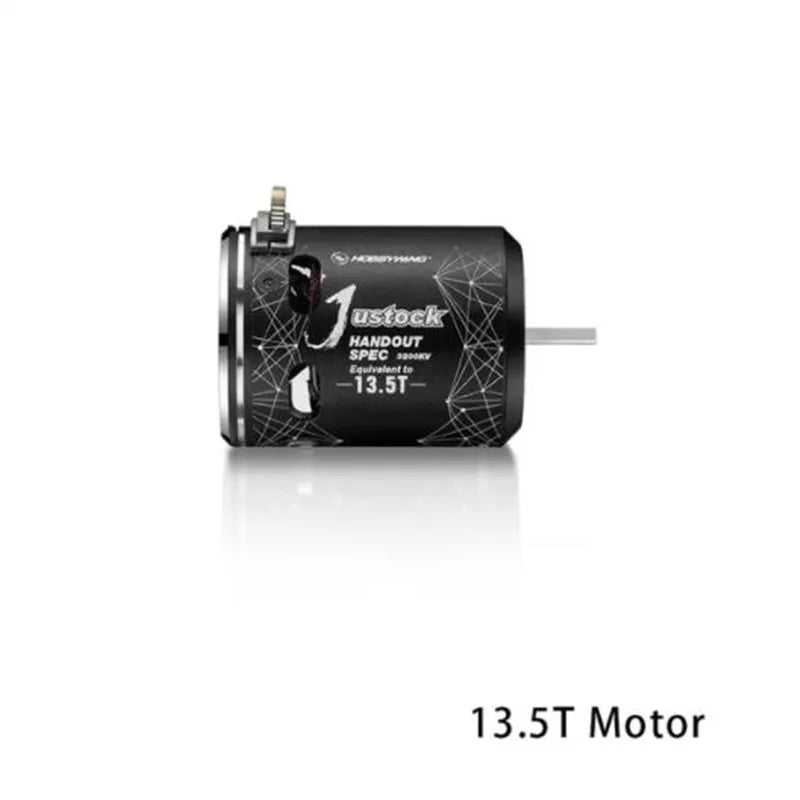

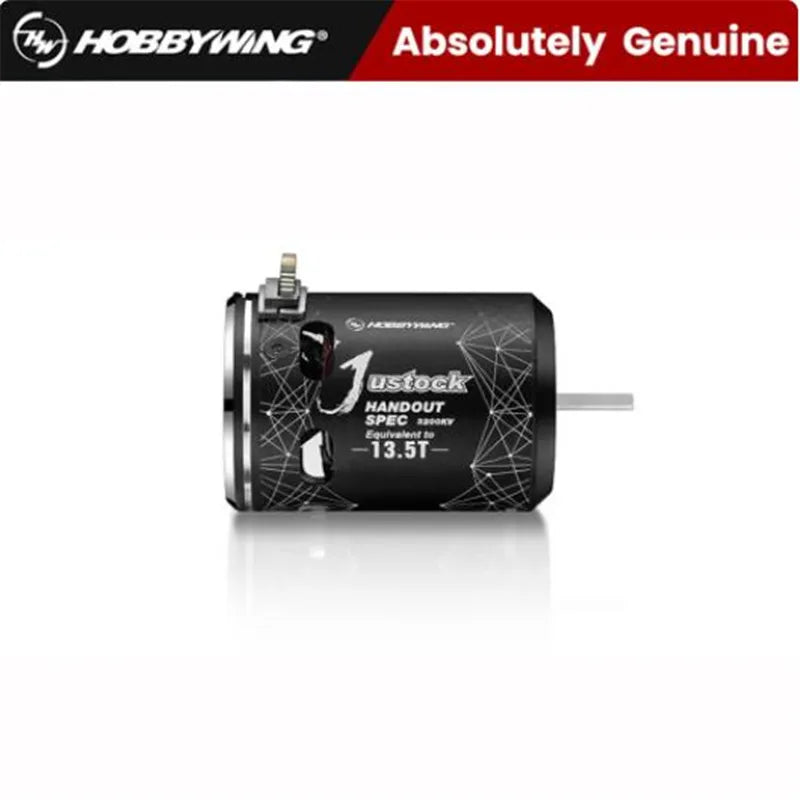

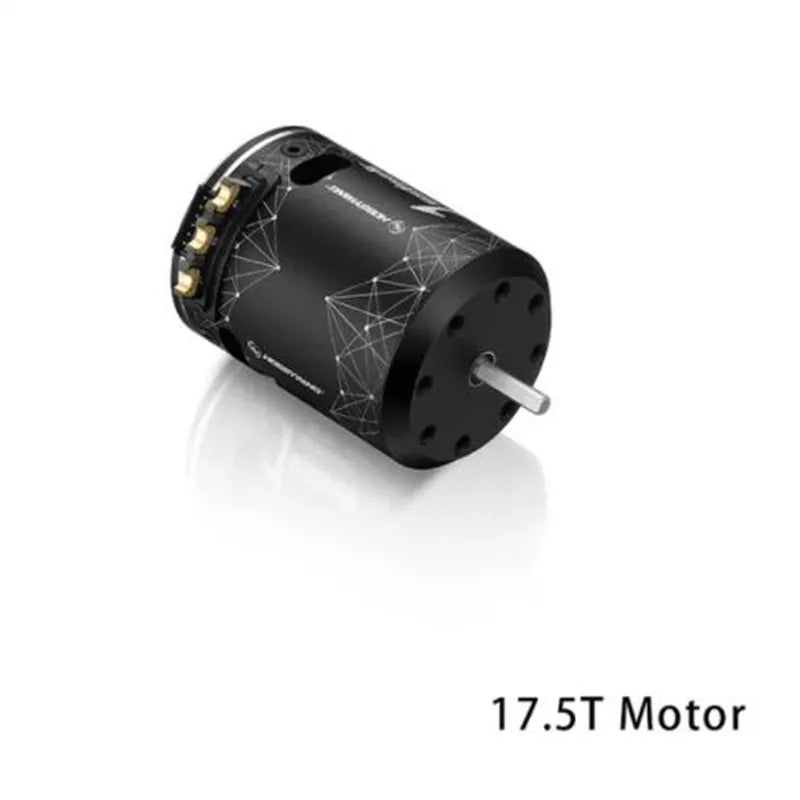

Product name: JUSTOCK Handout Spec 13.5T JUSTOCK Handout Spec 17.5T JUSTOCK Handout Spec 21.5T
Product number: 30408018/30408017/30408016
Scale: 1/10th
Brushed/Brushless: Brushless
Feeling/No feeling: feeling
Number of poles: 4
KV value: 3200KV /2600KV /2100KV
Support lithium battery section: 2-3S
No-load current (A): 2.7A /2.2A /1.7A
Outer diameter (mm): 36
Length (mm): 48.5
Shaft diameter (mm): 3.175
Weight (g): 147g /148.5g /148g
Front bearing: D11*D5*T5
Rear bearing: D8*D3*T4
Timing angle: fixed timing
Application: 1/10th STOCK Group Competition
Zero advance design RPM limit Highly consistent performance CONSISTENT POWER OUTP
This motor combo features an adjustable voltage range from 6V to 7.4V, offering broad adaptability. The maximum output current is 8 amps.
The XERUN XR10 Justock G3 features a built-in capacitor design, along with a reverse polarity protection circuit, and an 'all-purpose' independent programming port that is easy to use.
This ESC features an independent programming port that supports LCD and Over-The-Air (OTA) updates. Additionally, it can power extra fans for active air cooling.
Features a built-in capacitor, adjustable motor steering in both counterclockwise (CCW) and clockwise (CW) directions, and compatibility with various RC drift racing cars and trucks.
This motor features dual hall sensor ports and a robust design with large and small bearings for enhanced durability and reliability.
The XERUN XR10 Justock G3 features dual Hall sensor ports, with a reduced motor length of 48.5mm and a weight of only [insert weight]. This design improves the distribution of the center of gravity in the vehicle, resulting in a motor efficiency that is over 10% higher than the previous G2.1 version. This combination provides a better control experience for hobbyists.
