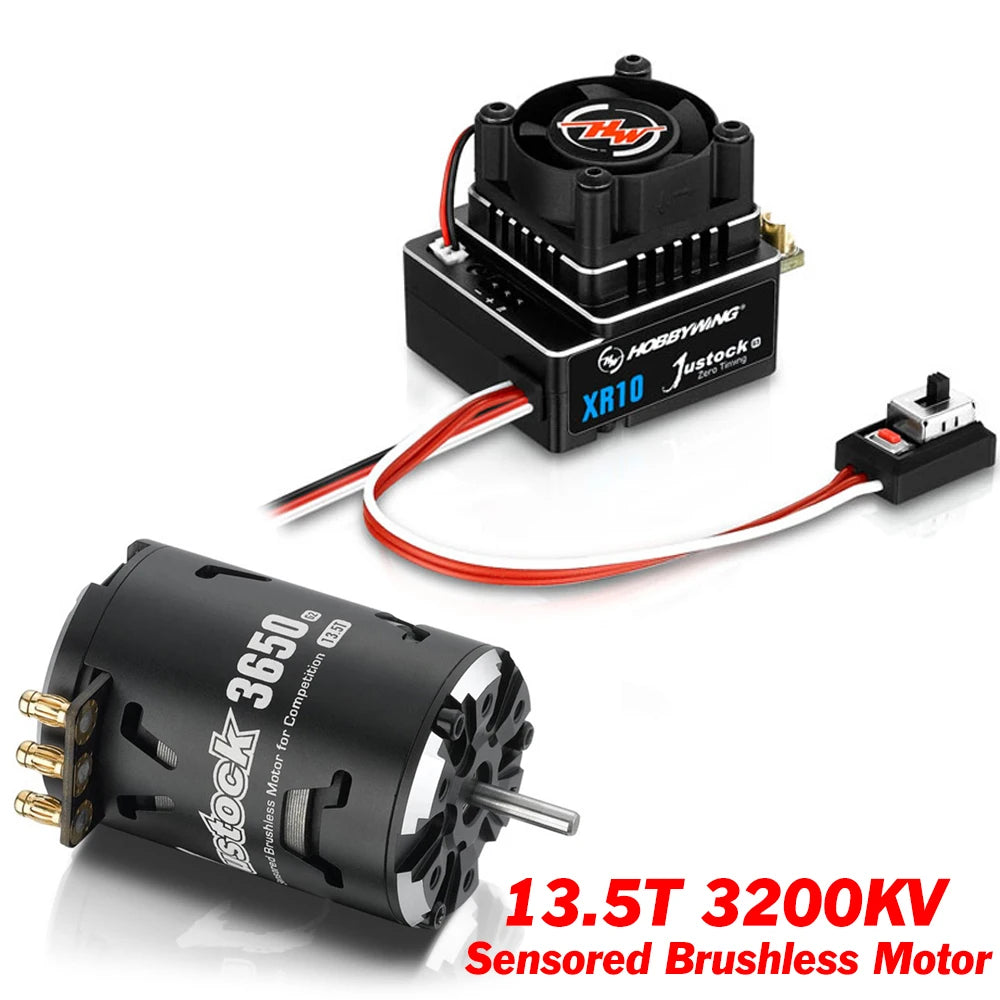

HOBBYWING XERUN XR10 JUSTOCK G3 60A ESC SPECIFICATIONS
Brand Name: Hobbywing
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Size: 40.9x33.9x32.1mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Motor
Remote Control Peripherals/Devices: ESC
Tool Supplies: Assembly Category
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: Hobbywing XERUN XR10 JUSTOCK G3 60A
Four-wheel Drive Attributes: Motors
1. The timing has been permanently set to 0 degree. With the identical competition motor, this ensures that every driver will have the same power system and have a really just race.
2. Aluminum housing top with excellent heat dissipation and great current endurance.
3. The built-in capacitor avoids the trouble of finding installation position for the external capacitor module, saves space and is convenient for layout;
4. The built-in reverse connection protection circuit prevents damaging ESC due to reverse connection of battery.
5. The innovative capacitor overheat protection function can effectively avoid the capacitor explosion caused by overload and finally damage the ESC.
6. Multiple protections: battery low-voltage cutoff protection, over temperature protection, fail safe (throttle signal loss protection) and motor lock-up protection.
7. Supports multi-function LCD program box and OTA programmer to set parameters of ESC, which is convenient for outside use.
8. Supports firmware upgrade of ESC (Multi-function LCD program box or OTA Programmer need to be purchased), Enjoy the latest features permanently.
9. Supports various RPM limit values to meet the needs of different races. It can be set directly by the program box or OTA programmer, which is simple and convenient.

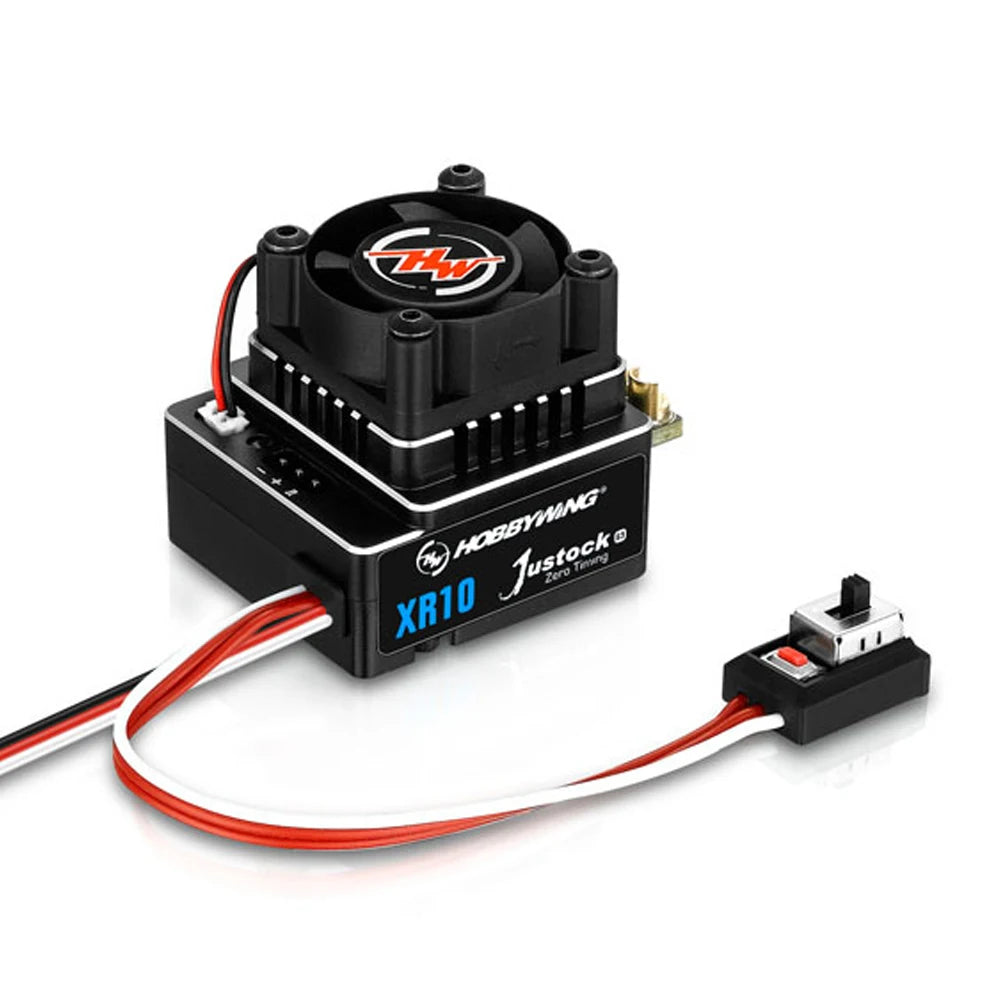

Specification(ESC):
Model: XERUN XR10 JUSTOCK G3 60A
Cont./Peak Current: 60A / 380A
Motor Type: Sensorless/Sensored Brushless Motor
Applications: 1/10, 1/12 On-road and Off-road club competition and normal training
Motor Limit: ≥10.5T 3650 Motor
LiPo Cells: 2S Lipo(Only 2S)
BEC Output: 6V/7.4V @ 4A(Switch-mode)
Cooling fan: Powered by built-in BEC
Connector: Input End: No Connectors; Output End: No Connectors
Size/Weight (including wire): 40.9(L)x33.9(W)x32.1(H)/ 75.4g(Including weight of wire)
Programming port: Independent programming port

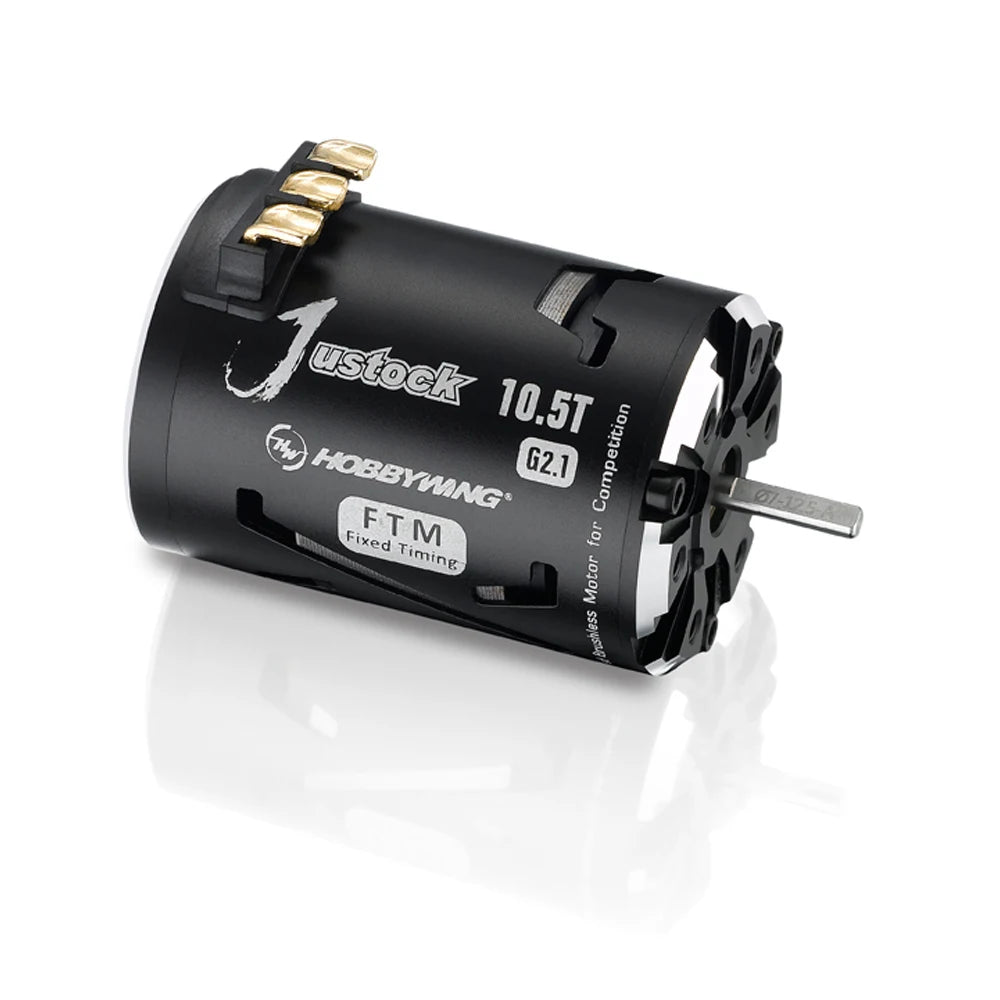

Specification(Motor):
if you don't plug the sensor cable in; your ESC will Work in sensorless mode; is like the ESC connects t0 sensorless brushless motor . you may find necessary to swap tWO wires if the motor runs revetse . if your battery is damaged, connect the throttle control cable (also called Rx cable) to the throttle channel on the receiver .
The default settings are the factory-set defaults, including the voltage options: 2.8V, 3.0V, and 3.2V, with Start Mode selected as Puncn.
The HOBBYWING XERUN XR10 JUSTOCK G3 features built-in polarity protection, which safeguards against one common electrical hazard: reversed polarities from the power source. In the event that the battery terminals are connected in reverse, the integrated MOSFET ensures safe operation.
The HOBBYWING XERUN XR10 JUSTOCK G3 60A ESC features a built-in capacitor module, eliminating the need for external capacitors and minimizing unwanted space.
The ESC can be programmed for different speed modes using the latest Bluetooth OTA (over-the-air) update module or the traditional 3-in-1 programming box.
The internal settings of the ESC are pre-set at 0 degrees and are non-adjustable. Designed specifically for zero-tire-racing competitions worldwide.
The HOBBYWING XERUN XR10 Justock G3 60A ESC features a built-in BEC that supports high-voltage steering gear, allowing for smooth operation. The ESC has a maximum output current of 8A and can provide an output voltage of either 6V or 7.4V.
The user-friendly interface enables effortless setup through simple connections - either via the 3-in-1 LCD programming box or using the OTA Bluetooth module, which can be linked directly to the dedicated programming port.
The XERUN XR10 Justock G3 60A ESC features advanced protection functions, including reverse polarity protection, low battery voltage protection, motor temperature protection, signal lost protection, locked rotor protection, and XRTO protection, which have significantly improved its reliability and durability.
The ESC features a simple, single-built-in SET button that allows for easy programming and resetting, requiring no additional fenetre (French) settings.
The ECU supports both counterclockwise (CCW) and clockwise (CW) motor rotational directions, suitable for the XERUN XR10 JUSTOCK G3 60A ESC and compatible with the 10.5T 'Hobbying' stock.
ESC Support: This product supports ESC upgrades, allowing you to install new firmware wirelessly using the HW Link app on your phone or tablet via OTA (over-the-air) Bluetooth connectivity, or manually through the USB Link software on your computer.
