Hobbywing XeRun XR8 PRO G3 2-4S 200A Sensored Brushless Electronic Speed Controller (ESC) 1/8
Hobbywing XeRun XR8 PRO G3 2-4S 200A Sensored Brushless Electronic Speed Controller (ESC) 1/8
Hobbywing
Couldn't load pickup availability
Overview
The Hobbywing XeRun XR8 PRO G3 is a 1/8 competition sensored brushless electronic speed controller (ESC) for racing truck use with 2-4S LiPo input. It is designed for smooth control and high power, and supports advanced features such as smart freewheeling, dual brake mode, turbo/boost timing, and real-time data recording (with an OTA module box).
Note: Use appropriate settings provided by the factory or team drivers. Check operating temperature to maximize electronics performance. Incorrect settings may damage the ESC or motor.
Key Features
- Smart freewheeling technology for higher drive efficiency and lower operating temperature
- Compared with XR8 Pro G2, maximum temperature reduced by approximately 15°C
- Advanced Boost & Turbo Timing Technology (supports up to 48 degrees of Boost and Turbo Timing)
- Dual brake mode (closed-loop torque brake control mode, also known as disc brake mode; traditional braking mode also retained)
- Built-in reverse polarity protection circuit
- Real-time data recording function (after connecting the OTA module box); effective distance is only about 5 m due to Bluetooth transmission distance
- Capacitor thermal protection to help prevent capacitor overload-related failure; note: if ESC overheating protection is off and used on a flat road vehicle, add a capacitor pack to help avoid capacitor overheating
- Superior dustproof protection: IP5X rated; includes a small protective cover for fan protection
- Custom ultra-soft 11AWG silicone wire
- Frameless fan blade design with specially formulated material to reduce fan defects caused by impact from small stones, sand, and other foreign objects
- Intelligent fan start/stop with noise reduction and power saving; fan turns on automatically when temperature rises to the pre-set value
- Firmware upgrade supported
For setup help, compatibility questions, or after-sales support, contact https://rcdrone.top/ or email [email protected].
Specifications
| Product Name | XeRun XR8 PRO G3 |
| Product Number | 30113400 |
| Scale | 1/8 (1/8th) |
| Brushed/Brushless | BL |
| Sensored/Sensorless | SD |
| Waterproof | No |
| Input Voltage | 2-4S LiPo (2-4S Lipo) |
| Continuous/Peak Current | 200A/1080A |
| BEC Output | 6V/7.4V adjustable; continuous current: 6A (switch-mode) |
| Braking Mode | FOC/BLDC |
| Motor Limit | 3S LiPo: KV=4000 (3660 size motor) / 4S LiPo: KV=3000 (4268 size motor) |
| Programmable | Yes, via OTA Programmer or LCD G2 Program Box |
| ESC Programming via | SET Button on ESC: Not Supported; LED Program Box: Not Supported; LCD G2 Program Box (stopped): Supported; LCD PRO: Supported; OTA Programmer: Supported; WiFi Module (stopped): Not Supported; Program Port: Independent programming port |
| Data Recording | Extreme value: Supported; Real-time Data: Supported; Built-in Historical Data (Graph): Not Supported; External OTA Historical Data (Graph): Supported |
| Firmware Upgrade | Supported |
| Input Wires | Black-11AWG-200MM*2 |
| Output Wires | Black-11AWG-200MM*3 |
| Input Connectors | No |
| Output Connectors | No |
| Fan Type | Frameless |
| Fan Size | 30x30x10mm |
| Fan Voltage Range | 5-8.4V |
| Fan Power | Powered by BEC |
| Size (LxWxH) | 54.8x38.8x36.8mm |
| Size | 54.8X36.8X38.8mm |
| Reference Dimensions (G3 graphic) | 54.5 mm x 36.5 mm x 36.6 mm |
| Weight | 102.8g |
What’s Included
- (1) Xerun XR8 Pro G3 1/8 Competition Sensored Brushless ESC
- Factory decals and accessories
Applications
- Vehicles: 1/8th off-road, on-road racing & 1/10th short course truck, monster truck
- Motors: 4268 / 3660 size motor
Manuals
Manual Download:HW-XERUN XR8 PRO G3 ESC
Details
The XeRun XR8 Pro G3 keeps a compact 54.5 x 36.5 x 36.6 mm footprint with an integrated cooling fan for tight 1/8-scale installs.
The Hobbywing XeRun XR8 Pro G3 ESC features Advanced Boost and Turbo Timing Technology for racing-focused throttle response tuning.

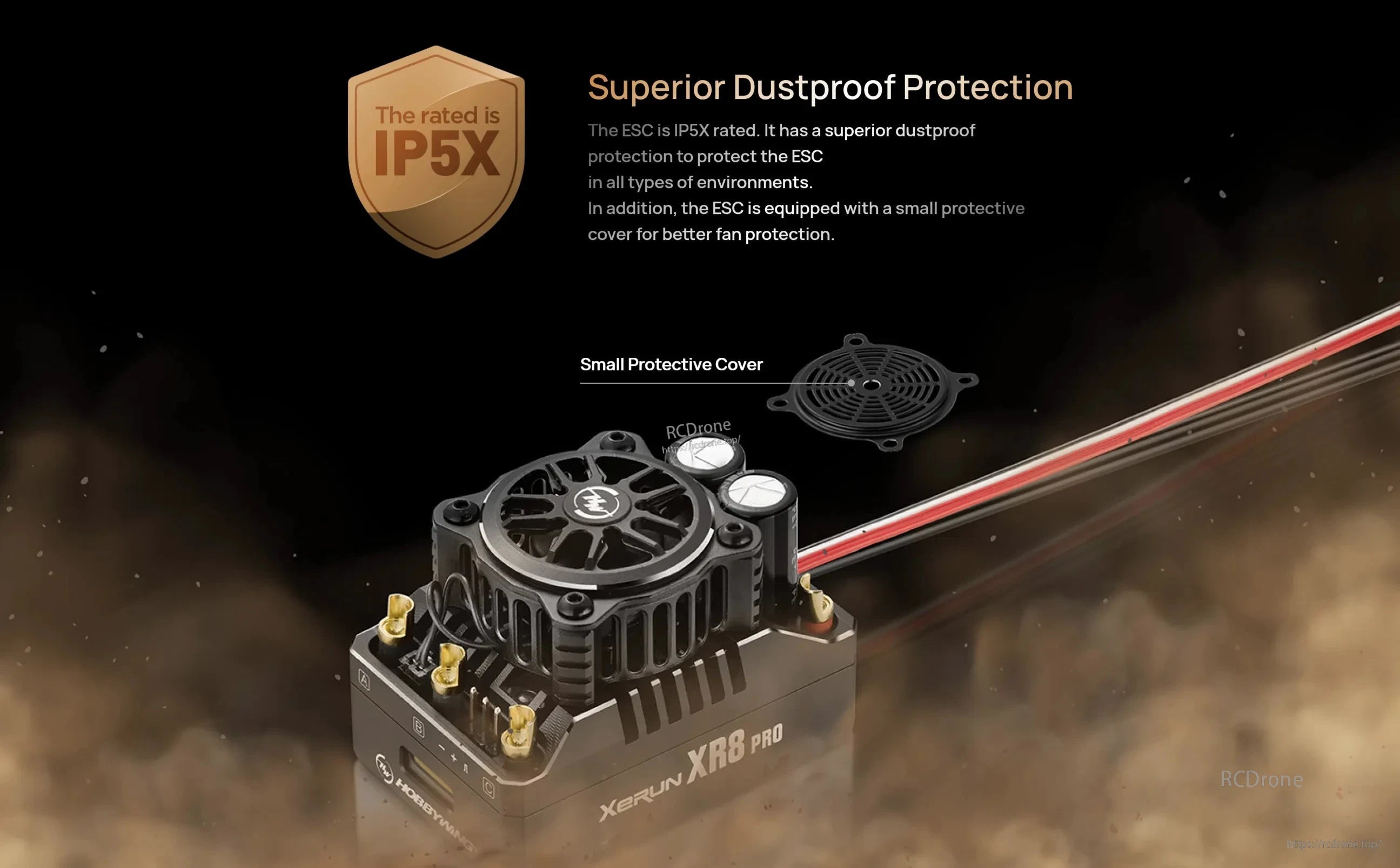

The Hobbywing XeRun XR8 Pro ESC features an IP5X dustproof rating and includes a small protective cover to help shield the cooling fan.

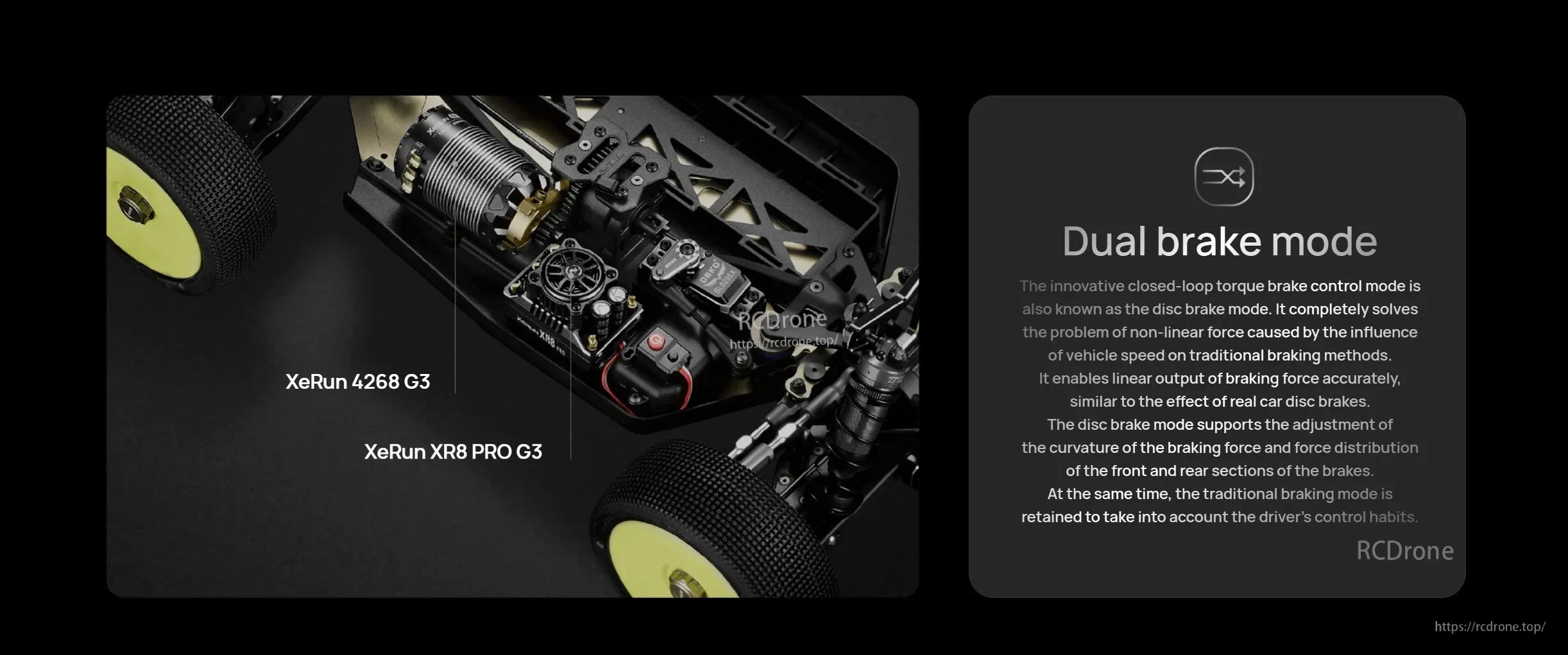

The XeRun XR8 PRO G3 ESC is shown installed alongside a XeRun 4268 G3 motor, with dual brake mode support for tuning braking feel.

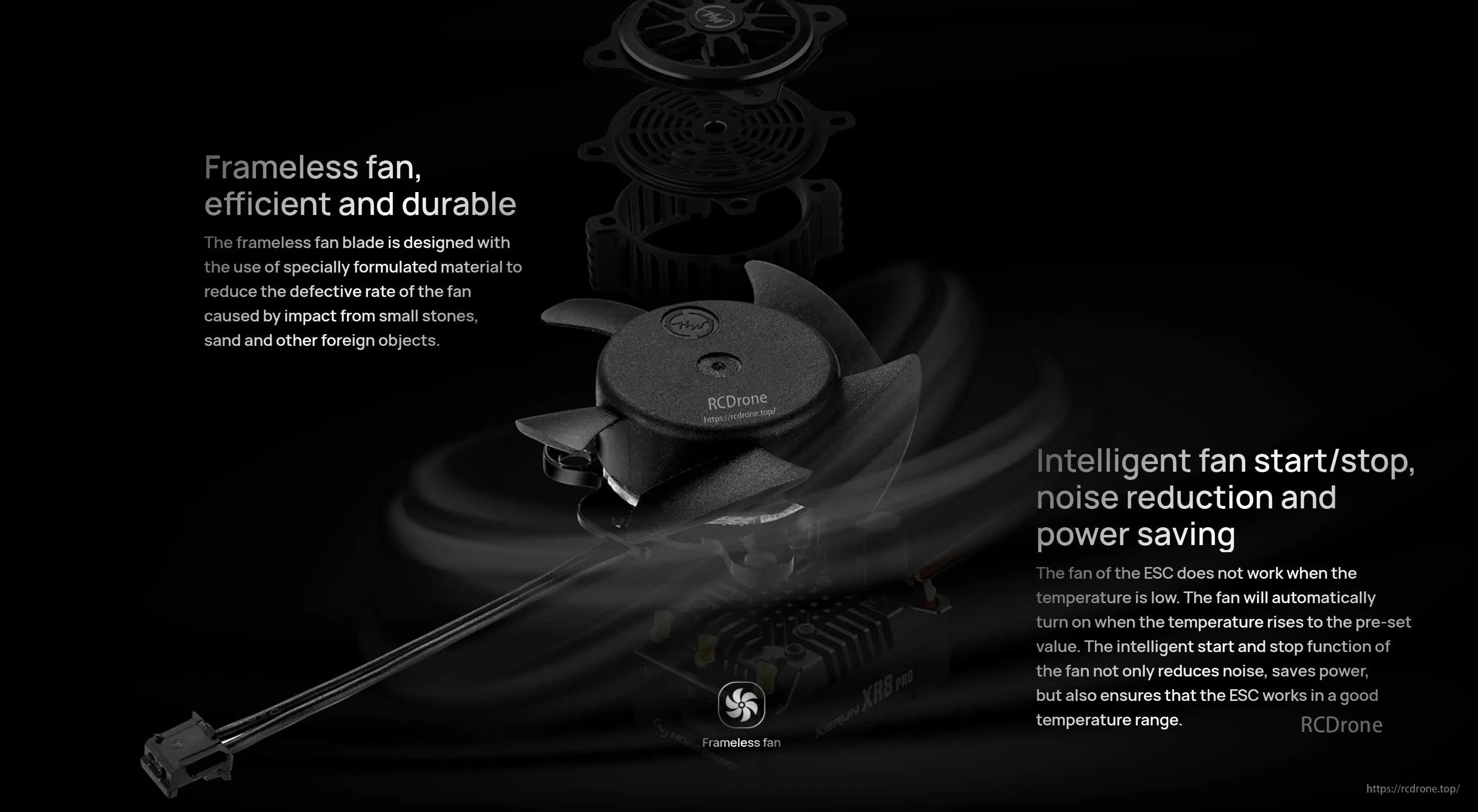

The XR8 Pro’s frameless cooling fan uses intelligent start/stop operation to reduce noise and save power when temperatures are low.

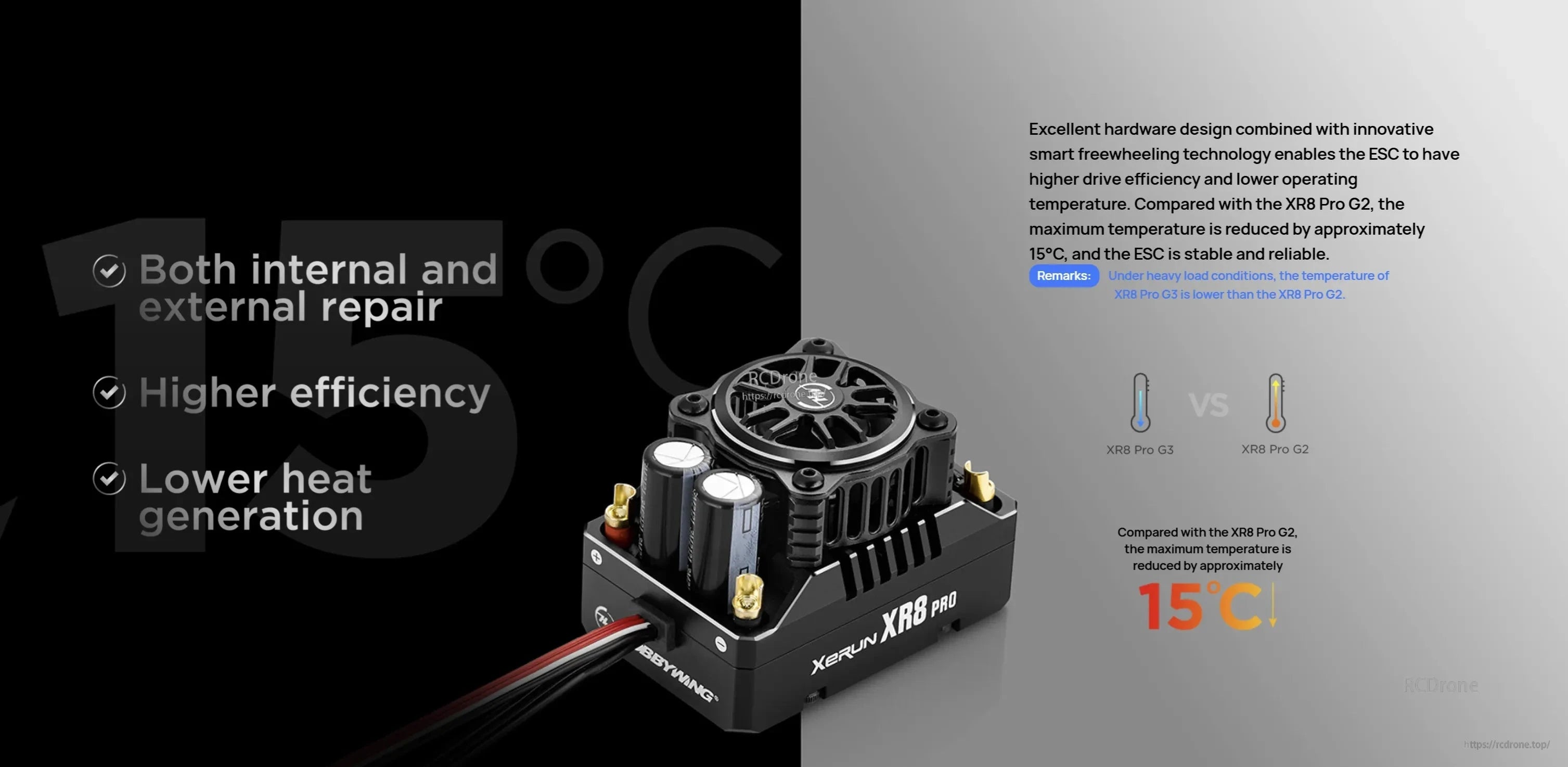

The XeRun XR8 Pro G3 ESC uses a fan-cooled case and is marketed for higher efficiency and lower heat generation, with a note of up to 15°C lower max temperature versus the XR8 Pro G2.
Custom ultra-soft 11AWG silicone wire helps keep ESC power leads flexible for cleaner routing in 1/8 builds.

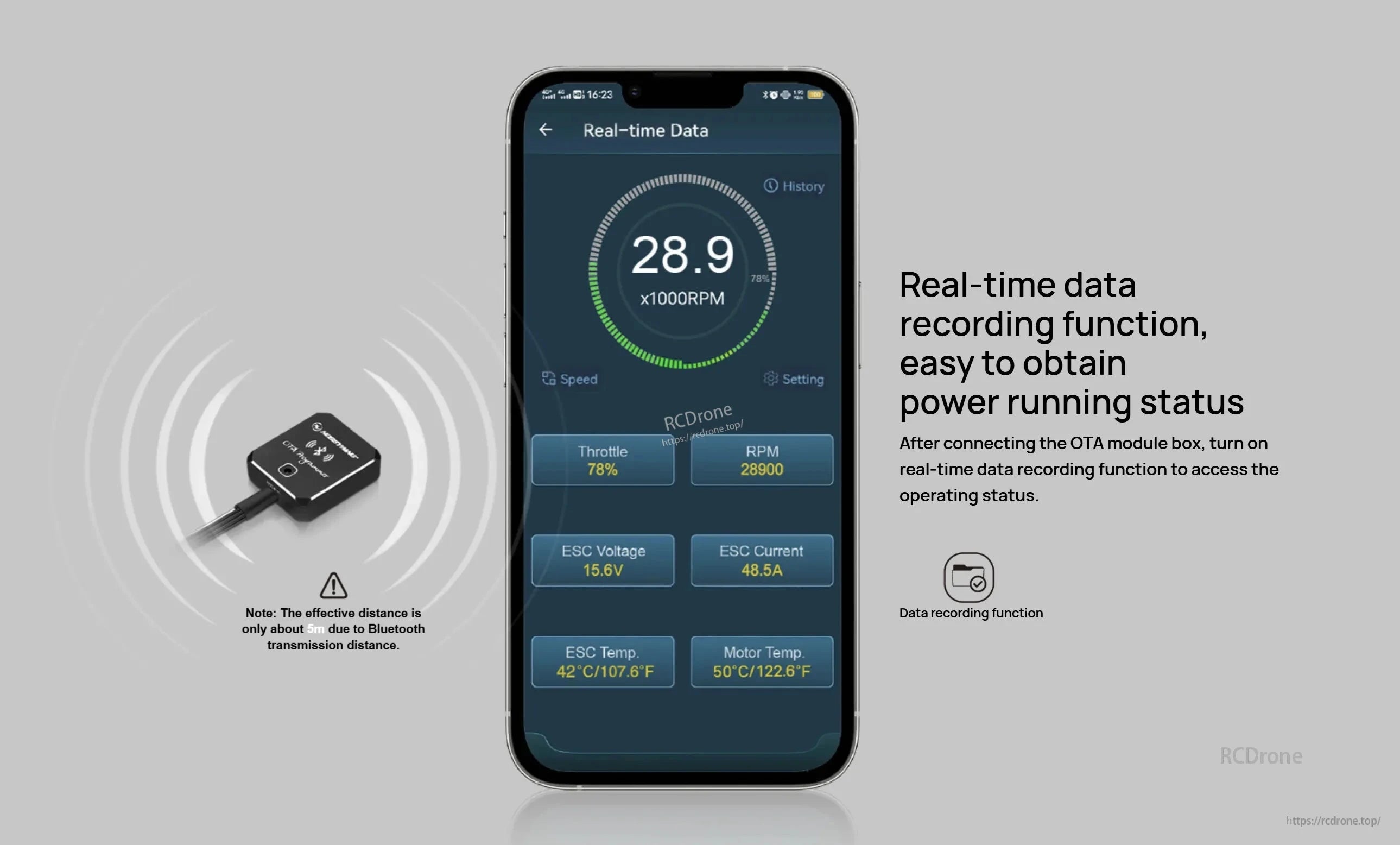

Real-time app monitoring with the OTA Bluetooth module displays key running data like RPM, ESC voltage/current, and ESC and motor temperature.

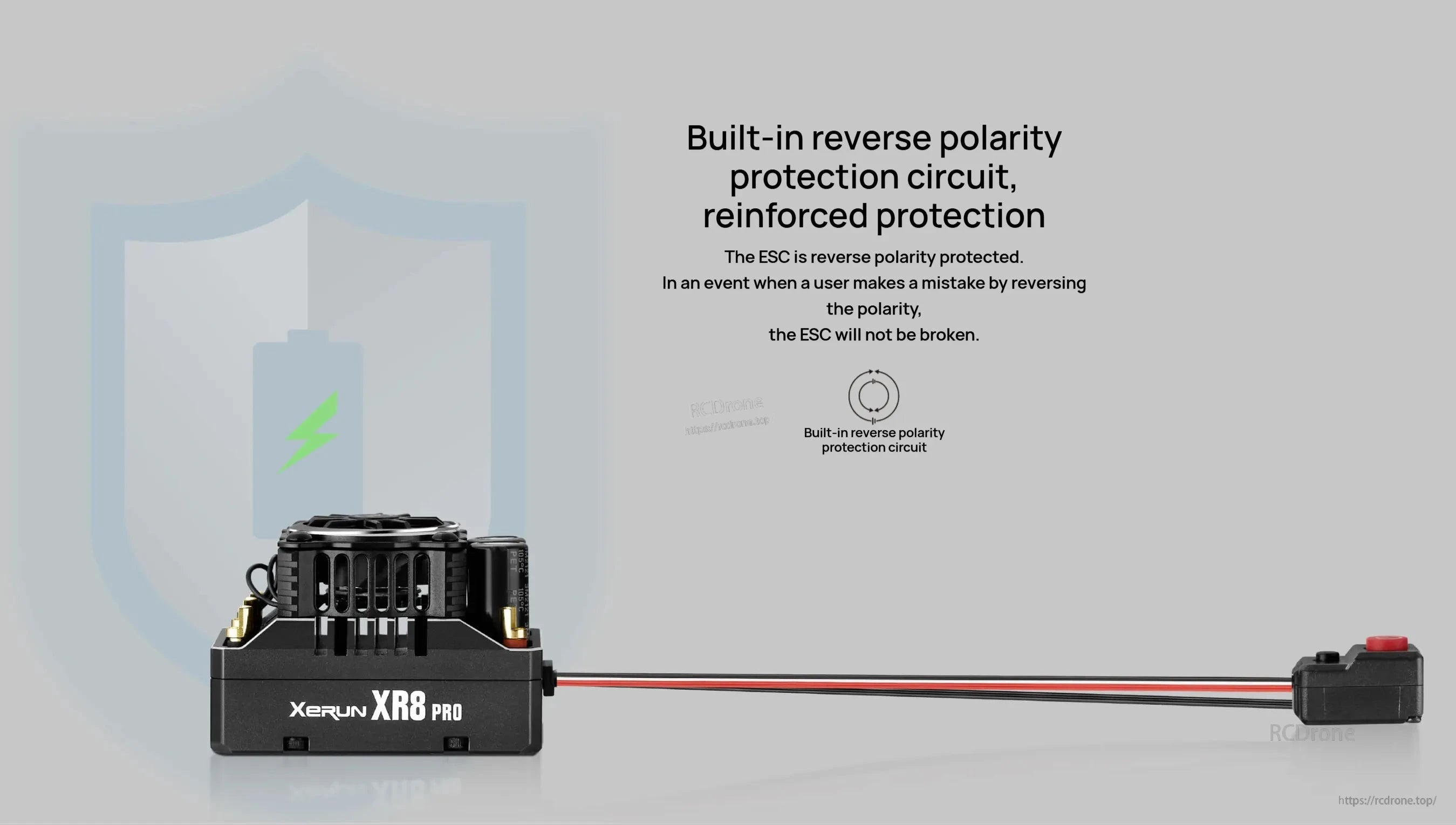

The XeRun XR8 Pro ESC includes a built-in reverse polarity protection circuit to help guard against accidental battery wiring mistakes.

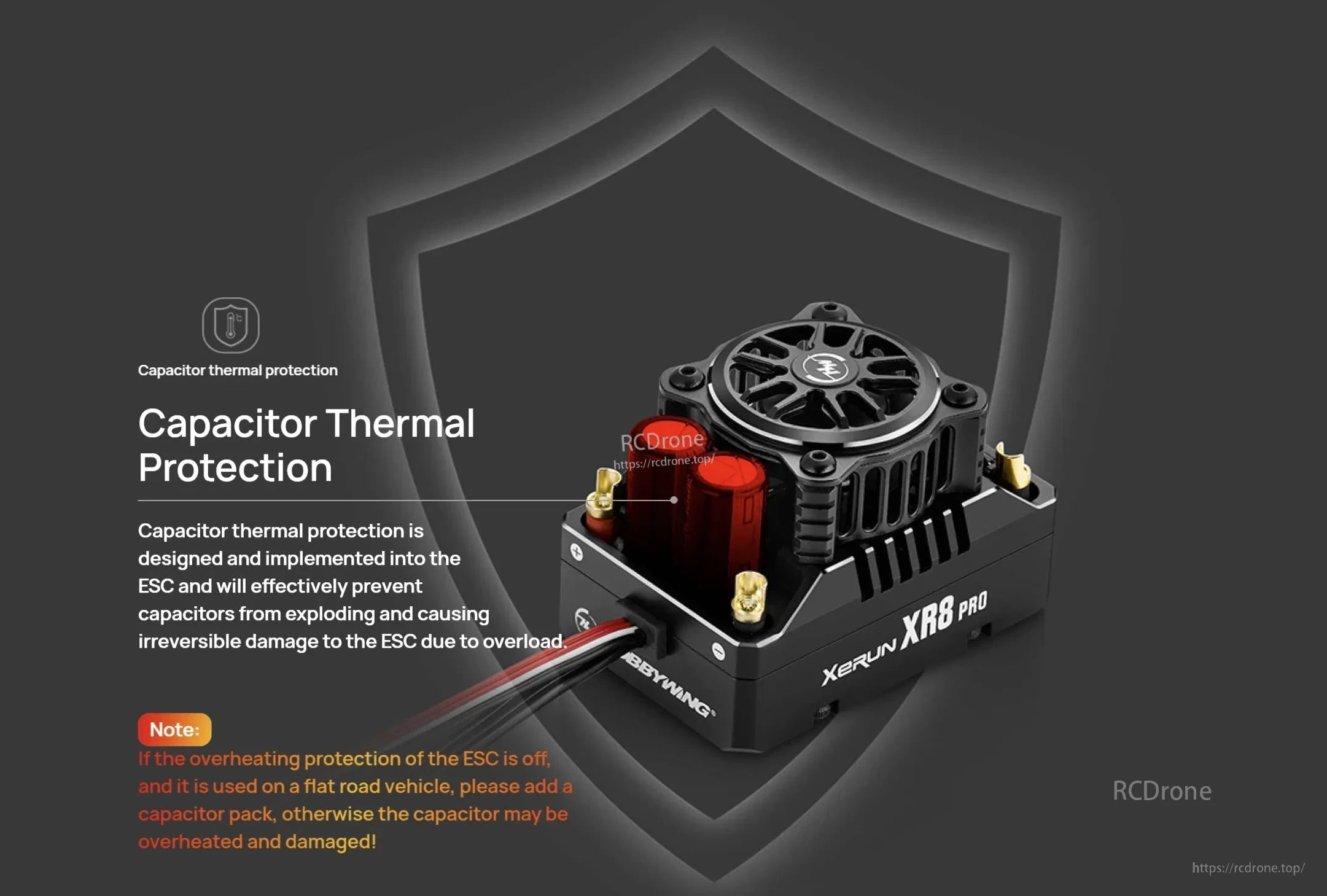

The XeRun XR8 Pro ESC integrates capacitor thermal protection to help reduce capacitor overheating under heavy load.
