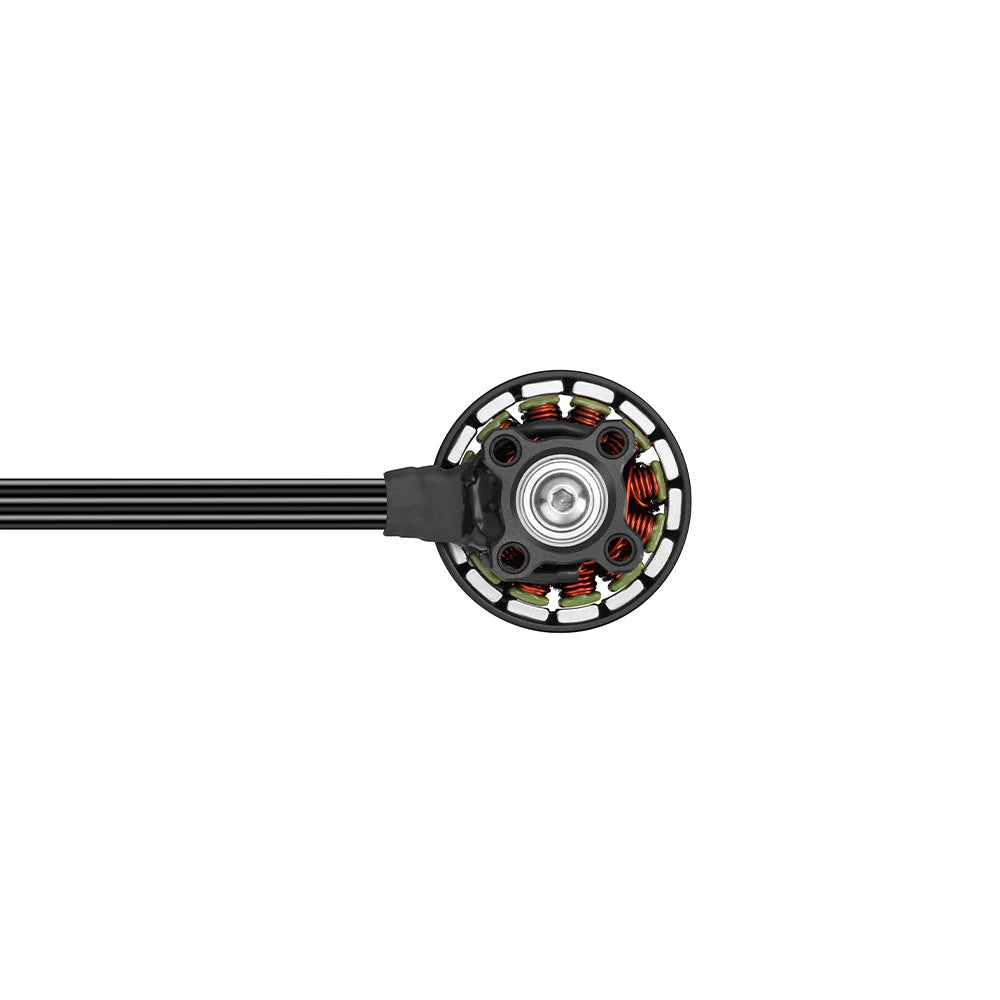

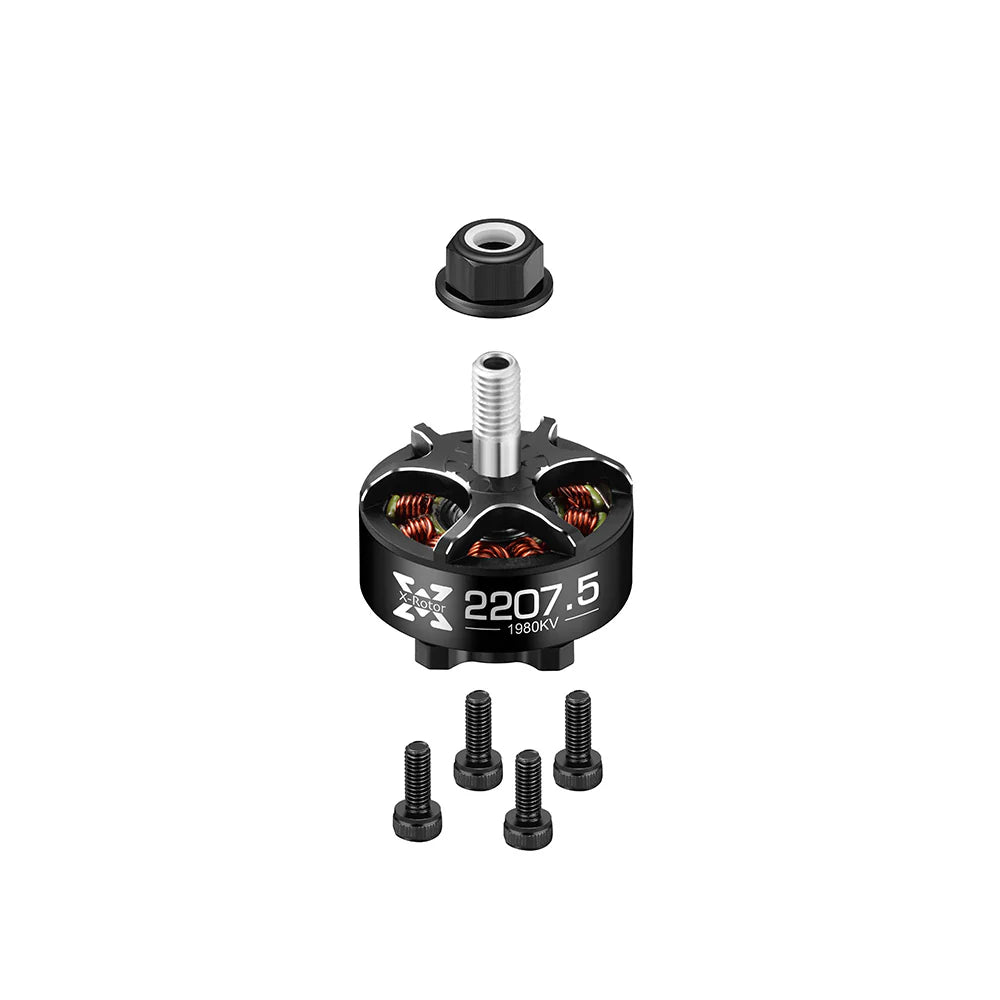

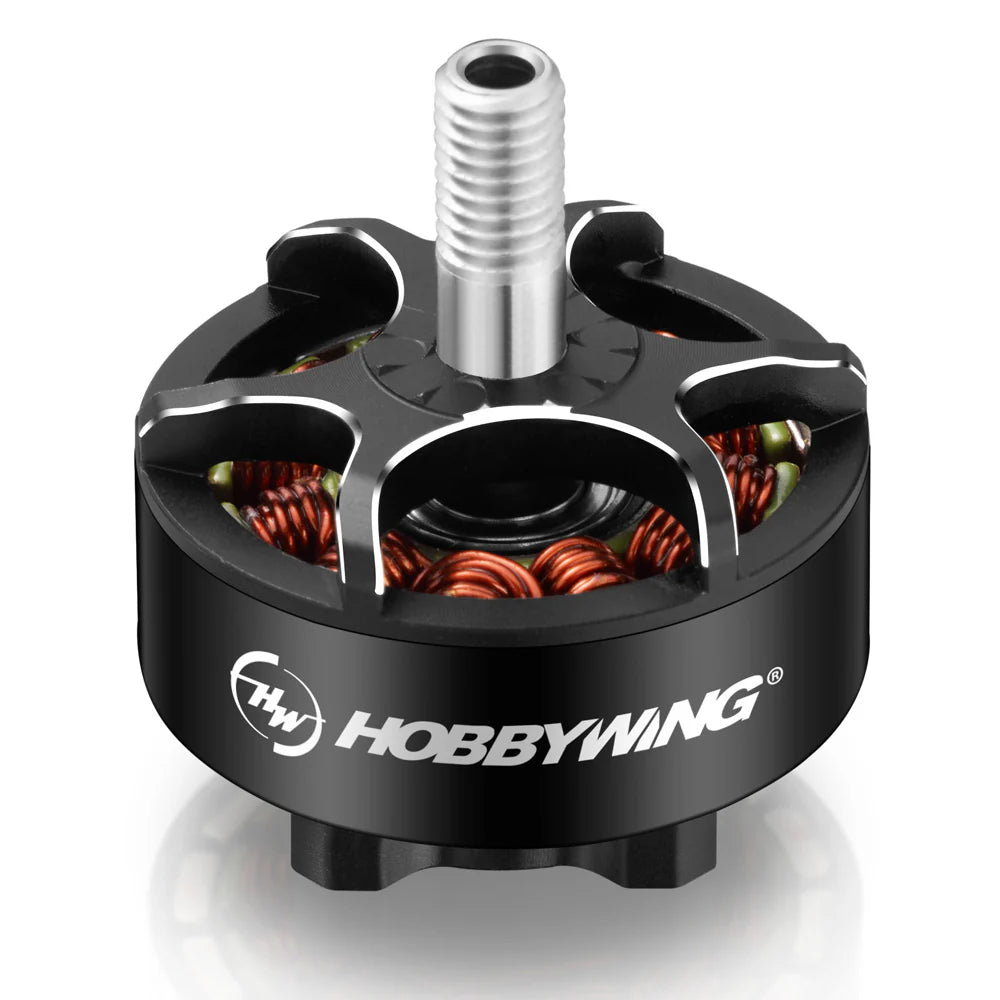

Hobbywing XRotor 2207.5 1780KV 1980KV 6S Brushless Motor for 5Inch FPV Drones

Hobbywing XRotor 2207.5 1780KV 1980KV 6S Brushless Motor for 5Inch FPV Drones

Hobbywing

$29.00 USD
$29.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Hobbywing XRotor 2207.5SL is a 6S brushless motor for 5 inch FPV quadcopters, offered in 1780KV and 1980KV options.

Key Features

  • Excellent linearity and high efficiency.
  • Electromagnetic optimization for more torque at lower RPM; linear throttle response improves maneuverability across the throttle range.
  • Efficient single-strand winding for smoother throttle response and enhanced thermal dissipation.
  • Self-cooling propeller mount design to dissipate coil heat during operation, supporting lower motor temperatures.
  • Anti-slip tooth structure on the propeller mount to help prevent propeller slippage and rotation loss.
  • Premium materials: 0.2mm thick first-tier stator core laminations, 220°C R-grade high-temperature enameled wire, and strong arc-shaped magnets.
  • Dual KV tuning: 1780KV for high-torque control; 1980KV for ultra-fast response.

Customer service: https://rcdrone.top/ or support@rcdrone.top

Specifications

Parameter 1980KV 1780KV
KV 1980KV 1780KV
LiPo Cells (LiPo) 6S 6S
No-Load Current 3.2A/24V 2.7A/24V
Maximum current (Non-hermetic Ambient Temperature <= 25°C) 49A/12s 41A/3s
Rated Power Output 150W 130W
Max Power 1166W/12s 988W/3s
Maximum Thrust 1868g(HQ-5037) 1827g(GF-51477)
Motor Weight 38g (With wire) 38g (With wire)
Motor Size Dia 28 x H19.9mm Dia 28 x H19.9mm
Slot/Pole 12N14P 12N14P
Wire Size 20AWG 20AWG
Wire Length 150mm 150mm
Enamelled Wire Insulation Class 220°C High temperature Resistant, C Class insulation 220°C High temperature Resistant, C Class insulation
Internal Resistance 65mohm 76mohm
Shaft Diameter Dia 5mm + M5 Dia 5mm + M5
Shaft Length 12mm 12mm
Screw Diameter / Thread Dia 16mm - 4 x M3 Dia 16mm - 4 x M3

Recommended ESC and Propellers

Item 1980KV 1780KV
Recommended ESC XRotor FPV G2 65A 4in1 ESC XRotor FPV G2 65A 4in1 ESC
Propeller 6S LiPo: HQ-5037, HQ J37 6S LiPo: GF-51477, GF-F4S

Applications

  • 5 inch FPV quadcopter builds on 6S LiPo.
  • 1780KV: smooth, precise freestyle flying.
  • 1980KV: precise cornering and high-power output for racing setups.
