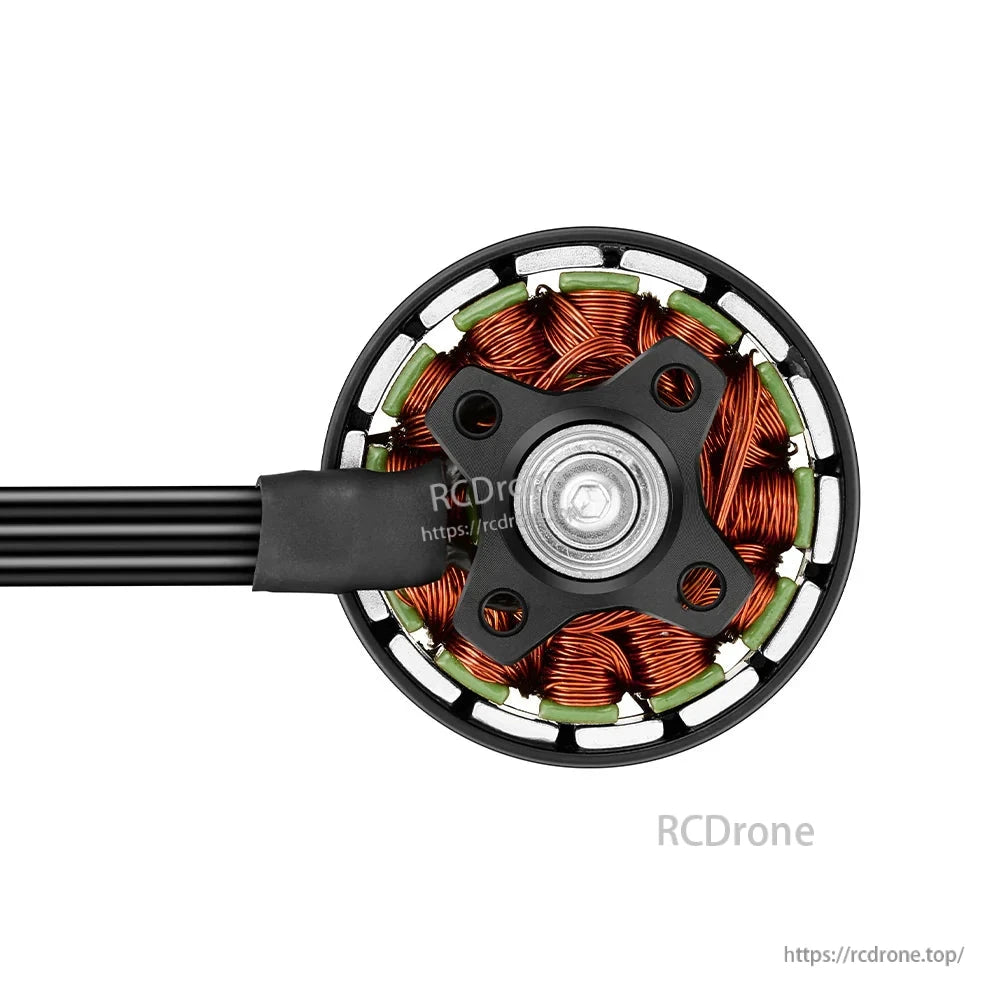

Hobbywing XRotor 3110 Brushless FPV Motor 900KV/1150KV for 4-6S, Suitable for 8-9 inch FPV Drone

Overview

The Hobbywing XRotor 3110 is a brushless FPV motor offered in 900KV and 1150KV options, designed for 4-6S setups and suitable for 8-9 inch FPV drone builds.

Key Features

• High efficiency under load: Heavy-load efficiency in rear sections is improved by approximately more than 5% compared to motors of the same specifications from other brands.
• Heat dissipation structure: Large hollow design at both ends and a self-cooling rotor structure to improve heat dissipation performance; thermal efficiency is stated as approximately 20% higher than similar models.
• Extended full-load endurance: Maximum running time under full load is extended by more than 50% compared to motors of the same specifications from other brands.
• Propeller mount anti-slip design: New tooth-groove grooved propeller mount helps prevent the propeller from slipping.
• Rotor retention: Rotor secured using high-temperature resistant, high-strength adhesive for improved reliability.
• Materials and winding: High-performance 0.2mm silicon steel sheets; multi-strand enameled wire winding design increases slot full rate by approximately more than 5%.
• High-temperature wire: 220°C high-temperature resistant enameled wire (C Class insulation).
• Magnets and torque: Uses N52 strong magnetic tiles with an arc-shaped design to provide strong torque.
• Wiring: 18AWG silicone wires for easier cable management.

Customer service: support@rcdrone.top

Specifications

Applications

• 8-9 inch FPV drone builds
• 4-6S FPV power systems

Details

Hobbywing XRotor 3110 brushless motor is presented as a high-efficiency option, with the graphic noting an approximately 5% heavy-load efficiency gain.

The XRotor 3110 motor uses a grooved propeller mount design to help reduce prop slippage during flights.

The XRotor 3110 brushless FPV motor uses a vented rotor design to help airflow around the windings during flights.

XRotor 3110-900KV testing data shows 43A maximum test current and 39 seconds of full-throttle runtime versus 36A and 14 seconds for a comparable 3110-900KV motor.

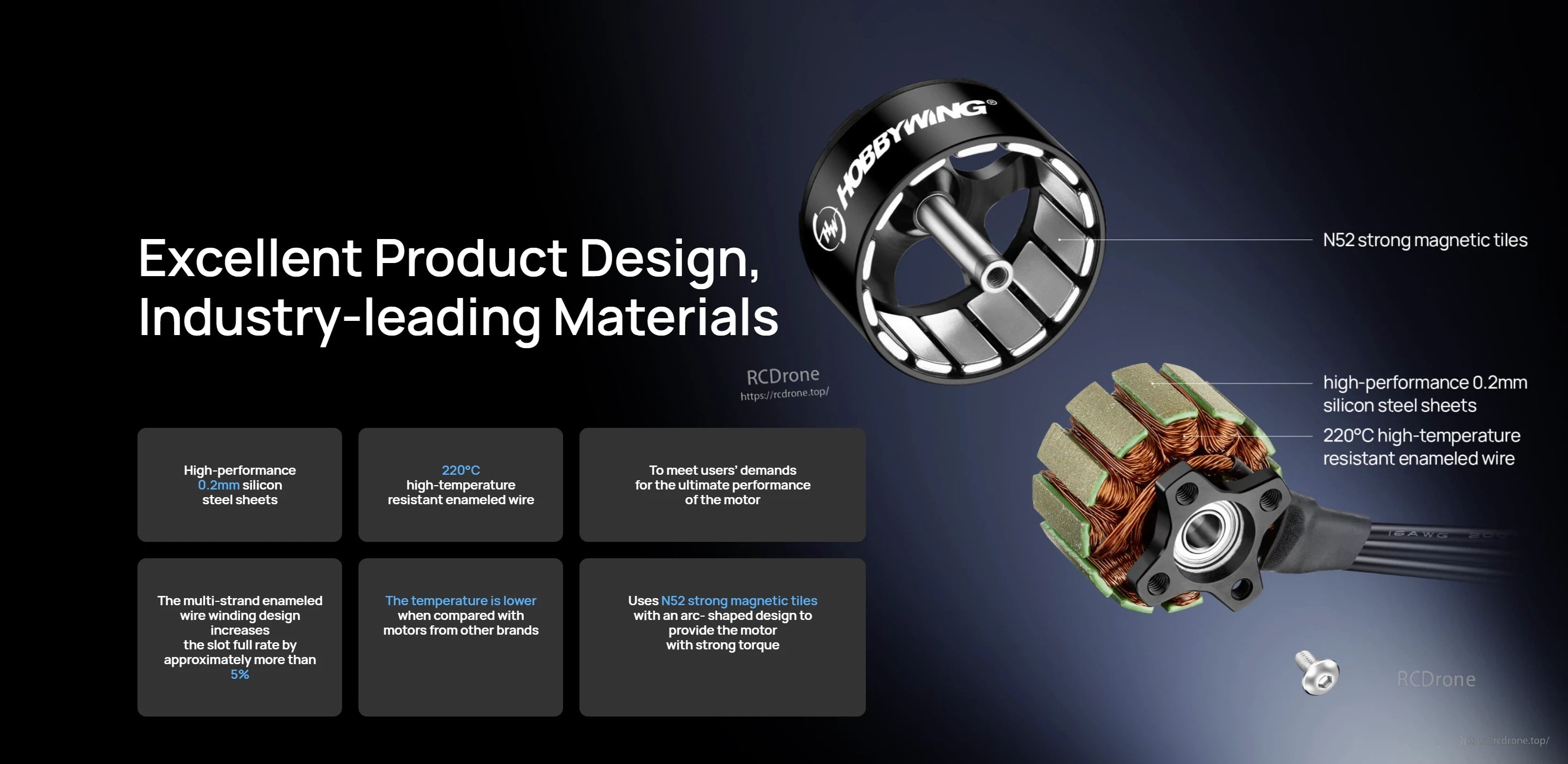

The Hobbywing XRotor 3110 brushless FPV motor uses N52 magnetic tiles, 0.2mm silicon steel sheets, and 220°C enameled wire in its construction.
