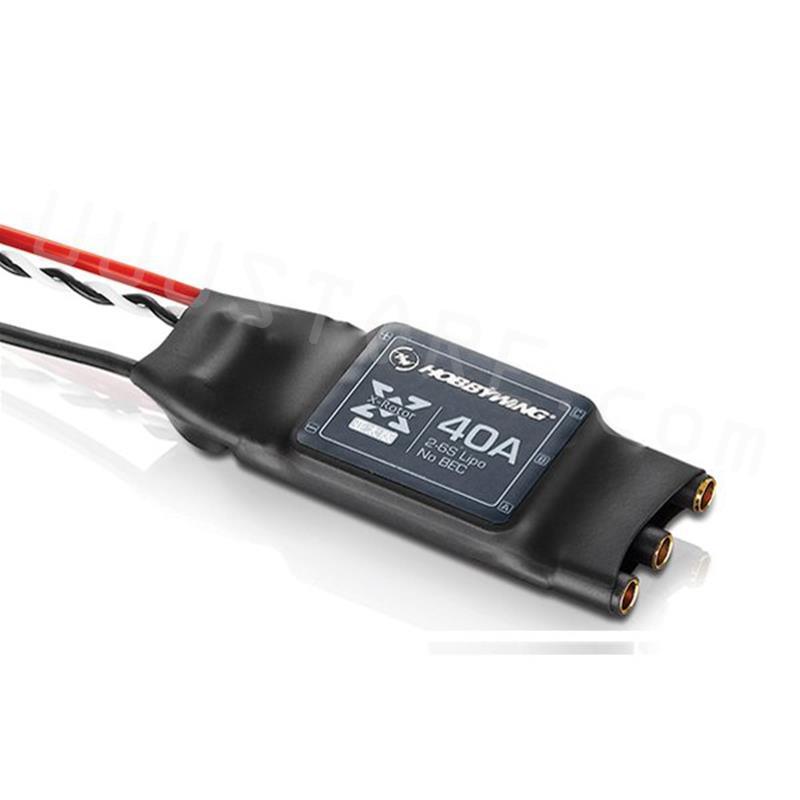

Hobbywing XRotor 40A ESC - 1/2/4/6pcs APAC Brushless ESC 2-6S For Believer UAV 1960mm RC mapping platform

Hobbywing XRotor 40A ESC SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: hobbywing 40A

Unit Type: piece

Tool Supplies: hobbywing 40A

Technical parameters: Value 8

Size: As description

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y,14+y

RC Parts & Accs: hobbywing 40A

Quantity: 1 pcs

Package Weight: 0.045kg (0.10lb.)

Package Size: 15cm x 10cm x 6cm (5.91in x 3.94in x 2.36in)

Origin: Mainland China

Model Number: XRotor 40A APAC

Material: Composite Material

Four-wheel Drive Attributes: hobbywing 40A

For Vehicle Type: Helicopters



1/2/4/6pcs Hobbywing XRotor 40A APAC Brushless ESC 2-6S For Believer UAV 1960mm RC mapping platform



Package Included:
2x Hobbywing XRotor 40A brushless ESC



Remark:We just have long cable now



Note:This item is APAC version,can only be used at Asia-Pacific area,if you want to use it at other areas,please use a 3A UBEC for external power supply.Here are two UBEC we recommended for power supply.
Hobbywing 5V/6V 3A UBEC,

External brushless 5V 3A UBEC,



Specification:
Brand:Hobbywing
Model Number:XRotor-40A
Cont.Current:40A
Burst Current(10sec):60A
BEC:None
Lipo:2-6S
Programming:Timing(high/middle)
Weight:26g
Size:68x25x8.7mm

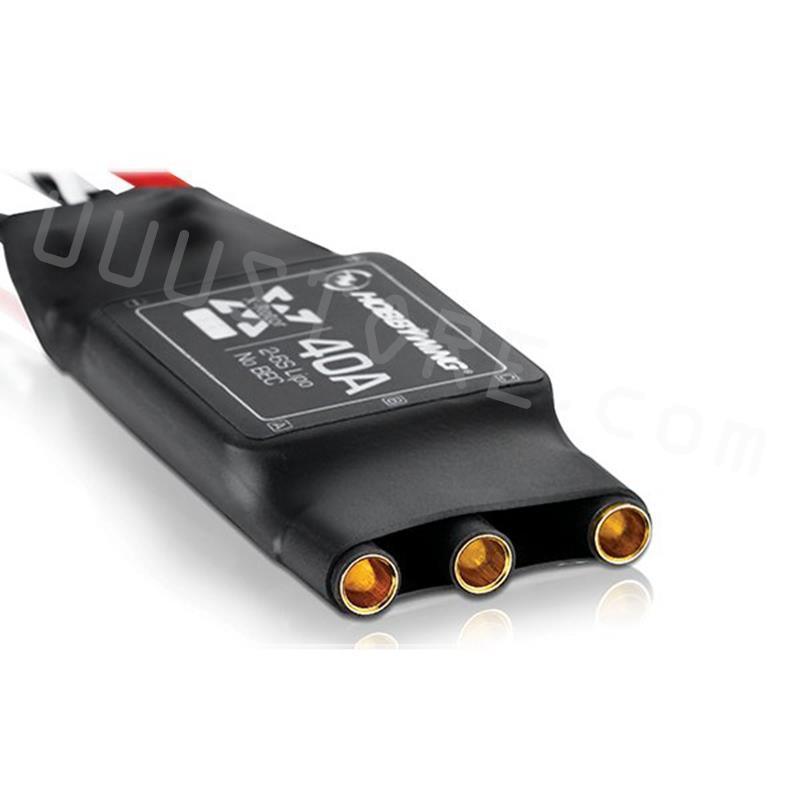

Plug:Φ3.5mmx3
Usage:RC Multicopter
APAC means Asia-Pacific Version,the official ESC sold in Asia-Pacific areas.



Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

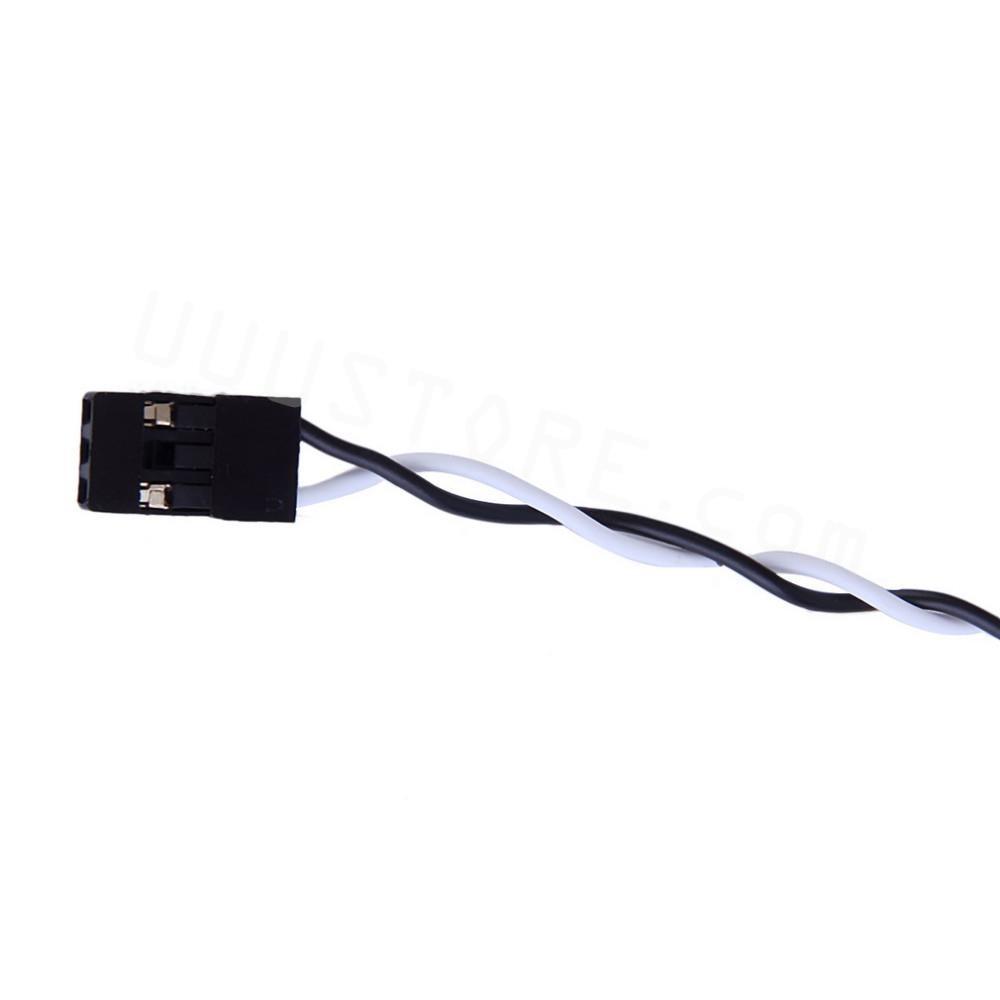

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

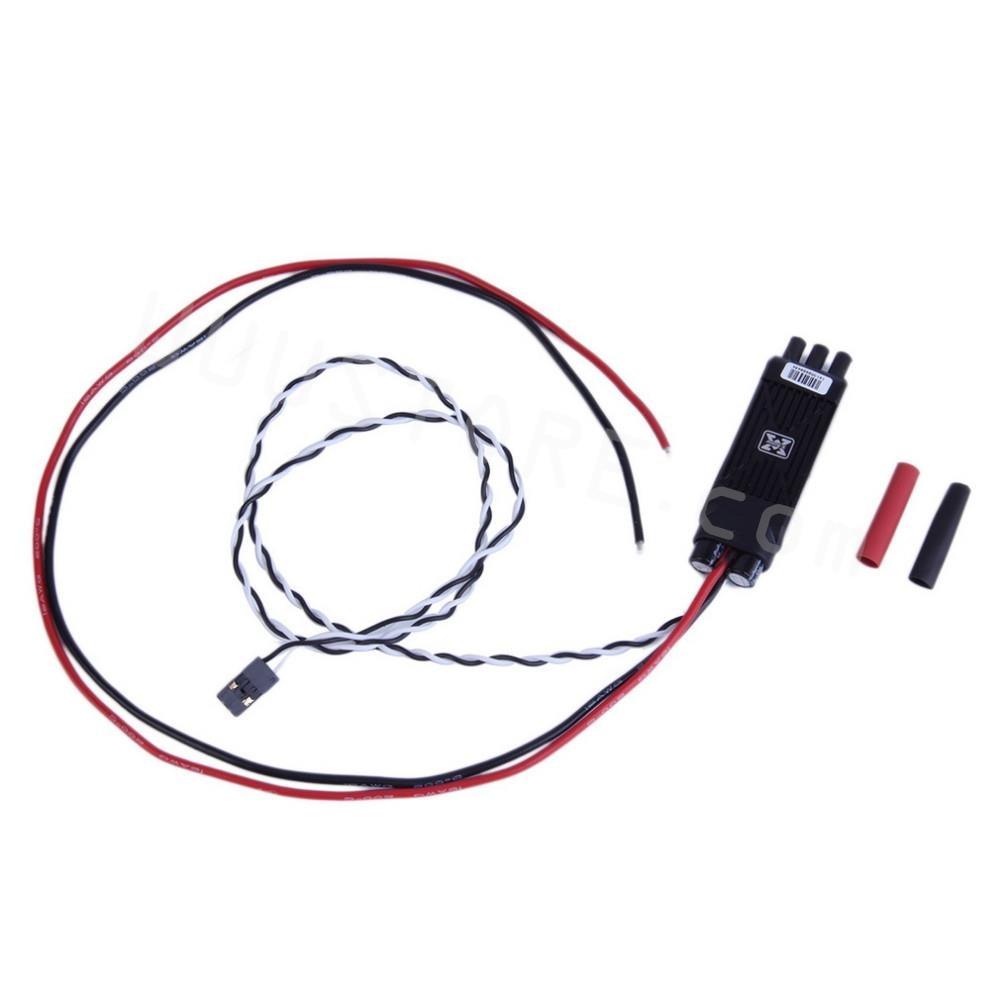

This is long cable
