Hobbywing XRotor 40A 20A 10A Brushless ESC SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: KV1100

Size: As show

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

Plastic Type: PC

Origin: Mainland China

Model Number: Hobbywing XRotor 2-6S Lipo 40A /20A /10A Brushless ESC

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: uuustore

Hobbywing XRotor 2-6S Lipo 40A /20A /10A Brushless ESC No BEC ESC high refresh rate for Multi-axle aircraft copters



Newest Hobbywing  APAC  Version  Brushless ESC , Perfectly Compatible Flight control and Motor

APAC means Asia-Pacifintegrated circuit Version,the offintegrated circuitial ESC sold in Asia-Pacifintegrated circuit areas.



Brand name: Hobbywing

Lipo battery:

40A ESC  2-6S

20A ESC  3-4S

10A ESC  2-3S

Package inlucde:1 * Hobbywing  X-Rotor ESC



Features:
Special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.

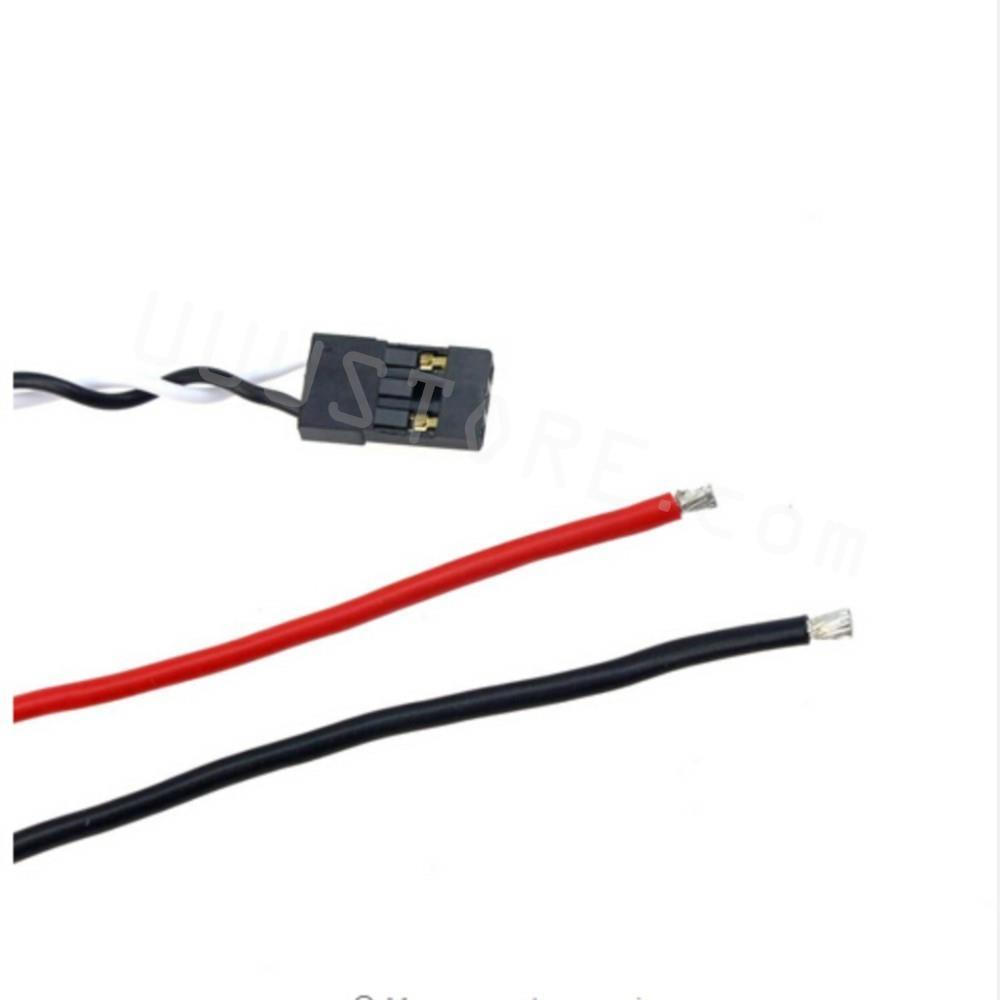

The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
MOSFET with extra-low resistance brings high performance and great current endurance.

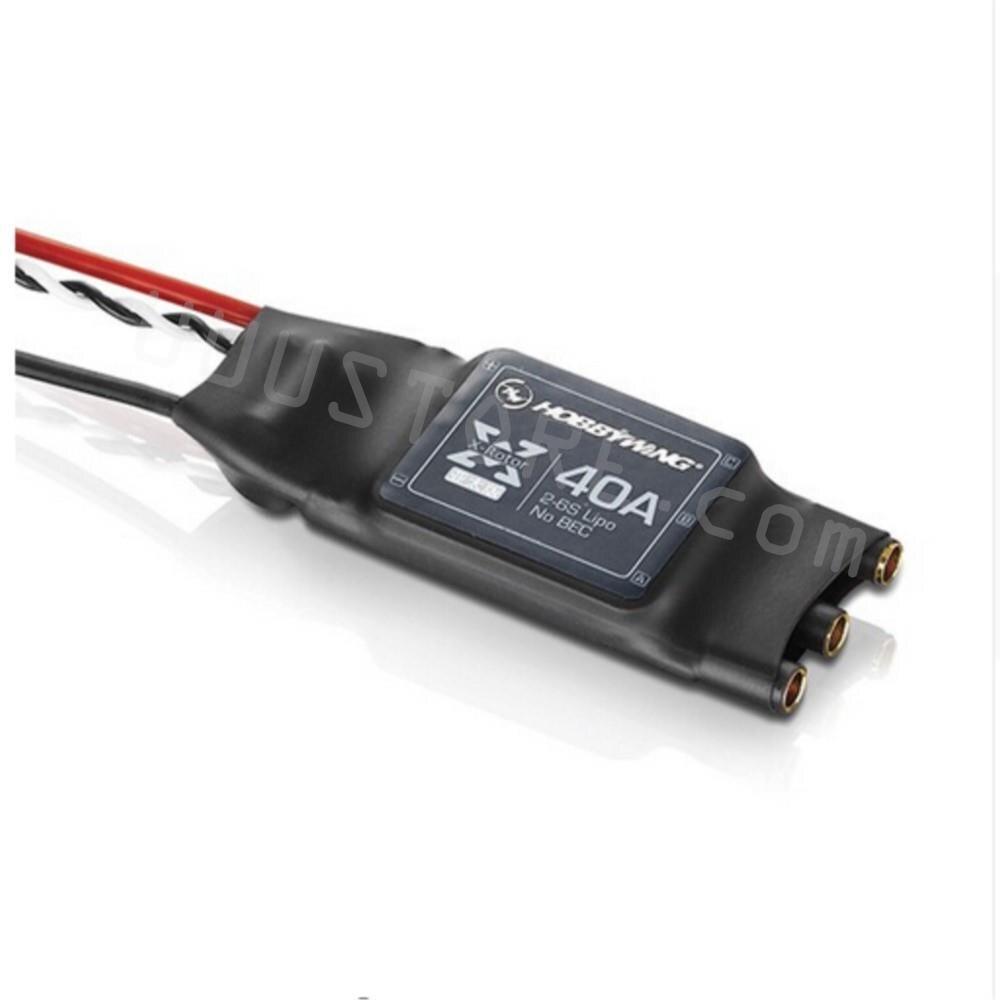

Specifications:
Model: XRotor 40A
Con.Current: 40A
Peak Current(10s): 60A
BEC: NO
LiPo Battery: 2-4S
Programmable Item: Timing(High/Intermediate)
Weight: 45g
Size: 73 * 21 * 10
Suit for: DJI F550 650 680 Quadcopter


Specifications:
Brand: Hobbywing
Model: XRotor 40A
Con.Current: 40A
Peak Current(10s): 60A
BEC: NO
LiPo Battery: 2-4S
Programmable Item: Timing(High/Intermediate)
Weight: 26g
Size: 68 * 25 * 8.7
Suit for: DJI F550 650 680 Quadcopter

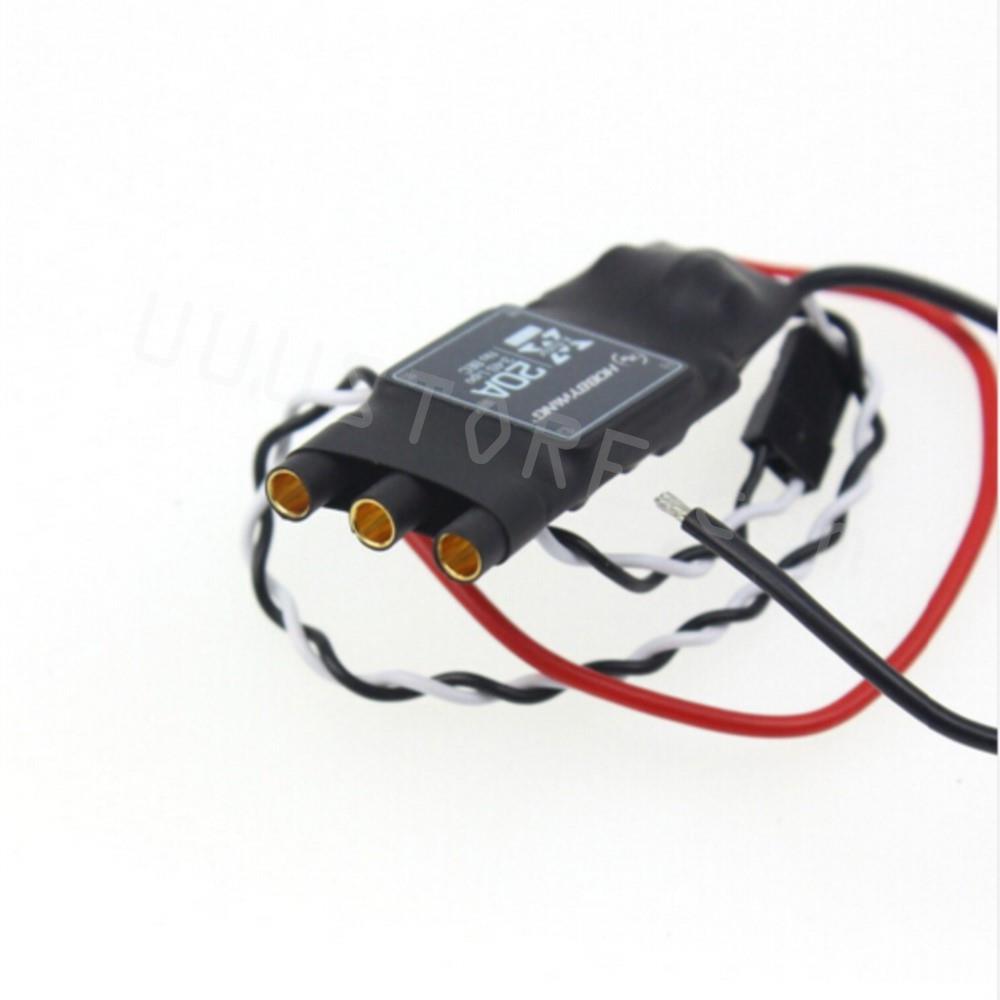

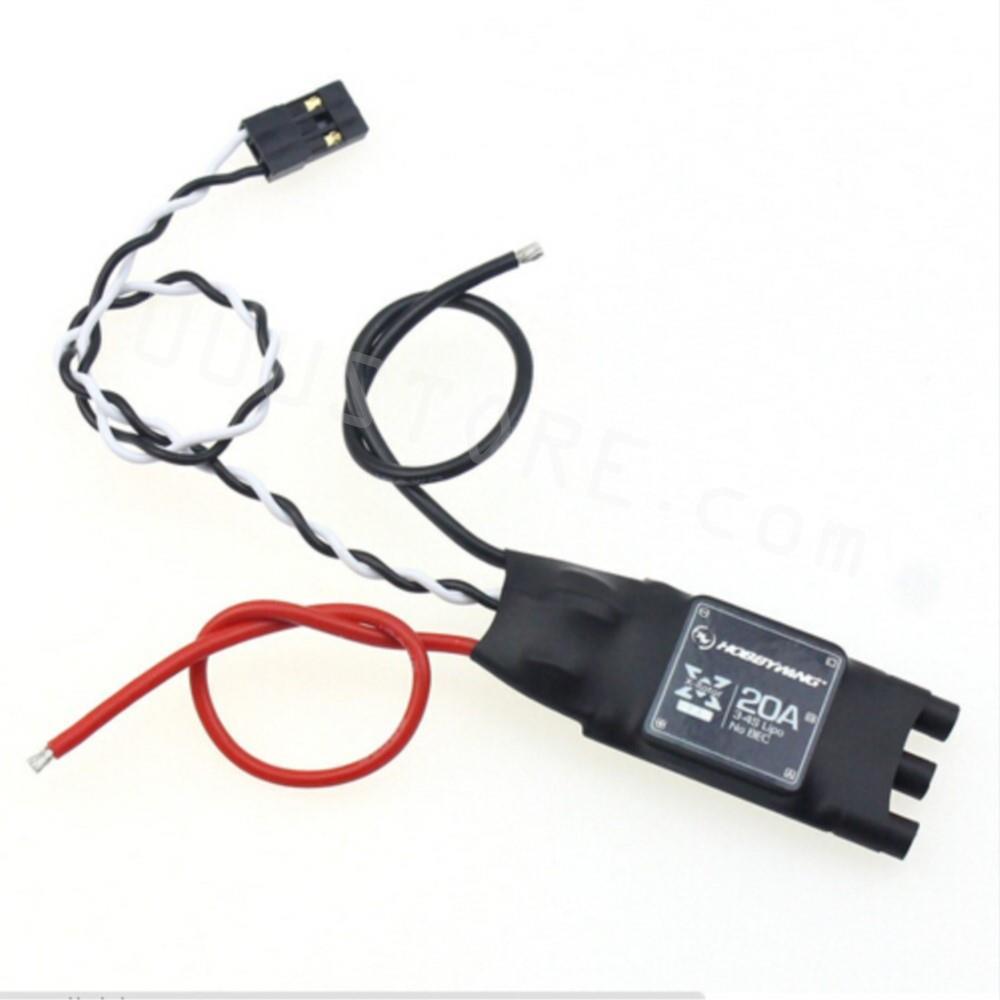

Specifications:
Brand: Hobbywing
Model: XRotor 20A
Con.Current: 20A
Peak Current(10s): 30A
BEC: NO
LiPo Battery: 3-4S
Programmable Item: Timing(High/Intermediate)
Weight: 14g / 1Pcs
Size: 52.4 * 21.5 * 7
Suit for: 330 450 Class Quadcopter

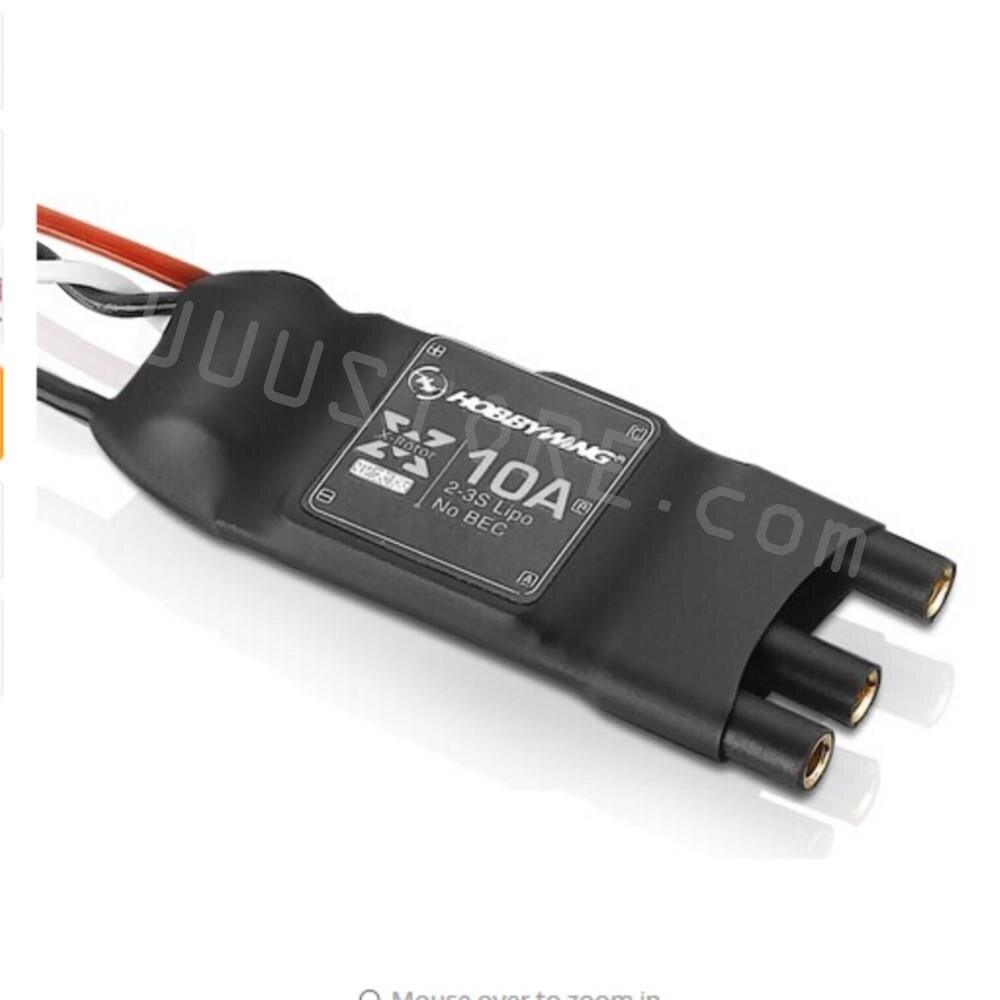

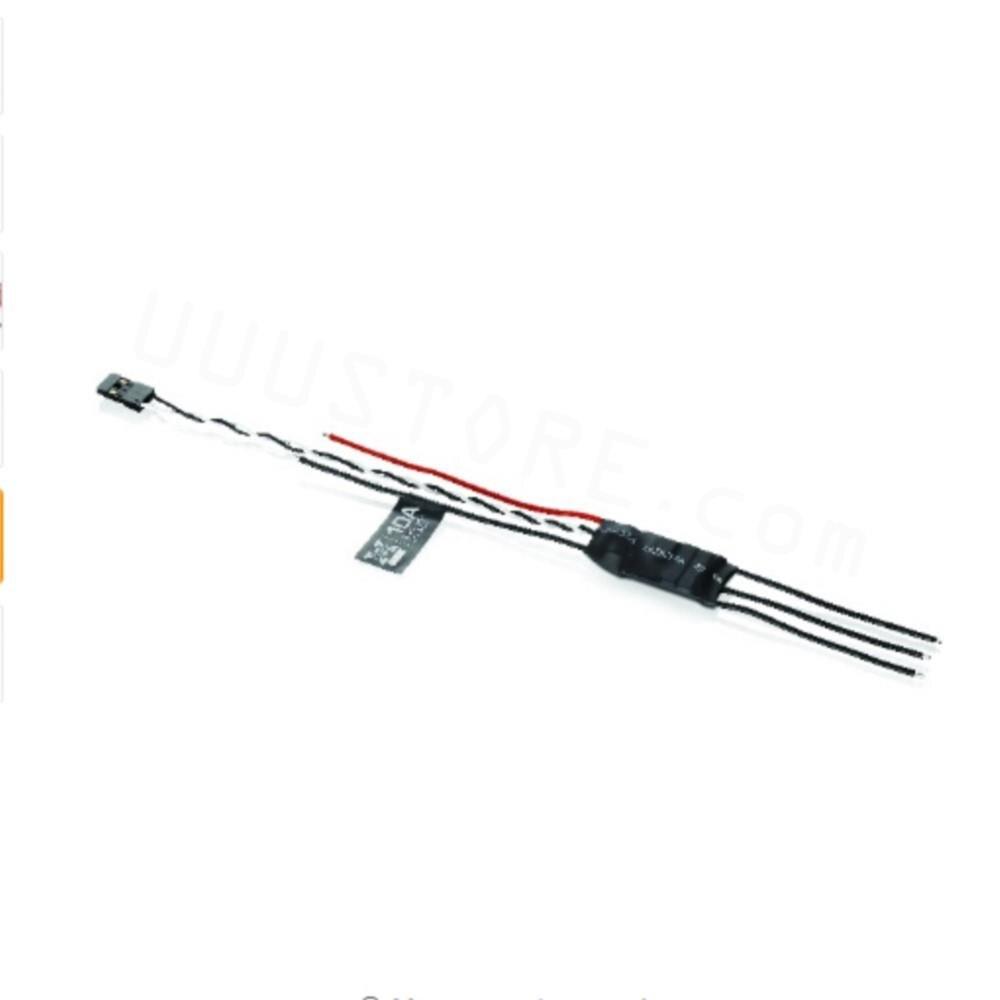

Specifications:
- Continuous current: 10A
- Burst current: 15A@10S
- No BEC output
- Battery: 2-3S
- Weight: 6.5g
- Dimension: 36.5*16.4*4.1mm

- Suit for 250mm wheelbase multicopters
