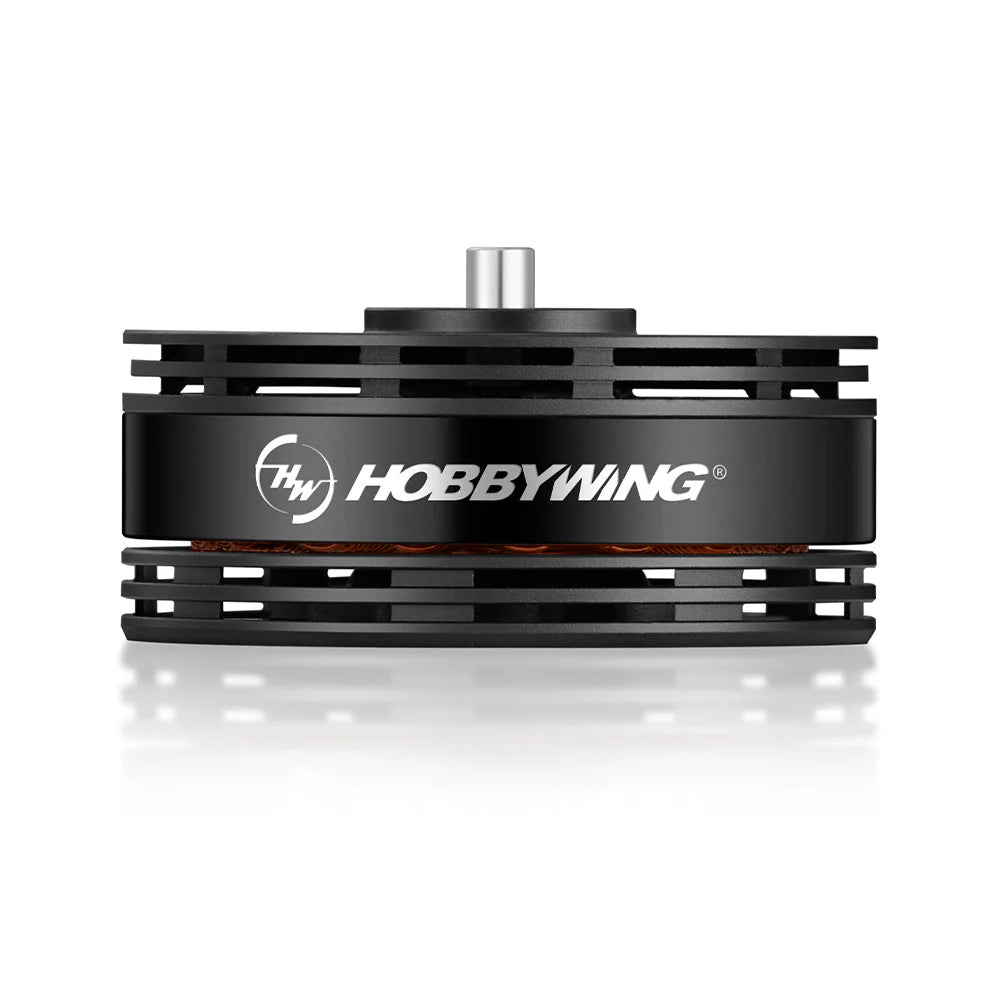

  • Hobbywing XRotor M4006 industrial drone motor with black housing, cooling fins, and top shaft
  • Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor M4006 HM-4006-330KV industrial drone motor with three braided phase wires

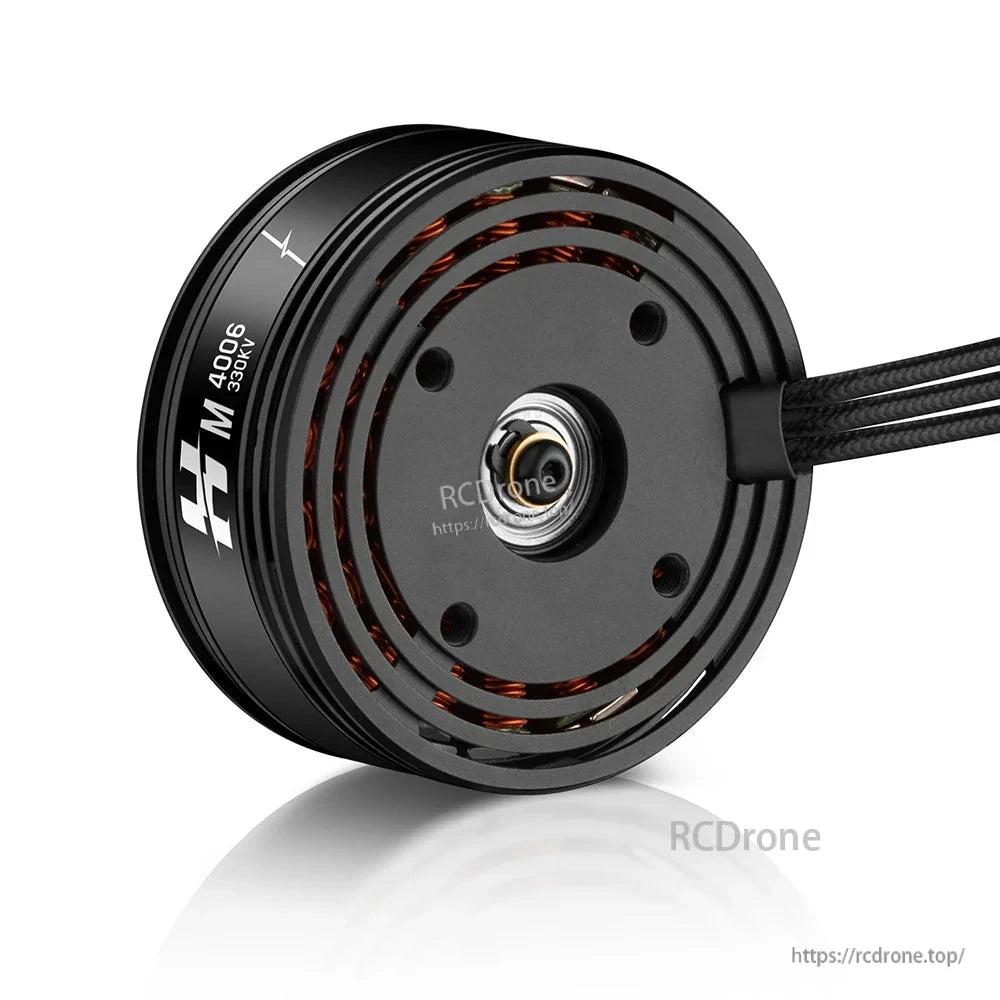

  • Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor M4006 330KV brushless drone motor with black outrunner housing and three lead wires
  • Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor M4006 330KV brushless drone motor with mounting plate and screws, black anodized housing
  • Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor HM-4006-330KV drone motor end cap with three phase wires and QR code
1 6

Hobbywing XRotor M4006 Industrial Drone Motor 330KV HP / 350KV UL, 6S LiPo, IP45/IPX5, 18N24P

Hobbywing XRotor M4006 Industrial Drone Motor 330KV HP / 350KV UL, 6S LiPo, IP45/IPX5, 18N24P

Hobbywing

$89.00 USD
$89.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Hobbywing XRotor M4006 is an industrial drone motor for industrial multirotor platforms, available in HP (330KV) and UL (350KV) versions. It is designed for high efficiency and long endurance, with a recommended thrust of 1 kg and a quadrotor takeoff weight of 4.0 kg.

For product selection or compatibility questions, contact https://rcdrone.top/ or support@rcdrone.top.

Key Features

  • HP & UL series: 330KV / 350KV options
  • Spring + screw interlocking structure
  • Integrated stator seat and back cover design (weight reduction and parts optimization)
  • Main shaft tail uses snap ring + locking screw structure; anti-rust screws
  • High-quality bearings (low friction torque, extending motor lifespan)
  • High-performance iron core: 0.2mm low-loss silicon steel sheet punched
  • Main shaft: high toughness carbide
  • Outer rotor casing: 20# seamless steel tube with nickel electrophoresis design (conductivity and corrosion resistance)
  • Shaft knurled design for tighter tolerances
  • New magnetic circuit design to optimize anti-emotive force harmonics for a higher sine wave, matched with the ESC
  • Exterior design with optimized fan ports; centrifugal fan heat dissipation structure to improve heat dissipation capacity

Specifications

Parameter M4006 330KV HP M4006 350KV UL
Motor size Φ44.4*H19.7mm Φ44.4*H19.3mm
Stator size Φ39mm Φ39mm
Stator process High standard silicon steel sheet, rust proof, 180°C high temperature resistance paint-coat High standard silicon steel sheet, rust proof, 180°C high temperature resistance paint-coat
Enamelled wire 220°C 220°C
Magnet 180°C 180°C
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IPX5
Slot & pole 18N 24P 18N 24P
Dynamic balance ≤5mg ≤5mg
Bearing Waterproof bearing Waterproof bearing
Motor axle diameter Φ4mm Φ4mm
Props mounting dimensions 4×M3@D12 4×M3@D12
Motor mounting dimensions 4×M3@D25 4×M3@D25
KV 330 350
Battery (LiPo) LiPo-6S LiPo-6S
No-load current 0.58 A 0.64 A
Maximum current (Non-hermetic Ambient Temperature ≤ 25°C) 15.8 A 17.3 A
Max power 363 W 358 W
Max thrust 2.3 kg 2.2 kg
Resistance 218.5mΩ 209.7mΩ
Wire size Enamelled wire outlet Enamelled wire outlet
Wire length 50 mm 60 mm
Weight (with wire) 72g 66.1g

Applications

  • Industrial multirotor platforms (quadrotor reference provided)
  • Recommended thrust (reference): 1 kg
  • Quadrotor takeoff weight (reference): 4.0 kg

Recommended Application Combinations

Item M4006 330KV HP M4006 350KV UL
Motor M-4006-HP M-4006-UL
Propeller MP16*5.4"/MP17*5.8" MP16*5.4"
ESC XRotor Pro-H40A-6S/XRotor Pro-H60A-6S XRotor Pro-H40A-6S/XRotor Pro-H60A-6S
Battery 6S LiPo 6S LiPo
Thrust/rotor 0.6~1.0kg 0.6~1.0kg
Takeoff weight of quadrotor 2.4~4.0kg 2.4~4.0kg

Details

Hobbywing XRotor M4006 industrial drone motor with braided leads, black housing, and visible copper windings

The XRotor M4006 industrial multirotor motor features a rugged black housing, braided leads, and 330KV/350KV variants for different prop and voltage setups.

Hobbywing XRotor M4006 Industrial Drone Motor, Quadrotor industrial drone graphic with text “High Efficiency, Long Endurance,” recommended thrust 1 kg and 4.0 kg takeoff weight

The XRotor M4006 setup is recommended for around 1 kg thrust per motor on a quadrotor with about 4.0 kg takeoff weight.

Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor M4006 drone motor close-up with exposed copper windings and spring + screw interlocking structure callout

The XRotor M4006 motor features a spring + screw interlocking structure on the shaft for a more secure assembly.

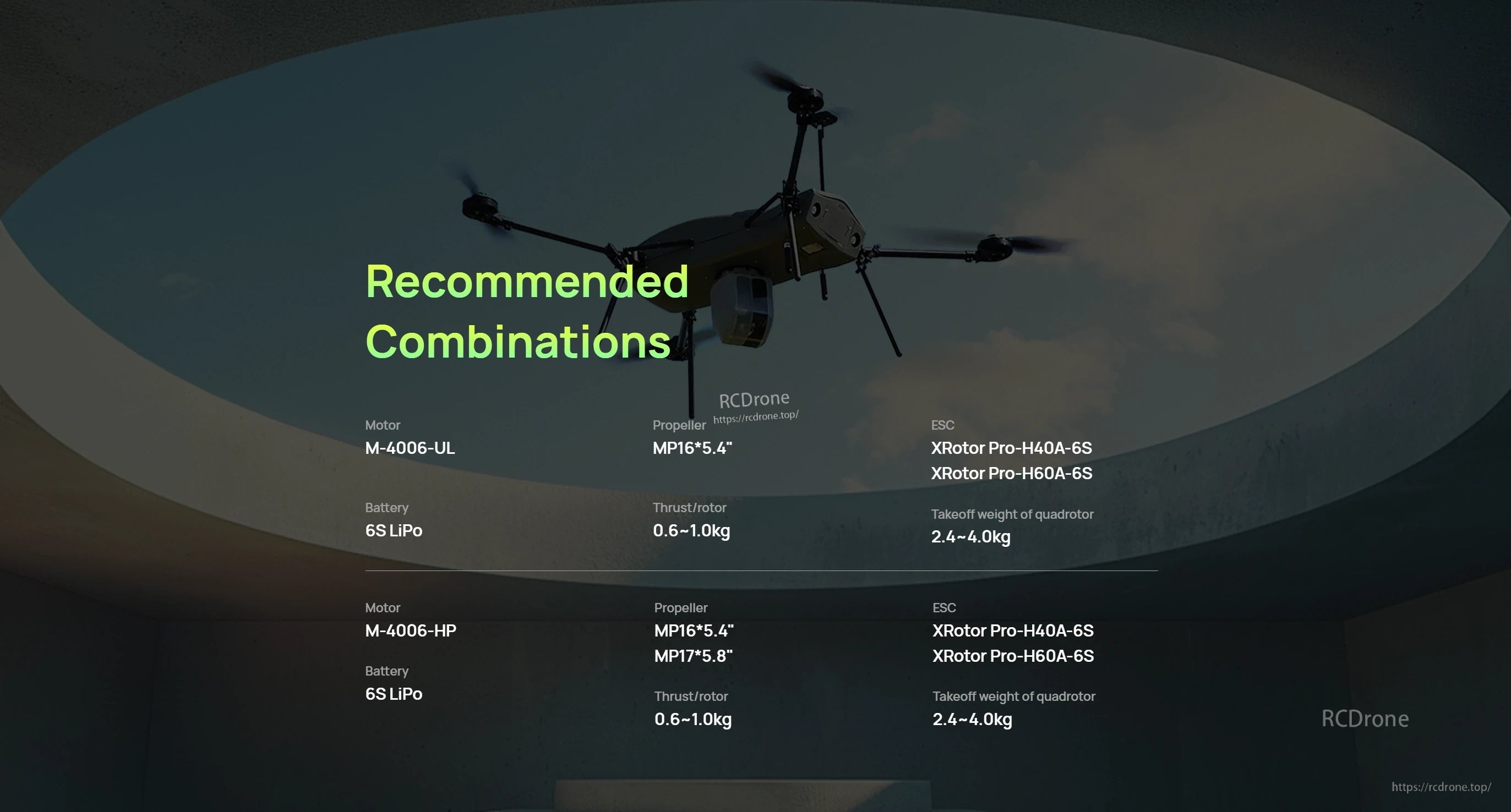

Hobbywing XRotor M4006 Industrial Drone Motor, Recommended combinations chart for Hobbywing XRotor M-4006 drone motor with 6S LiPo, MP16/MP17 props and XRotor Pro ESCs

XRotor M-4006 recommended setups pair a 6S LiPo with MP16*5.4" or MP17*5.8" propellers and XRotor Pro-H40A-6S/H60A-6S ESCs for 0.6–1.0 kg thrust per rotor.

Hobbywing XRotor M4006 Industrial Drone Motor, Top view of Hobbywing XRotor M4006 drone motor with copper windings and labeled bearings, shaft, and rotor casing materials

Hobbywing XRotor M4006 motor construction uses labeled high-quality bearings, a carbide main shaft, and a steel outer rotor casing.

Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor M4006 drone motor with open stator and knurled shaft, marked 4006 350KV

The XRotor M4006 motor features an open-frame design with a knurled shaft for secure prop mounting.

Hobbywing XRotor M4006 Industrial Drone Motor, Hobbywing XRotor M4006 330KV drone motor with propeller mount and top shaft on black housing

The XRotor M4006 330KV motor features a top propeller mount and compact, enclosed housing for straightforward installation on industrial drones.
