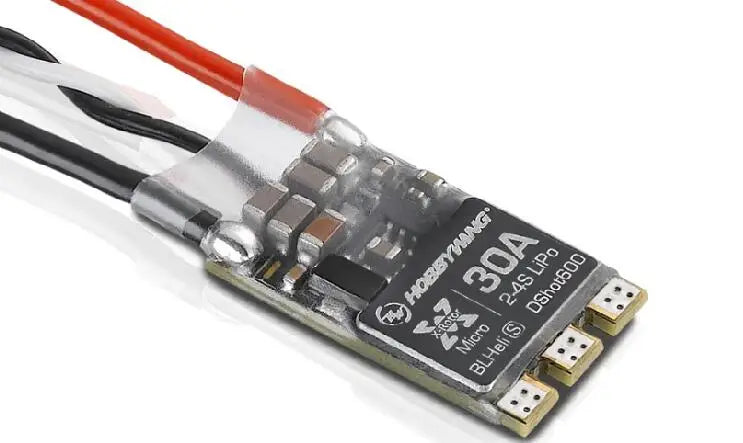

4pcs/lot Hobbywing XRotor Micro BLHeli-s 30A ESC Brushless Speed Controller for RC Racer Drone FPV Racing Quadcopter

4pcs/lot Hobbywing XRotor Micro BLHeli-s 30A ESC Brushless Speed Controller for RC Racer Drone FPV Racing Quadcopter

Hobbywing

Regular price $22.23 USD
Regular price $37.79 USD Sale price $22.23 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

104 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Hobbywing XRotor Micro BLHeli-s 30A ESC SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Other

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y,14+y

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: BLHeli-s 30A

Material: Composite Material

Four-wheel Drive Attributes: Other

For Vehicle Type: Airplanes

Brand Name: uuustore









4pcs/lot Hobbywing XRotor Micro BLHeli-s 30A ESC Brushless Speed Controller for RC Racer Drone FPV Racing Quadcopter

Description:

Specificallly design for FPV racing drone
This ESC can support the latest DShot150 / 300/600 throttle mode, but also support the ordinary
PWM throttle signal mode (1000μs-2000μs), Oneshot125 (125-250μs),
Oneshot42 (42-8μs) and Multishot (2-25μs) ultra-high-speed throttle signal.

Ultra-small size
W = 13.7 mm
L = 20.5 mm
XRotor Micro BLHeli 30A
Width is about 5 dime coin 2/3 size
Weight: 6g (with line)

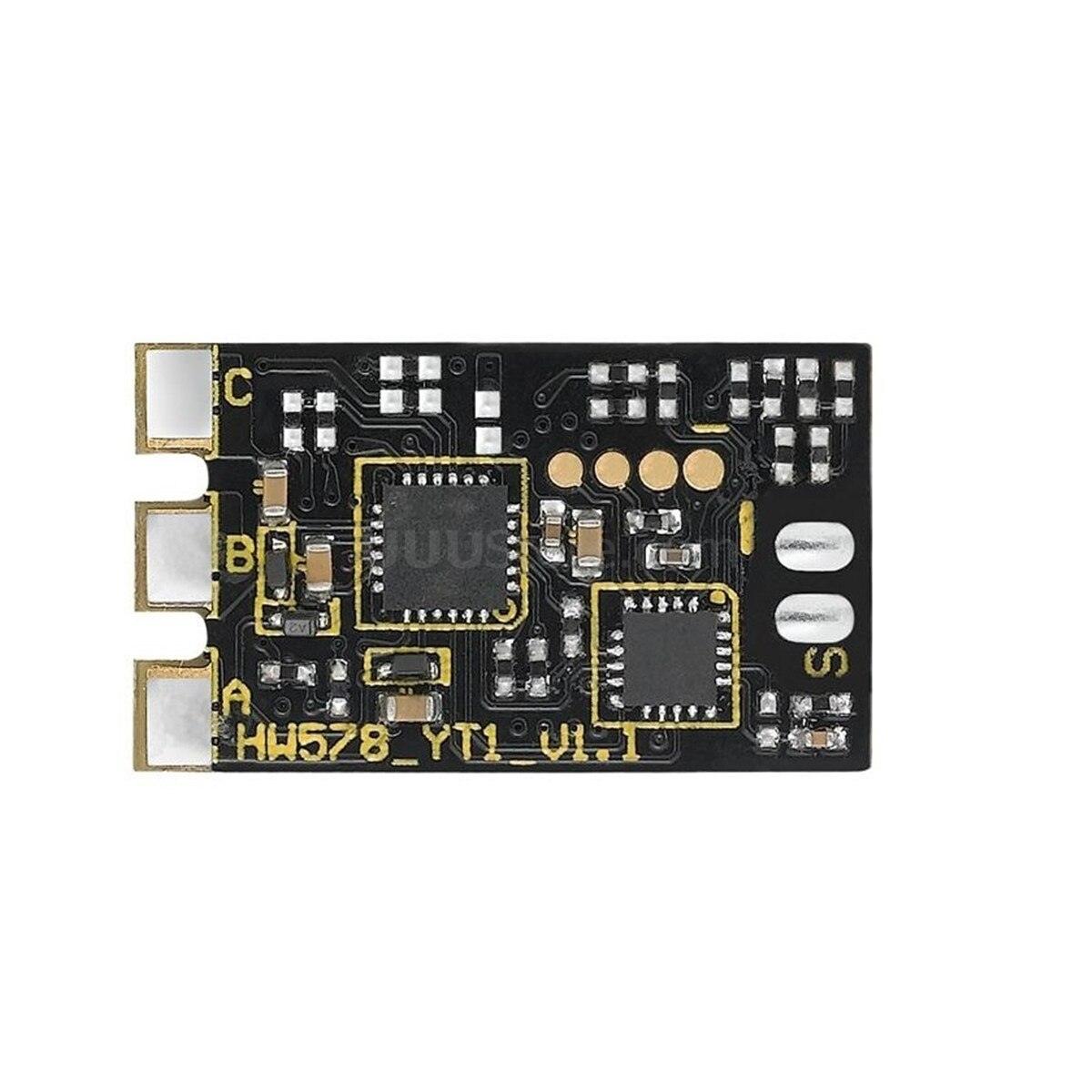

Top materials, ultra-fast running speed
Running frequency up to 48MHz frequency EMF8BB21F16G master chip, the top US imports Fairchild MOSFET,
3-in-1 IC driver, imported high-quality ceramic capacitors, 3 ounces of copper thickness, 4 laminates, greatly reducing heat, efficiency
Higher, the response speed, smooth feel cool zero-delay operation fun.

Top materials
Ultra-fast running speed
Three-in-one IC driver
Operating frequency up to 48MHz
EMF8BB21F16G master chip
Top US imports Fairchild MOSFET
Native support BLHeli-S
Native support BLHeli-S firmware, through the signal line to easily upgrade online, brush easier to write. Such as using cleanflight or betaflight
Firmware flight control, can be directly connected to the use of flight control BLheli tuning parameters software, one-time easily set up four ESC parameters.

Native support
BLHeli-S
Hardware PWM, Damped Light
Hardware PWM drive motor, small noise, throttle response is smoother. Damped Light mode,
Regenerative braking function, the motor deceleration more sensitive and effective, more precise control; active freewheeling technology,
So that battery recycling power, extended flight duration;

Hardware PWM
Damped Light
Twisted-pair signal lines to reduce interference
Throttle signal line is the twisted-pair wire, effectively reducing the throttle signal in the copper wire
Transmission of the crosstalk, so that flight more stable.

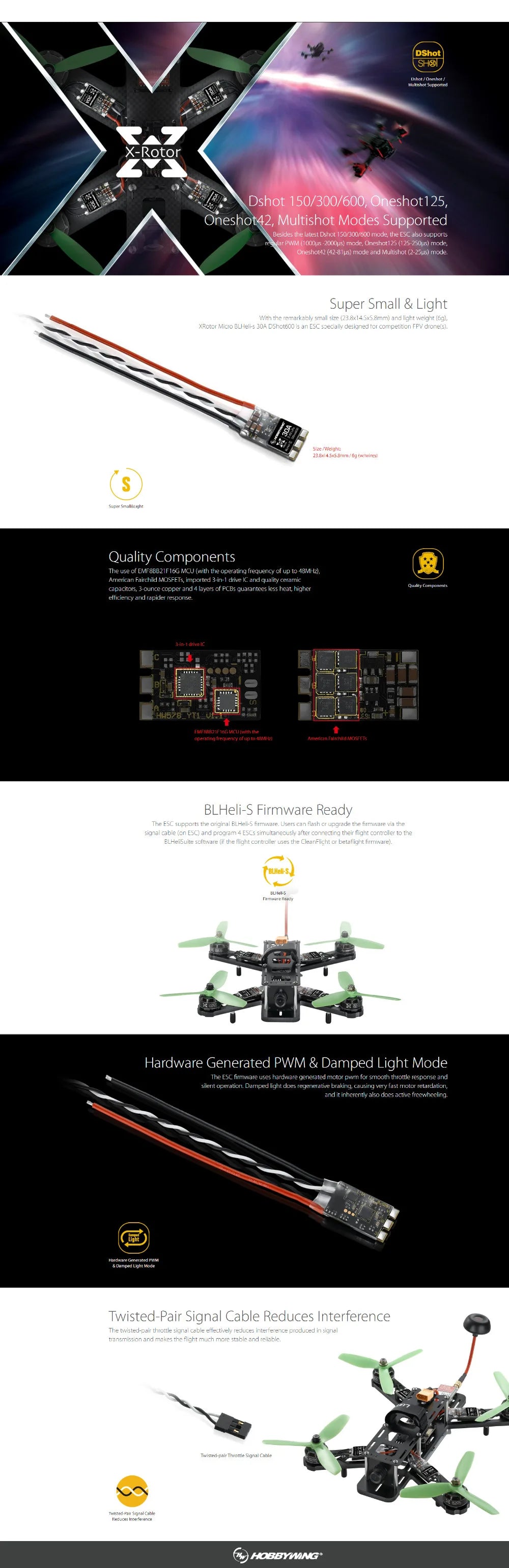

the ESC also supports Ilar PWM (ICHs - 2OOOjs

The ESC supports various PWM modes, including Ilar (2000Hz), Oneshot125 (125-250µs), Oneshot42 (42-81µs), and Multishot (2-23µs). Additionally, it is compatible with the original BLHeli-S firmware.

top materials Ultra-fast running speed Three-in-one IC driver Operating frequency up toSeced Cccerok Bantcny Wctor Racevd U2

'
