Hobbywing Xrotor PRO 60A ESC SPECIFICATIONS
Weight:: 58g
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 6
Size:: 50x30x15.5 mm
Size: 60A
Remote Control Peripherals/Devices: ESC
RC Parts & Accs: Speed Controllers
Origin: Mainland China
Model Number: Xrotor 60A
Material: Composite Material
LiPo:: 4-6S
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Con. Current:: 60A
BEC:: NO
2PCS Hobbywing Xrotor PRO 60A RC Electric Brushless Speed Controller for Makeflyeasy Fighter RC Airplane Makeflyeasy Freeman
Package include:

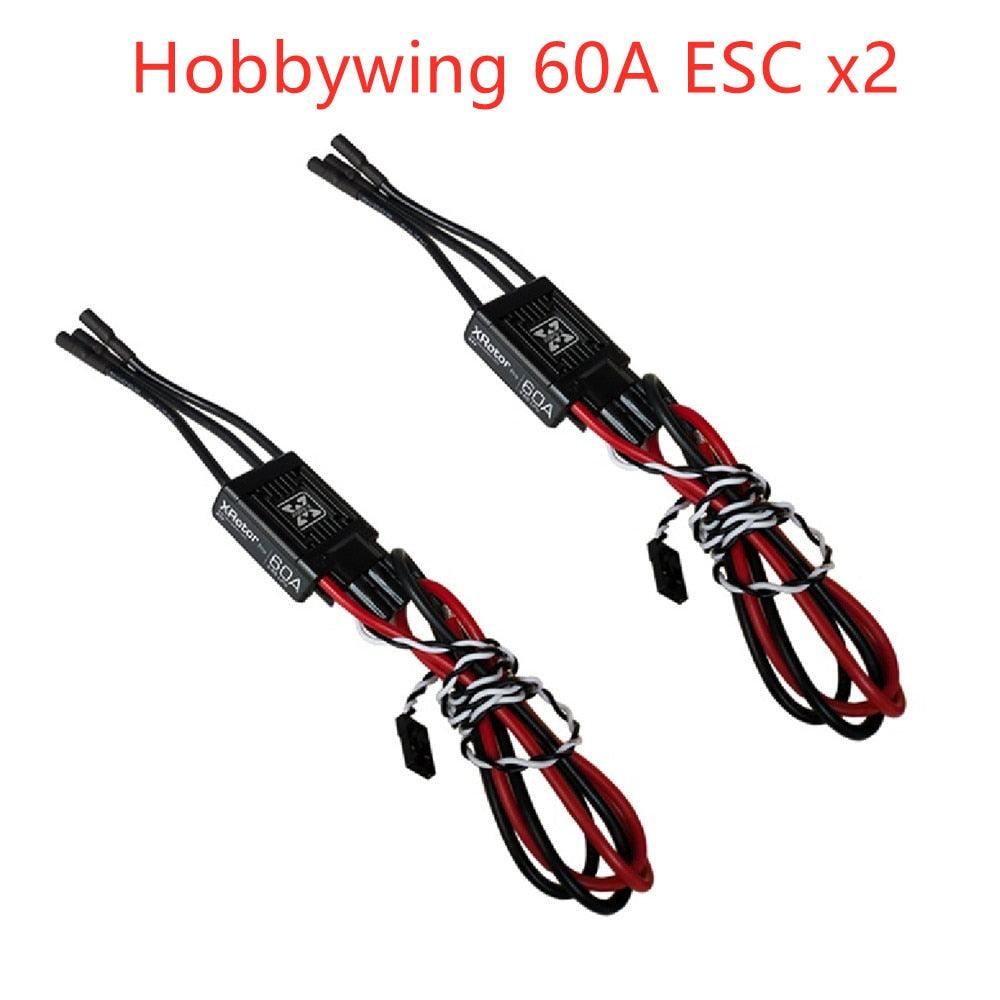

Hobbywing Xrotor PRO 60A ESC x2
Features:
• Special core program for multi-rotor controllers greatly improves throttle response.
• DEO (Driving Efficiency Optimization) technology significantly improves throttle linearity and driving efficiency.
• High intelligent and adaptive default settings like auto-adjusting timing meet almost all applications.
• The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
• Compatible with various flight-control systems and supports a signal frequency of up to 621Hz. (Note: all throttle signals over 500Hz are non-standard signals.)
• The high-light LED position on the XRotor Pro 50A ESC saves the trouble of mounting any extra color light on multi-rotors.
• The DIP switches at the bottom of the XRotor Pro 50A ESC control the ESC ON/OFF status, color of the LED light, ON/OFF of the DEO function and the motor rotation.
Specifications:
Throttle Calibration & ESC Programming
1.Users need to calibrate the throttle range when they start to use a new XRotor brushless ESC or another transmitter.
2.Users can change the Timing setting when some abnormality occurs in the ESC driving the disc-type motor or need the motor to reach a higher RPM. (Note: Intermediate Timing is the default setting.)
