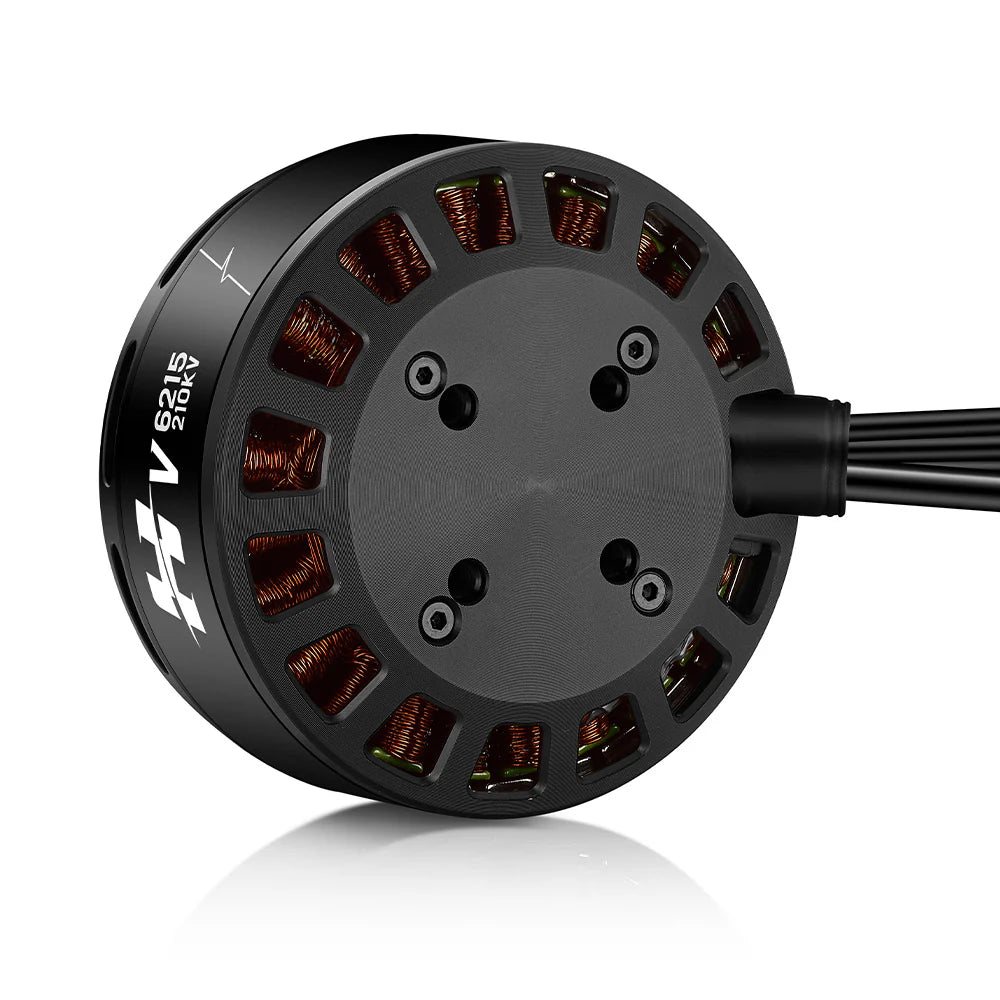

• Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V6215 210KV brushless VTOL motor with exposed copper windings and three-phase lead wires

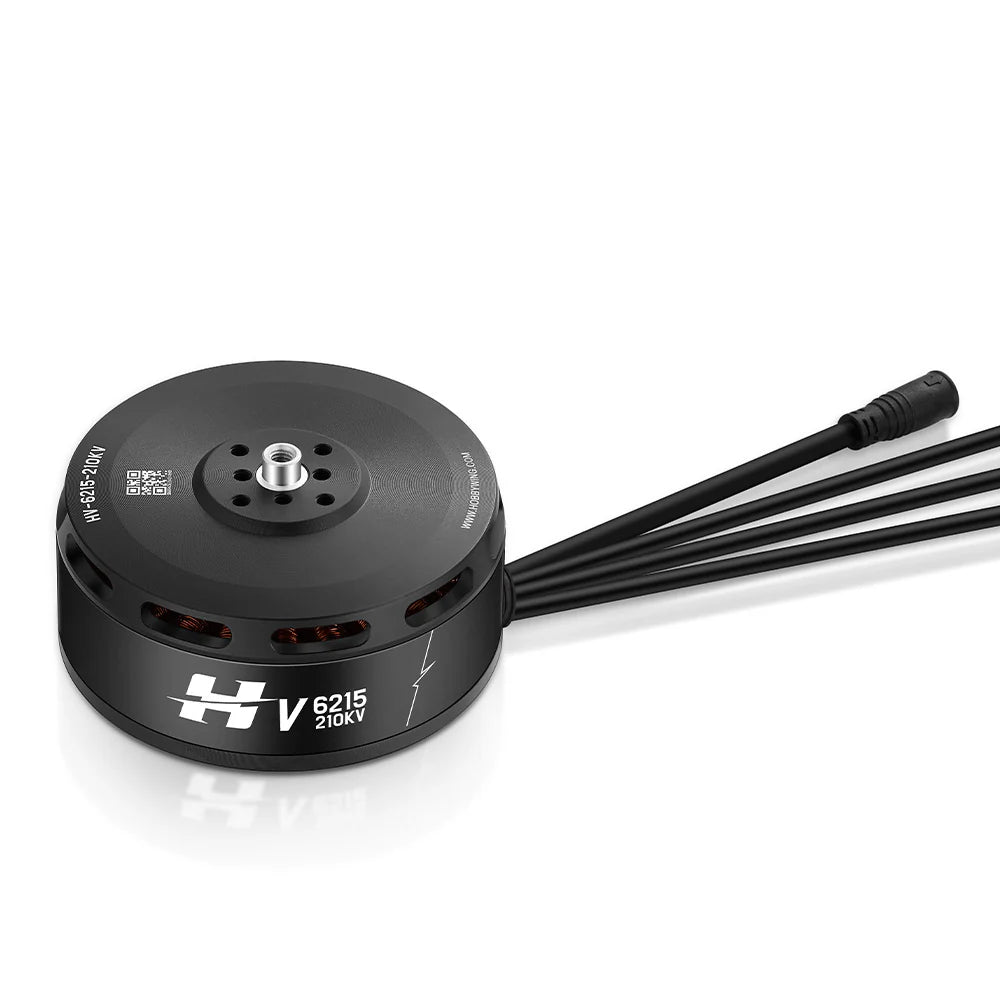

  • Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V6215 210KV brushless motor with top mounting hub and attached cable harness
  • Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V6215 210KV brushless VTOL drone motor with top mount hub and three-wire lead

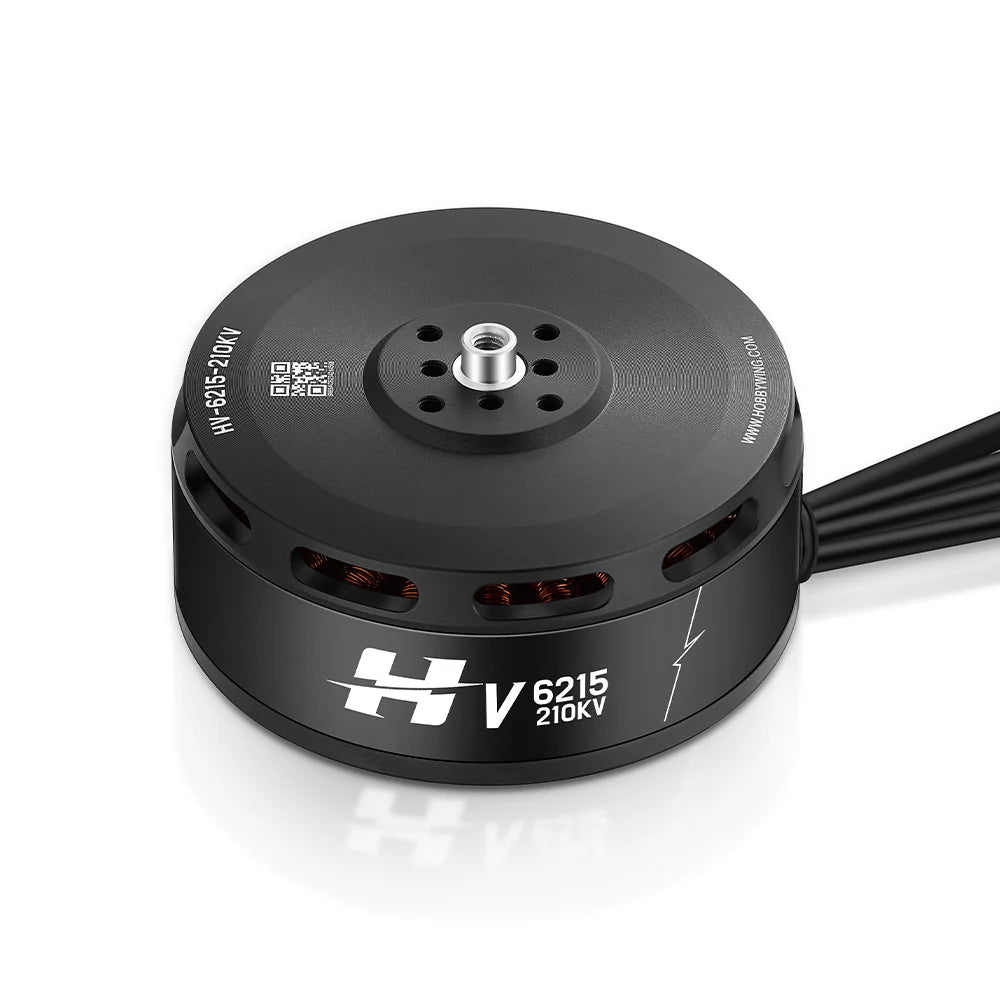

  • Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V6215 210KV brushless VTOL motor with top mounting plate, ventilation slots, and lead wires

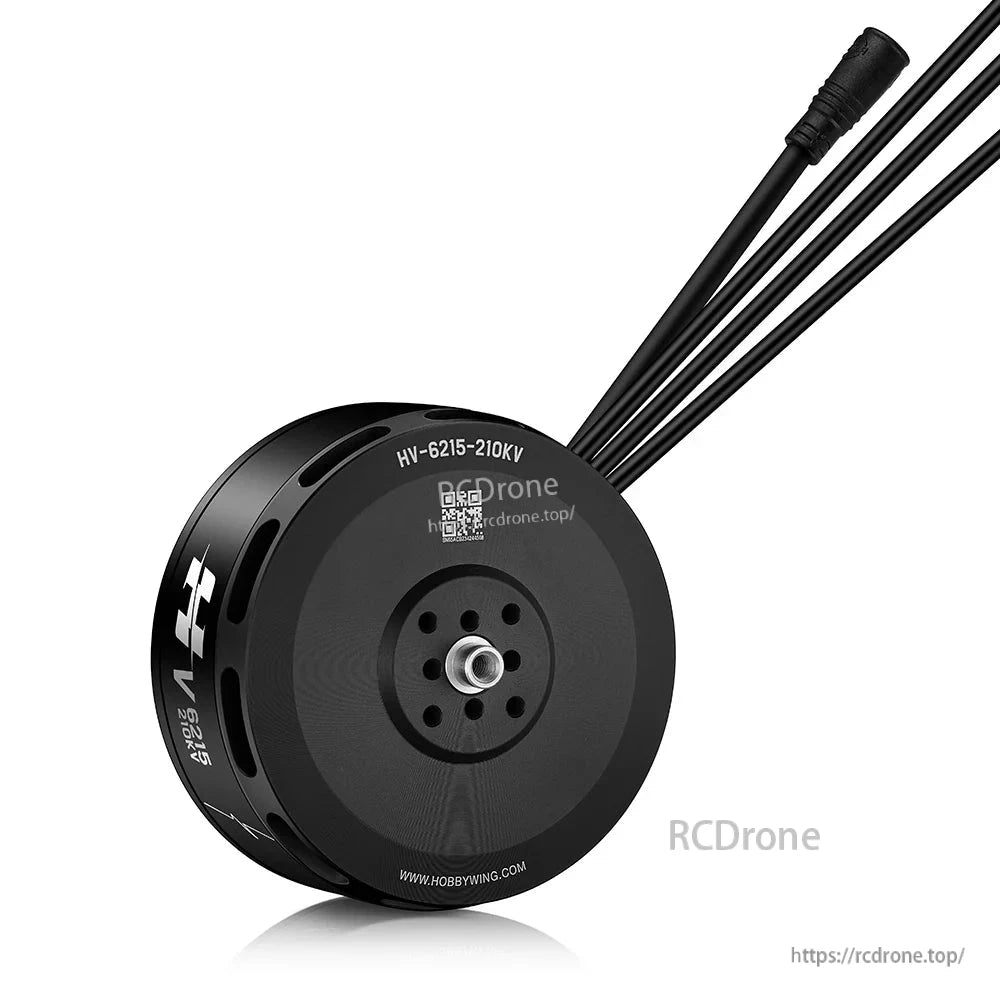

  • Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor HV-6215 210KV brushless VTOL drone motor with front shaft and attached power leads
1 5

Hobbywing XRotor V6215 210KV 12S VTOL Motor, IPX5, 13.8kg Max Thrust @46V, 3733W

Hobbywing XRotor V6215 210KV 12S VTOL Motor, IPX5, 13.8kg Max Thrust @46V, 3733W

Hobbywing

$169.00 USD
$169.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Hobbywing XRotor V6215 210KV 12S VTOL motor (V Series) is designed for VTOL fixed-wing platforms, focusing on reliability and stability. It uses an optimized magnetic circuit design for strong torque burst and VTOL suitability.

Key Features

  • Maximum thrust: 13.8kg @46V
  • Thrust-to-weight ratio: 39:1
  • Weight reduction statement: reduced by 10% compared with competing products of the same specifications
  • Protection level: IPX5
  • Isolation test: 500V AC high voltage resistance test
  • Stator process: high standard silicon steel sheet, rust proof, 180C high temperature resistance paint-coat
  • Materials and testing statements: 0.2mm silicon steel sheet and insulation coating material; special anti-rust treatment; corrosion resistance and long service life; over 1000 hours of aging test; 48h salt spray verification
  • Wire statement: high quality enameled wire, temperature resistant over 200C; silicone sleeve protects the outlet wire and is softer/easier to route than traditional straight enameled wire
  • Propeller control statement: an intelligent propeller control version is optional; used with Hobbywing IPC ESCs to set propeller stop position, reduce drag during cruise flight, and increase flight time
  • Interface statement: standardized installation interface to fit common propellers
  • Magnet temperature statements provided: 150C; also stated as NdFeB magnets temperature resistant up to 180C

For product selection and after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model V6215 210KV
Motor size Dia 68.7 x H 39.3mm
Stator size Dia 61.5mm
Stator process High standard silicon steel sheet, rust proof, 180C high temperature resistance paint-coat
Enamelled wire 200C
Magnet 150C
Isolation test 500V AC high voltage resistance test
Protection level IPX5
Slot & pole 24N28P
Dynamic balance <= 10mg
Bearing High-quality waterproof bearing
Motor axle diameter Dia 6mm
Props mounting dimensions 4x M3@D12 + 4x M3@D18
Motor mounting dimensions 4x M4@D25
KV 210
Battery (LiPo) LiPo-12S
No-load current 2.6A
Maximum current 81A
Max power 3733W
Max thrust 13.8kg
Resistance 48.2 mohm
Wire size 14AWG
Wire length 600mm
Weight (with wire) 354g

CAD dimensions (values shown)

  • 39.3, 35.4, 33.9
  • Dia 68.7
  • Dia 6
  • Dia 27
  • 90
  • 600
  • D12, D18
  • 4-M3
  • 4-M4, D25
  • D12 with 4- Dia 3.2
  • Dia 20, Dia 4.1

Recommended combinations

Motor V6215 210KV
Propeller MV22.1*7.4" / ML22*7.8"
ESC XRotor Pro-H60A-14S / H80A-14S-IPC
Battery 12S LiPo
Thrust/rotor 5~6kg
Takeoff weight of quadrotor 20~25kg

Performance

V6215 210KV Load performance parameters

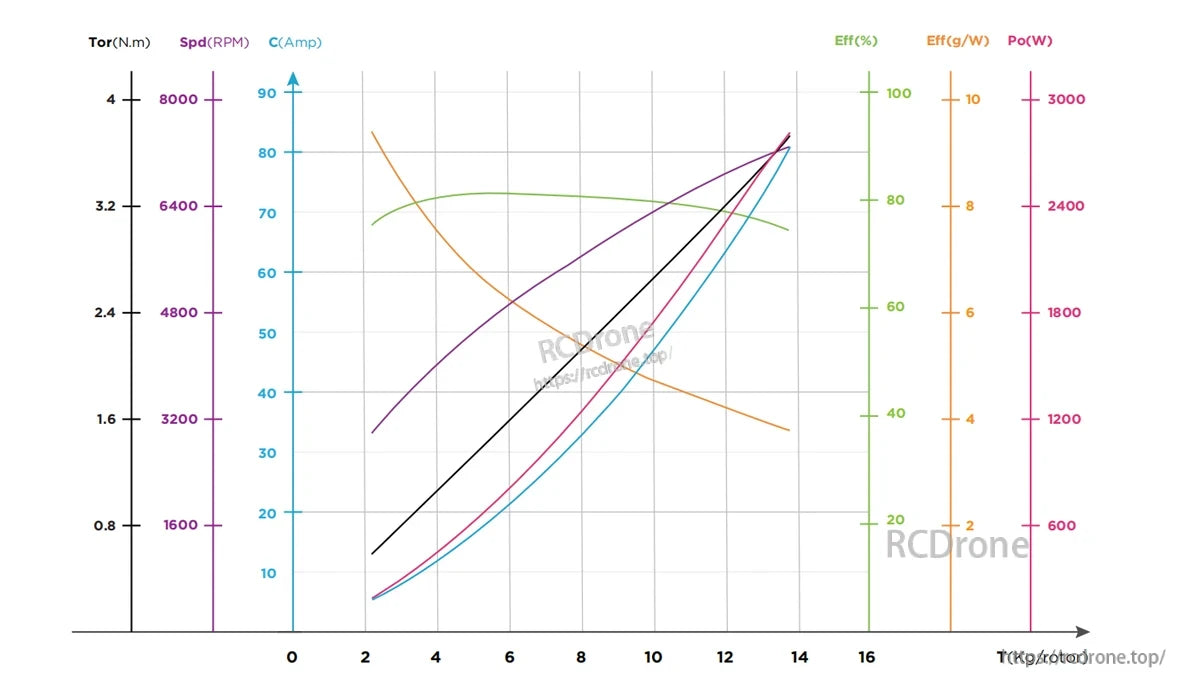

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Performance curves for Hobbywing XRotor V6215 210KV motor showing thrust vs RPM, current, power, and efficiency

XRotor V6215 thrust data is provided with corresponding RPM, current draw, power, and efficiency values across the load range.

V6215 210KV Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V (12S LiPo)

MV 22.1*7.4"

32%

2117

4.9

227.3

2931

9.3

0.56

125°C

33%

2174

5.1

235.2

2968

9.2

0.57

36%

2562

6.3

291.3

3216

8.8

0.67

39%

3007

7.9

361.6

3477

8.3

0.78

42%

3484

9.6

443.3

3736

7.9

0.91

45%

3974

11.6

534.0

3981

7.4

1.03

48%

4465

13.7

631.4

4210

7.1

1.16

51%

4950

15.9

733.8

4424

6.7

1.29

54%

5429

18.3

840.5

4624

6.5

1.41

57%

5902

20.7

951.5

4813

6.2

1.54

60%

6374

23.2

1067.8

4995

6.0

1.66

63%

6853

25.9

1191.0

5174

5.8

1.79

66%

7345

28.8

1323.3

5352

5.6

1.92

69%

7858

31.9

1467.4

5533

5.4

2.05

72%

8398

35.3

1626.1

5719

5.2

2.20

75%

8969

39.2

1802.2

5909

5.0

2.35

78%

9573

43.4

1997.8

6104

4.8

2.51

81%

10208

48.1

2214.4

6301

4.6

2.68

84%

10866

53.3

2451.9

6495

4.4

2.86

87%

11535

58.9

2707.5

6681

4.3

3.05

90%

12197

64.7

2975.3

6851

4.1

3.23

100%

13879

81.2

3733.4

7220

3.7

3.68
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.



Details

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Dimensioned drawing of Hobbywing XRotor V6215 210KV VTOL motor showing Ø68.7 body and 4-M3/4-M4 mount patterns

The V6215 motor’s dimensional and mounting-hole layout (including 4-M3 and 4-M4 patterns) helps confirm fitment before installation.

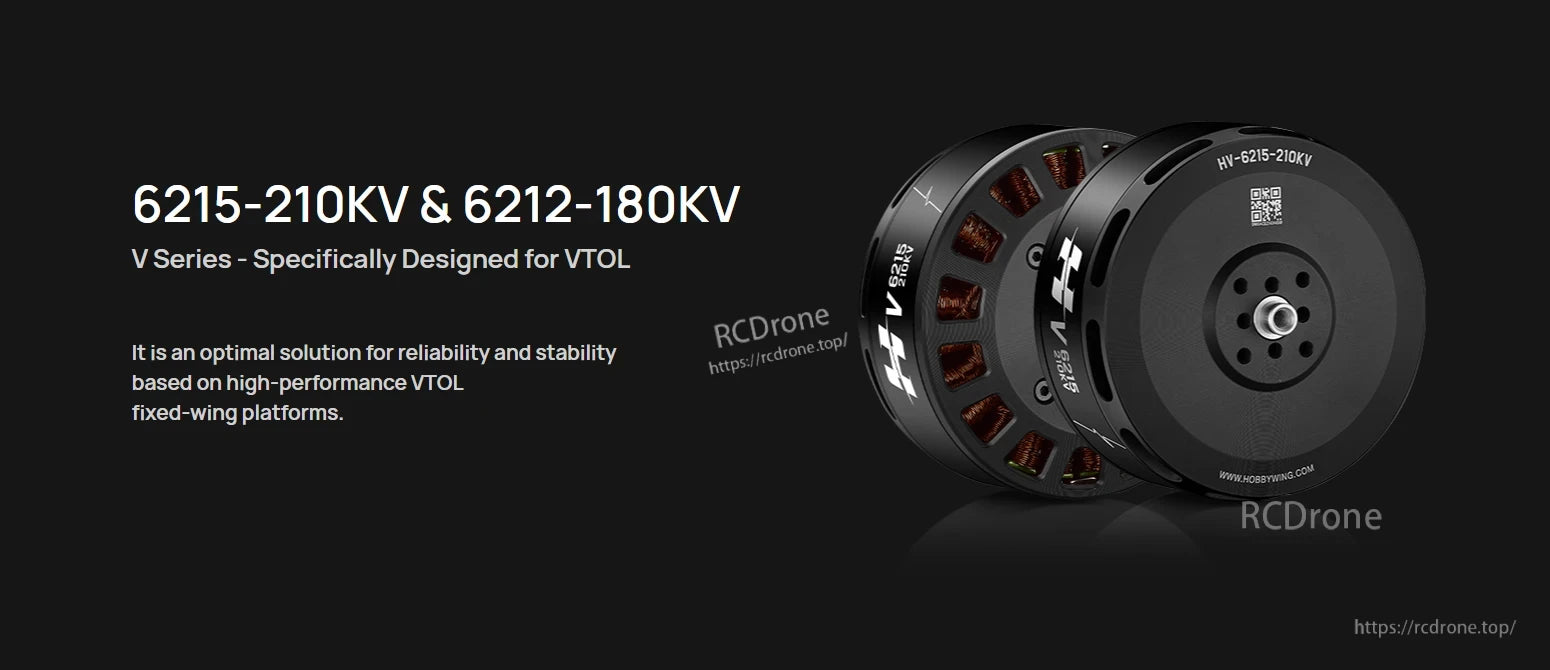

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V Series HV-6215-210KV brushless VTOL motor with vented housing and front mount face

The XRotor V Series HV-6215-210KV motor features a vented can and standard front mounting face for VTOL airframe setups.

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V6215-210KV VTOL motor spec graphic showing 39:1 thrust-to-weight ratio and 13.8kg max thrust at 46V

The XRotor V6215-210KV is designed for VTOL setups with a stated 39:1 thrust-to-weight ratio and up to 13.8kg maximum thrust at 46V.

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Graphic reading “Strong Adaptability and Flexible Choices,” noting optional intelligent propeller control and standardized installation.

Optional intelligent propeller control with compatible Hobbywing IPC ESCs can set propeller stop position, and the standardized installation interface fits common propellers.

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Hobbywing XRotor V6215 motor materials and testing graphic mentioning 0.2mm silicon steel, salt spray and aging tests

The XRotor V6215 motor is built with selected materials and rigorous testing, including 0.2mm silicon steel sheets, salt-spray verification, and aging tests.

Hobbywing XRotor V6215 210KV 12S VTOL Motor, Recommended setup specs for Hobbywing XRotor V6215 210KV motor: 12S LiPo, 22-inch props, XRotor Pro ESC

The XRotor V6215 210KV motor is recommended with a 12S LiPo, MV22×7.4 or ML22×7.8 propellers, and an XRotor Pro H60A-14S or H80A-14S-IPC ESC.
