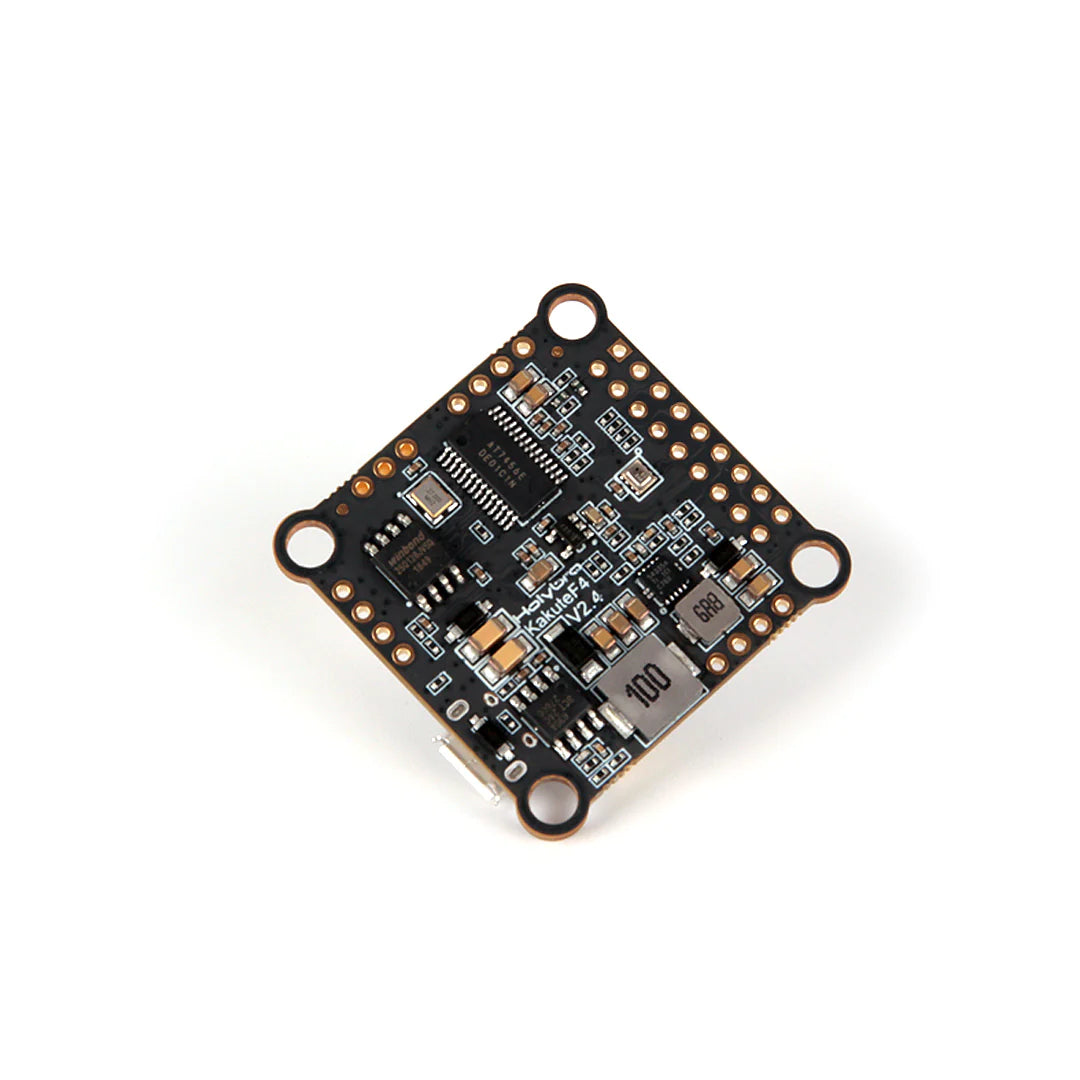

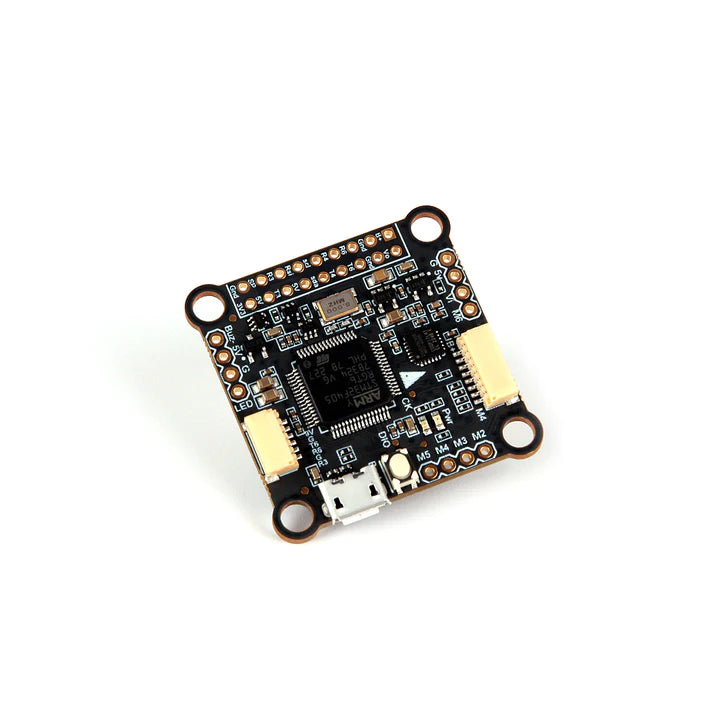

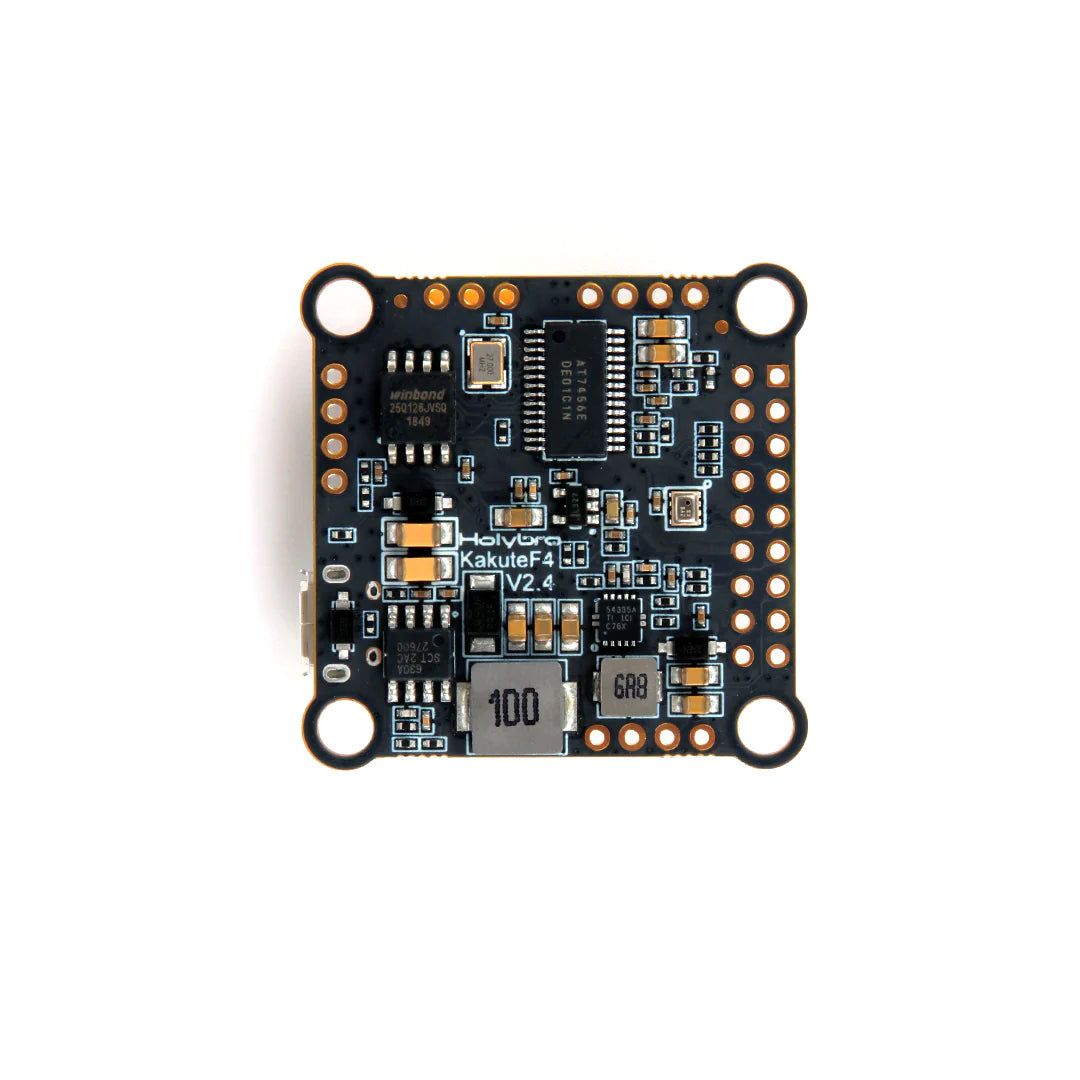

Holybro Kakute F4 V2.4 Flight Controller

Description:

The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.

The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers

Holybro Kakute F4 V2.4 flight controller features Betaflight firmware for KAKUTE-FAVZ 6, compatible with Plug & ESC Port analog camera configurations. It offers easy setup for quadcopter power and camera control. The system includes separate LDO (Low Dropout Oscillator) and noise filtering HSI (High-Speed Interface) IMU (Inertial Measurement Unit), as well as OSD (On-Screen Display) uses. Additionally, the KakuteF4 MCU (Microcontroller Unit) utilizes an independent BEC (Battery Elimination Circuit) with extensive power management capabilities.

Specification:

• MCU - STM32F405
• IMU - MPU6000
• Barometer - BMP280
• OSD - AT7456E
• 5x UARTs (1,3,4,4,6,7)
• 128 Mbit Dataflash chip
• Battery input voltage: 2S-8S

• BEC 9V/3A - Optimized for DJI O3 Air unit
• BEC 5V/2A
• 7x PWM Outputs (6 Motor Output, 1 LED)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
• Mounting - 30 x 30mm, Φ4mm hole with M3 Grommets
• Dimension - 37x37mm

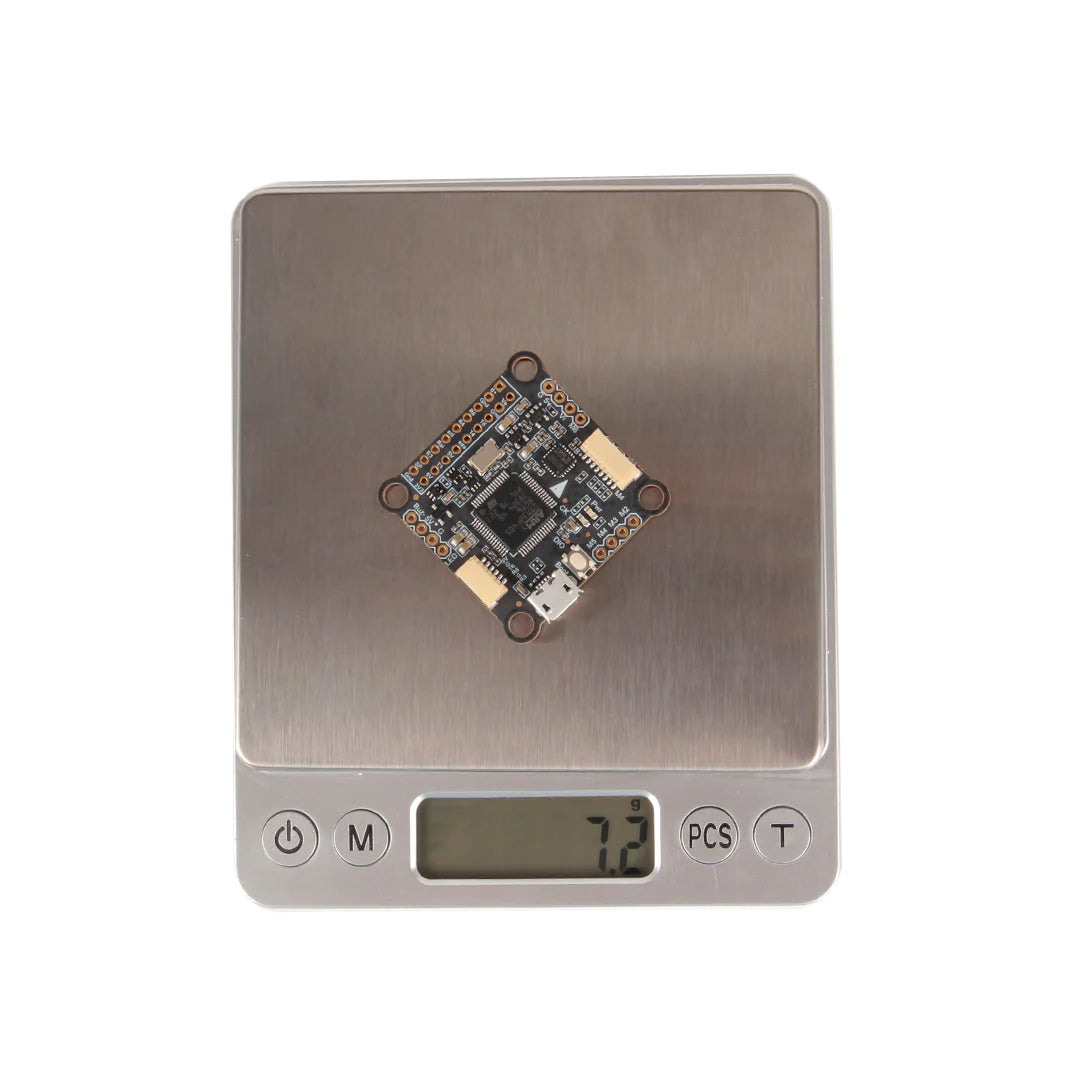

• Weight – 7g
• JST-SH1.0_8pin port (For 4in1 ESCs)
• JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

Manual & Pin Diagram

Package Includes:

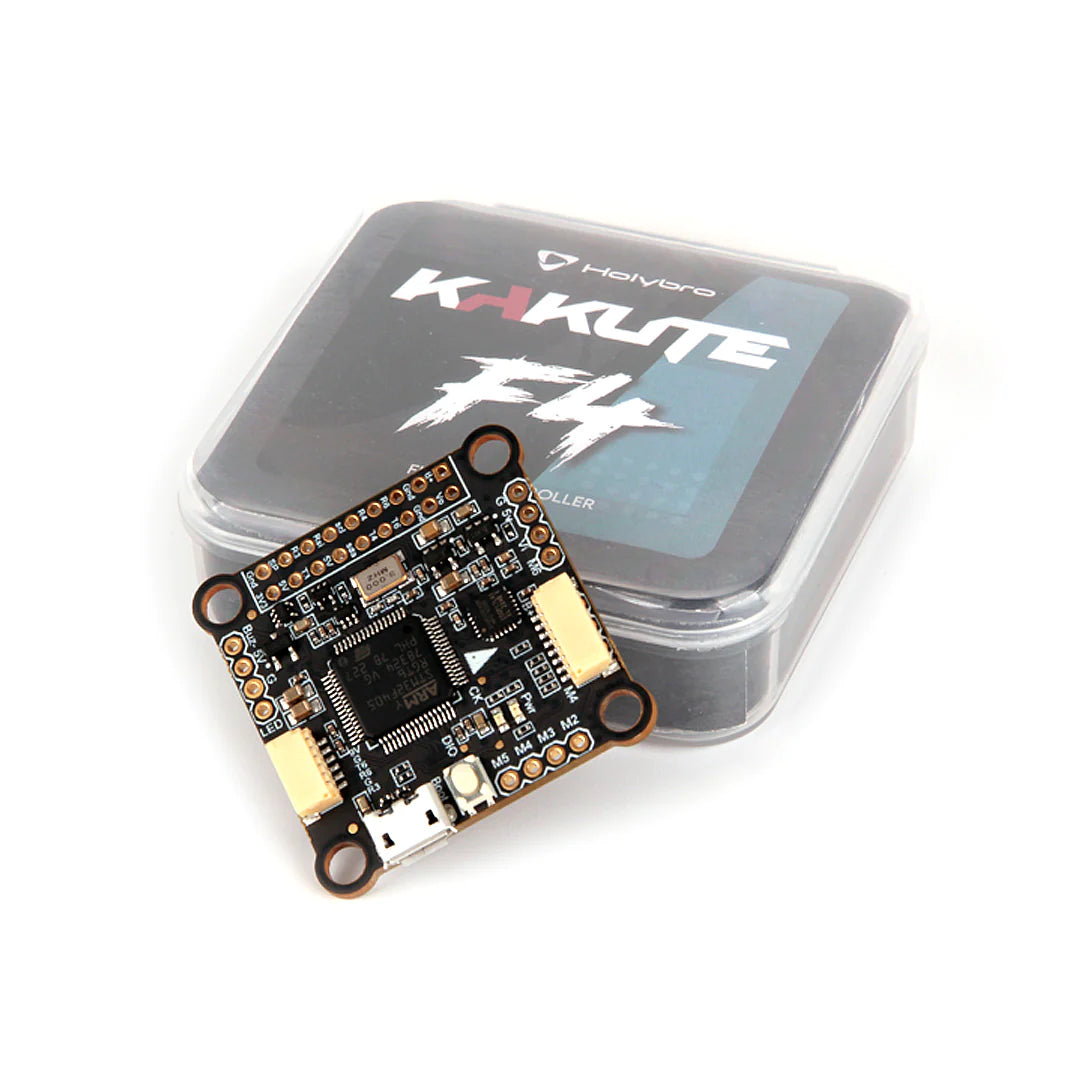

• 1x  Kakute F4 V2

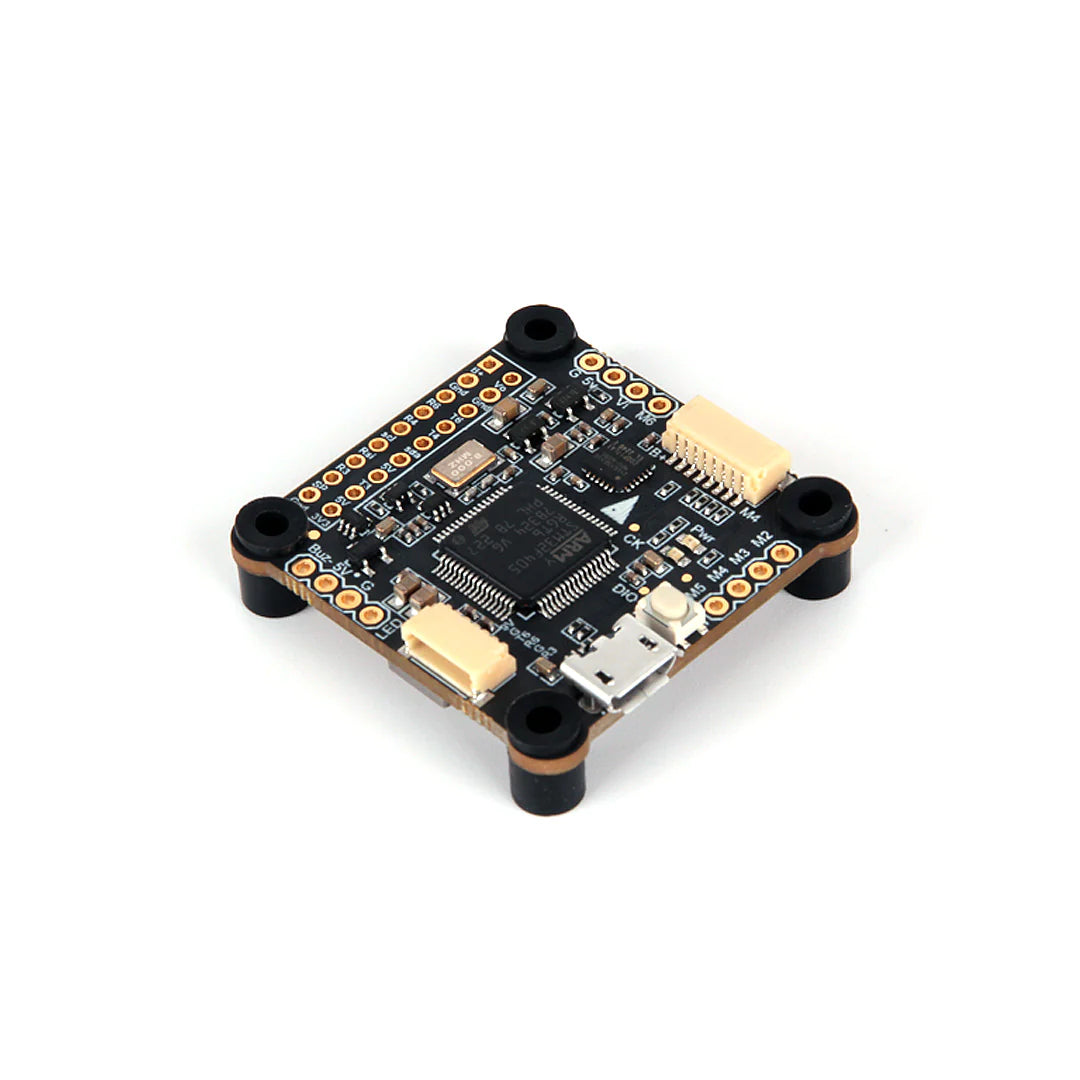

• 4x  Anti-Vibration Silicone Grommet Insert *4
• 1x  JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
• 1x  JST SH 6pin 100mm cable(for Caddx HD Systems)
• 1x  JST SH 8pin 100mm cable(for ESCs)
