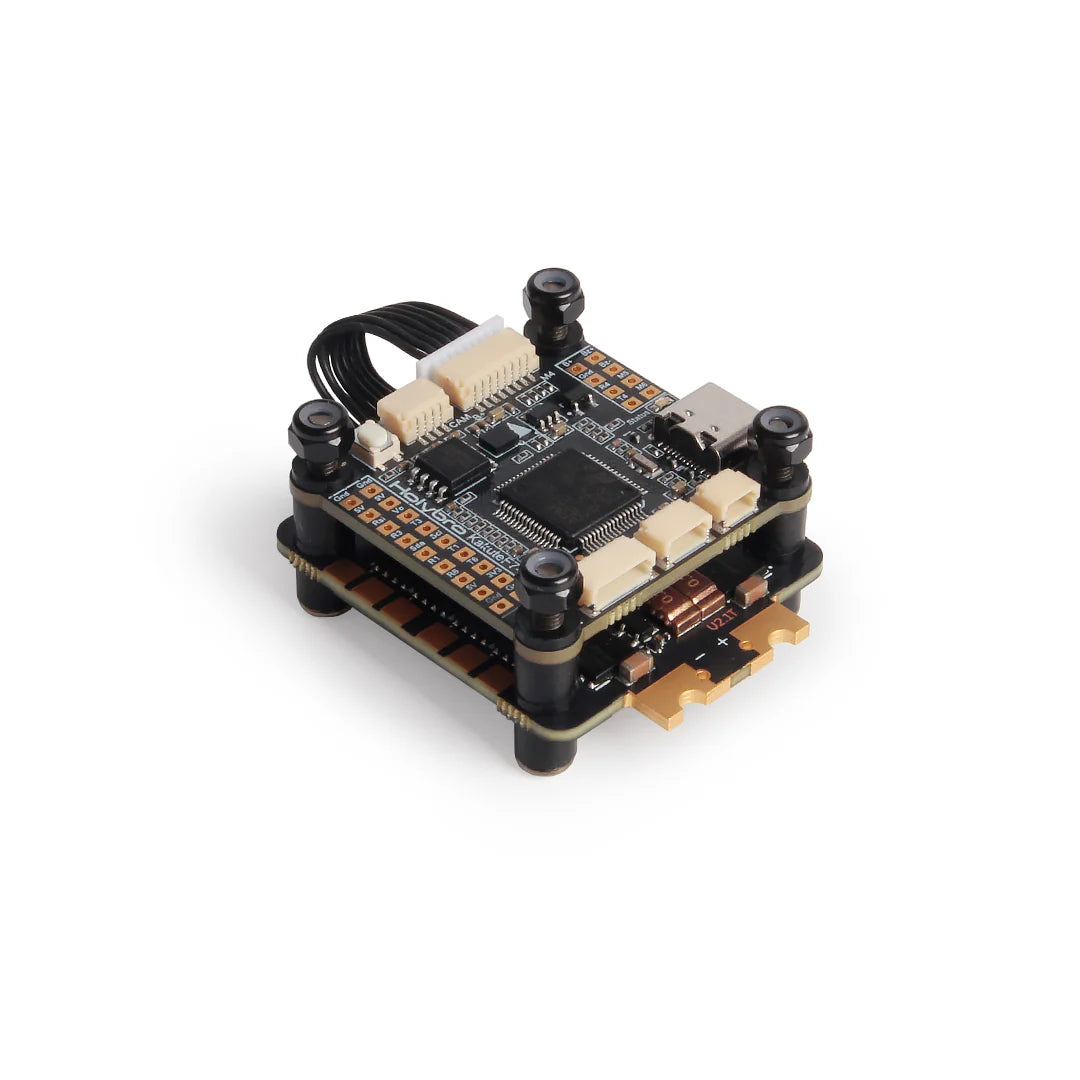

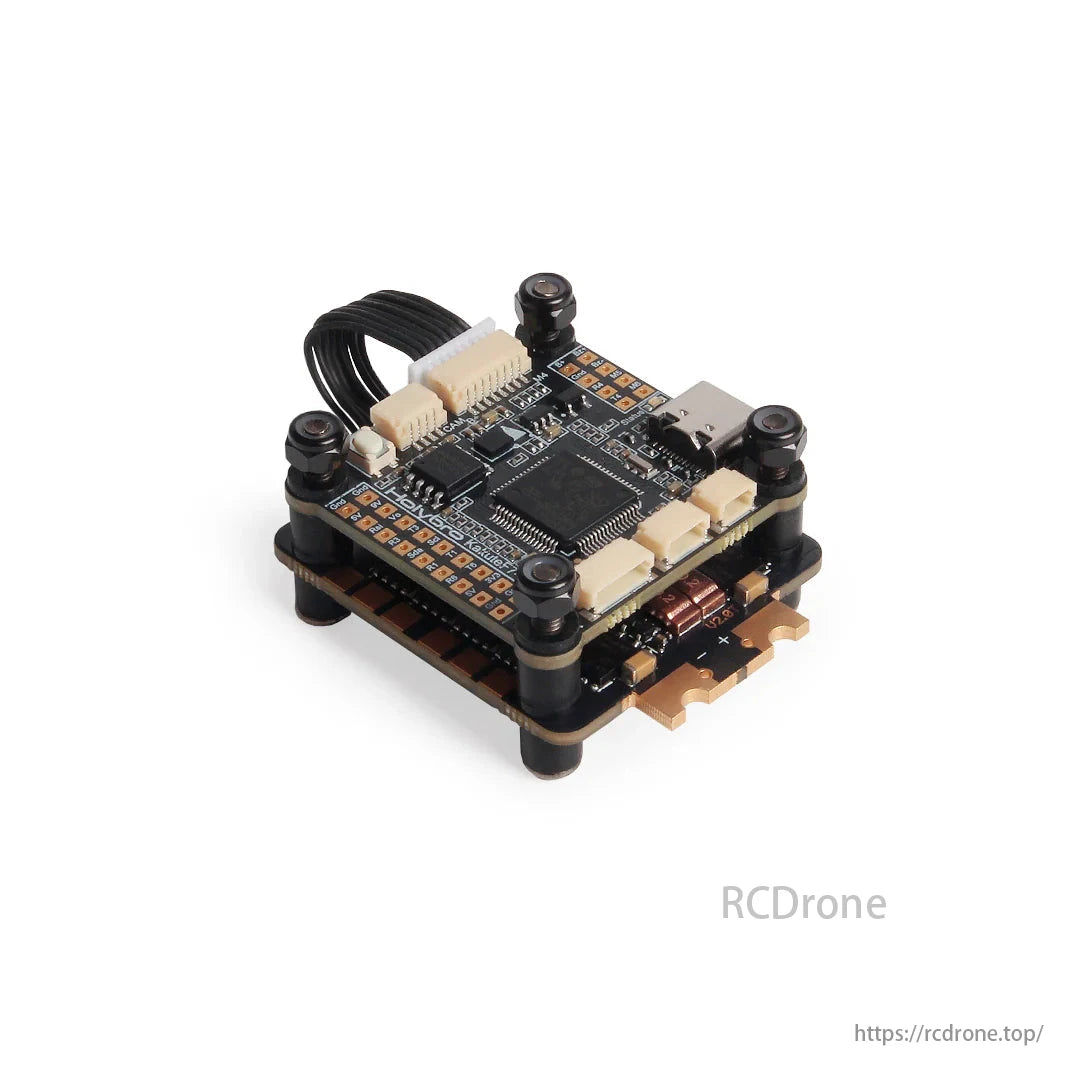

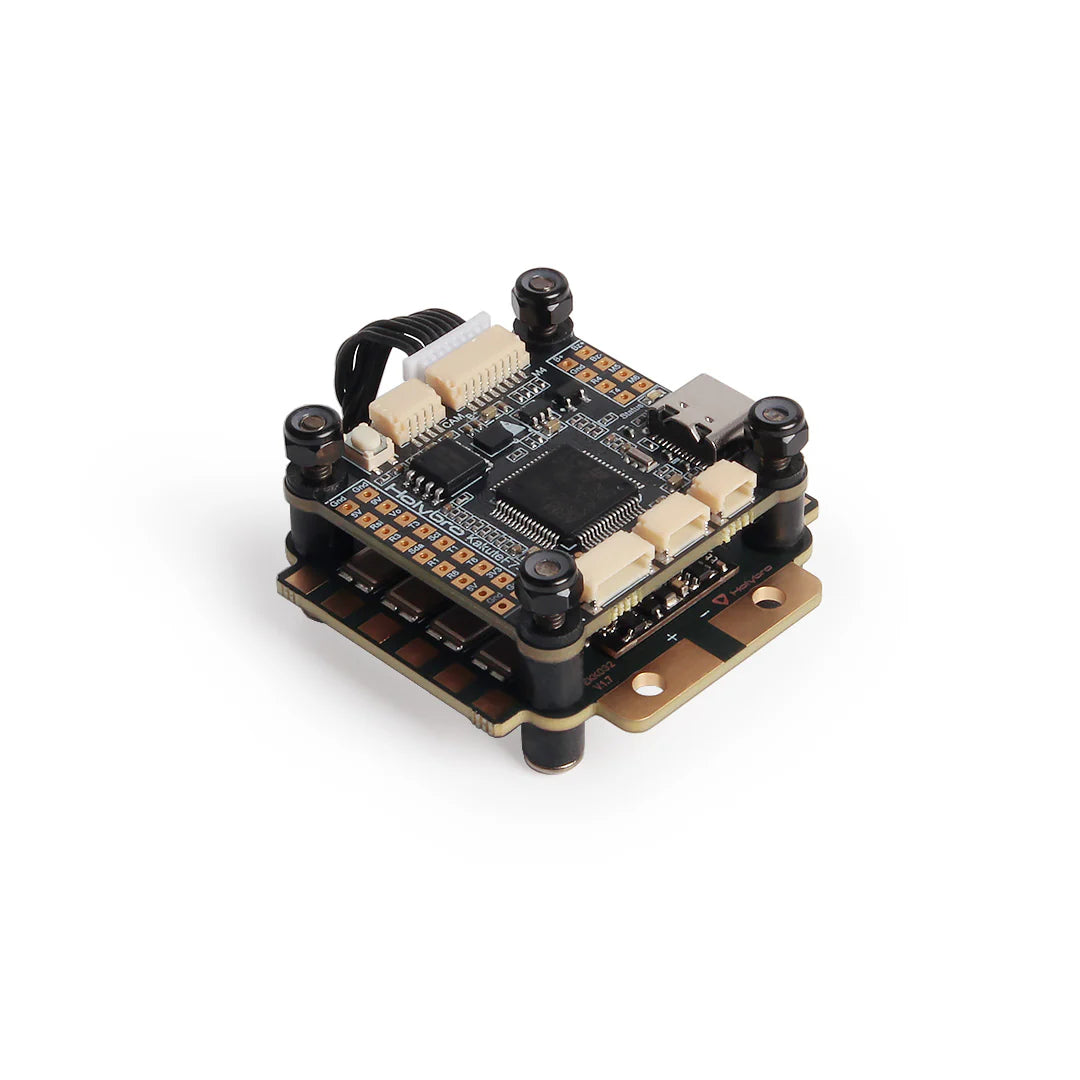

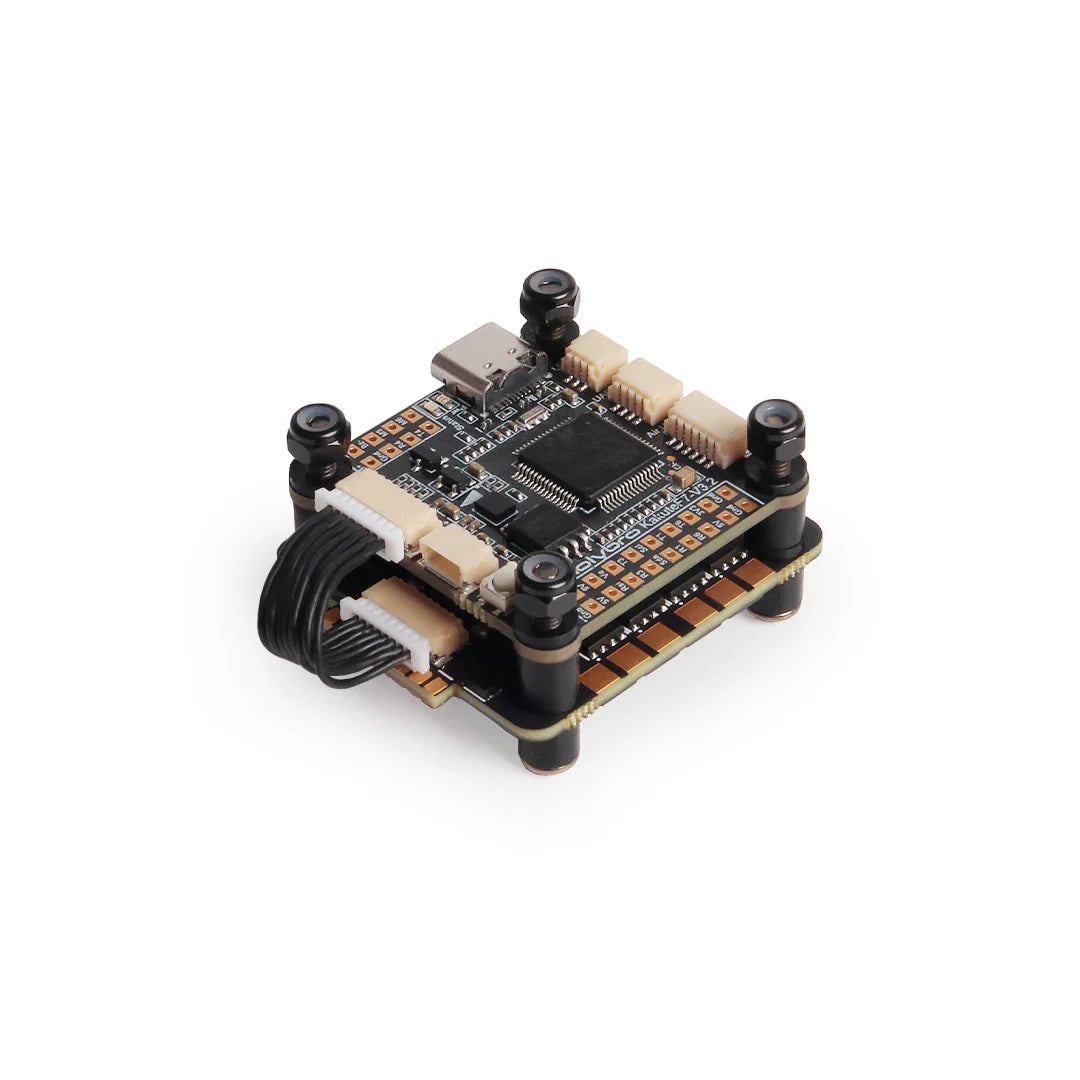

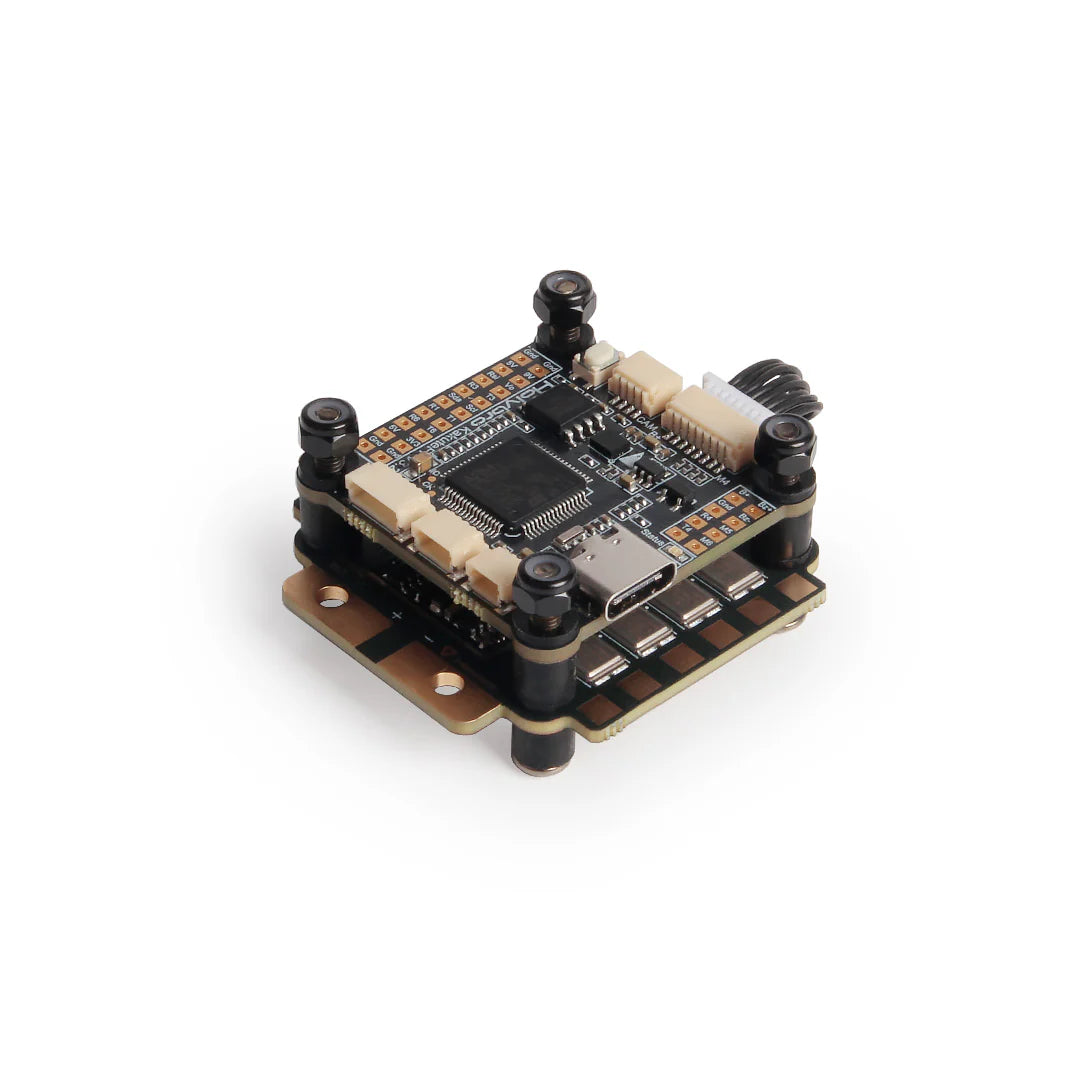

Holybro Kakute F722 Flight Controller Stack with Tekko32 F4 4in1 50A / 60A / 65A ESC – 8S, DJI HD Ready, AM32/BLHeli32

Overview

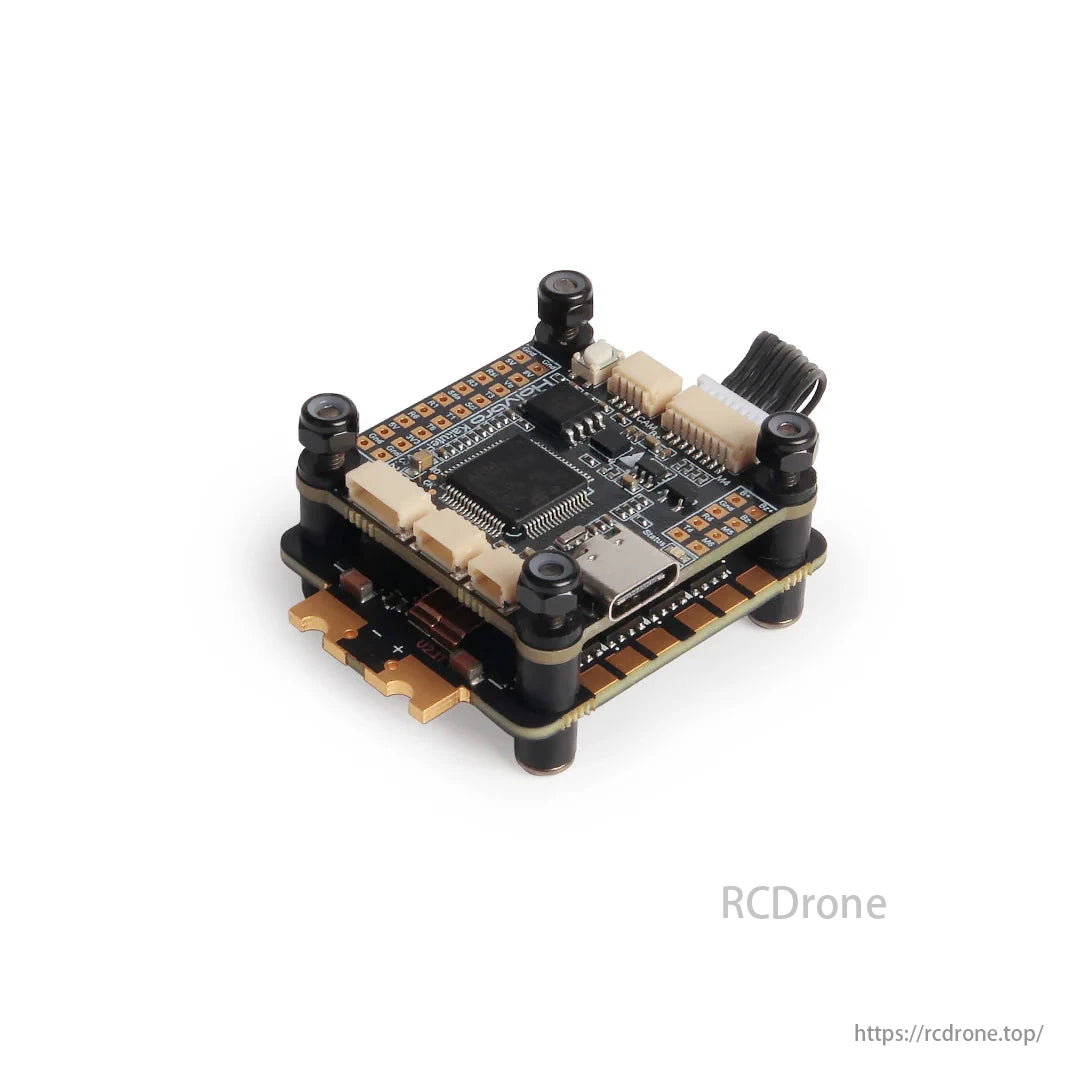

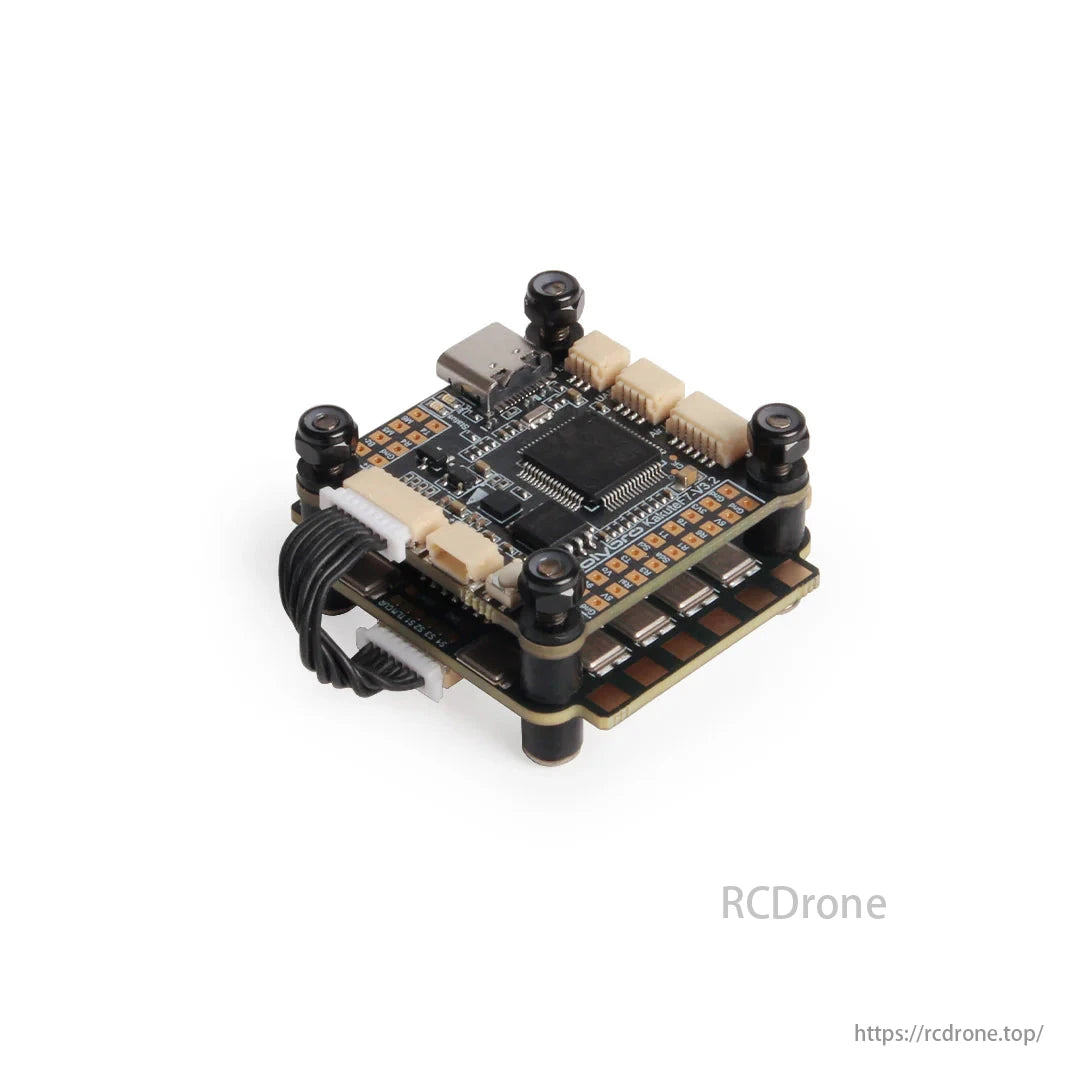

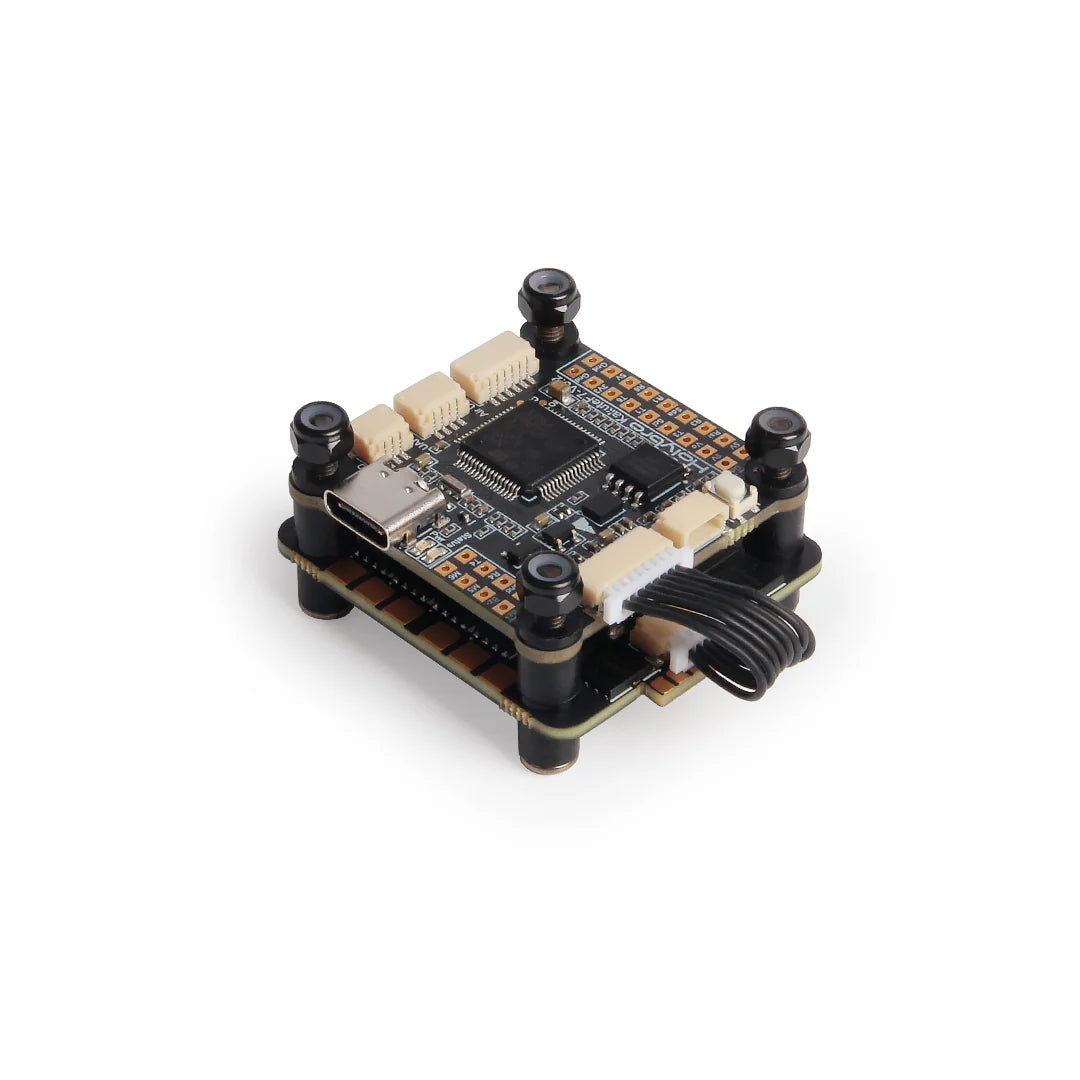

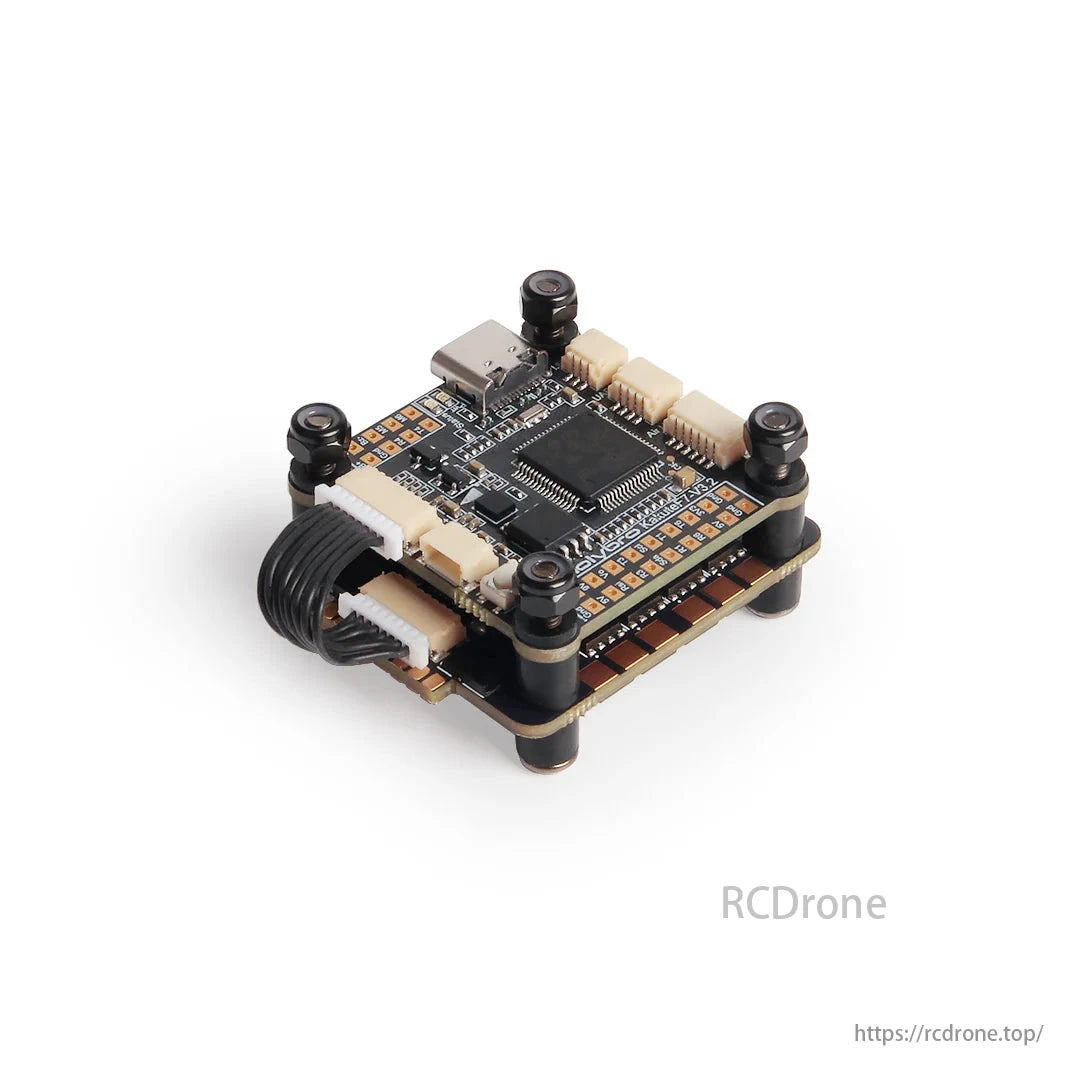

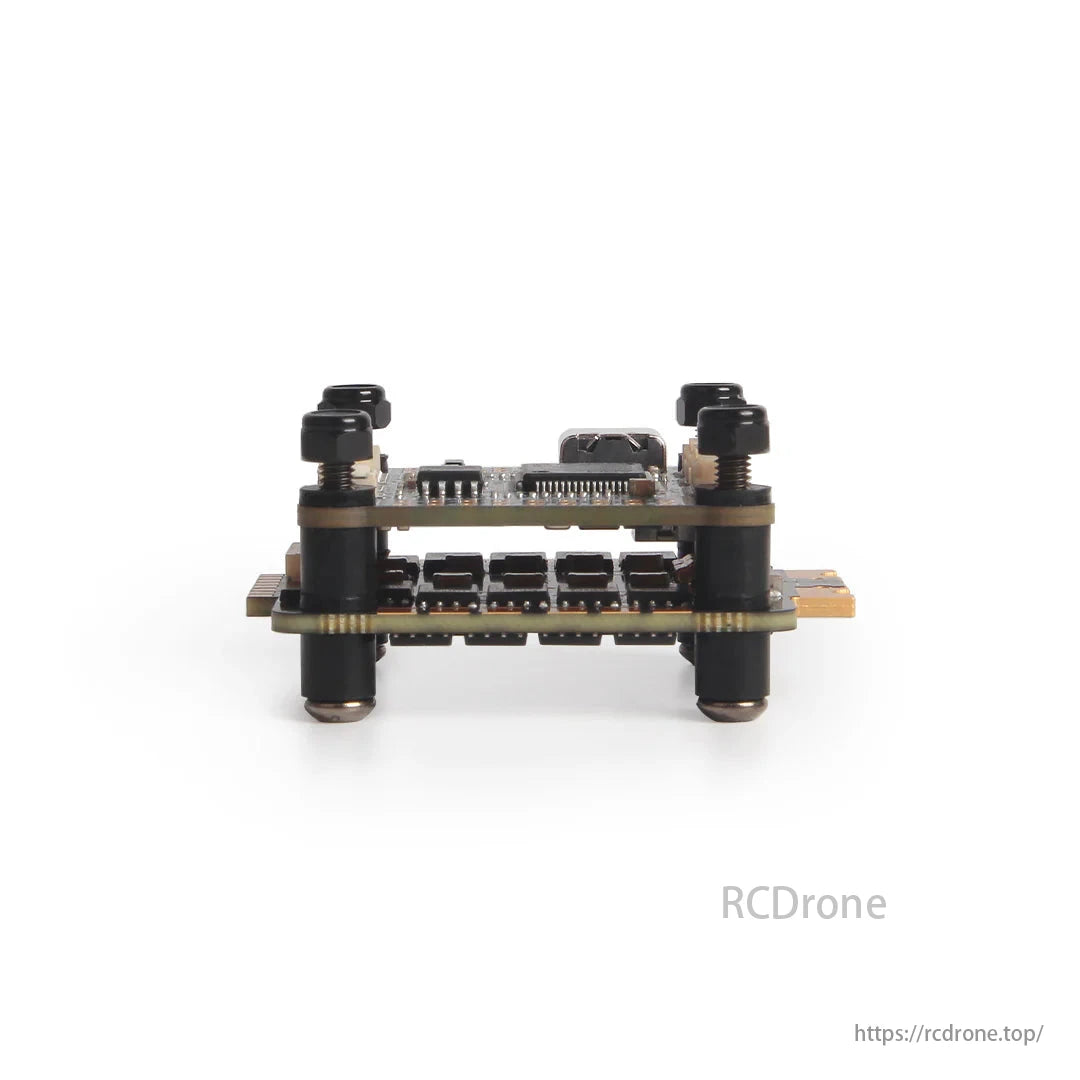

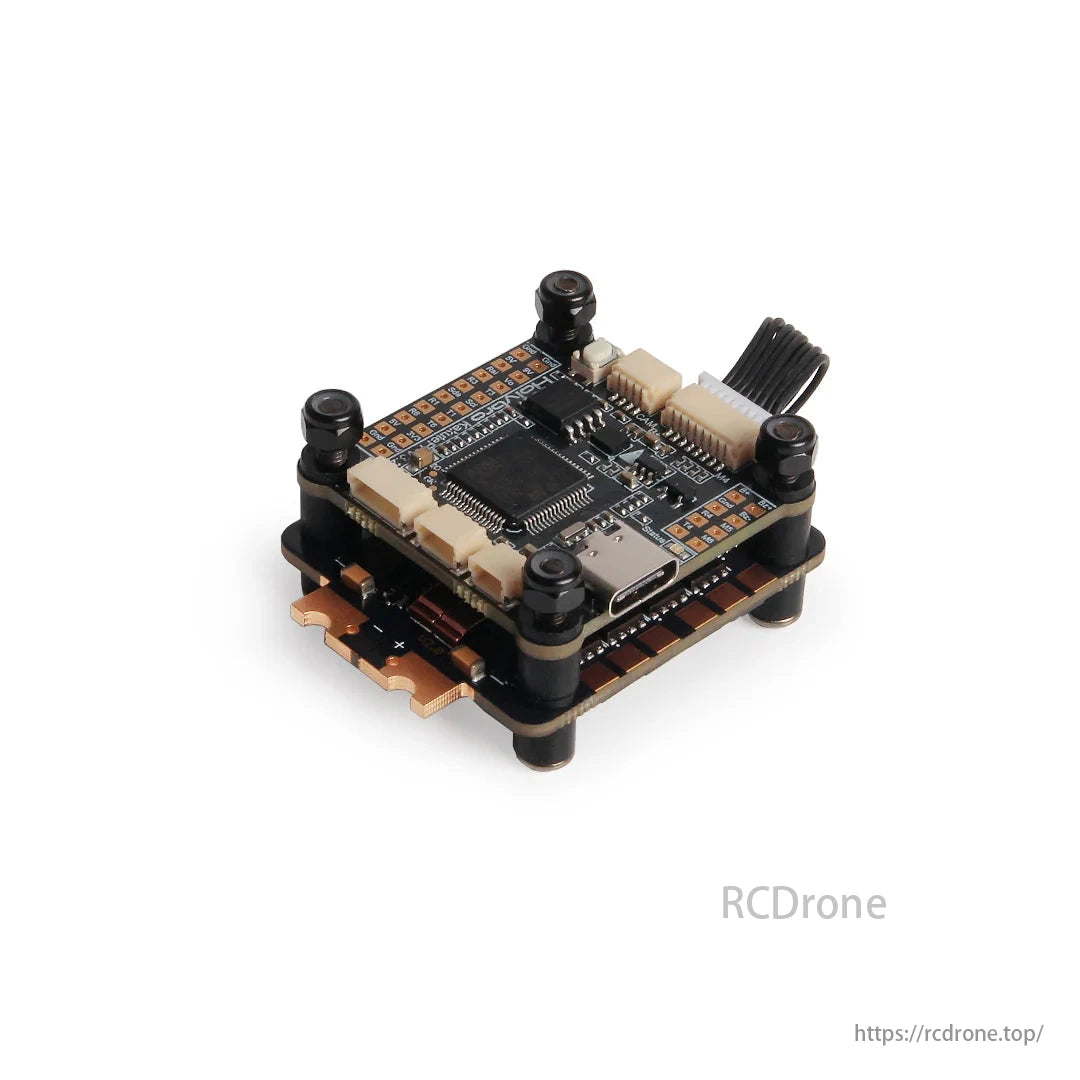

The Holybro Kakute F722 Stack is a versatile, high-performance flight controller and 4in1 ESC combo, designed for FPV pilots who demand smooth control, high current handling, and compatibility with both digital and analog video systems. This stack features the reliable Kakute F722 Flight Controller paired with one of three powerful ESC options:

• Tekko32 F4 50A ESC (AM32 Firmware)

• Tekko32 F4 60A ESC (BLHeli32 Firmware)

• Tekko32 F4 Metal 65A ESC (AM32 Firmware with metal-cased MOSFETs)

With support for up to 8S input, native DJI/Caddx digital VTX integration, high-speed F4 MCUs, and PWM output up to 96kHz, this stack is ideal for freestyle, racing, and long-range quadcopters alike.

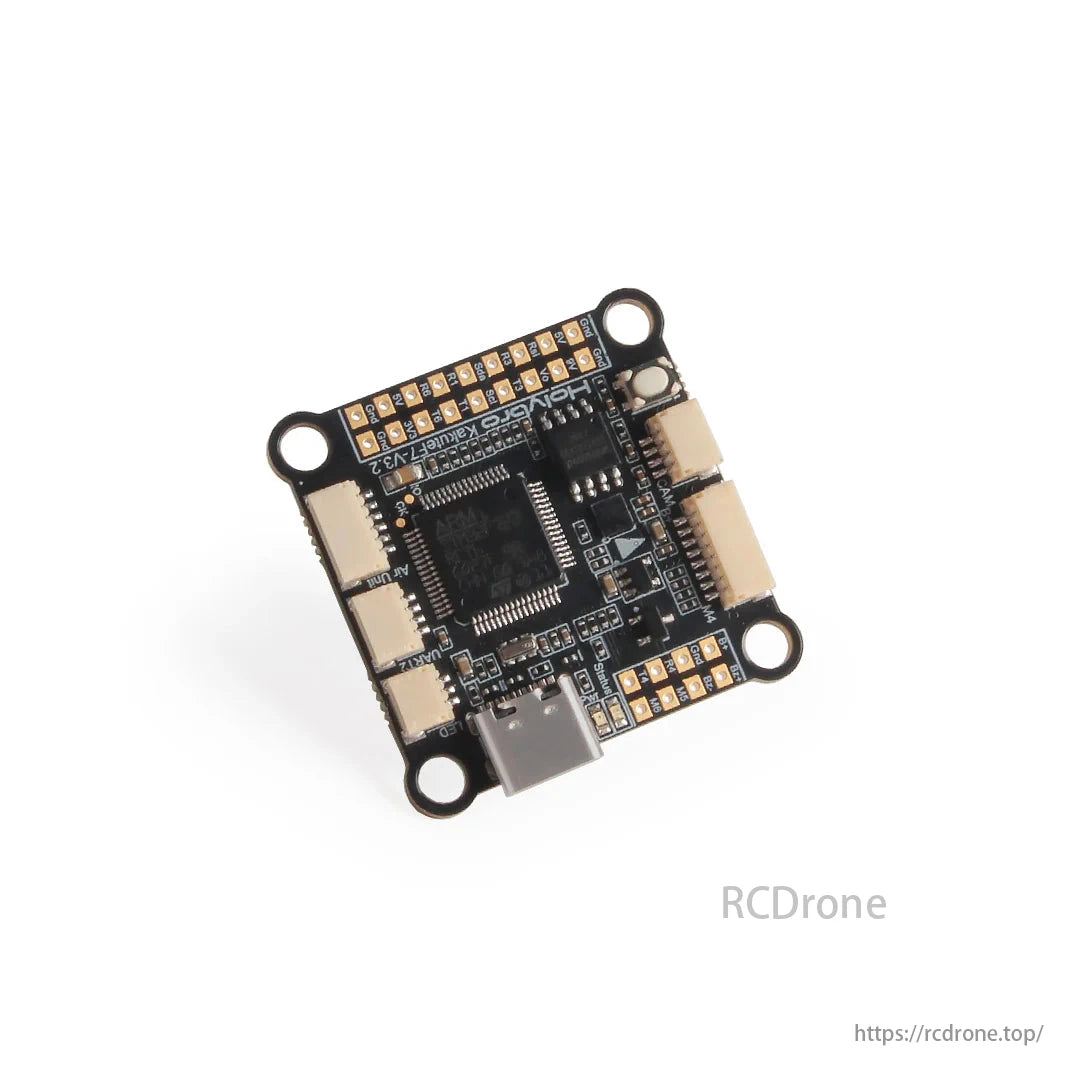

Kakute F722 Flight Controller

ESC Options & Specifications

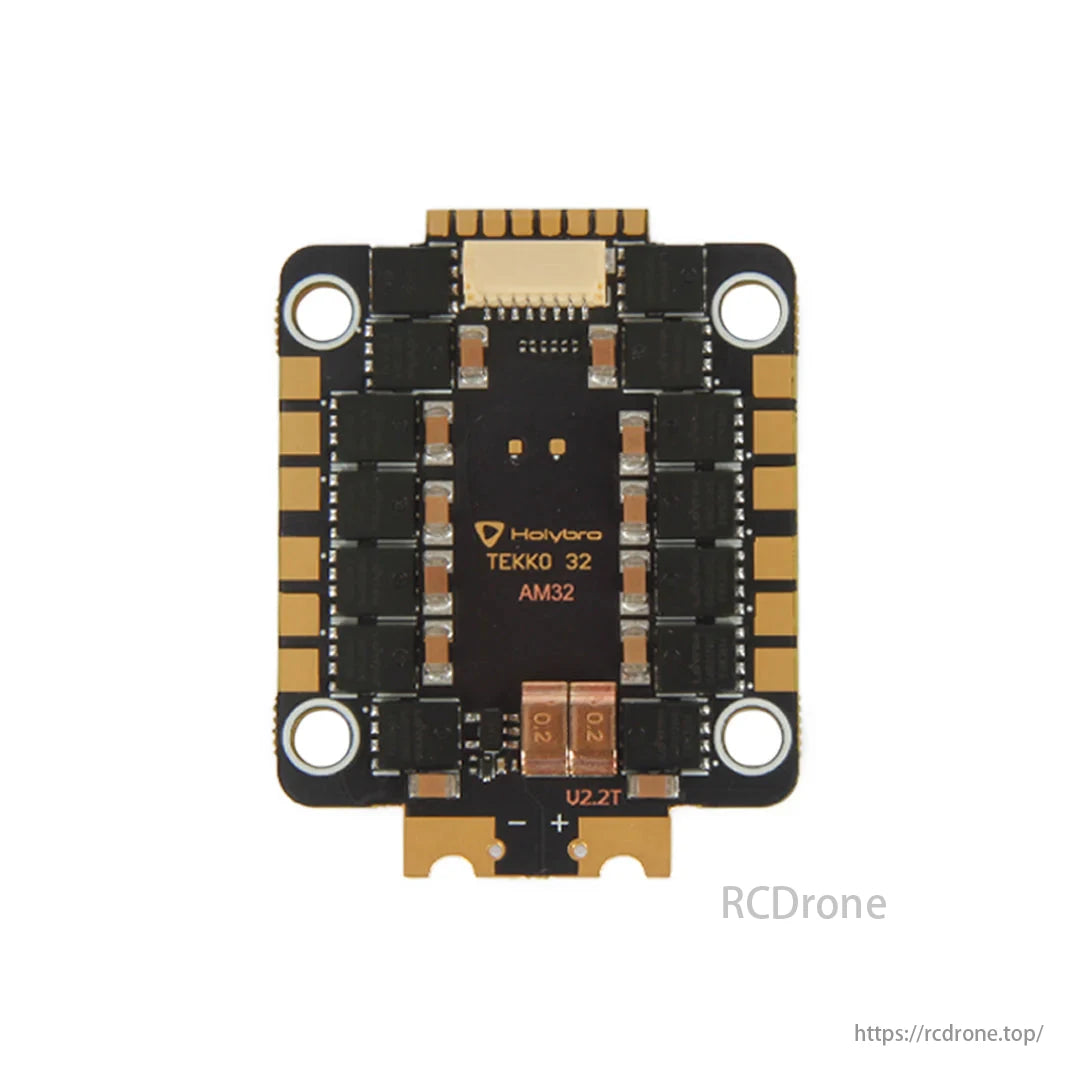

Option 1: Tekko32 F4 50A 4in1 ESC (AM32 Firmware)

• F4 MCU @ 150MHz

• AM32 open-source firmware

• Input Voltage: 4S–6S LiPo

• PWM Output: 16kHz to 96kHz

• Separate drive/control circuits reduce EMI and improve reliability

• 30x30mm mounting pattern

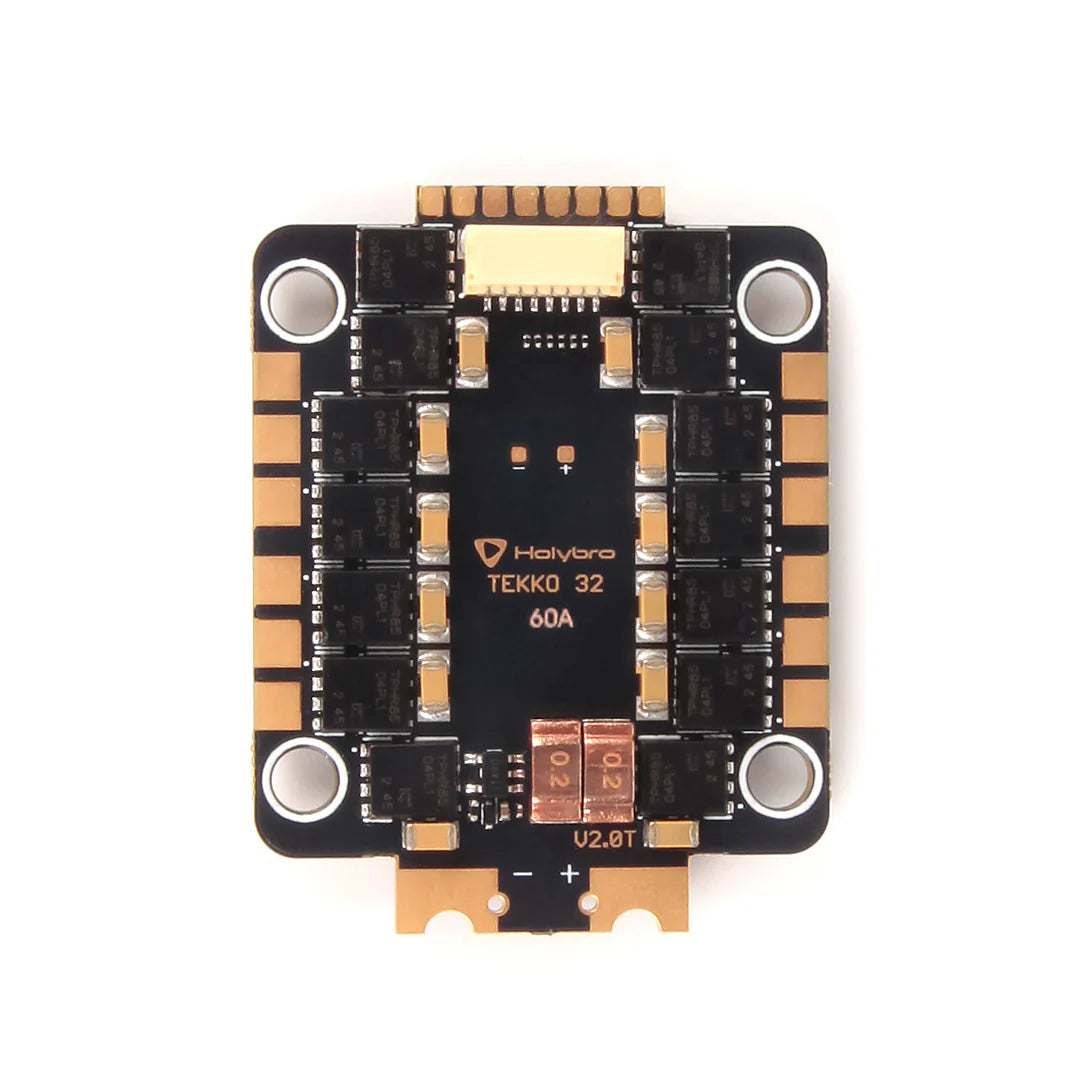

Option 2: Tekko32 F4 60A 4in1 ESC (BLHeli32 Firmware)

• F4 MCU @ 150MHz

• BLHeli_32 firmware

• Input Voltage: 4S–6S LiPo

• PWM Output: 16kHz to 96kHz

• Enhanced noise filtering and efficient power handling

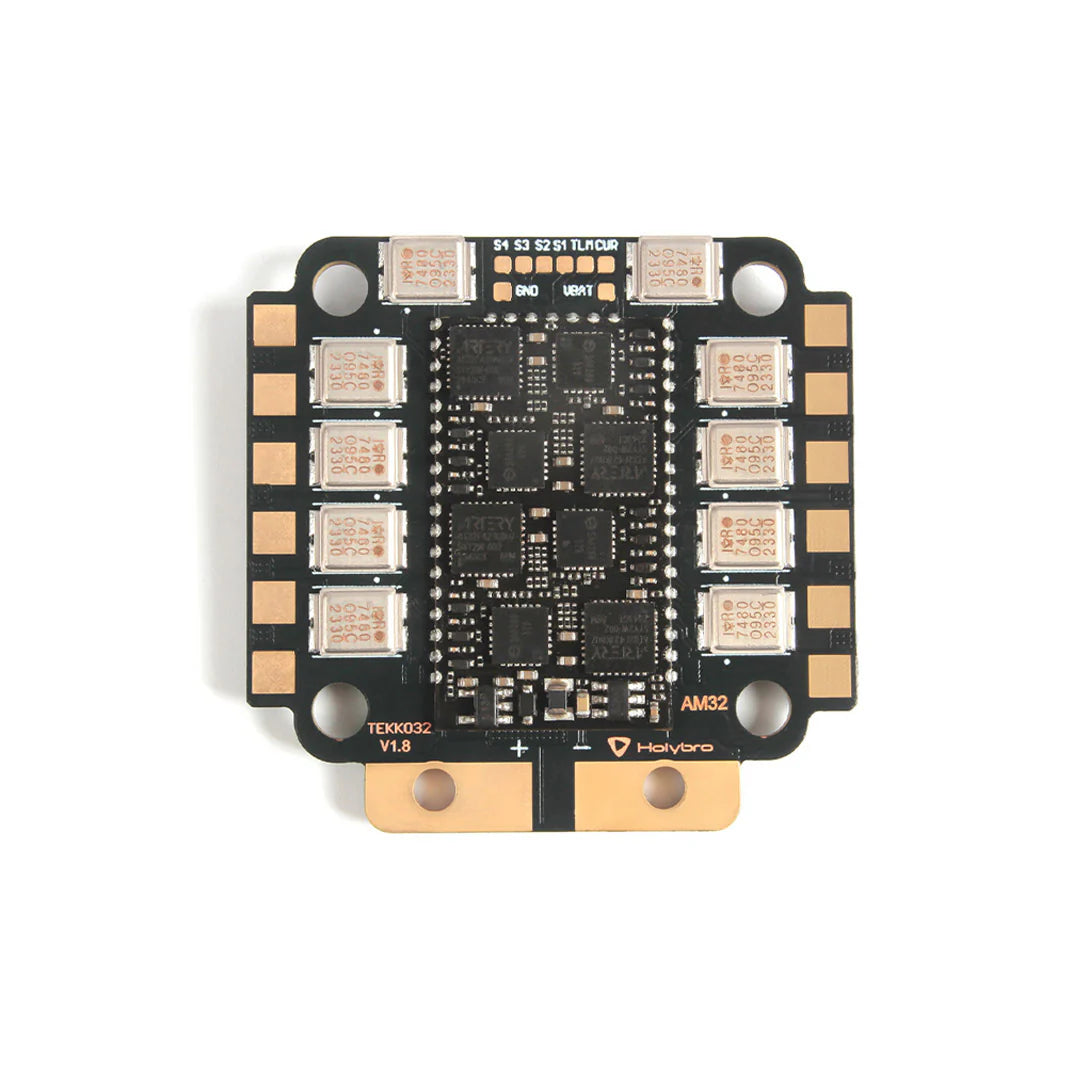

Option 3: Tekko32 F4 Metal 65A 4in1 ESC (AM32 Firmware)

• F4 MCU @ 150MHz

• AM32 firmware

• Metal-cased MOSFETs for superior heat dissipation

• 2068μF onboard capacitance for noise suppression

• 3oz copper PCB for improved current flow

• PWM Output: 16kHz to 96kHz

• Input Voltage: 4S–6S LiPo

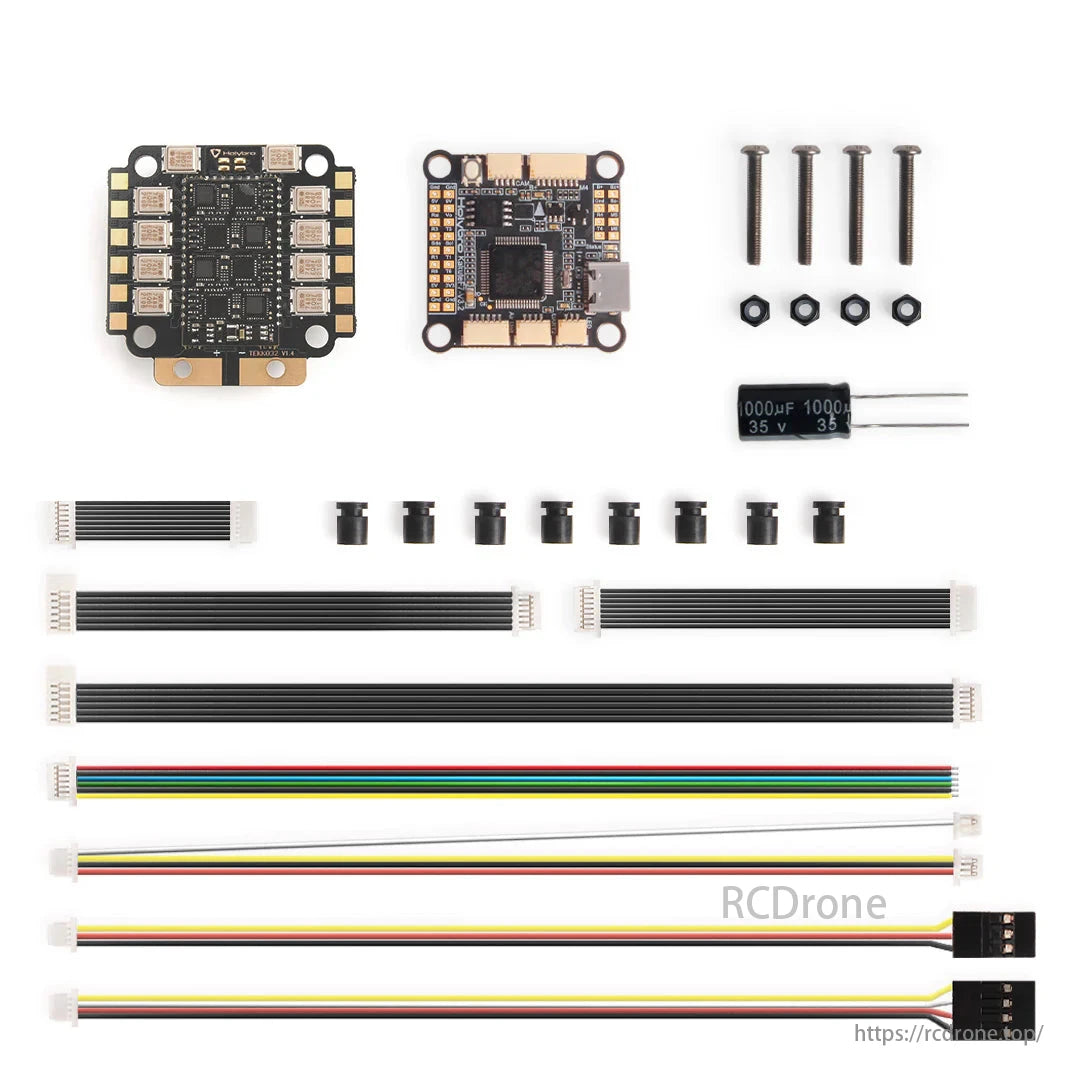

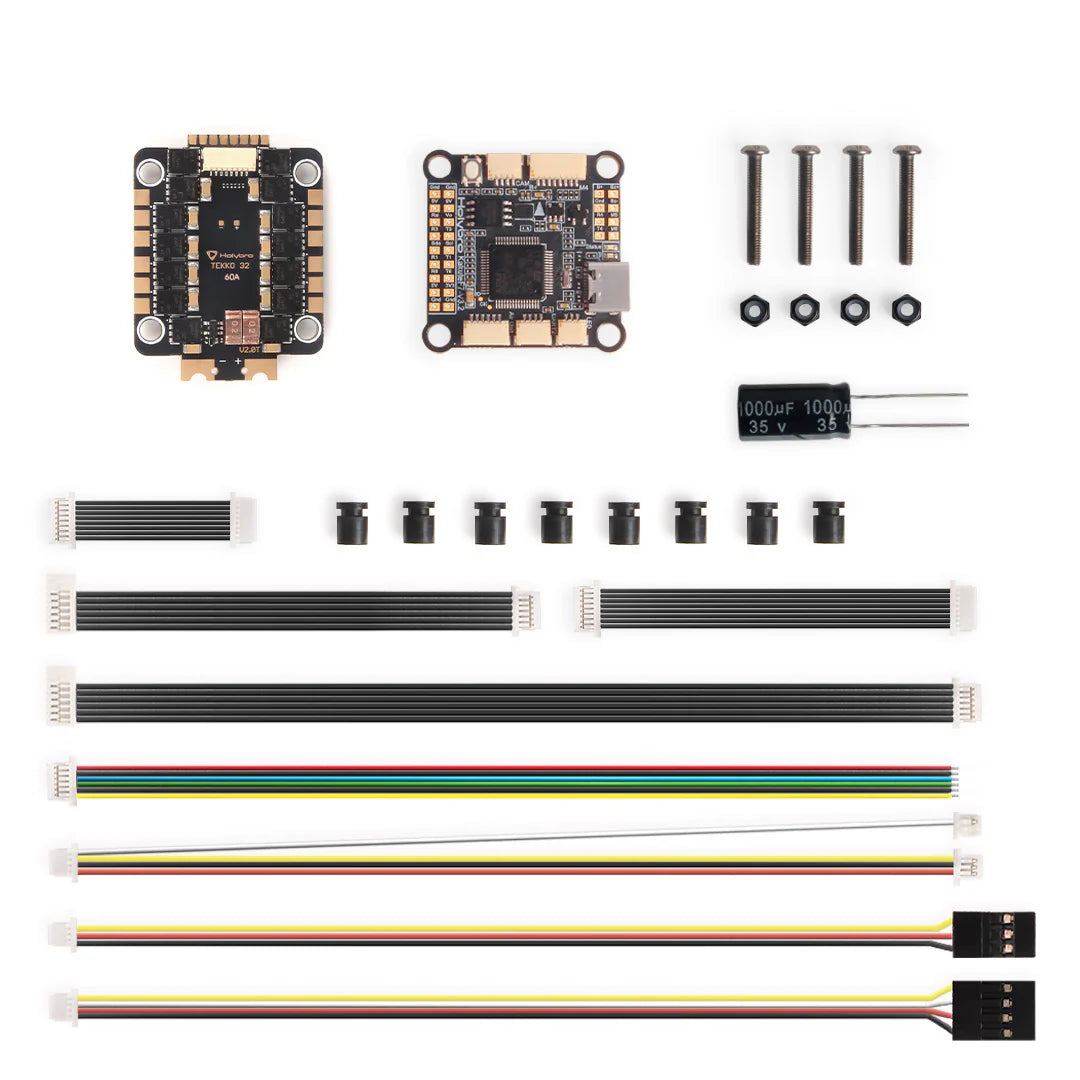

Package Includes

• 1x Kakute F722 Flight Controller

• 1x Tekko32 F4 4in1 ESC (Choose 50A / 60A / 65A Metal Version)

• 1x Electrolytic Capacitor: 1000μF, 35V

• 1x 8pin to 8pin Cable (65mm)

• 1x 8pin to 8pin Cable (25mm)

• 1x JST-SH 6pin to GHR 8pin Cable (80mm & 150mm) for DJI/Caddx HD System

• 1x JST-SH 6pin 100mm Cable for Caddx VTX

• Mounting hardware

Why Choose This Stack?

• Ready for both analog and digital FPV systems

• Robust current handling up to 65A with advanced MOSFET cooling

• Flexible firmware options: AM32 (open source) or BLHeli_32

• Built-in OSD, Blackbox, and high-accuracy gyro for reliable flight performance

• Designed and tested by Holybro for professional FPV use
