Holybro Kakute H7 v1.5 Flight Controller with Bluetooth & Dual 4in1 ESC Ports – Supports Betaflight, ArduPilot, INAV

Overview

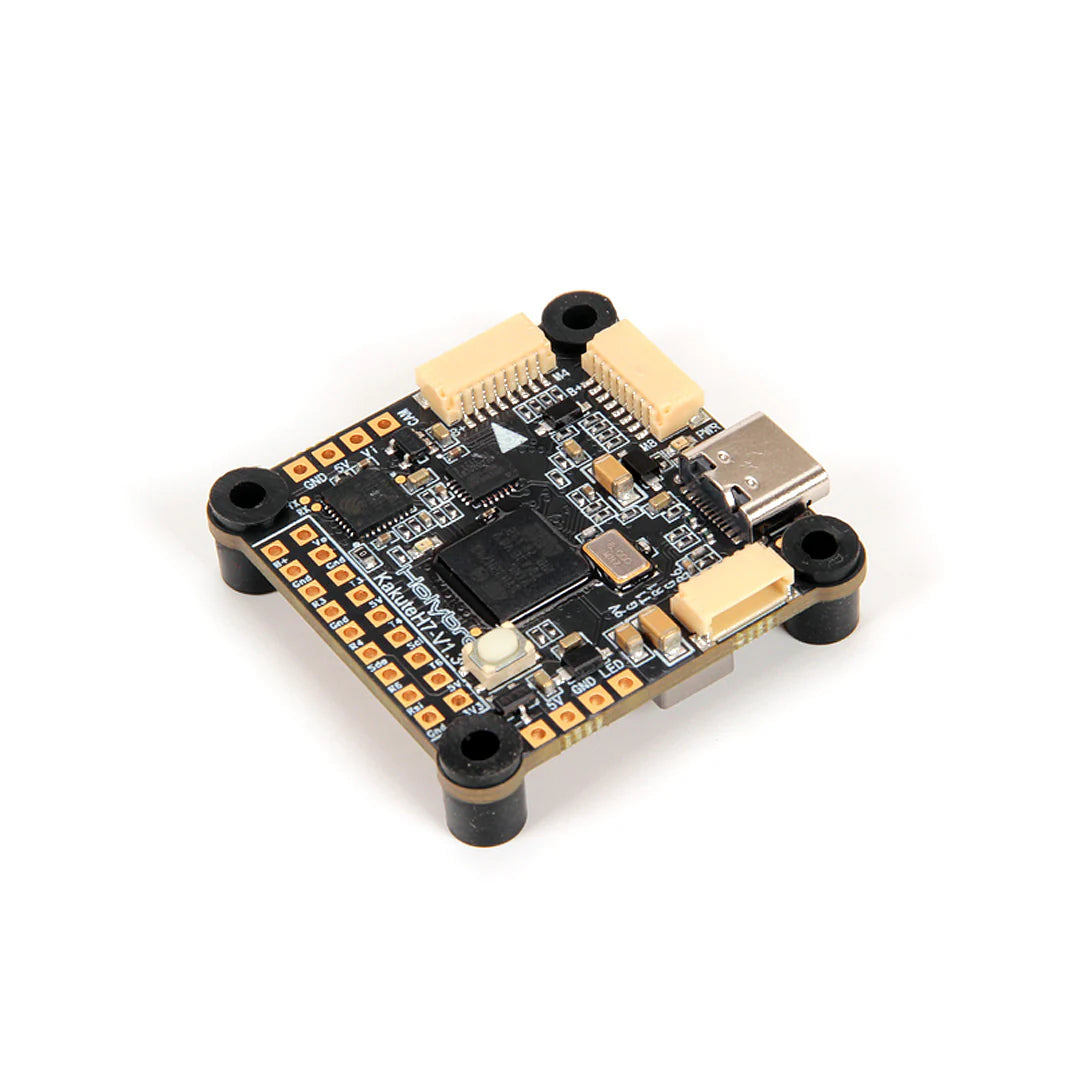

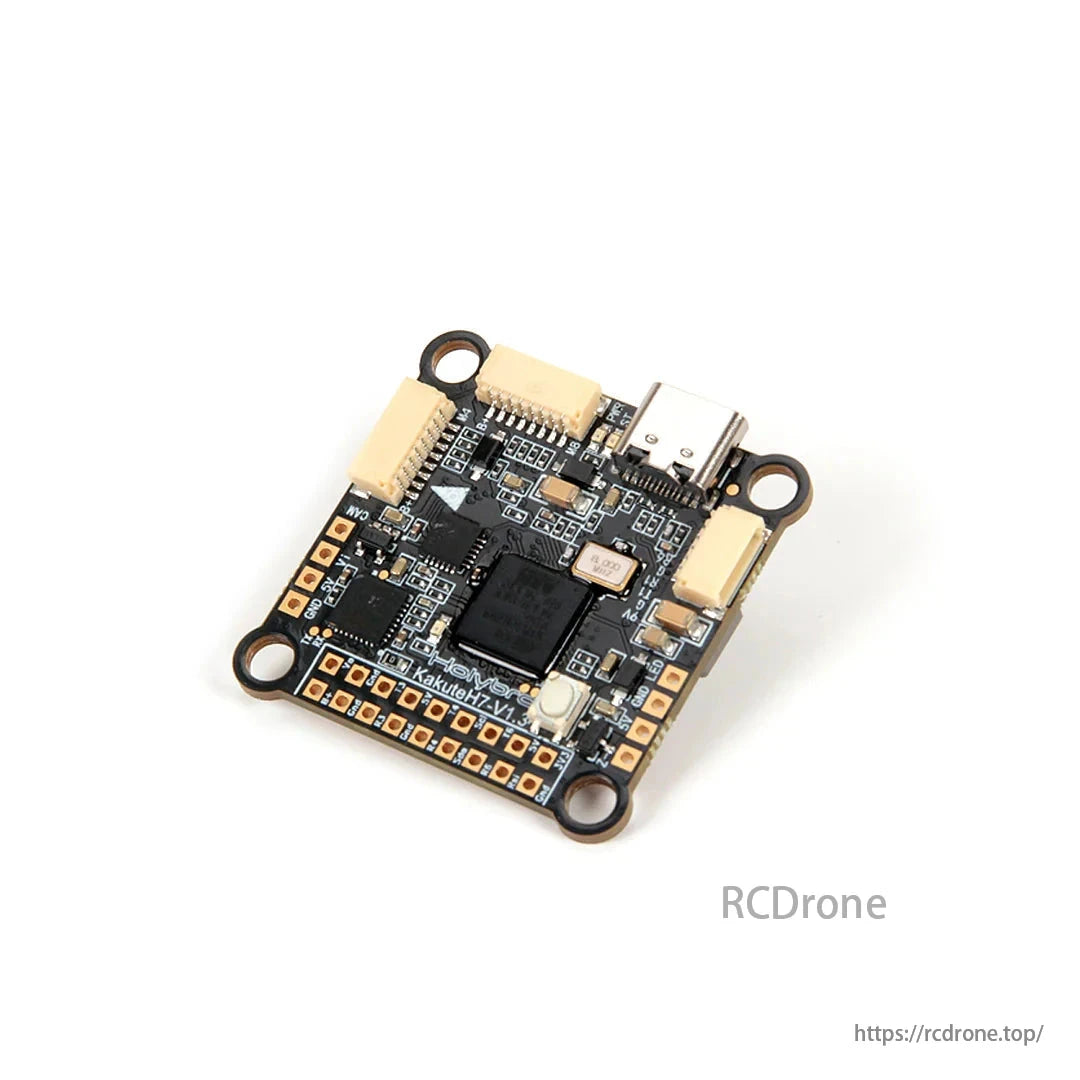

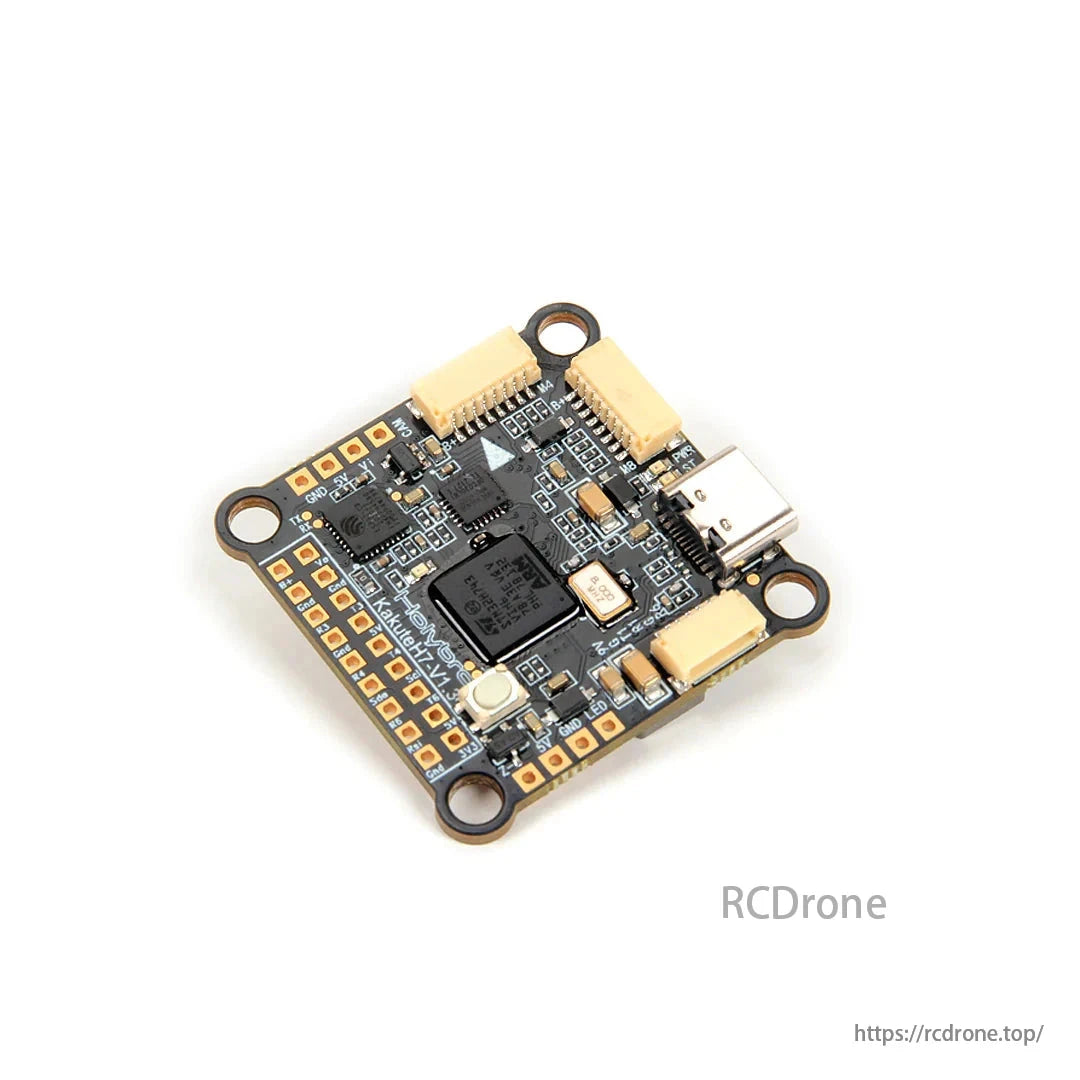

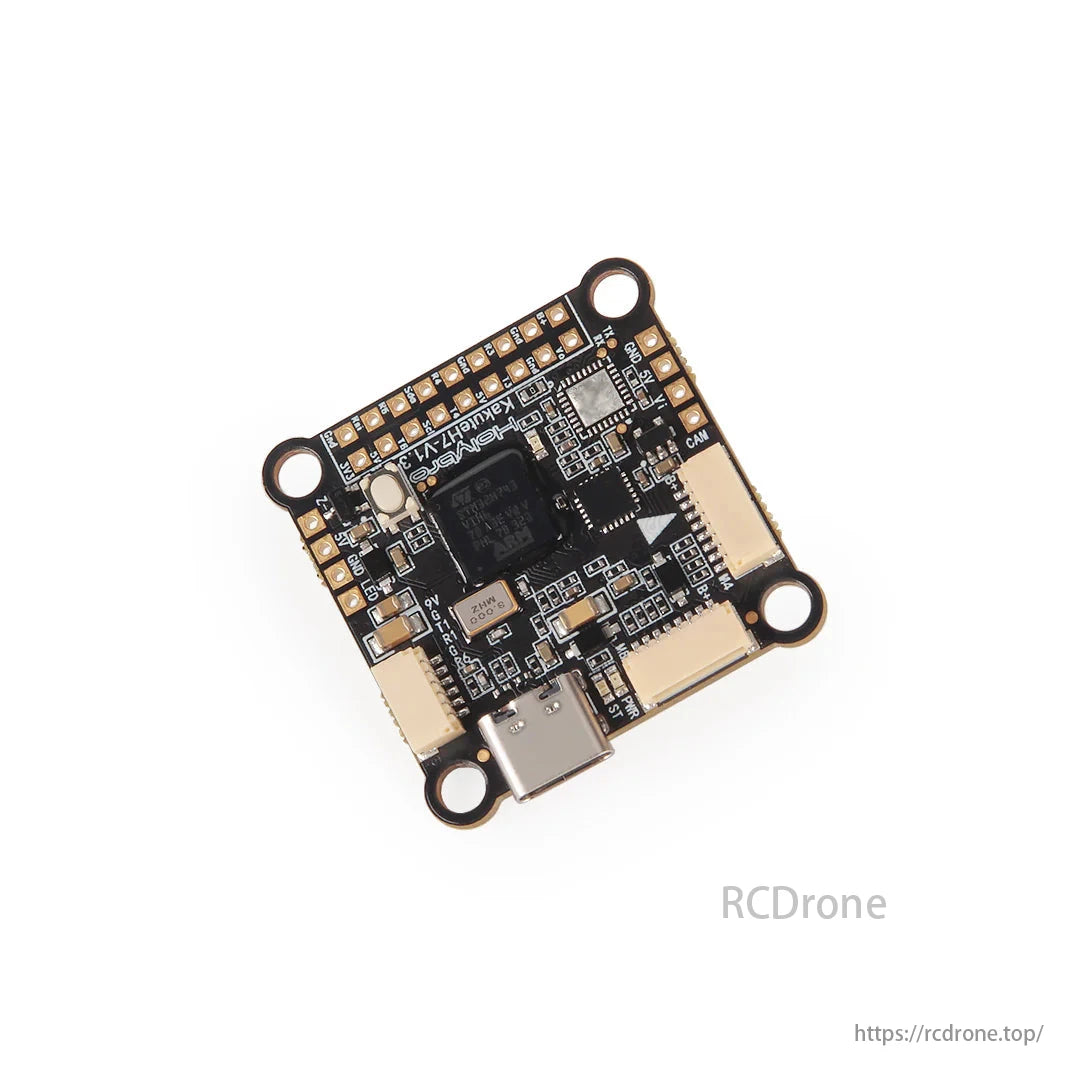

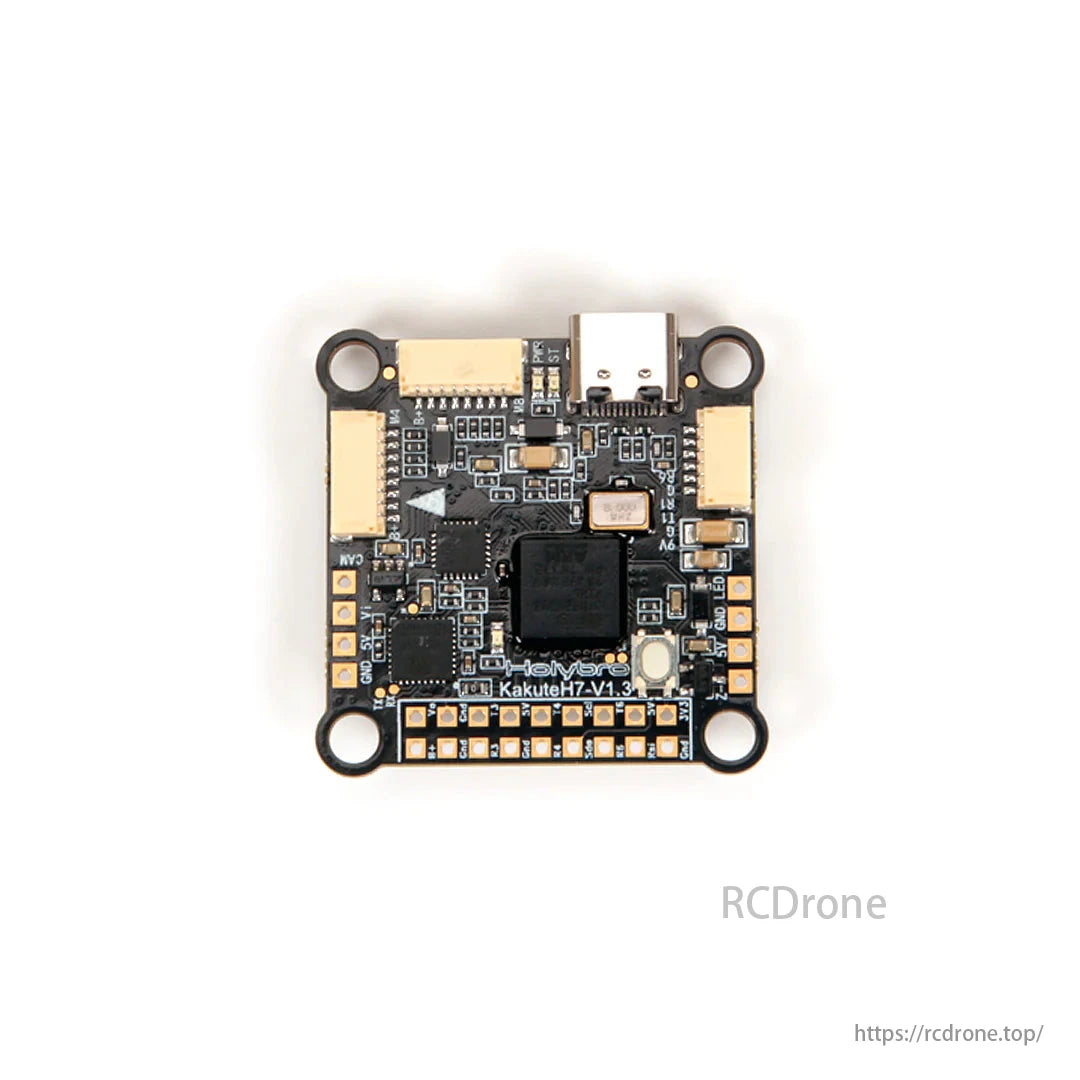

The Holybro Kakute H7 v1.5 Flight Controller is a high-performance, feature-packed flight controller designed for professional FPV pilots and UAV developers. Powered by the STM32H743 processor running at 480MHz, it offers exceptional computational power, an integrated Bluetooth module (ESP32-C3), and support for up to 8S input voltage. Compatible with Betaflight 4.5.2+, ArduPilot, and INAV, it delivers unmatched flexibility across a range of flight platforms including quadcopters, octocopters, and CineLifters.

The updated v1.5 version replaces the MPU6000 with the ICM-42688-P IMU, fully supported in Betaflight 4.5.2 and later.

Key Features

• High-Speed Processor: STM32H743 MCU @ 480MHz — over 2x faster than F7 boards

• IMU: ICM-42688-P (SPI interface) with improved accuracy and stability

• Barometer: SPA06, ideal for autonomous navigation

• Bluetooth: Built-in ESP32-C3 chip for wireless configuration via SpeedyBee app (iOS & Android)

• OSD: AT7456E chip for graphical overlay of battery, RSSI, flight mode, and more

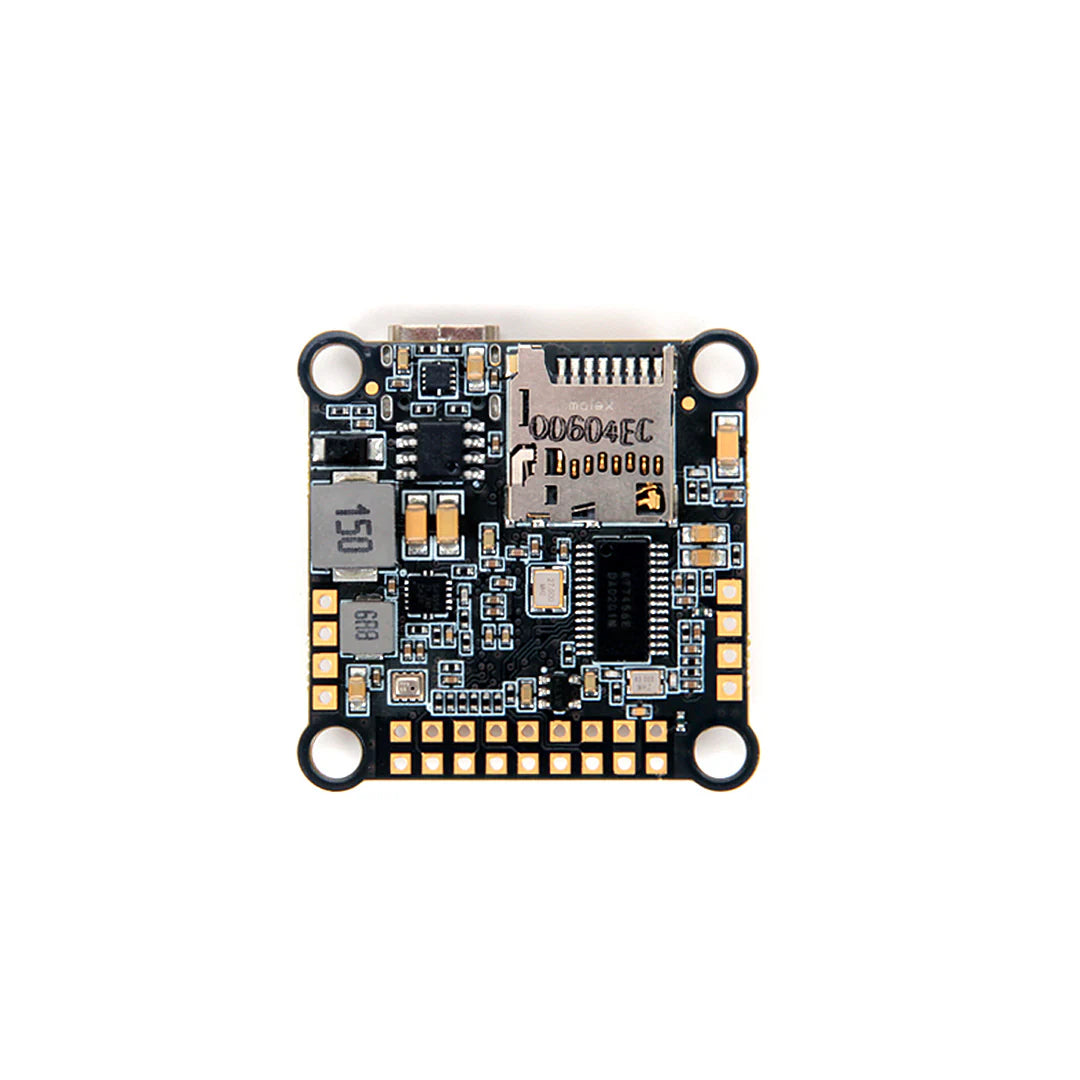

• Blackbox: Full-sized microSD card slot supports unlimited flight log storage

• HD-Ready: Plug-and-play port for DJI/Caddx Vista/Air Unit — no external BEC required

• ESC Connectivity: Dual JST-SH 8-pin ports for x4 or x8 motor configurations

• Analog VTX Support: Dedicated 6-pin port for traditional FPV systems

• I2C & UART Ports: 6x UARTs and SDA/SCL for GPS, compass, and telemetry

• LED & Buzzer: RGB LED and buzzer pad for easy integration

• Voltage Regulation: Onboard 9V/3A & 5V/2A BECs for clean, stable power

Technical Specifications

Default UART Configuration

Firmware Compatibility

Wiring Compatibility

• Supports DJI/Caddx HD Digital FPV System

• Compatible with SBUS, CRSF, F.Port, DSM, SRXL2 receivers

• Easy installation of GPS, analog VTX, LED, buzzer, and camera

• Ideal for Octocopter (x8) setups with 2x 4-in-1 ESCs (Amperage scale adjustment needed in BF)

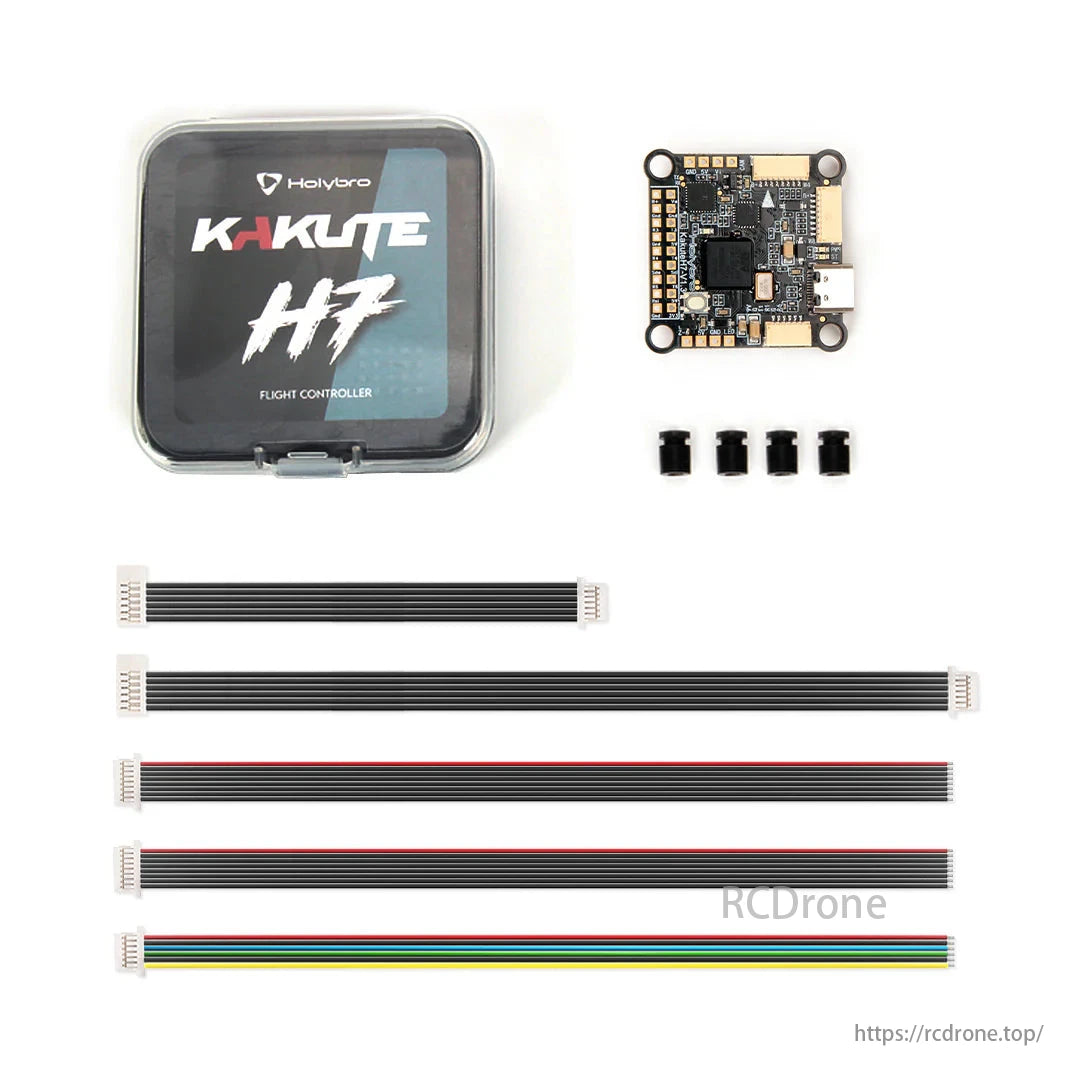

What's Included

• 1x Holybro Kakute H7 v1.5 Flight Controller

• 4x M3 Silicone Grommets

• 2x JST-SH1.0 8-pin 150mm Cables (ESC)

• 2x JST-SH1.0 6-pin 80mm & 150mm Cables (DJI Air Unit)

• 1x JST-SH1.0 6-pin Colored 150mm Cable (Caddx HD/Analog VTX)

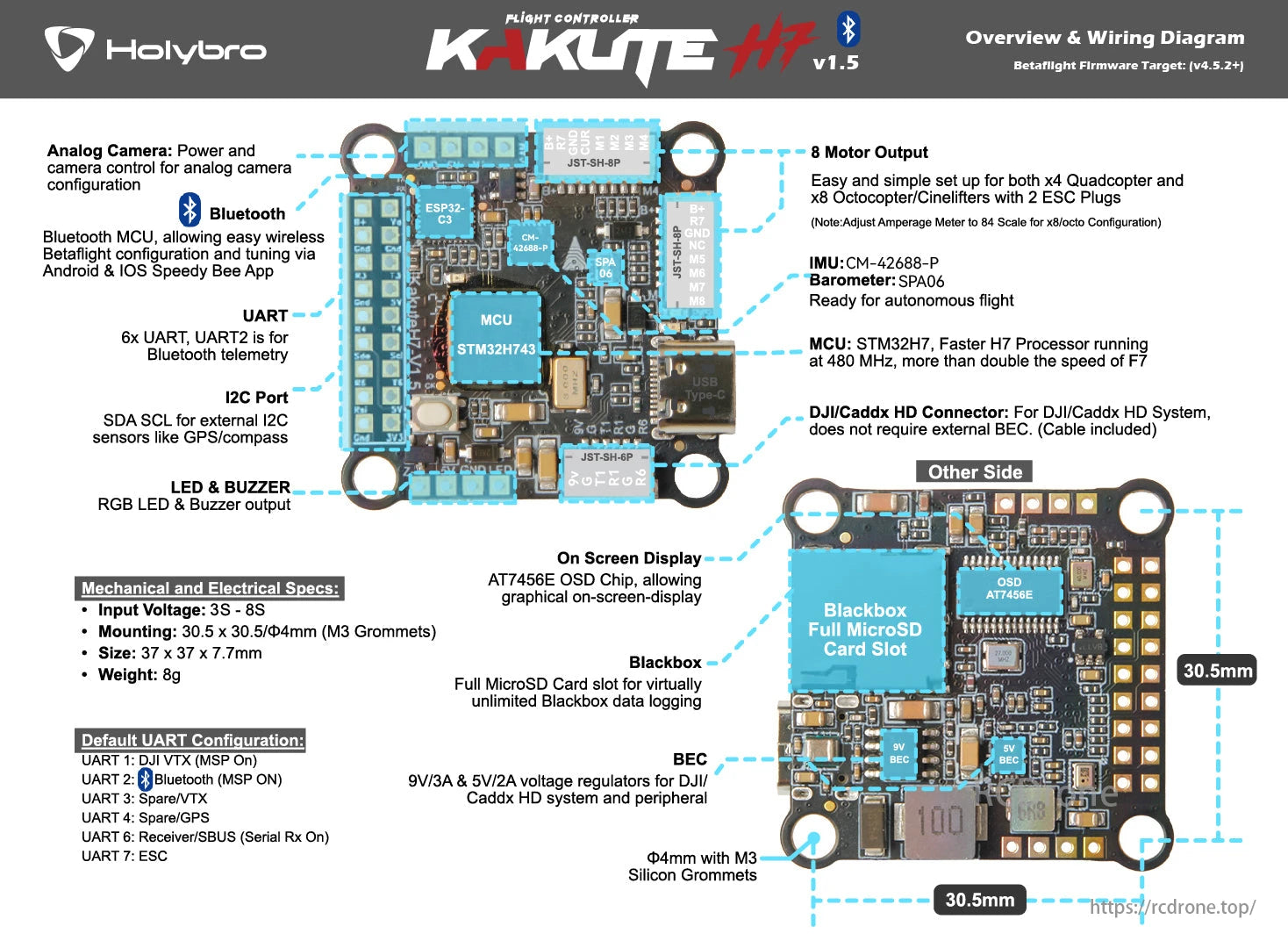

Holybro Kakute H7 v1.5 Flight Controller includes STM32H7 MCU, 8 motor outputs, Bluetooth, I2C port, UARTs, LED/buzzer, on-screen display, blackbox logging, DJI/Caddx HD connector, and supports 3S-8S input voltage.

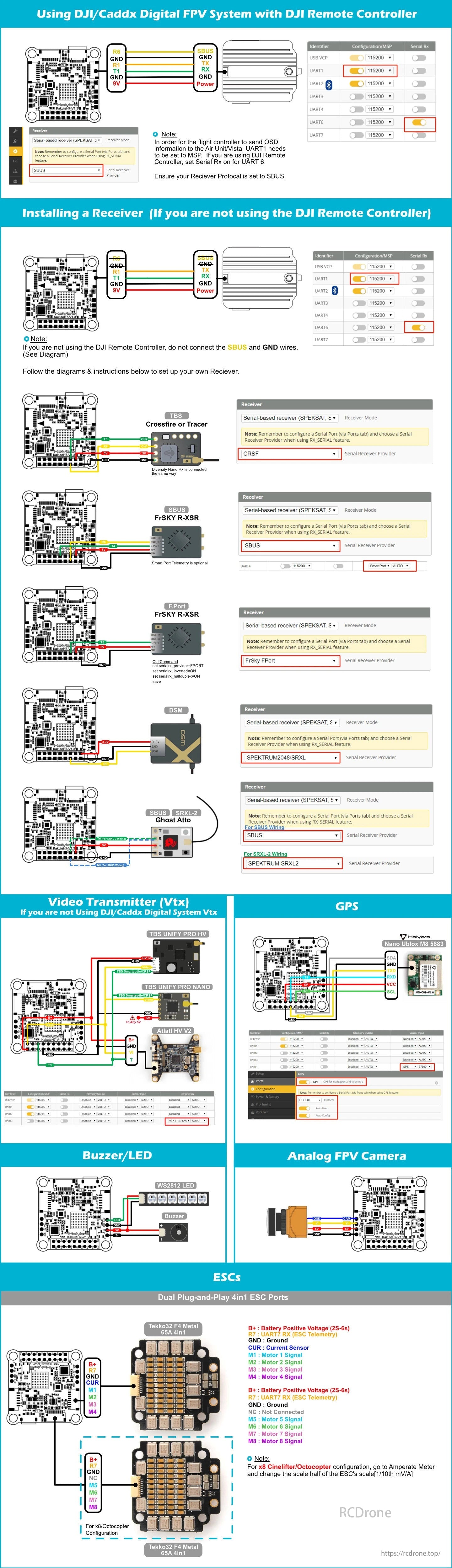

Setup guide for Holybro Kakute H7 v1.5 with DJI/Caddx FPV: covers receiver, video transmitter, GPS, buzzer/LED, analog camera, ESCs, wiring diagrams, and configuration steps.
