Overview

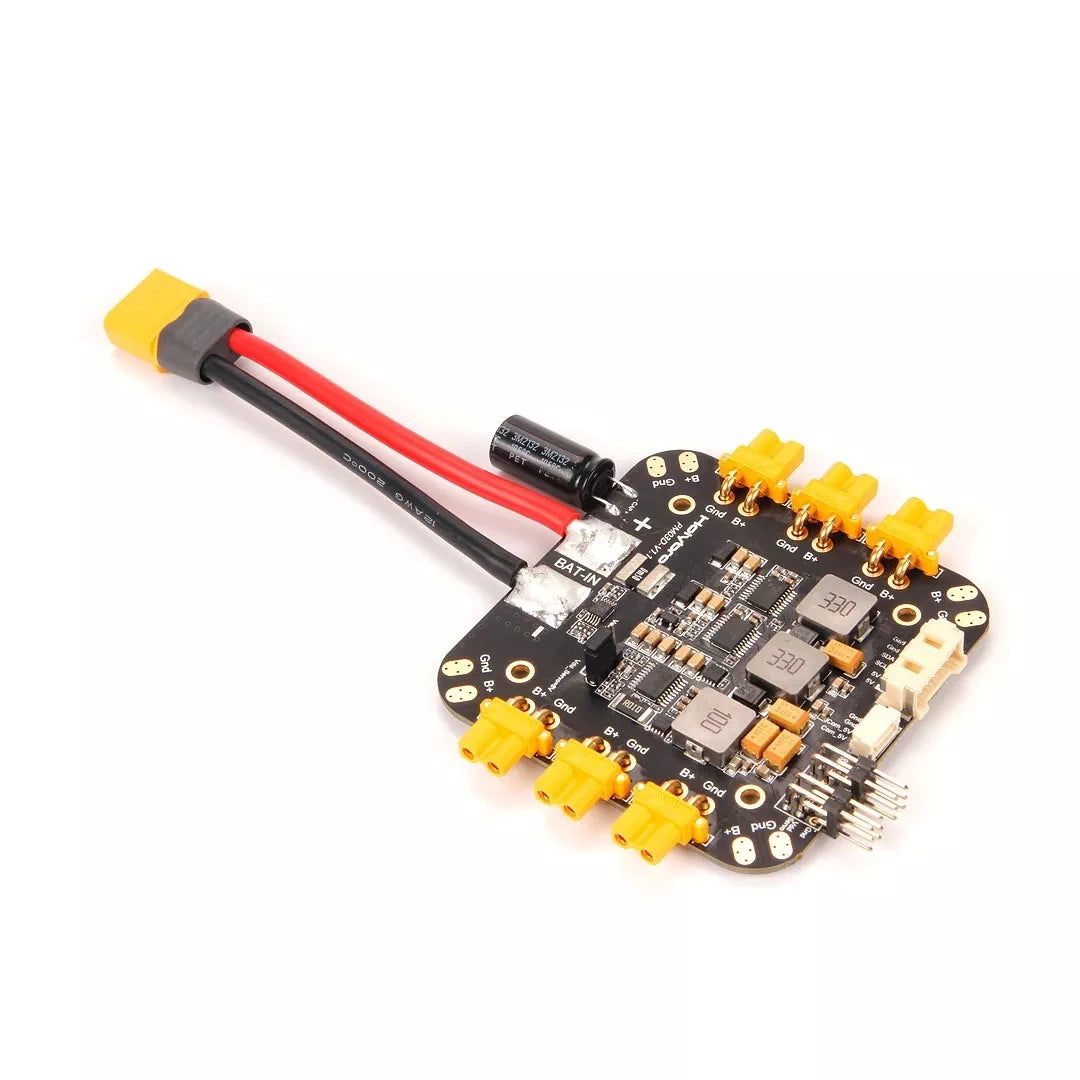

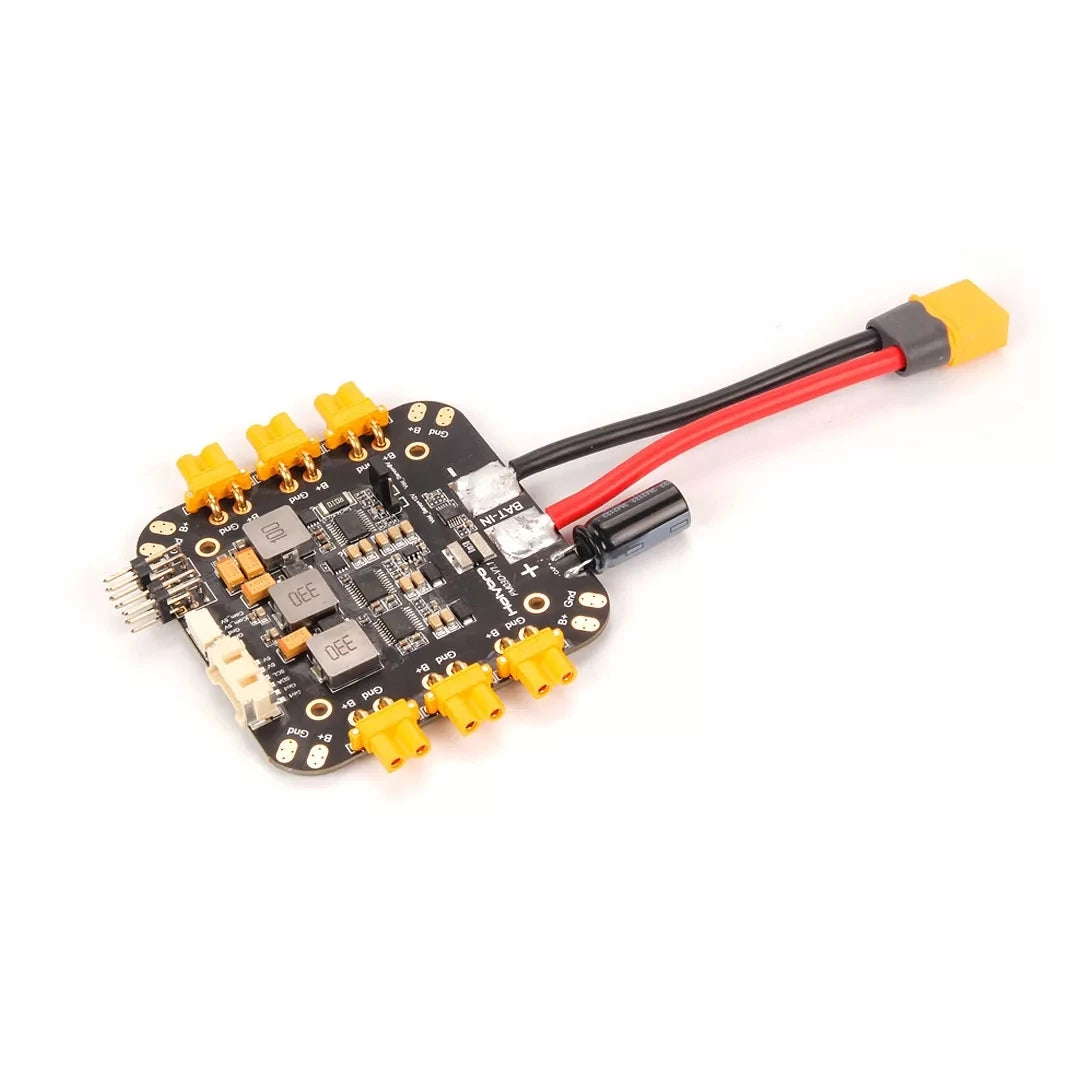

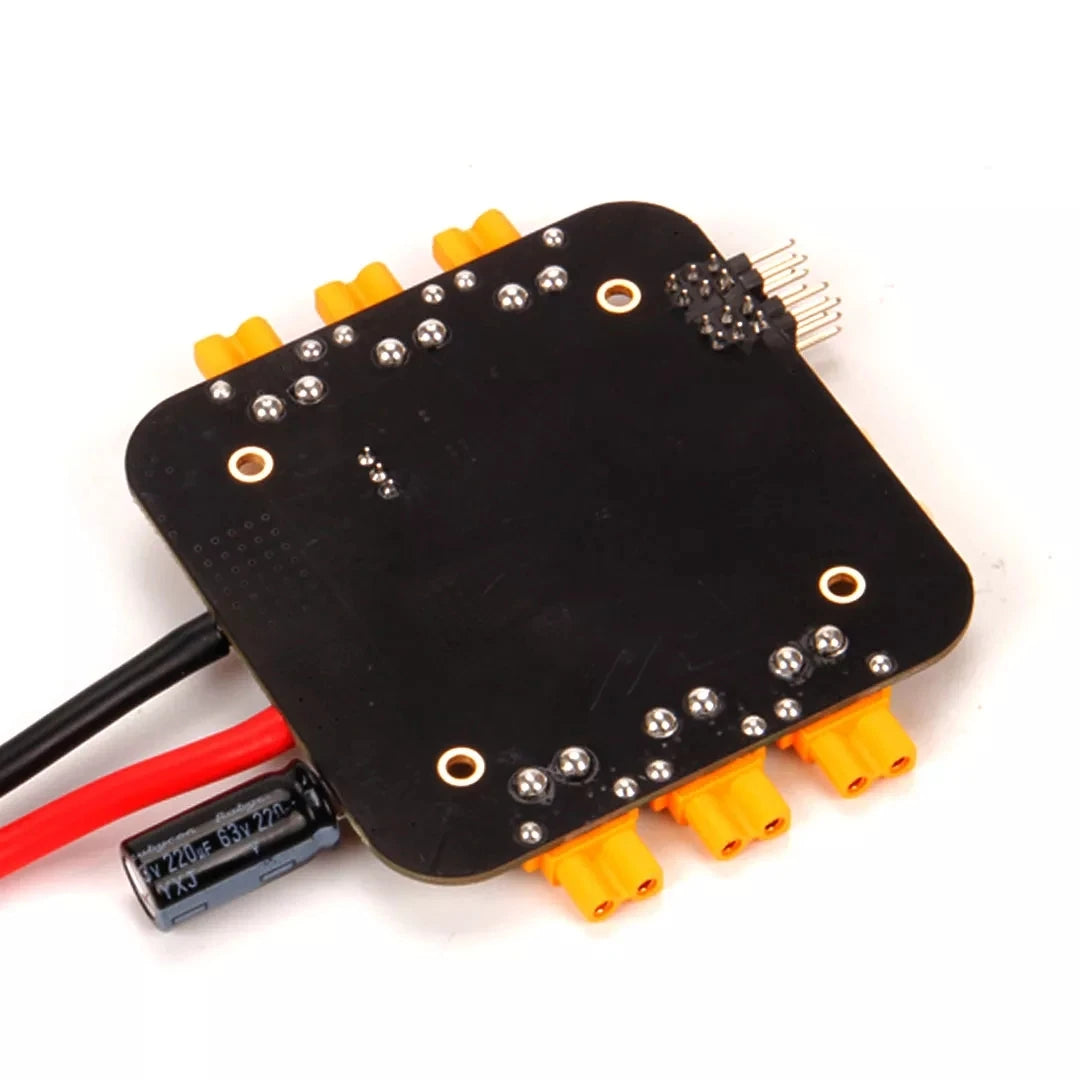

PM03D provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as the Pixhawk 5X and up.

It is design for multi-rotor like the X500 V2. It has both XT-30 & XT-60 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output different kinds of peripheral devices.

Note: This PM is not compatible with flight controller that uses analog PM such as the Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.

Features

• Plug & play, no additional setup required for QGroundcontrol & Mission Planner

• XT-30 connectors and solder pads for easy motor ESC connection

• Onboard voltage regulators: two 5.2V & one selectable 8V/12V

• 5V/A ports for powering companion computer or peripheral device

• Selectable 8V or 12V triple row pin header for powering peripheral device

Technical Specification

Maximum input voltage: 6S battery

Rated current: 60A

Max current: 120A (<60 Sec)

Max current sensing: 164A

Connections

XT-60 for battery

XT-30 for motor & peripheral device (battery voltage)

Solder pads in each corner (battery voltage)

CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)

JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)

2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)

2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)

Dimension: 84*78*12mm (excluding wires)

Mounting: 45*45mm

Weight: 59g

The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

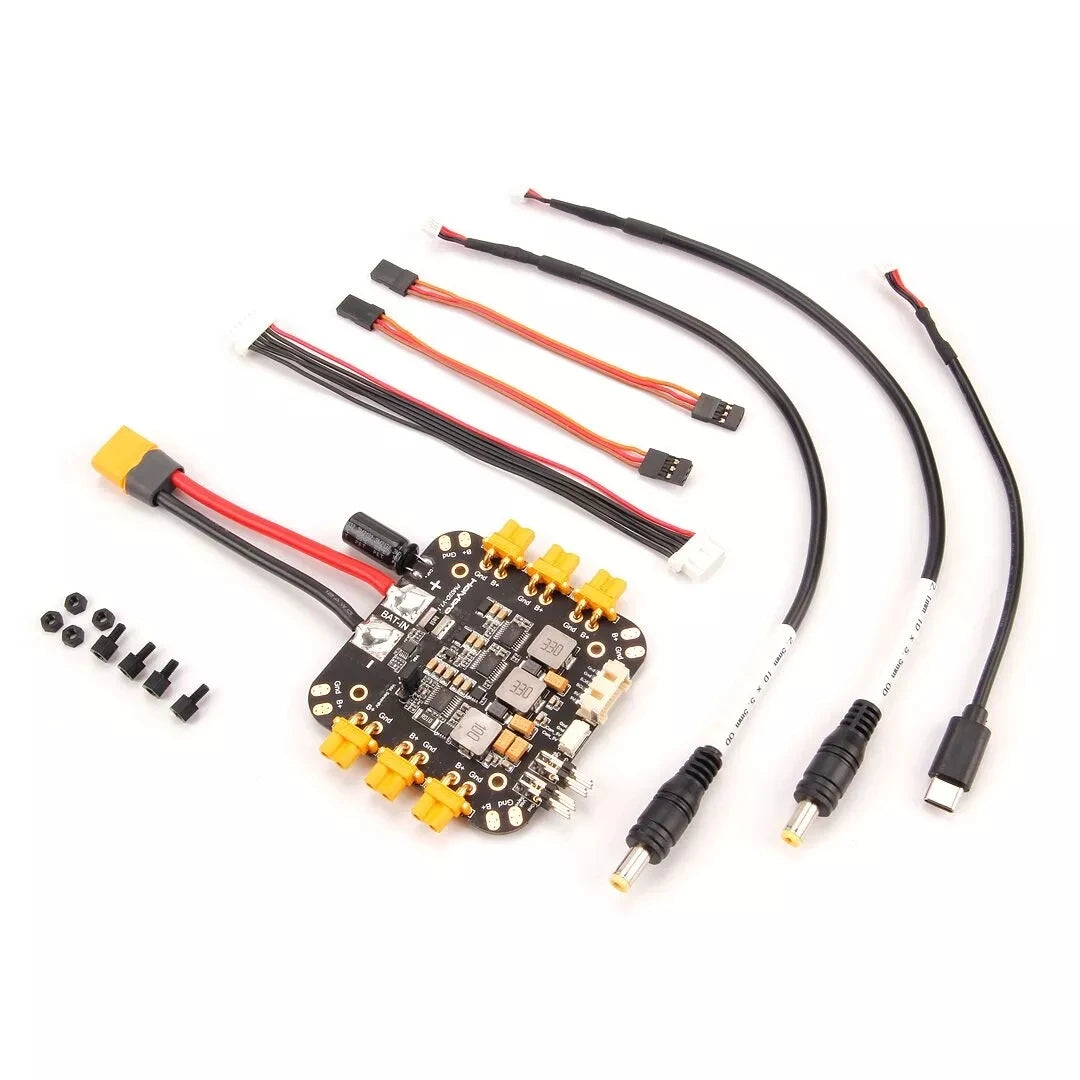

Package Includes

1x PM06 board

1x 80mm XT60 connector wire (pre-soldered)

1x Electrolytic capacitor: 220uF 63V (pre-soldered)

1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)

4pin JST GH to USB Type C

4pin JST GH to barrel plug (2.1*5.5mm)

4pin JST GH to barrel plug (2.5*5.5mm)

4pin Pin Dupont Cable (2pc)

Nylon standoffs & nuts
