Holybro PM06 V2 Power Module

Holybro PM06 V2 Power Module

HolyBro

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

183 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

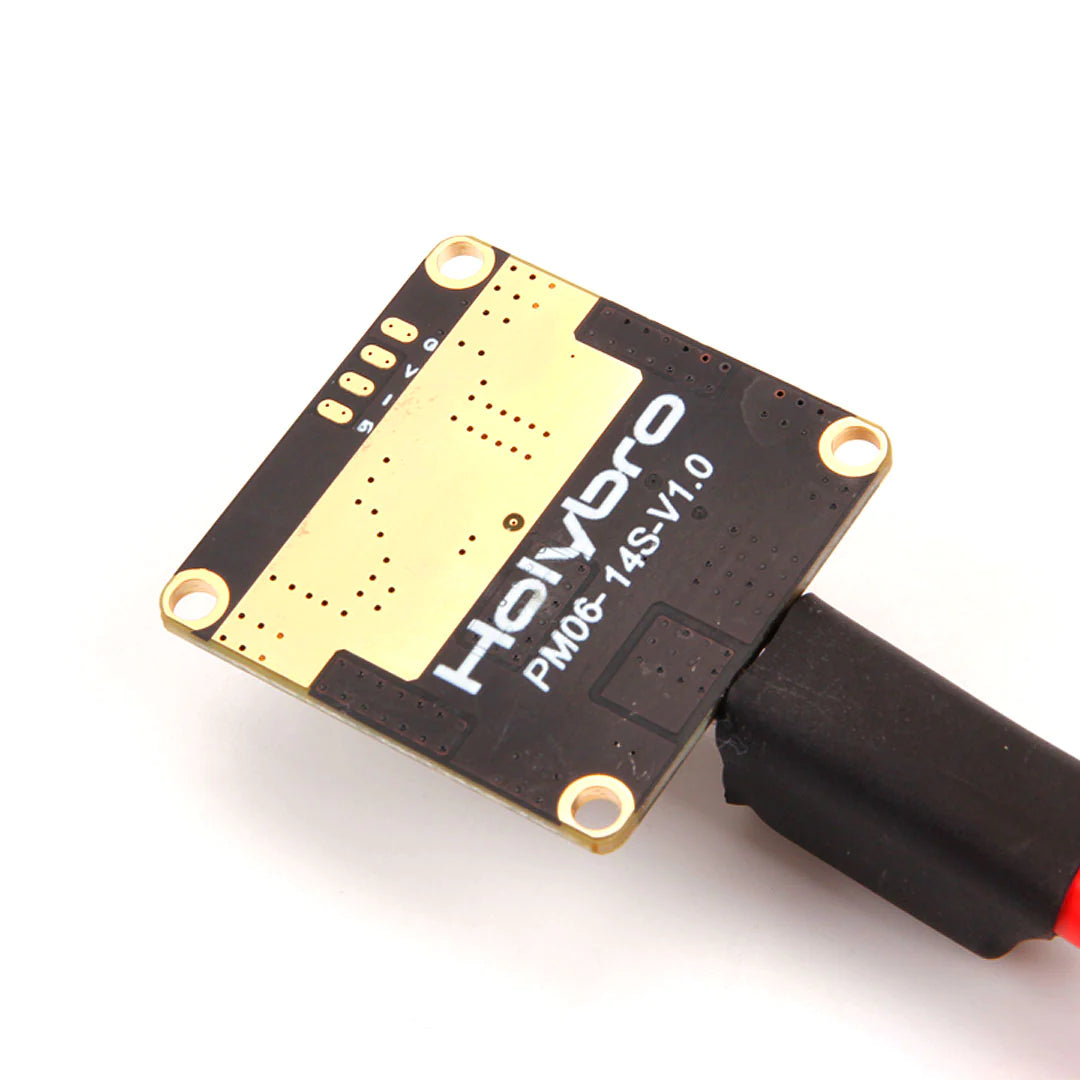

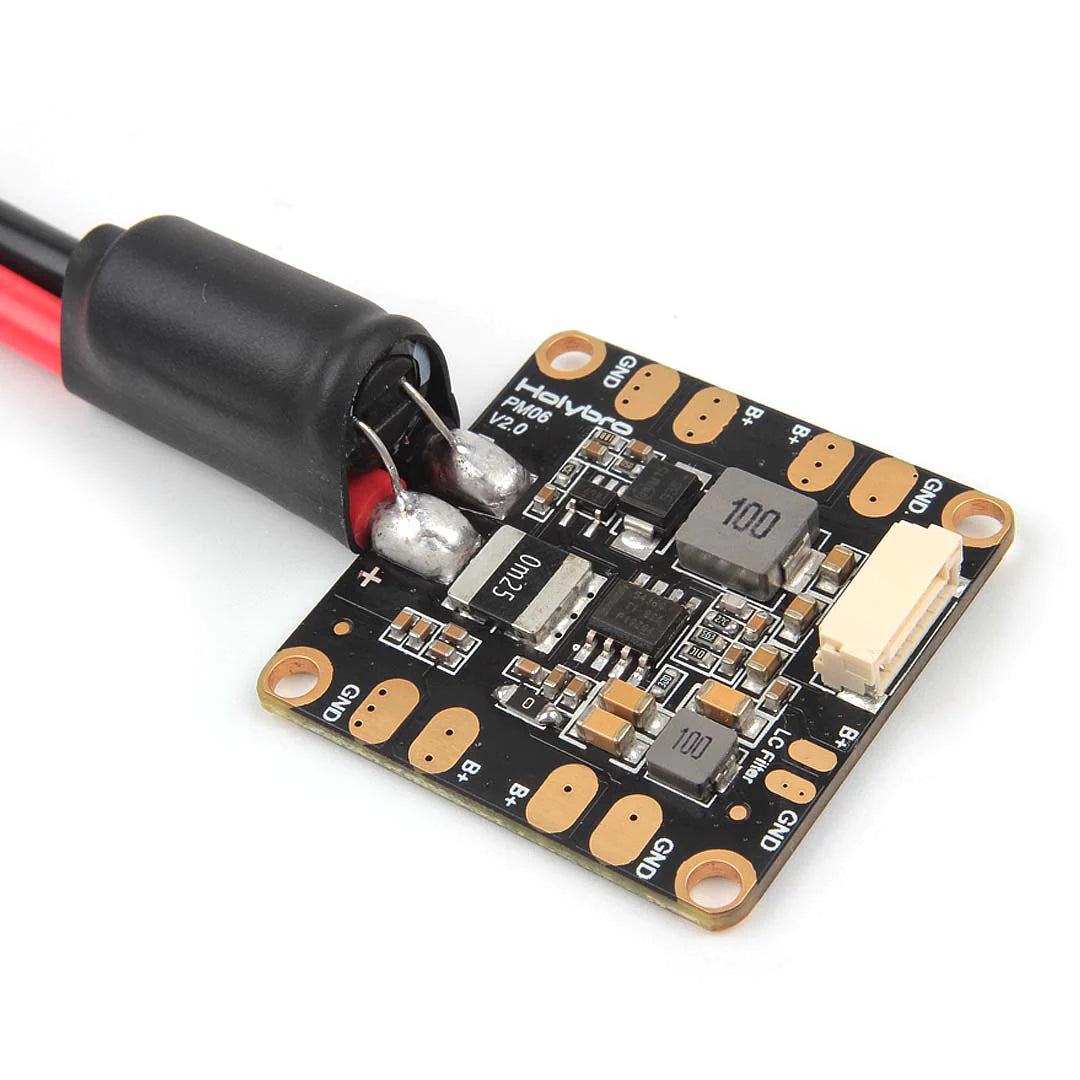

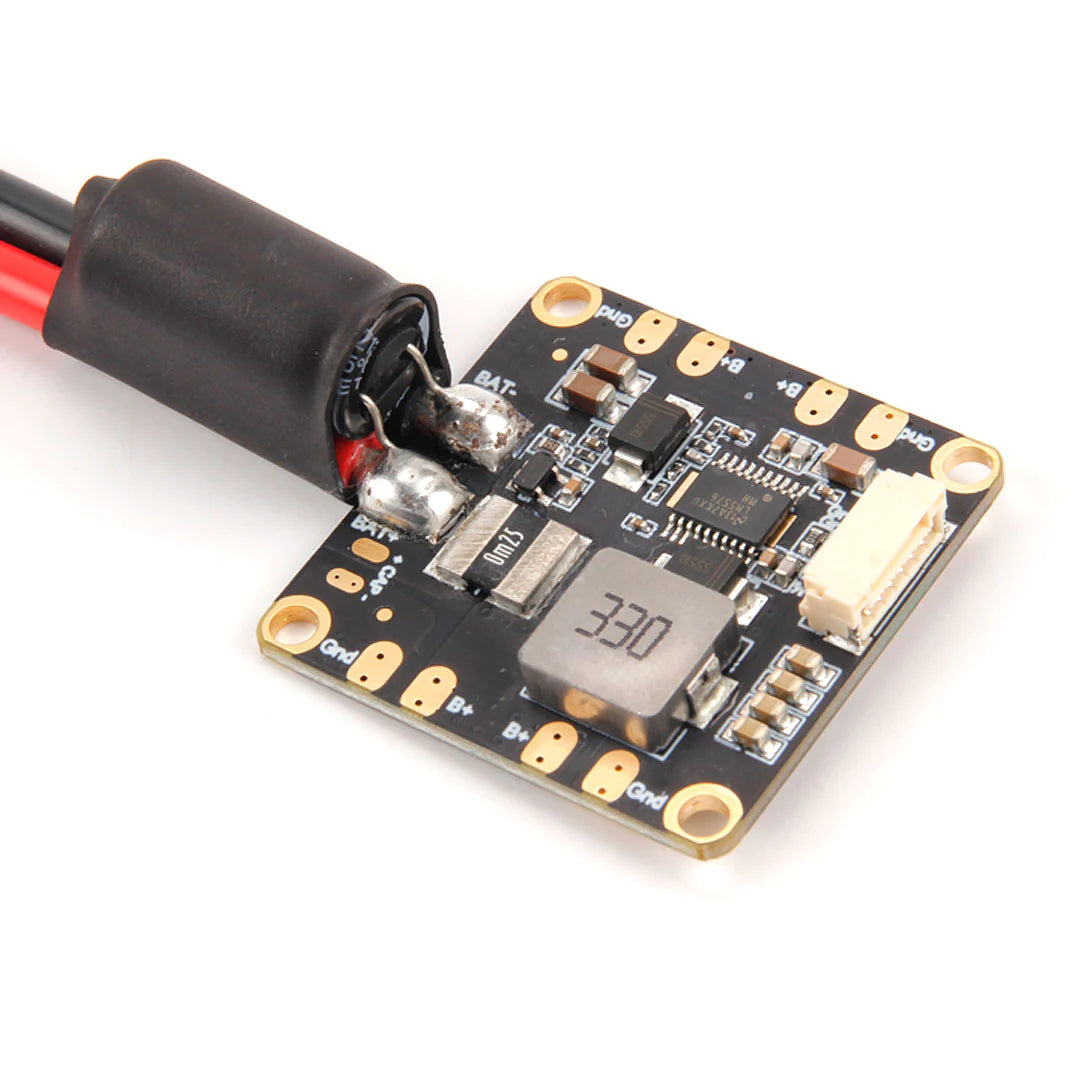

Description:

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.

Specifications:

  • Input voltage (10S version): 2S-10S
  • Input voltage (14S version): 2S-14S
  • PCB Cont. Current Rating: 70A
  • PCB Burst Current Rating: 120A (<60 Sec)
  • Output: DC 5.2V & 3A Max
  • Ouput Max Power : 18W
  • Voltage Divider: 18.182
  • Amperes per Volt: 36.364

Please Note:

  • The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
  • This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Mechanical Specification:

  • Dimensions: 35x35x5mm
  • Mounting hole: 30.5mm*30.5mm
  • Weight: 24g

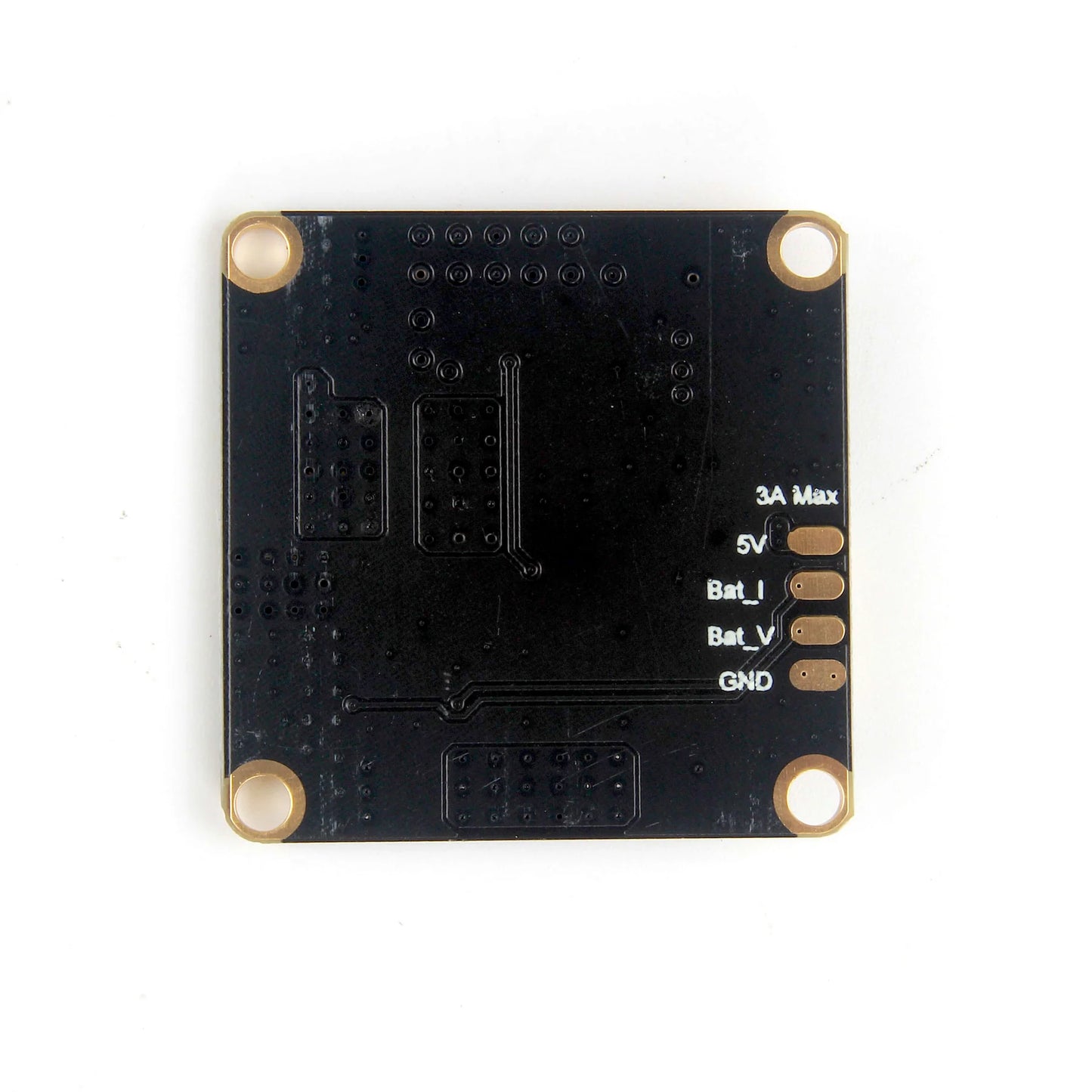

Pin Map:

Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.

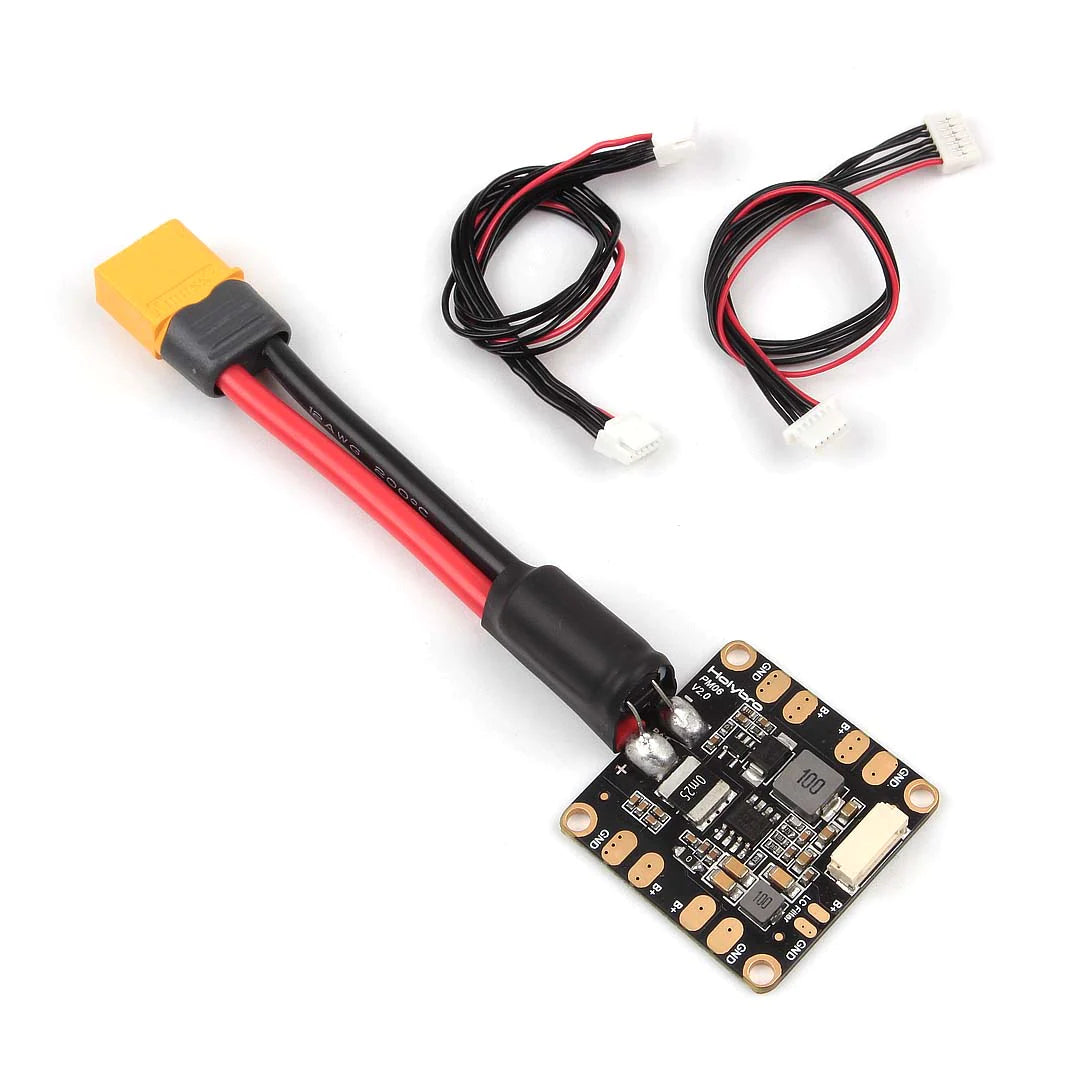

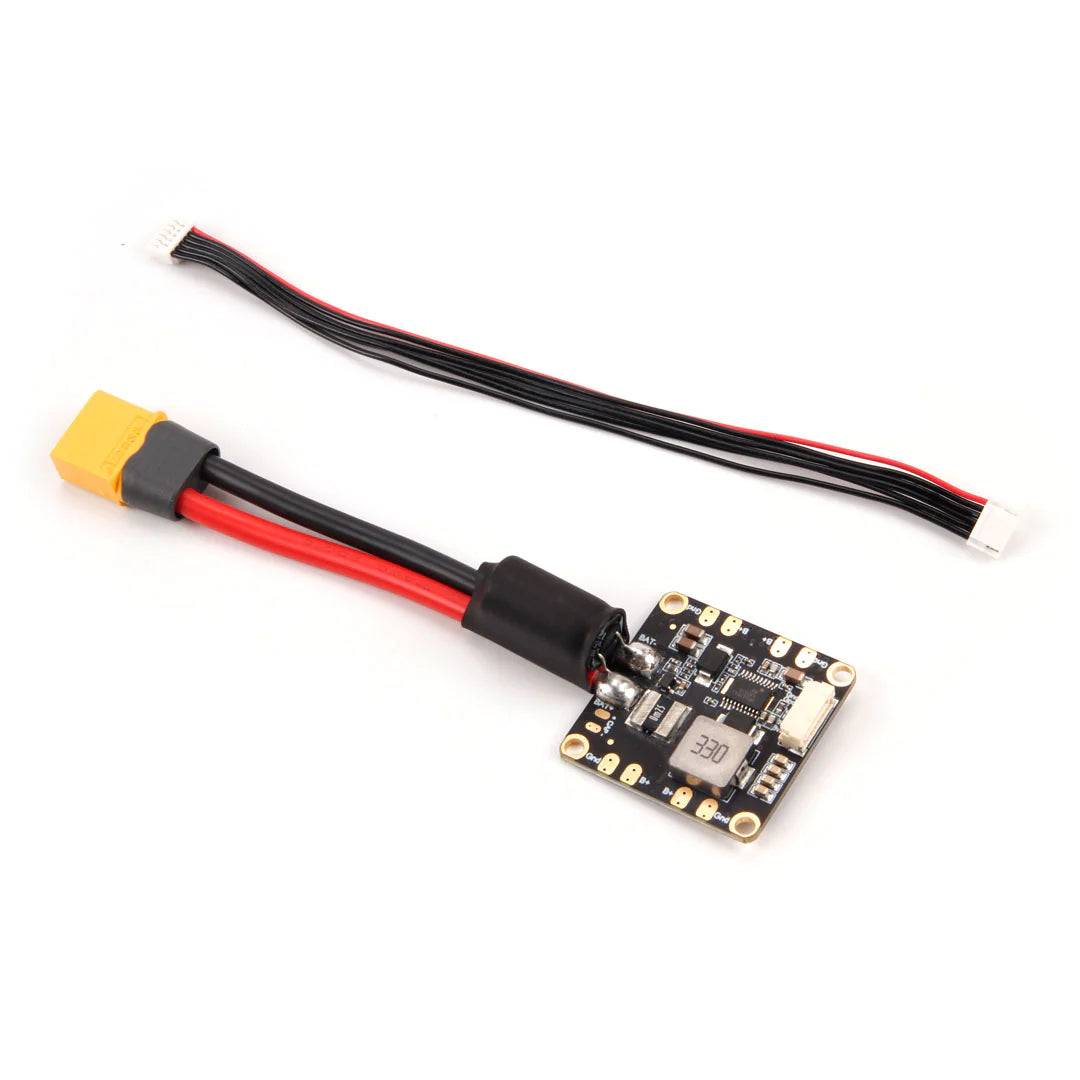

Package Includes

  • 1x  PM06 board
  • 1x  80mm XT60 connector wire (installed)
  • 1x  Electrolytic capacito: 220uF 63V(installed)
  • 1x  JST GH 6pin cable
  • 1x  JST SH 6pin cable
