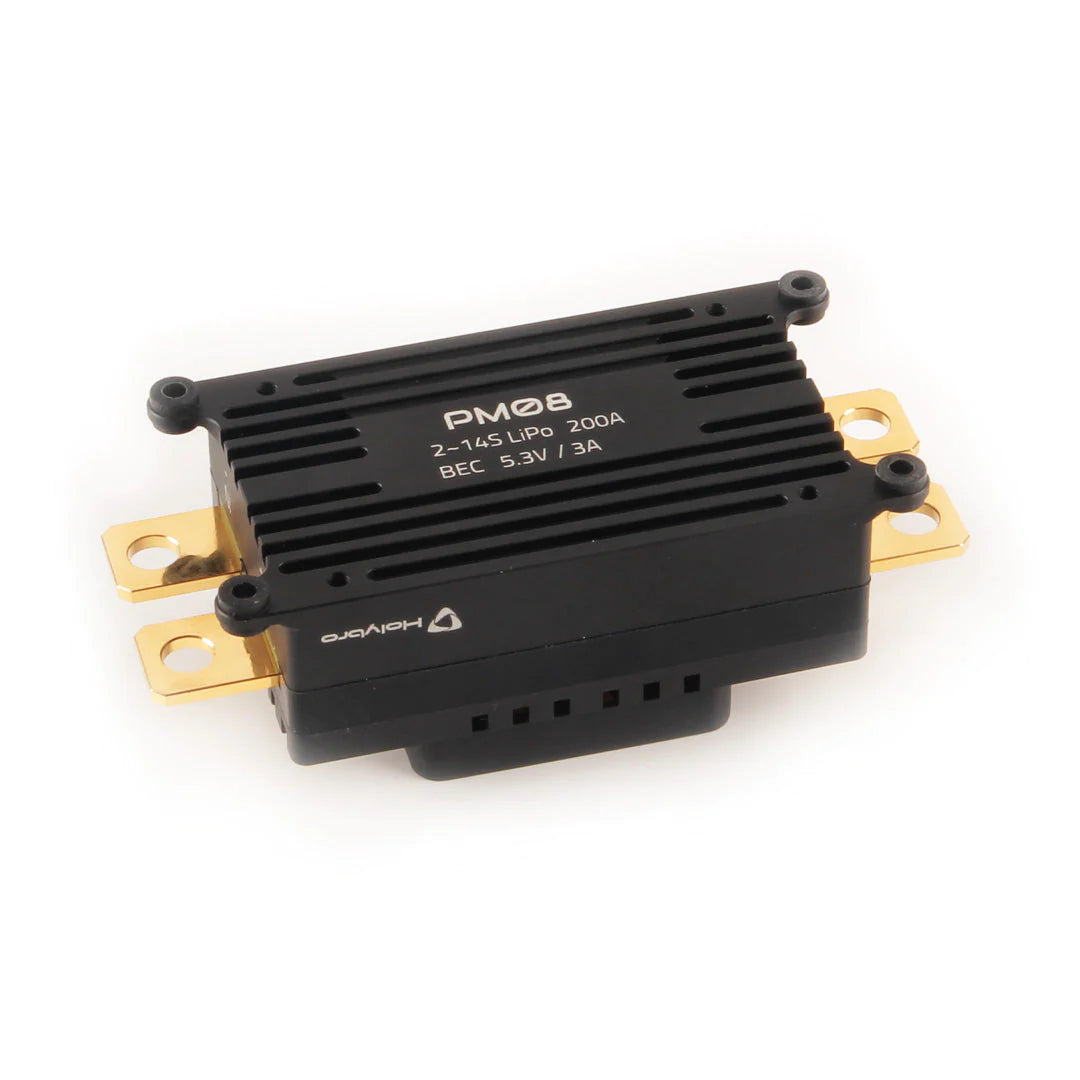

Holybro PM08 Power Module (14S, 200A) 5.2V Analog Power Module Compatible With Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers

Description:

This PM08 Power Module supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable to the Autopilot.

This power module is designed for vehicle with high power requirement. It comes housed in a aluminum heat sink case with fan, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.

Please Note:
- This analog power module is not compatible with Pixhawk 5X/6X. Please use digital power module that end with a "D" for the 5X/6X series.

This Analog Power Module Compatible With Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers
- Wire & connector sold separately

Feature

• Support 2S - 14S Battery
• 200A Cont. Current Rating
• Easy to Setup
• Aluminum Case for Heat dissipation

Specification

• Input Voltage: 2S-14S
• PCB Cont. Current Rating: 200A
• PCB Burst Current Rating: 1000A (<1 Sec @25C)
• Max Current Sensing: 237.6A
• Output: DC 5.1-5.3V & 3A Max
• Voltage Divider: 18.182
• Amperes per Volt: 72
• Dimensions: 101*45*26mm
• Mounting hole: 79mm*38.1mm

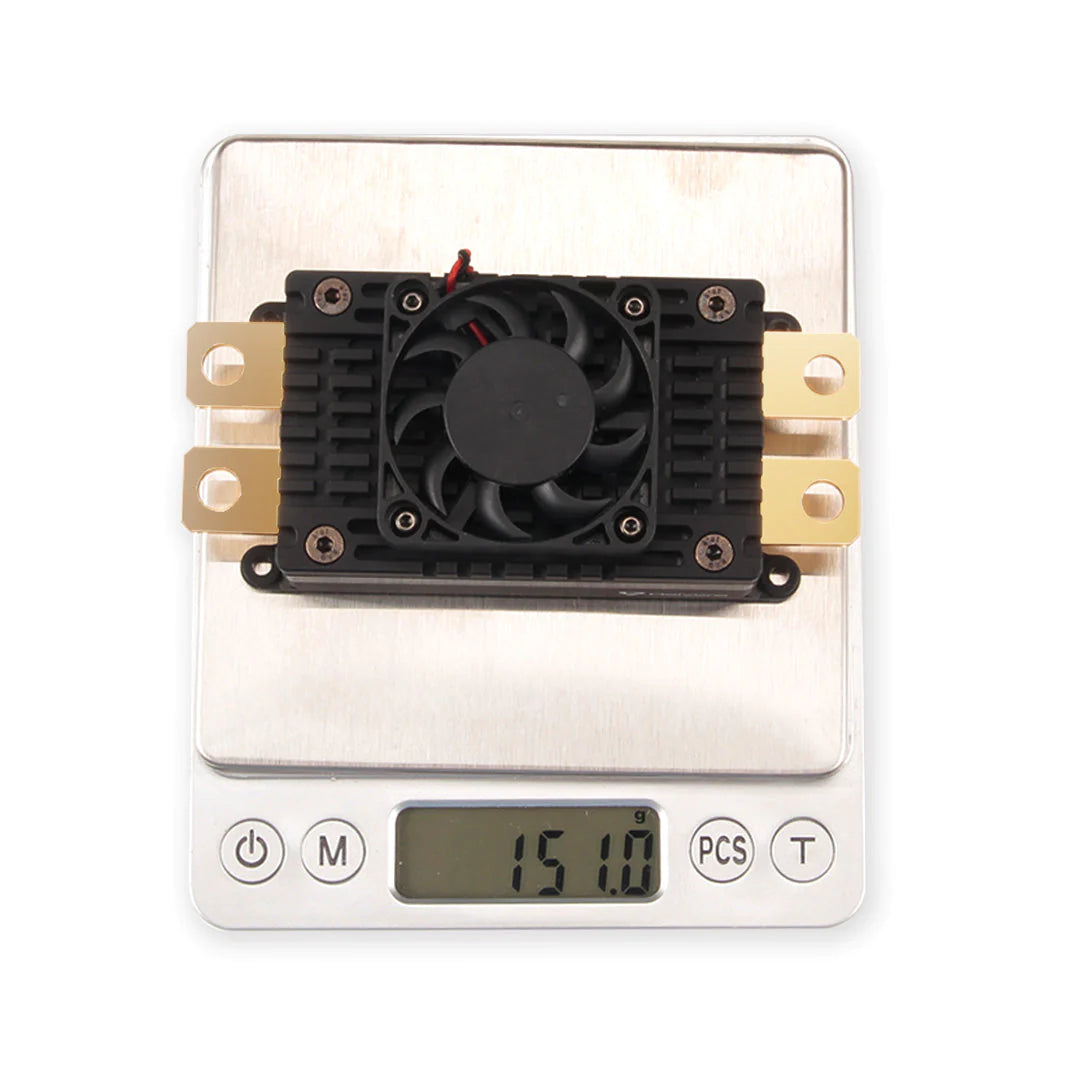

• Weight: 151g

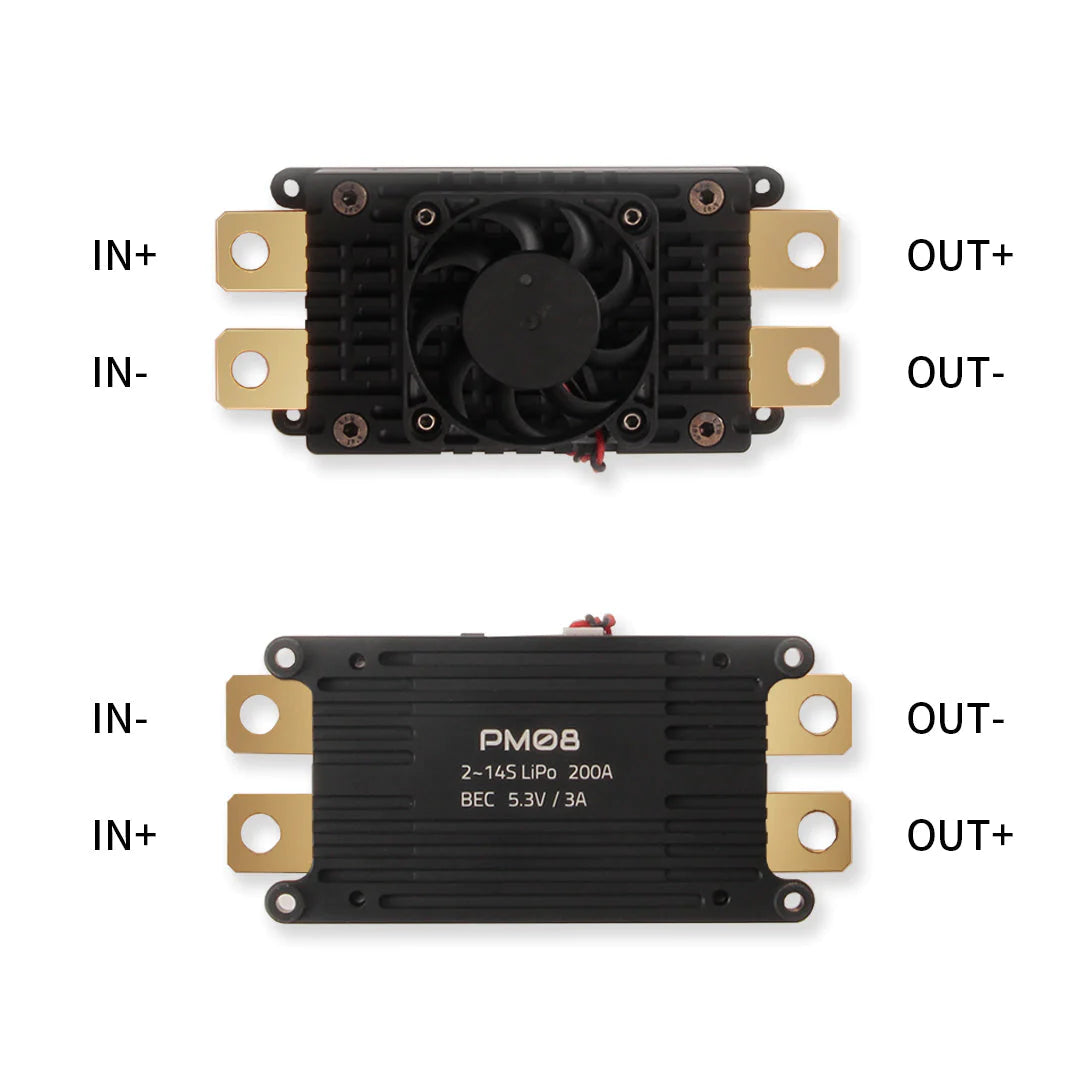

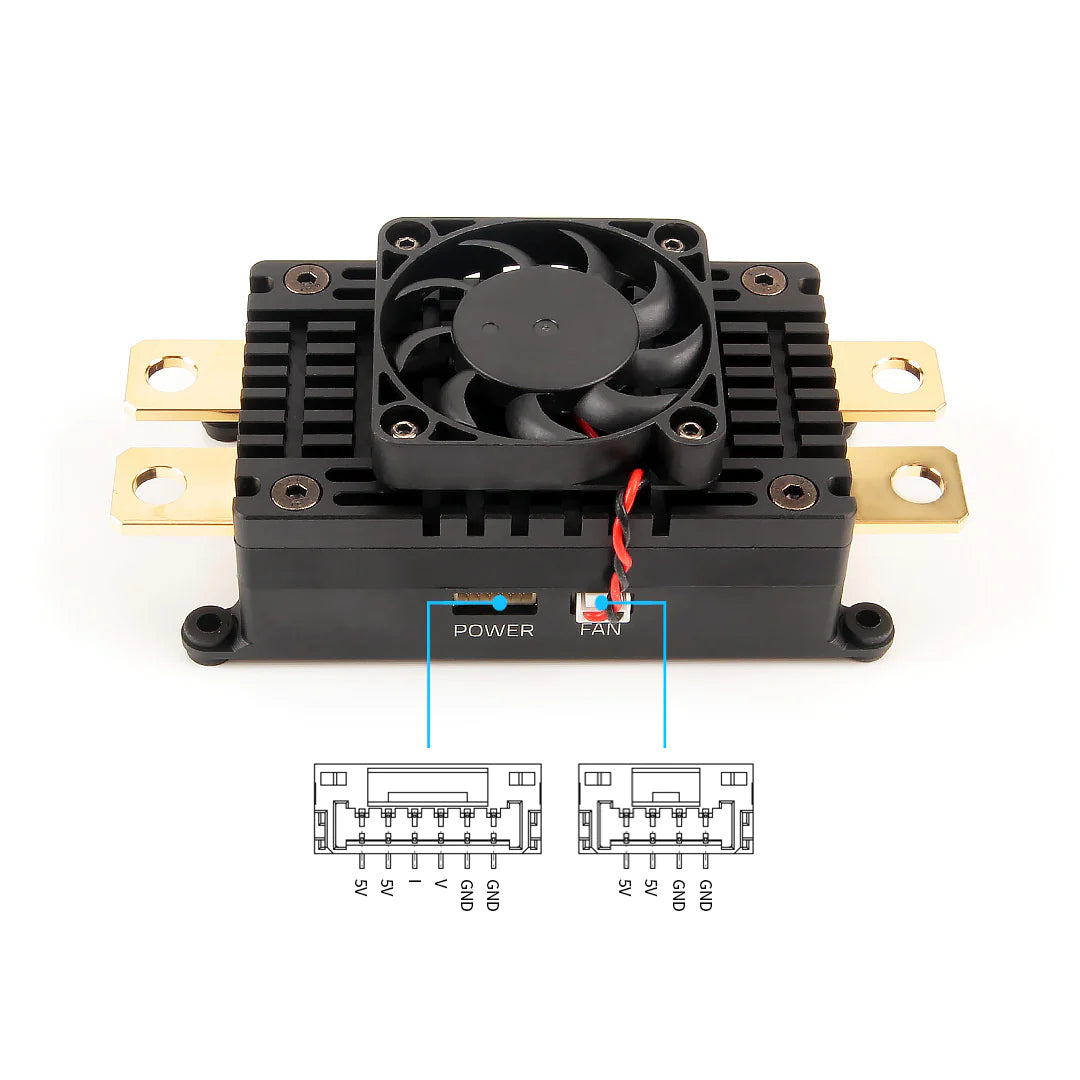

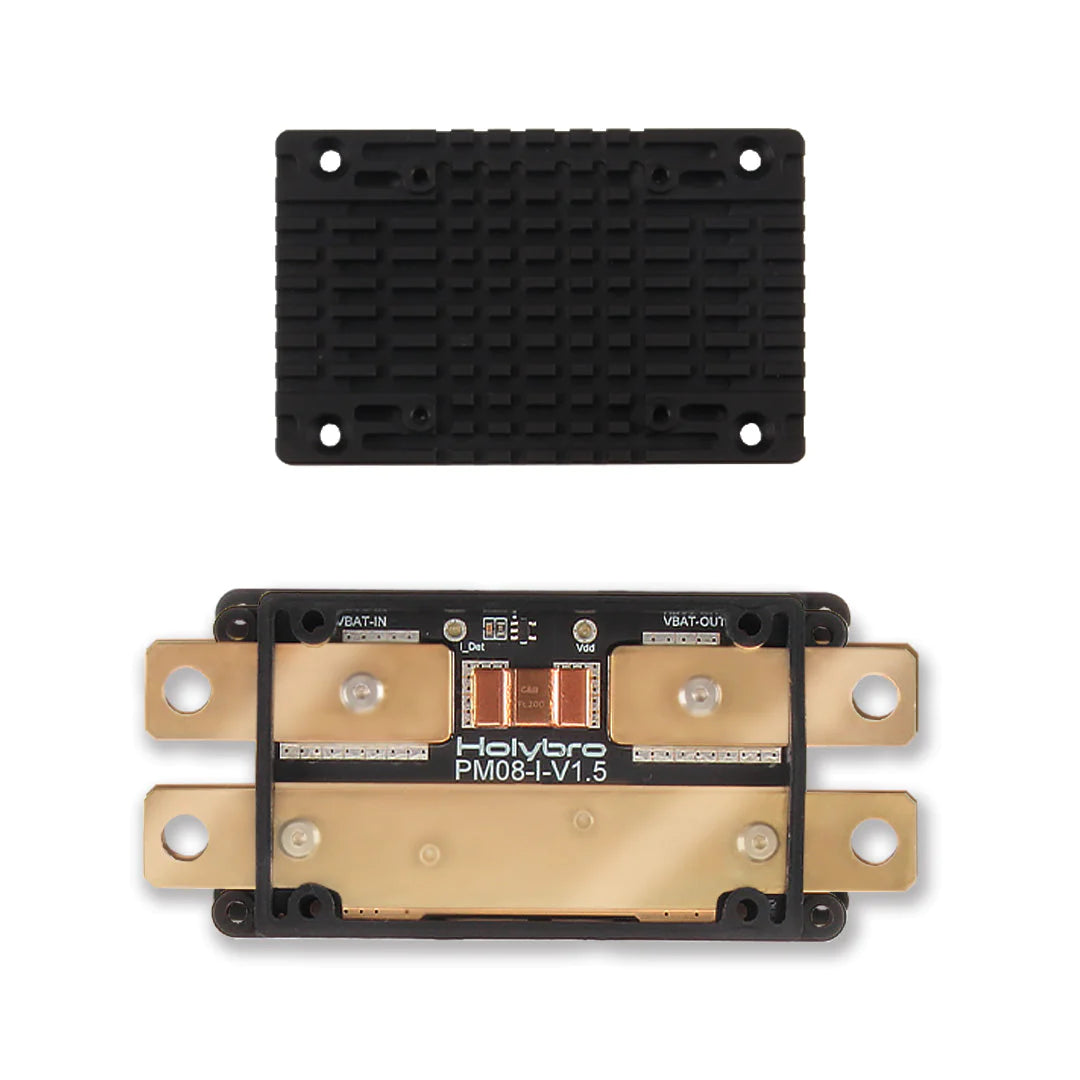

Ports

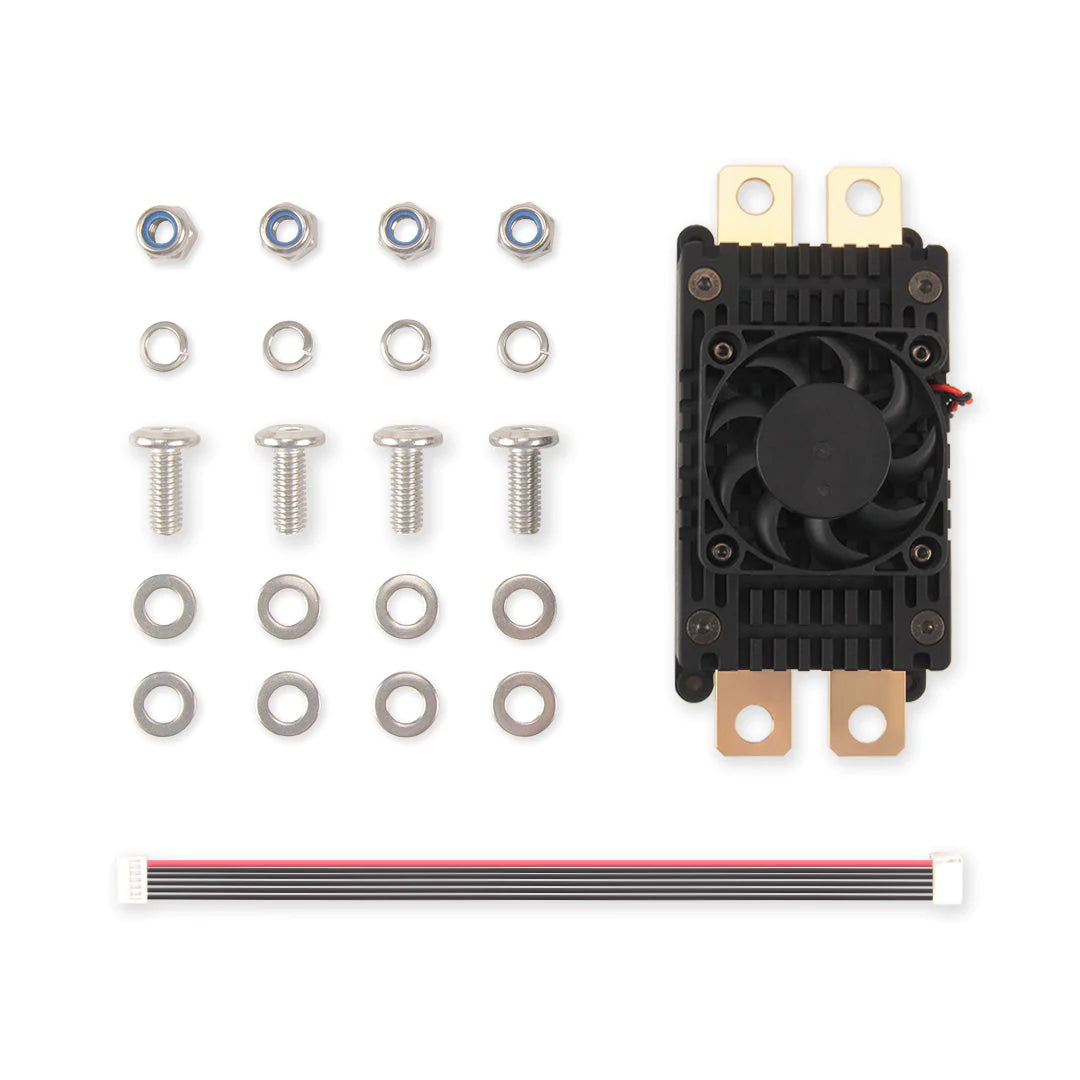

PM08 Power Module (SKU 15021) Package Includes:

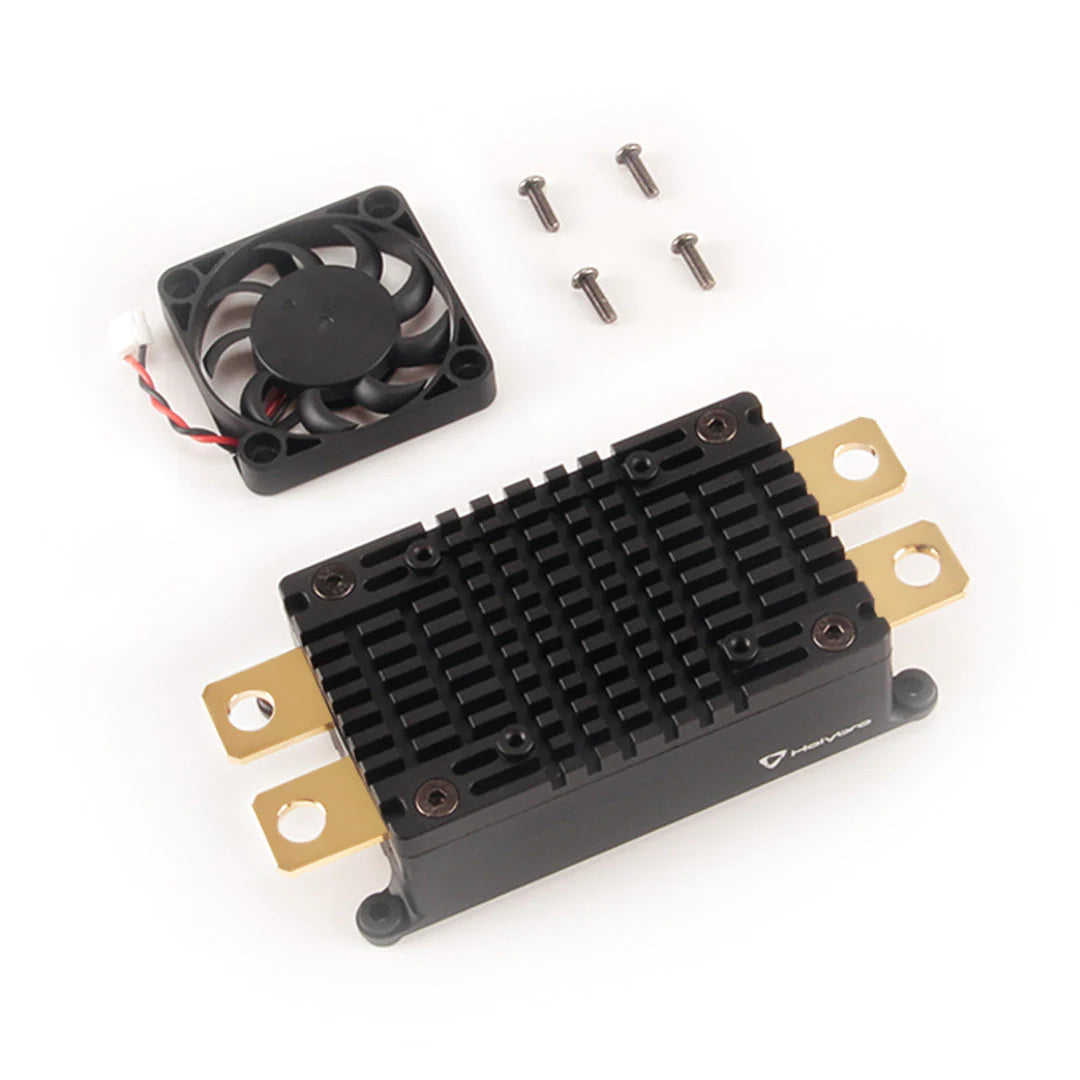

• 1x PM08 Power Module
• 1x 40x40mm Fan
• 1x JST GH 6 Position Connector 15 cm
• 4x Sets of Screws, Washers, and Nuts

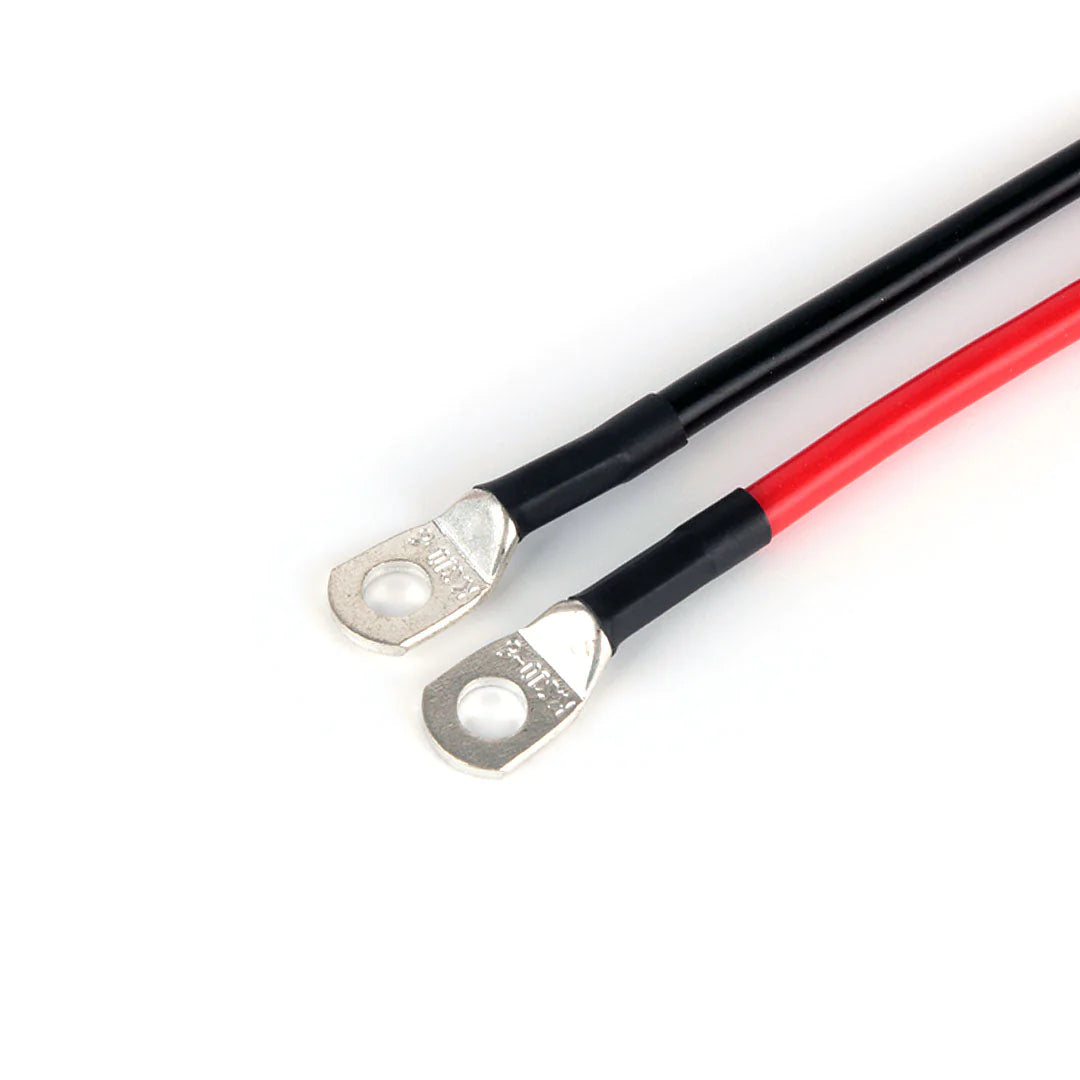

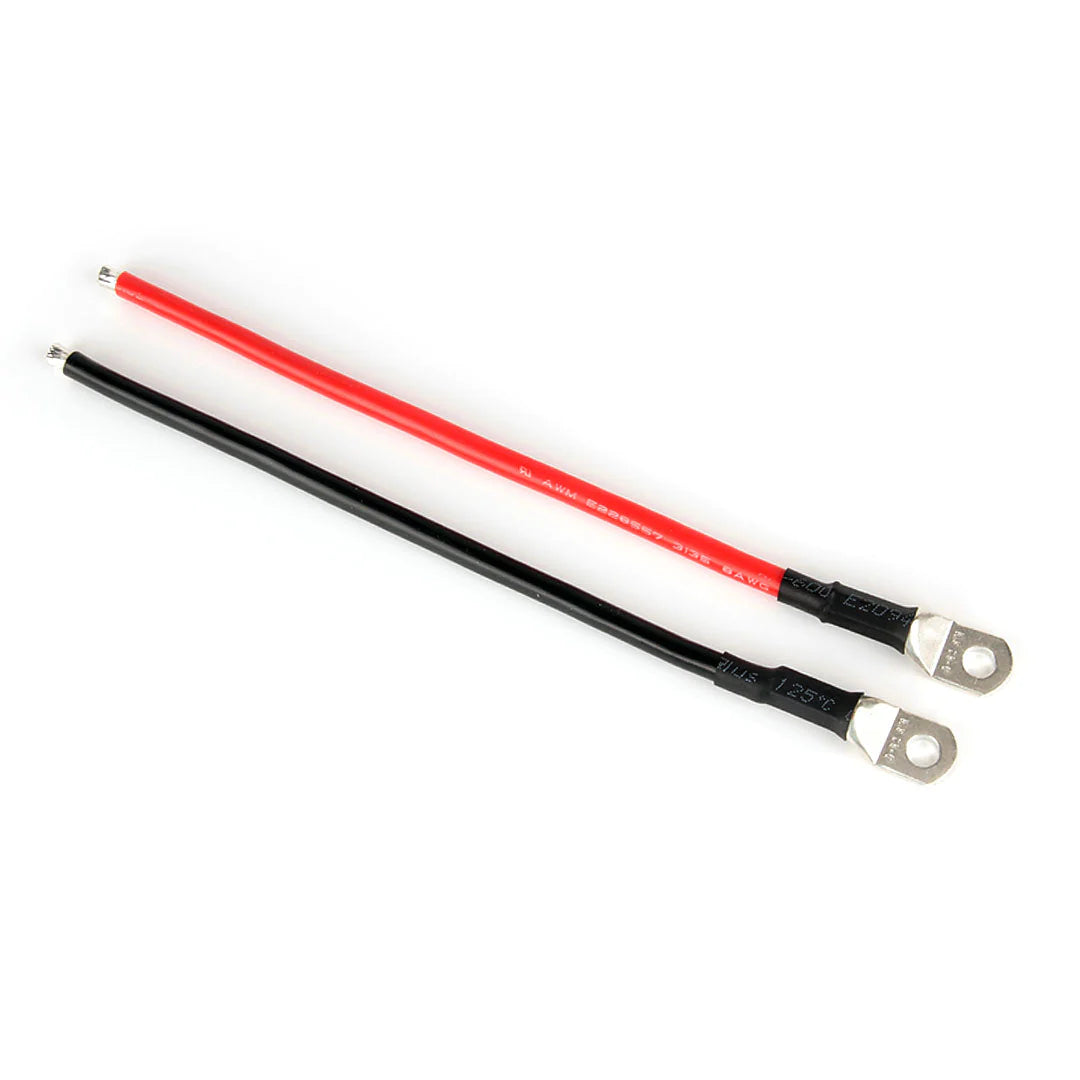

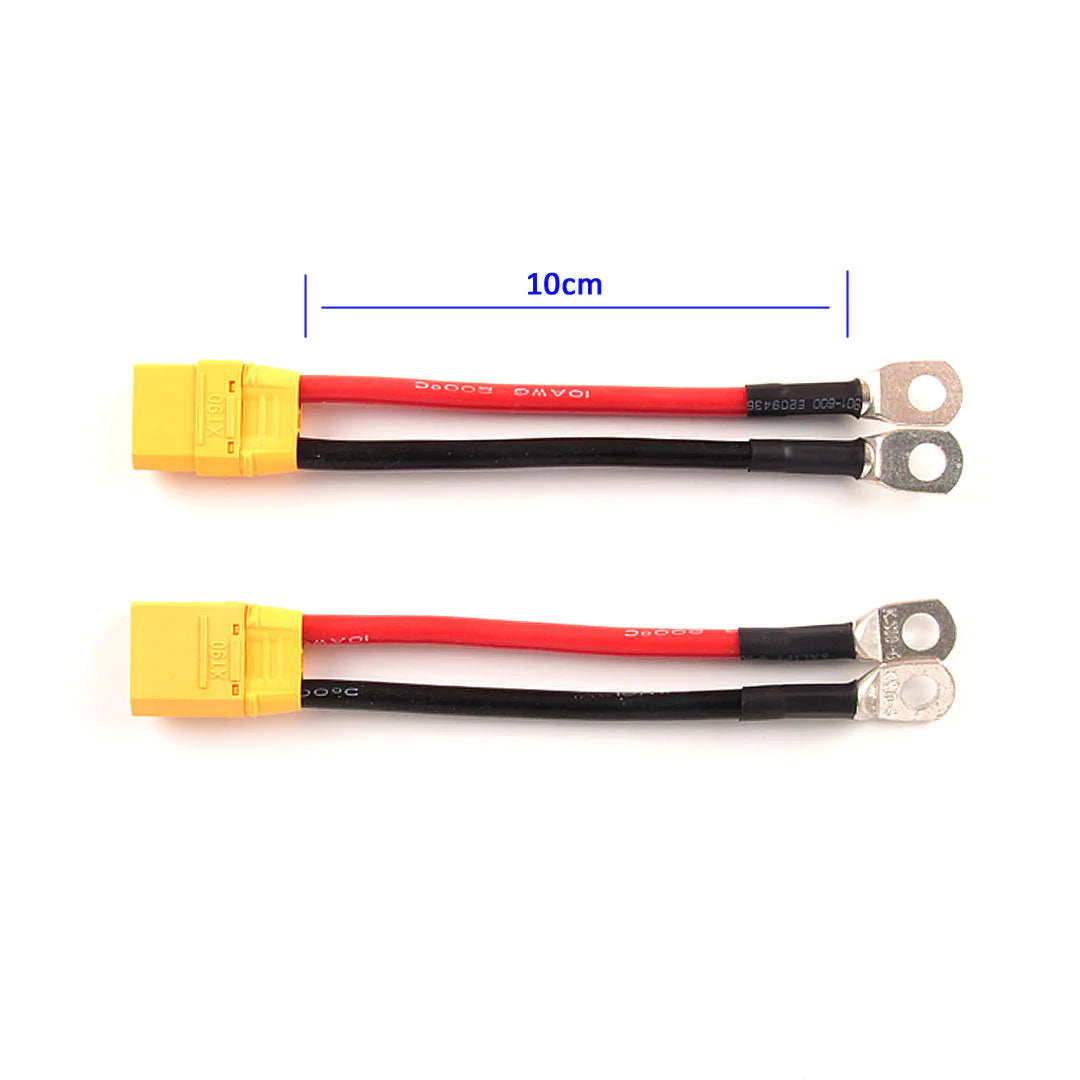

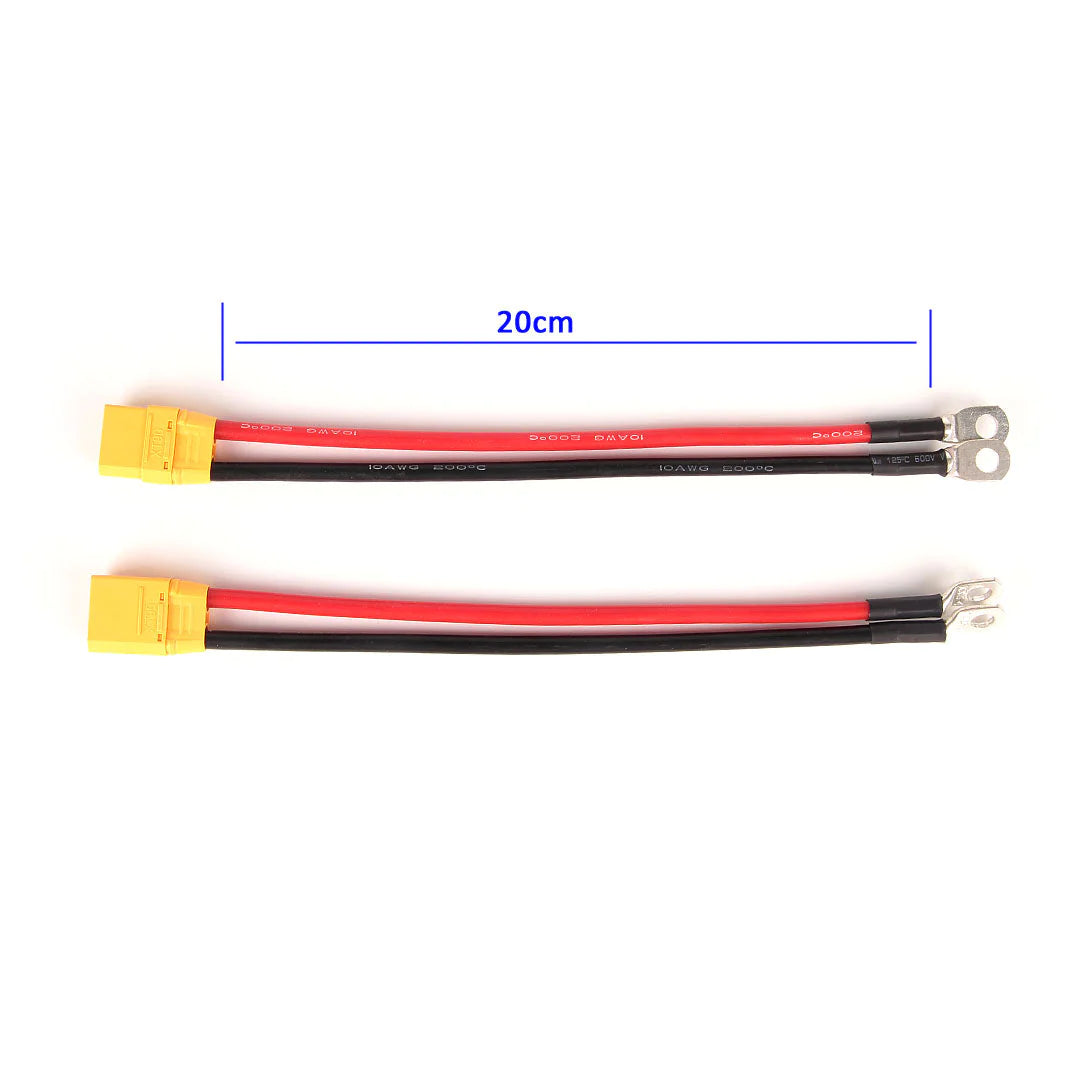

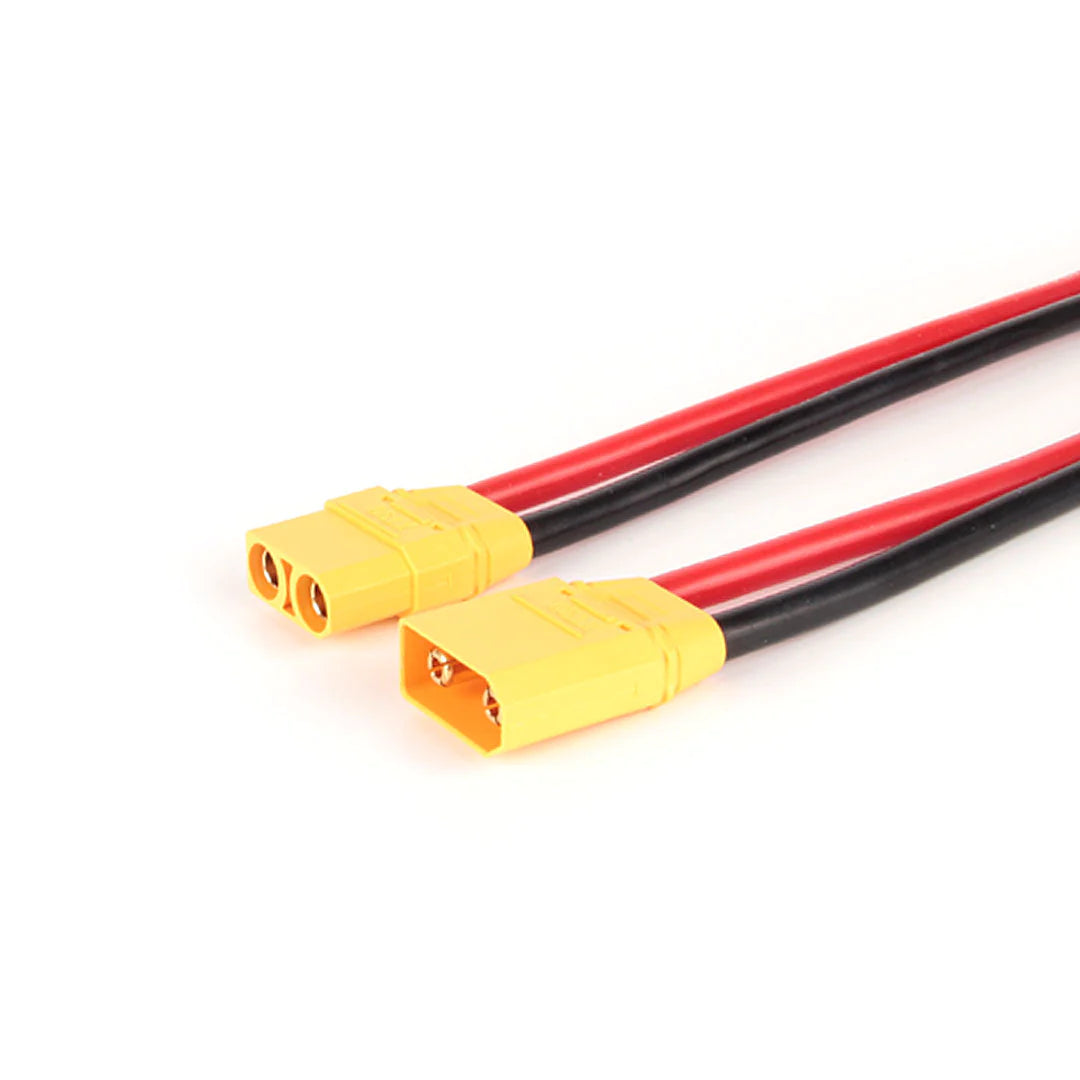

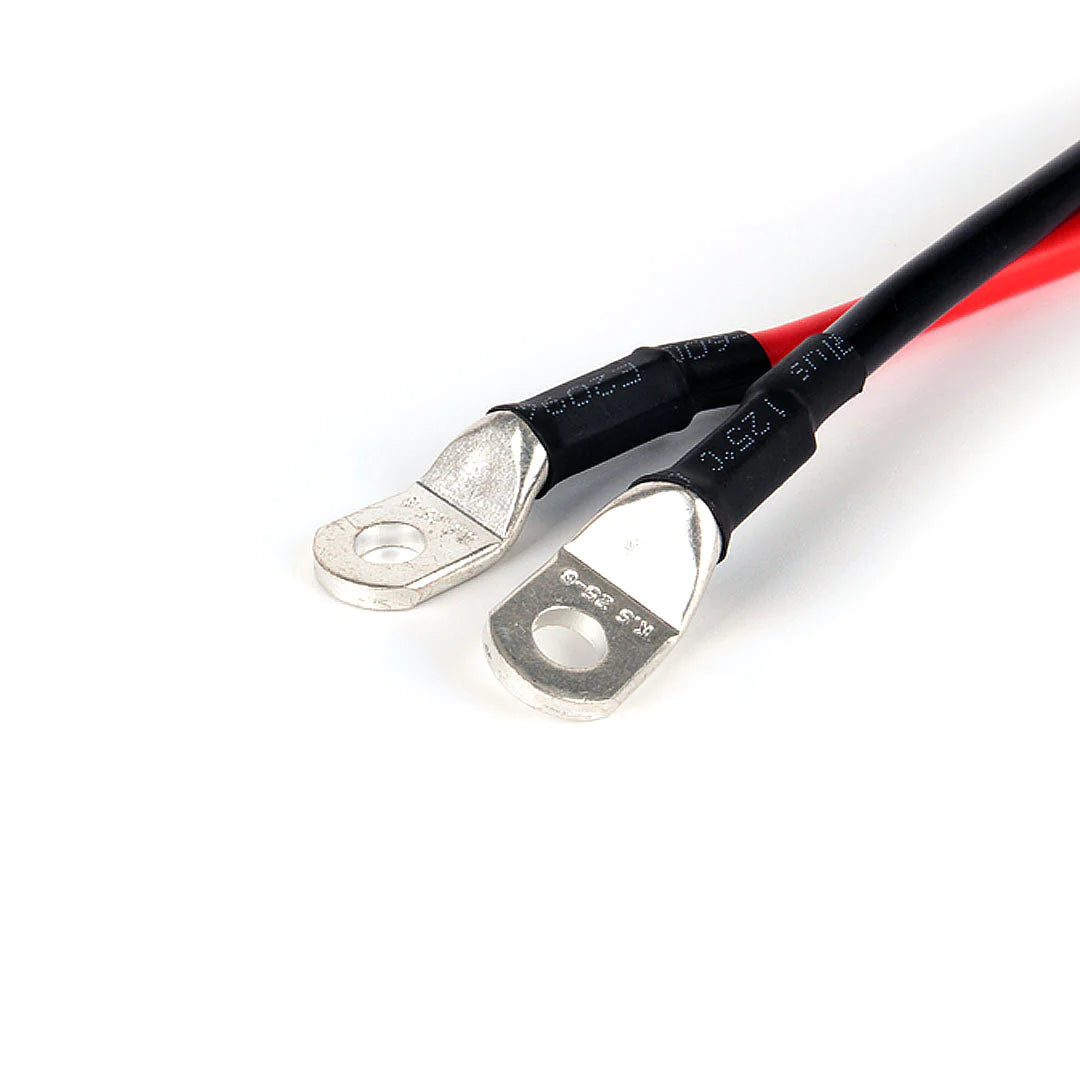

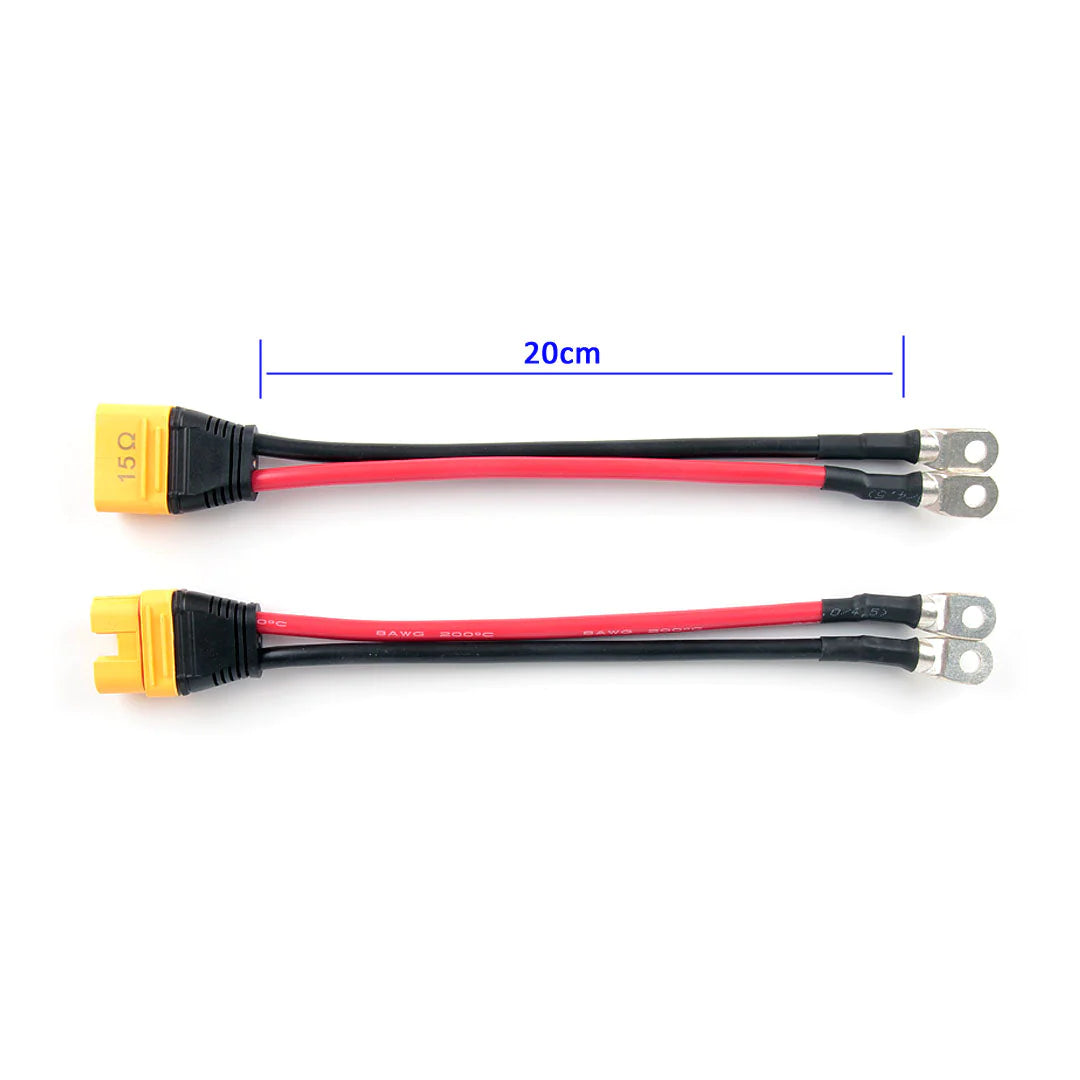

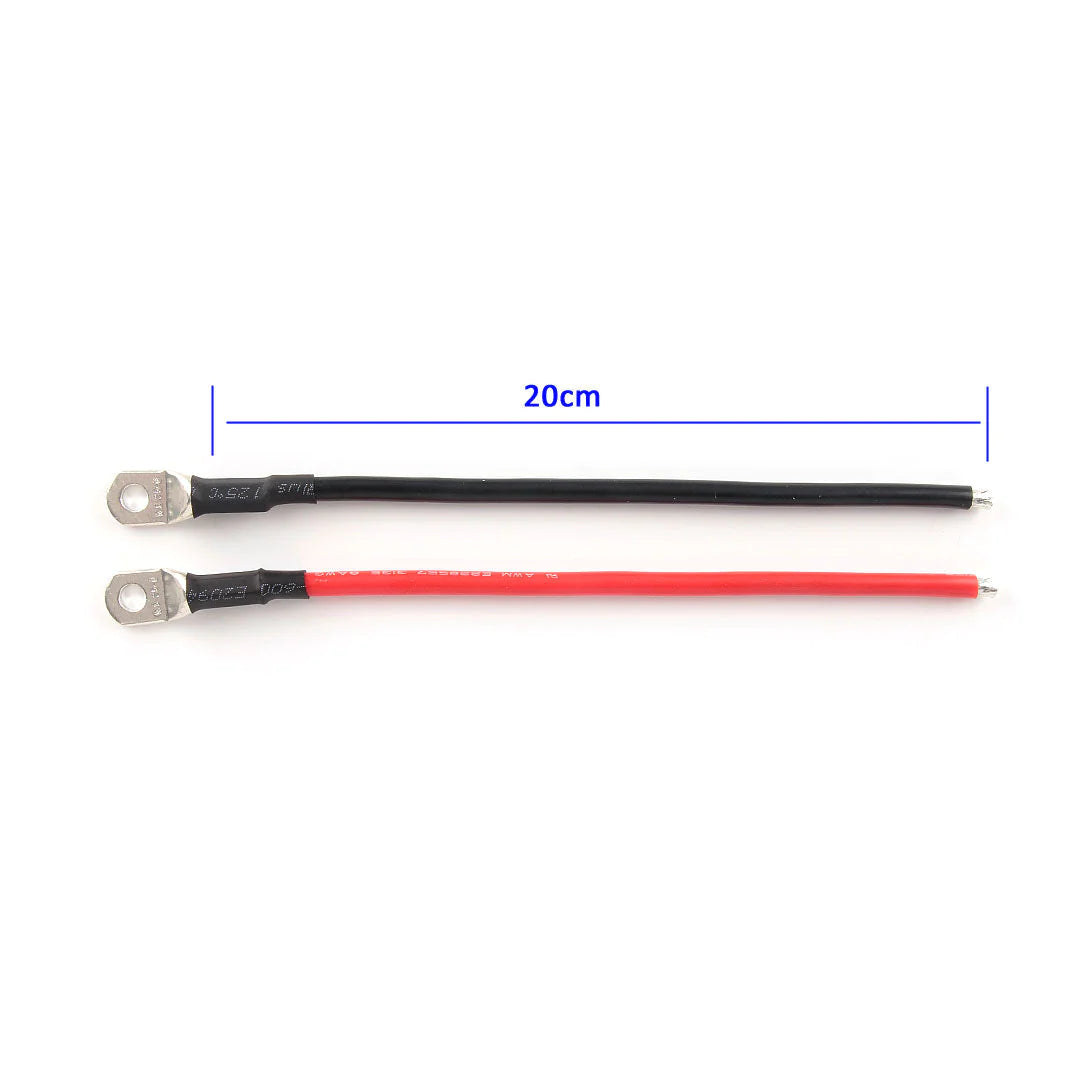

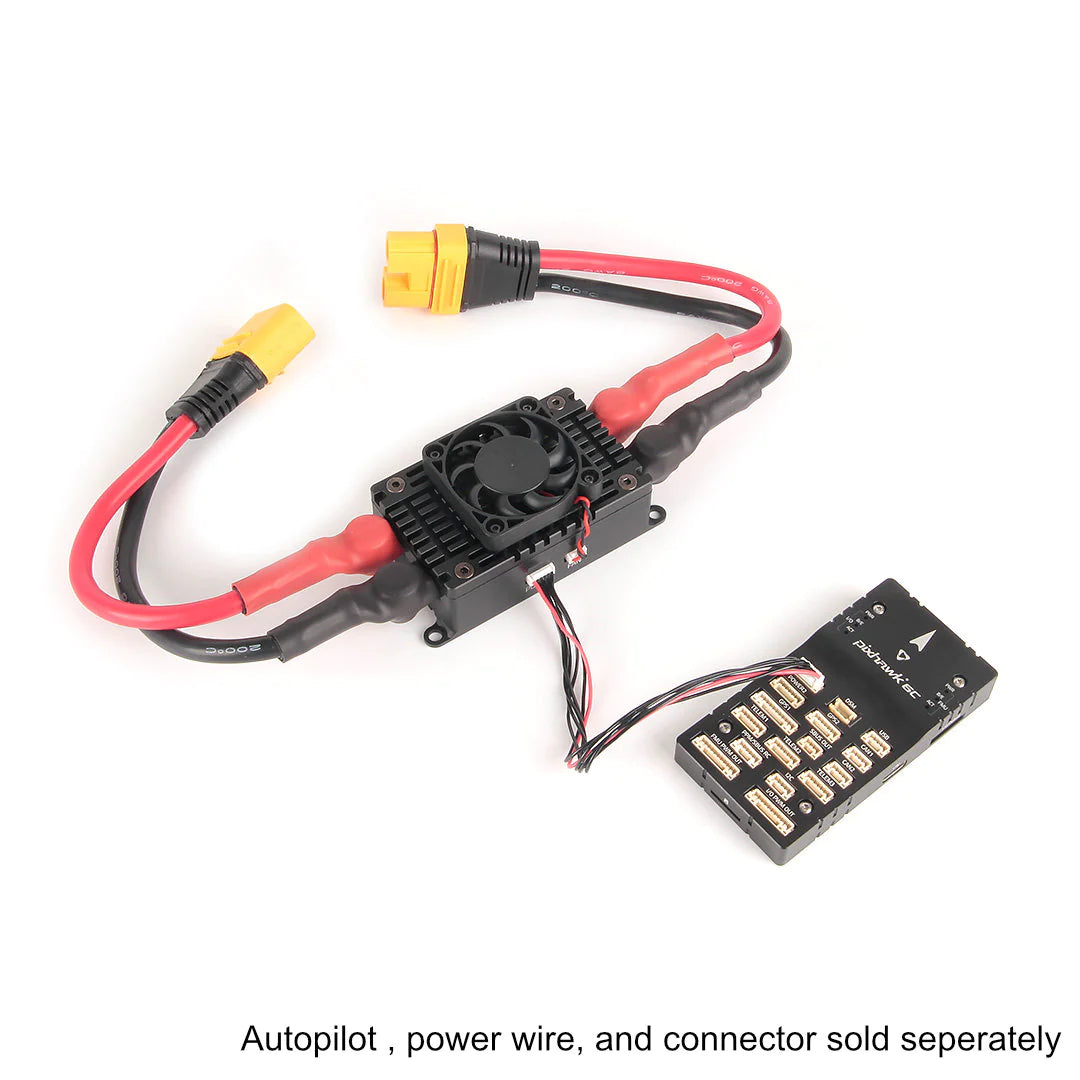

Connector & Wiring Set:

Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.

PM08 3D CAD File Download

Power Module Dimension
