Holybro Tekko32 F4 4in1 Mini 50A ESC

Holybro Tekko32 F4 4in1 Mini 50A ESC

HolyBro

$87.00 USD
$87.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

77 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Features:

  • All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Battery Supports: 4-6S
  • PWM Frequency: 16k to 96k
  • Supports DShot 150/300/600/1200/2400
  • Supports MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
  • Dimension: 32 x 40 mm

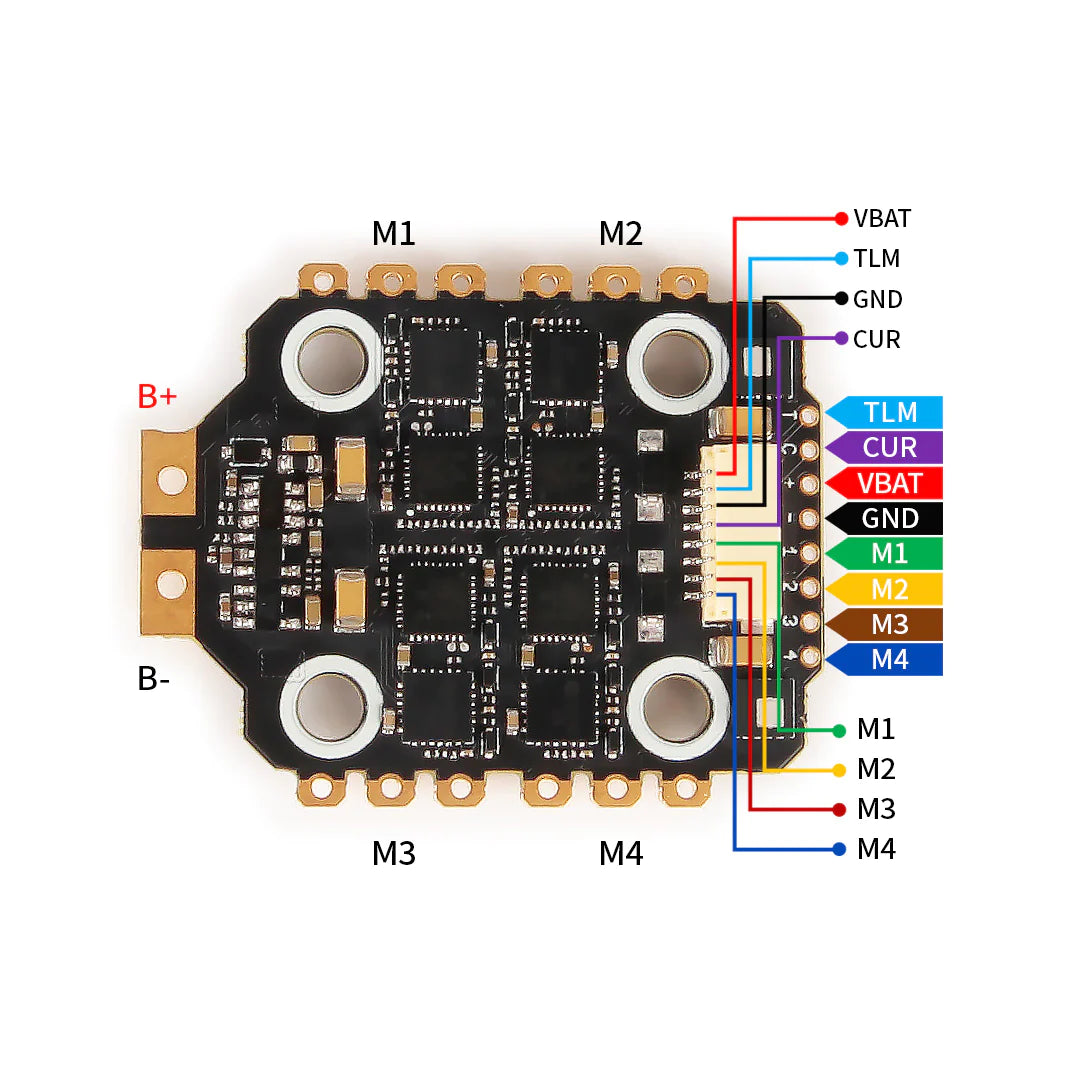

    PIN MAP:

    ESC telemetry Supported Onboard analog current sensor BLHeli_

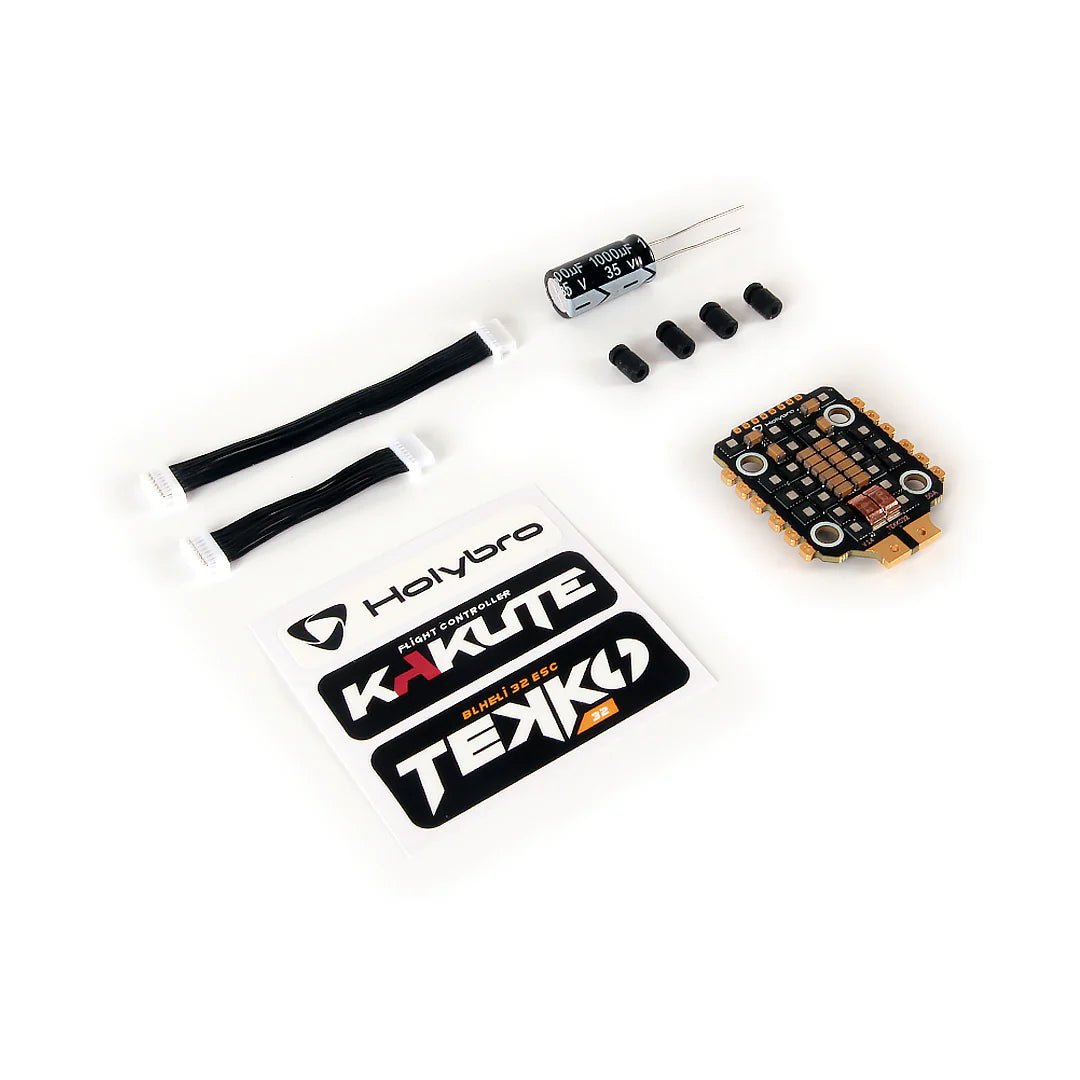

    Package included:

    • Tekko32 F4 4in1 mini 50A ESC *1
    • M2 Anti-Vibration Silicone Grommet Insert *4
    • M3 Anti-Vibration Silicone Grommet Insert *4
    • Electrolytic capacito: 1000uF 35v *1
    • 8pin to 8pin 1mm pitch 65mm cable *1
    • 8pin to 8pin 1mm pitch 25mm cable *1
