HolyBro X500 V2 Frame Kit / ARF Kit - 500mm Wheelbase Carbon Fiber Frame Kit 4PCS 2216 KV880 Motor 20A ESC 1045 Propeller PDB Combo Camera Drone

HolyBro X500 V2 Frame Kit / ARF Kit - 500mm Wheelbase Carbon Fiber Frame Kit 4PCS 2216 KV880 Motor 20A ESC 1045 Propeller PDB Combo Camera Drone

HolyBro

Regular price $184.80 USD
Regular price Sale price $184.80 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

30 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

HolyBro X500 V2 Frame Kit / ARF Kit SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Origin: Mainland China

Model Number: X500 V2 Kit

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

HolyBro X500 V2 RTF Version 500mm Wheelbase Carbon Fiber Frame Kit 4PCS 2216 KV880 Motor 20A ESC 1045 Propeller PDB Combo drone


ARF=Frame+Motor+ESC+ SERVO+Propeller+PDB,you need to buy battery and remote controller
Feature:

  • Almost Ready-to-Fly (ARF) Kit with new design and minimal assembly time (~15 minutes)
  • Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation
  • Pre-installed motors & ESCs with simple XT30 power plugs for PDB
  • Power distribution board (PDB) with XT60 & XT30 plugs - no soldering needed
  • Mount for companion computer such as Raspberry Pi & Nvidia Jetson Nano
  • Optional depth camera mount for Intel RealSense & Structure Core

Product Description:

The X500 V2 ARF (Almost Ready-to-Fly) Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared the previous model.

This frame is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fiber reinforced nylon connectors with convenient notches on both motor and body sides, providing a much easier & more straightforward installation. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened.
The spacing between top and bottom carbon fiber plates has been increased to provide an easier access. The platform board now has mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano. The adjustable battery mounting board has been enlarged to support bigger batteries for longer flight time. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. There is an optional mount for various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras (purchase separately). All tools for installation provided in box.

Kit Contents:

  • Preinstalled parts(RTF Version)
    • Motors - Holybro 2216 KV880 Motor (4 pcs)
    • ESCs - BLHeli S ESC 20A (4 pcs)
    • 1045 Propellers (4 pcs)
    • Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals
  • X500 V2 Frame Kit
    • Body - Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)
    • Arm - High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber reinforced nylon connectors
    • Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
    • Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
    • Dual 10mm Ø rod x 250 mm long rail mounting system
    • Battery mount with two Battery Straps
    • Hand tools for installation
  • Wheelbase: 500mm
  • Motor mount pattern: 16x16mm
  • Frame Body: 144x144mm, 2mm thick
  • Landing gear height: 215mm
  • Space between top and bottom plates: 28mm
  • Weight: 610g

Recommendation Combination
(Not Included):

  • Flight Controller - Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
  • Power Module - PM02D, PM02 V3
  • GPS - Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
  • Battery - 4S 2000-5000mAh Lipo



Here is the RTF VERSION PICTURE:

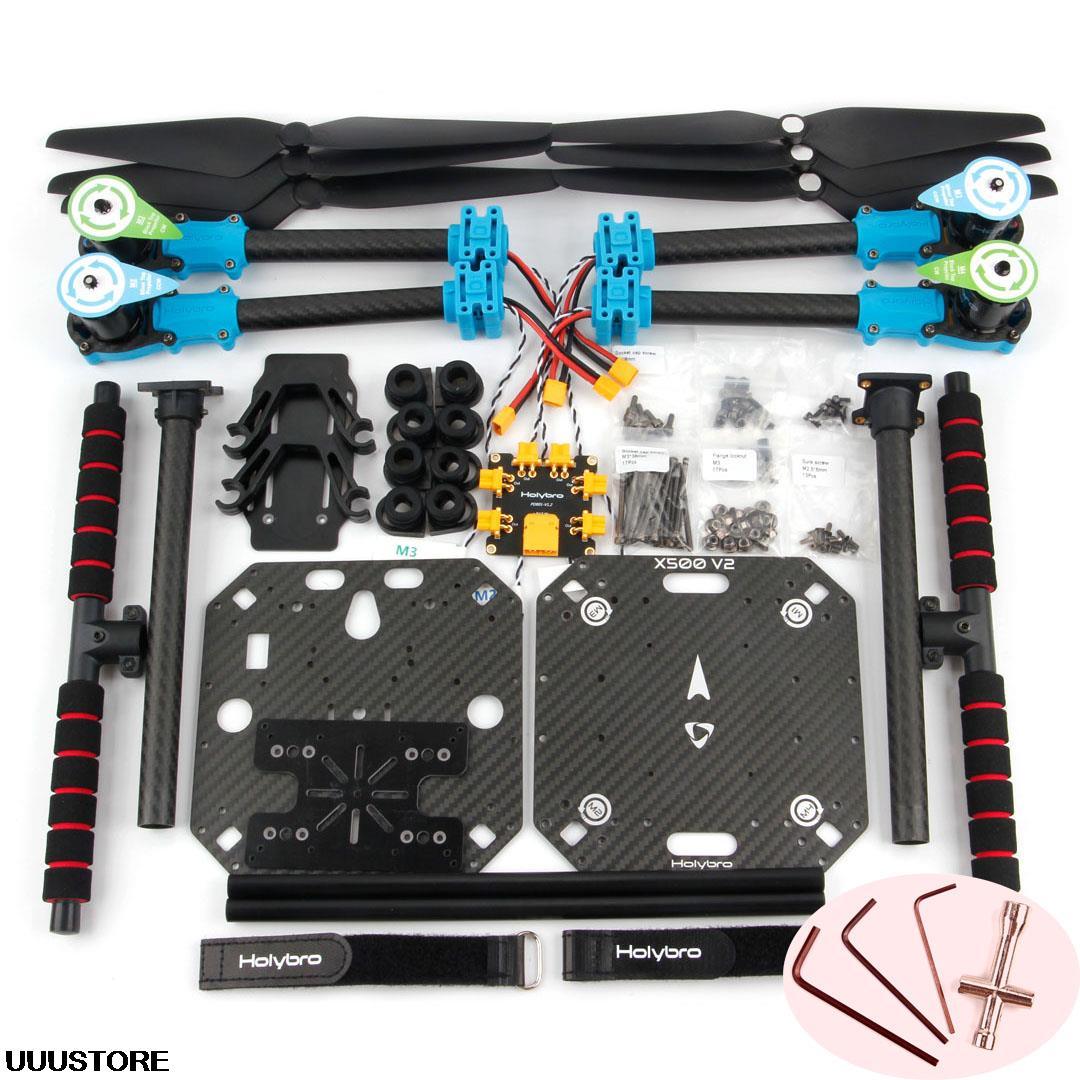

HolyBro X500 V2 Frame Kit / ARF Kit, All tools for installation provided in box

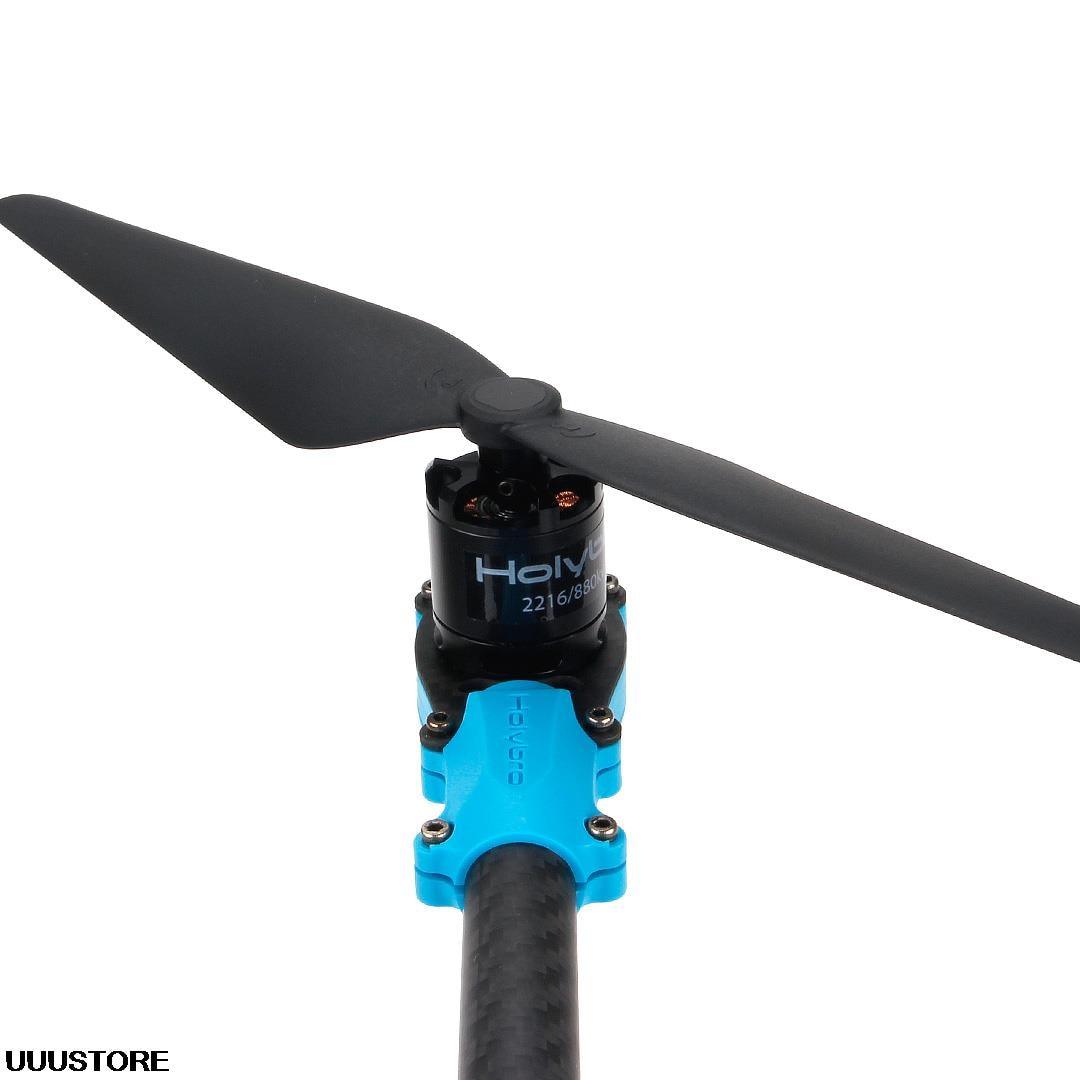

HolyBro X500 V2 Frame Kit / ARF Kit, the rail mounting system is ready to take a whole host of camera mounts and g

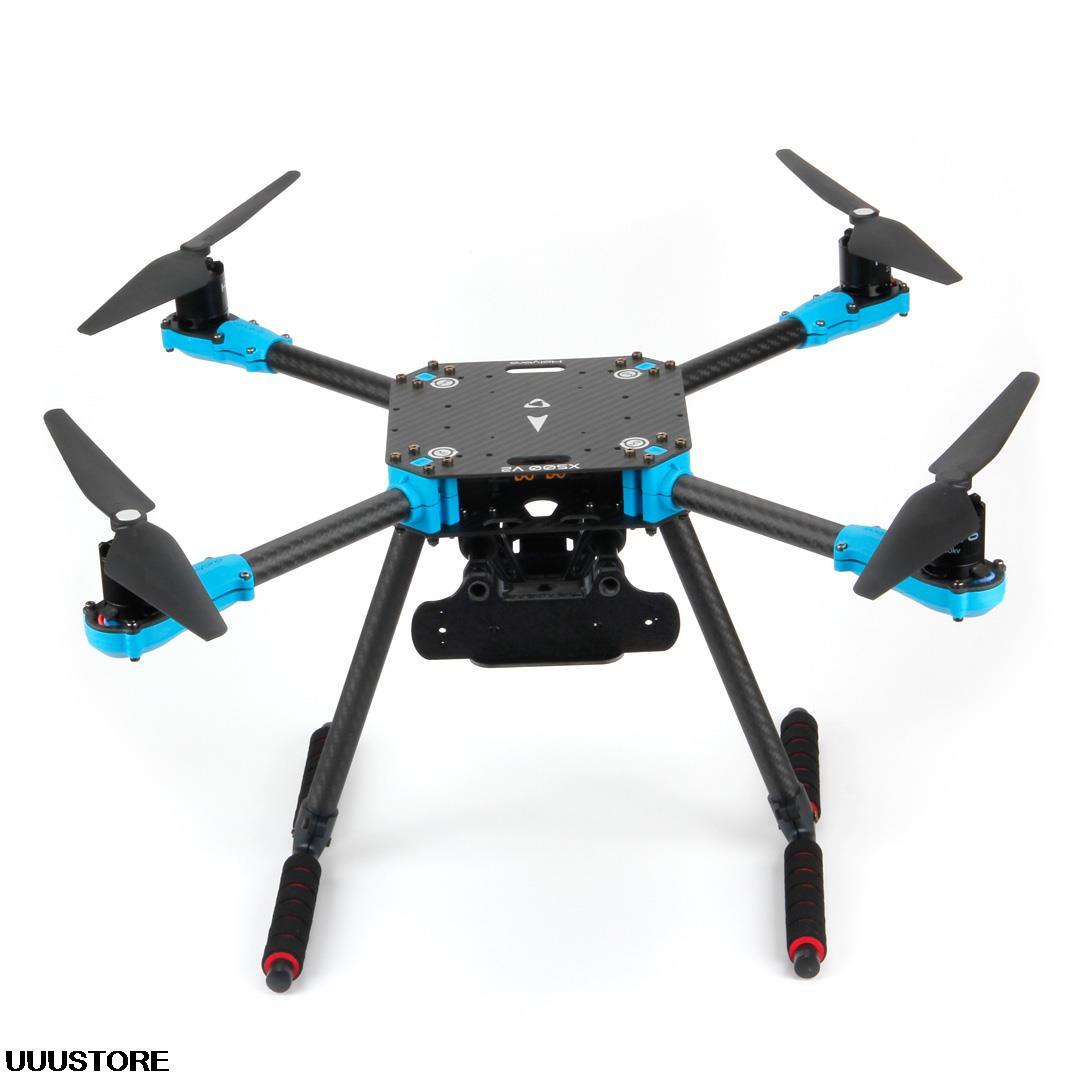

HolyBro X500 V2 Frame Kit / ARF Kit, HolyBro X500 V2 ARF Kit is an affordable, lightweight, and robust carbon

HolyBro X500 V2 Frame Kit / ARF Kit, this frame is made with full carbon fiber twill, with carbon fiber tube arms supported by

HolyBro X500 V2 Frame Kit / ARF Kit, Holvbro UUUSTORE X5oOVz HalvUS Holv

Here is kit version:

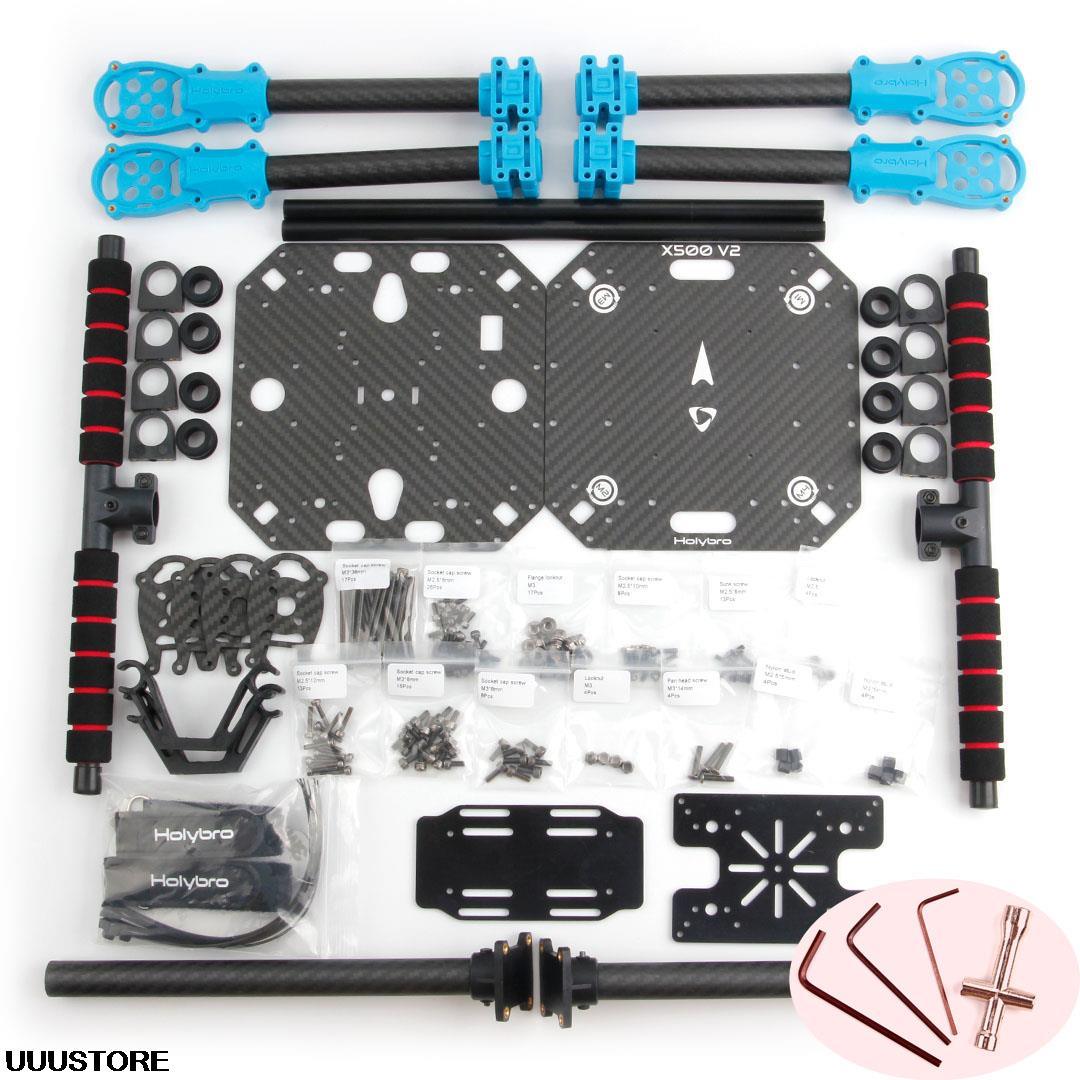

HolyBro X500 V2 Frame Kit / ARF Kit, this frame is made with full carbon fiber twill, with carbon fiber tube arms supported by

HolyBro X500 V2 Frame Kit / ARF Kit, comes with the X500 V2 Frame Kit and motors, ESCs, power

HolyBro X500 V2 Frame Kit / ARF Kit, comes with the X500 V2 Frame Kit and motors, ESCs, power

HolyBro X500 V2 Frame Kit / ARF Kit, HolyBro X500 V2 Frame Kit

HolyBro X500 V2 Frame Kit / ARF Kit, the rail mounting system is ready to take a whole host of camera mounts and g
