• Built in 2.4G ELRS w/SMD Antenna


• Support BLHeliSuite programmable

• 5A continuous current

• Super light only 4.8g

• MCU：STM32F411

• Power supply: 1S

• Gyro: BMI270

• Built-in VTX


FC // BLITZ F411 1S 5A Whoop AIO Board

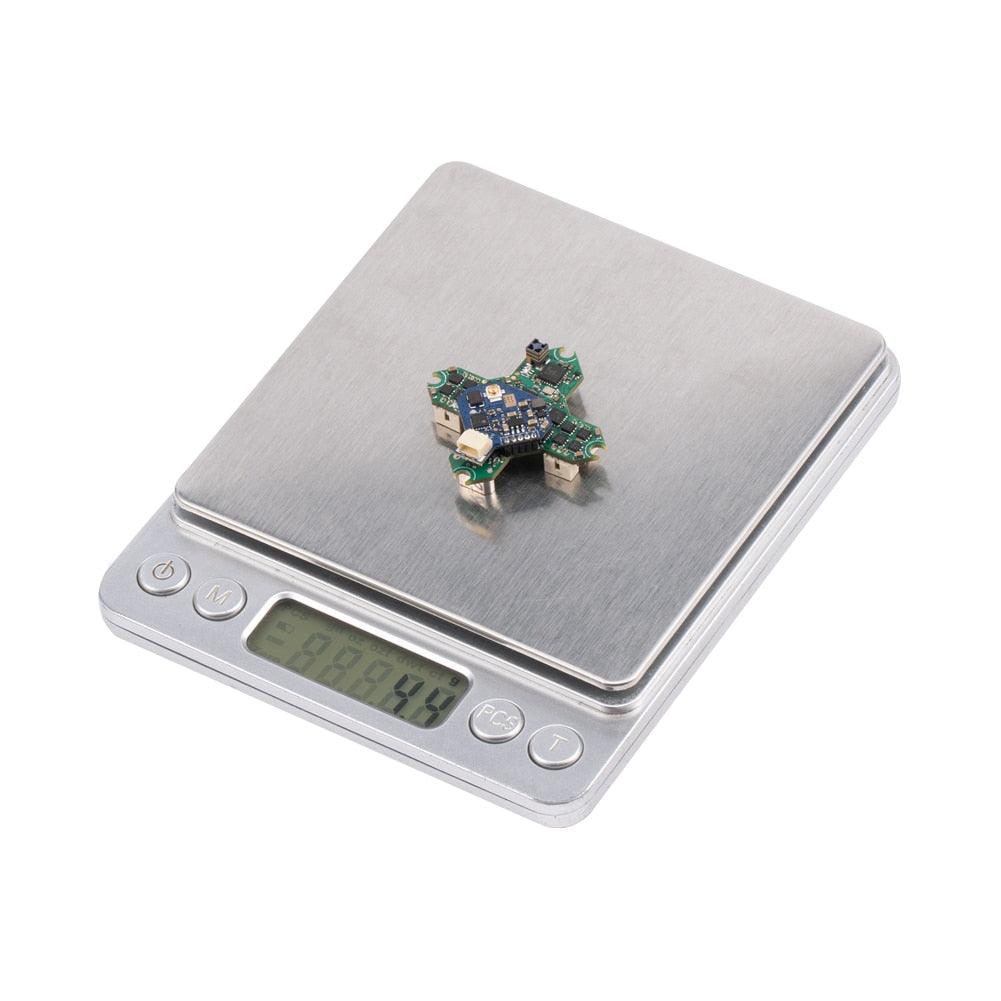

• Weight: 4.8g (with power cable, VTX, and VTX antenna)


• Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)

• FC Firmware: IFLIGHT_BLITZ_F411RX


• BEC output: 5V 500mA


• Connector: Micro-USB

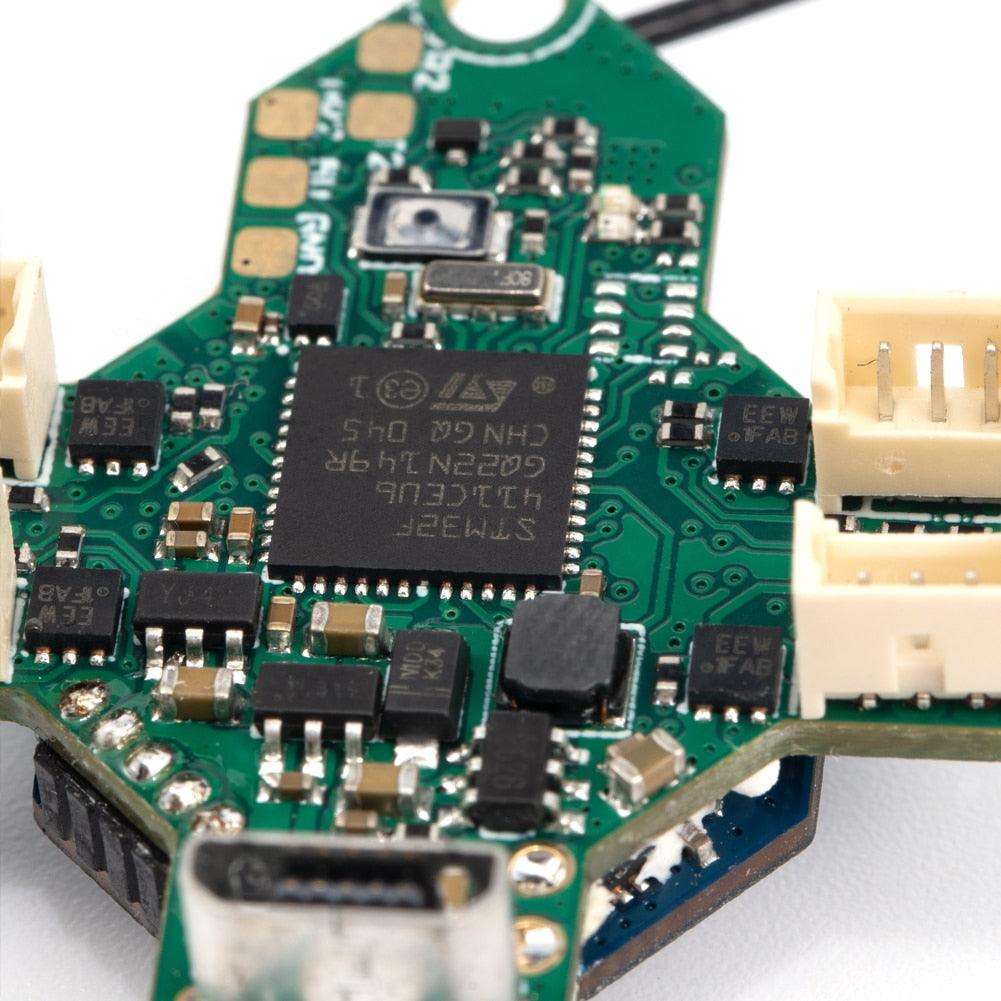

• MCU: STM32F411

• INA pad: n uart2

• Barometer: NO

• Size: 29*29mm


• Gyro: BMI270

• Blackbox: NO

• NOTE: F.PORT protocol RX input support, telemetry not supported.


ESC // 5A

• Signal Support: Dshot, Oneshot, Multishot


• Current: 5A continuous and peak 6A

• ESC Firmware: O-H-30 BLS 16.8

• Current sensor: yes

• ESC Telemetry: NO

• Current scale: 400


• BLHeli: BLHeli-S


• Input: 1S

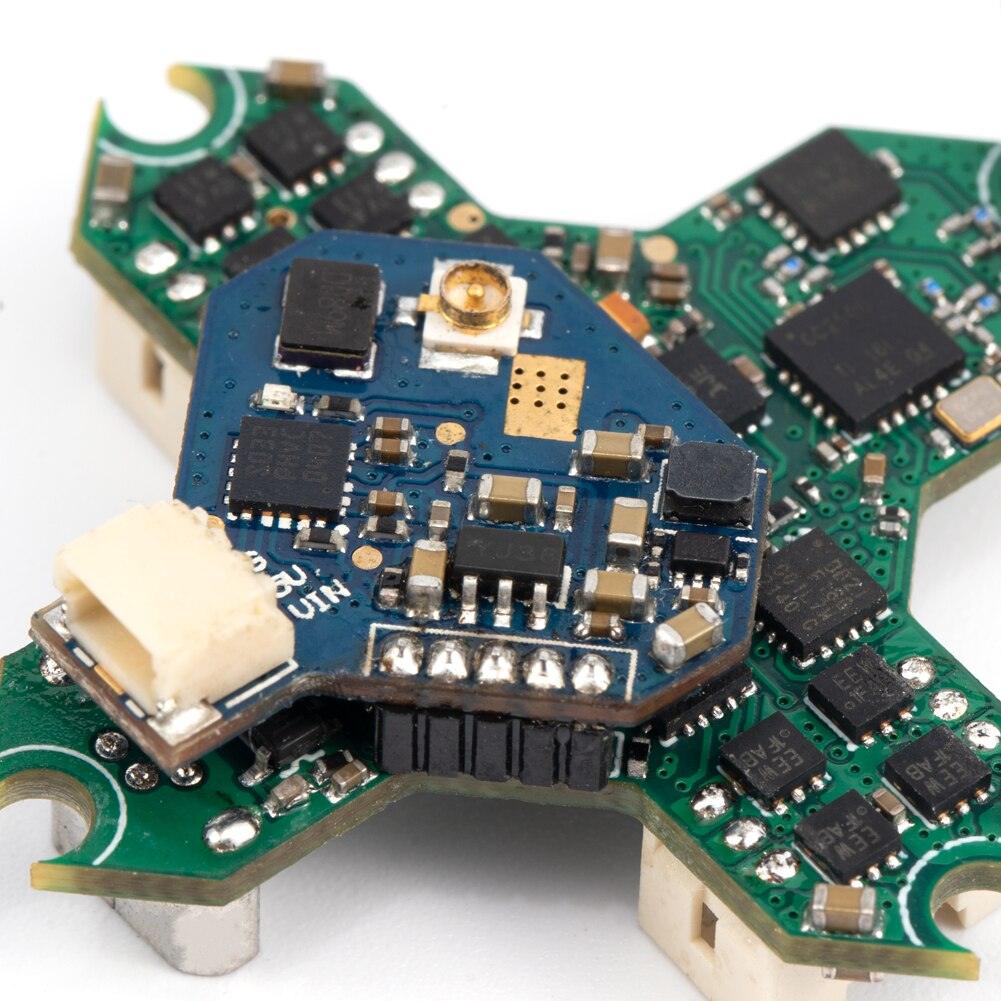

VTX：

• Protocol: Smart audio

• Power: PIT/25/50mW

• Connector: UFL/IPEX

• Input voltage: 5V


• Channels: 48CH


Package Includes:

• 1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G CC2500 Receiver / 2.4G ELRS w/SMD Antenna (As optional)

• 4 x M2 Rubber Balls


• 1x Whip antenna
