Overview

The iFlight BLITZ H7 Pro Combo is a high-performance flight controller and ESC solution designed for demanding long-range and heavy-lift FPV drones. With support for 4S to 12S Lipo, an STM32H743 MCU, and up to 80A continuous current, it delivers professional-grade performance and durability. Users can choose from two configuration options:

  • Combo 1: H7 Pro FC + 1× E80 ESC

  • Combo 2: H7 Pro FC + 2× E80 ESCs (for redundant/power-split builds)

The ESC also offers an optional CNC aluminum heat sink cover for advanced thermal protection and EMI shielding, especially for high-amperage builds.

Flight Controller: BLITZ H7 Pro

Key Features

  • 12S Ready: Supports 14.8–50.4V (4S–12S) input

  • Strong Core: STM32H743 processor, 7 UARTs, SD card blackbox

  • Firmware Support: Compatible with Betaflight, INAV, and ArduPilot

  • Shielded Design: Dual-sided EMI shielding, detachable for easy TF card access

  • Flexible Connectivity: GH1.25 connectors, UART mapping for VTX, GPS, Receiver, ESC telemetry

Specifications

Parameter Value
MCU STM32H743
Gyro ICM42688
Barometer DPS310
OSD AT7456E
Blackbox SD Card
Input Voltage 14.8V–50.4V (4S–12S)
BEC 5V 3A, 12V 2.5A
Mounting 35×35mm (Φ4)
Dimensions 42×42×11.3mm
Weight 20g
Firmware Target BF: IFLIGHT_BLITZ_H7_PRO / INAV / ArduPilot

Suggested Wiring

  • UART1: VTX (HD/Analog)

  • UART2: Receiver

  • UART4: GPS

  • UART5: ESC Telemetry

  • 8× DShot/PWM Outputs

  • 2× I2C for Compass Modules

ESC: BLITZ E80 4-IN-1

Key Features

  • 80A Continuous / 100A Burst

  • 4OZ PCB with 8-layer copper design

  • Automotive-grade MOSFET (PSMN1R0-40YLD)

  • TI synchronous rectifier buck converter, 100V withstand

  • 48MHz G071 MCU

  • BLHeli_32 firmware with telemetry and current sensor support

Specifications

Parameter Value
Input Voltage 2–8S Lipo
Continuous Current 80A
Burst Current 100A
MCU G071
Firmware BLHeli_32
Telemetry Supported
Current Sensor Yes
Dimensions 35×42mm
Mounting 35×35mm / Φ3mm
Weight 65g ±10g
Protocol DShot150/300/600, MultiShot, OneShot

CNC Aluminum Cover (Optional)

You may choose between:

  • With CNC Alum Cover: Provides heat dissipation and mechanical protection

  • Without CNC Cover: Lightweight for racing or optimized cooling

⚠ Note: If using the CNC aluminum version, please use the "BLHeliSuite32Test" software from our [Downloads] section for parameter adjustments, as BLHeli32 public config tool is restricted.

Combo Options

  • Combo 1: 1× BLITZ H7 Pro FC + 1× E80 4-IN-1 ESC

  • Combo 2: 1× BLITZ H7 Pro FC + 2× E80 4-IN-1 ESCs (e.g., for octocopters or redundancy)

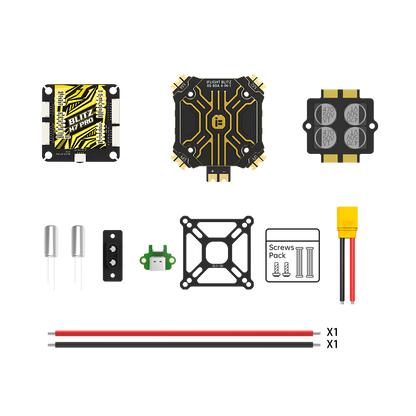

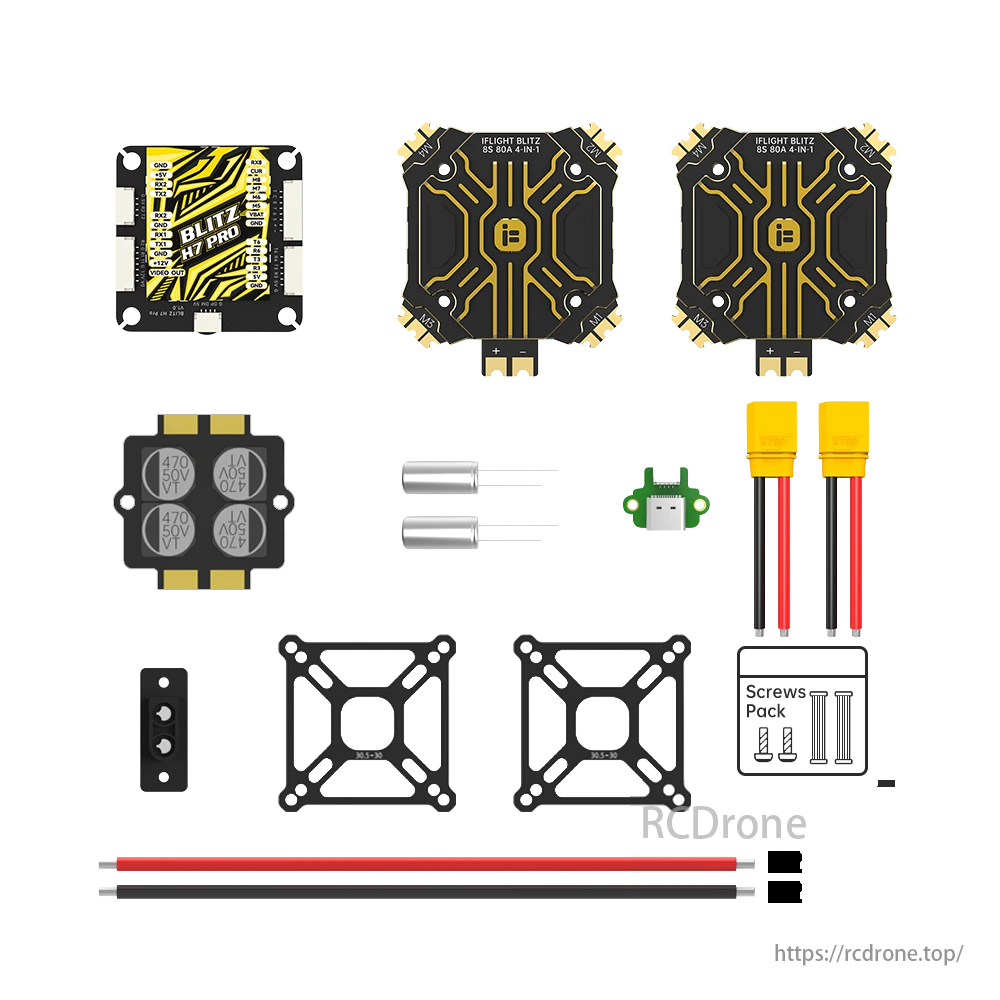

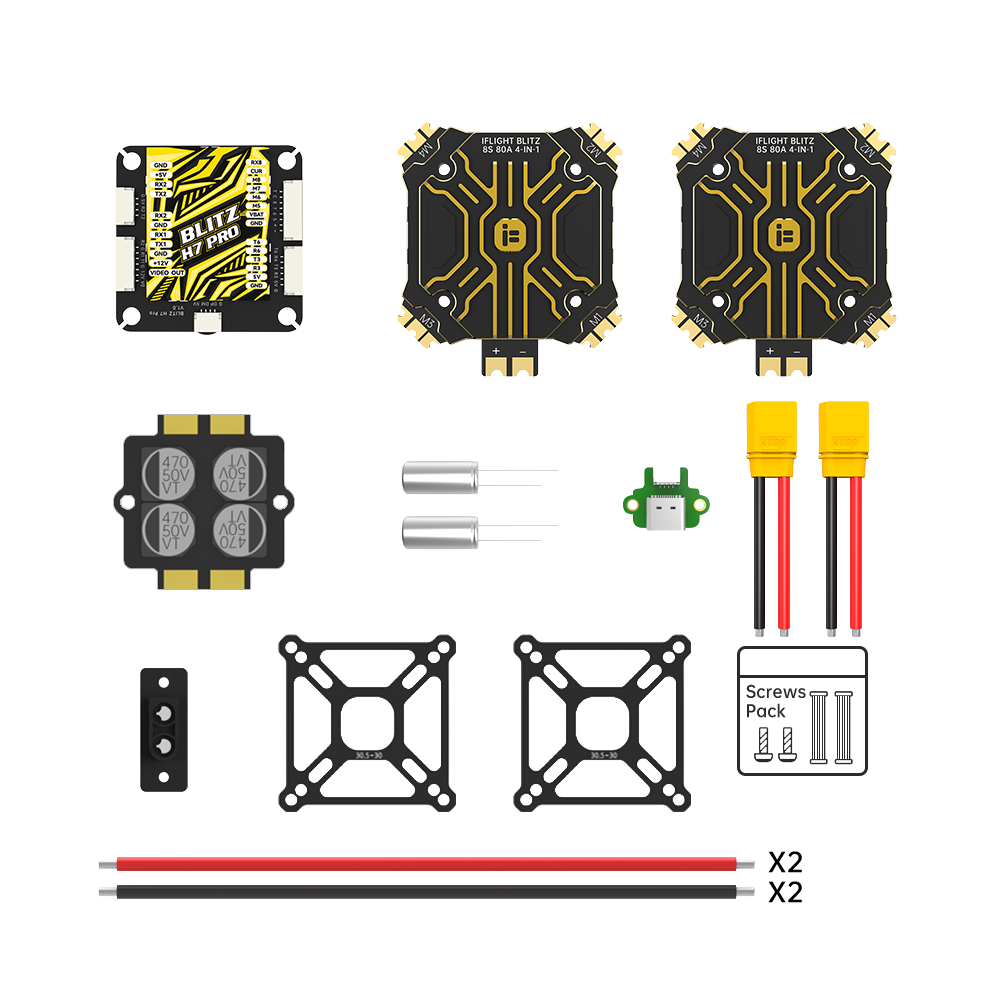

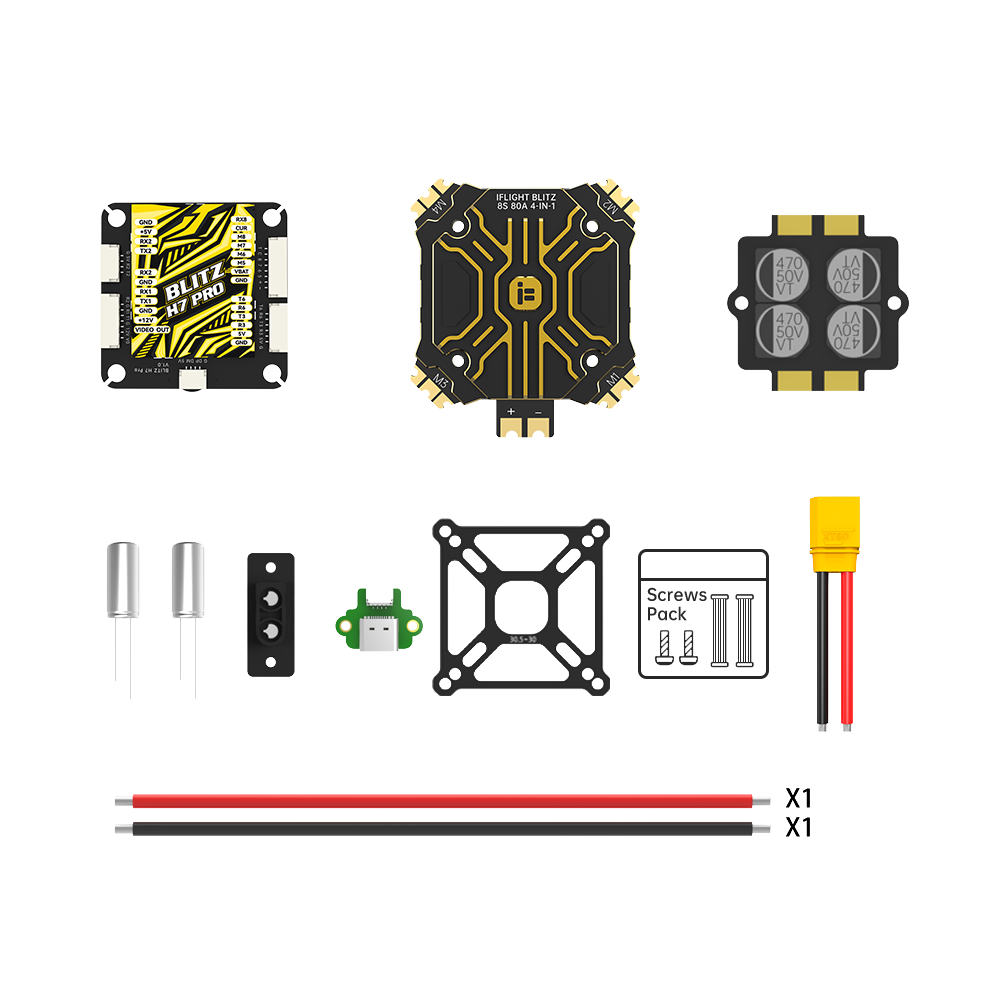

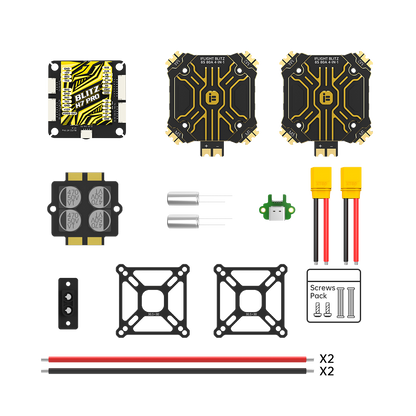

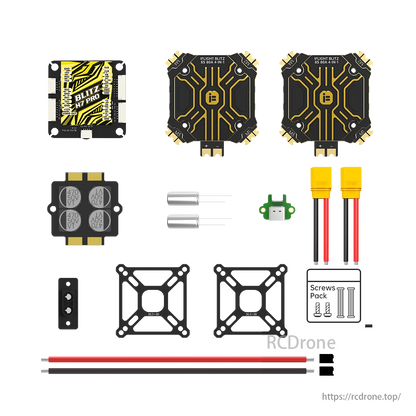

Packing List

  • 1× BLITZ H7 Pro Flight Controller

  • 1× E80 4-IN-1 ESC (Combo 1) / 2× E80 4-IN-1 ESCs (Combo 2)

  • 1× 50V 470uF Capacitor Plate

  • 2× 50V 1000uF Capacitors

  • 1× Wiring Set

  • 1× USB Adapter Board
