Description：

Top Features:

• Improved circuit design, better components and lower electrical noise!

• DJI HD VTX Connector (Plug-and-Play / No soldering required)

• FC indicator LEDs for visual debugging


Changelog:

• 2022/Feb: Version updated to V1.1 / Gyro changed to Bosch BMI270 due to availability & price issues with MPU6000.


Specifications:

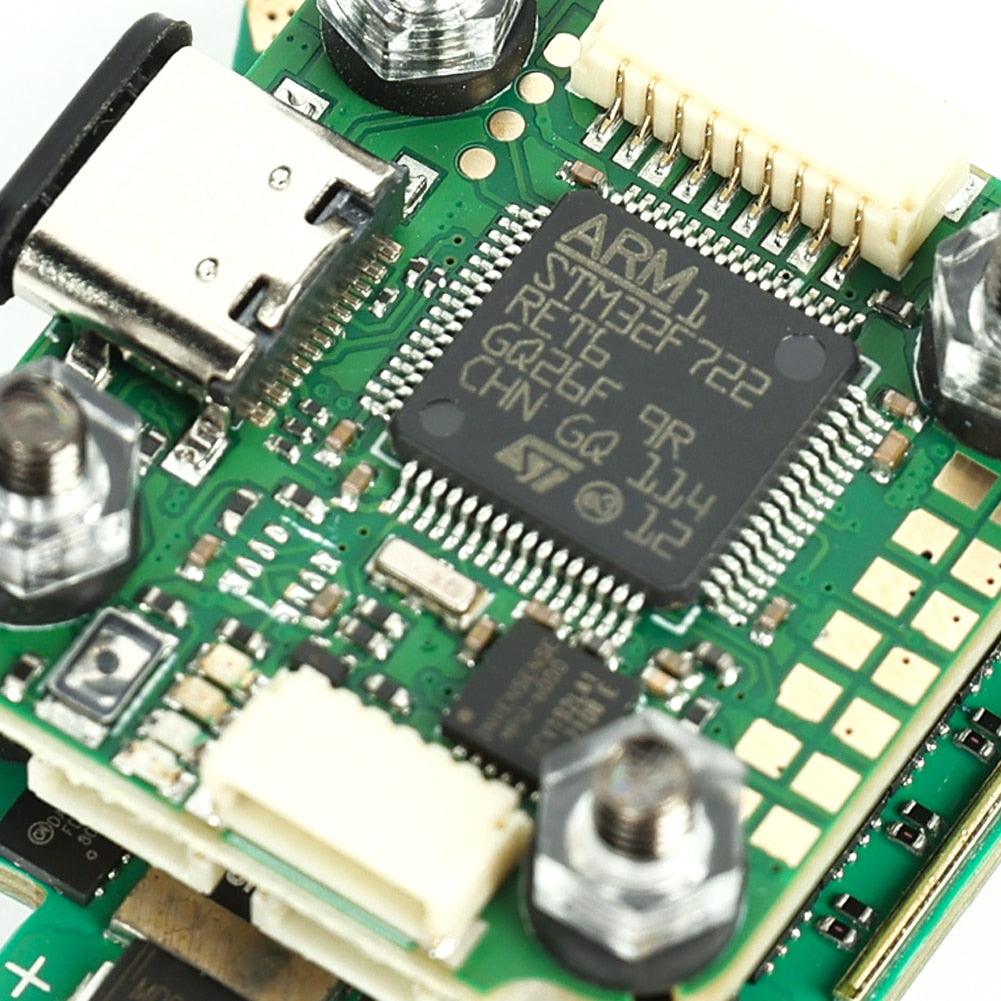

• MCU:   STM32 F722

• Gyro:   BMI270

• Barometer:  DPS310

• OSD Chip:   AT7456

• Flash:   16MB (Blackbox flash)

• UARTS:   6

• Motor outputs:   4x (SH1.0 connector)

• I2C serial:   SDA / SLA pads

• Smartaudio / IRC Tramp VTX protocol supported

• LED controller:   Yes

• Beeper pad:   Yes

• Firmware target:   IFRC-IFLIGHT_BLITZ_F722

• Mount pattern:   20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

• Dimensions:   30.5x27 mm

• Weight:   5g


Wiring suggestion:

• UART 1 for VTX HD / Analog

• UART 2 for a Receiver

• UART 3/4/5 for GPS or other sensors that require a serial port

• UART 6 for ESC Telemetry


Tips

• 1. F722 MCU has an inner inverter.

• 2. SBUS、CRSF、ELRS、IBUS、DSM ETC... can be connected to any unused UART_RX，we suggest you connect to Uart_RX2

• 3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1

• 4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2

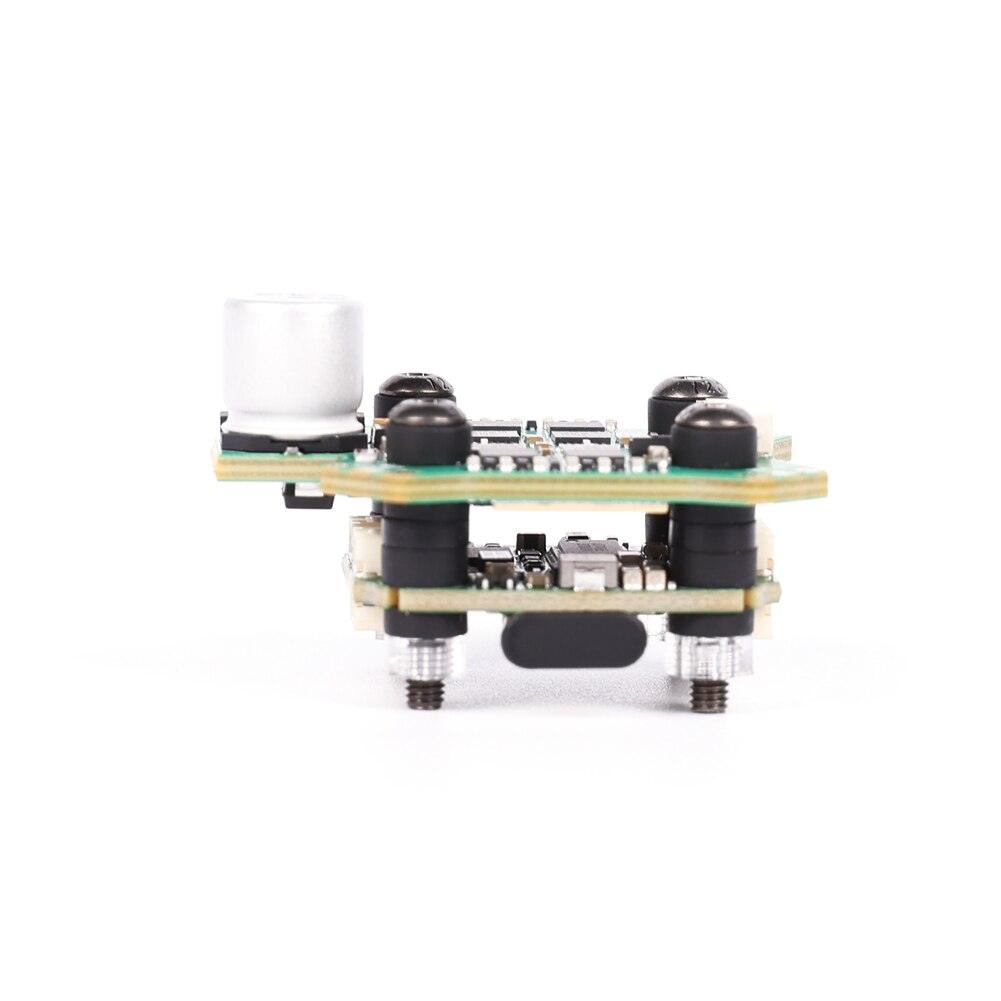

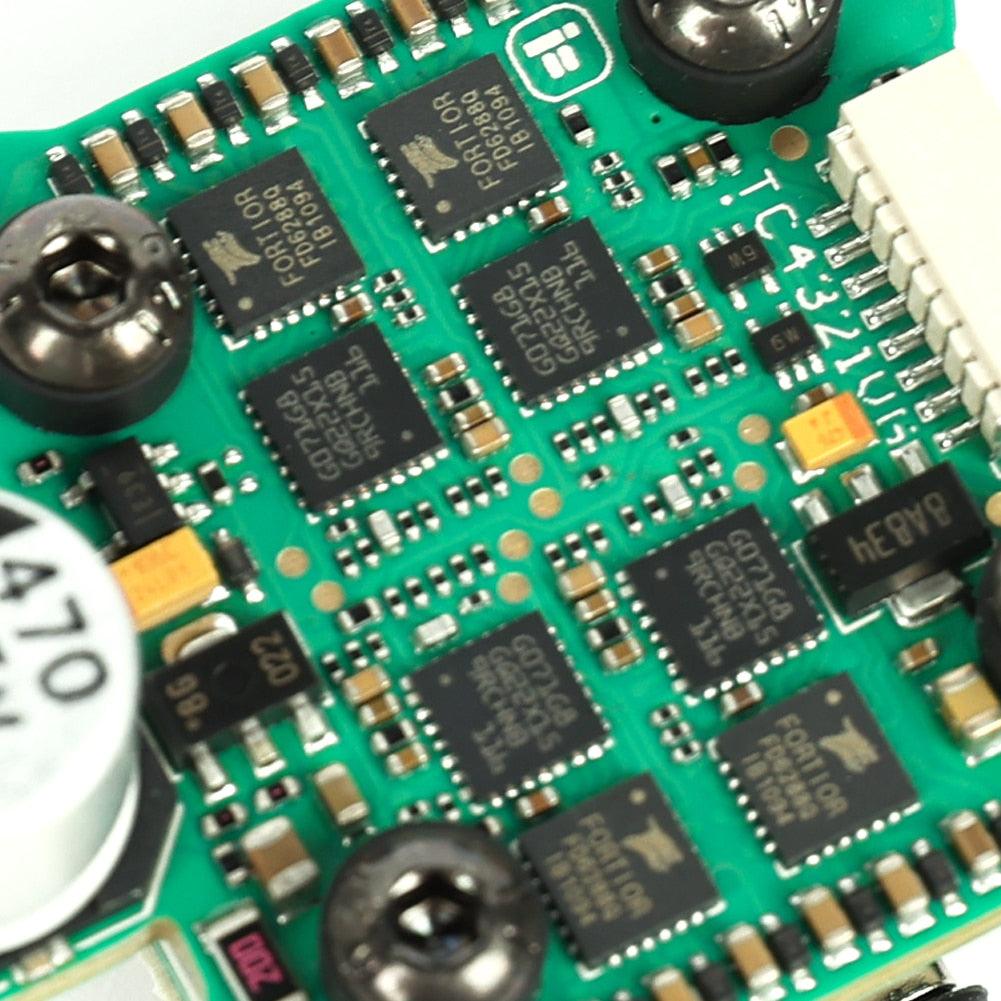

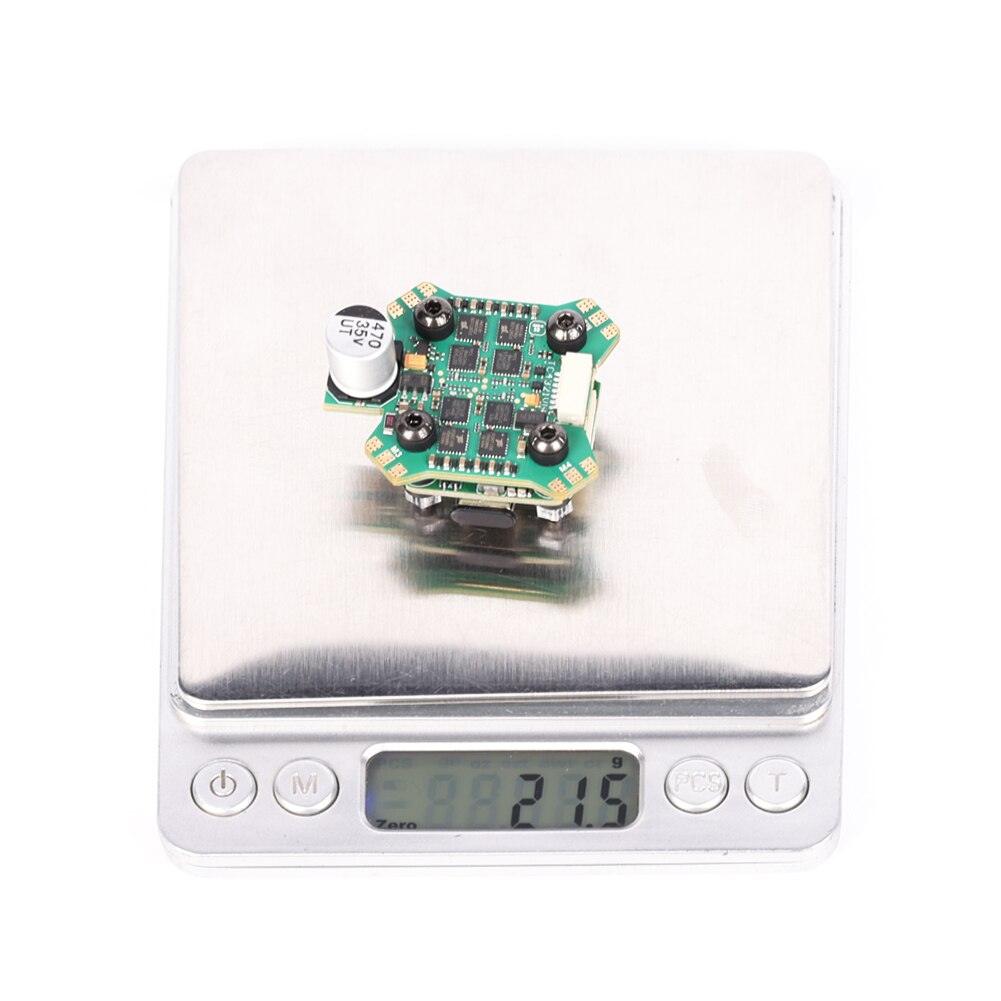

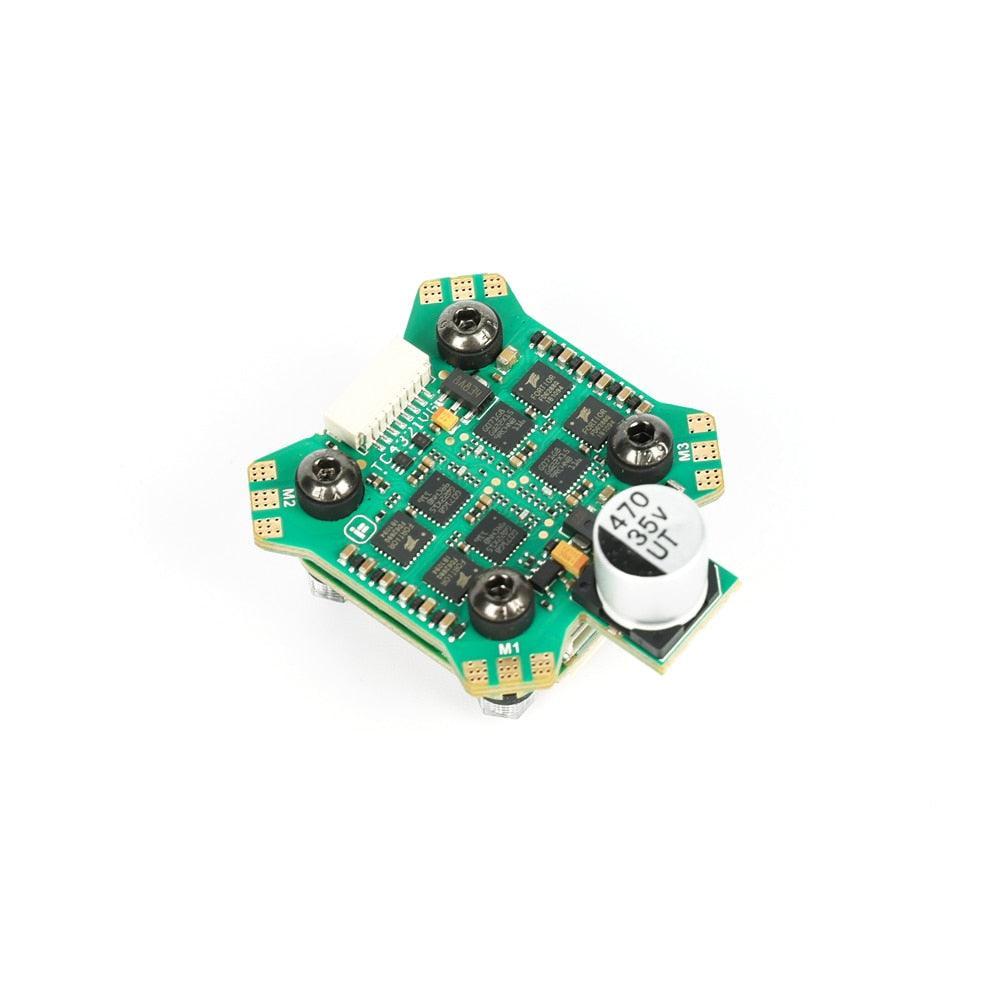

ESC // BLITZ Mini E55 4-IN-1 2-6S ESC

SPECIFICATION:

• DIMENSION: 35*42MM

• MOUNTING HOLES: 20*20MM/Φ4MM

• WEIGHT: 11.3G

• SUPPORTS 2-6S LIPO INPUT

• MCU：G071


• CONSTANT: 55 AMPS

• BURST: 60 AMPS

• CURRENT SENSOR: YES

• BEC: NO

• CURRENT RATE: 100


• SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.

• FIRMWARE: BLHELI 32

• TARGET:   IFLIGHT_BLITZ_G1


Package included:

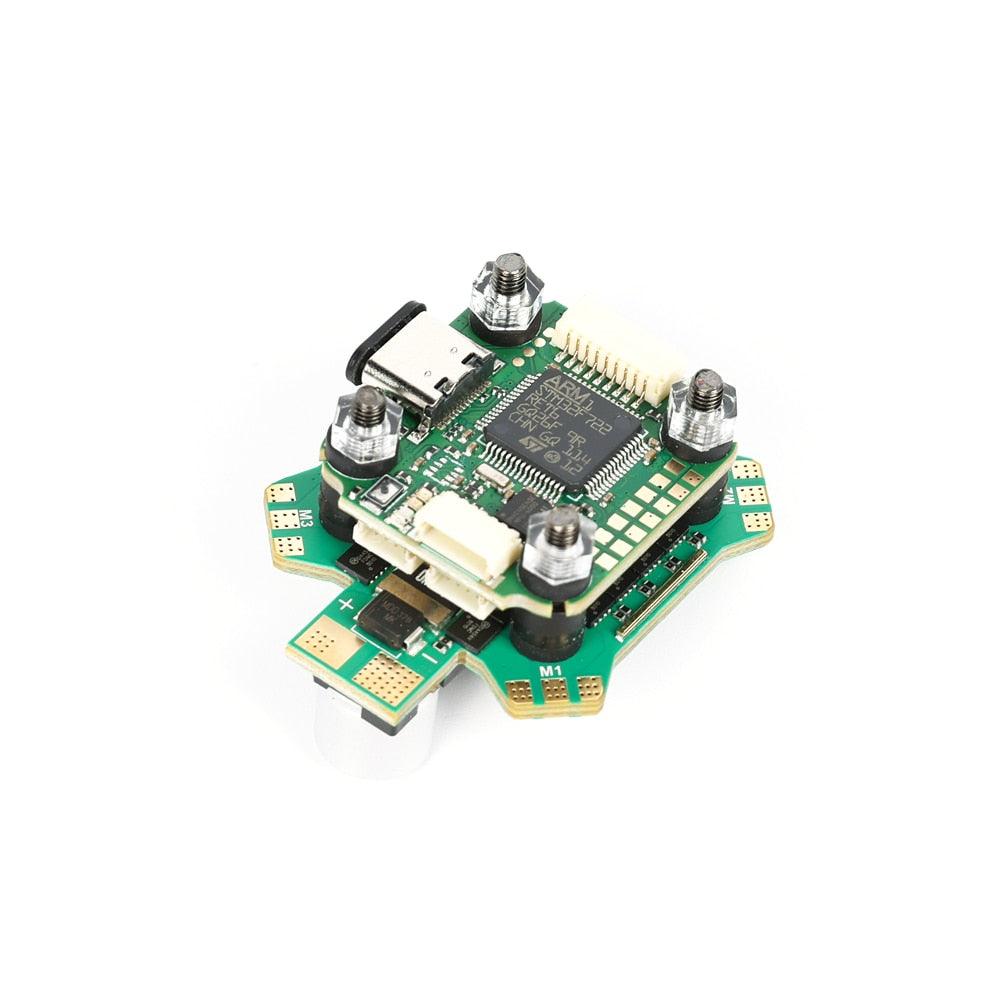

• 1pc x BLITZ Mini F7 V1.1 Flight Controller

• 1pc x BLITZ Mini E55 4-IN-1 2-6S ESC

• 1set x silicon grommets

• 1set x wire harness for F7 Flight controller
