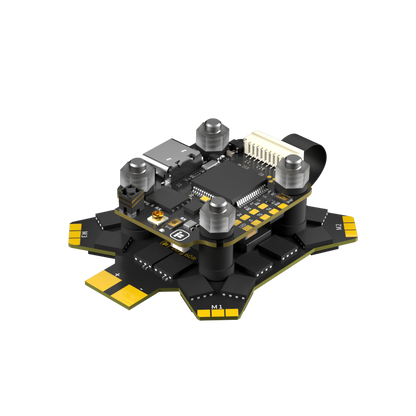

iFlight Borg 5S RX Stack with Built-in ELRS Flight Controller + 60R 60A 4-in-1 ESC for Racing FPV Drones (4–8S)

Overview

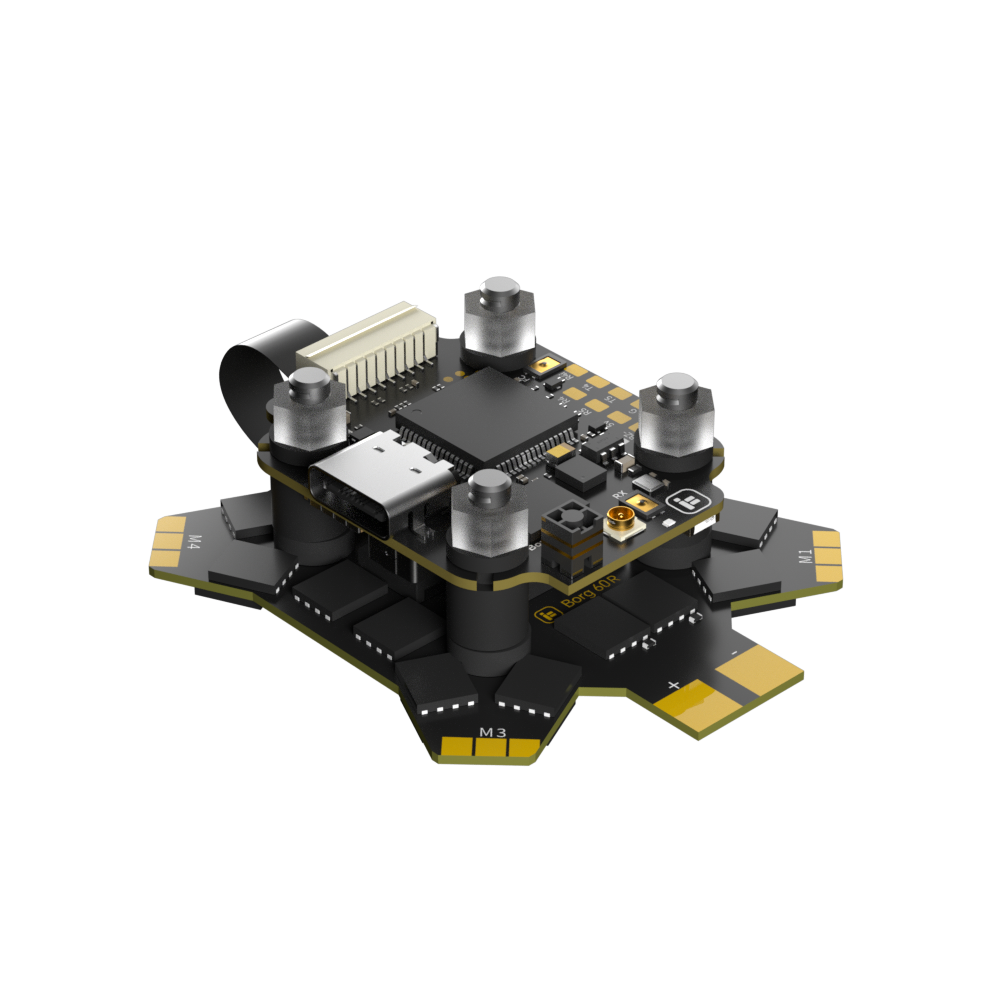

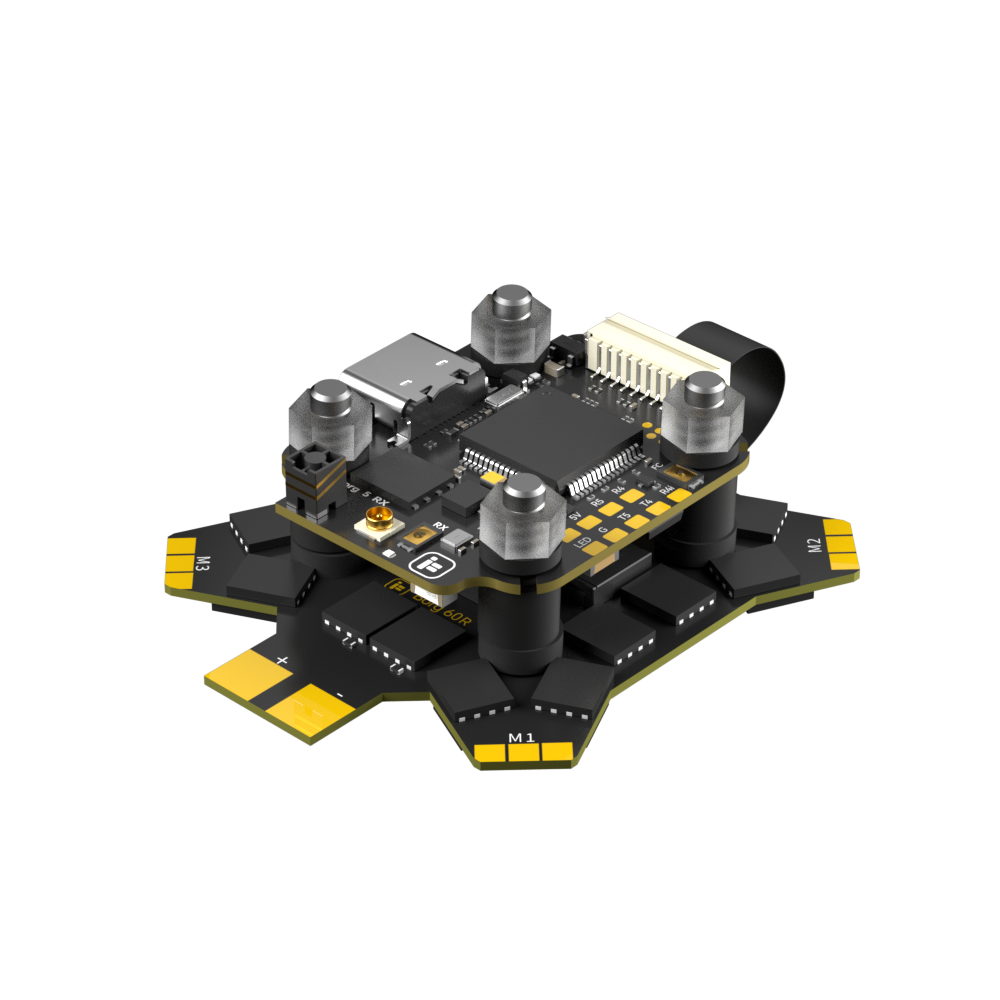

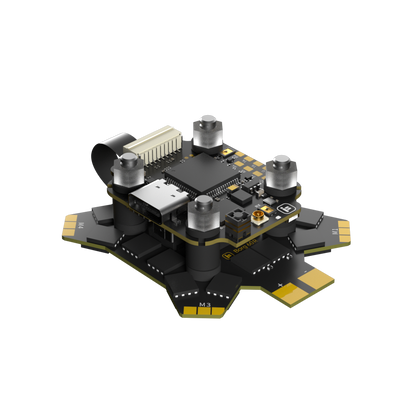

The iFlight Borg 5S RX Stack combines the Borg 5S RX Flight Controller with the high-performance Borg 60R 4-in-1 ESC, creating a compact and powerful electronics system tailored for racing FPV drones. Designed for pilots who demand precision, stability, and reliable signal performance, this stack integrates a built-in ExpressLRS 2.4GHz receiver, advanced FPC-to-ESC connectivity, and support for up to 8S LIHV batteries.

With onboard 12V BEC switching, wide protocol compatibility (DJI MSP / HDZero / IRC Tramp / SmartAudio), and up to 60A continuous current per motor, this stack is the perfect solution for 5-inch and high-voltage racing builds.

Changelog – April 9, 2025: FC Dimensions updated from 34×28.5mm to 34×27mm.

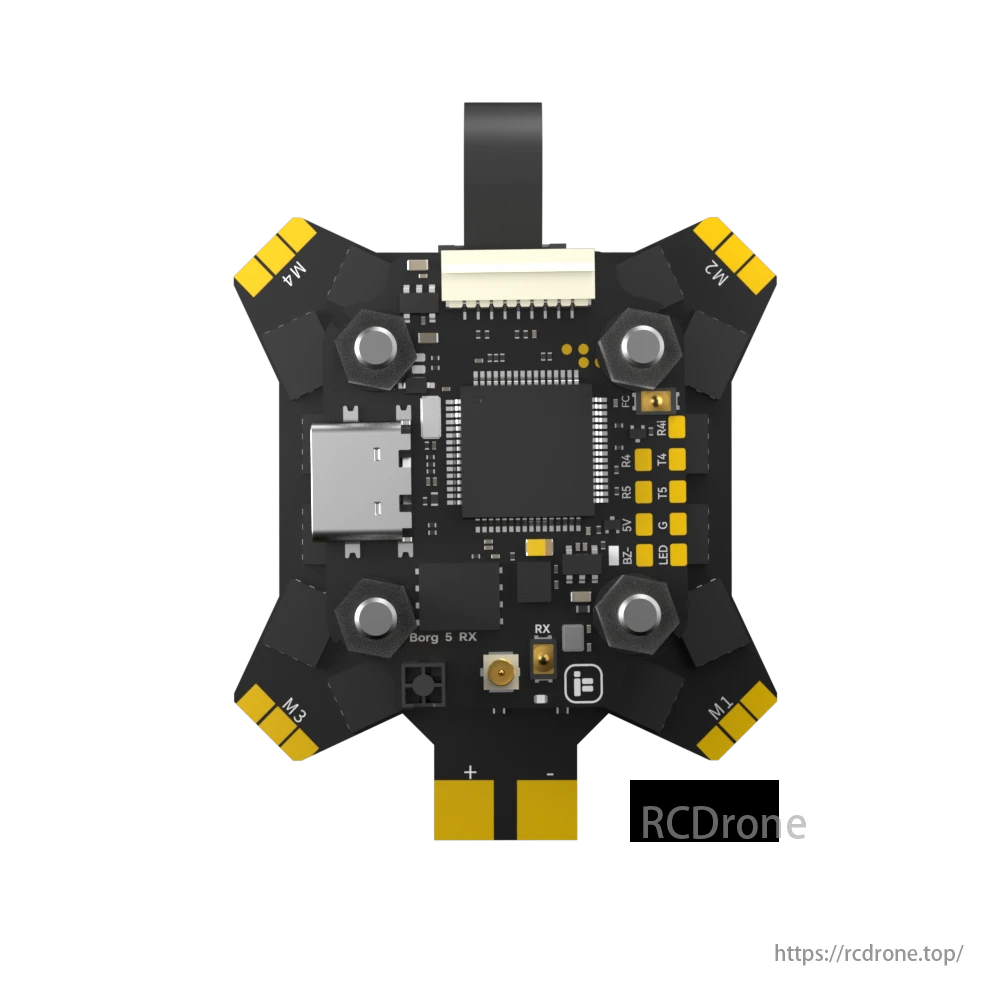

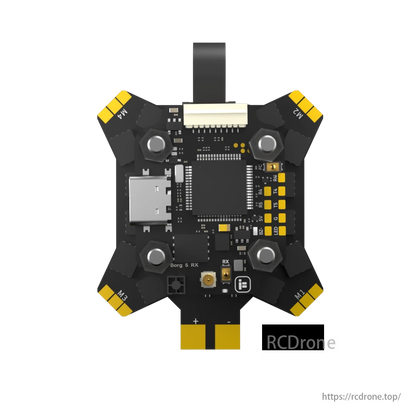

Flight Controller (FC) Features

• Built-in ExpressLRS 2.4GHz Receiver with integrated antenna

• Supports external receivers and antennas for flexible configurations

• 4S–8S LiPo / LIHV input range for competitive racing power setups

• Switchable 12V BEC (2A) for clean VTX power and remote shutdown

• FPC Ribbon Cable for secure FC-to-ESC connectivity

• SH1.0 connectors across other ports for reliable long-term use

• Compatible with DJI, Analog, HDZero video systems via multiple VTX protocols

FC Specifications

FC Wiring Suggestion

• UART 1: VTX HD / Analog

• UART 2: ESC Telemetry

• UART 4: Built-in ELRS Receiver / SBUS input

• UART 5: GPS or other serial sensors

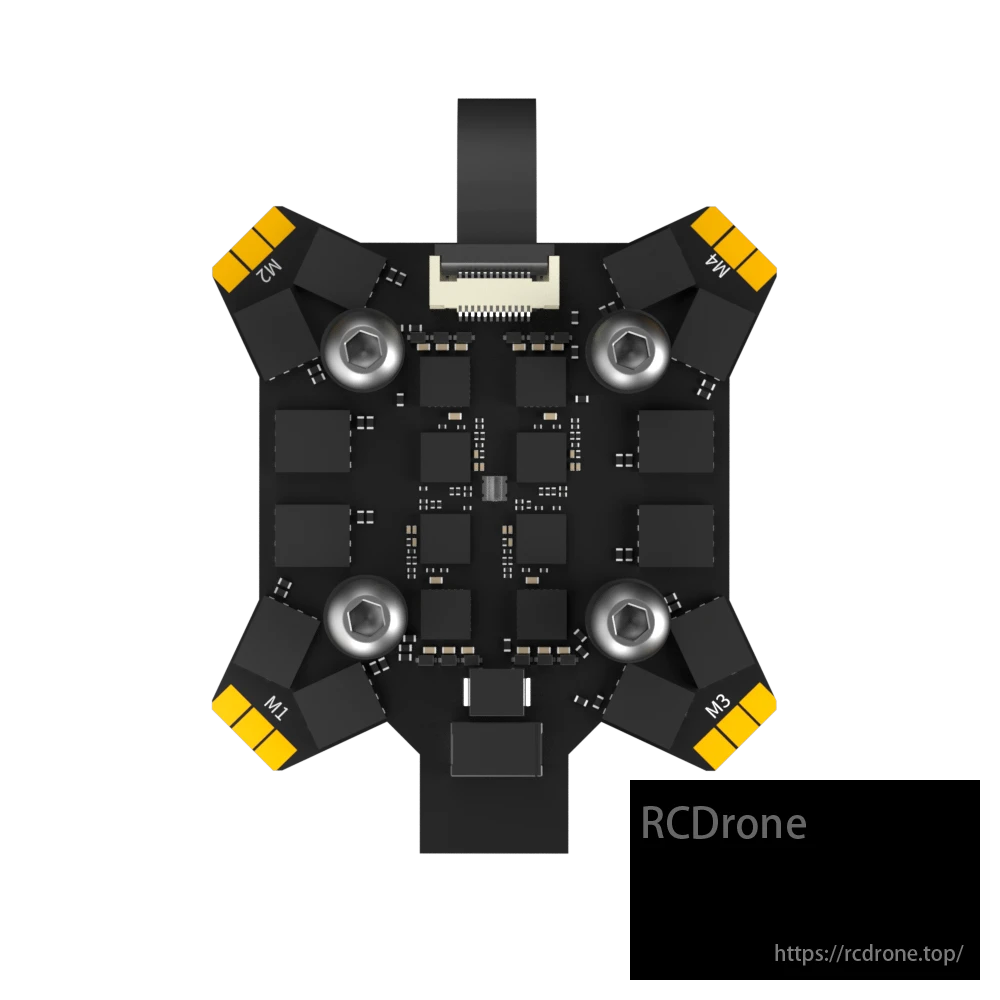

ESC Specifications – Borg 60R 4-in-1 ESC

Packing List

• 1 × iFlight Borg 5S RX Flight Controller (with built-in ELRS)

• 1 × iFlight Borg 60R 4-in-1 ESC

• 1 × Cable Set

• 5 × Silicone Grommets
