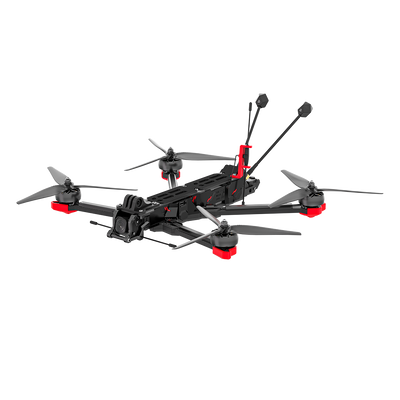

• A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or 6S 2.500mAh above.

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

 GPS pre-installed

For more safety at a distance.

Specification

• Product Name: Chimera7 Pro 6S HD


• FC: BLITZ F722 Flight Controller

• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

• Video Transmission: DJI Air Unit Wasp

• Frame: 345mm wheelbase

• Motor: XING2 2809 motors

• Prop:  7.5X3.7X3 propellers

• Weight：695grams

• Model：Chimera7 Pro


• Takeoff Weight：Approx.  750g

• Dimensions (L×W×H)：

• Diagonal Distance：120 mm

• Max Ascent Speed：6 m/s (Normal Mode, Sport Mode)

• Max Descent Speed：6 m/s (Normal Mode, Sport Mode)

• Max Speed：27 m/s (Manual Mode)

• Maximum Takeoff Altitude：5000 m

• Max Hover Time：Approx. 18 mins

• Max Flight Distance：11.6 km

• Max Wind Speed Resistance：10.7 m/s (Level 5)

• Operating Temperature Range：-10° to 40° C (14° to 104° F)

• Transmission Power (EIRP)：FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

• Antennas：Dual Antennas

• GNSS：GPS + Galileo

Video Transmission

• Product Name: RUNCAM LINK Wasp

• FPV Cam :RunCam Wasp

• Dimensions: 29×29×13 mm

• Runcam Link: L19mm*W19mm*H19mm

• FPV Cam: L29mm * W29mm * H13mm

• Communication Frequency: 5.725-5.85GHz

• Transmission Power (EIRP):  FCC/SRRC/MIC: <20dBm;  CE: <14dBm

• Input Volts：14-26.4 V

• Weight: 23.5 g

• Image Sensor: 1/3.2”

• Resolution: 720P@120fps

• LENS： FOV D:155° H:125° V:96°

• Coaxial Cable:  120 mm

• Audio Transmission：Yes

FPV Radio

• Product Name: Commando 8 ELRS Radio


• Weight: 310g (±10g）

• Dimentions(LxWxH)：L 190 x W 150 x H 51mm

• Communication Frequency：5.725-5.850 GHz

• Transmission Power(EIRP)：

• 2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

• 915MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

• Operating Current/Volts： 0.6 A @ 7.6 V

• Charging Time：1 hour and 30 mini

• Operating Time：Approx. 8 hours

• Operating Temperature Range ：0°C  to  40°C（32°F to 104°F）

• Charging Temperature Range  ：5°C to  40°C（41°F to 104°F）

Package included

• 1 x Chimera7 Pro 6S HD BNF

• 1 x Commando 8 ELRS Radio

• 2 x 7 inch Prop(Pairs)

• 2 x Antennas

• 2 x Battery strap

• 2 x Battery pad
