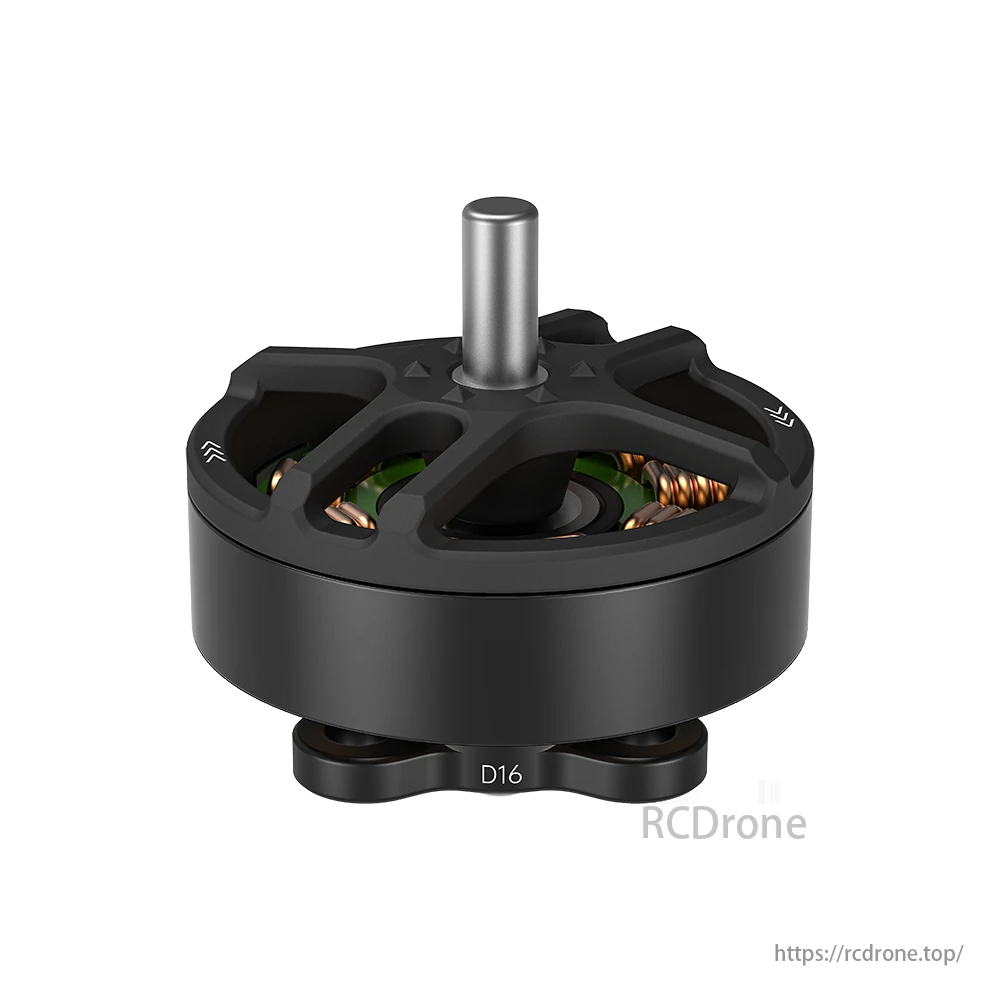

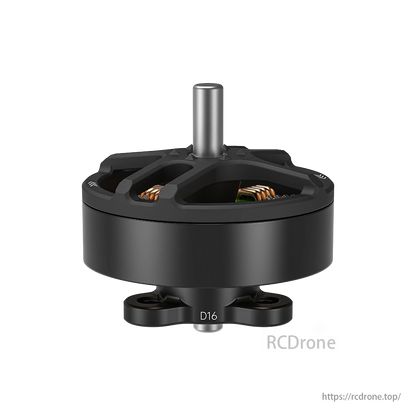

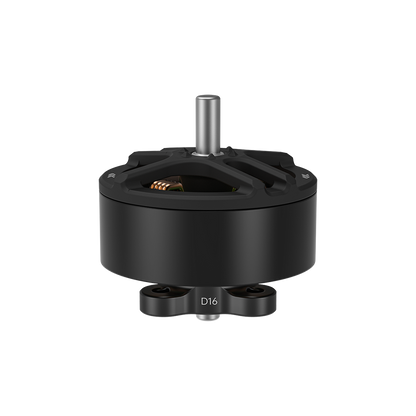

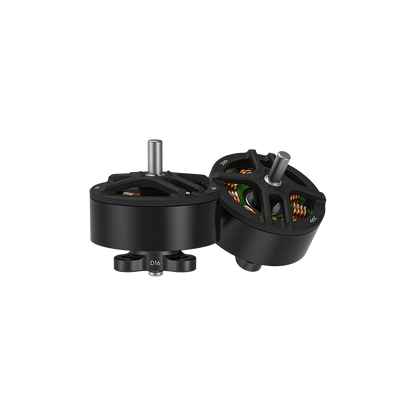

  • iFlight Defender D16: 1002/1103 14000KV brushless motor for ultralight 1.6-inch FPV drones.

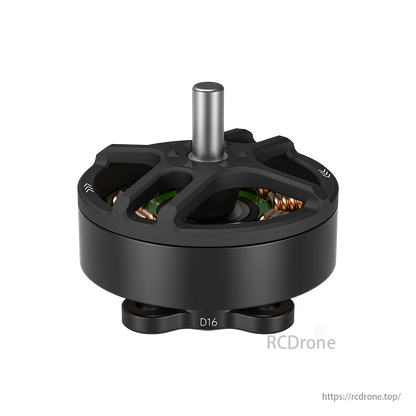

  • iFlight Defender 16 motor, 14000KV brushless, for ultralight 1.6-inch FPV drones.

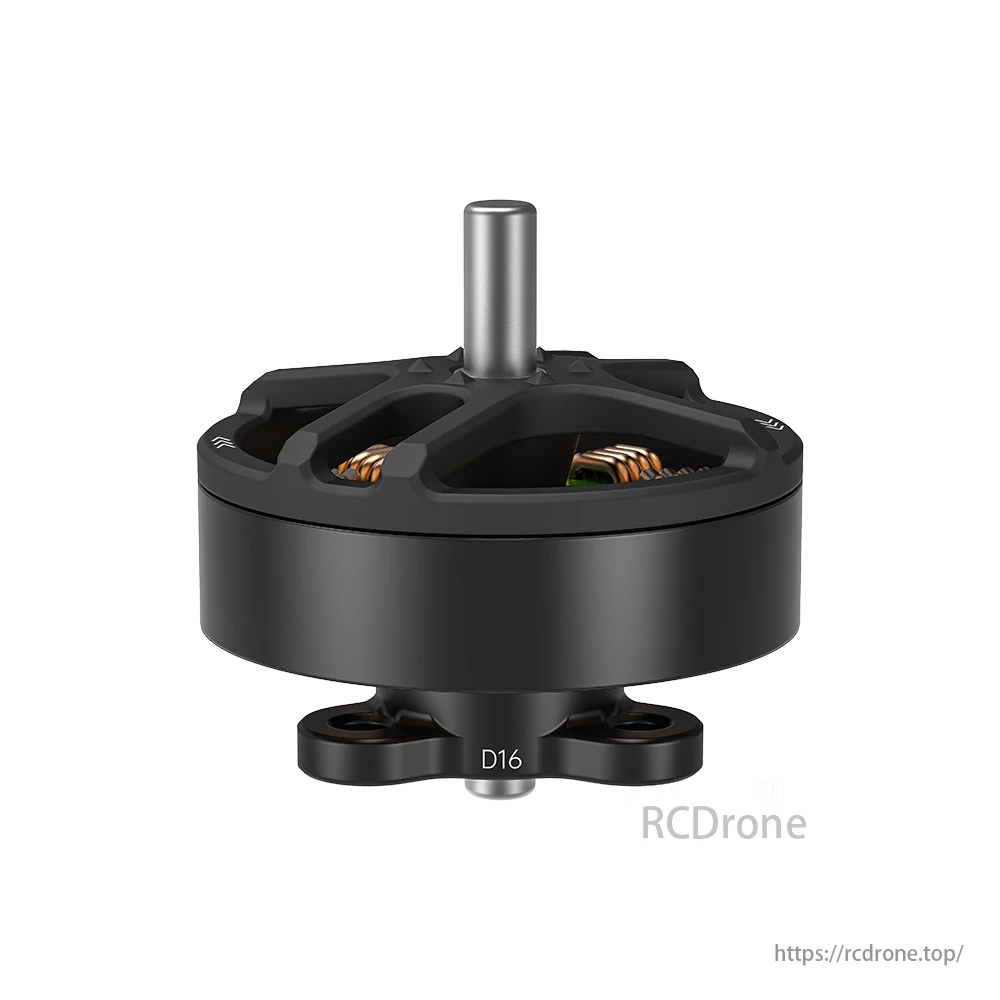

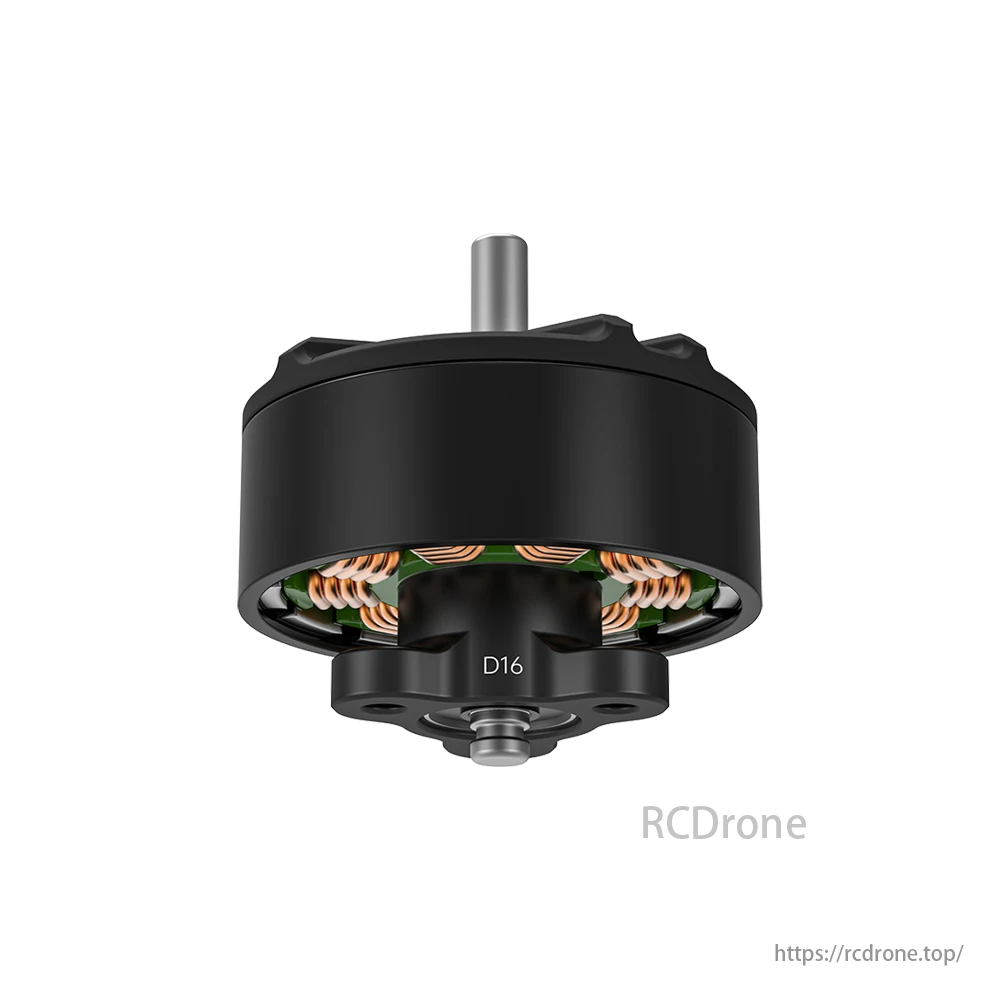

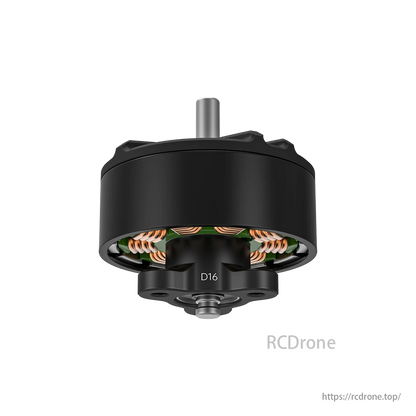

  • iFlight Defender 16 motor, labeled D16, is designed for ultralight 1.6-inch FPV drones.

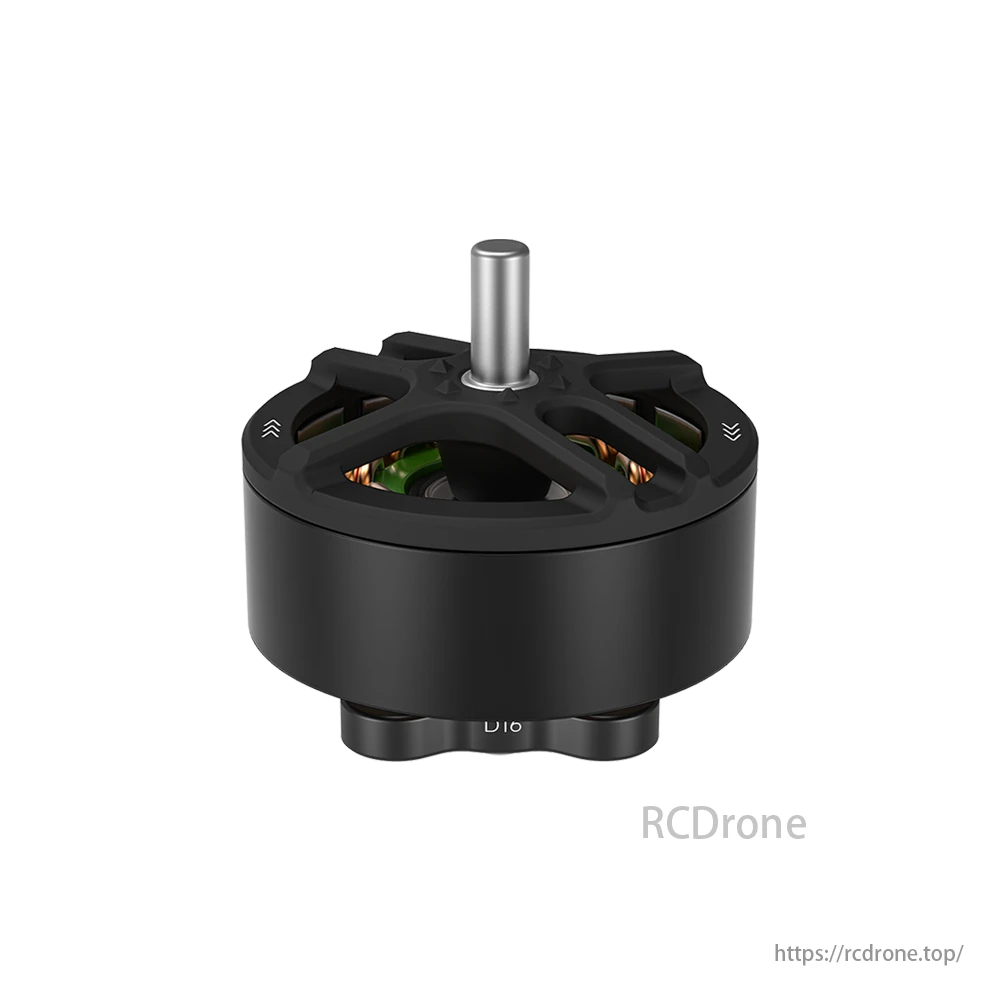

  • iFlight Defender 16 motor, labeled D16, is designed for ultralight 1.6-inch FPV drones.
1 6

iFlight Defender 16 1002 / 1103 14000KV Brushless Motor for Ultralight 1.6-Inch FPV Drones

iFlight Defender 16 1002 / 1103 14000KV Brushless Motor for Ultralight 1.6-Inch FPV Drones

iFlight

$23.00 USD
$23.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
Direction Mark
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight Defender 16 Motor is tailored for ultralight micro FPV builds, offering two high-speed versions: the 1002 14000KV and the upgraded 1103 14000KV. Both motors are optimized for 1.6-inch props like the Defender 16 1809-3 and deliver impressive thrust in sub-250g builds. Combined with the Defender 16 AIO and frame, they enable agile performance for freestyle, cruising, or cinematic flights.

🔧 Changelog (Mar 5, 2024):
The Defender 16 motor series was upgraded from the 1002 14000KV to the 1103 14000KV version, featuring higher thrust and thermal stability.

Key Features

  • KV Rating: 14000KV

  • Motor Options: 1002 / 1103

  • High-Speed Design: Up to 121.6W power output

  • Bearing Type: NMB (1002) / NMB + NSK (1103)

  • Construction: N52H Curved magnets + Segmented bell

  • Use Case: Sub-250g ultralight 1.6-inch Defender FPV drones

Specifications

Parameter 1002 Version 1103 Version
KV Rating 14000KV 14000KV
Input Voltage 8V 12V
Max Current 6.87A 10.58A
Max Power 53.2W 121.6W
Resistance 269mΩ 164.7mΩ
Weight (with wire) 2.7g 3.3g
Dimensions Ø12.5 × 11.5mm Ø13.3 × 13.0mm
Shaft Diameter 1.5mm 1.5mm
Shaft Length 3.25mm 3.25mm
Mounting Holes 6.6×6.6mm – Ø1.4mm Same
Bearings NMB NMB/NSK
Bearing Specs Ø4×1.5×2mm Same
Lead Wires 50mm / 28AWG / SH1.25 3P Same
Configuration 9N12P Same
Rotor Spec Segmented bell Same
Winding Single-strand copper Same

Performance Datasheet

Defender 16 1002 14000KV (8V)

Throttle (%) Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) Temp (°C)
50% 7.99 1.78 48 14.2 3.38
60% 7.95 2.85 68 22.7 3.00
70% 7.89 3.78 80 29.8 2.68
80% 7.84 5.33 95 41.8 2.27
90% 7.80 6.53 112 50.9 2.20
100% 7.75 6.87 115 53.2 2.16 71°C

Defender 16 1103 14000KV (12V)

Throttle (%) Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) Temp (°C)
50% 11.88 3.23 69 38.4 1.80
60% 11.79 4.22 81 49.8 1.63
70% 11.71 5.81 98 68.0 1.44
80% 11.62 7.46 121 86.7 1.40
90% 11.53 8.98 136 103.5 1.31
100% 11.49 10.58 151 121.6 1.24 86°C

Packing List

  • 1 × Defender 16 1002 or 1103 14000KV Motor (Optional)

  • 4 × M1.4×3mm Mounting Screws

Datasheet

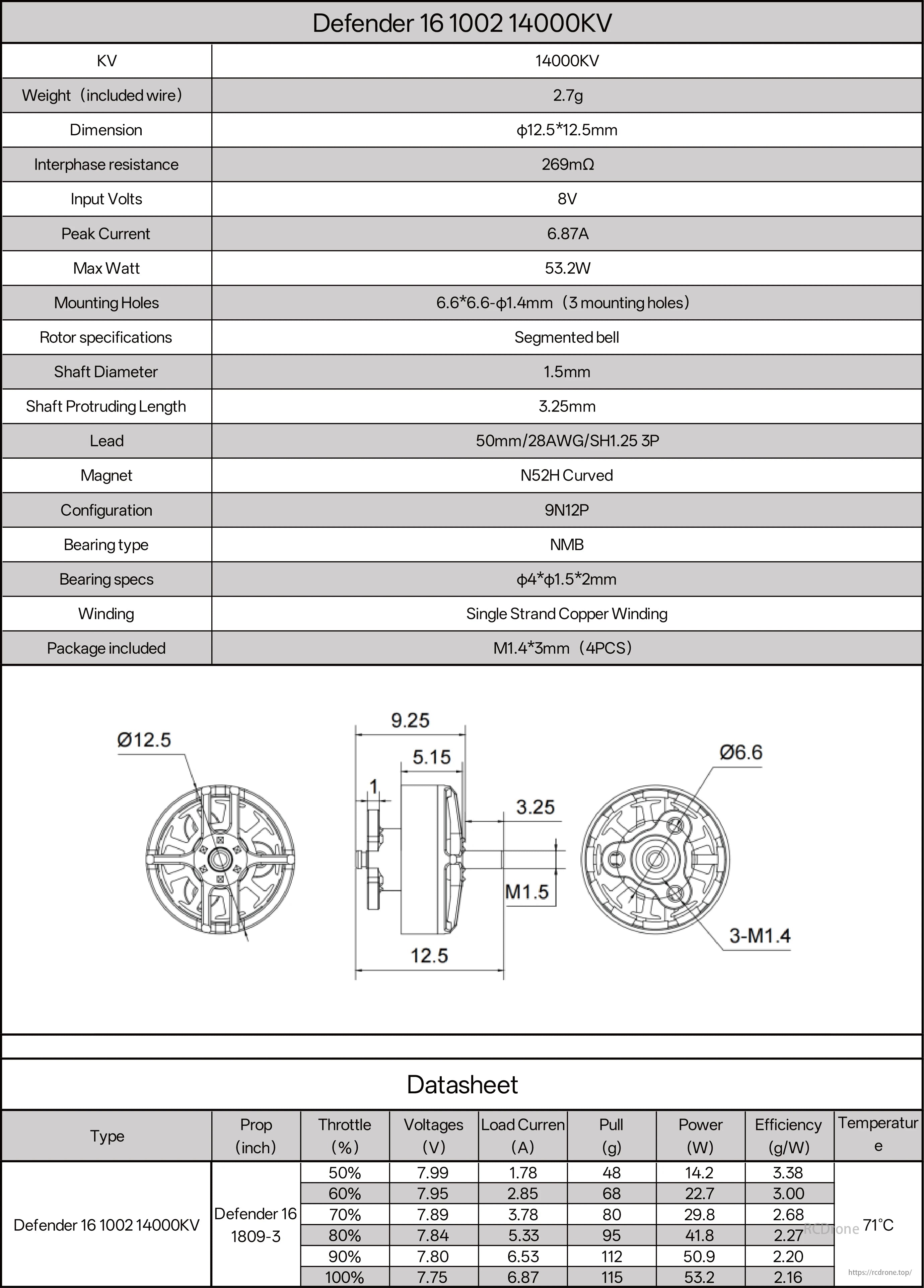

iFlight Defender 16 Brushless Motor, Defender 16 motor specs: 14000KV, 2.7g, 8V, 53.2W max power, N52H magnet, includes M1.4*3mm screws. Provides performance data at different throttle percentages.

Defender 16 1002 14000KV motor specs: 14000KV, 2.7g weight, 8V input, 53.2W max power, N52H magnet, M1.4*3mm screws included. Performance data for various throttle percentages provided.

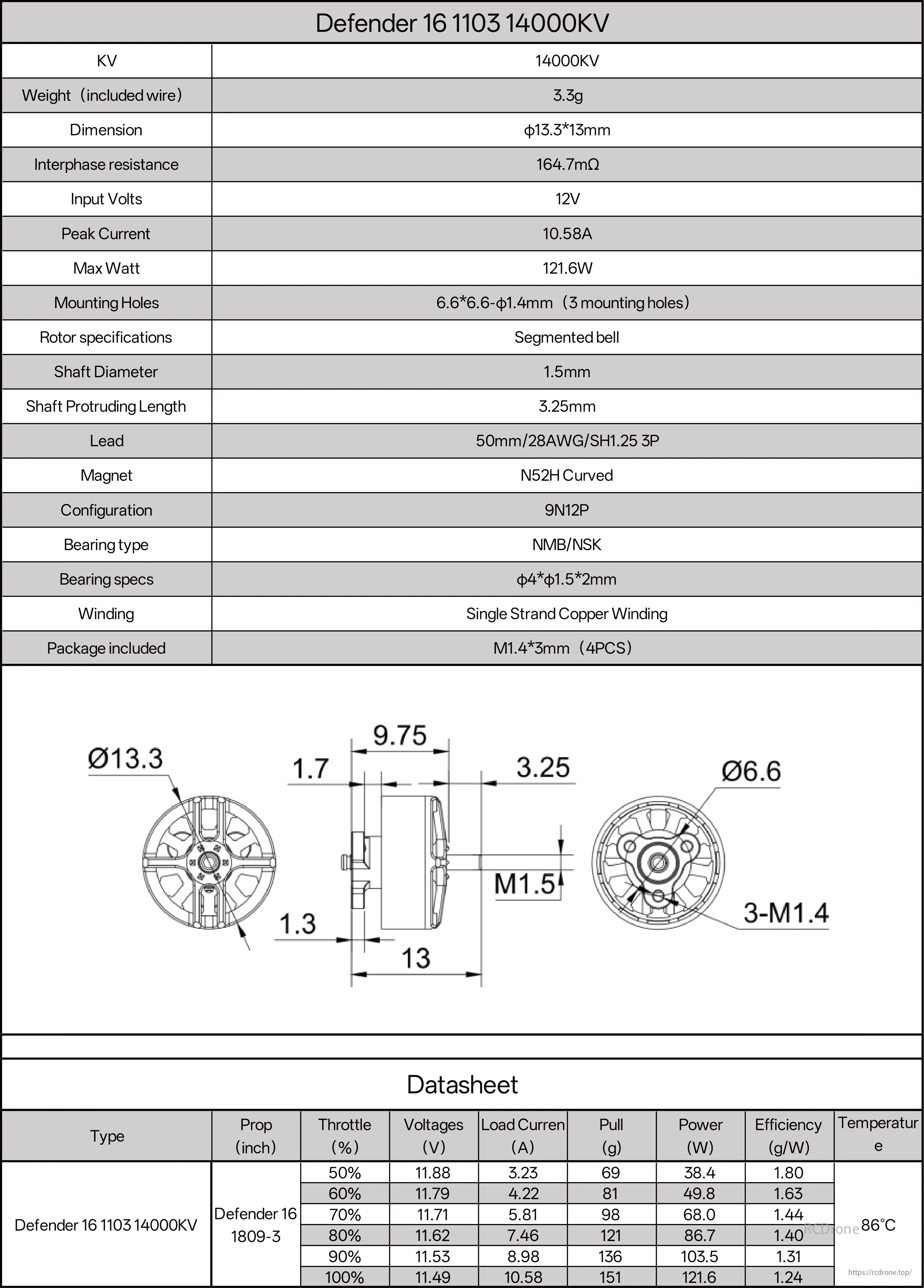

iFlight Defender 16 Brushless Motor, Defender 16 1103 14000KV motor specs: 12V, 121.6W max power, 10.58A peak current, φ13.3*13mm, N52H magnet, copper winding, M1.4*3mm package, with performance data for throttle percentages.

Defender 16 1103 14000KV motor: 12V, 121.6W max power, 10.58A peak current, φ13.3*13mm size, N52H magnet, single-strand copper winding, M1.4*3mm package included. Performance data for various throttle percentages provided.
