iFlight Defender 16/20 F411 AIO

iFlight Defender 16/20 F411 AIO

iFlight

$85.00 USD
$85.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

157 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Description

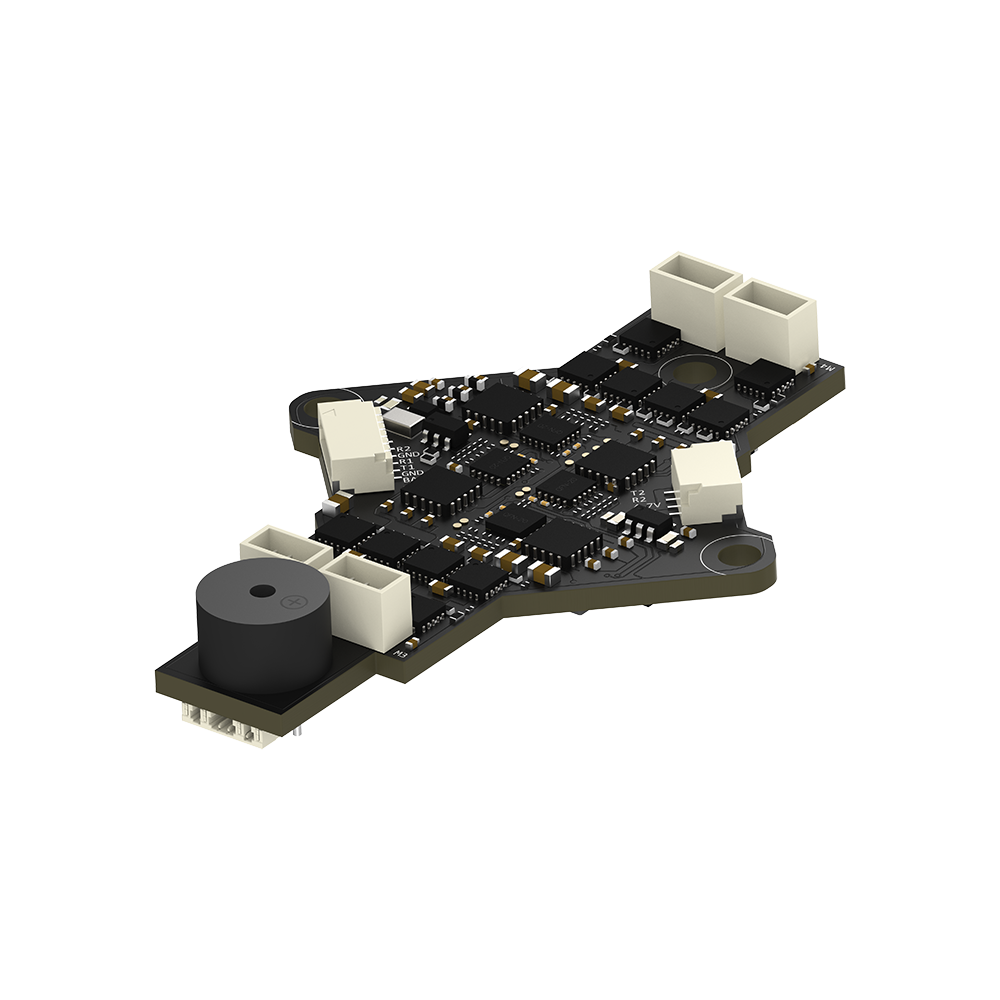

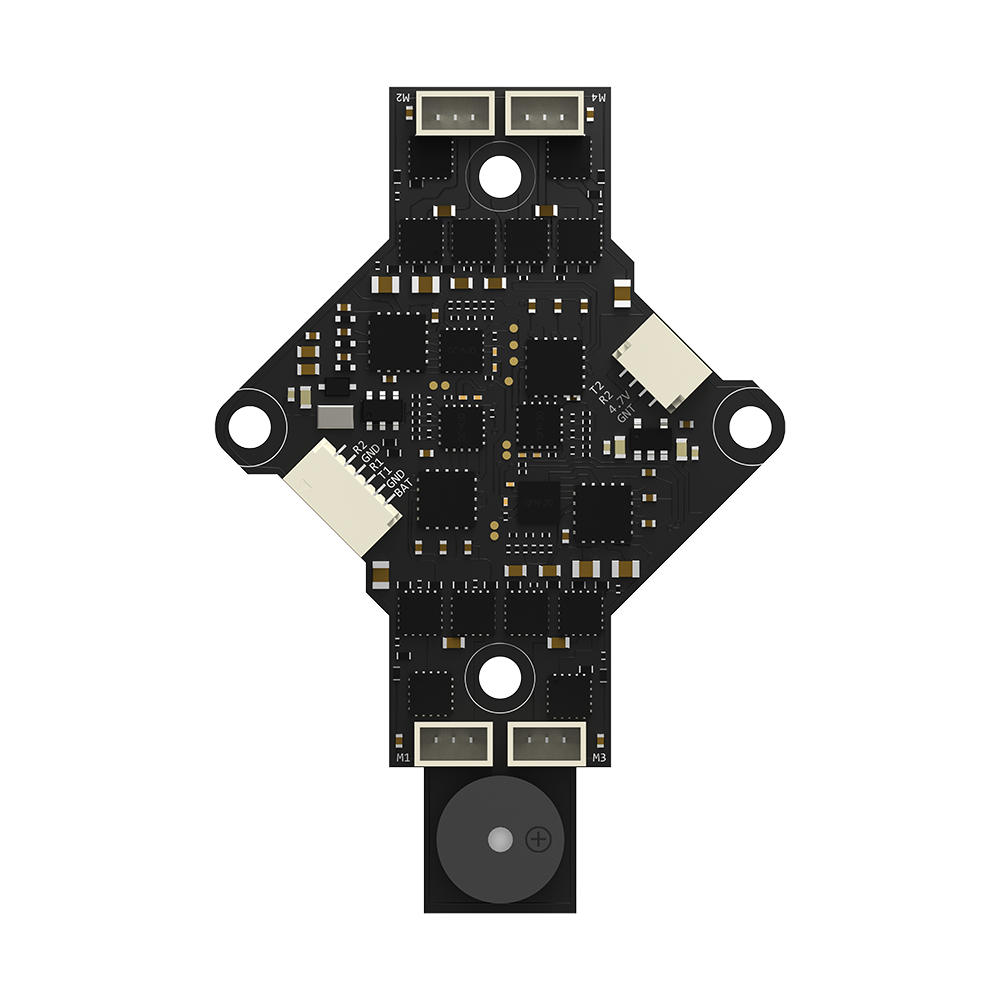

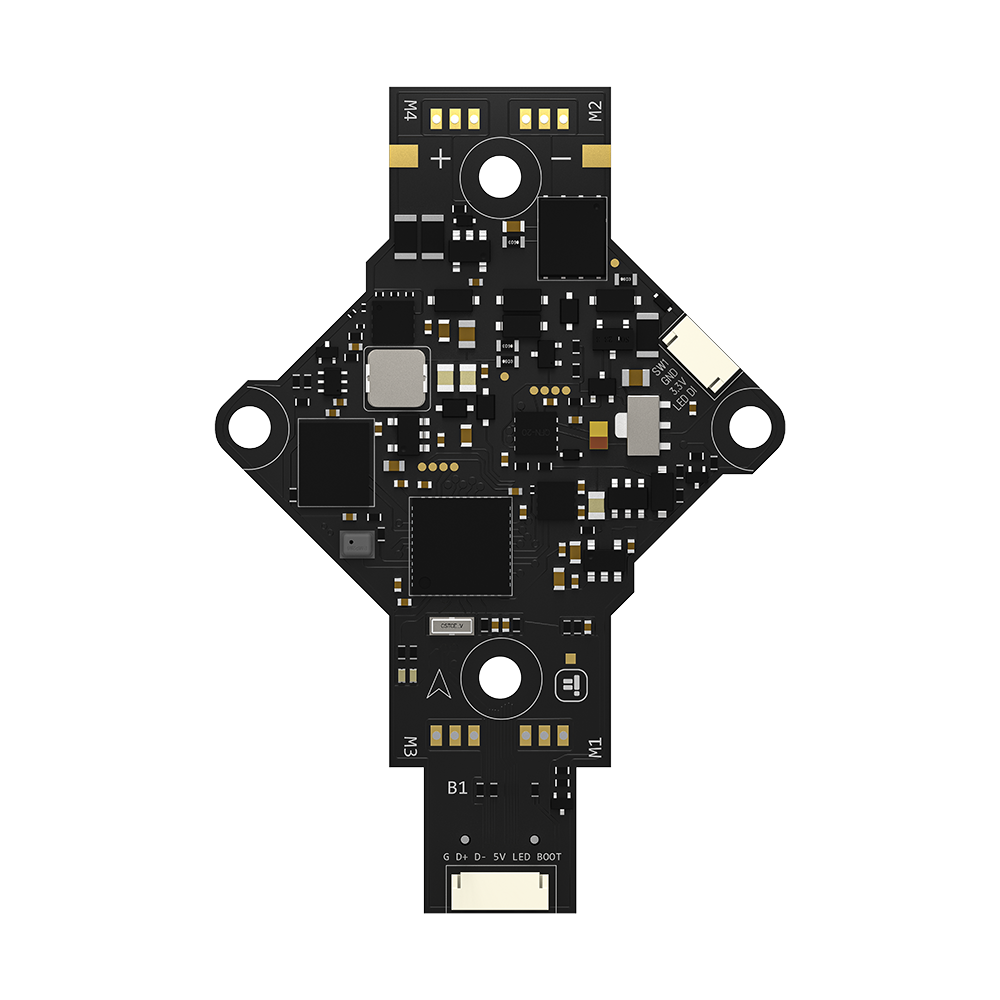

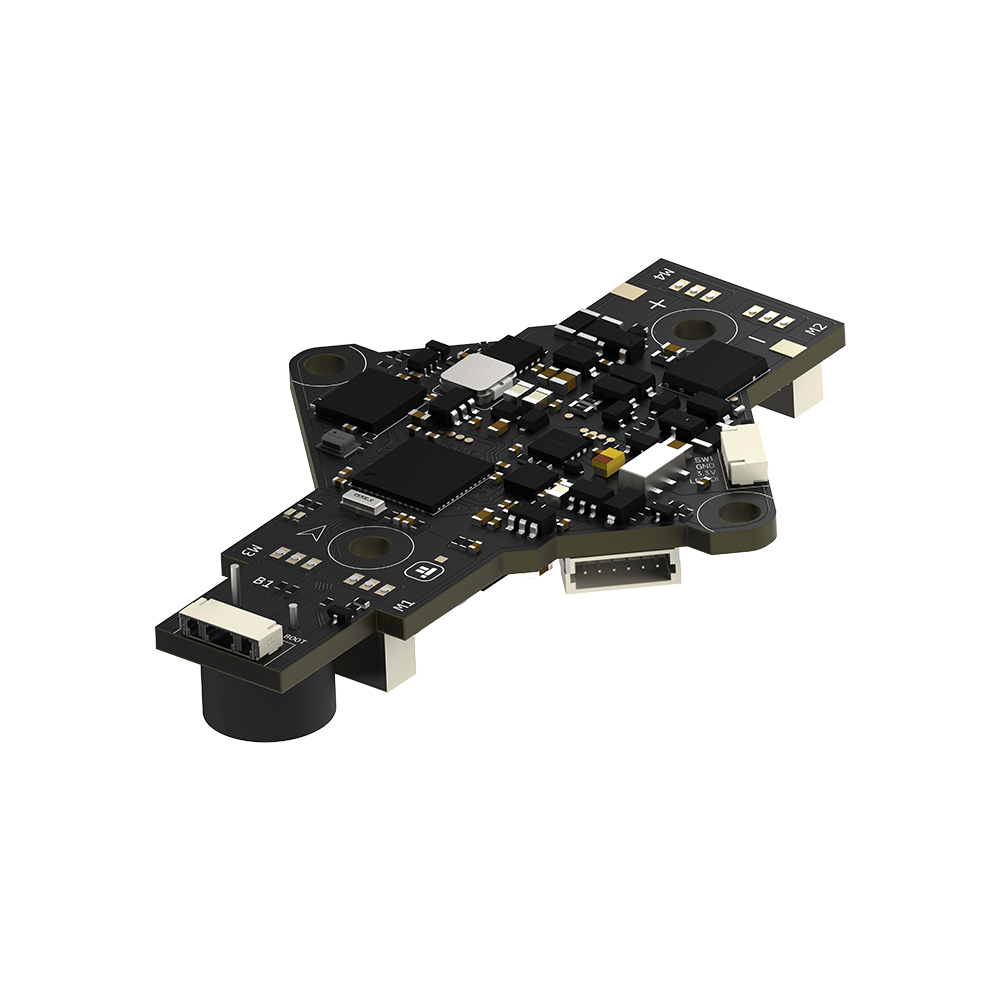

This is a new generation F411 AIO designed for Defender 16/20. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development. Lightweight, minimum size, minimum work. Solder your motor wires on and let's go!

Highlights

Pass-through DJI O3 and Caddx Vista/Polar Connector

HD VTX switch function

Receiver protocol switching function

Onboard buzzer

FC Specifications

MCU: STM32F411

Gyro: ICM42688

Blackbox: 16MB Onboard Flash

BEC output: 5V 2A

WS2812 LED Strip: Yes

Buzzer: Yes

Barometer: No

Connector: SH1.0 to Type-C adapter

OSD: N/A (HD VTX version)

FC Firmware: IFLIGHT_Defender_F411

Mounting pattern: 25.5*25.5mm φ3mm

Dimensions: 61*41mm

Input voltage: 2-3S, support LIHV battery

ESC Specifications

ESC MCU: BB21

Driver: FD6288

Input voltage: 2-3S Support LIHV battery

Output current: 20A

ESC firmware: Q-H-50 - Bluejay, 0.16

Current sensor: ratio 200 (1/10mV/A)

BEC: NO

ESC Telemetry: Not Support

Bidirectional DShot: Yes

Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Packing List

1 x Defender 16/20 F411 AIO

1 x Cable Set
