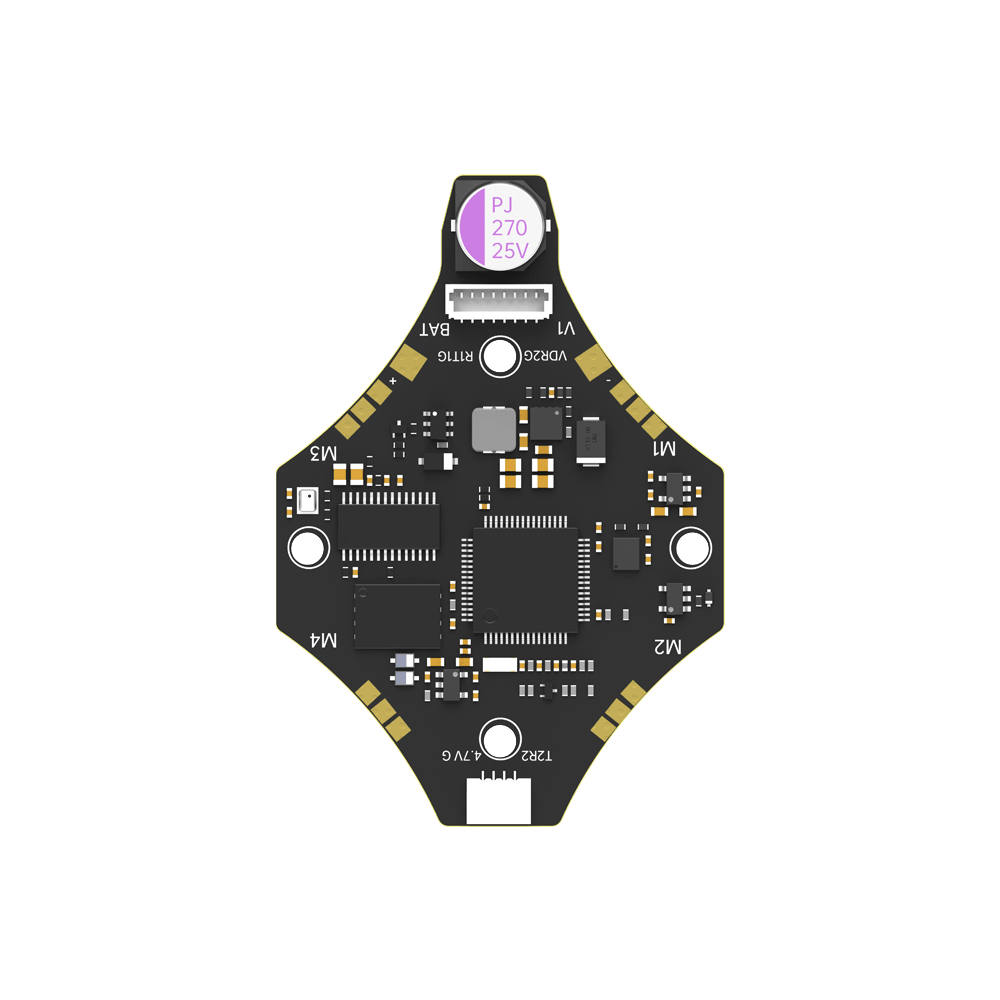

iFlight Defender 25 F7 AIO with 25.5*25.5mm Mounting holes for FPV parts

iFlight Defender 25 F7 AIO with 25.5*25.5mm Mounting holes for FPV parts

iFlight

Regular price $184.22 USD
Regular price $257.91 USD Sale price $184.22 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

43 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 32.5*32.5mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Defender 25 F7 AIO

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description:

  • This is new generation F7 AIO designed for Defender 25. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work. Solder your motor wires on and let's go!

Compability

  • 1. This AIO without OSD Chip, it made for Defender 25 HD VTX only.

  • 2. Bigger size than the BLITZ Whoop BGA F7 AIO.

Highlights

  • Pass-through DJI O3 and Caddx Vista/Polar Connector

  • MCU: STM32F745, 216MHz

  • Gyro: ICM42688P

  • OSD: NO

  • Blackbox: 32MB Onboard Flash

  • Gyro: DPS310

  • Weight: 12.8g±0.2g

FC Specifications

  • MCU: STM32F745

  • Gyro: ICM42688P

  • Blackbox: 32MB Onboard Flash

  • BEC output: 5V 2.5A

  • WS2812 LED Strip: Yes

  • Buzzer: Yes

  • Barometer: DPS310

  • Connector: SH1.0 to Type-C adapter

  • OSD: N/A (HD VTX version)

  • FC Firmware:IFLIGHT_BLITZ_F7_AIO

  • Mounting pattern: 25.5*25.5mm φ3mm

  • Dimensions: 32.5*32.5mm

  • Input voltage: 2-6S, support LIHV battery

  • Smartaudio / IRC Tramp VTX protocol supported

ESC Specifications

  • ESC MCU: STM32G071

  • Driver: FD6288

  • Input voltage: 2-6S Support LIHV battery

  • Output current: 20A, peak value 30A (10 seconds)

  • ESC firmware: IFLIGHT_BLITZ_G071_01

  • Current sensor: ratio 200 (1/10mV/A)

  • BEC: NO

  • ESC Telemetry: Yes(PCB routed, set UART6 for telemetry)

  • Bidirectional DShot: Yes

  • Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Package included

  • 1 x Defender 25 BLITZ F7 AIO

  • 2 x Capacitor 470uF/35V (Onboard)

  • 1 x XT30U Male 18AWG cable 70mm

  • 1 x 1.0-7P cable 50mm-28mm

  • 1 x 1.0-7P cable 50mm

  • 4 x M2 silicon grommets

  • 8 x M2*12mm screws

  • 8 x M2 Transparent Nylon Nut

  • 10 x 0.8mm black Heat shrink tube 10m
