iFlight ELRS Nano RX Receiver Series - 915MHz / 2.4GHz Options for RC FPV Racing Drones
The iFlight ELRS Nano RX modules offer extreme performance with exceptional range and rapid packet rates, ensuring low latency and reducing the chances of failsafe situations. Developed in close collaboration with the ExpressLRS community, these open-source receivers are ideal for pilots seeking reliable control, even in demanding conditions.
IFlight ELRS 915MHz / ELRS 2.4G Receiver Key Features:
- Multiple Frequency Bands: Choose between the 915MHz model for enhanced penetration and the 2.4GHz version for higher packet rates up to 500Hz.
- Optimized Circuit Design: Market-leading crystal frequency stability ensures minimal packet loss.
- Flexible Antenna Options: Both ipex and SMD antenna configurations provide versatility based on your setup needs.
- Compact and Lightweight: Measuring just 10x13mm and weighing a mere 0.5g, it seamlessly integrates into even the tightest builds.
- Seamless Compatibility: Pre-soldered SH1.25 connectors allow for easy plug-and-play installation with iFlight flight controllers.
Performance and Reliability: Ensure your receiver is positioned away from conductive components to maximize signal integrity. Stay updated with the latest firmware via the ExpressLRS community for optimal results.
Specifications:
Parameter | 915MHz Nano RX | 2.4GHz Nano RX | 2.4GHz Nano RX with SMD Antenna |
---|---|---|---|
Size | 10x13mm | 10x13mm | 10x13mm |
Weight | 0.5g | 0.5g | 0.5g |
Telemetry Power | 17dBm (50mW) | 12.3dBm (17mW) | 12.3dBm (17mW) |
Frequency | 868MHz/915MHz | 2.4GHz ISM | 2.4GHz ISM |
Voltage | 5V | 5V | 5V |
Antenna Interface | ipex | ipex | SMD antenna |
Protocol | CRSF | CRSF | CRSF |
Whether you're flying in a high-interference environment or competing for long-range records, the iFlight ELRS Nano RX series offers unbeatable performance and reliability.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, ELRS receiver module supports dual frequencies, with compact design and high sensitivity for RC FPV racing drones.](https://rcdrone.top/cdn/shop/files/S827bfcfbda06482e846a6399ee209e88L.webp?v=1724077307)
Quote: This ELRS receiver module supports dual frequencies, 915MHz and 2.4GHz, with a built-in antenna stick featuring 40mm and 70mm lengths. It's designed for RC FPV racing drones and offers a compact size, high sensitivity, and reliable performance.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, Compact 40mm antenna receiver module for RC FPV racing drones, ideal for reliable signal reception.](https://rcdrone.top/cdn/shop/files/S627b0cf59e4745e8a3f52706e725b5978_95bd2ef3-1992-430d-9aa9-0f38af5324da.webp?v=1724077336)
2.4GHz receiver module with a compact 40mm antenna, ideal for RC FPV racing drones, featuring FCC certification and dual-band operation (915MHz and 2.4GHz) for reliable signal reception.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, Compact receiver module with 70mm antenna for 2.4GHz use, FCC compliant.](https://rcdrone.top/cdn/shop/files/Scf2b222e405c4060b63da82448583806D_c4851320-4c9a-4c5b-8bb5-cc45fde6bc70.webp?v=1724077365)

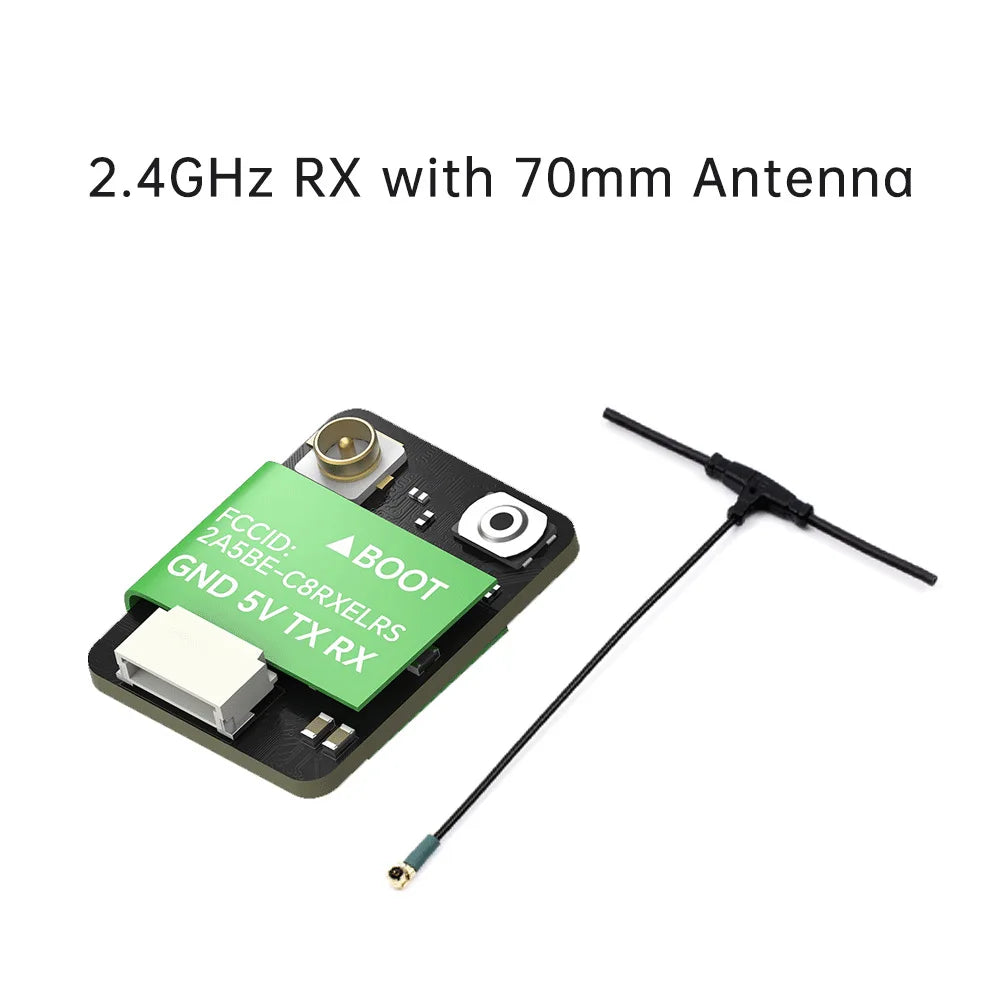

2.4 GHz receiver module with a 70mm antenna, compatible with FCC regulations, featuring FCC ID ZASBE-BOOT-GND-CBRX-ELRS and supporting 5V TX/RX signals.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, RC drone receiver module with dual-band antenna, supports 915MHz and 2.4GHz frequencies.](https://rcdrone.top/cdn/shop/files/Sd73f26e736614cd39e741cdf0684631cS.webp?v=1724077391)

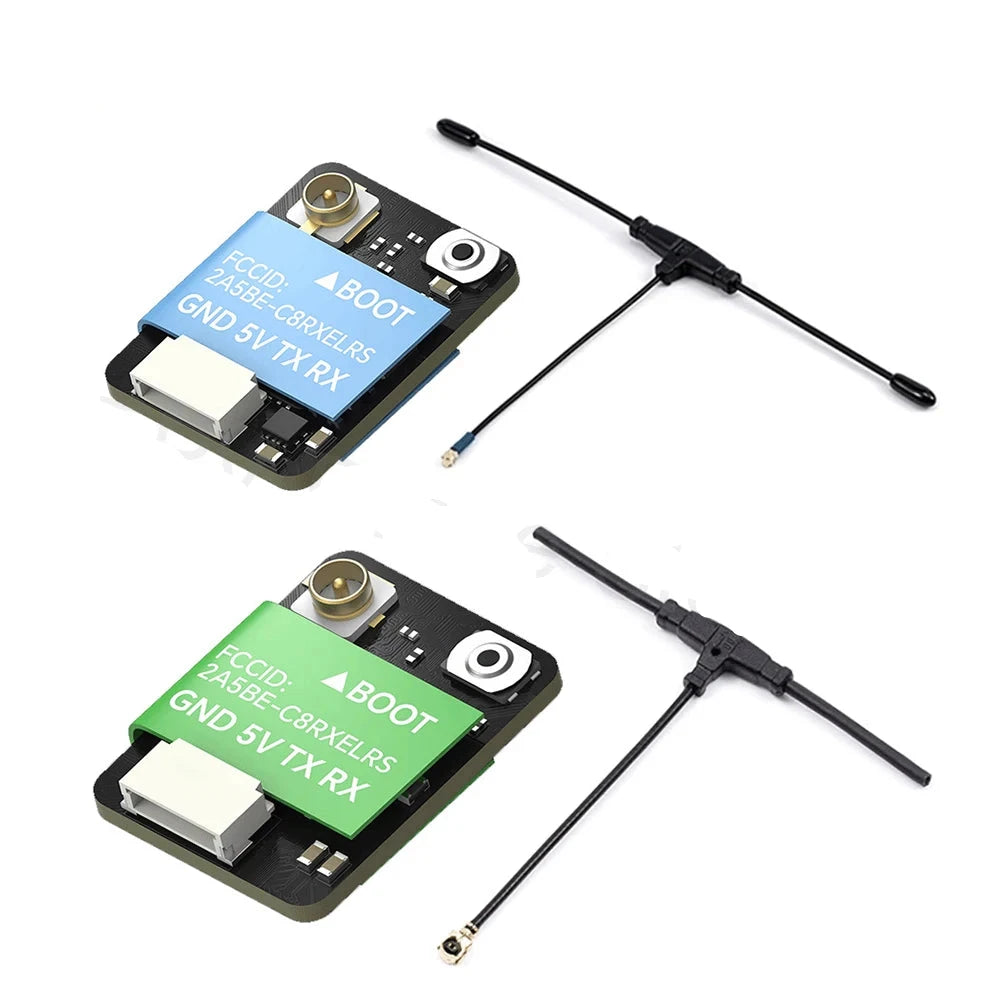

ELRS receiver module with dual-band antenna stick for RC FPV racing drones, supporting both 915MHz and 2.4GHz frequencies.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, High-performance receiver module for RC FPV drones with improved signal reception and reliability.](https://rcdrone.top/cdn/shop/files/S9987f3097e704df491a480ac33f5be89k_bf8b5934-f827-4a12-a1df-a26e8d694722.webp?v=1724077418)
ELRS 2.4G/915MHz receiver module for RC FPV racing drones, featuring a 40mm or 70mm antenna stick and dual-band antenna design for improved signal reception and reliability.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, ELRS receiver module for RC FPV drones, 2.4GHz frequency, 40mm or 70mm antenna, compatible with ELRS protocol.](https://rcdrone.top/cdn/shop/files/Se20906216bf64a1cb7f24196c27608d02_33d43c70-a808-4903-952e-fb309422e5e3.webp?v=1724077447)
ELRS 2.4GHz/915MHz receiver module with 40mm or 70mm antenna, compatible with ELRS protocol for RC FPV racing drones.
![IFlight ELRS 915MHz / ELRS 2.4G Receiver, Dual-band antenna stick for RC FPV drones, supporting 915MHz and 2.4GHz frequencies.](https://rcdrone.top/cdn/shop/files/Sa4958df9b97945fea2ec77e46983740bg_2072a255-2387-4624-b9ed-0e6926ad2d5f.webp?v=1724077473)
IFlight ELRS receiver module features a dual-band antenna stick for RC FPV racing drones, supporting both 915MHz and 2.4GHz frequencies, with a built-in antenna and compact design.
