iFlight Helion 10Inch FPV Drone SPECIFICATIONS
Brand Name: IFLIGHT
Is Electric: button battery
Origin: Mainland China
Material: Carbon Fiber
Recommend Age: 14+y
RC Parts & Accs: Antennas
Size: 10inch
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Battery
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: Helion 10
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
-
HELION - The Long Range flagship by 2RAW and iFlight
-
This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. With a prop size of 10 inches, Helion is not only capable of effectively carrying large (Recommended, 4500mAh Lipo and above) batteries but also ensuring great efficiency with ample power. You will have better dive recovery and more overall control than traditional long-range drones. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Helion’s distinct frame design was scientifically optimized to balance stability, weight, and rigidity.
HIGHLIGHTS:
Optimised Motors & Propeller
This latest XING motor was optimised between thrust and efficiency. Perfectly tuned to the 10 inch Gemfan propellers.
Aero-Shell
The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Users can simply open and close the shell when working on the drone. The idea was to protect the inside but give people full access when maintenance work is being performed on the drone.

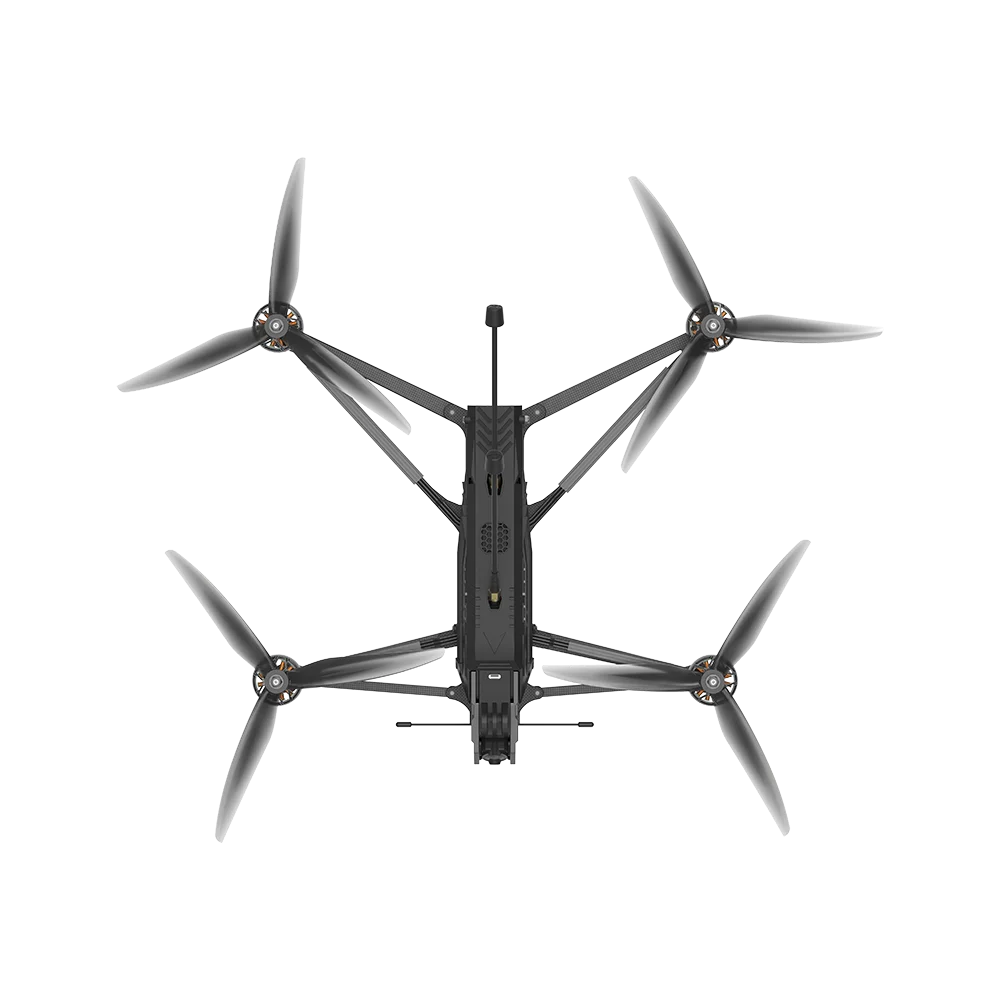

Innovative A-Frame for Maximum Performance
The frame was scientifically optimised and tested over months to find the balance between stability and weight. The A-Frame design minimises vibrations as well as torsion, one of the biggest problems with larger drones.
USB-C Power
A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras making Helion more future proof
DJI O3 HD Air Unit Low-Latency Digital Transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back on those ultra long range missions. Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.
Specifications:
-
Product Name: Helion10 O3 6S HD
-
FC: BLITZ F7 Flight Controller
-
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
-
Video Transmission: DJI O3 Air Unit
-
Geometry: A-Frame
-
Frame: 418mm wheelbase
-
Motor: XING2 3110 900KV motors
-
Prop: GEMFAN 1050 propellers
-
Weight: 950±20g (Without Battery)
-
Dimensions (L×W×H):324x264x63mm
-
Operating Temperature Range: -20° to 40° C
-
Antennas: Dual Antennas
-
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video Transmission
-
Product Name: DJI O3 Air Unit
-
Communication Bandwidth: Max 40 MHz
-
FOV (single screen): 155°
-
Communication Frequency:2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
-
End-to-End Latency
-
With DJI FPV Goggles V2:
-
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
-
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
-
With DJI Goggles 2:
-
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
-
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
-
Max Video Transmission Bitrate: 50 Mbps
-
Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)
-
Operating Temperature Range: -10º to 40º C (14° to 104° F)
-
Power Input: 7.4-26.4 V
-
Audio Transmission: N/A
Packing List
-
1 x Helion 10 6S HD
-
2 x Battery pad
-
2 x GEMFAN 1050 propellers(Pairs)
-
2 x Battery strap
-
1 x Screw bag
Important
-
All iFlight BNFs are tested before shipment to guarantee the highest quality.
-
If you still encounter a problem after receiving your shipment, please immediately contact us here or our iFlight customer support at www.iflightrc.freshdesk.com.
Note
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1)Any military combat purpose or military combat related use;
(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
