iFlight iH3 O3 4S HD RTF - DJI Goggles Integra+ Commando 8 ELRS Radio DJI O3 Air Unit XING 1504 3100KV motors

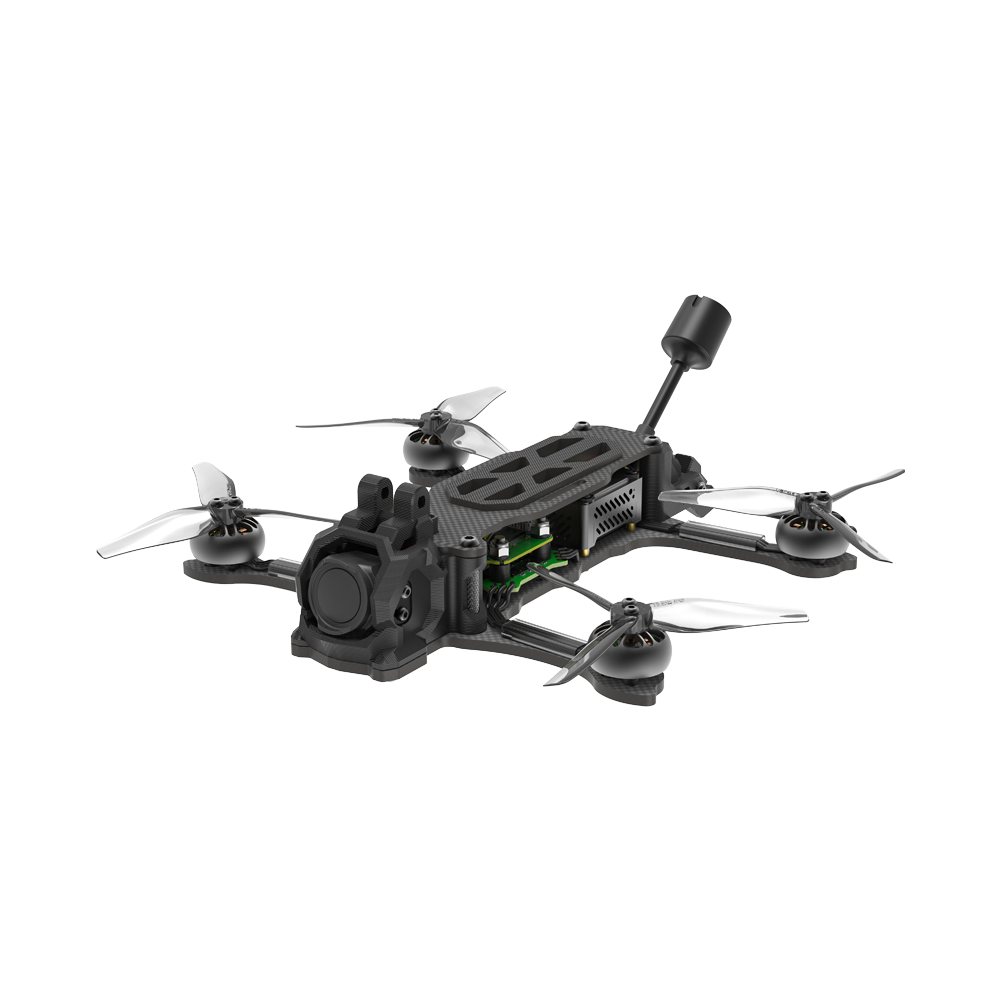

Let’s meet the iH3 - a new high-quality cruise drone that offers an exceptional flying experience at an affordable price.

Equipped with DJI O3 digital system, the iH3 is a 3.5-inch drone that boasts stable flight, easy operation, and superior quality. Its H-shaped frame structure and Anti-Spark Filter ensure balance and stability even during intense operations. Moreover, it can carry a naked GoPro for more exciting flight footage.

Recommended batteries:

1050mAh 4S // Maximum power, ready for freestyle with stick feel of a 5inch and great range for Mid-LongRange cruising.

850mAh 4S // Great weight to power ratio for your daily adventure.

DJI O3 HD Air Unit Low-Latency digital transmission

4K Stabilized Video with 155° Ultra-Wide Angle

Secured Battery Plug with Anti-Spark Filter

GPS Pre-Installed for More Safety at A Distance

Special canopy to carry naked GoPro or Gopro Bones.

The H-shaped frame structure for balance, no props in view.

Product Name: iH3 O3 4S HD BNF

FC: BLITZ Mini F7 FC

ESC: BLITZ Mini E55 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Geometry: H-shaped

Frame: 168 mm (wheelbase)

Motor: XING 1504 3100KV motors

Prop: HQ 3.5*2.5*3 propellers

Weight of the Aircraft: Approx. 216 g (Without Battery)

Dimensions (L×W×H): 135×100×40 mm (From Canopy)

Max Speed: 110 Km/h (Manual Mode)

Maximum Takeoff Altitude: 3200m

Max Hover Time: Approx. 12 mins (No Load with 850mAh Battery)

                            Approx. 18 mins (No Load with 1050mAh Battery)

Max Wind Speed Resistance: Level 5

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: DJI O3 Air Unit Dual-band Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 grams（headband included）

Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm

Communication Bandwidth： Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

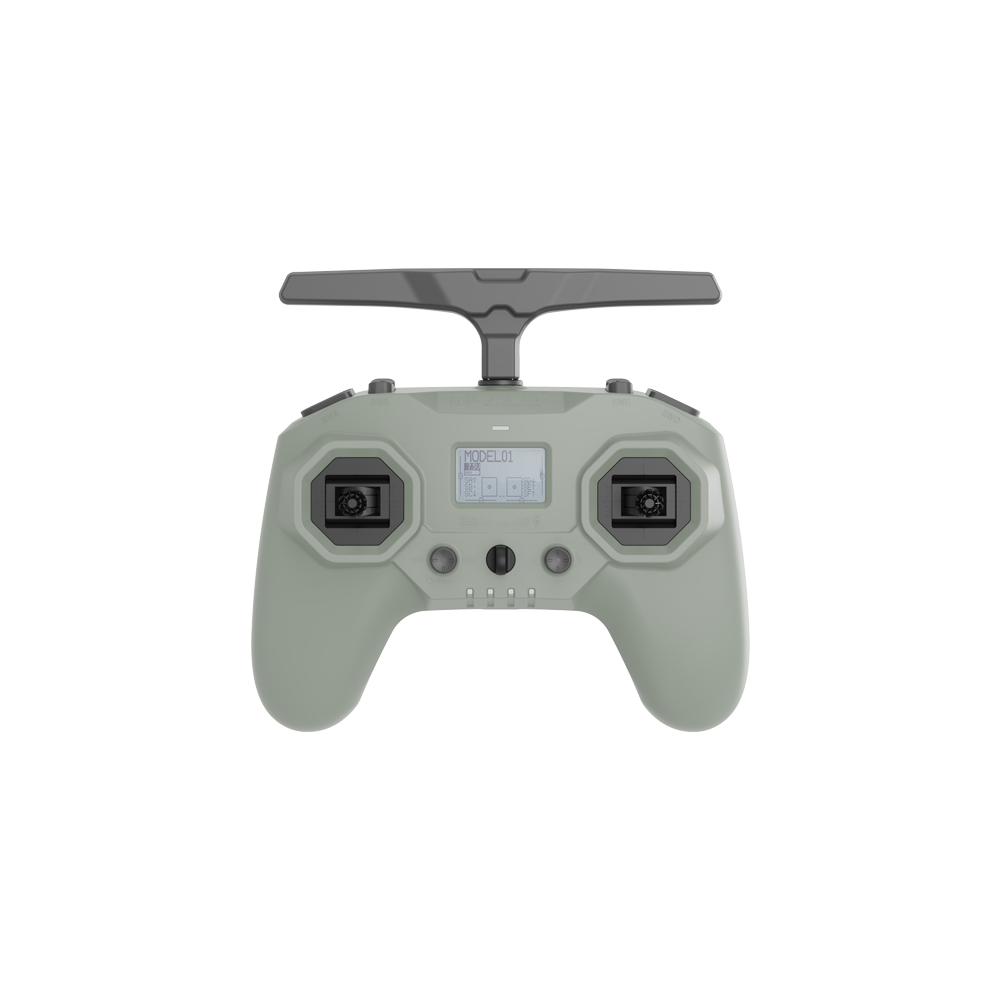

Product Name: Commando 8 ELRS Radio

Weight: 310g (±10g）

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

915MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts:  0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C  to  40°C（32°F to 104°F）

Charging Temperature Range: 5°C to  40°C（41°F to 104°F）

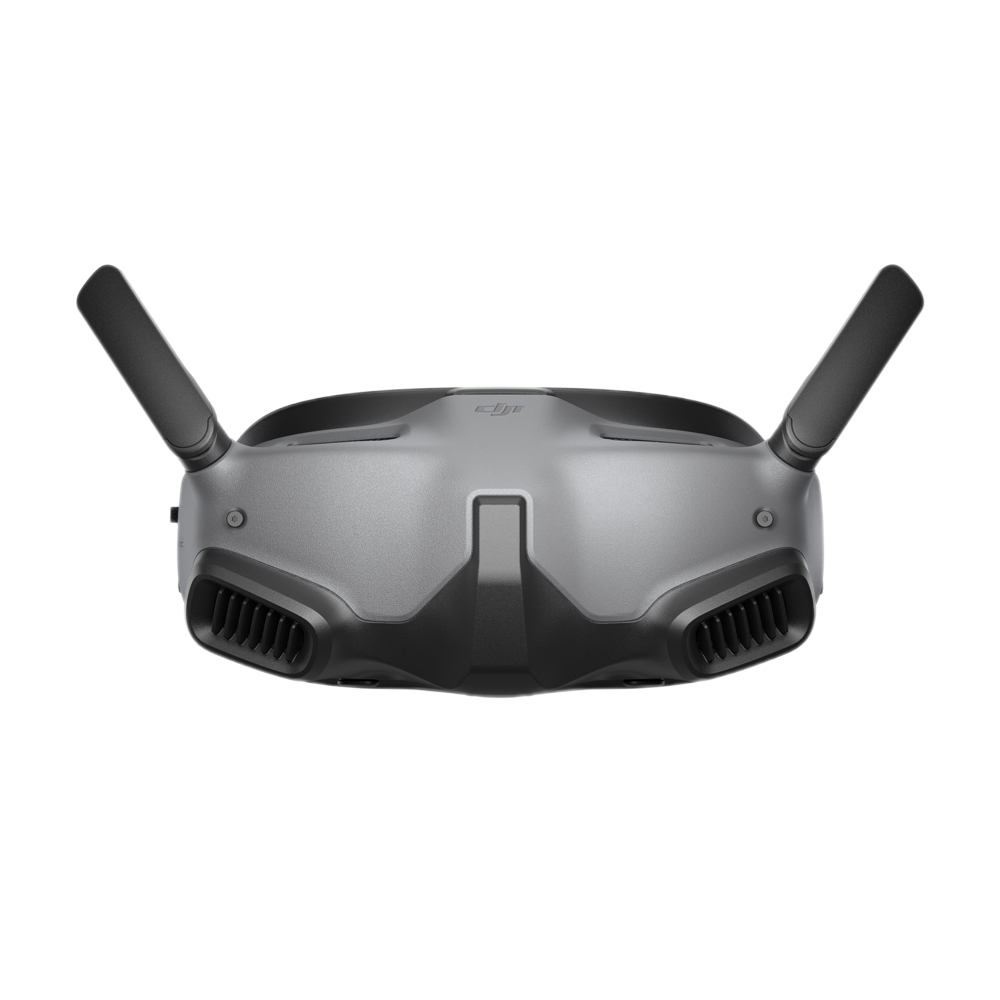

Product Name: DJI Goggles Integra

Weight: Approx. 410 grams（battery included）

Dimensions (L×W×H): L170 * W104 * H 75mm

Screen Size (single screen): 0.49-inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

FOV (single screen): 44°

Video Recording Format: MOV

Supported Video Playback Formats: MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

Transmitter Power (EIRP)

2.4000-2.4835 GHz:

< 30 dBm (FCC)< 20 dBm (CE/SRRC/MIC/KC)

5.725-5.850 GHz:

< 30 dBm (FCC)< 23 dBm (SRRC)< 14 dBm (CE/KC)

Max Video Transmission Bitrate: 50 Mbps

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Voltage: 5.6-8.4 V

1 x iH3 O3 4S HD BNF

1 x Commando 8 ELRS Radio

1 x DJI Goggles Integra

2 x Antenna

2 x Battery strap

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
