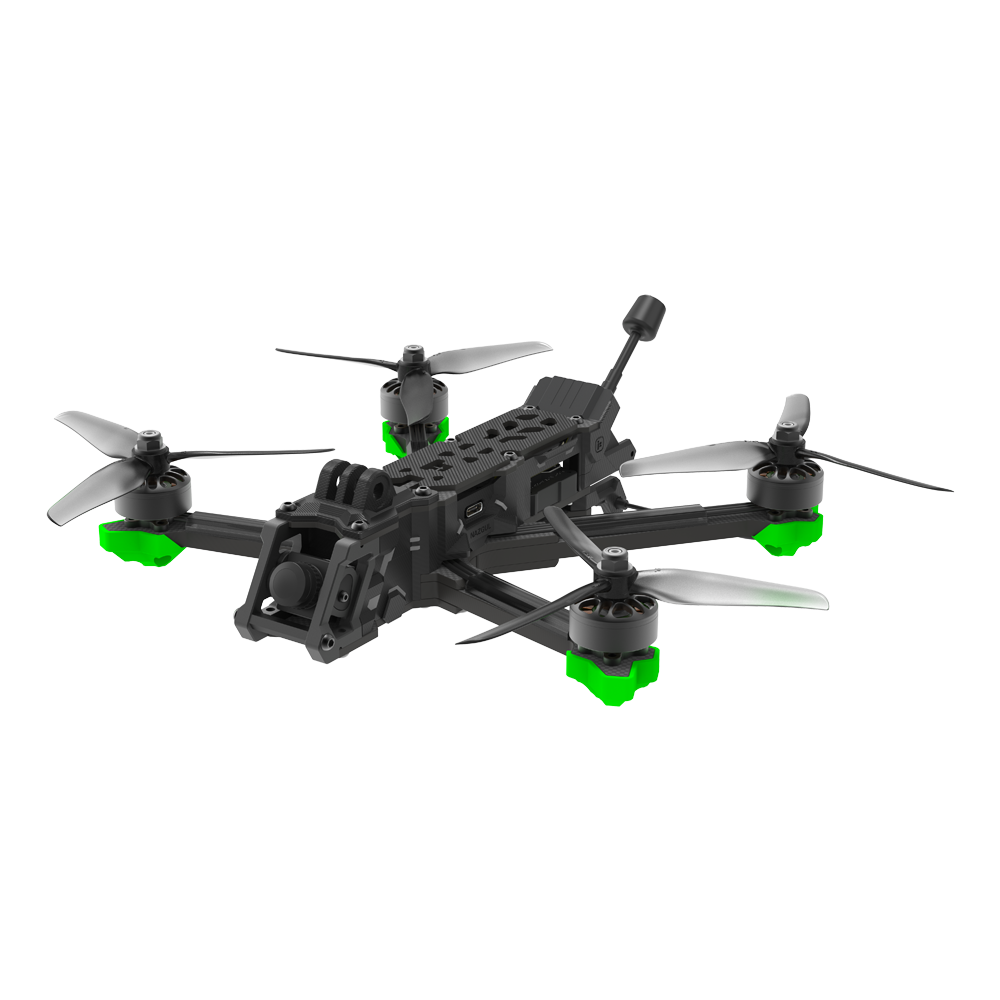

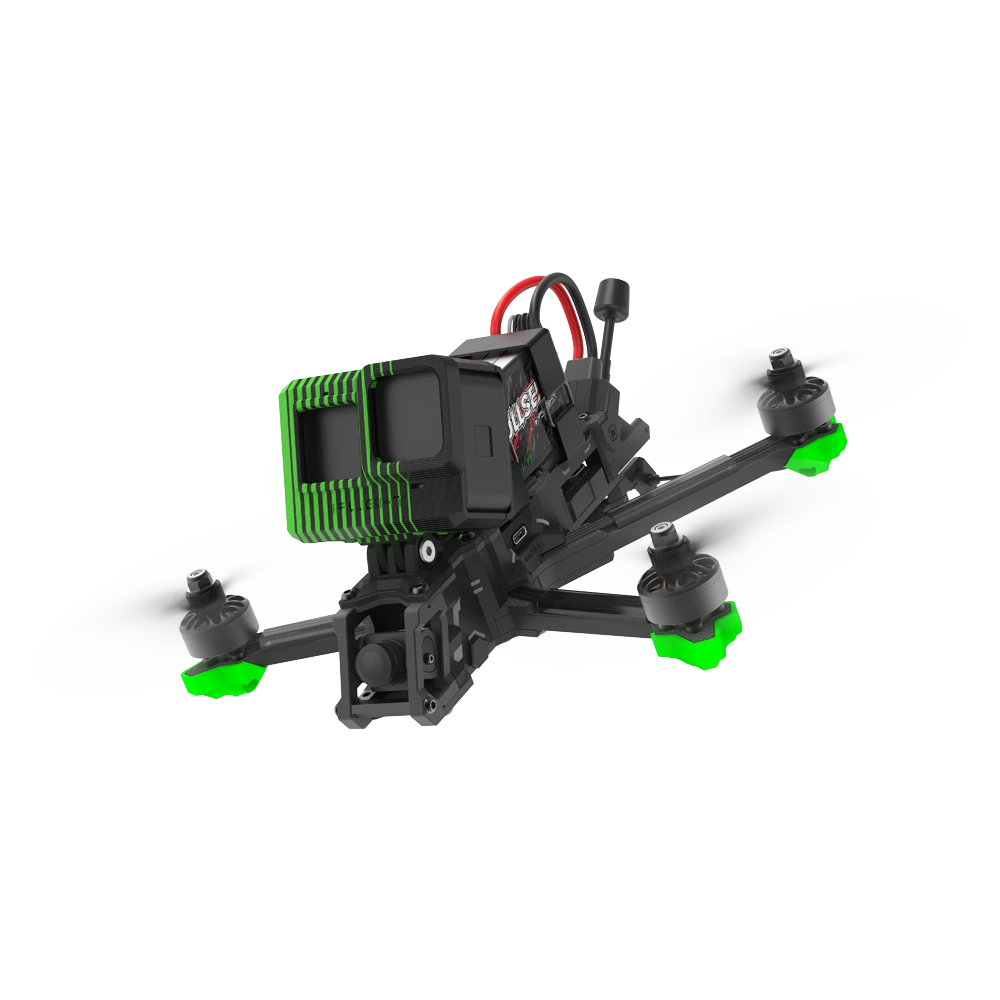

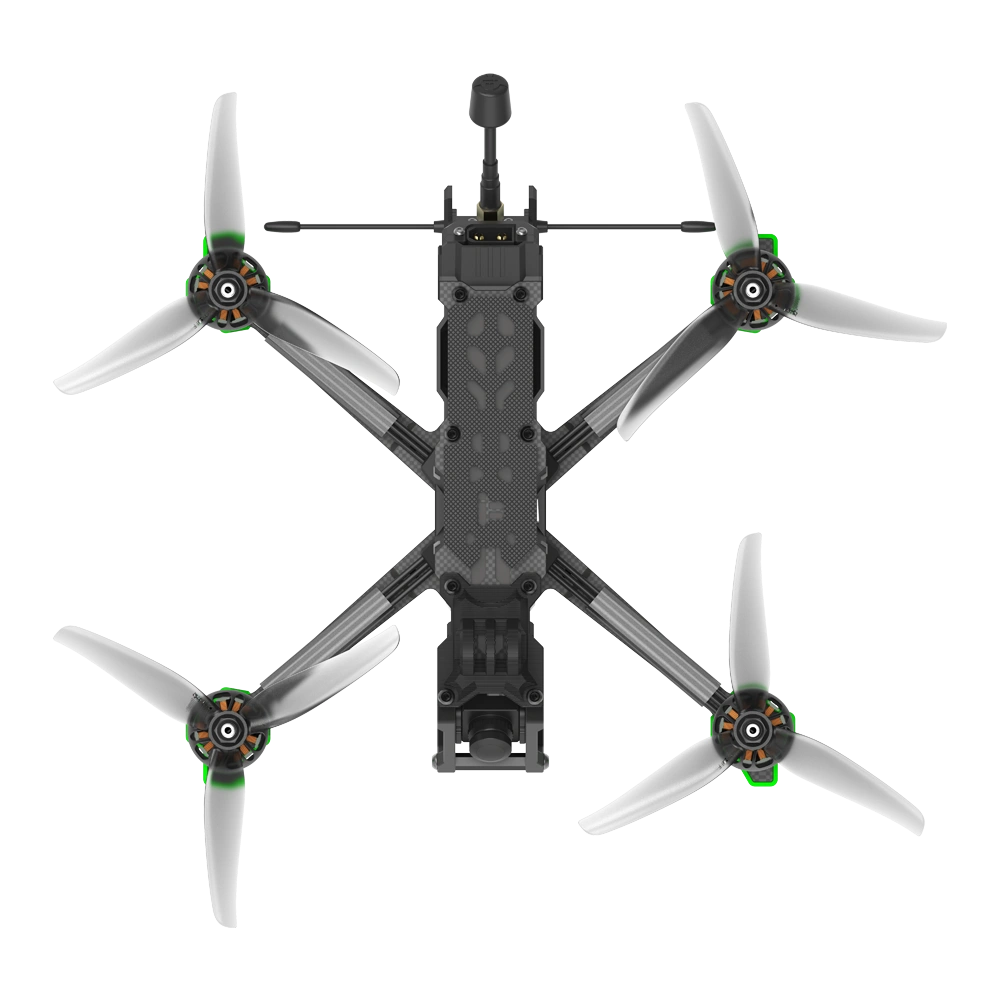

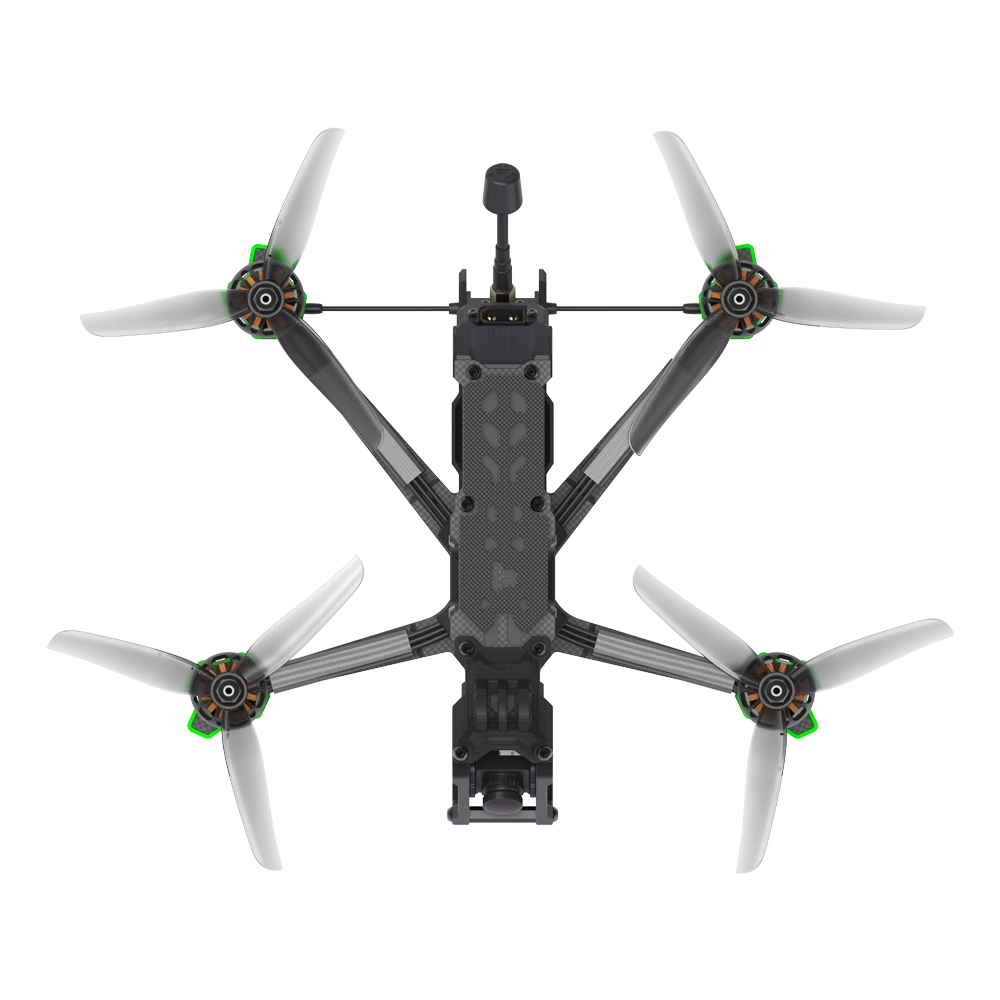

iFlight Nazgul Evoque F5 V2 - Analog 6S 5inch FPV Drone BNF F5X F5D(Squashed-X or DC)with BLITZ MINI F7 E55 1.6W stack for FPV

iFlight Nazgul Evoque F5 V2 - Analog 6S 5inch FPV Drone BNF F5X F5D(Squashed-X or DC)with BLITZ MINI F7 E55 1.6W stack for FPV

RCDrone

Regular price $412.69 USD
Regular price Sale price $412.69 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

26 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Description:

  • Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications:

  • Product Name: Evoque F5 V2
  • FC: BLITZ Mini F722 Flight Controller
  • ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
  • Video Transmission: BLITZ Whoop 1.6W VTX
  • Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
  • Motor: XING2 2207 motors
  • Prop: Nazgul 5 inch propellers
  • Weight: 445grams
  • Takeoff Weight: Approx. 610 g
  • Dimensions (L×W×H): 190×136×36 mm
  • Diagonal Distance: 225 mm
  • Max Speed: 130 Km/h (Manual Mode)
  • Maximum Takeoff Altitude: 5000 m
  • Max Hover Time: Approx. 8 mins
  • Max Flight Distance: 5 km
  • Max Wind Speed Resistance: 100 Km/H (Level 5)
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Antennas: Single Antennas
  • GNSS:GPS+Galileo (Optional)

Video Transmission

  • Product Name: BLITZ Whoop 1.6W VTX
  • Input voltage: 7V~34V
  • Interface: MMCX
  • Power levels: PIT/25mW/400mW/800mW/1600mW
  • Channels: 40 (including Raceband)
  • Mounting pattern: 30.5x30.5mm/Φ3
  • Lightweight: 18.9g (excluding antenna)
  • VTX telemetry: IRC Tramp
  • Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
  • RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Packing List

  • 1 x Evoque F5 6S BNF
  • 1 x Antennas
  • 2 x Battery pad
  • 2 x propeller(Pairs)
  • 2 x Battery strap
