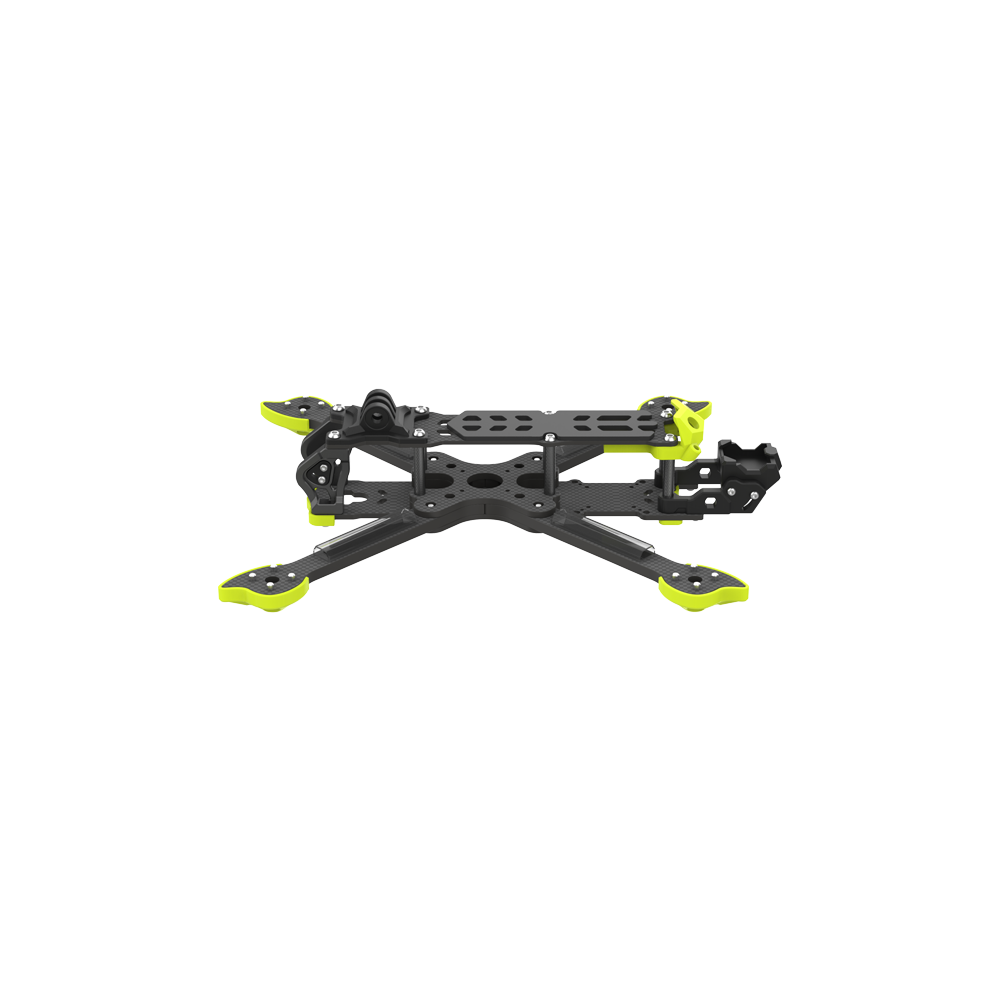

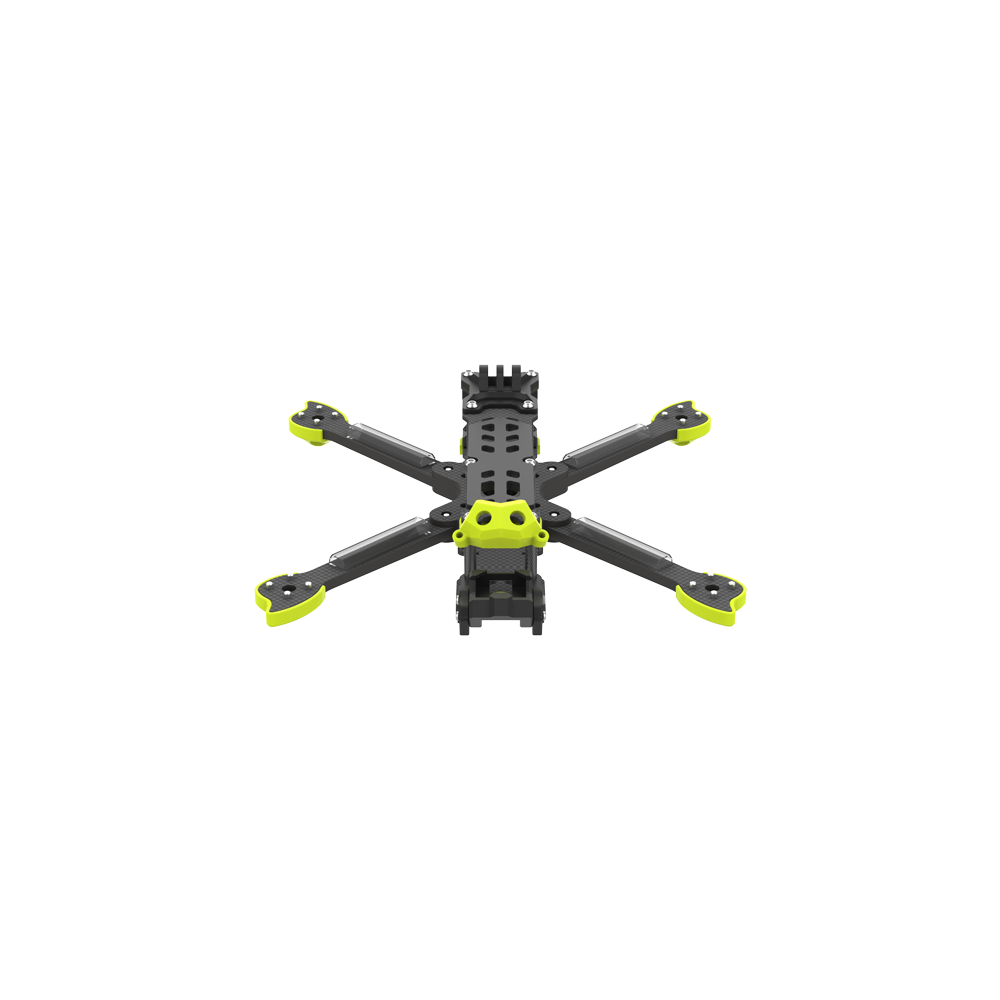

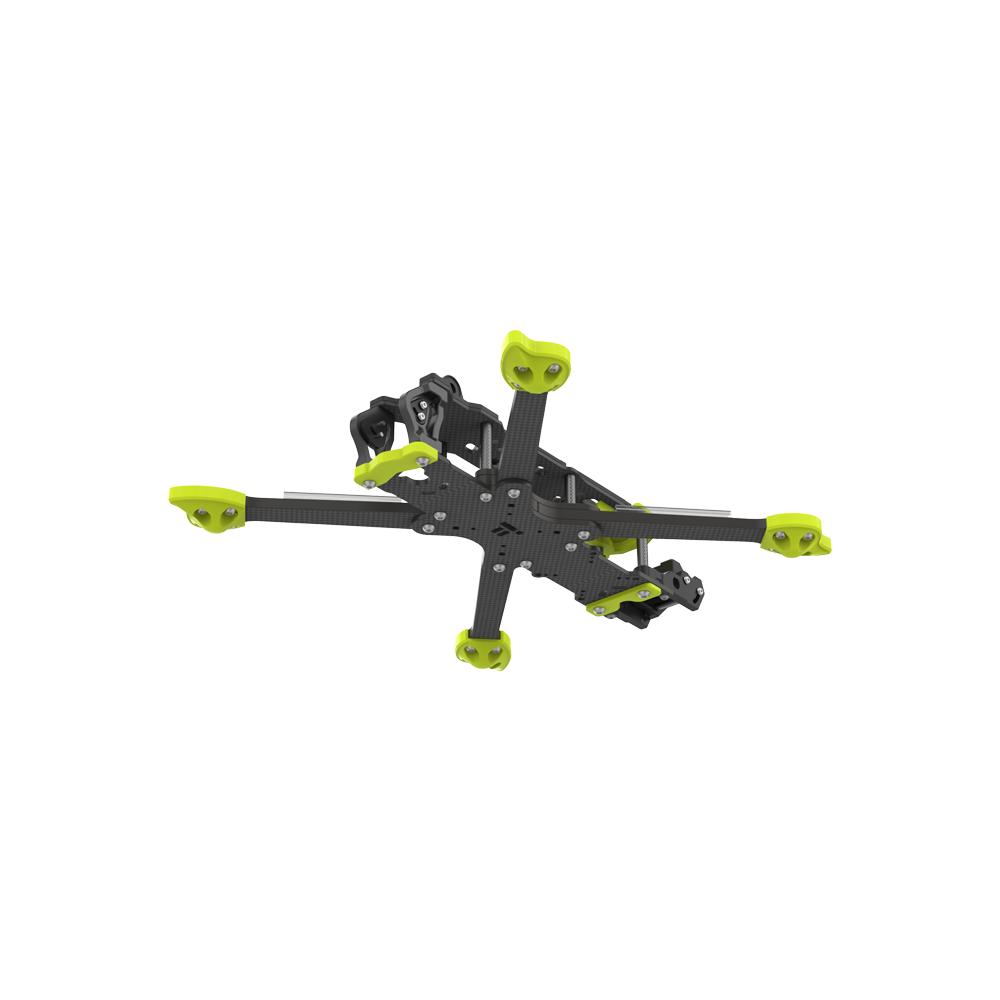

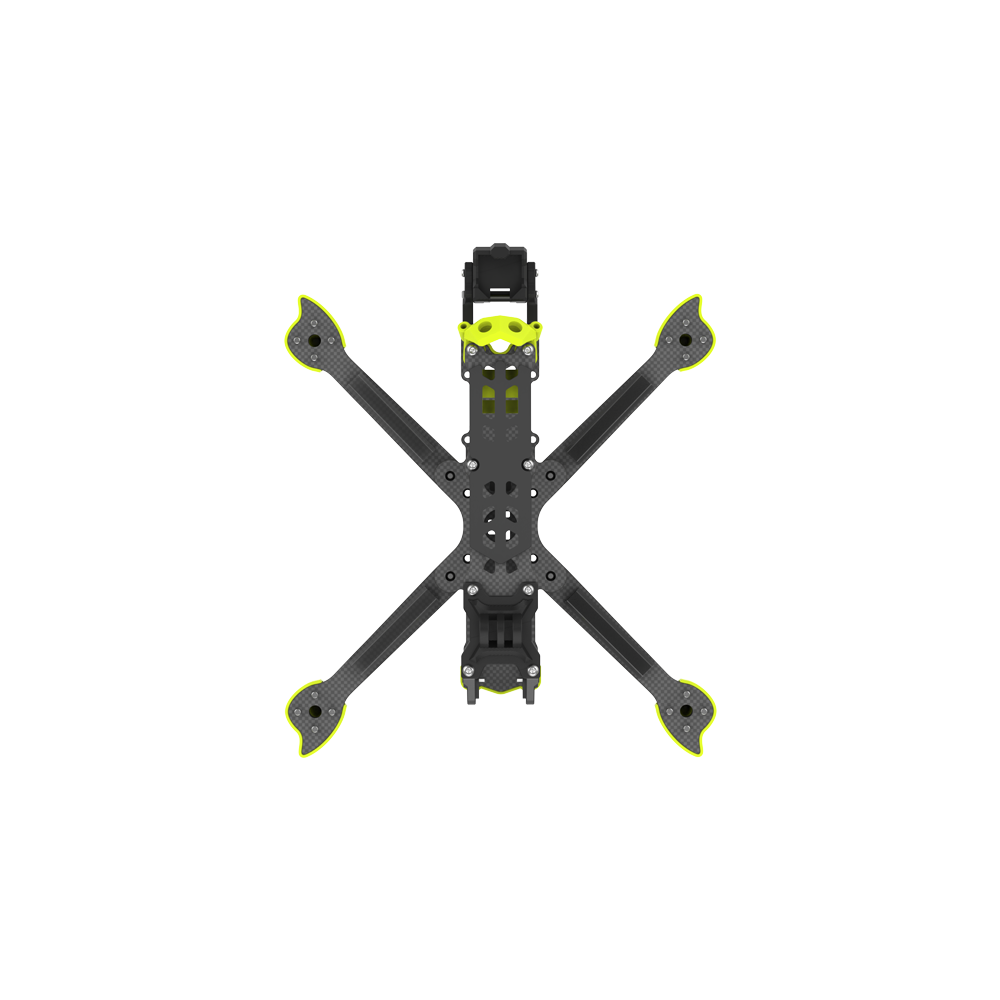

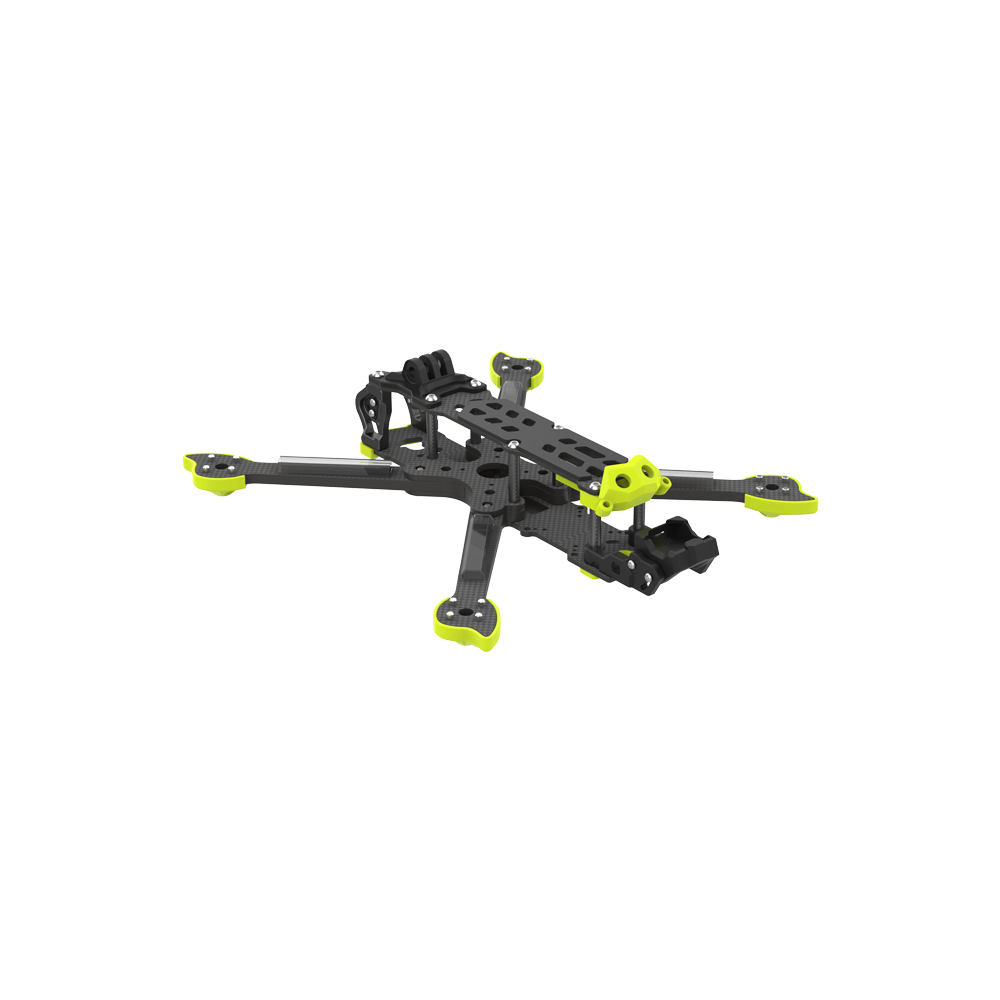

iFlight Nazgul5 V3 Frame Kit with 5mm arm for FPV parts

iFlight Nazgul5 V3 Frame Kit with 5mm arm for FPV parts

iFlight

$89.75 USD
$134.62 USD $89.75 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

60 orders in last 90 days

Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

iFlight Nazgul5 V3 Frame Kit SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Nazgul V3

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description
  • The iFlight Nazgul5 V3 frame is a 5" freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control.
Highlights
  • 5" version also fits 5.1" style propellers
  • Fits both 30.5x30.5 and 20x20 stacks
  • Compatible with DJI O3 HD System
  • 5mm arm design for more durability
  • Popular True-X configuration
  • LED illuminated Logo
  • TPU crash-guards
  • Easy-Swap arms
Optional Parts to select (not included in frame kit): https://www.aliexpress.us/item/3256804856172213.html?spm
  • New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery
  • Single DJI VTX Antenna TPU to install the original DJI O3 set included antenna.
Specifications
  • Product Name：Nazgul5 V3 Frame Kit
  • Wheelbase: 245mm
  • Frame Dimension: L173*W173*H36.5 mm
  • Frame Body Dimension: 36.5mm
  • Arm Thickness: 5mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2.5mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Motor Mounting：16x16mm
  • VTX Mounting：30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
  • Weight: 500grams (Included no TPU Parts)
Packing List
  • 1 x Nazgul5 V3 Frame Kit
  • 1 x GoPro TPU Base Mount
  • 1 x Screw Bag
  • 4 x TPU Armguard
  • 1 x Bottom Plate Front Protection TPU
  • 1 x Bottom Plate Rear Protection TPU
  • 1 x Anti-slip Battery Pad
  • 4 x Motor Wire Shield Tube
  • 2 x Battery Strap(20*250mm)
