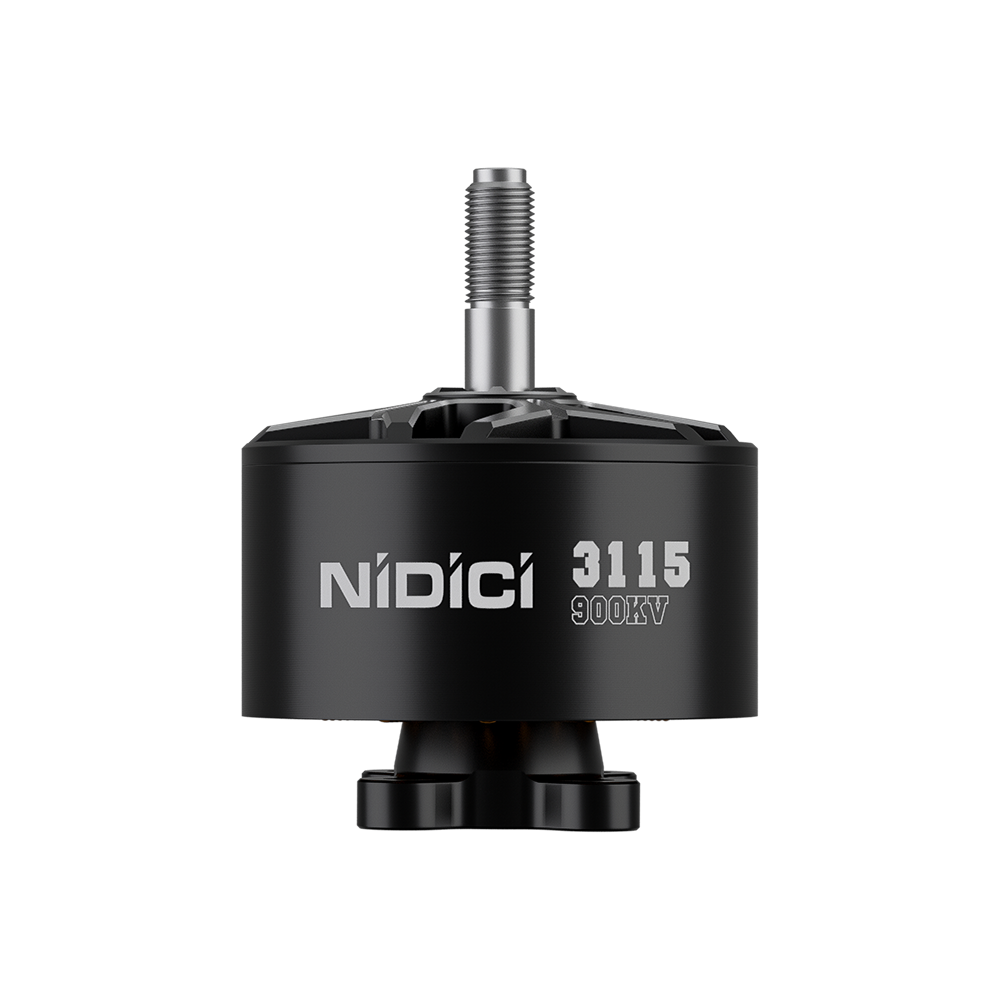

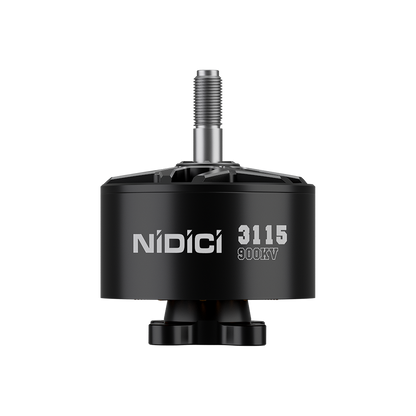

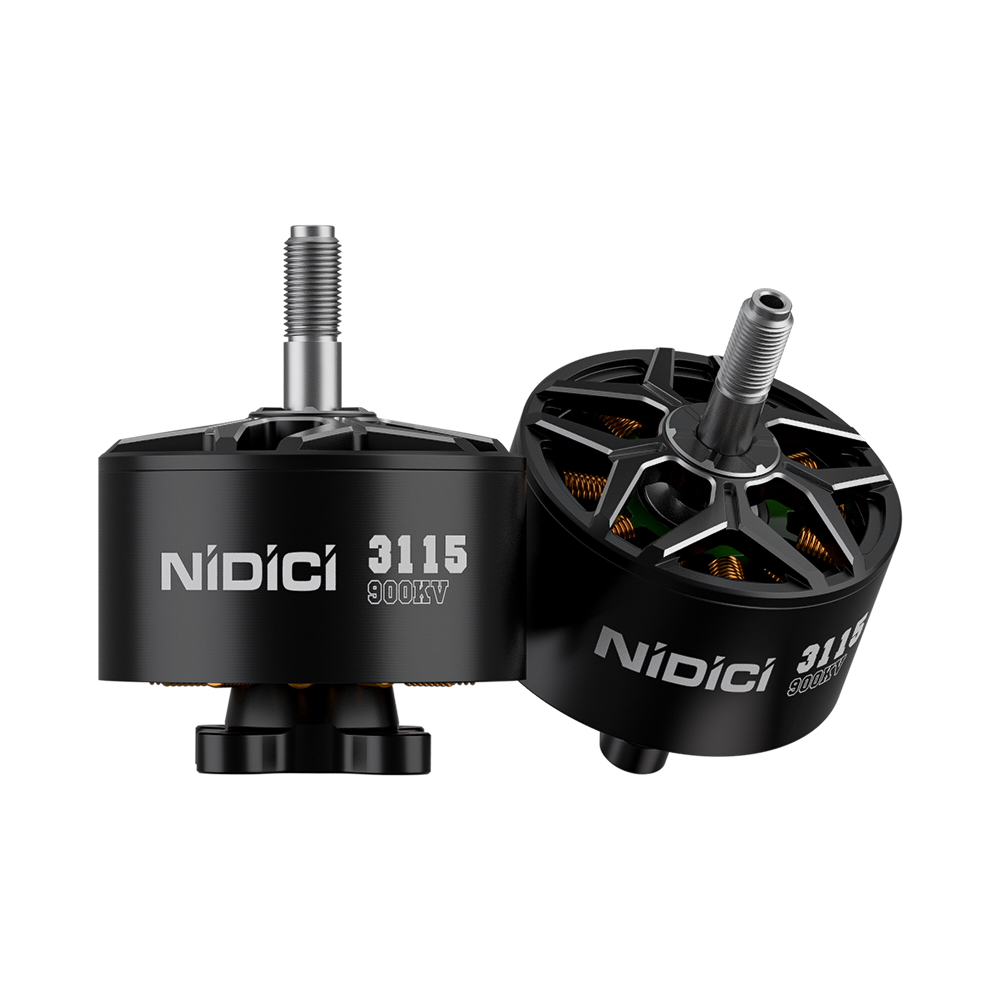

  • iFlight NIDICI 3115 900KV / 1250KV Brushless Motor, iFlight NIDICI 3115 900KV motor for 6S 9-10 inch FPV drones, ideal for long-range and cinelifter use, with black design.

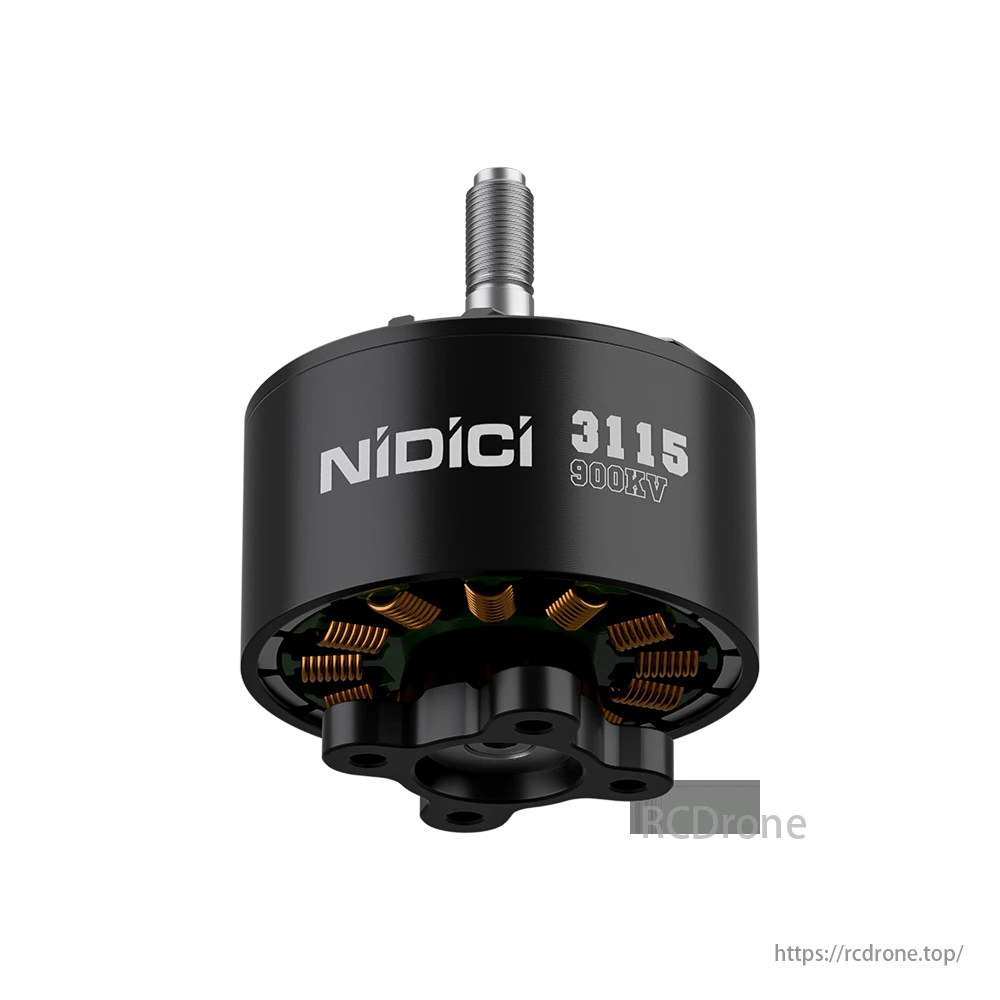

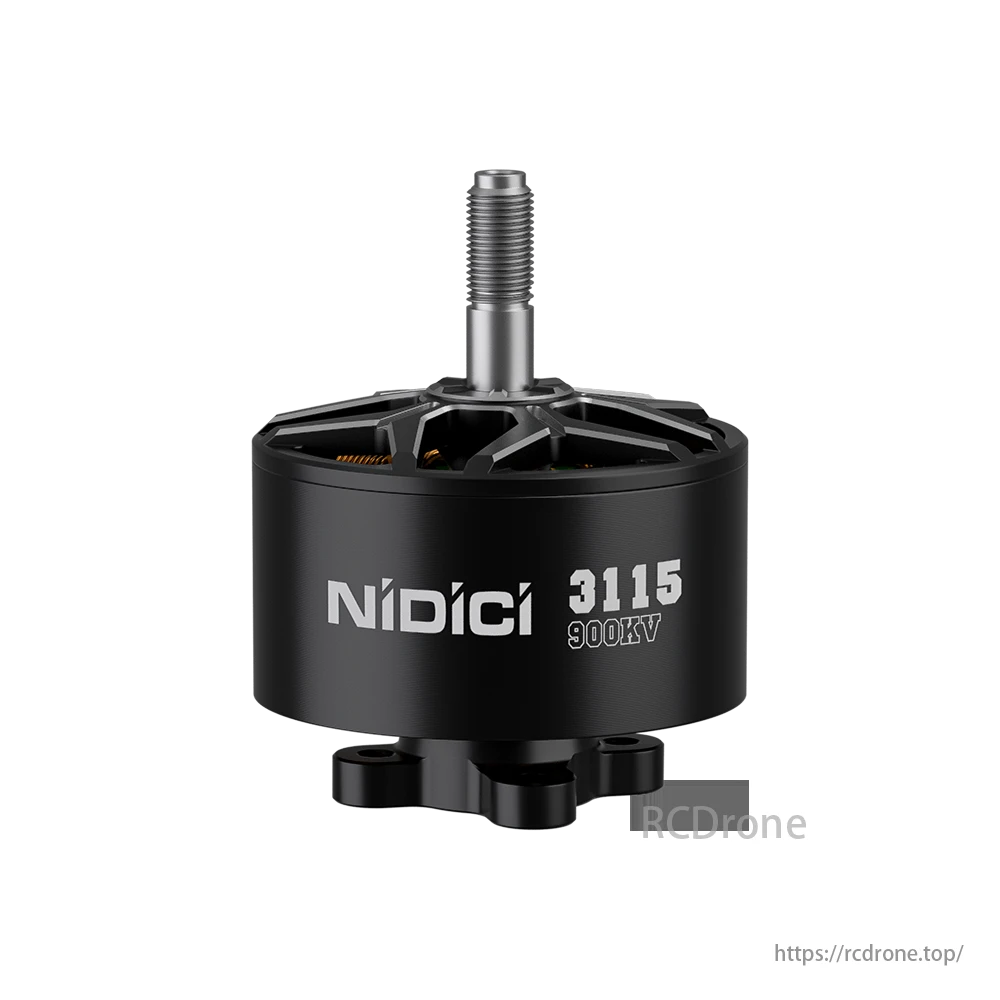

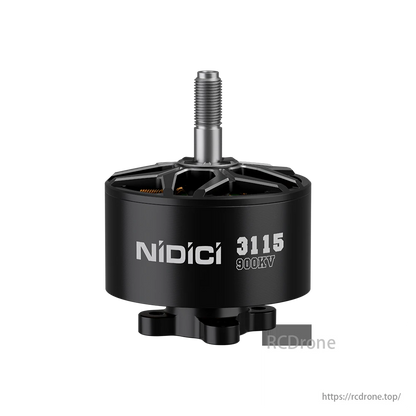

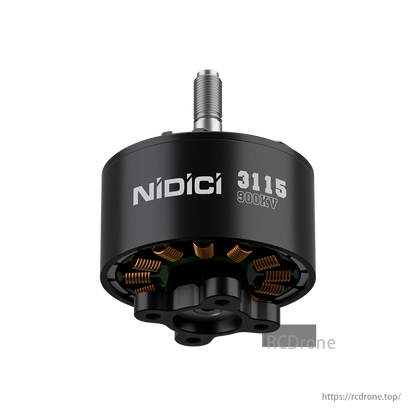

  • iFlight NIDICI 3115 900KV / 1250KV Brushless Motor, iFlight NIDICI 3115 900KV motor for 6S 9-10 inch FPV drones, ideal for long-range and cinelifter applications.

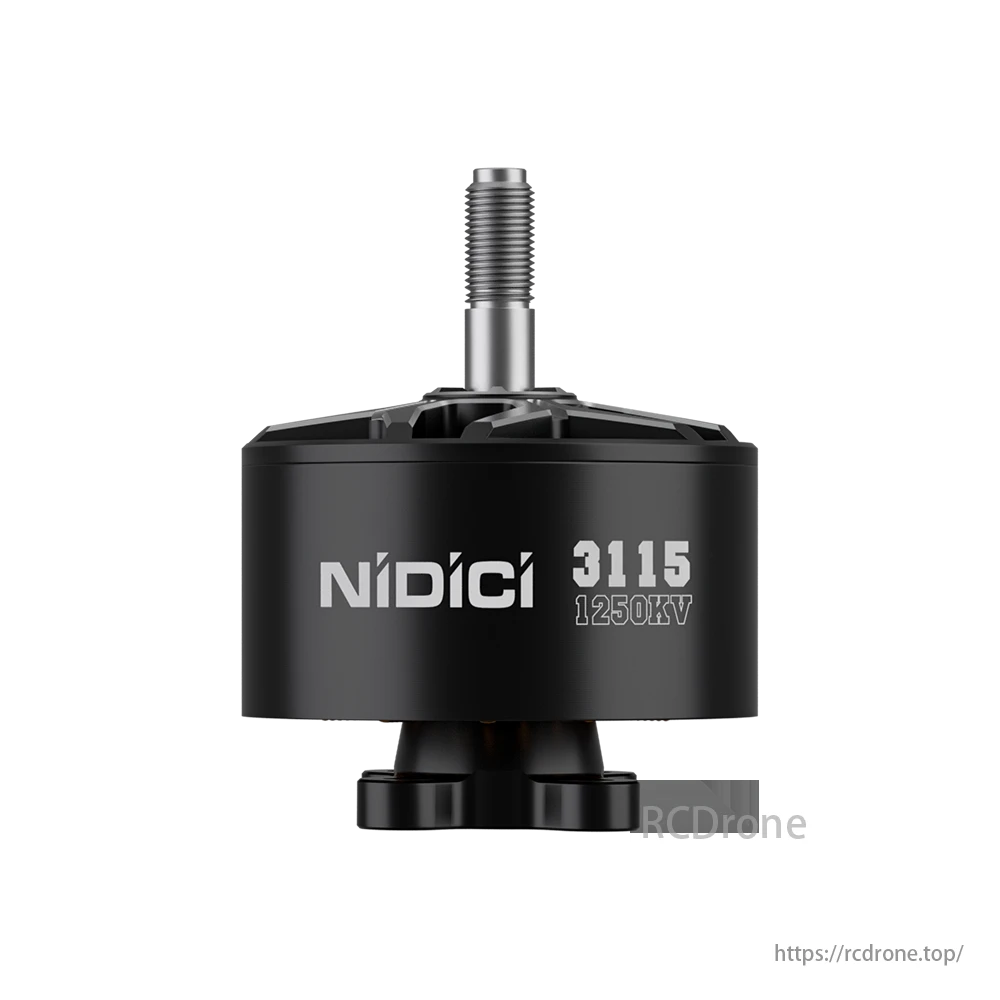

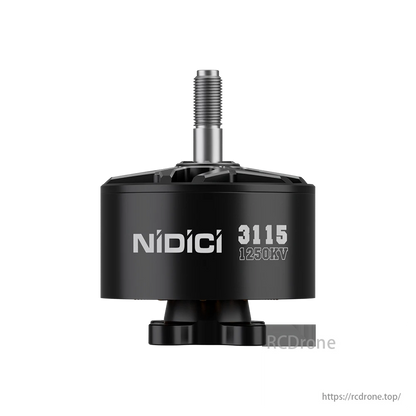

  • iFlight NIDICI 3115 900KV / 1250KV Brushless Motor, iFlight NIDICI 3115 1250KV motor for 6S 9-10 inch FPV drones, ideal for long-range and cinelifter use, with compact and efficient design.
  • iFlight NIDICI 3115 900KV / 1250KV Brushless Motor for 6S 9–10 Inch FPV Long-Range & Cinelifter Drones
1 5

iFlight NIDICI 3115 900KV / 1250KV Brushless Motor for 6S 9–10 Inch FPV Long-Range & Cinelifter Drones

iFlight NIDICI 3115 900KV / 1250KV Brushless Motor for 6S 9–10 Inch FPV Long-Range & Cinelifter Drones

iFlight

$32.00 USD
$32.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight NIDICI 3115 Brushless Motor is part of the NIDICI Affordable Series, offering high-performance power at an accessible price. Available in both 900KV and 1250KV variants, it is designed for 6S FPV drones running 9–10 inch propellers in long-range, heavy-lift, or cinematic builds. The 900KV version delivers up to 1479.5W of power, while the 1250KV version pushes even further with up to 1830.3W output, making this motor an excellent option for professional-level endurance and lift with budget flexibility.

Key Features

  • KV Options: 900KV / 1250KV

  • Input Voltage: 6S (24V)

  • Max Power: 1479.5W (900KV) / 1830.3W (1250KV)

  • Peak Current: 63.28A (900KV) / 78.86A (1250KV)

  • Applications: Optimized for 9–10 inch FPV drones for long-range, X-Class, or cinelifter builds

  • High-quality Materials: N52H curved magnets, segmented bell, NSK bearings

  • Budget-Friendly: Part of the cost-effective NIDICI series for hobbyists and pros alike

Specifications

Parameter 900KV Version 1250KV Version
KV Rating 900KV 1250KV
Input Voltage 24V (6S LiPo) 24V (6S LiPo)
Max Current 63.28A 78.86A
Max Power 1479.5W 1830.3W
Interphase Resistance 51.24mΩ 24.15mΩ
Weight (incl. wire) 77g 77g
Dimensions Ø36.85 × 46.8mm (incl. shaft) Ø36.85 × 46.8mm (incl. shaft)
Shaft Diameter 5mm 5mm
Shaft Protruding Length 15.65mm 15.65mm
Configuration 12N14P 12N14P
Magnet N52H Curved N52H Curved
Bearings Ø11×5×5mm Ø11×5×5mm
Rotor Design Segmented bell Segmented bell
Lead Wires 260mm / 18AWG 260mm / 18AWG
Winding Single strand copper Single strand copper
Mounting Holes 19×19mm – Ø3mm 19×19mm – Ø3mm

Performance Datasheet (900KV Version)

Prop Type Throttle Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) Temp (°C)
HQ 9×4×3 100% 23.51 44.24 3414 1040.1 3.28 86°C
HQ 10×4.5×3 100% 23.38 63.28 4406 1479.5 2.98 92°C

(More values available above in full datasheet table)

Packing List

  • 1 × iFlight NIDICI 3115 900KV / 1250KV Brushless Motor

  • 4 × M3×10mm Mounting Screws

  • 1 × M5 Flange Nut

Datasheet

iFlight Nidici Motor, NIDICI 3115 900KV motor: 77g, 24V, 63.28A peak, 1479.5W max, Ø36.85x46.8mm. Includes M3 screws, M5 nut. Datasheet offers performance details.

NIDICI 3115 900KV motor: 77g, 24V, 63.28A peak current, 1479.5W max power. Ø36.85x46.8mm. Includes M3 screws, M5 nut. Datasheet provides performance details at different throttle percentages.
