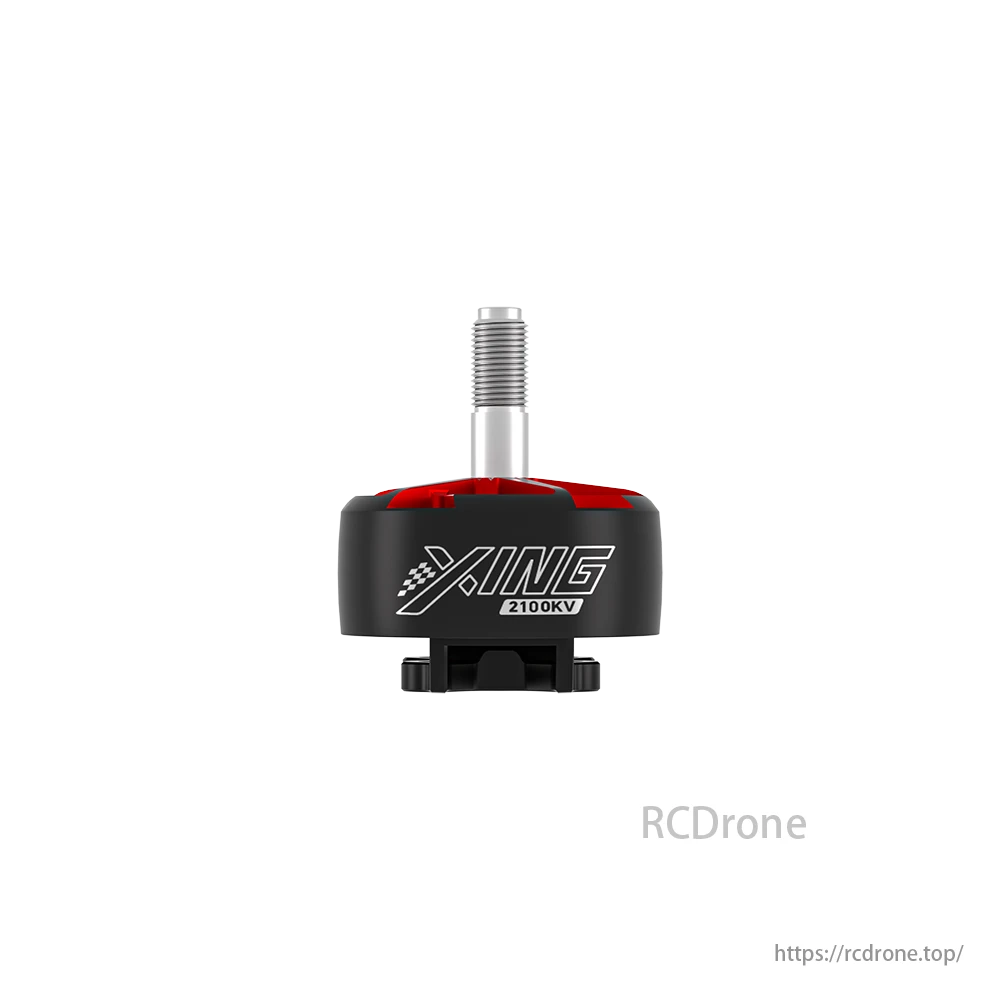

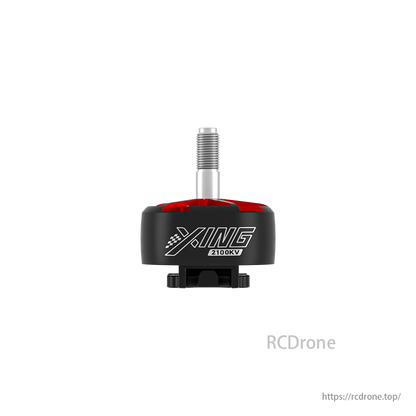

  • iFlight R5 2207 Brushless Motor, iFlight R5 2207 brushless motor, 1590-2100KV, designed for 6S 5-inch FPV racing drones.
  • iFlight R5 2207 Brushless Motor, 1590-2100KV, for 6S 5-inch FPV Racing Drones, with robust performance.
  • iFlight R5 2207 Brushless Motor, iFlight R5 2207 brushless motor, 1590-2100KV, for 6S 5-inch FPV racing drones, offers robust performance and reliability.
  • iFlight R5 2207 Brushless Motor, 1590-2100KV, for 6S 5-inch FPV Racing Drones, offers robust performance and reliability.
  • iFlight R5 2207 Brushless Motor, iFlight R5 2207 brushless motor, 1590-2100KV, for 6S 5-inch FPV racing drones, offers robust performance.

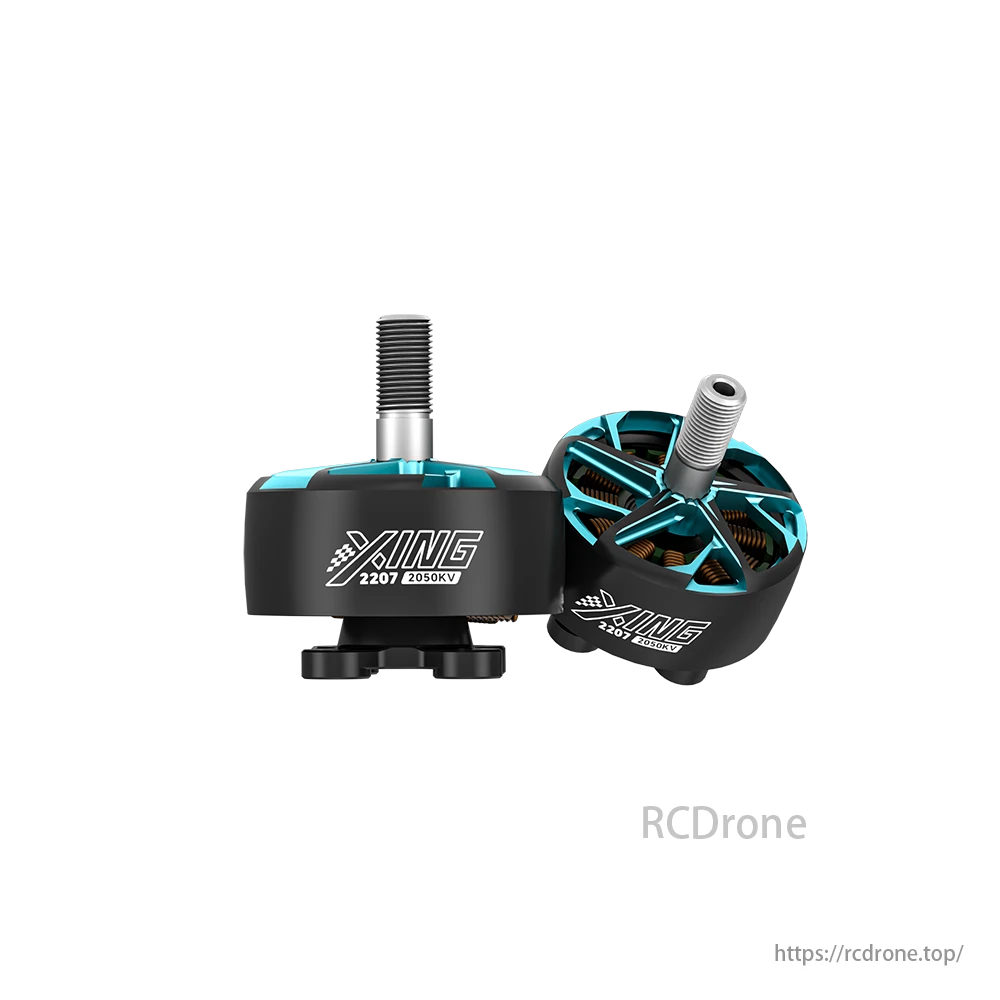

  • iFlight R5 2207 Brushless Motor, iFlight R5 2207 brushless motor, available in 1590KV, 2050KV, or 2100KV, designed for FPV drones.
1 8

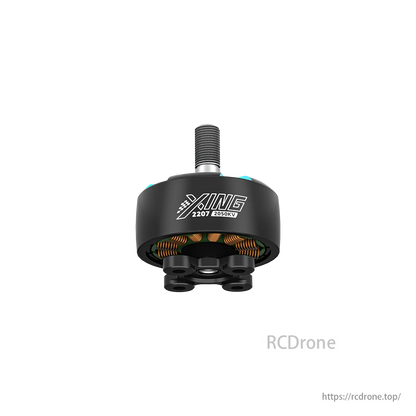

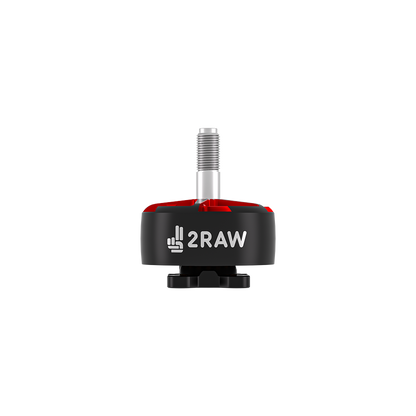

iFlight R5 2207 Brushless Motor 1590KV / 2050KV / 2100KV for 6S 5-Inch FPV Racing Drones

iFlight R5 2207 Brushless Motor 1590KV / 2050KV / 2100KV for 6S 5-Inch FPV Racing Drones

iFlight

$42.00 USD
$42.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight R5 2207 motor series is purpose-built for professional FPV racing, offering three KV variants: 1590KV, 2050KV, and 2100KV, to suit different track styles and battery setups. These motors utilize N52H curved arc magnets, a robust Unibell structure, and center-slotted stator design for ultra-fast throttle response, high efficiency, and consistent power delivery. Whether you're pushing limits in speed, agility, or freestyle, the R5 2207 motor delivers race-proven performance with maximum reliability.

Key Features

  • Available in 1590KV / 2050KV / 2100KV

  • Optimized for 5-inch FPV drones

  • Designed for high-speed racing and freestyle

  • Unibell housing for crash resistance and cooling

  • High-performance N52H curved magnets

  • NSK/NMB bearings for smooth operation

  • Single-strand copper winding for durability and efficiency

Specifications

Parameter 1590KV 2050KV / 2100KV
Input Voltage 32V 25.2V
Peak Current 38.62A 49.53A / 49.49A
Max Watt 1221.6W 1166.4W / 1167.5W
Weight (incl. wire) 33.8g 34.6g
Dimension Ø28.18×31.5mm Ø28.2×31.5mm
Resistance 95.6mΩ 56.3mΩ
Shaft Diameter 5mm 5mm
Shaft Protruding Length 12.5mm 12.5mm
Mounting Holes 16×16mm – Ø3mm Same
Lead 150mm / 20AWG Same
Magnet N52H Curved Same
Configuration 12N14P Same
Bearing Type NSK / NMB Same
Bearing Spec Ø9×Ø4×4mm Same
Winding Single-strand copper Same

Performance Datasheet (Selected Results)

R5 2207 1590KV

Prop Throttle Thrust (g) Power (W) Efficiency (g/W) Temp
Nazgul R5 V2 100% 1533 1221.6 1.25 150°C
HQ R37 100% 1532 1117.6 1.37 157°C
GF51466 100% 1462 1173.7 1.25 153°C

R5 2207 2050KV

Prop Throttle Thrust (g) Power (W) Efficiency (g/W) Temp
Nazgul R5 V2 100% 2068 1166.4 1.77 71°C
HQ R37 100% 1923 1127.6 1.71 69°C
GF51466 100% 2108 1163.3 1.81 75°C

R5 2207 2100KV

Prop Throttle Thrust (g) Power (W) Efficiency (g/W) Temp
Nazgul R5 V2 100% 2119 1167.5 1.82 73°C
HQ R37 100% 1951 1106.8 1.76 71°C
GF51466 100% 2251 1153.8 1.95 78°C

Package Contents

  • 1 × iFlight R5 2207 Brushless Motor (KV Optional)

  • 4 × M3×8mm Mounting Screws

  • 1 × M5 Flanged Nylon Lock Nut

Datasheet

iFlight R5 2207 Brushless Motor, R5 2207 1590KV motor: 33.8g, φ28.18*31.5mm, 95.6mΩ, 32V, 38.62A peak, 1221.6W max, Unibell rotor, 5mm shaft, N52H magnet, 12N14P config, NSK bearings. Includes M3 screws and M5 nut.

R5 2207 1590KV motor specs: 33.8g, φ28.18*31.5mm, 95.6mΩ, 32V, 38.62A peak, 1221.6W max, Unibell rotor, 5mm shaft, N52H magnet, 12N14P config, NSK bearings, single strand copper winding. Includes M3 screws and M5 nut.

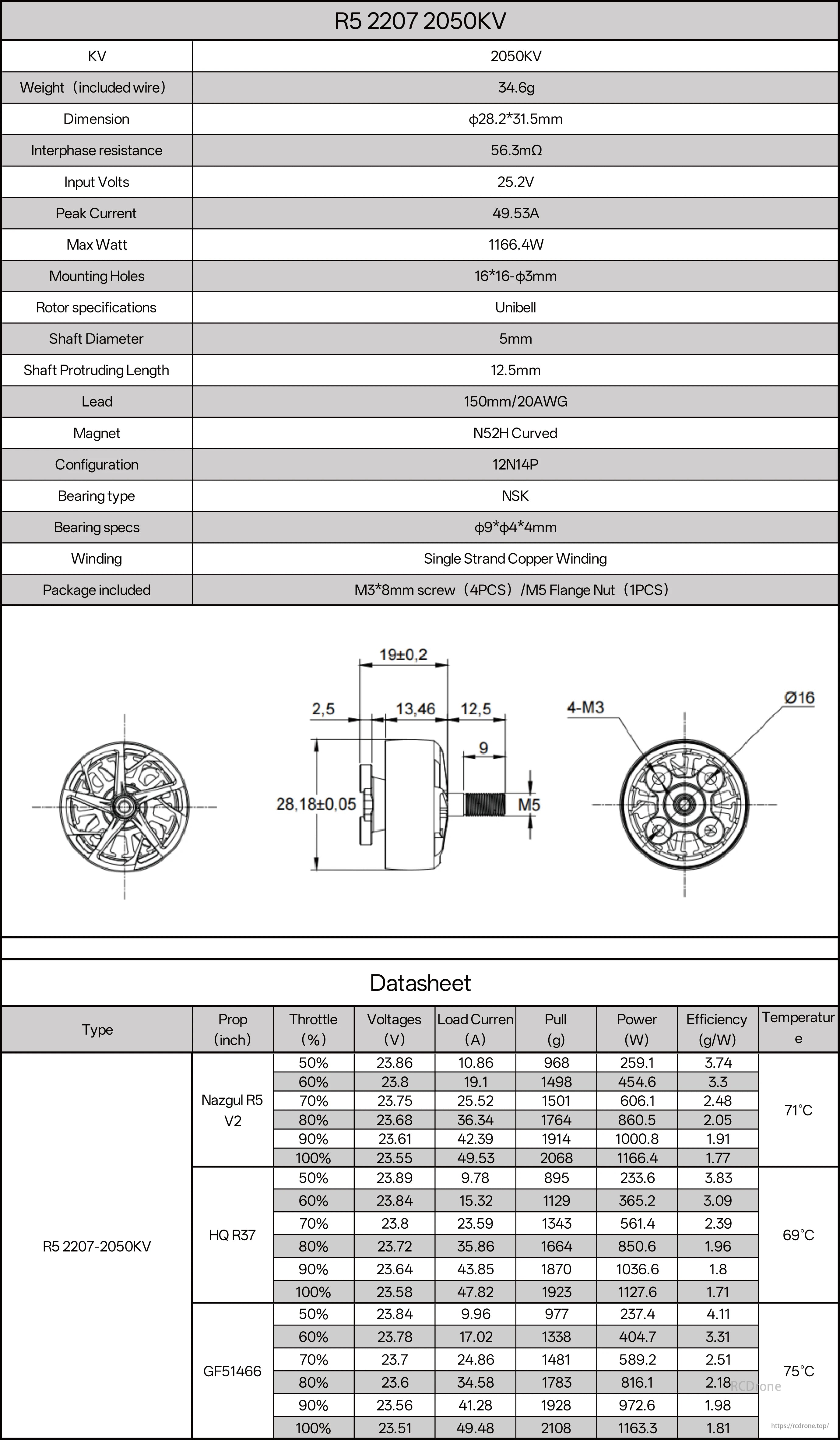

iFlight R5 2207 Brushless Motor, R5 2207 2050KV motor: 34.6g, φ28.2*31.5mm, 56.3mΩ, 25.2V, 49.53A peak, 1166.4W max, with M3 screws/M5 nut. Includes prop performance data.

R5 2207 2050KV motor specs: 34.6g weight, φ28.2*31.5mm size, 56.3mΩ resistance, 25.2V input, 49.53A peak current, 1166.4W max power. Includes M3 screws and M5 nut. Performance data for various props at different throttle levels provided.

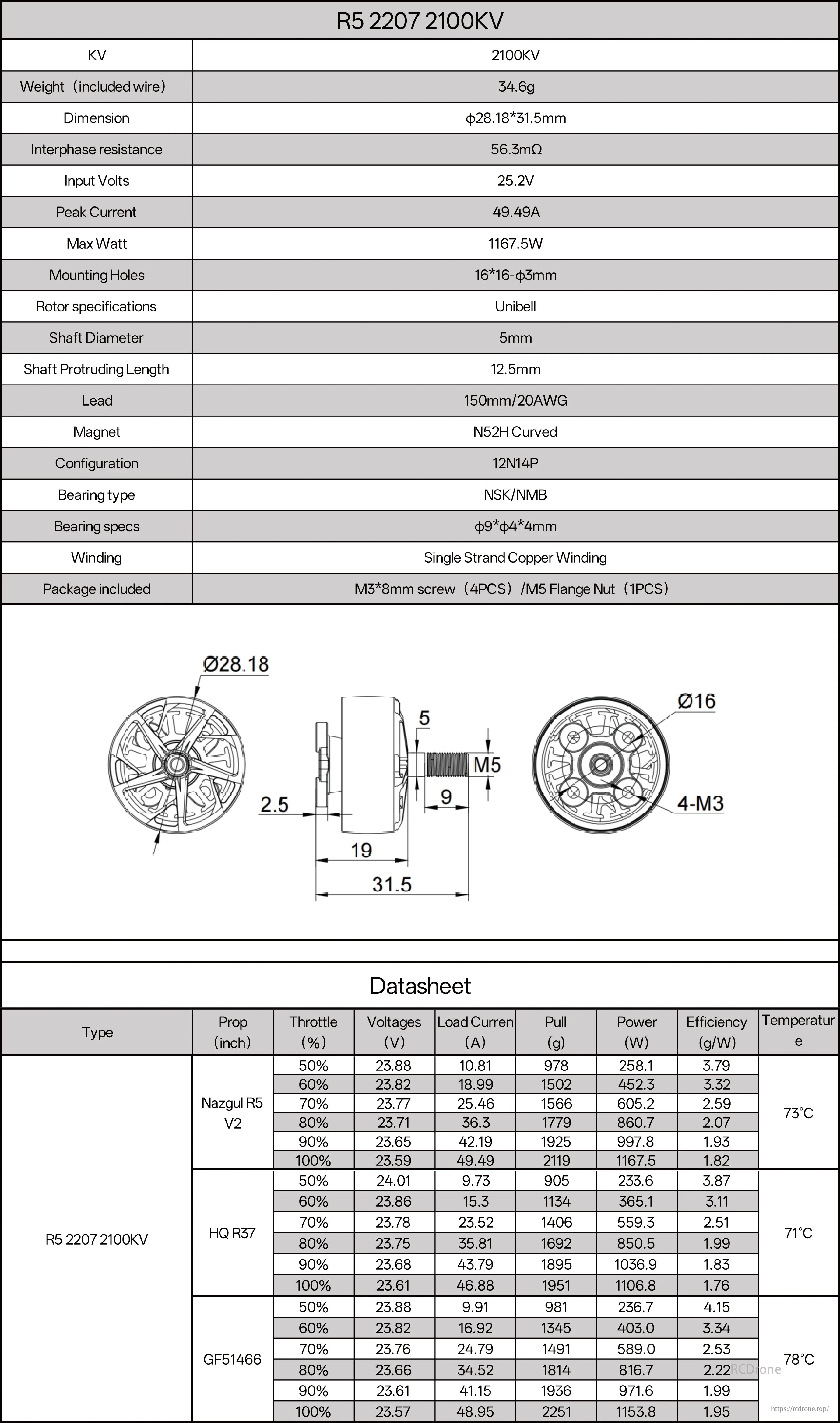

iFlight R5 2207 Brushless Motor, R5 2207 2100KV brushless motor, 34.6g, φ28.18*31.5mm, 1167.5W max power, includes screws and nut, datasheet offers performance details.

R5 2207 2100KV brushless motor: 34.6g, φ28.18*31.5mm, 25.2V, 1167.5W max power. Comes with M3*8mm screws and M5 flange nut. Datasheet provides performance details for various props and throttle levels.
