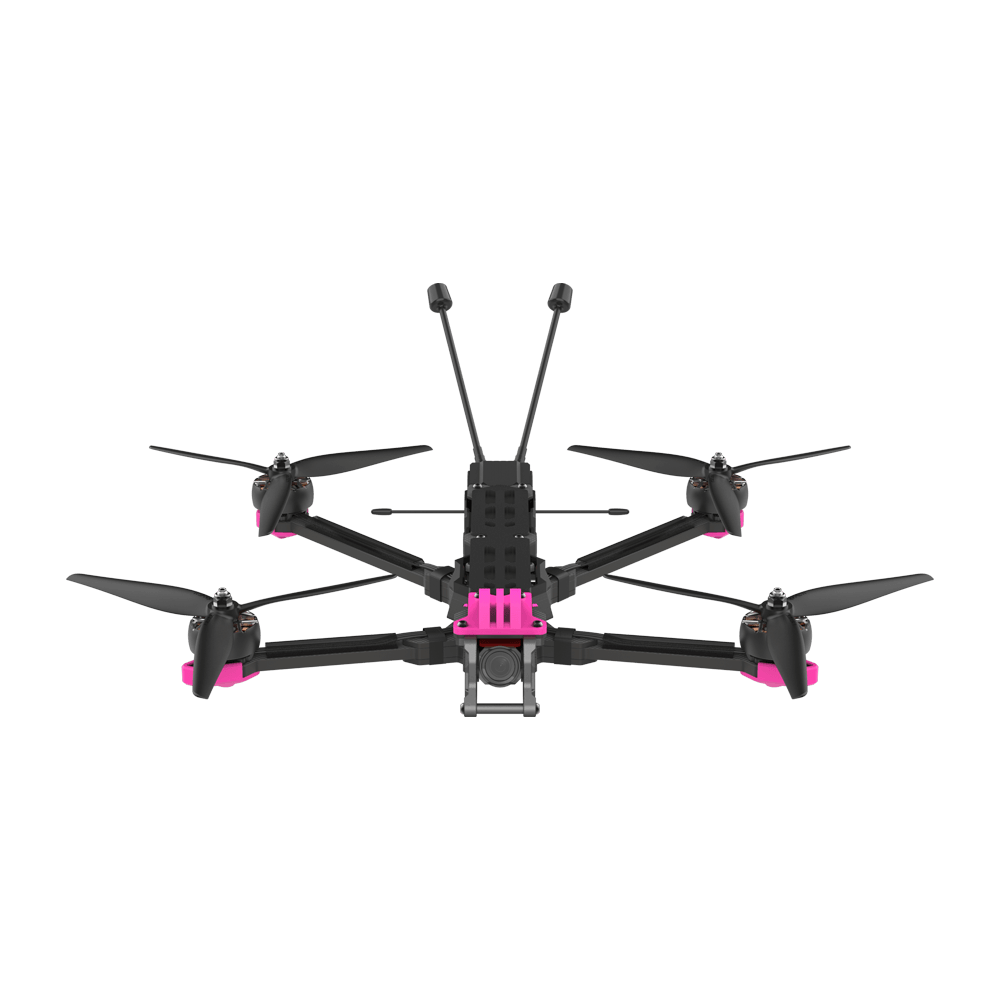

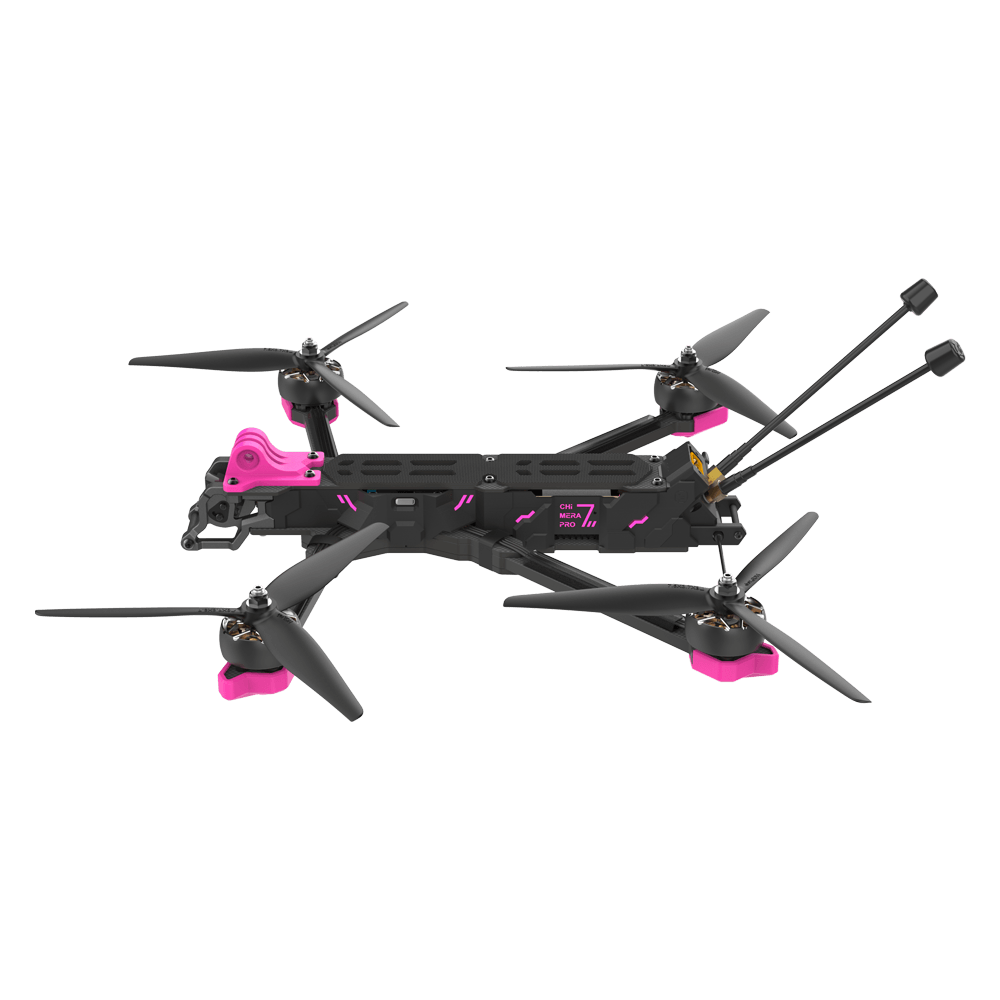

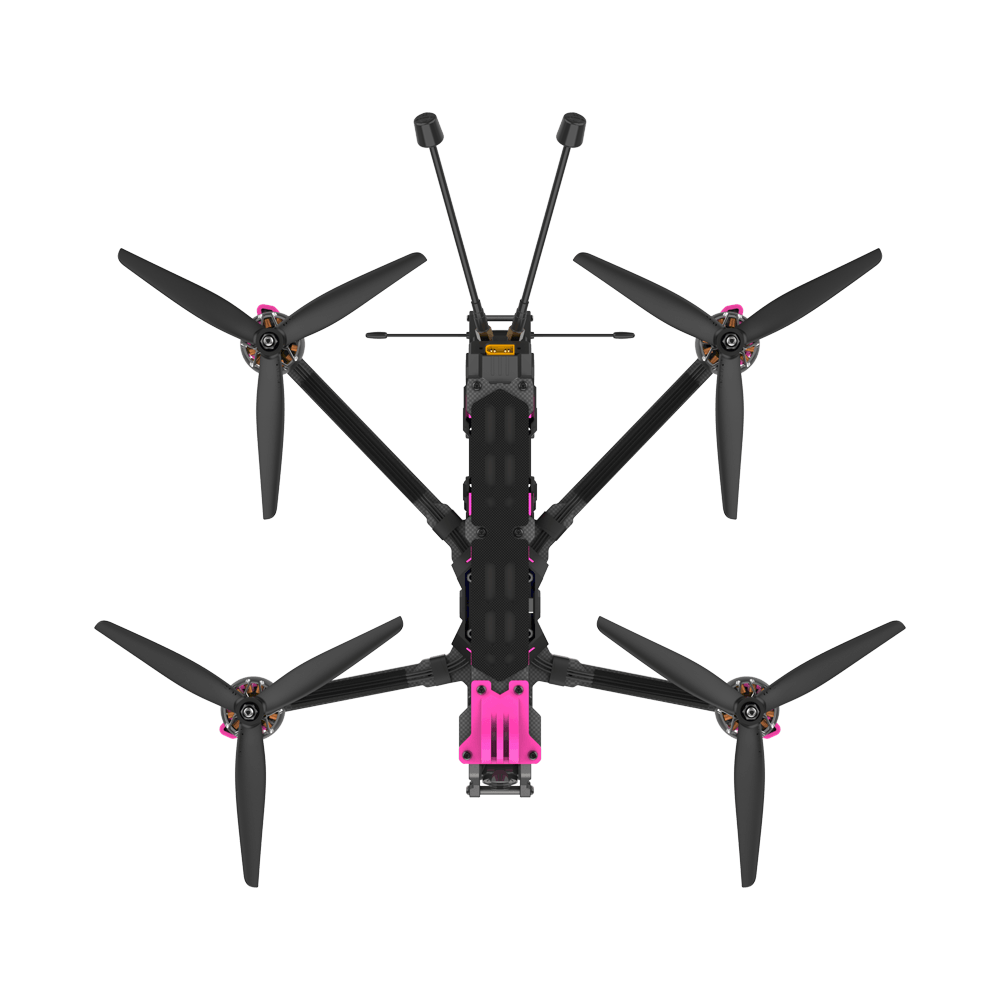

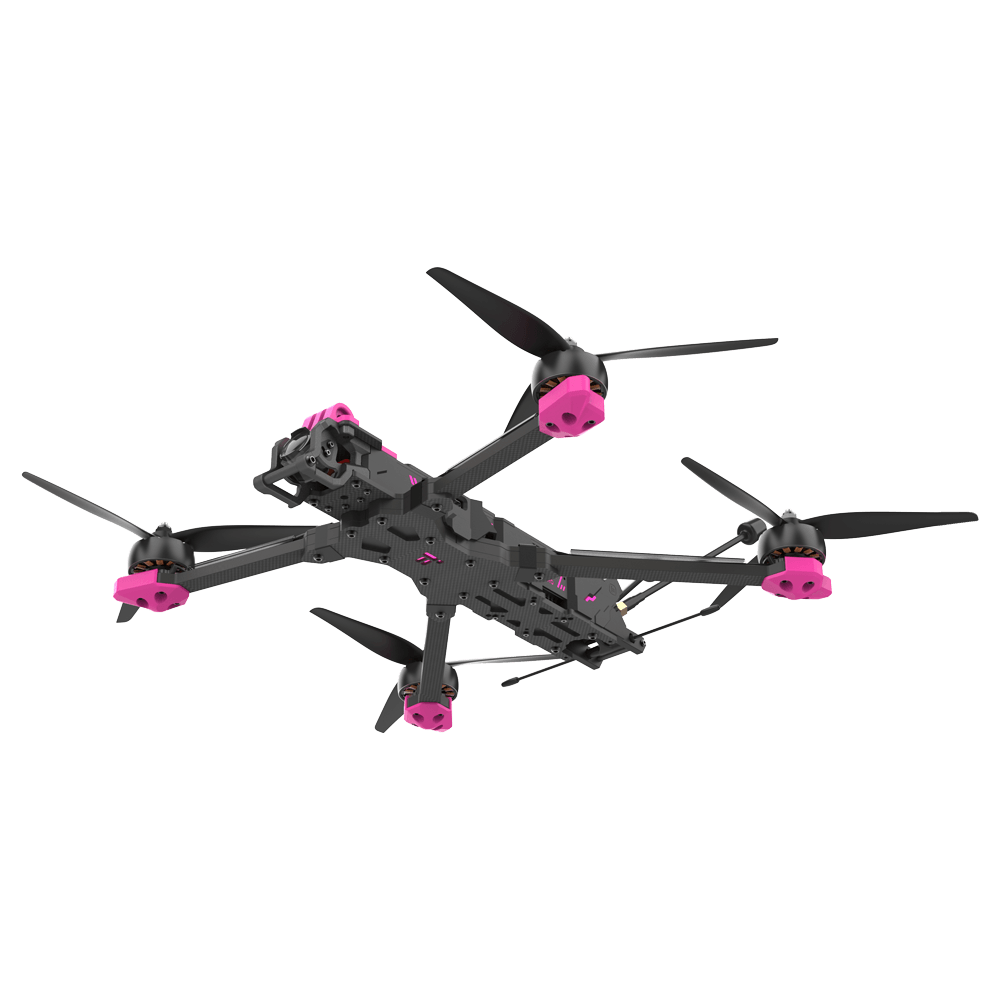

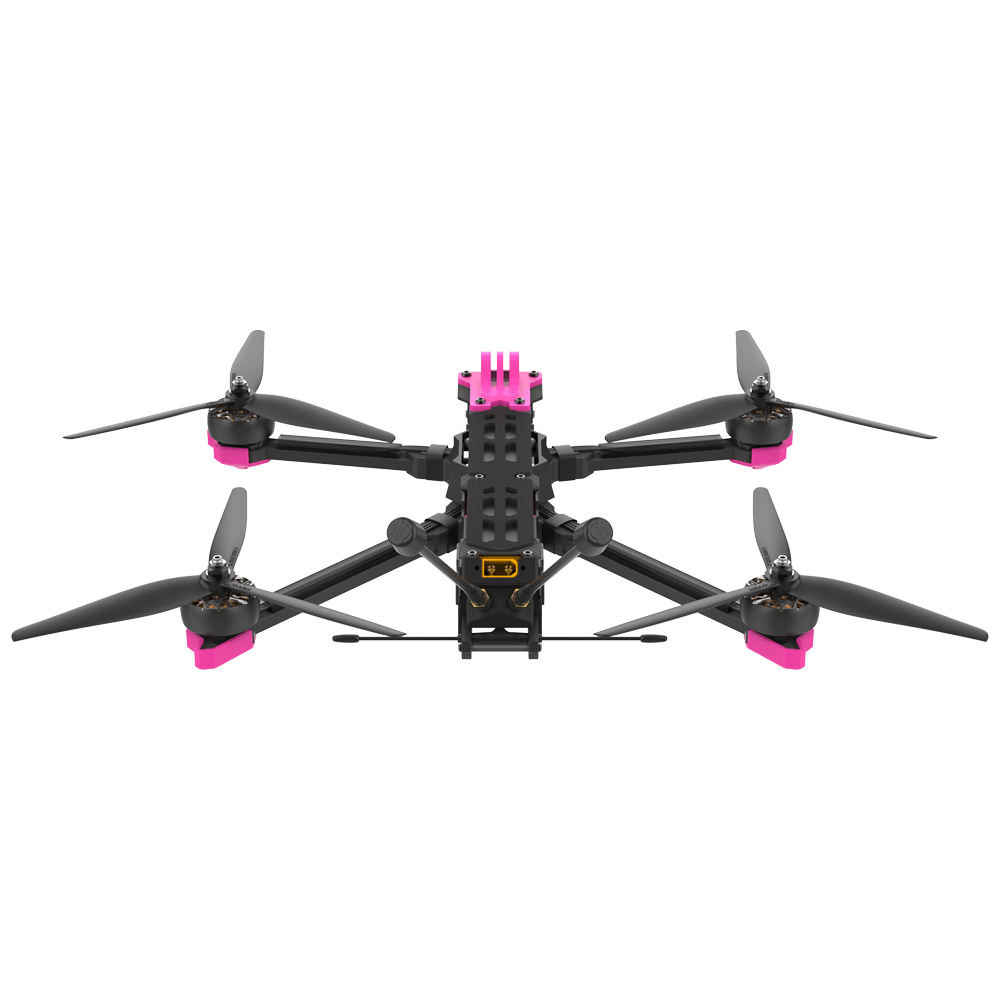

iFlight Rabbitfilms X Chimera7 Pro V2 FPV Drone - HD 7.5inch 6S FPV BNF with BLITZ F7 55A Stack / DJI O3 Air Unit / GPS for Chimera 7 Pro

iFlight Rabbitfilms X Chimera7 Pro V2 FPV Drone - HD 7.5inch 6S FPV BNF with BLITZ F7 55A Stack / DJI O3 Air Unit / GPS for Chimera 7 Pro

iFlight

Regular price $954.08 USD
Regular price $1,335.71 USD Sale price $954.08 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

7 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

iFlight Rabbitfilms X Chimera7 Pro V2 FPV Drone SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 7.5inch 327mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Chimera7 Pro V2 HD

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description
  • The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.
Highlights
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency Digital Transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specification
  • Product Name: Chimera7 Pro V2 6S HD
  • FC: BLITZ F722 Flight Controller
  • ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 327mm wheelbase
  • Motor: XING2 2809 motors
  • Prop: 7.5X3.7X3 propellers
  • Weight:695grams
  • Model:Chimera7 Pro
  • Takeoff Weight:Approx. 750g
  • Dimensions (L×W×H):
  • Diagonal Distance:120 mm
  • Max Ascent Speed:6 m/s (Normal Mode, Sport Mode)
  • Max Descent Speed:6 m/s (Normal Mode, Sport Mode)
  • Max Speed:27 m/s (Manual Mode)
  • Maximum Takeoff Altitude:7000 m
  • Max Hover Time:Approx. 30 mins
  • Max Flight Distance:18 km
  • Max Wind Speed Resistance:130 Km/H (Level 5)
  • Operating Temperature Range:-10° to 40° C (14° to 104° F)
  • Transmission Power (EIRP):FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
  • Antennas:Dual Antennas
  • GNSS:GPS + Galileo
Video Transmission
  • Product Name:DJI O3 Air Unit
  • Communication Frequency:2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
  • Communication Bandwidth: Max 40 MHz
  • Live View Quality and Latency
With DJI FPV Goggles V2:
  • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
With DJI Goggles 2:
  • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
  • Max Video Transmission Bitrate:50 Mbps
  • Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)Audio Transmission:N/A
Packing List
  • 1 x Chimera7 Pro V2 6S HD
  • 1 x Battery pad
  • 2 x 7 inch Prop(Pairs)
  • 2 x Battery strap
  • 1 x Screw bag
Important
  • Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
  • To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
  • Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
  • Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
