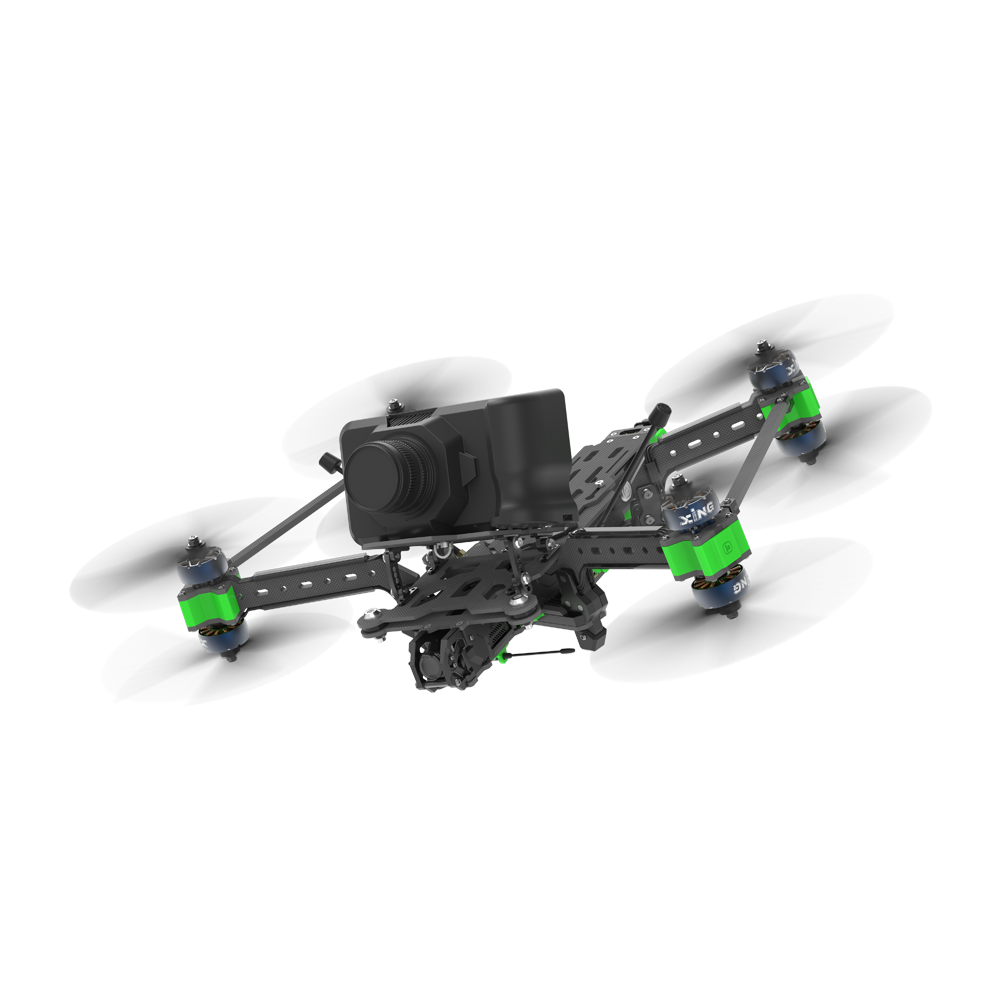

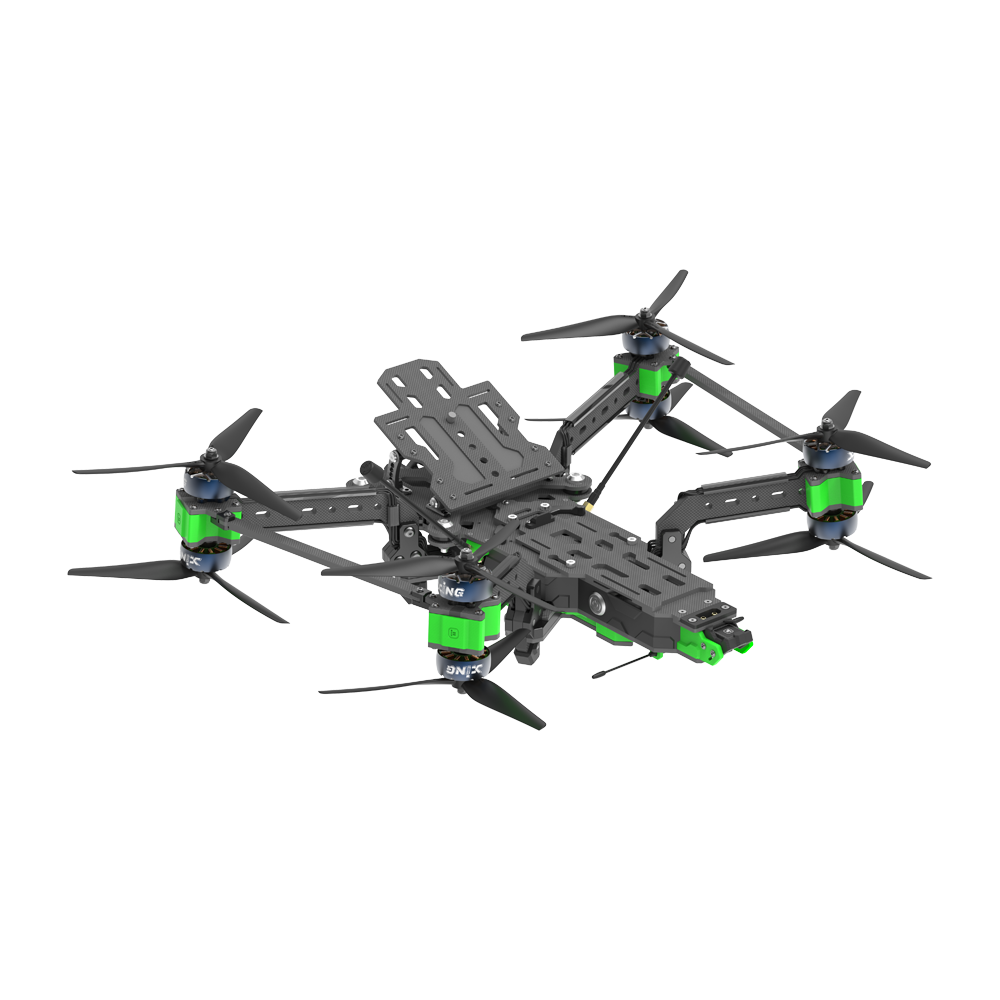

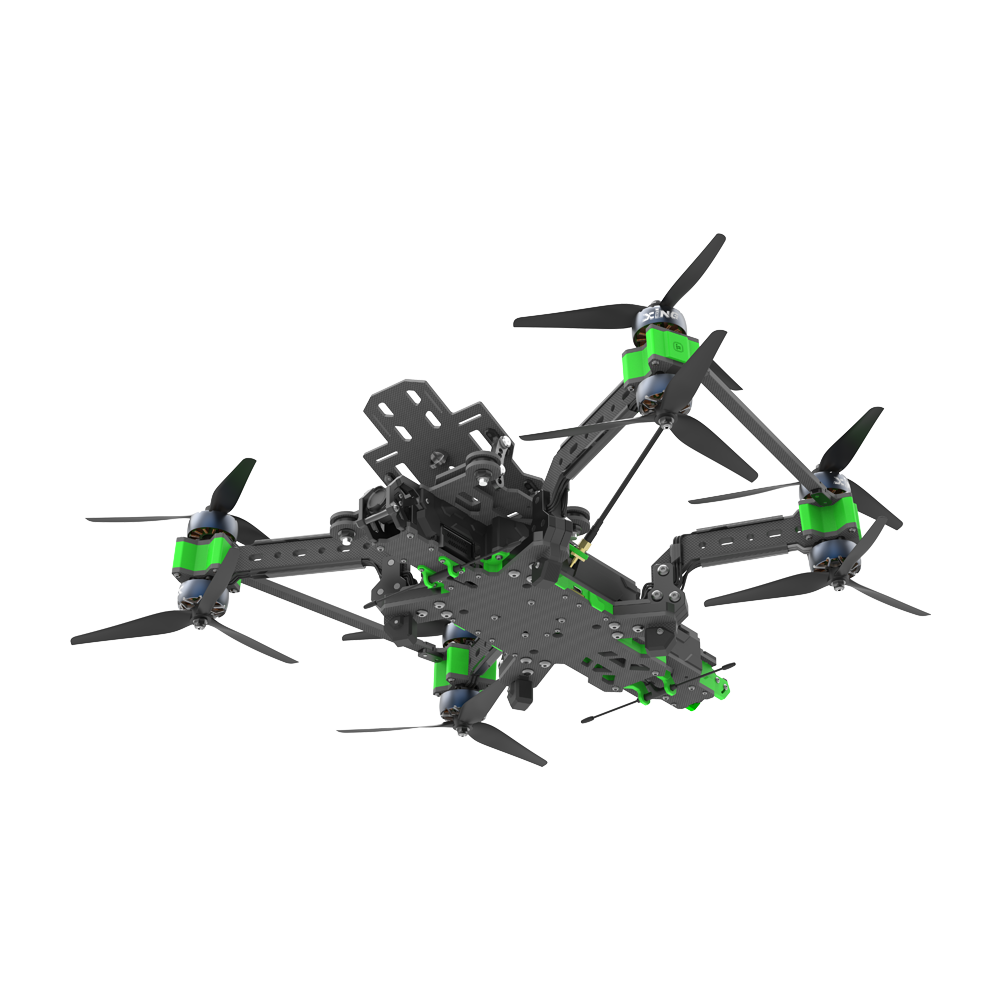

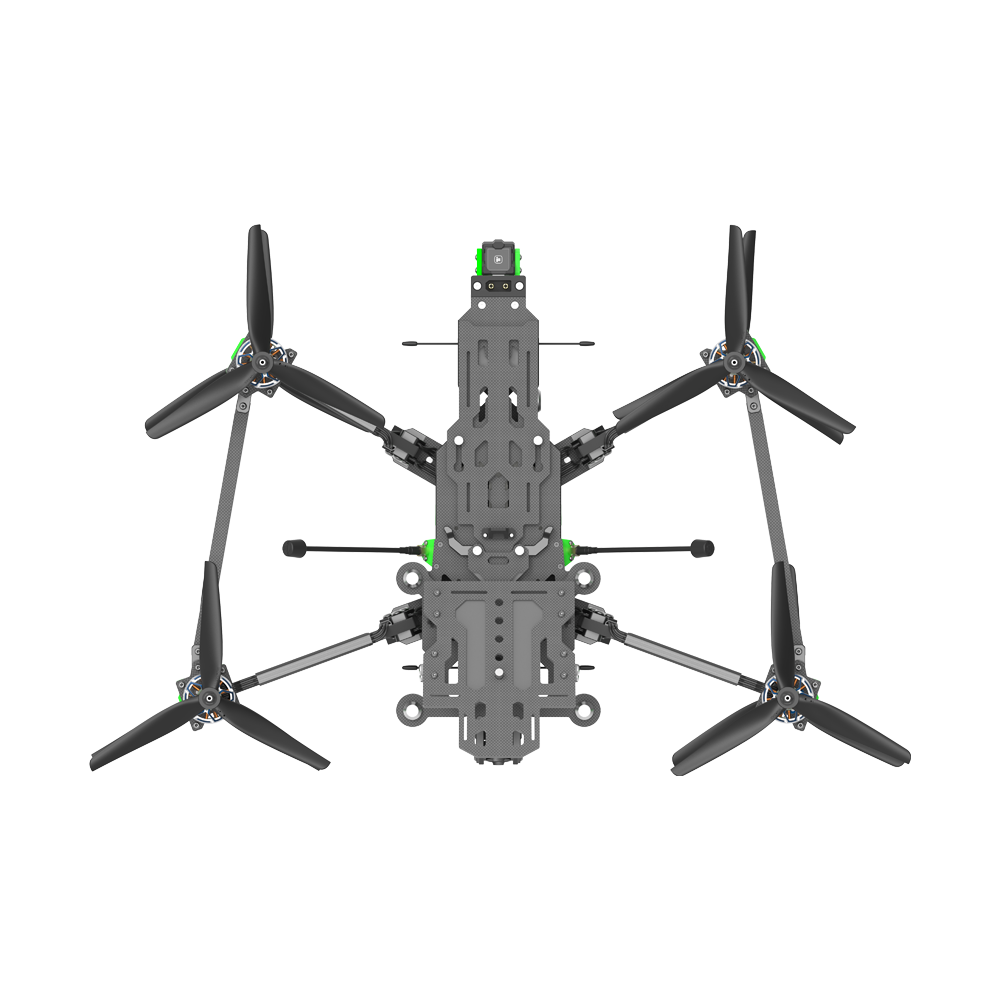

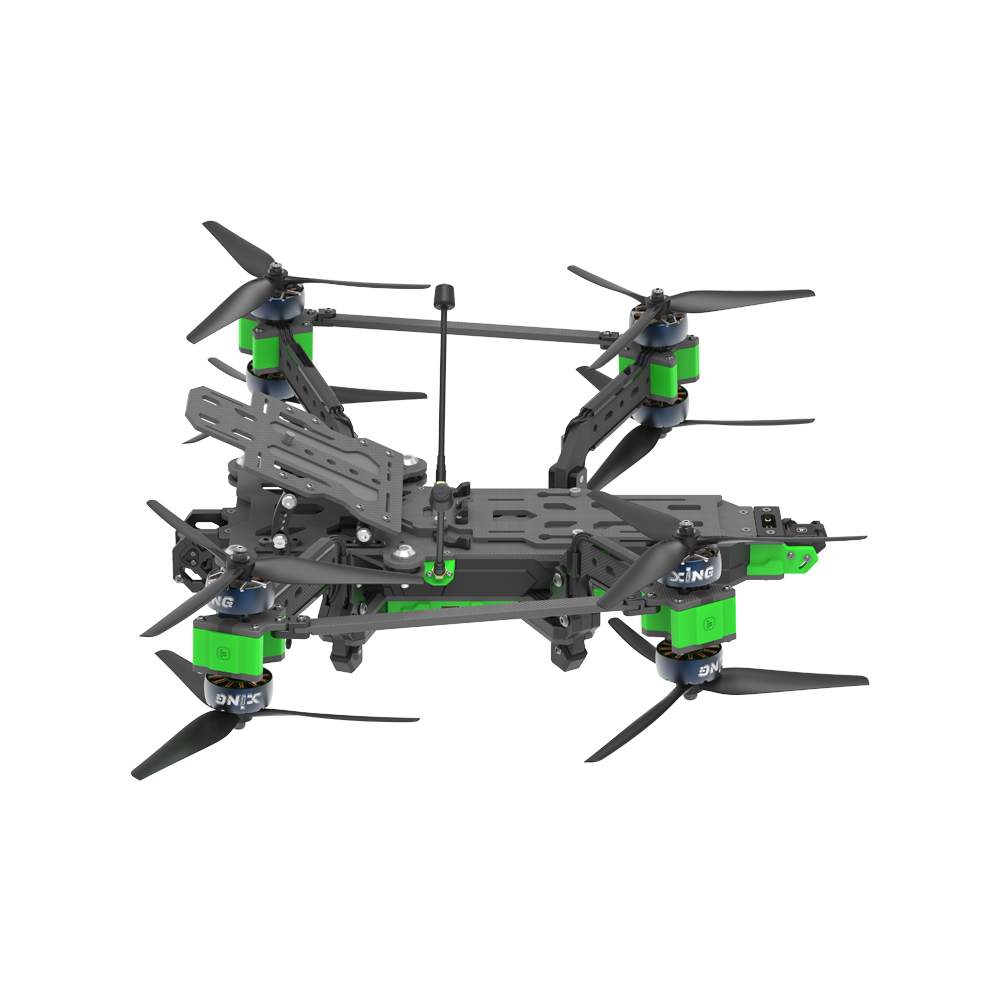

iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF with DJI O3 Air Unit / XING2 3110 900KV Motor for FPV

• Let's introduce our new iFlight Taurus X8 Pro O3 BNF！

• Engineered with professionals for professionals, a BNF that's aimed for carrying big payloads offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC,  etc) featuring DJI's FPV HD transmission system. 8-single X-Class grade ESCs for maximum reliability and power. Redundancy is a big safety factor when carrying expensive cinema gear. Even in case of an overload or failure, the remaining ESCs and motors will be able to carry your gear back to you. In case you get troubles with signal interference or radio signal loss the GPS rescue feature will automatically take over control, climb to max flight altitude, fly back in a straight line, and descend towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrain and offers some protection on harder landings.

• 2kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The top mount 8S battery acts as a power source as well as a counterweight for most common cinema camera weights which can be easily exchanged with our iFlight battery quick-release mounting system. The adjustable CNC aluminum camera mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello, no jitter, no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot, we recommend additional software stabilization in the post (Reelsteady, Gyroflow, etc.) or a hardware module (for example SteadXP).


• Big size XING2 3110 // The power motors with extreme lift and flight performance
• 8S power system // More power and speed
• 8x single X-Class grade ESC motor drivers for more reliability
• Redundant iFlight ESC Commander PCB // Power distribution board with high capacitance, filtering and heat dissipation
• GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
• DJI O3 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle
• Secured Battery Plug with Anti-Spark Filter
• Universal camera mount and accessories for a wide range of cameras to install


Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

----------------------------

Related Article:

iFlight Taurus X8 Pro Review

**iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF with DJI O3 Air Unit: Unleash Your Aerial Creativity**

Introduction:

The iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF with DJI O3 Air Unit is a professional-grade cinematic drone designed for capturing stunning aerial footage. With its powerful XING2 3110 motors, 8S power system, and DJI O3 Air Unit, this drone offers outstanding lift, speed, and high-definition video transmission. In this review article, we will explore the product composition, parameters, advantages, operating instructions, and frequently asked questions to help you understand the capabilities of the iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF.

Product Composition:

The iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF is composed of carefully selected components that contribute to its exceptional performance. The key components include:

1. Flight Controller: The BLITZ F7 Pro Flight Controller provides precise flight control and advanced features for a smooth and stable flying experience. It allows for easy customization and fine-tuning of flight parameters.

2. ESC: The BLITZ E80 Single ESCs (with CNC Aluminum Cover) offer reliable and efficient power management. These ESCs provide smooth throttle response and enhanced heat dissipation.

3. Video Transmission: The DJI O3 Air Unit ensures low-latency digital transmission of high-quality video. With its 4K stabilized video capability and 155° ultra-wide-angle lens, it captures breathtaking aerial footage.

4. Motors: The XING2 3110 motors are specifically designed for extreme lift and flight performance. These powerful motors deliver the necessary thrust to carry heavy payloads and provide dynamic maneuvers.

5. Propellers: The HQ 8*4*3 propellers offer a balance between efficiency and maneuverability. These propellers provide excellent lift and stability, allowing for precise control during flights.

Parameters:

- Diagonal Distance: 464±2 mm (wheelbase)
- Motor: XING2 3110 motors
- Propellers: HQ 8*4*3 propellers
- Weight: 2356±10g
- Takeoff Weight: Approx. 3494±20g (With 8S 5000mAh Battery)
- Dimensions (L×W×H): 428×249×74 mm
- Max Speed: 150 Km/H
- Maximum Takeoff Altitude: 3200 m
- Max Hover Time: Approx. 5 mins with 8S 5000mAh battery and 1.5KG load.
- Max Wind Speed Resistance: Level 8
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Video Transmission Range: Up to 10 km (FCC), 2 km (CE), 6 km (SRRC)
- Antennas: Dual Antennas
- GNSS: GPS + Galileo

Advantages:

1. Powerful and Reliable: The iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF is equipped with XING2 3110 motors and 8x single X-Class grade ESC motor drivers. This combination ensures exceptional lift, flight performance, and reliability, allowing for smooth and stable flights.

2. High-Quality Video Transmission: The DJI O3 Air Unit provides low-latency digital transmission of 4K stabilized video. With its 155° ultra-wide-angle lens, it captures immersive footage with stunning clarity and detail.

3. Secure and Efficient Power Management: The redundant iFlight ESC Commander PCB,

coupled with the BLITZ E80 Single ESCs, ensures reliable power distribution, high capacity, efficient filtering, and effective heat dissipation.

4. GPS Module: The pre-installed GPS module enables advanced features such as GPS rescue and return-to-home (RTH) functionality. These features enhance flight safety and assist in the recovery of the drone in case of signal loss or emergency situations.

5. Universal Camera Mount: The iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF comes with a universal camera mount and accessories, providing flexibility to install a wide range of cameras. This allows pilots to customize their filming setup according to their specific needs and preferences.

Operating Instructions:

1. Assembly: Carefully follow the provided instructions to assemble the iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF. Ensure that each component is properly secured and connected.

2. Flight Controller Setup: Connect the flight controller to a computer and configure it using the appropriate software. Customize flight modes, rates, and other settings to match your flying style and preferences.

3. Battery Connection: Connect an 8S 5000mAh battery to the drone using the provided secured battery plug with an anti-spark filter. Ensure a firm and secure connection.

4. Pre-flight Checks: Perform thorough pre-flight checks before each flight. Inspect all components for any signs of damage or loose connections. Verify that the propellers are correctly mounted and balanced. Check the battery voltage and ensure it is within the recommended range.

5. Flight Safety: Adhere to local regulations and safety guidelines when operating the iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF. Fly in open areas away from people, animals, and property. Maintain visual line-of-sight and be aware of weather conditions that may affect flight stability.

FAQs (Frequently Asked Questions):

Q1: What is the maximum range of the video transmission?

A1: The iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF with DJI O3 Air Unit offers a maximum video transmission range of up to 10 km (FCC), 2 km (CE), and 6 km (SRRC). However, it is important to check and comply with local regulations regarding video transmission range limitations.

Q2: Can the iFlight Taurus X8 Pro carry different cameras besides the ones provided?

A2: Yes, the iFlight Taurus X8 Pro features a universal camera mount and accessories, allowing you to install a wide range of cameras based on your preferences and requirements.

Q3: How long does the drone fly on a single battery charge?

A3: The flight time of the iFlight Taurus X8 Pro may vary depending on various factors, including payload, flight style, and battery capacity. With an 8S 5000mAh battery, the drone can achieve approximately 5 minutes of flight time with a 1.5kg load.

Conclusion:

The iFlight Taurus X8 Pro - O3 HD 8S Cinelifter BNF with DJI O3 Air Unit is a powerful and feature-rich cinematic drone suitable for professional aerial videography. With its robust construction, reliable components, and advanced flight control system, it offers exceptional flight performance, stability, and high-quality video transmission. Whether you are capturing breathtaking landscapes or cinematic action sequences, the iFlight Taurus X8 Pro empowers you to unleash your aerial creativity.
