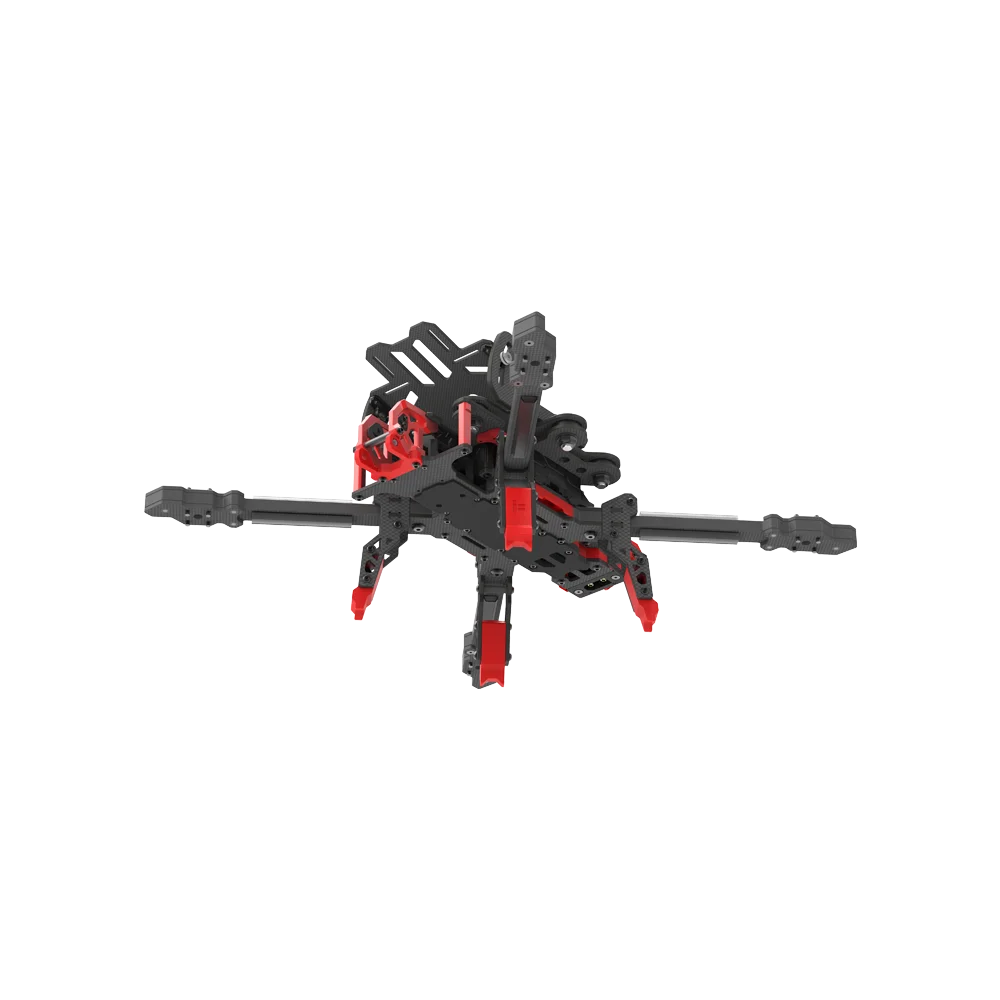

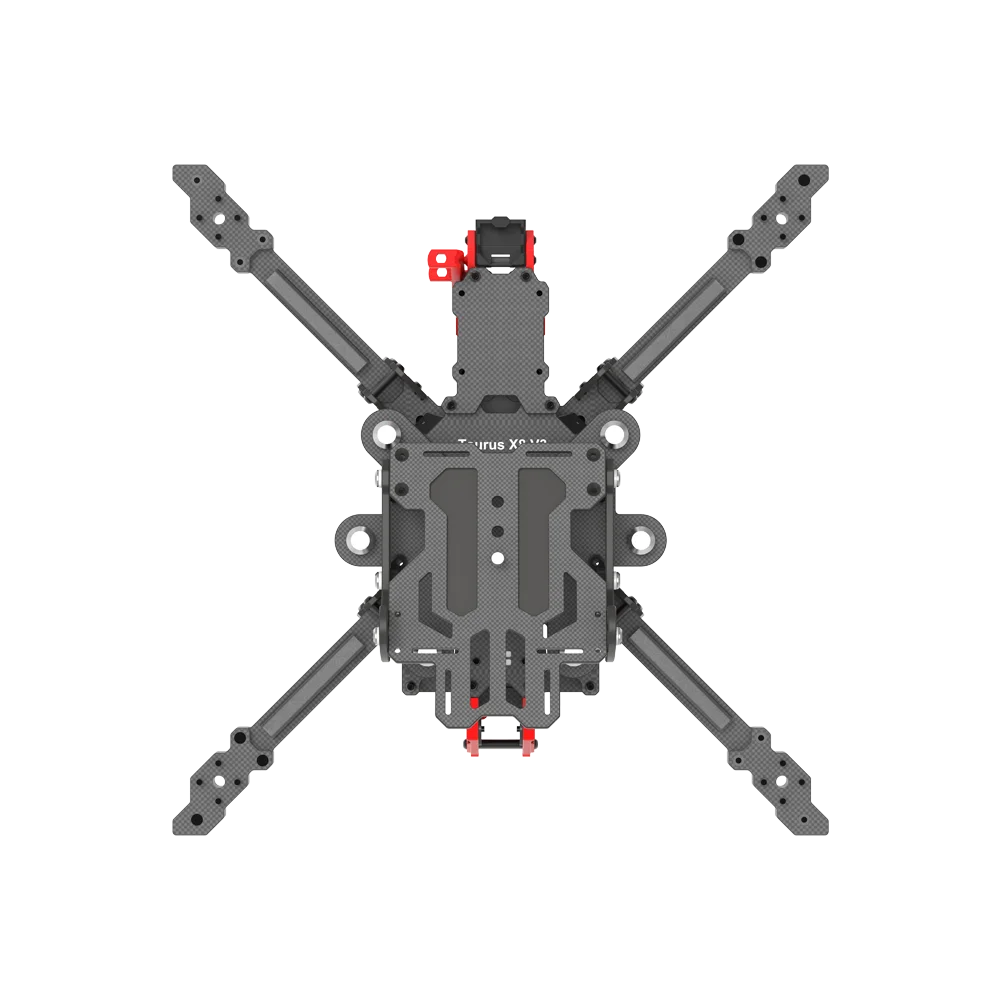

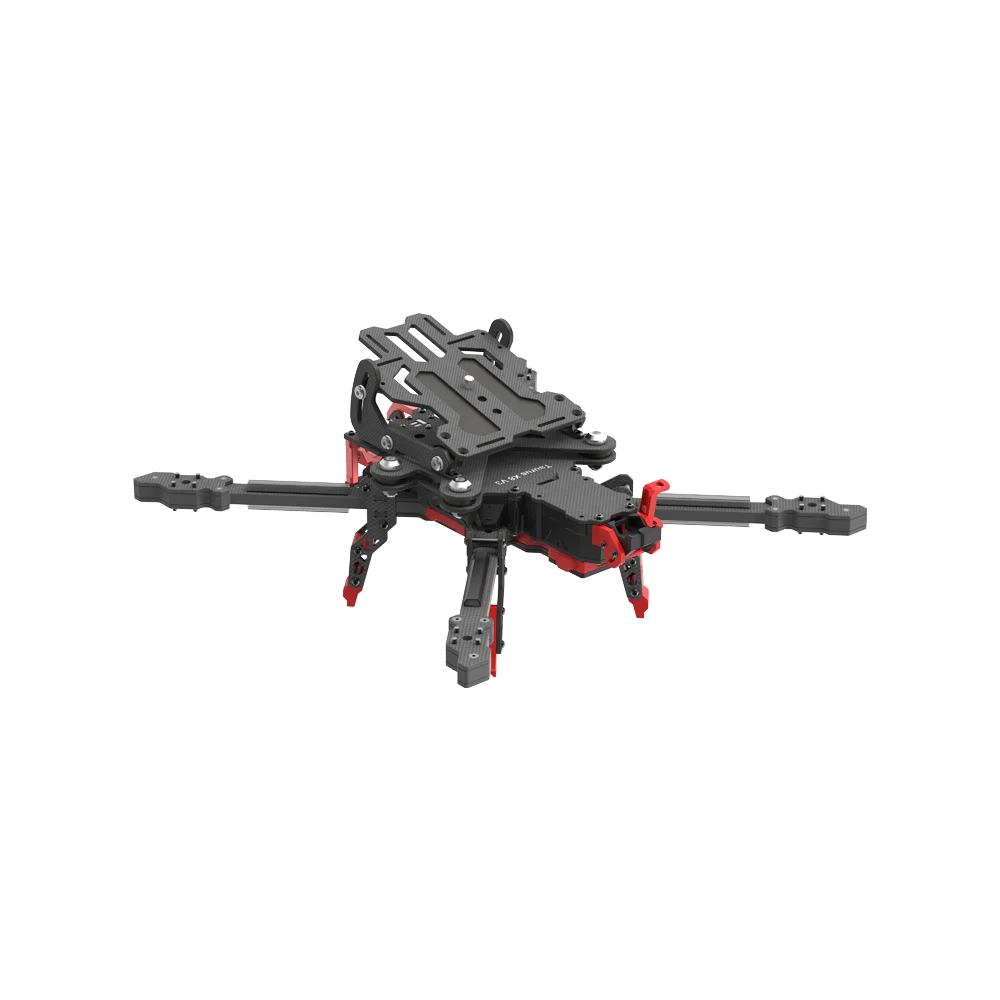

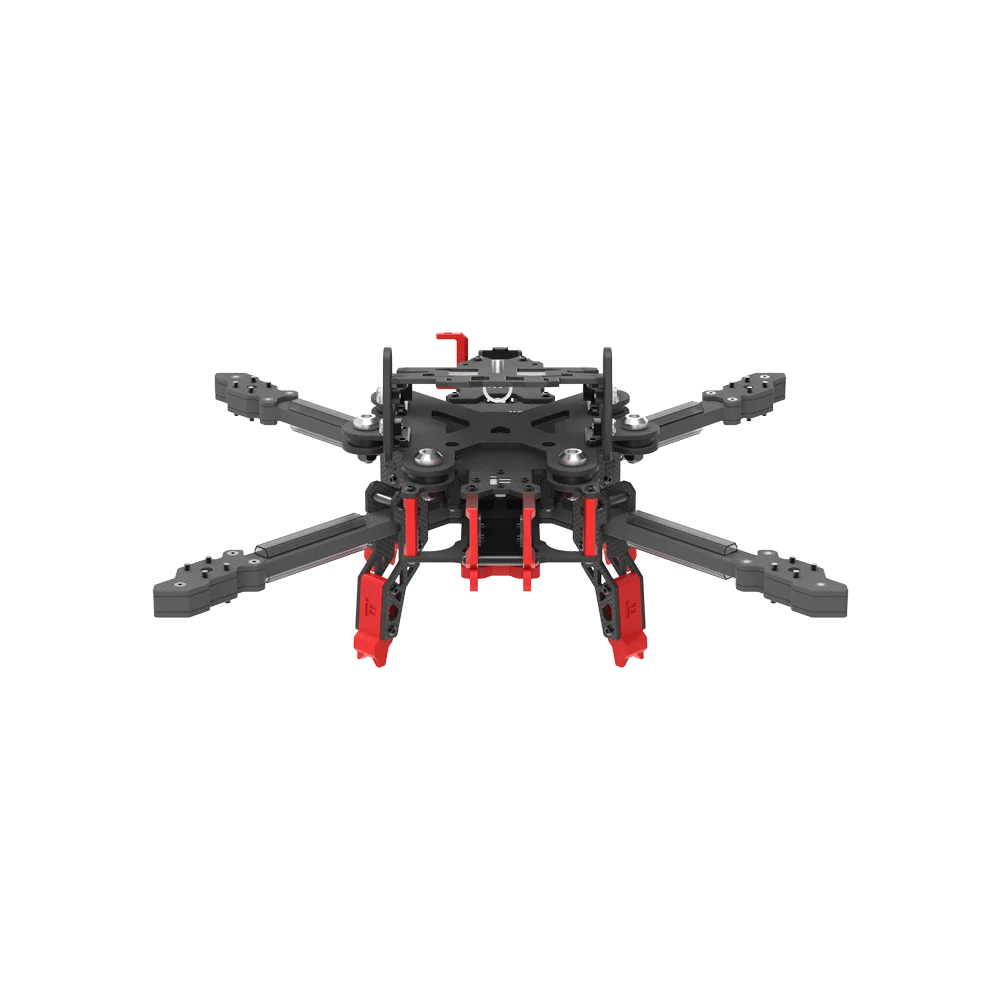

• The Taurus X8 V3 BNF Cinelifter Frame Kit is aimed towards carrying big payloads, offering a soft-damped

• universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC, etc).


Features:

• Optimized CG through the adjustable camera and battery mount

• Stable silicon-ball decoupled camera CNC mount

• Redundant ESC and motor configuration

• 2kg max payload for various cinema and DSLR cameras

• Lightweight Side Panels - Keep Your Rig Clean

Changelog

• March 25, 2023: This Frame kit is compatible with the DJI O3 air unit.


Specifications

• Product Name：Taurus V3 X8 HD Cinelifter Frame

• Wheelbase: 320mm

• Diagonal Distance：120 mm

• Frame Dimension: L283*W393*H30 mm

• Arm Thickness: 8mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness:3mm

• Upper Plate Thickness: 3mm

• Camera Plate Thickness: 3mm

• Motor Mounting：19x19mm

• VTX Mounting：30.5*30.5mm

• Weight: 940grams (Included no TPU Parts)


Package included:

• 1 x Taurus V3 X8 HD Cinelifter Frame


• 2 x 20x300mm battery strap (Color May Vary)

• 2 x 20x400mm battery strap (Color May Vary)

• 2 x 20x500mm battery strap (Color May Vary)


• 1 x Aluminum Quick Release Camera Clamp

• 1 x Taurus X8 Hardware Accessories Kit

• 1 x CNC Aluminum Alloy Cam Mount

• 1 x DJI Air unit mount TPU

• 1 x 3d Printed Parts Kit

• 2 x Battery Pad

• 1 x LED mount

• 10 x Dampers

• 2 x Battery Anti-slip pads
