iFlight XING 1002 Micro Brushless Motor 19000KV / 22000KV for 65mm–75mm 1S Whoop & Toothpick FPV Drones

iFlight

$25.32 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 1pc 19000KV 4pcs 19000KV 1pc 22000KV 4pcs 22000KV

Quantity

View full details

Overview

The iFlight XING 1002 FPV Brushless Motor is designed for ultra-lightweight 1S FPV whoop and toothpick drones, delivering high torque and fast throttle response in a compact form. Available in 19000KV and 22000KV variants, this motor is ideal for both smooth indoor cruising and aggressive freestyle flying.

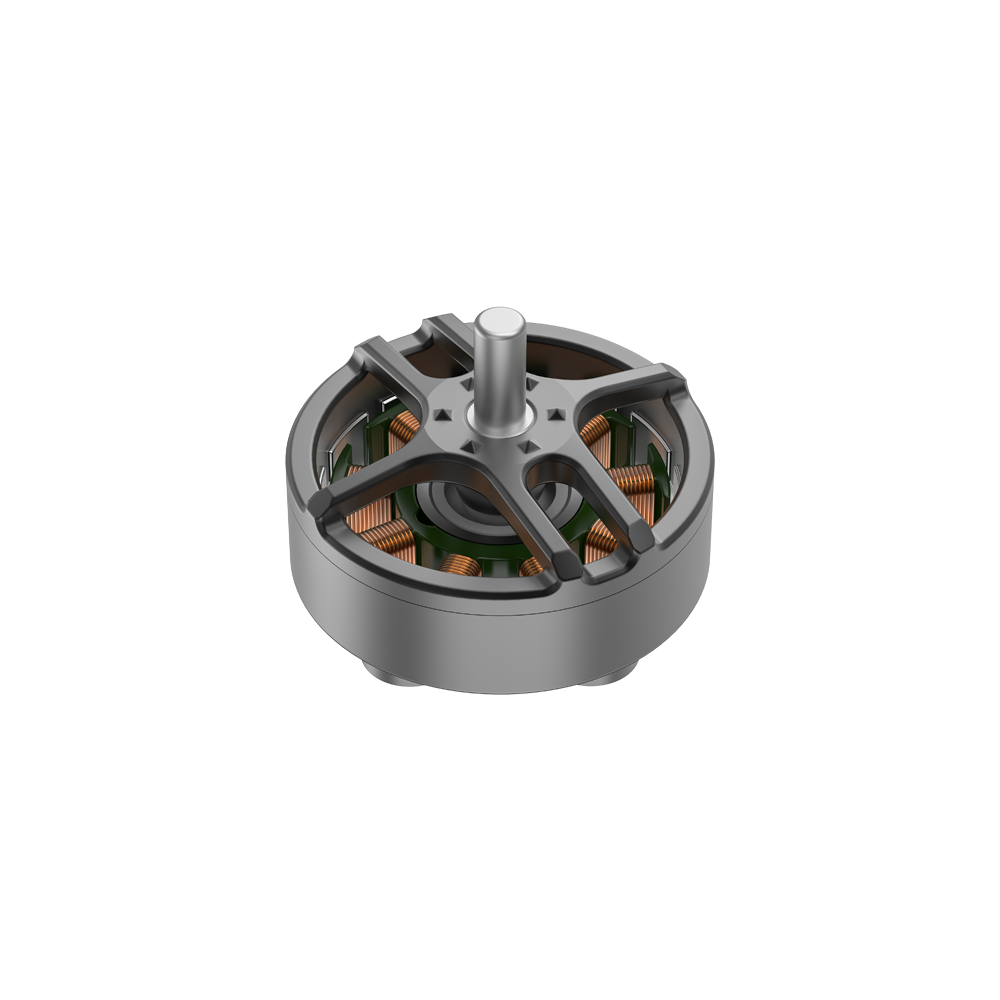

Precision-built with a segmented Unibell rotor, N52H curved magnets, and NSK bearings, the XING 1002 offers durability and efficiency with minimal weight. The 1.5mm shaft ensures secure prop mounting, while the single-strand copper winding maximizes performance under load.

Key Features

Compact 1002 stator size: Ideal for 65mm–75mm micro drones
Available in 19000KV (efficiency) & 22000KV (performance) options
Segmented Unibell rotor for improved cooling and structural integrity
1.5mm shaft diameter with 3.5mm protrusion – perfect for T-mount props
Premium NSK bearings (φ4×φ2×1.5) for ultra-smooth operation
N52H curved magnets for optimal magnetic flux and responsiveness
Lightweight: Only 2.4g including 50mm wire

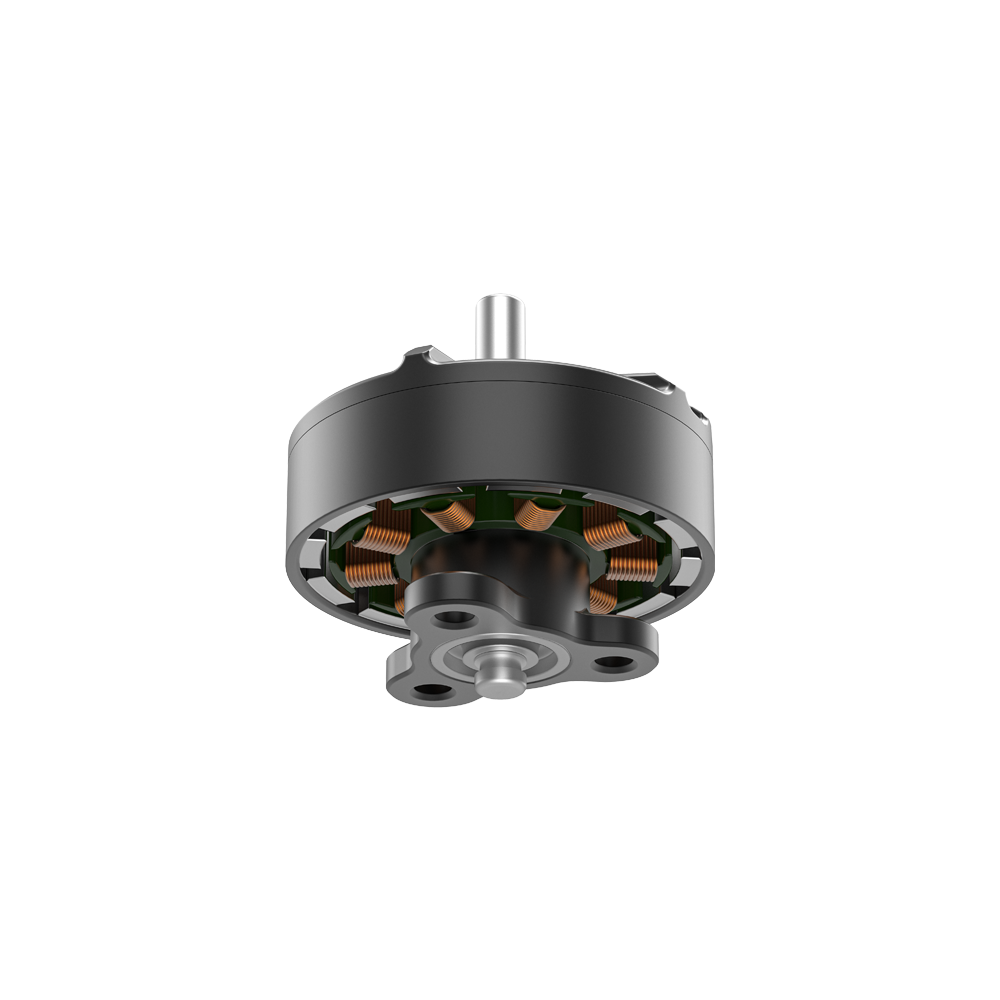

Mounting holes: 3-hole M1.4 pattern, 3mm spacing
Lead wire: 50mm / 28AWG / SH1.25 pre-soldered

⚙️ Technical Specifications

Parameter	19000KV	22000KV
Input Voltage	1S (4V)	1S (4V)
Internal Resistance	0.086Ω	0.070Ω
Max Current	5.3A	7.8A
Max Power	19W	28W
Motor Dimensions	Φ12.5mm × 8mm	Φ12.5mm × 8mm
Shaft Diameter	1.5mm	1.5mm
Weight (incl. wire)	2.4g	2.4g

📦 Package Includes

1 × iFlight XING 1002 Brushless FPV Motor (KV selectable)
4 × M1.4 × 4mm mounting screws

iFlight XING 1002 FPV Motor, 2.4g Dimension: 412.5*8mm Interphase resistance: 0.08602 In

XING 1002 19000KV KV 19000kv Weight (included wire) 2.4g Dimension: 412.5*8mm Interphase resistance: 0.08602 Input Volts: 4V Peak Current: 5.3A Max Watt: 191 Mounting Holes: 3-01.4mm Rotor specifications: Segmented bell Shaft Diameter: 1.Smm Shaft Protruding Length: 3.Smm Lead: 50mm/28AWG/SH1.25 Magnet: NSZ

iFlight XING 1002 FPV Motor, 2.4g Dimension: 412.5*8mm Interphase resistance: 0.07002 In

The iFlight XING 1002 FPV motor has the following specifications: KV rating of 22,000 (22000KV), weight including wires of 2.4 grams, dimensions of 41.25mm in length and 8mm in width, interphase resistance of 0.07002 ohms, input voltage of 4 volts, peak current of 7.8 amps, maximum wattage of 281 watts, and three mounting holes with a diameter of 3.27mm.
