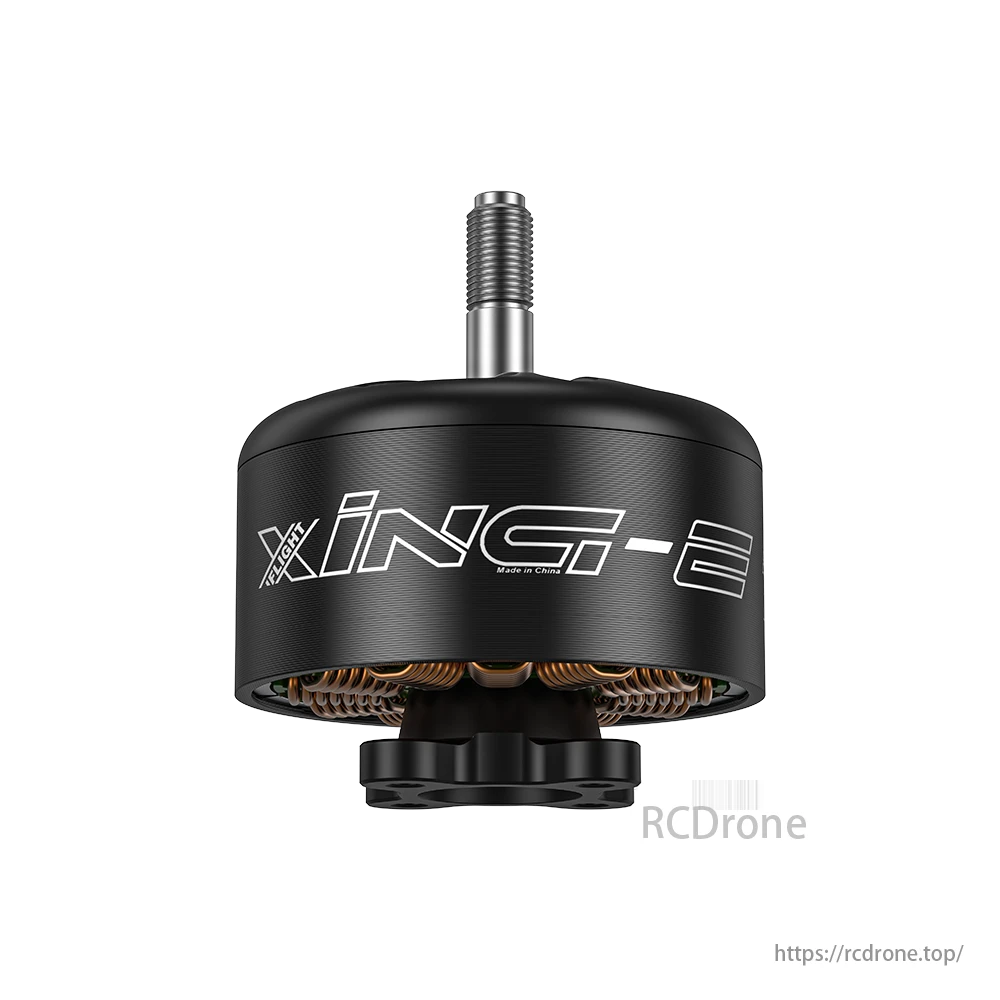

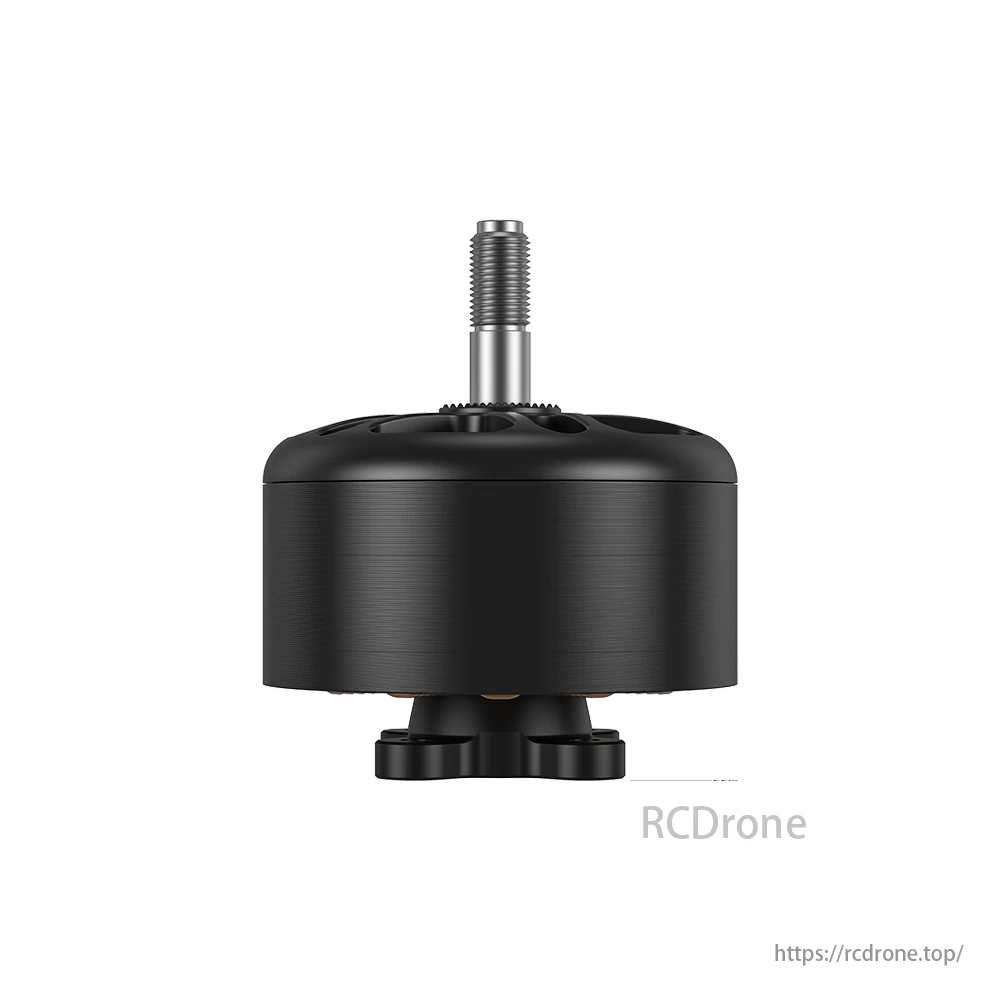

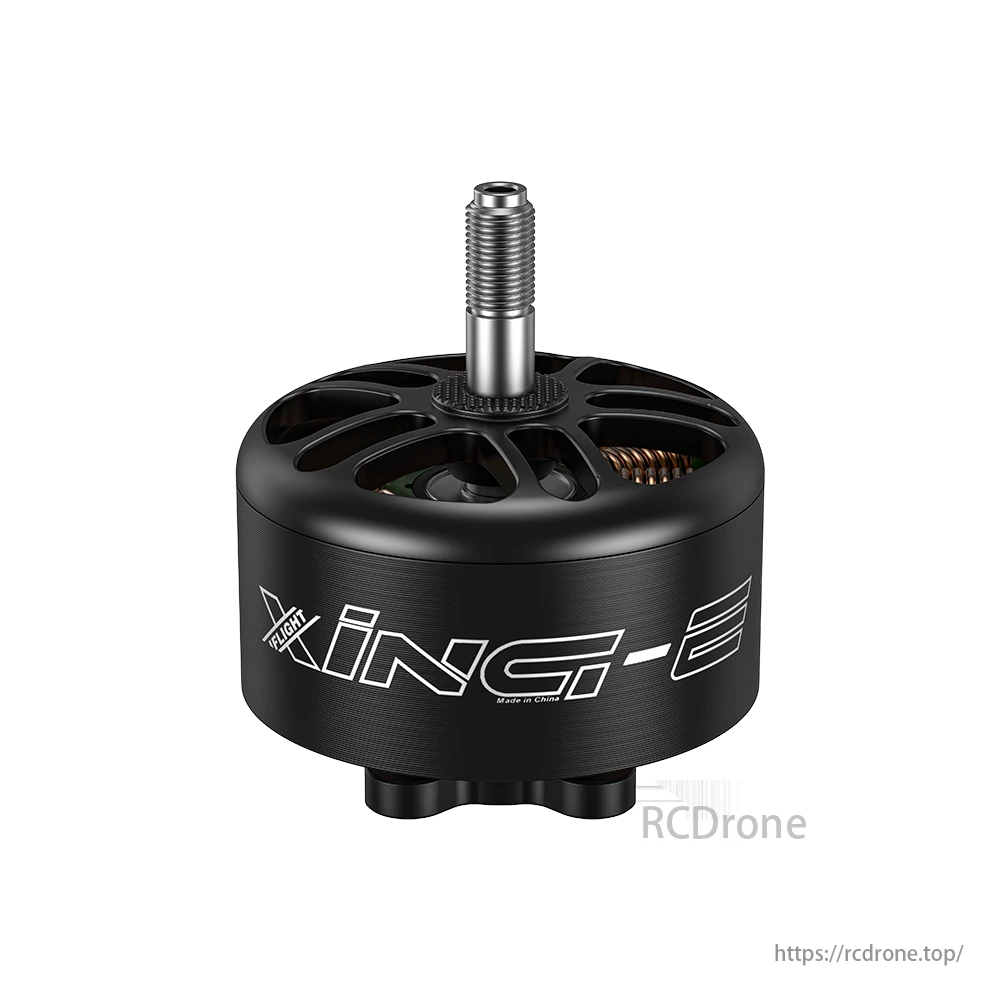

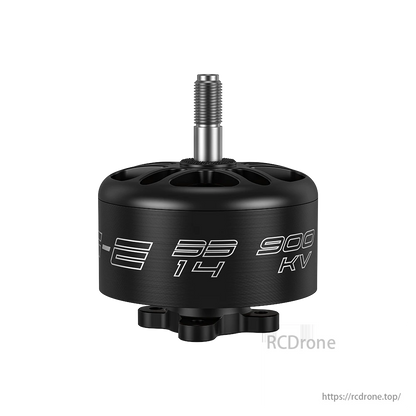

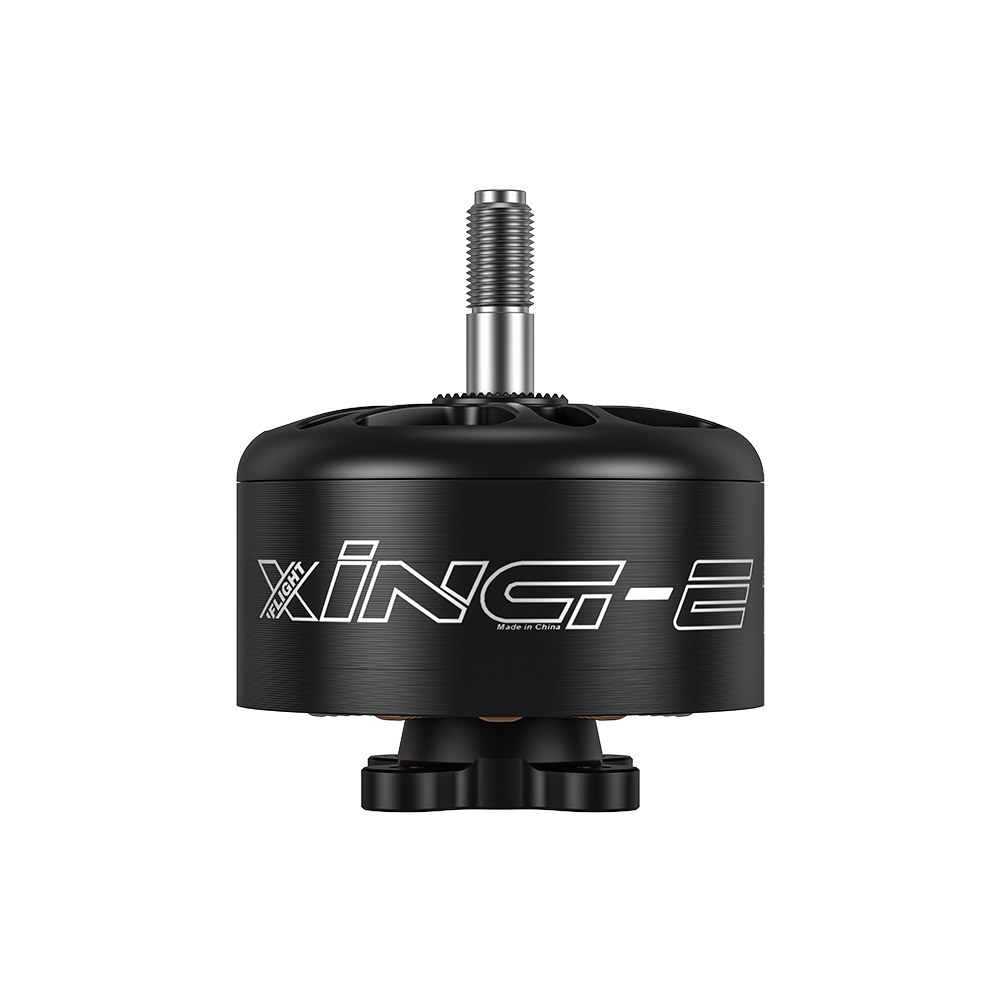

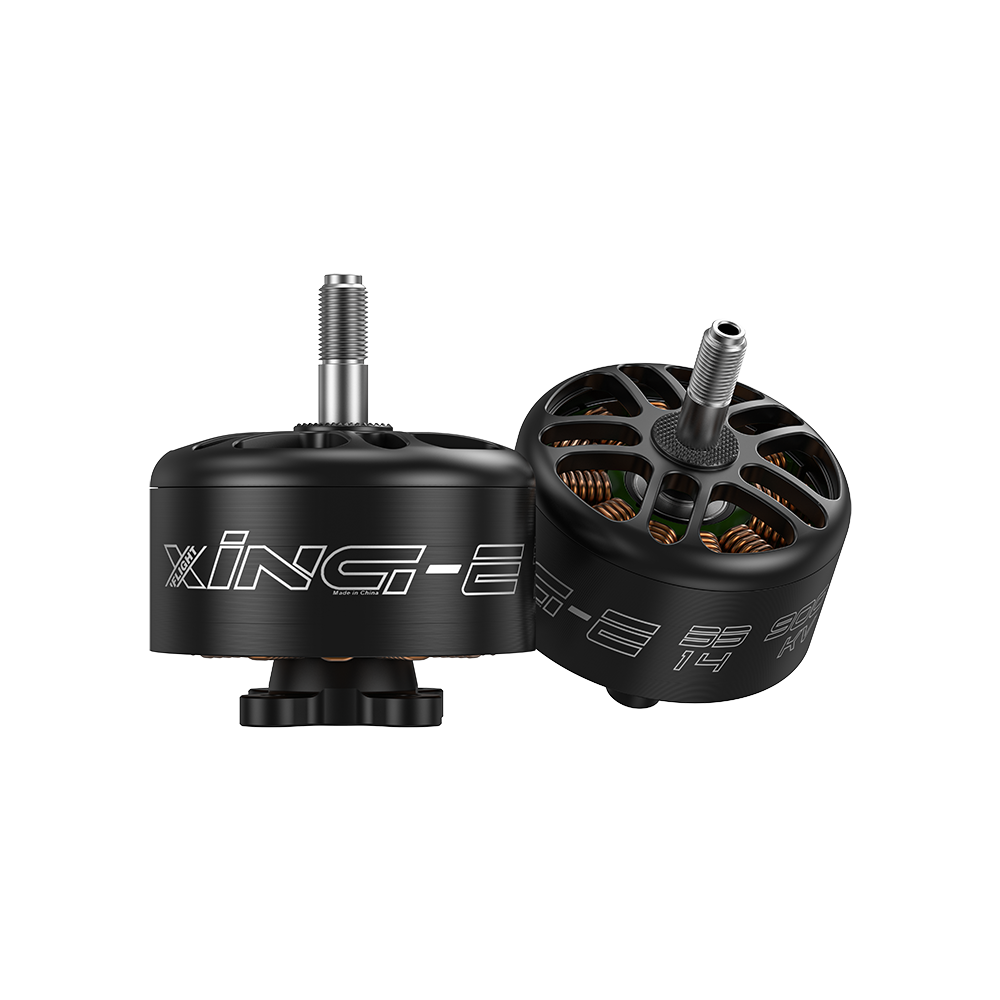

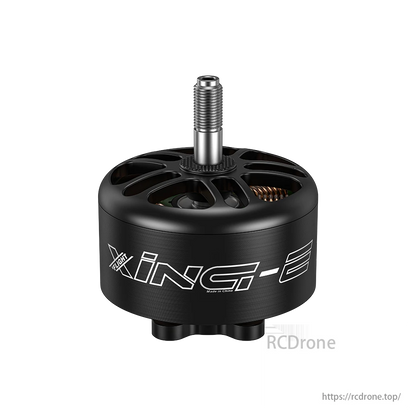

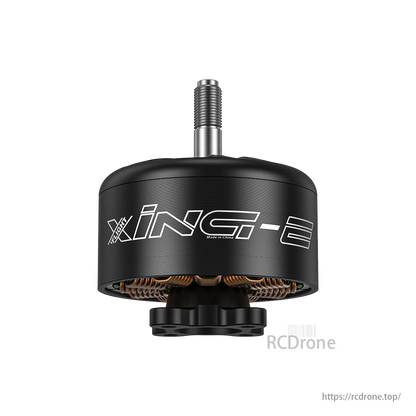

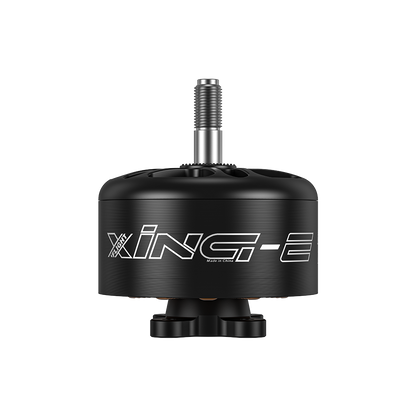

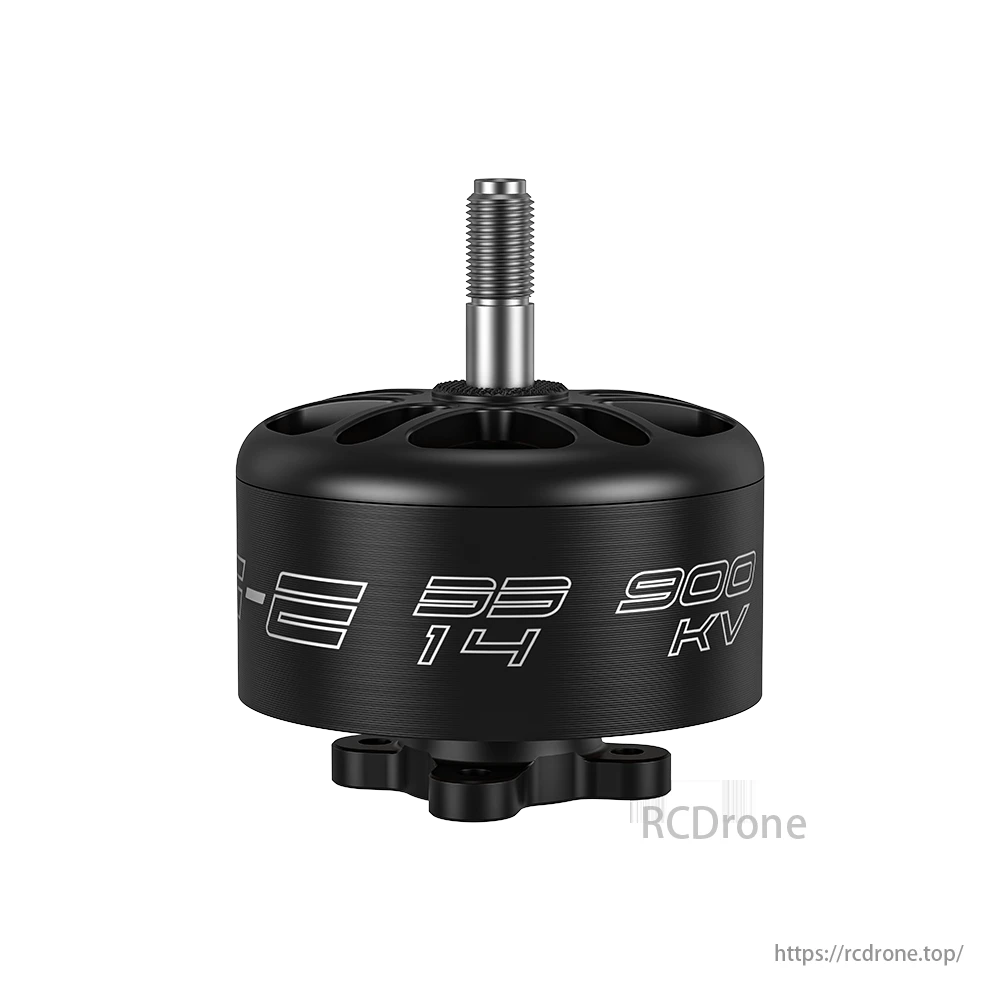

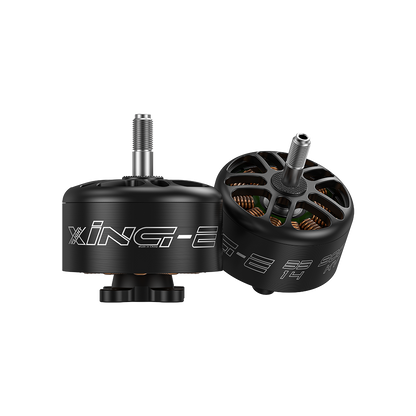

iFlight XING-E 3314 900KV Cinelifter Motor for 6S 8–10 Inch FPV Drones

Overview

The iFlight XING-E 3314 900KV is a high-efficiency cinelifter motor engineered for 6S-powered 8–10 inch FPV drones, delivering stable thrust and high responsiveness for demanding cinematic and heavy-lift applications. With a robust 5mm shaft and segmented bell structure, this motor is built for smooth power delivery, long flight times, and reliable performance under load.

Whether you’re lifting full-size action cameras or capturing ultra-smooth footage with larger prop setups, the XING-E 3314 is your go-to motor for professional-grade aerial work.

Changelog

Mar 11, 2024 – Shaft Protruding Length now available in both 15mm and 17mm versions (shipped randomly).

Key Features

• Designed for cinelifter builds using 8–10 inch props

• Supports 6S power system (24V) with peak wattage up to 1366.1W

• Built with N52H curved magnets and durable segmented bell

• Long 400mm / 16AWG wires for clean routing in large builds

• Smooth, consistent performance at high throttle under load

Specifications

Performance (From Datasheet)

HQ 10×4.5×3 Prop @ 100% Throttle

• Pull: 4149g

• Power: 1366.1W

• Efficiency: 3.07 g/W

• Temperature: 86°C

HQ 9×4×3 Prop @ 100% Throttle

• Pull: 3213g

• Power: 977.6W

• Efficiency: 3.29 g/W

• Temperature: 74°C

HQ 8×4×3 Prop @ 100% Throttle

• Pull: 2355g

• Power: 718.8W

• Efficiency: 3.28 g/W

• Temperature: 46°C

Recommended Use

Perfect for 6S-powered long-range, cinematic FPV drones such as X8 or heavy-duty quads carrying GoPro, Insta360, or naked Blackmagic/RED systems. Best with 8"–10" tri-blade props.

Packing List

• 1 × XING-E 3314 900KV Brushless Motor

• 4 × M3*10 Screws

• 1 × M5 Flange Nut

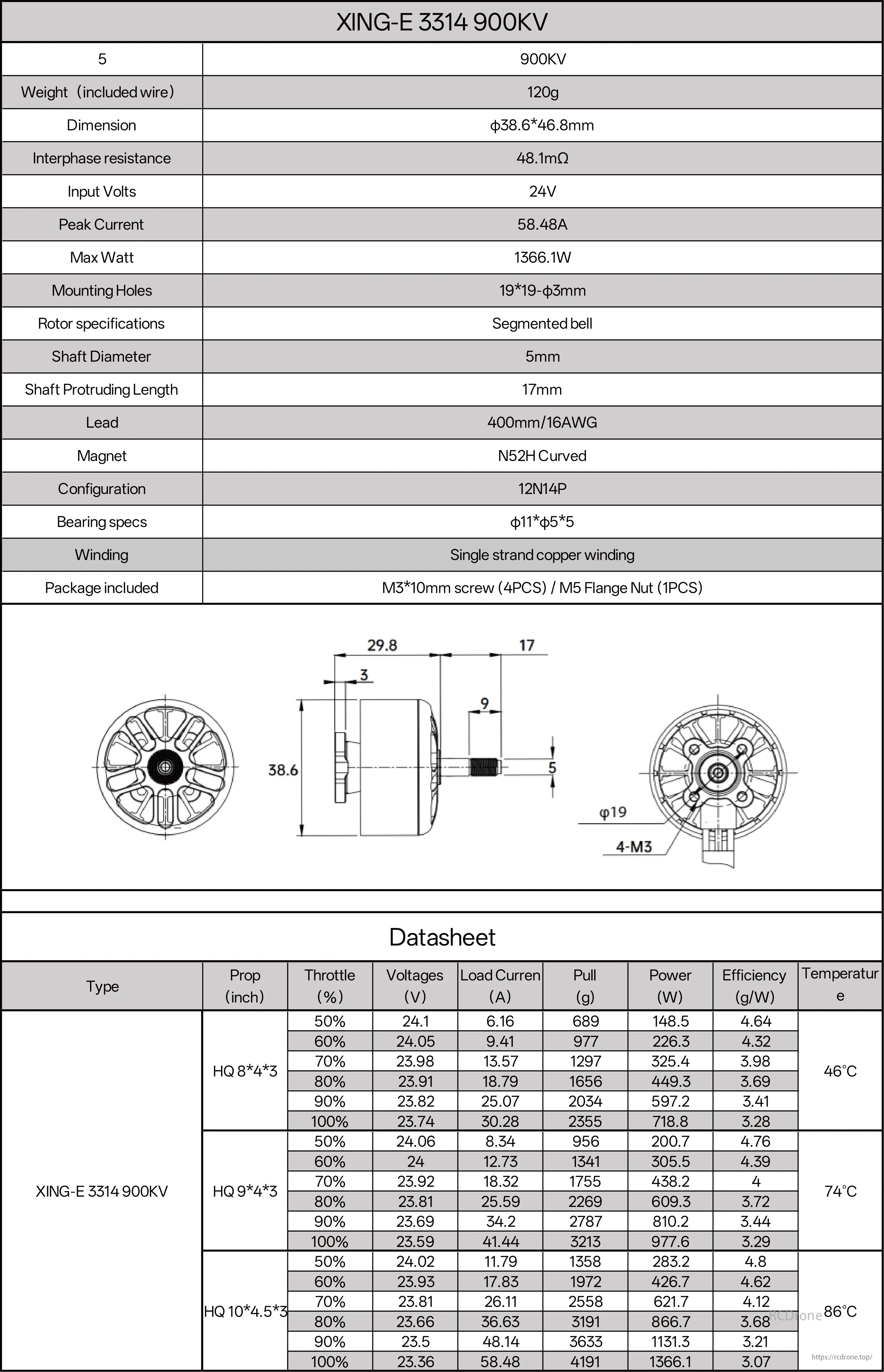

Datasheet

XING-E 3314 900KV motor: 120g, 38.6x46.8mm, 24V, 58.48A peak, 1366.1W max power. Comes with M3 screws, M5 nut. Datasheet provides HQ props performance at different throttle settings.
