iFlight XING NANO 0803 22000KV/17000KV 1S Brushless Motor with Plug for Micro Whoop and Toothpick Drones

Overview

The iFlight XING NANO 0803 Brushless Motor is engineered for high-speed 1S micro drones like 65mm–75mm whoops and lightweight toothpick builds. Available in both 22000KV and 17000KV options, this motor offers ultra-responsive power in a compact 2.1g package. It features a 9N12P stator design, precision NSK bearings, and curved N52H magnets for smooth, efficient operation. With a peak current of up to 5.81A and a maximum power output of 23.2W, the XING NANO 0803 delivers strong thrust and crisp throttle response.

Specifications

Performance Data (22000KV @ 4.0V)

Key Features

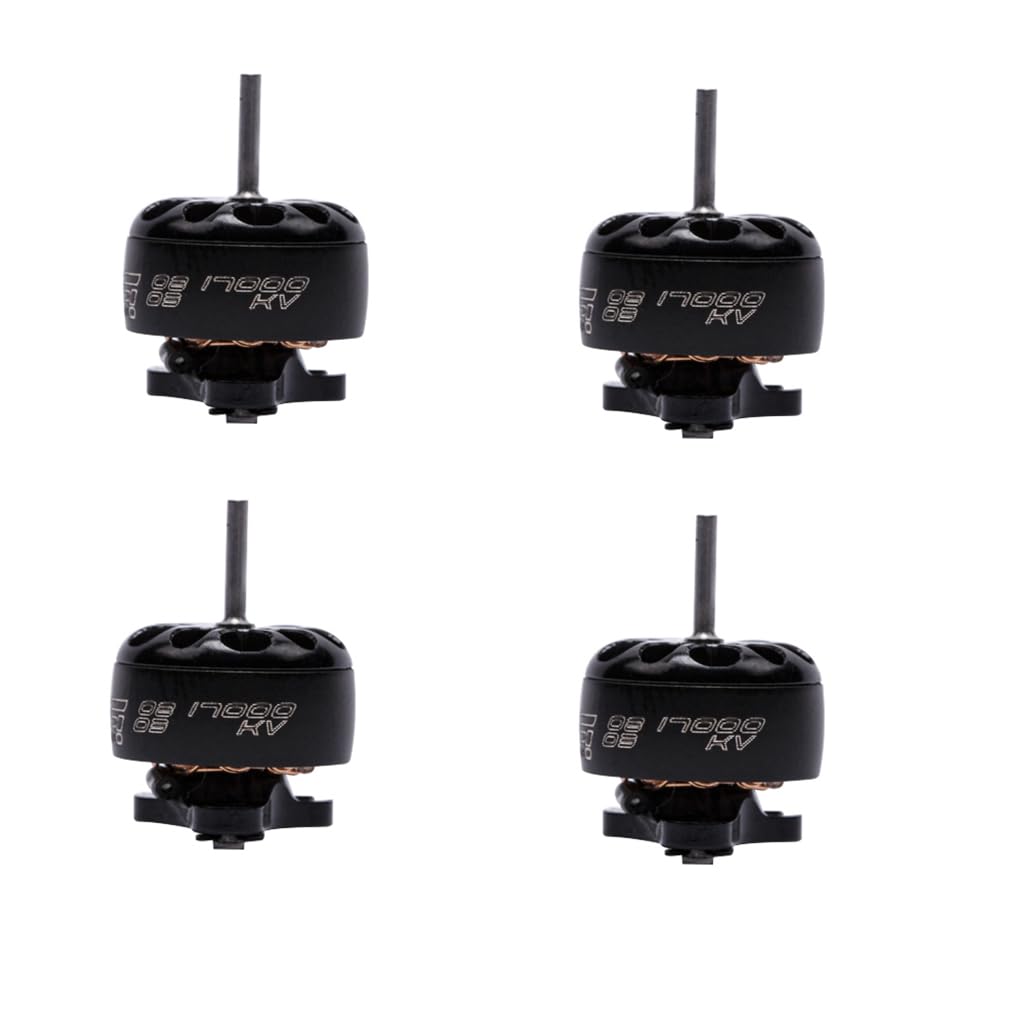

• Available in 17000KV and 22000KV to match different flight styles.

• NSK bearings and N52H curved magnets ensure durability and smooth RPM performance.

• Designed for 1S builds, ideal for lightweight freestyle whoops and toothpick drones.

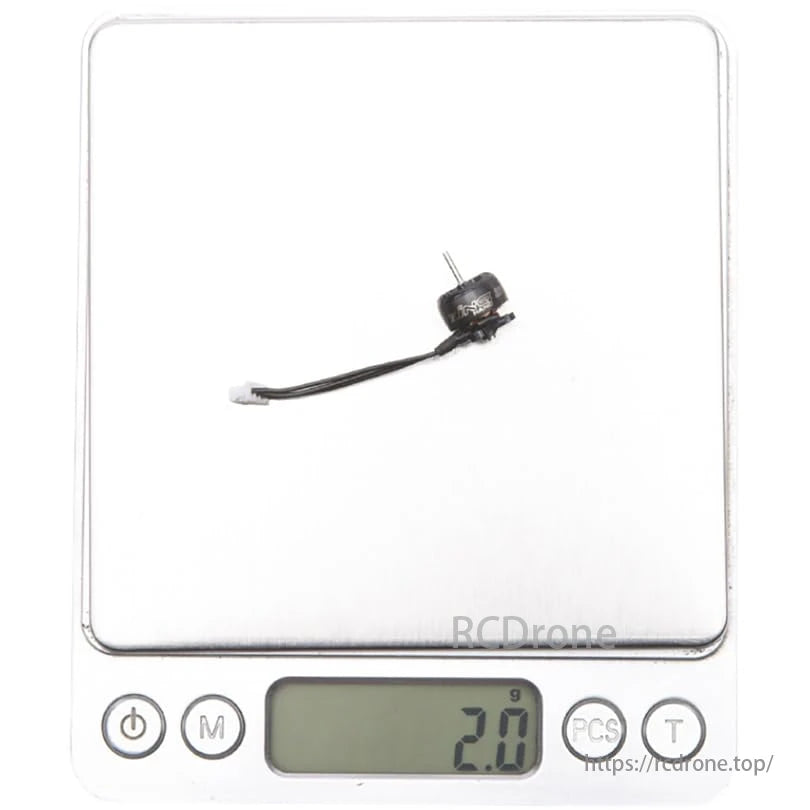

• Compact and lightweight at only 2.1g including wires.

• Optimized for GF 40mm and GF 1220 propellers.

Package Includes

• 1 × iFlight XING NANO 0803 Brushless Motor (w/ plug)

• 1 × M1.4×3mm Motor Screw Pack

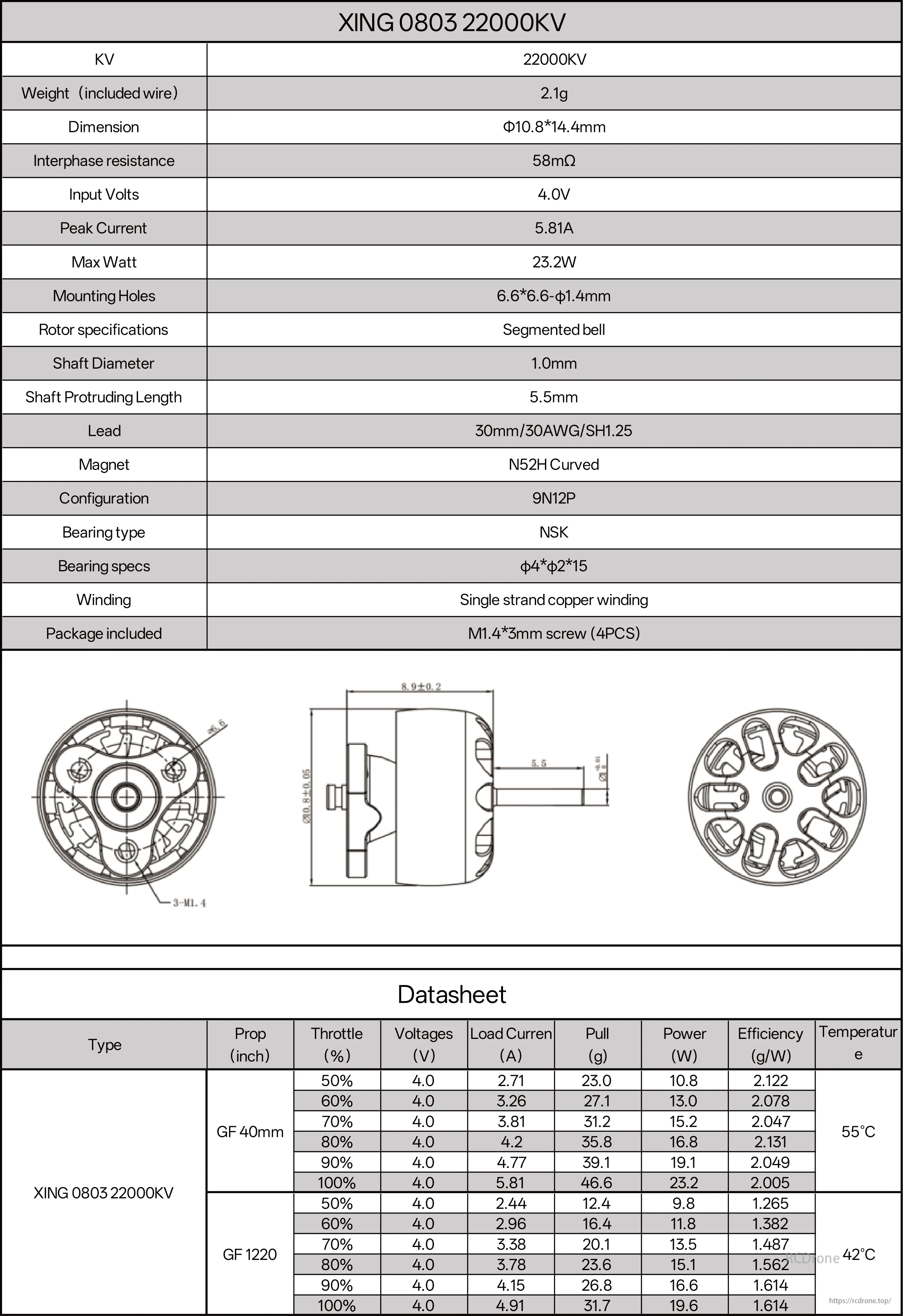

Test Data

XING 0803 22000KV motor specs: 2.1g weight, 10.8*14.4mm dimension, 58mΩ interphase resistance. Input volts: 4.0V, peak current: 5.81A, max watt: 23.2W. Rotor specs include segmented bell, shaft diameter: 1.0mm, and bearing type NSK.
