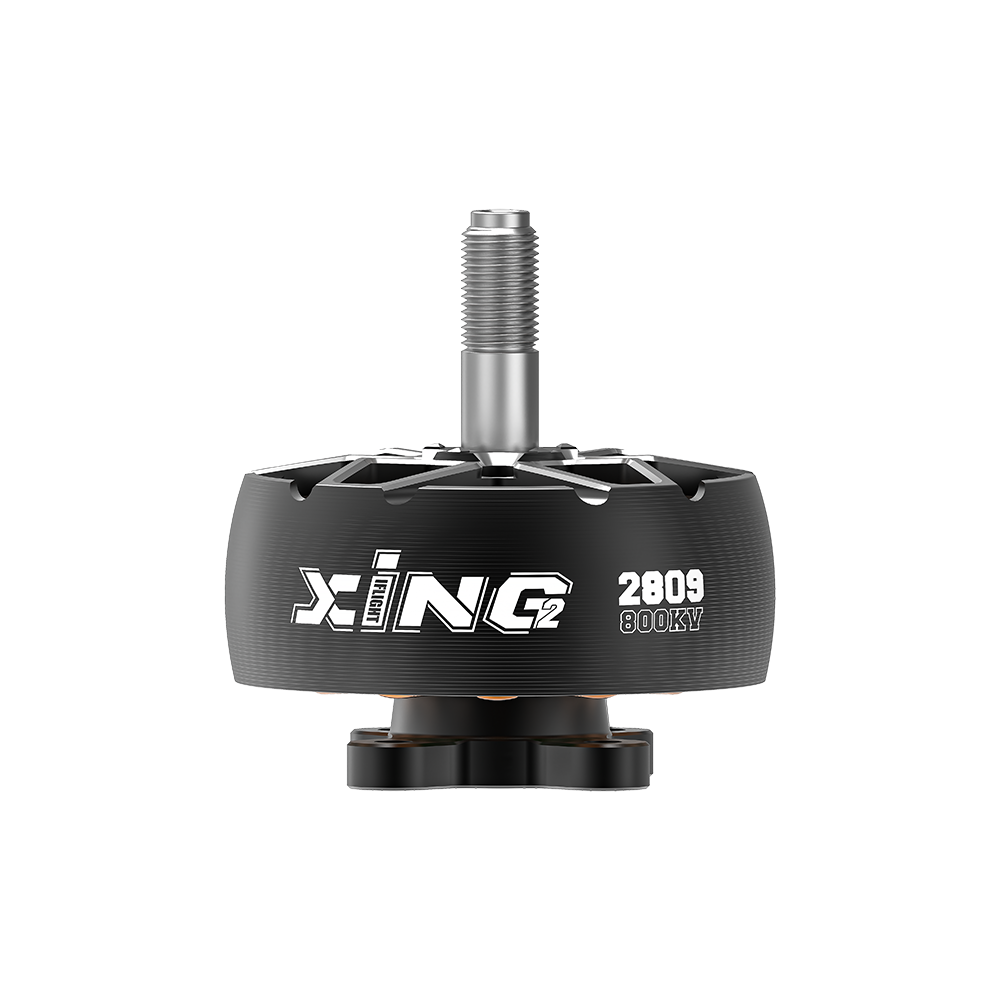

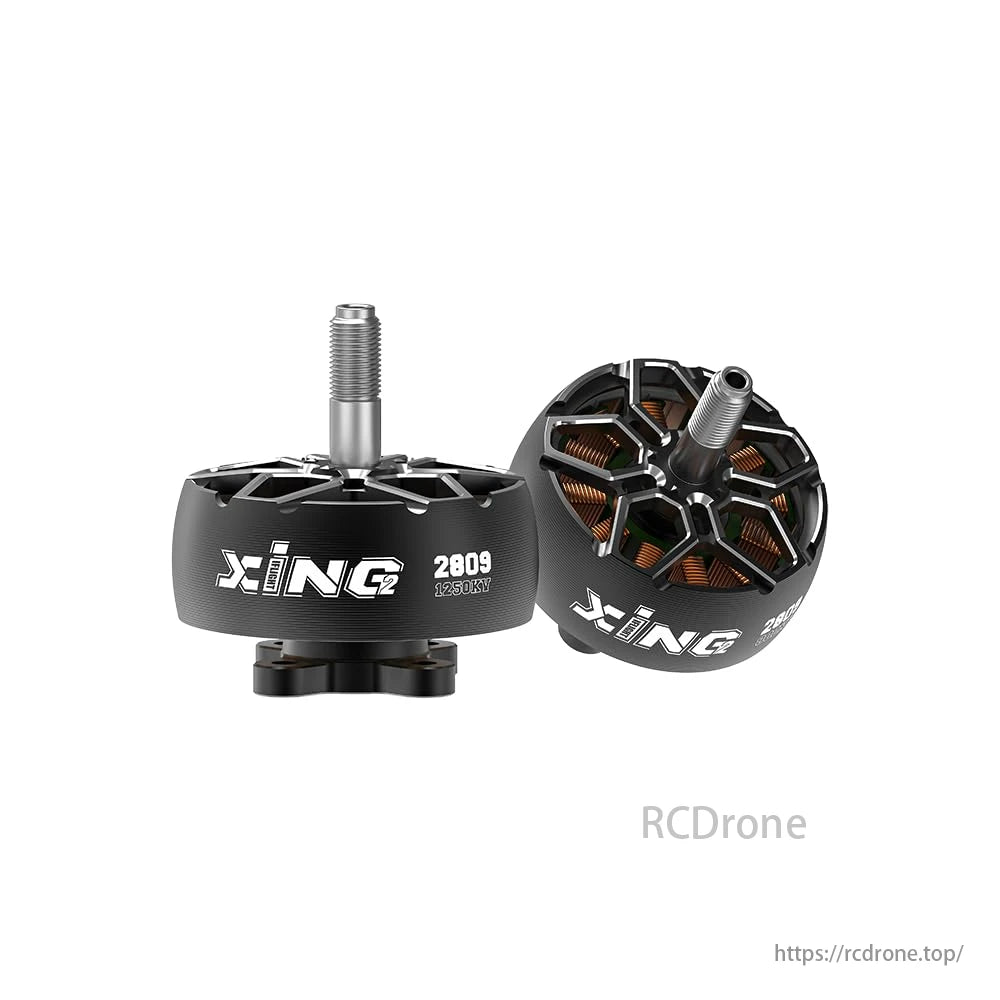

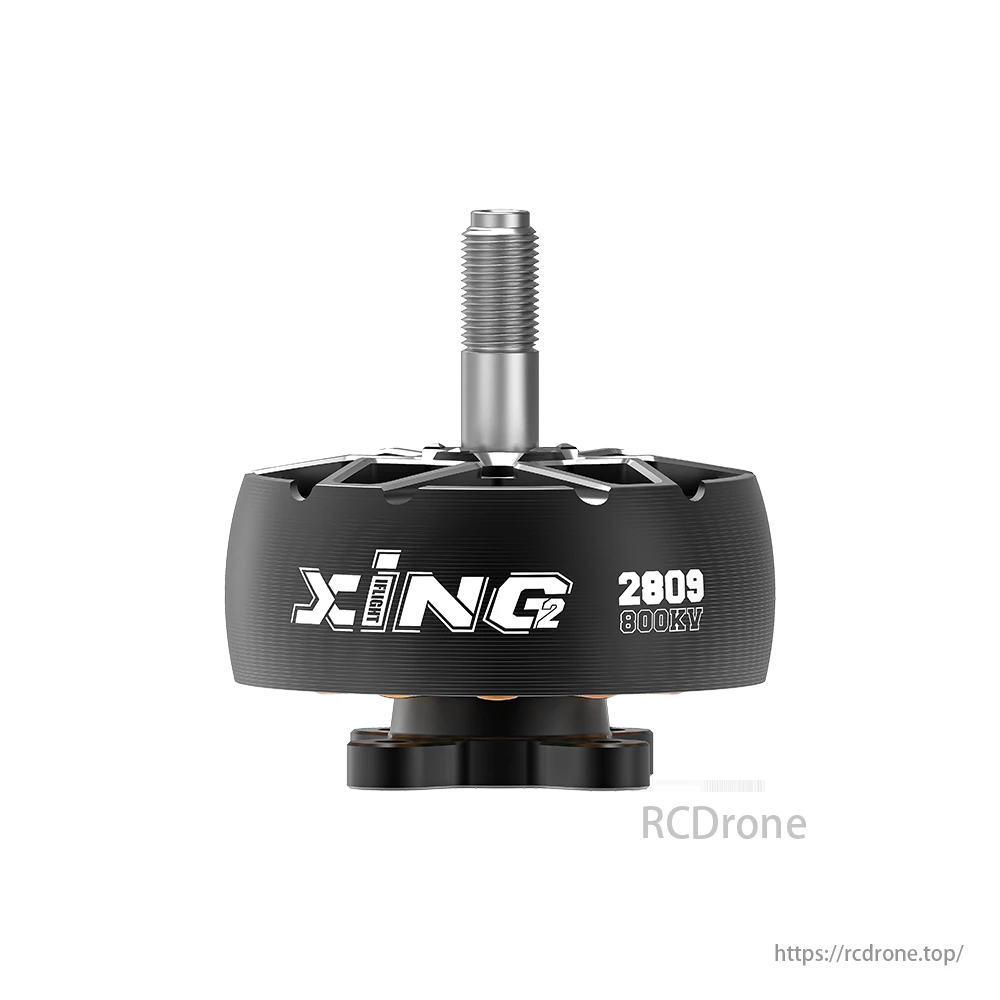

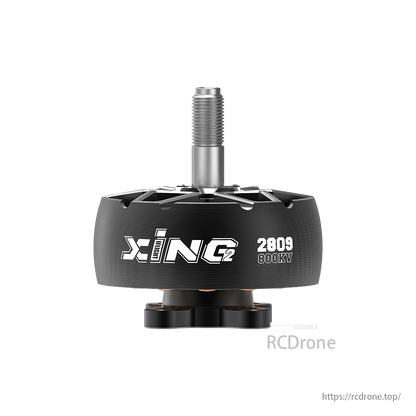

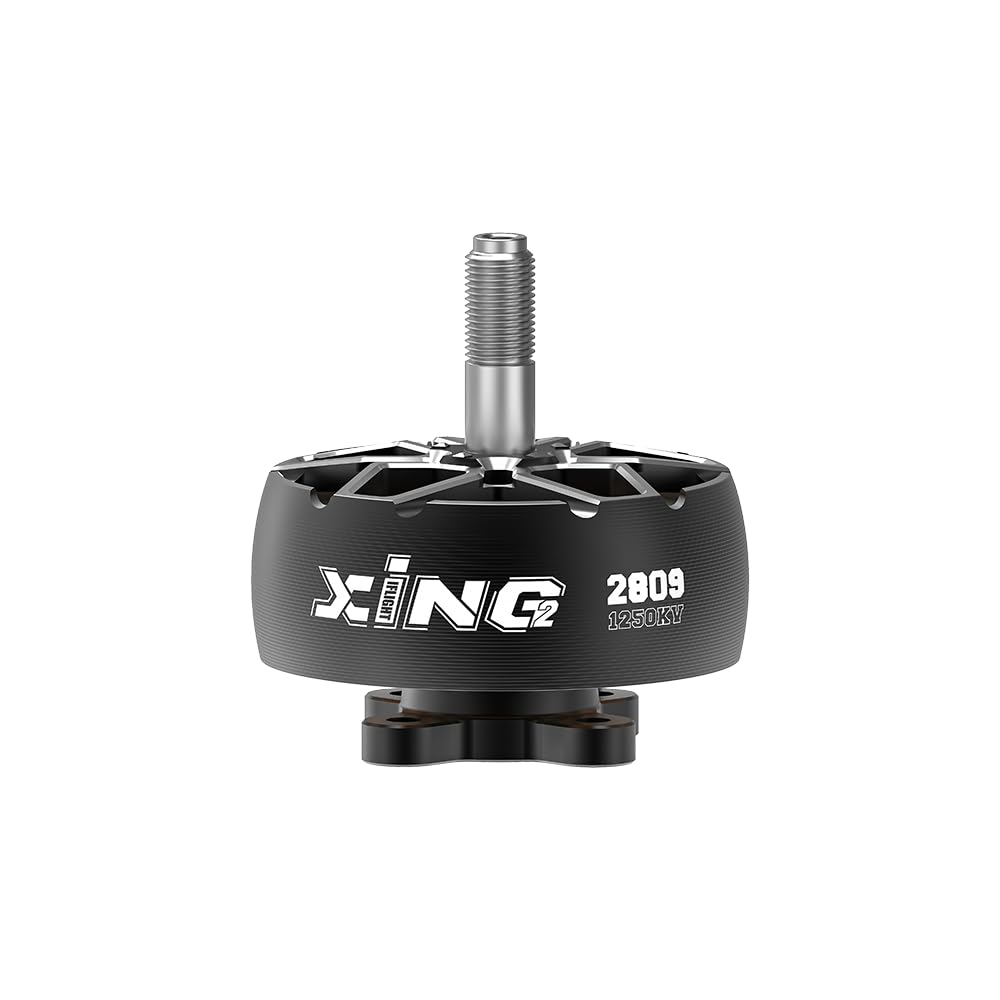

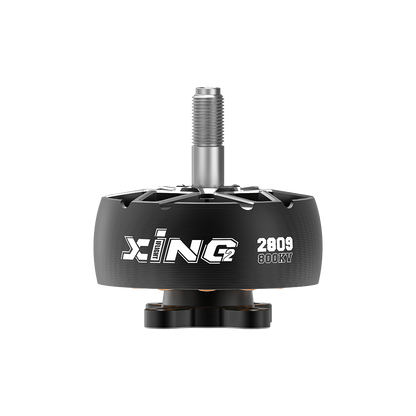

iFlight XING2 2809 Cinelifter Motor 800KV / 1250KV / 1600KV – For 6S 7-Inch to 10-Inch FPV Drones, 5mm Shaft

Overview

The iFlight XING2 2809 Brushless Motor is engineered for Cinelifter builds and large-format FPV drones, offering unmatched torque and thrust for carrying heavy payloads such as full-size GoPros, RED cameras, or Blackmagic rigs. With three KV variants—800KV, 1250KV, and 1600KV—this motor delivers powerful, smooth, and efficient performance for 7-inch to 10-inch drones.

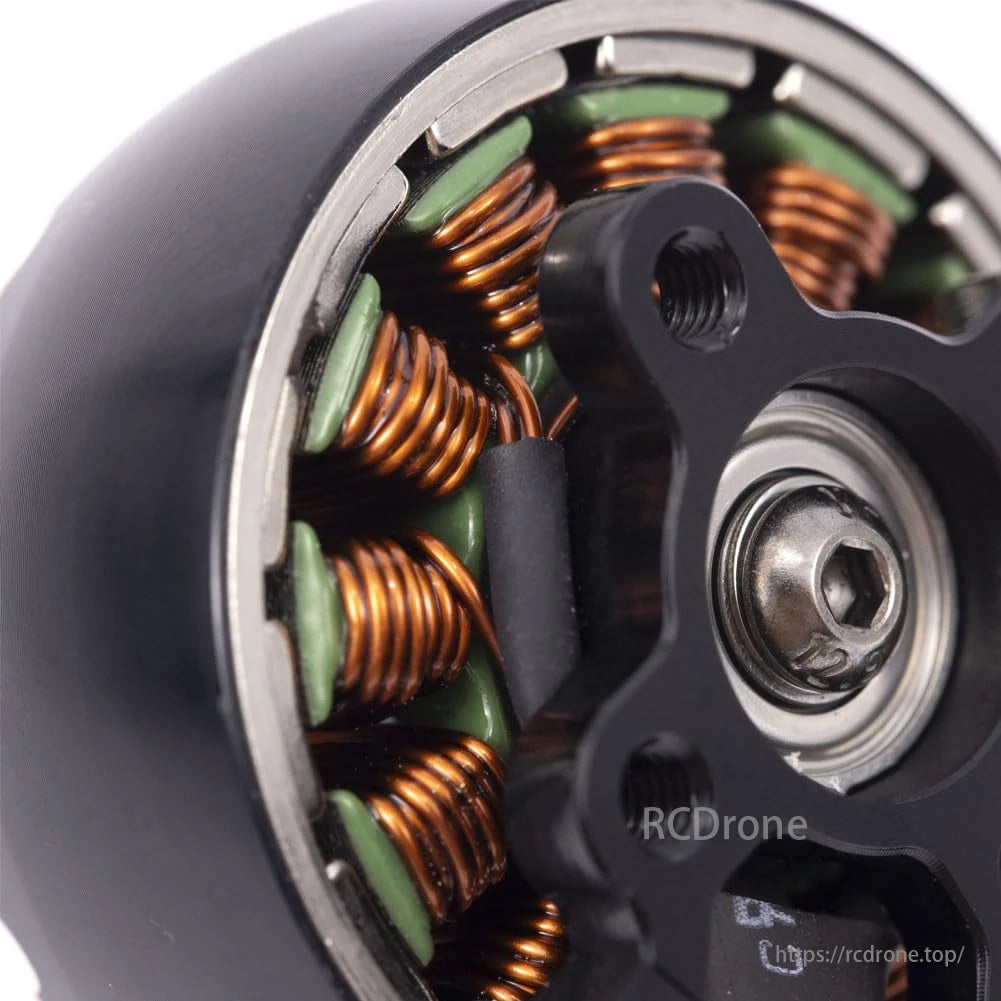

Upgraded with center-slotted N52H curved arc magnets, a crash-resistant 7075 aluminum Unibell bell, and NSK 11x5x5 bearings, the XING2 2809 reduces response lag and improves precision in PID control loops. Built for aerial cinematography and power-hungry freestyle, this motor sets the new standard for Cinelifters and long-range heavy-duty drones.

Key Features

• Ideal for 7"–10" Cinelifter & Heavy-Lift FPV Drones

• 5mm Titanium Alloy Shaft – Ultra-strong and crash-tolerant.

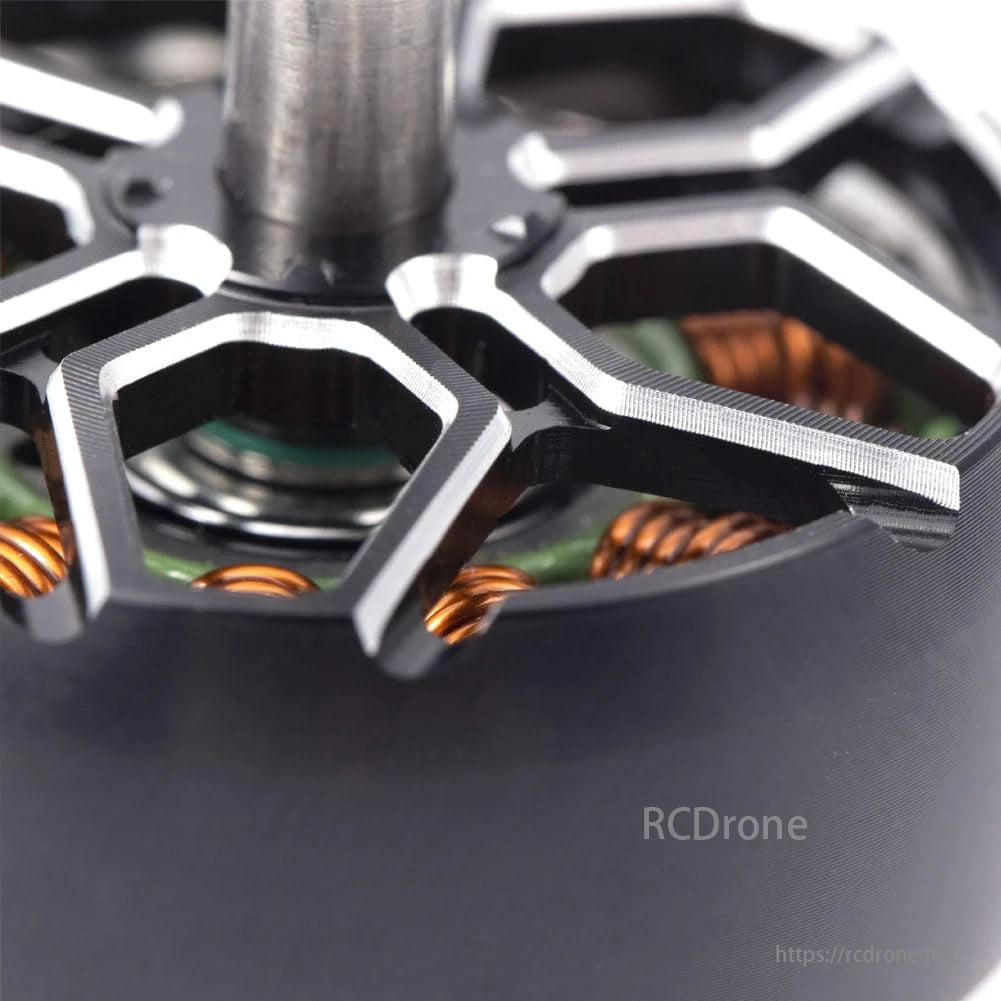

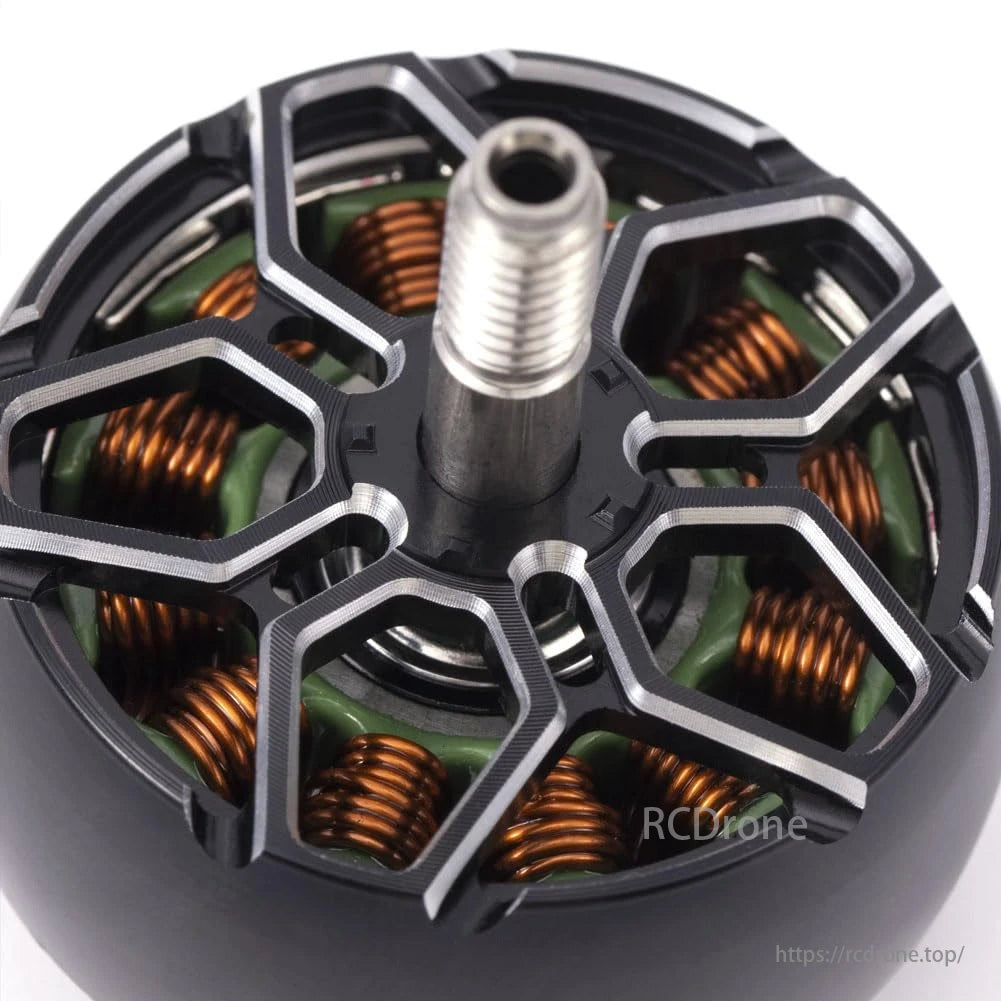

• Unibell Design with 7075 Aluminum Bell – Improved rigidity and impact resistance.

• Center-slotted N52H Arc Magnets – Boost throttle response and torque.

• NSK 11x5x5 Bearings – Smooth, quiet operation with extended life.

• O-ring Bearing Gap Protection – Prevents dust and debris intrusion.

• 260mm 18AWG Silicone Wires – Ideal length for larger frames.

• Dynamically Balanced Rotor – Ensures smooth flight and reduced vibration.

Specifications

General Structure

• Motor Dimensions: φ35.33 × 21.7mm

• Shaft Diameter: 5mm

• Shaft Protruding Length: 15mm

• Mounting Pattern: 19×19mm (M3 screws)

• Magnet Type: N52H Curved

• Configuration: 12N14P

• Lead Wire: 260mm / 18AWG

• Winding: Single-strand copper

• Bearing Type: NSK

• Bearing Spec: φ11×φ5×5mm

• Rotor Type: Unibell CNC Bell

Recommended Pairings

Compatible Drone Sizes

• 7-inch, 8-inch, 9-inch, and 10-inch FPV drones

• Ideal for Cinelifter builds, long-range cruisers, mapping drones, or custom aerial film rigs

Recommended ESCs

• iFlight BLITZ E80 / F60A 4-in-1 ESC

• T-Motor F60A / F80A ESC

• Holybro Tekko32 F60 Pro

Use 60A–80A high-current ESCs with BLHeli_32 firmware for stable operation and thermal headroom under payload stress.

Recommended Propellers

• Gemfan 7037 / 8042 / 9045 / 1045

• HQProp 8x4.5x3 or 9x5x3

• Dalprop T7056C

Match the KV variant with the prop size and drone weight—800KV for 9–10", 1250KV for 7–8", and 1600KV for punchy 7" freestyle setups.

Changelog

• May 5, 2024: Updated included screws from M3×8mm to M3×10mm for better mounting support on thicker arms.

Packing List

• 1 × XING2 2809 Brushless Motor (KV optional)

• 4 × M3×10mm Mounting Screws

• 1 × M5 Flange Nut

Test Report

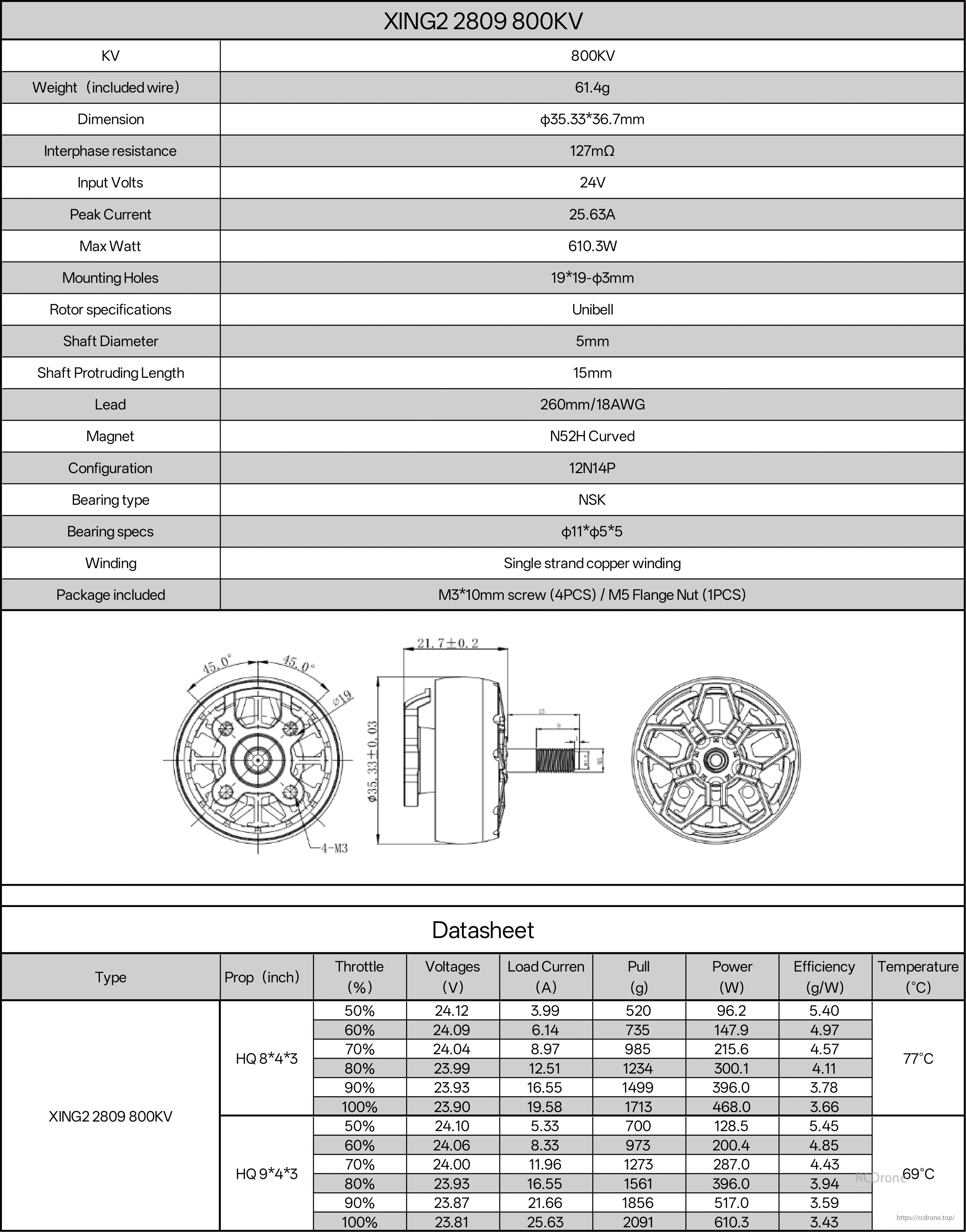

XING2 2809 800KV motor specs: 61.4g, 35.33*36.7mm, 127mΩ, 24V, 25.63A peak, 610.3W max, N52H magnet, 12N14P config, NSK bearings, single strand copper winding. Datasheet includes HQ prop performance at various throttle levels.

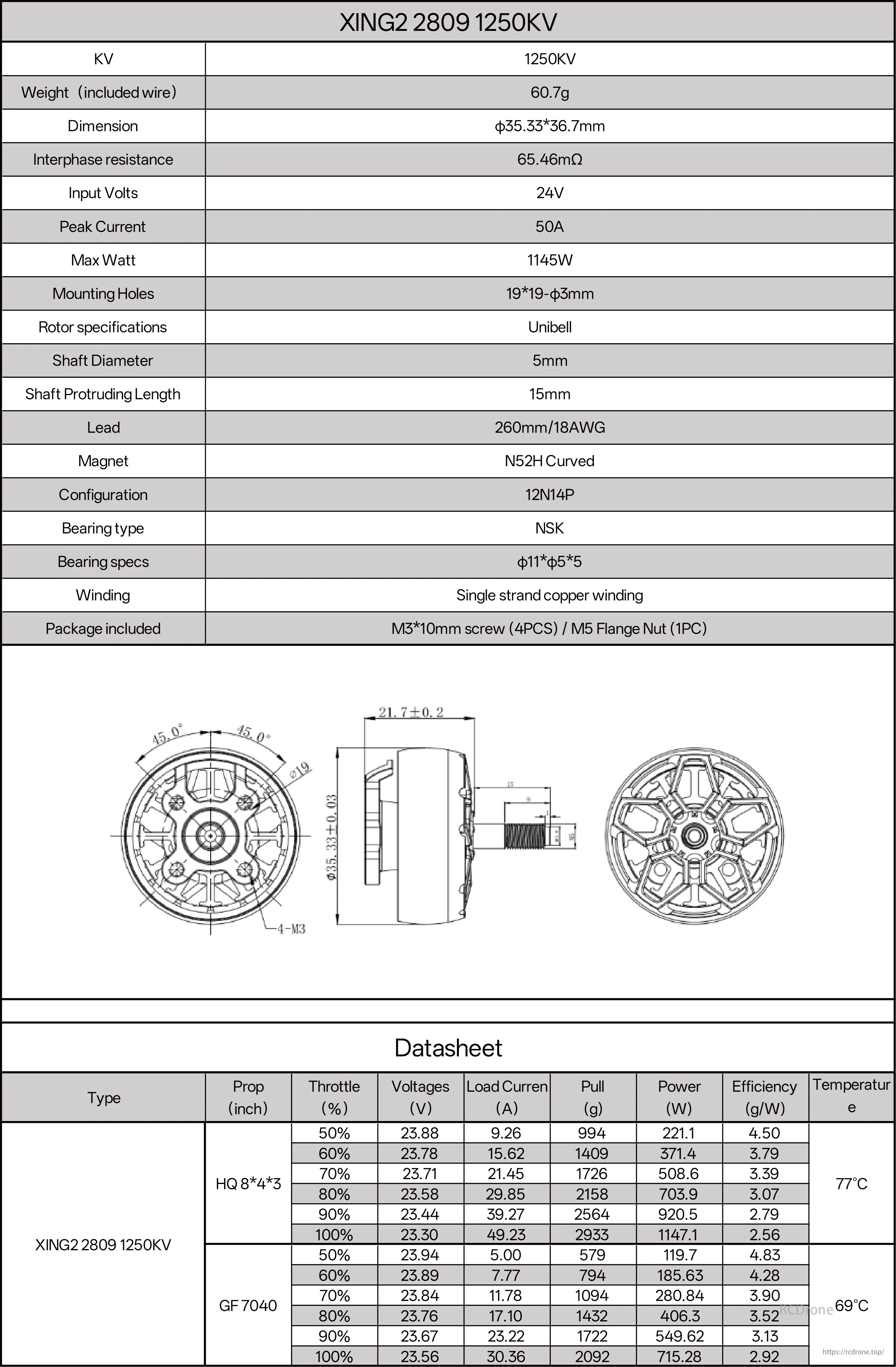

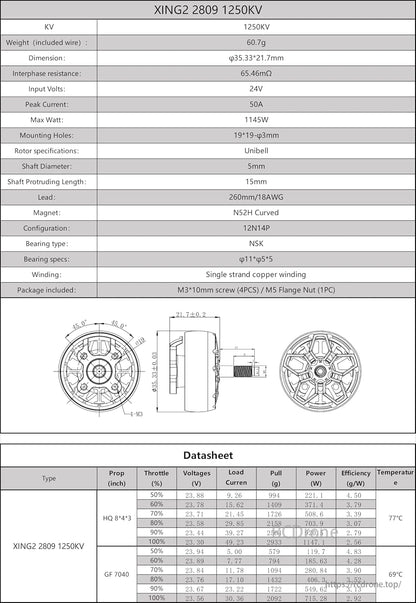

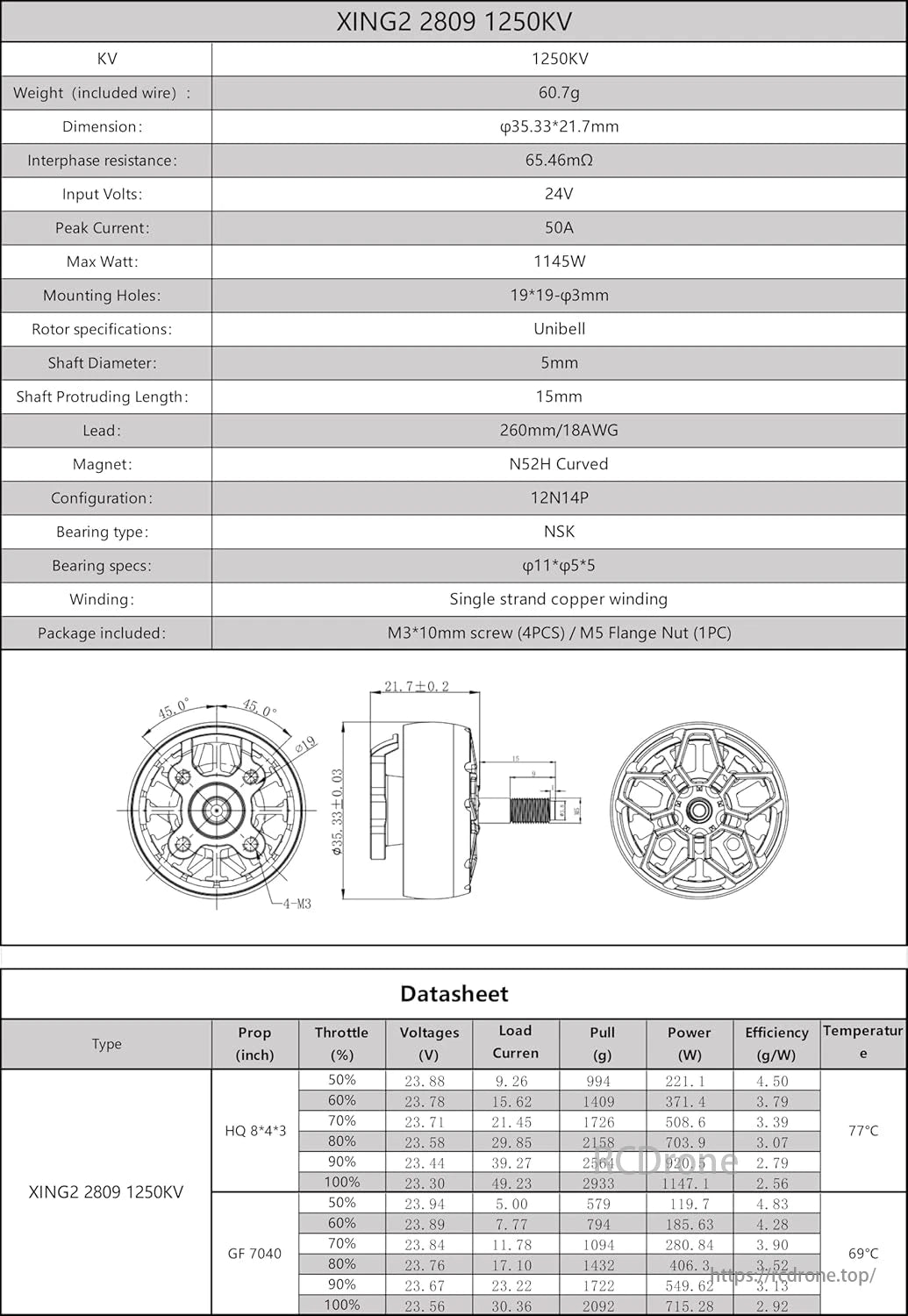

XING2 2809 1250KV motor specs: 60.7g, 35.33x36.7mm, 24V, 50A peak, 1145W max, N52H magnet, NSK bearings, single-strand copper winding. Includes M3 screws and M5 nut. Performance data for HQ 8*4*3 and GF 7040 props at various throttle levels.
