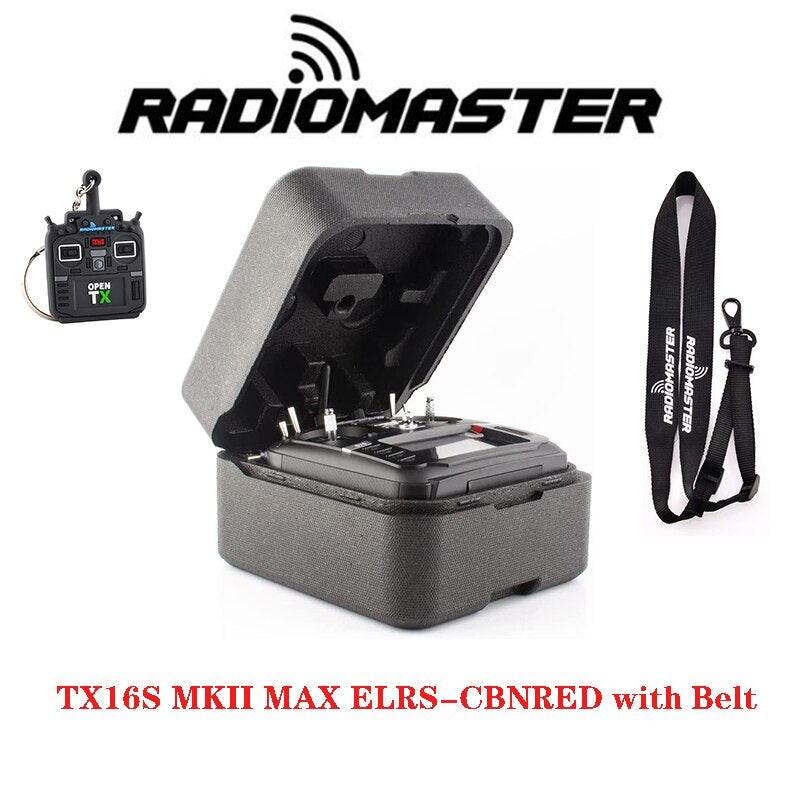

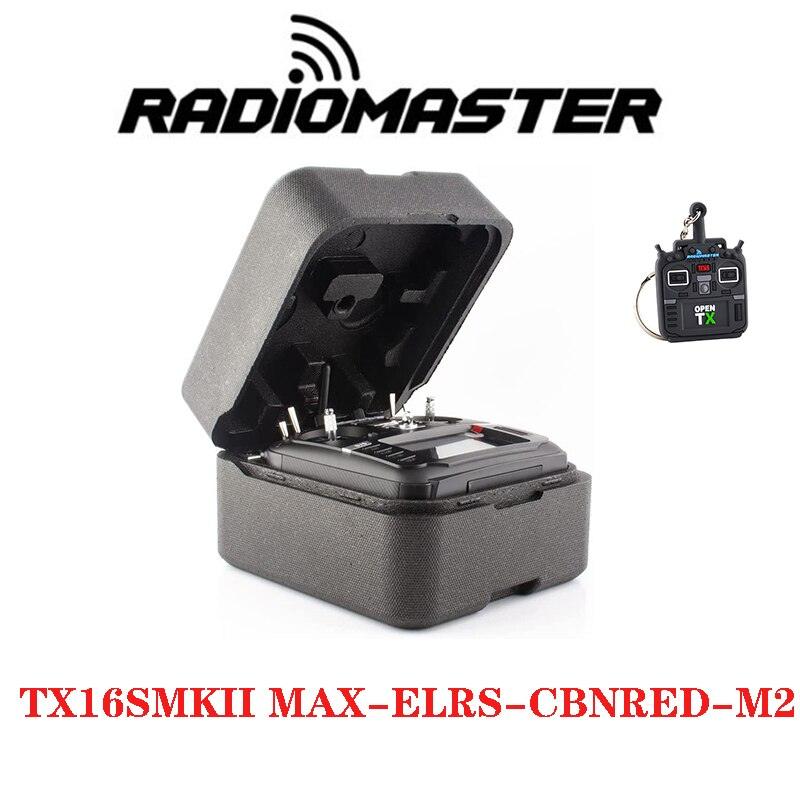

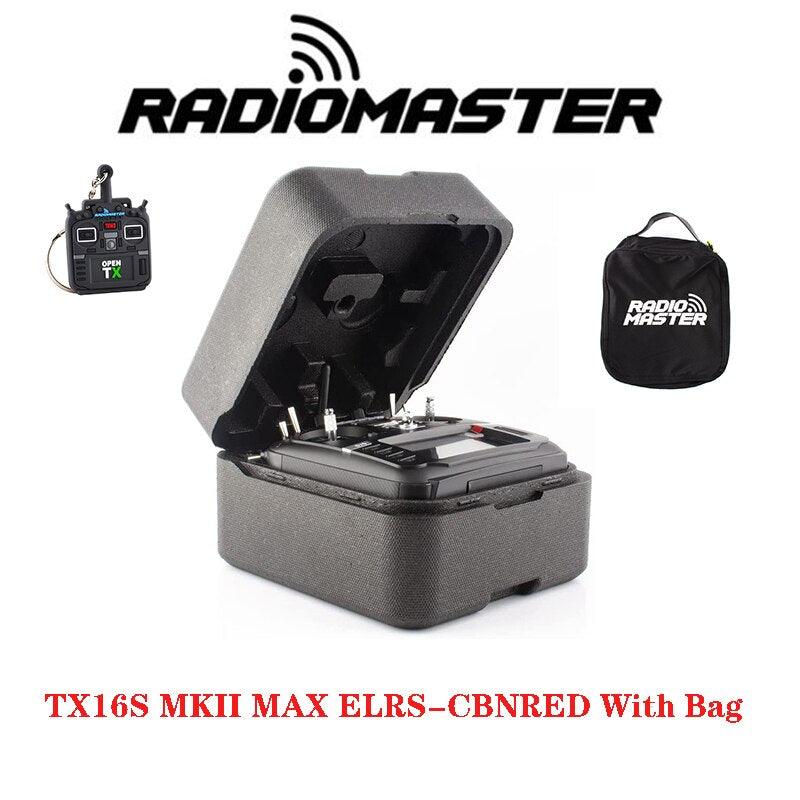

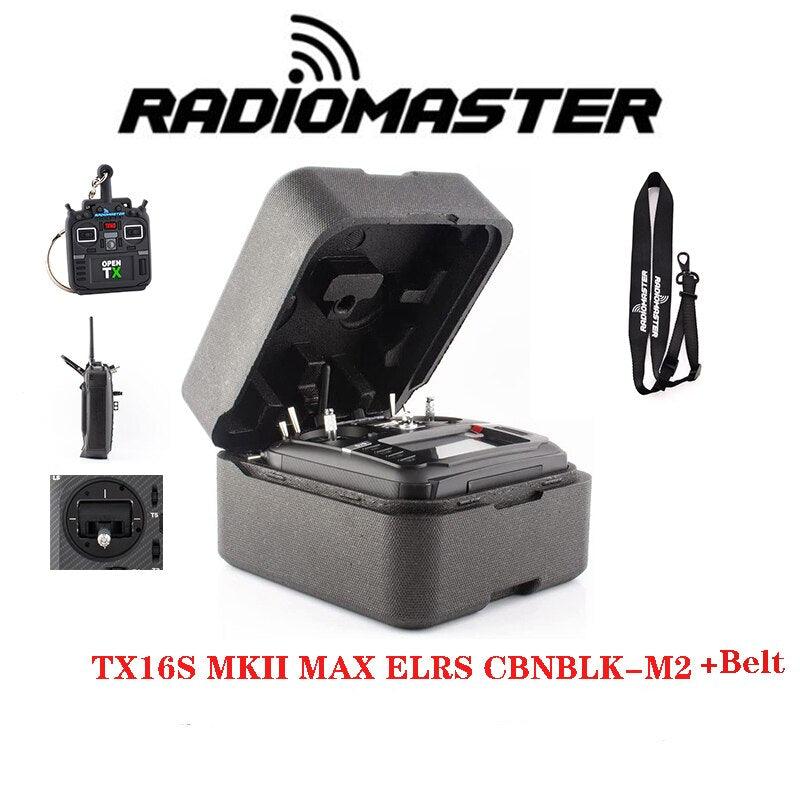

RadioMaster TX16S MKII MAX V4.0 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Origin: Mainland China

Material: Composite Material

SPECS:

Notes:

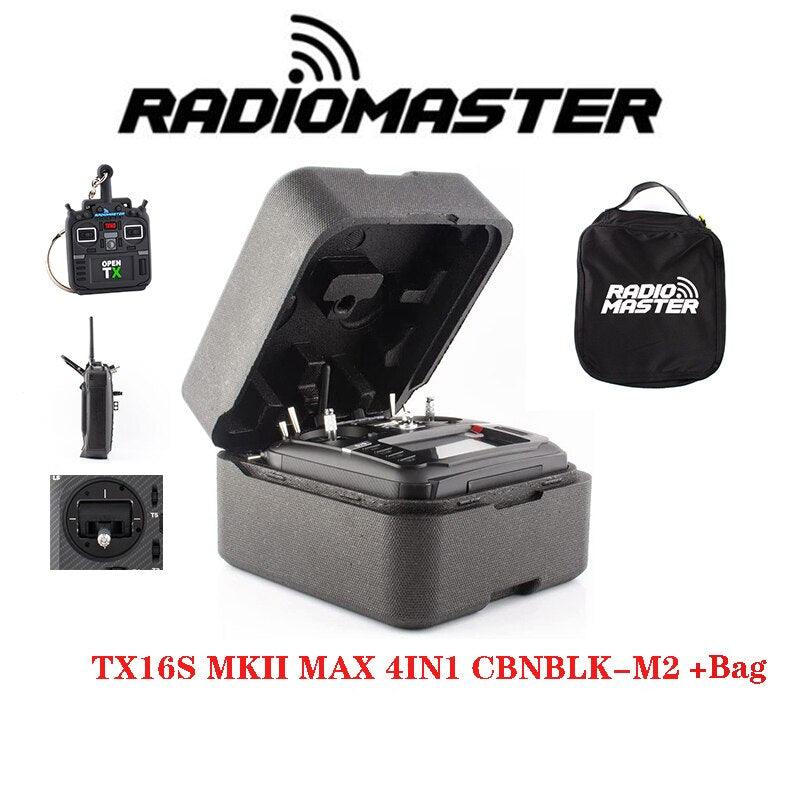

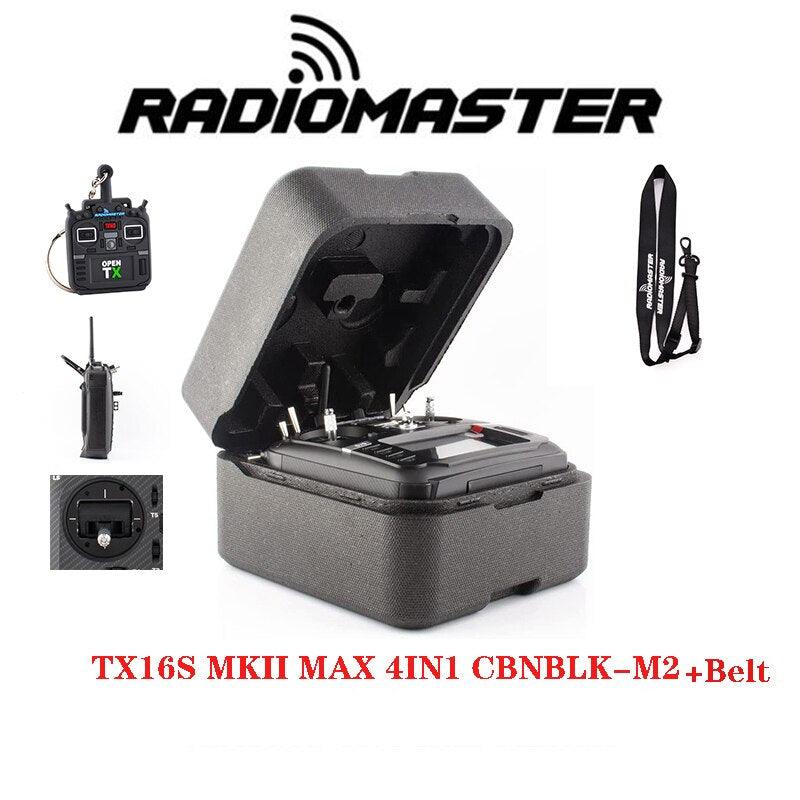

4in1 (standard) Version supports all MPM protocols

ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

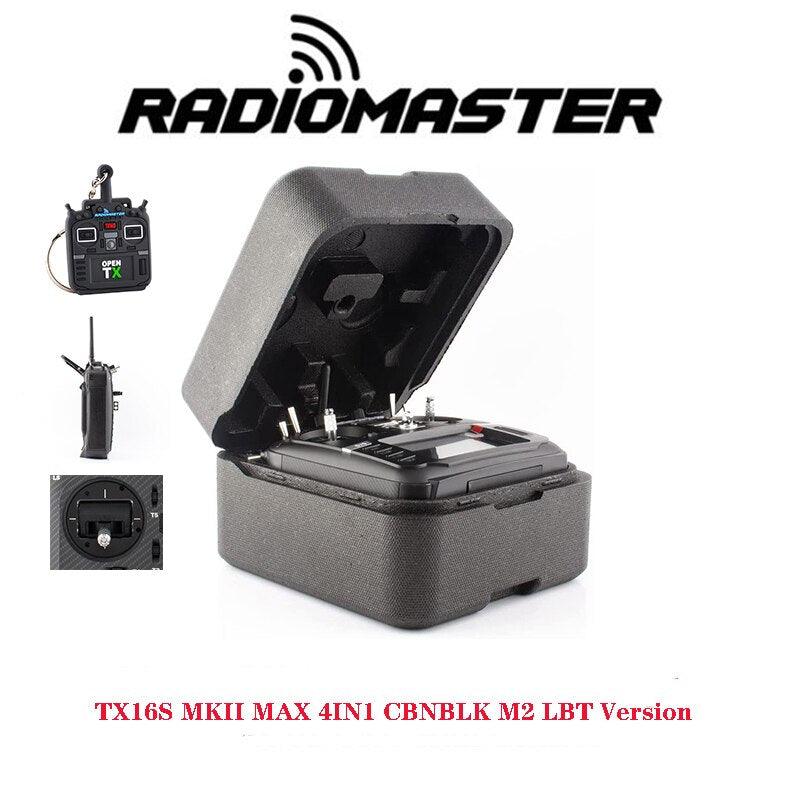

4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power
output)

Size:287x129x184mm

Weight: 750g (without battery)

Transmission frequency: 2.400GHz-2.480GHzTransmitter module:

Option 1: lnternal 4-in-1 multi-protocol module(CC2500 CYRF6936A7105 NRF2401)

Option 2: Internal ELRS(SX1280)Transmitting power:

lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)

lnternal ELRS : Max 250mw(transmieting power is adjustable)

Antenna gain: 2db (transmit power adjustable)Working current: 400mA

Working voltage: 6.6-8.4v DC

Remote control distance:> 2km@ 22dbmRadio firmware: EdgeTX

Module Firmware: Multiprotocol-Module (4IN1) -

OR- ExpressLRS(ELRS)

Channels: up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a

resolution of 480* 272

Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia.

Option 2:AG01 CNC Hall sensor

Module Bay: JR compatible module bay

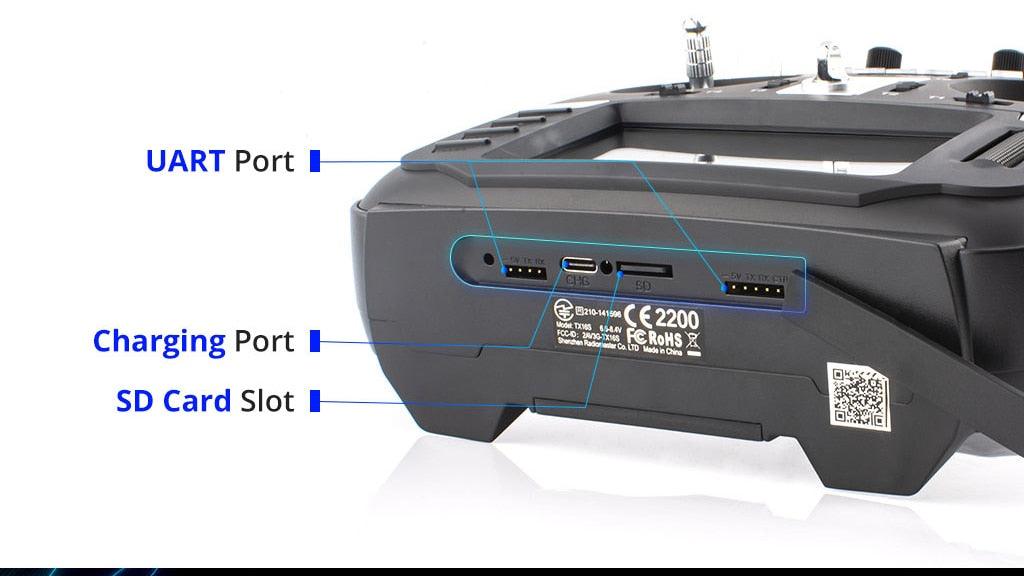

Upgrade method: Supports USB-C online / SD card offline upgrade

IMPROVEMENTS

-lmproved internal circuity and optimized power supply.

· New charge circuitry with integrated reverse-polarity protection.

·Optimized charge lC, better balancing and USB-C charge current management.· Rear mounted audio jack provides headphone output.

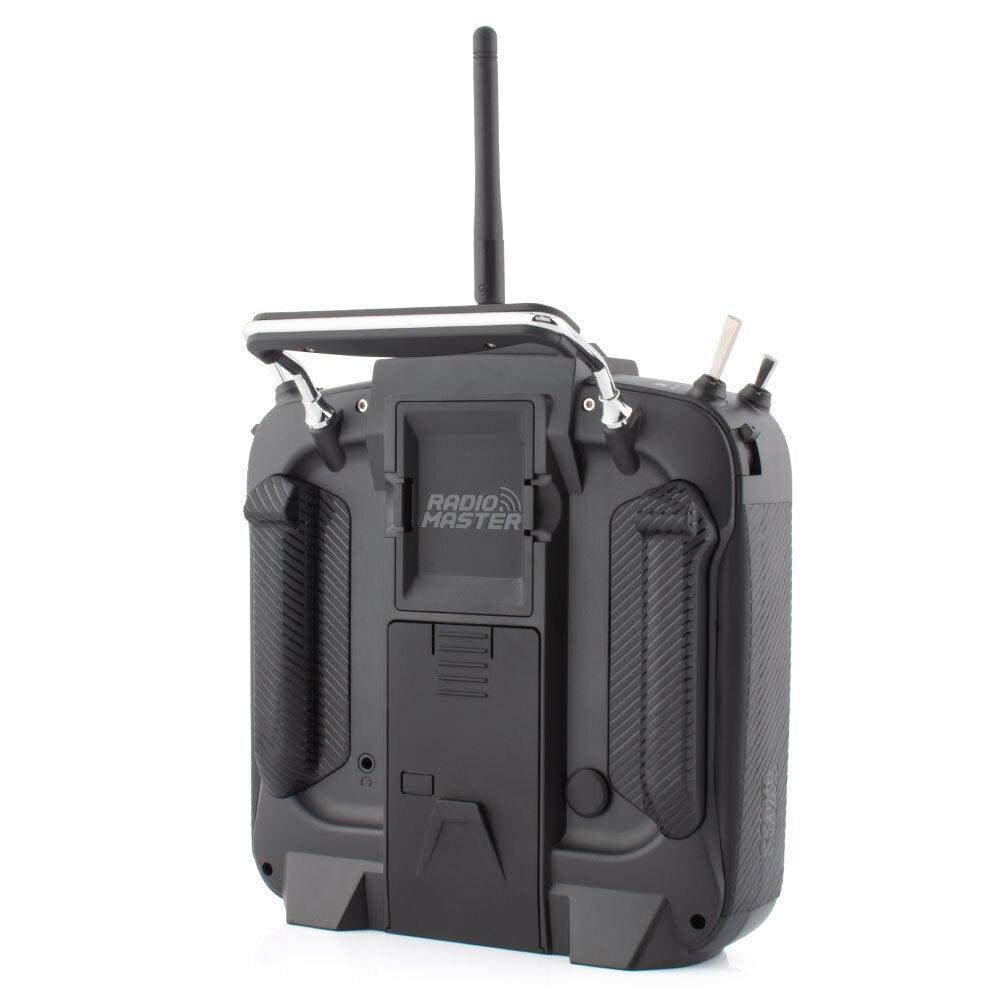

·V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01).- Optional high/low rear grips included for improved ergonomics.

-lmproved S1/S2 knobs with clear centre-detents.

- lmproved LS/Rs Sliders with smoother feel and better centre-detents.- Redesigned battery cover for improved battery access.

- Retooled body shell with improved fit and finish.

- Trainer socket changed to standard TRS 3.5mm socket. Rear DrY Socket added for personalised mods.

- improved internal plastics for better longevity.- Available ELRS and 4in1 versions.

MAX units feature carbon look face plates and CNC finishing components and buttons.

RadioMASTER TX16S Mark II ELRS 4INI ViAAO IOPEN edge TX TX SUPPORTS EDGETX AND OPENTX AVAILABLE 4ini AND ELR VERSIONS MULti 480k7 (334 Max 'NEW V4,0 HALL GIMBALS Adiustable without disassembly'
