TeamBlackSheep TBS TANGO 2 PRO V3 V4 SPECIFICATIONS

Weight: 0.5kg

Size: 0

Package: Yes

Origin: Mainland China

Model Number: 0

Compatible Drone Model: TeamBlackSheep

Compatible Drone Brand: TeamBlackSheep

Brand Name: CARBIG

TBS TANGO2 Pro V3 or V4 shipping randomly

NOTE：Dear customer,thank you for you support.This is pre order,please extend 20 days processing time for us after you paid,otherwise it will colse and refund ,thank you for your understnading.

REDEFINING THE REMOTE CONTROL

Team BlackSheep has been at the forefront of perfecting the interface between FPV drone and mind. The TBS Tango 2 changes how radio remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size hall gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 & 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It’s not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

CROSSFIRE INSIDE

The first radio with TBS Crossfire built in. This significantly lowers your cost, increases reliability and minimizes set up time. And the cherry on top are the LUA scripts being part of the familiar user interface. The antenna swivels out of the way, or doubles as a kick-stand when resting. TBS Cloud ready to go from the start. It all just makes sense.

FEATURES

Full size hall sensor gimbals

Ball-bearing

Configurable resistance and tension

Adjustable throttle & pitch throw (+/- 10 degrees)

Spare spring set included for lower tension

Foldable gimbal sticks (Pro only)

Ergonomic and compact design with comfy rubber grips

Robust, streamlined switches

2x 2-position switches

2x 3-position switches

2x momentary buttons

TBS Crossfire built-in

CRSFShot for lowest latency and most direct response of any remote control available

Range of up to 30km / 20mi from the palm of your hand

Swivel-antenna that doubles as a kick-stand

Up to 12 channels supported

Built-in 5000mAh 1S LiPo with USB-C 2A charging (2.5 hours for full charge)

Speech audio output with audio jack & haptic vibration alert

Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)

Rocker dial and 3 button menu for super simple navigation

High resolution (128*96) black & white OLED screen w/ backlight

Digital rocker dial trim

100+ model memory with included SD-card

TBS Cloud compatible

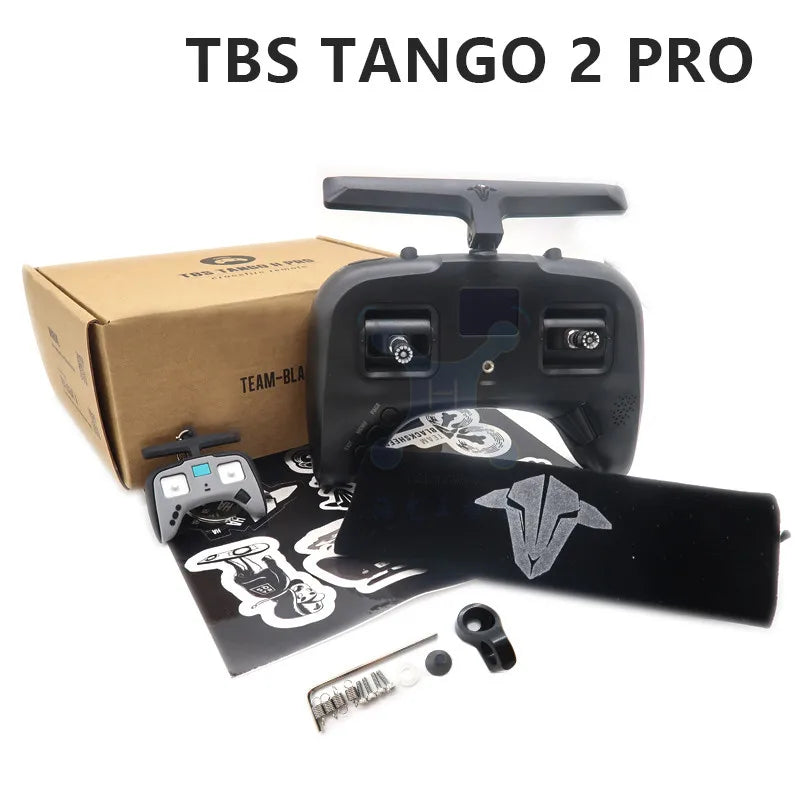

TBS TANGO 2 PRO INCLUDES

1 x Tango 2 Pro

1 x Velvet Carry Bag with TBS Logo

1 x Springs Set (Lower Tension)

2 x Throttle limitation screws (with allen key)

1 x Sticker Sheet

1 x Tango 2 3D KeyChain (will only be included in the first run)

1 x Tango 2 Neck Strap Mount

MORE INFORMATION

Self-support (FAQ)

TBS Tango 2 Manual

TBS Tango 2 Manual – German

Lanyard mount 3D print download

FreedomTX source code

Tango2 SD Card Contents download(For Freedom TX 1.0X)

Tango2 SD Card Contents download(2020-04-03) (For Freedom TX 1.1X)

Tango 2 SD Card Contents donwload(For Freedom TX 1.2x)

TBS Cloud – Wifi Firmware
